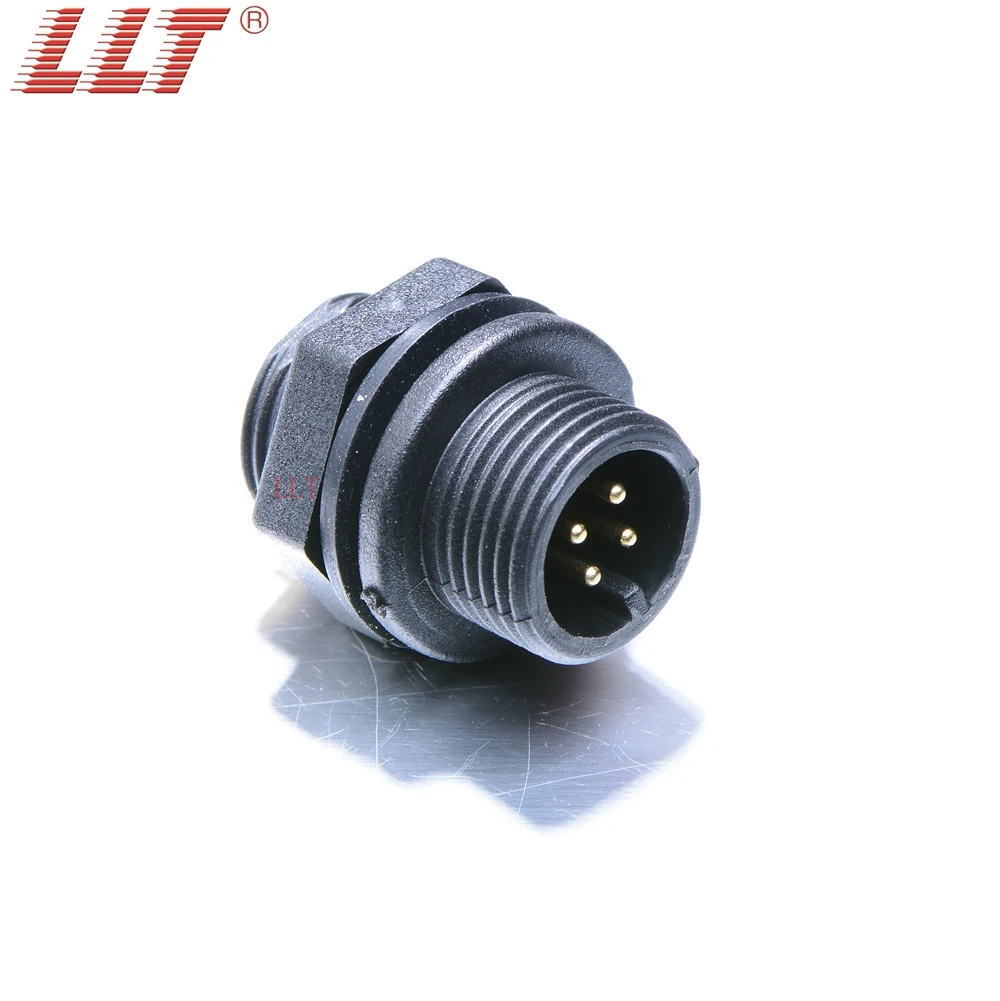

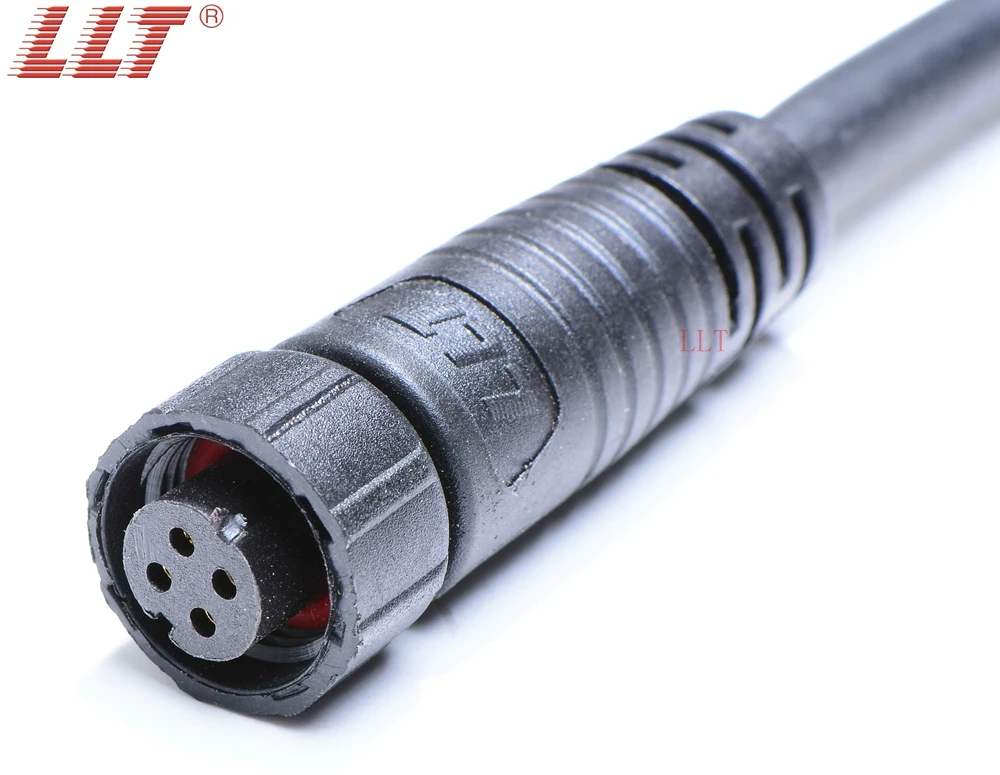

M12 панель и кабельный разъем 4 контактный светодиодный постоянный ток переменный 3 4 5 6 7 8 контактный IP65 IP67 Водонепроницаемый Кабельный
- Категория: >>>
- Поставщик: Shenzhen Lilutong Electronic Technology Co. Ltd.
Сохранить в закладки 1600322694031:
Описание и отзывы
Характеристики
Product Description
Specification:
Model number:LLT-M12-10004F3054
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:300V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:300V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-8.0mm
Terminal attach wire:Solder
Pin Number | Voltage Rating | Current Rating | Contact Resistance | Insulation Resistance | IP Code | Cable Range | Breakdown Voltage |
2 | 300V | 10A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
3 | 300V | 10A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
4 | 300V | 10A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
5 | 60V | 5A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
6 | 60V | 5A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
7 | 60V | 5A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
8 | 60V | 5A | <=10mΩ | 1000MΩ | IP67 | <=8.0mm | 1.5KV/1 minute |
Production Photos
Production Advantage
1.Water circular connectors can connect electrical products perfectly .
2.Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001.
3.Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃.
4.We have got REACH certification ,Environmental connector is worthy of your reliable.
5.Every product will be inspected strictly ,we guarantee its good quality before delivery.
6.100% QC inspection before delivery .
7.Best quality & best service wtih a relative low price.
8.Advanced production equipment & strong technical strength ensure high quality and competitive products.
9. Your inquiry related to our products or price will be replied in 24 hours
10. Accept small order or mix order .trail order welcome
11. Large quantity order will win competitive factory price
12.OEM,ODM,any your customized idea ,we can help you to realize and put into products .
13.Protection you sale market ,idea design and all your private information
14.Fast delivery,2-15 workdays base on your order quantity after payment confirmed
2.Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001.
3.Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃.
4.We have got REACH certification ,Environmental connector is worthy of your reliable.
5.Every product will be inspected strictly ,we guarantee its good quality before delivery.
6.100% QC inspection before delivery .
7.Best quality & best service wtih a relative low price.
8.Advanced production equipment & strong technical strength ensure high quality and competitive products.
9. Your inquiry related to our products or price will be replied in 24 hours
10. Accept small order or mix order .trail order welcome
11. Large quantity order will win competitive factory price
12.OEM,ODM,any your customized idea ,we can help you to realize and put into products .
13.Protection you sale market ,idea design and all your private information
14.Fast delivery,2-15 workdays base on your order quantity after payment confirmed
Connector property
1: Breakdown Voltage:Under the normal temperature and atmospheric pressure,the valid voltage between conductor and insulator is AC 1500V/50Hz,stand 1 min have no breakdown or flashover
2: Insulation Resistance:under the normal temperature and atmospheric pressure,the voltage between conductor and insulator is DC500V,the insulation resistance is more than 100MΩ.
3: Salt Spray Test: the unplug connectors don't be corrosion at the temperature 35±2℃ with 5% NaCl liquor spray test after 48 hours.
4: Waterproof performance:under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened
5: Contact Separating Force:The separating force is 1.0-4.0N
6: Mechanical component life-test: plug and unplug 3000 times permit the plated contact slight abrasion but don't allow to bare the body of the brass. It doesn't affect the function of the connector .
7: Compatibility :The same type connector can plug or unplug freely.
8: Contact Resistance :Less then 10mΩ.
2: Insulation Resistance:under the normal temperature and atmospheric pressure,the voltage between conductor and insulator is DC500V,the insulation resistance is more than 100MΩ.
3: Salt Spray Test: the unplug connectors don't be corrosion at the temperature 35±2℃ with 5% NaCl liquor spray test after 48 hours.
4: Waterproof performance:under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened
5: Contact Separating Force:The separating force is 1.0-4.0N
6: Mechanical component life-test: plug and unplug 3000 times permit the plated contact slight abrasion but don't allow to bare the body of the brass. It doesn't affect the function of the connector .
7: Compatibility :The same type connector can plug or unplug freely.
8: Contact Resistance :Less then 10mΩ.
Why Choose Us
1.We are the leader in the waterproof connector field at China .
2.100% QC inspection before delivery .
3.Best quality & best service wtih a relative low price. .
4.Advanced production equipment & strong technical strength ensure high quality and competitive products.
5.we are one of the most powerful factory in China and our products are exported to many countries and a lot of good review from
customers.
6. OEM,OBM is available.
7.Full Certificate such as UL,CE,TUV,SAA,ROHS,CCC,TS16949,ISO14001 are available.
8.High quality products with 12 months guaranty, best after-sales service 6x24 hours
Certificates
Application
Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technology and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Our Company
LLT TECHNOLOGY INDUSTRY CO., LIMITED is a global large-scale ,well-known waterproof connector production enterprise located at Shenzhen Special Economic Zone which is youngest and enthusiastic city Together with the city grows ,LLT has become the world first-class high tech manufacturer. Master core technology and specilize in different knids of waterproof connector such as M12/M14/M16/M19/M22
M25/M29/M45/T/Y field assembly connector and molded cable connector .Our products are best-sell around whole world and win high appraisal ,reputation from our clients . through around 20 years of unremitting efforts ,Our team is committed to providing customer with low-price and high-quality products as well as professional customer service.Professional team,creative idea,superior products .LLT must be the international famous brand in the waterproof connector field .Looking forward to your cooperation .
M25/M29/M45/T/Y field assembly connector and molded cable connector .Our products are best-sell around whole world and win high appraisal ,reputation from our clients . through around 20 years of unremitting efforts ,Our team is committed to providing customer with low-price and high-quality products as well as professional customer service.Professional team,creative idea,superior products .LLT must be the international famous brand in the waterproof connector field .Looking forward to your cooperation .
Packing & Delivery
Packing :1.plastic bag 2.Carton 3.Wooden Box 4. As customer requirement.
Shipping :There are all kinds of methods of shippment for you to choose,Conpetitive express freight such as DHL/FedEx/UPS.For thoes of mass orders a quote of ocean shipping would be provided too if required .
FAQ
1.Q:Are you a manufacturer or trading company
A:We are a professional manufacturers.Located in NO.1-38,Jiahu Rd,Fuchengao Industrial park ,Pinghu St ,Longgang Distric,Shenzhen City ,Guangdong province ,China .
2.Q:How to buy your products
A:(1) Confirm the cable material
(2)Confirm the core number and core diameter
(3)Choose right pluge according to detailed requirment
(4)Confirm the cable lenghth
(5)Confirm the tail process .
(6) Special process
3.Q:How can I get sample
A:It's my pleasure to offer you sample ,but we only can give you one set for free and the freight should be paid by yourself
4.Q:How many materials you can provide
A:There are some different material from the connector and cable ,We usually use Nylon material to product connector ,PVC/Rubber/PU/Silicone material was used in cable ,of course we can also base on your requirment to choose the material .
5.Q:How does your factory control quality
A: Quality is priority ,LLT people alwasys attach great importance to quality ,controlling from the very beginning to the every end .Our factory has gained ISO9001:2000,We have certification CCC .CE.ROHS.UL,CQC.SGS
This style we have pin range from1 to 8 and 2+2/2+3/2+4 pin. If you are interested in any items ,please let us know freely ,you'll get soonest response. Looking forward to your inquire .
