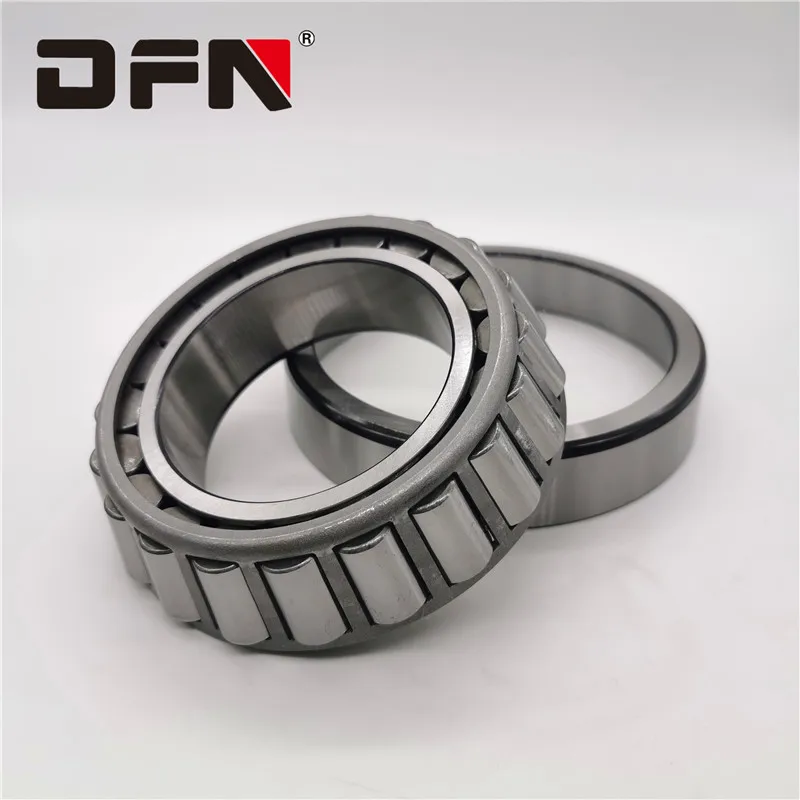

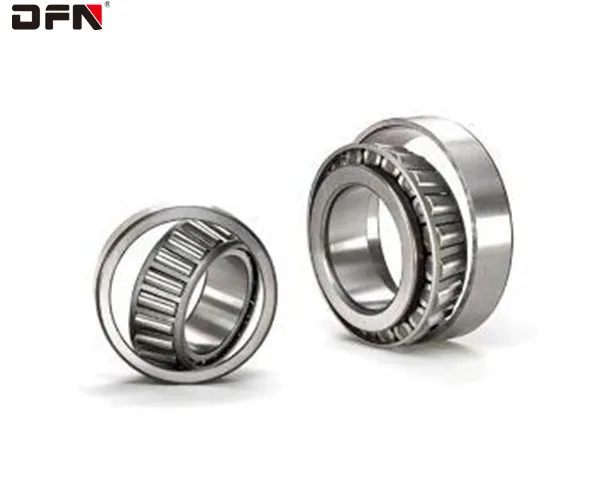

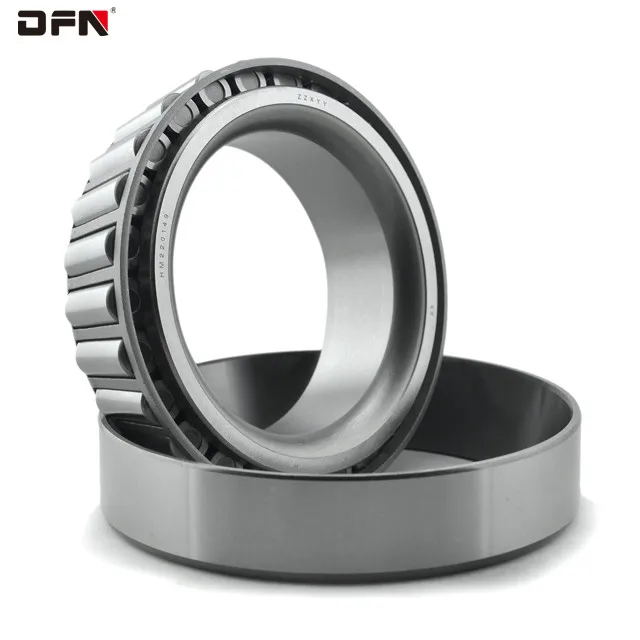

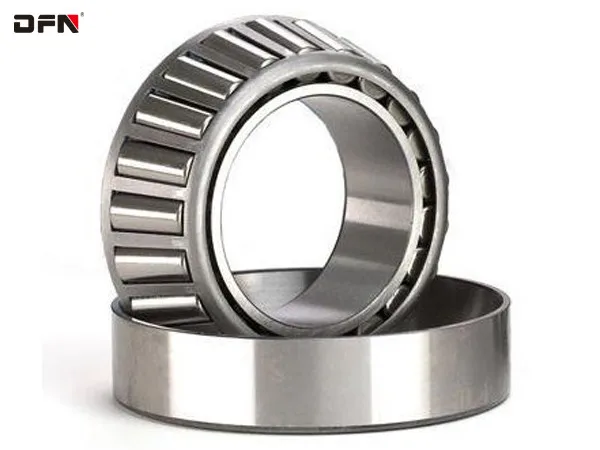

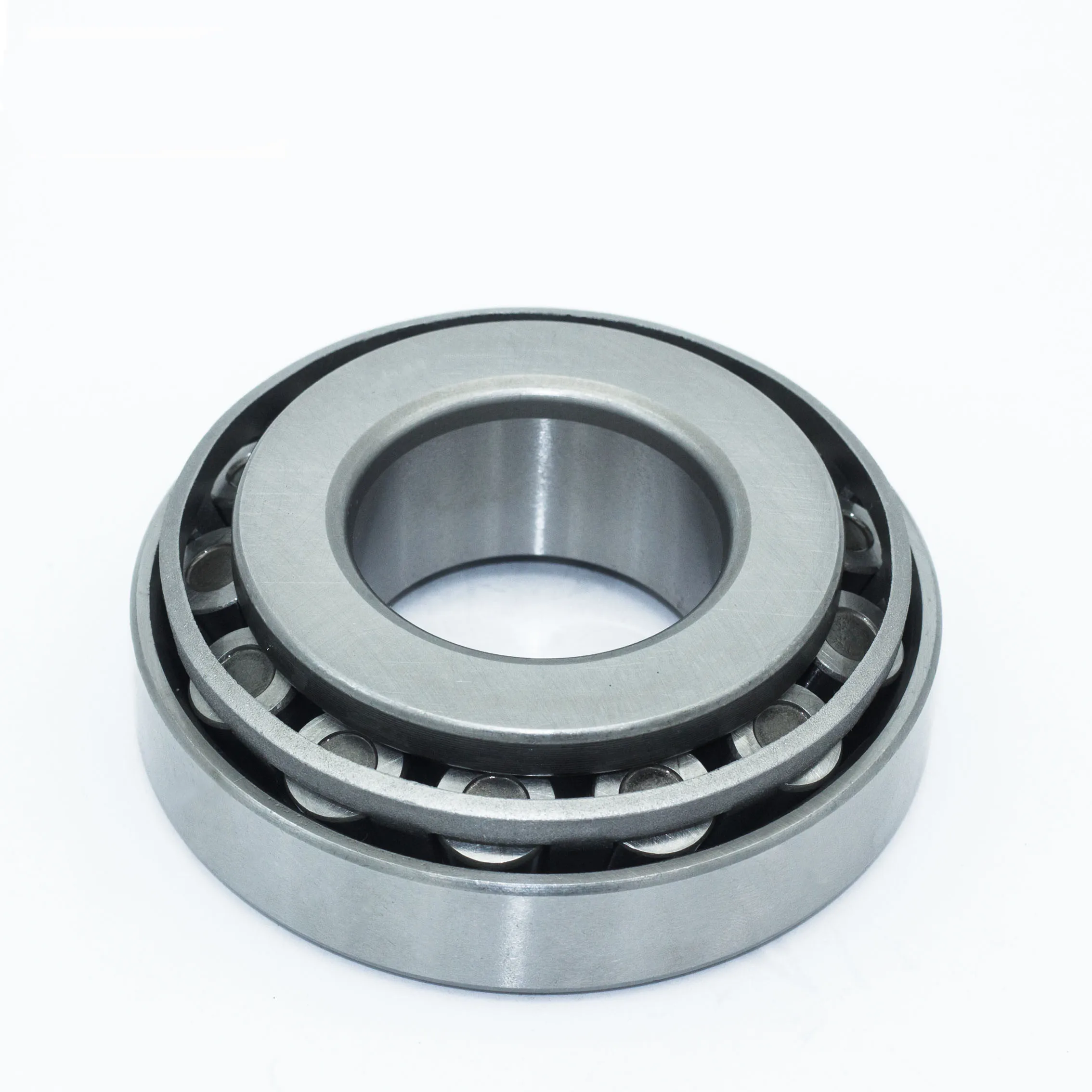

Подшипники 32022 32024 32026 32028 32030 32032 32034 32036 32038 32040 32044 32048 32052 32056 конический роликовый подшипник
- Категория: Bearings >>>
- Поставщик: Shandong Dena Bearing Co. Ltd.
Сохранить в закладки 1600323212450:
Описание и отзывы
Характеристики
Hot sale products
Product Description
Product Name | Taper roller Bearing |
Material | Chrome Steel, GCR15 |
Type | single row,double row,four row |
Size | d:3-150mm,D:9-225mm |
Grade | PO,P6,P5,P4,P2 |
Cage | Steel Cage,nylon Cage |
Used For | Precision instruments, low-noise motors, automobiles, motorcycles and general machinery |
Warranty | 1 year |
Brand | OEM or DFN |
Packing | According to the buyer requests for packaging |
Specifition
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||||||
d | D | T | kg | d | D | T | kg | ||||||
30202 | 15 | 35 | 11 | 0.053 | 30302 | 15 | 42 | 13 | 0.098 | ||||
30203 | 17 | 40 | 13.25 | 0.079 | 30303 | 17 | 47 | 15.25 | 0.129 | ||||
30204 | 20 | 47 | 15.25 | 0.126 | 30304 | 20 | 52 | 16.25 | 0.165 | ||||
30205 | 25 | 52 | 16.25 | 0.154 | 30305 | 25 | 62 | 18.25 | 0.263 | ||||
30206 | 30 | 62 | 17.25 | 0.231 | 30306 | 30 | 72 | 20.75 | 0.387 | ||||
30207 | 35 | 72 | 18.25 | 0.331 | 30307 | 35 | 80 | 22.75 | 0.515 | ||||
30208 | 40 | 80 | 19.75 | 0.422 | 30308 | 40 | 90 | 25.25 | 0.747 | ||||
30209 | 45 | 85 | 20.75 | 0.474 | 30309 | 45 | 100 | 27.25 | 0.984 | ||||
30210 | 50 | 90 | 21.75 | 0.529 | 30310 | 50 | 110 | 29.25 | 1.28 | ||||
30211 | 55 | 100 | 22.75 | 0.713 | 30311 | 55 | 120 | 31.5 | 1.63 | ||||
30212 | 60 | 110 | 23.75 | 0.904 | 30312 | 60 | 130 | 33.5 | 1.99 | ||||
30213 | 65 | 120 | 24.75 | 1.13 | 30313 | 65 | 140 | 36 | 2.44 | ||||
30214 | 70 | 125 | 26.25 | 1.26 | 30314 | 70 | 150 | 38 | 2.98 | ||||
30215 | 75 | 130 | 27.25 | 1.36 | 30315 | 75 | 160 | 40 | 3.57 | ||||
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||||||
d | D | T | KG | d | D | T | KG | ||||||
32203 | 17 | 40 | 17.25 | 0.102 | 32304 | 20 | 52 | 22.25 | 0.23 | ||||
32204 | 20 | 47 | 19.25 | 0.16 | 32305 | 25 | 62 | 25.25 | 0.368 | ||||
32205 | 25 | 52 | 19.25 | 0.187 | 32306 | 30 | 72 | 28.75 | 0.562 | ||||
32206 | 30 | 62 | 21.25 | 0.287 | 32307 | 35 | 80 | 32.75 | 0.763 | ||||
32207 | 35 | 72 | 24.25 | 0.445 | 32308 | 40 | 90 | 35.25 | 1.04 | ||||
32208 | 40 | 80 | 24.75 | 0.532 | 32309 | 45 | 100 | 38.25 | 1.4 | ||||
32209 | 45 | 85 | 24.75 | 0.573 | 32310 | 50 | 110 | 42.25 | 1.89 | ||||
32210 | 50 | 90 | 24.75 | 0.626 | 32311 | 55 | 120 | 45.5 | 2.37 | ||||
32211 | 55 | 100 | 26.75 | 0.853 | 32312 | 60 | 130 | 48.5 | 2.9 | ||||
32212 | 60 | 110 | 29.75 | 1.17 | 32313 | 65 | 140 | 51 | 3.51 | ||||
32213 | 65 | 120 | 32.75 | 1.55 | 32314 | 70 | 150 | 54 | 4.34 | ||||
32214 | 70 | 125 | 33.25 | 1.64 | 32315 | 75 | 160 | 58 | 5.37 | ||||
32215 | 75 | 130 | 33.25 | 1.74 | 32316 | 80 | 170 | 61.5 | 6.38 | ||||
Bearing No. | Dimensions(mm) | Weight | Bearing No. | Dimensions(mm) | Weight | ||||||||
d | D | T | KG | d | D | T | KG | ||||||
32004X | 20 | 42 | 15 | 0.095 | 33005 | 25 | 47 | 17 | 0.129 | ||||
32005X | 25 | 47 | 15 | 0.11 | 33006 | 30 | 55 | 20 | 0.201 | ||||
32006X | 30 | 55 | 17 | 0.17 | 33007 | 35 | 62 | 21 | 0.25 | ||||
32007X | 35 | 62 | 18 | 0.224 | 33008 | 40 | 68 | 22 | 0.306 | ||||
32008X | 40 | 68 | 19 | 0.267 | 33009 | 45 | 75 | 24 | 0.398 | ||||
32009X | 45 | 75 | 20 | 0.337 | 33010 | 50 | 80 | 24 | 0.433 | ||||
32010X | 50 | 80 | 20 | 0.366 | 33011 | 55 | 90 | 27 | 0.651 | ||||
32011X | 55 | 90 | 23 | 0.551 | 33012 | 60 | 95 | 27 | 0.691 | ||||
32012X | 60 | 95 | 23 | 0.584 | 33013 | 65 | 100 | 27 | 0.732 | ||||
32013X | 65 | 100 | 23 | 0.62 | 33014 | 70 | 110 | 31 | 1.07 | ||||
32014X | 70 | 110 | 25 | 0.839 | 33015 | 75 | 115 | 31 | 1.12 | ||||
32015X | 75 | 115 | 25 | 0.872 | 33016 | 80 | 125 | 36 | 1.63 | ||||
Details Images
Application
Motors, household appliances, agricultural machinery, construction machinery, construction machinery, roller skates, paper machinery, reduction gears, railway vehicles, crushers, printing machinery, woodworking machinery, automobiles, metallurgy, rolling mills, mining
Company profile
Company profile
Shandong Dena Bearing Co., Ltd. is a comprehensive bearing manufacturer integrating research and development , production and sales. Our company has modern production equipment, advanced management concept and high-end scientific and technological talents. Our company is committed to the strategy of high-quality and famous brand and wins the trust of users with excellent product quality.
The company specializes in the production of deep groove ball bearings, tapered roller bearings, wheel bearings, truck wheel hub bearings, clutch release bearings, Spherical roller bearing,Pillow Block Ball Bearing and other bearings, but also according to the specific requirements of customers to customize a variety of non-standard bearings. Products are widely used for supporting services of Motors, household appliances, agricultural machinery, construction machinery, construction machinery, roller skates, paper machinery, reduction gears, railway vehicles, crushers, printing machinery, woodworking machinery, automobiles, metallurgy, rolling mills, mining and other model supporting services. Our company has long-term supporting supply with many domestic large manufacturing enterprises, and products are exported to Europe, America, Southeast Asia and other countries and regions.
Our company in line with the "service best, quality oriented, reputation first"the production idea to serve customers all the world, and win the good public praise by the stable quality, quality service.
The company specializes in the production of deep groove ball bearings, tapered roller bearings, wheel bearings, truck wheel hub bearings, clutch release bearings, Spherical roller bearing,Pillow Block Ball Bearing and other bearings, but also according to the specific requirements of customers to customize a variety of non-standard bearings. Products are widely used for supporting services of Motors, household appliances, agricultural machinery, construction machinery, construction machinery, roller skates, paper machinery, reduction gears, railway vehicles, crushers, printing machinery, woodworking machinery, automobiles, metallurgy, rolling mills, mining and other model supporting services. Our company has long-term supporting supply with many domestic large manufacturing enterprises, and products are exported to Europe, America, Southeast Asia and other countries and regions.
Our company in line with the "service best, quality oriented, reputation first"the production idea to serve customers all the world, and win the good public praise by the stable quality, quality service.
Office and Factory
Customers and Exhibition
Our Advantages
Certifications
Customer feedback
FAQ
1. Your factory how to control the quality?
A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.
2. Can you tell me the bearing material?
A: We have chrome steel GCR15, stainless steel, ceramics and other materials.
3. How long is your delivery time?
A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.
4. OEM and custom you can receive?
A: Yes, accept OEM, can also be customized according to samples or drawings for you.
A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.
2. Can you tell me the bearing material?
A: We have chrome steel GCR15, stainless steel, ceramics and other materials.
3. How long is your delivery time?
A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.
4. OEM and custom you can receive?
A: Yes, accept OEM, can also be customized according to samples or drawings for you.
Похожие товары
5x11x4 мм MR115 2RS высокоскоростной бесшумный миниатюрный шарикоподшипник для двигателя
0,17 $ - 0,25 $
628ZZ 8*24*8 мм шарикоподшипник из нержавеющей стали с глубоким желобом для печенья
0,15 $ - 1,00 $

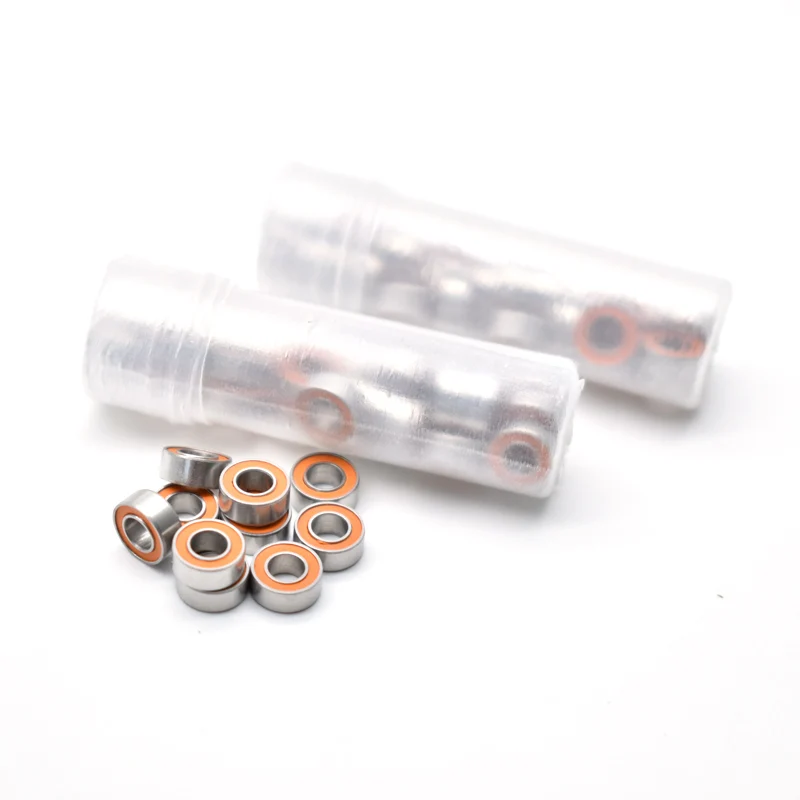

Высокопроизводительный 3x6x2,5 3x10x4 4x10x4 5x10x4 6x10x3 гибридный керамический подшипник
1,20 $ - 2,50 $

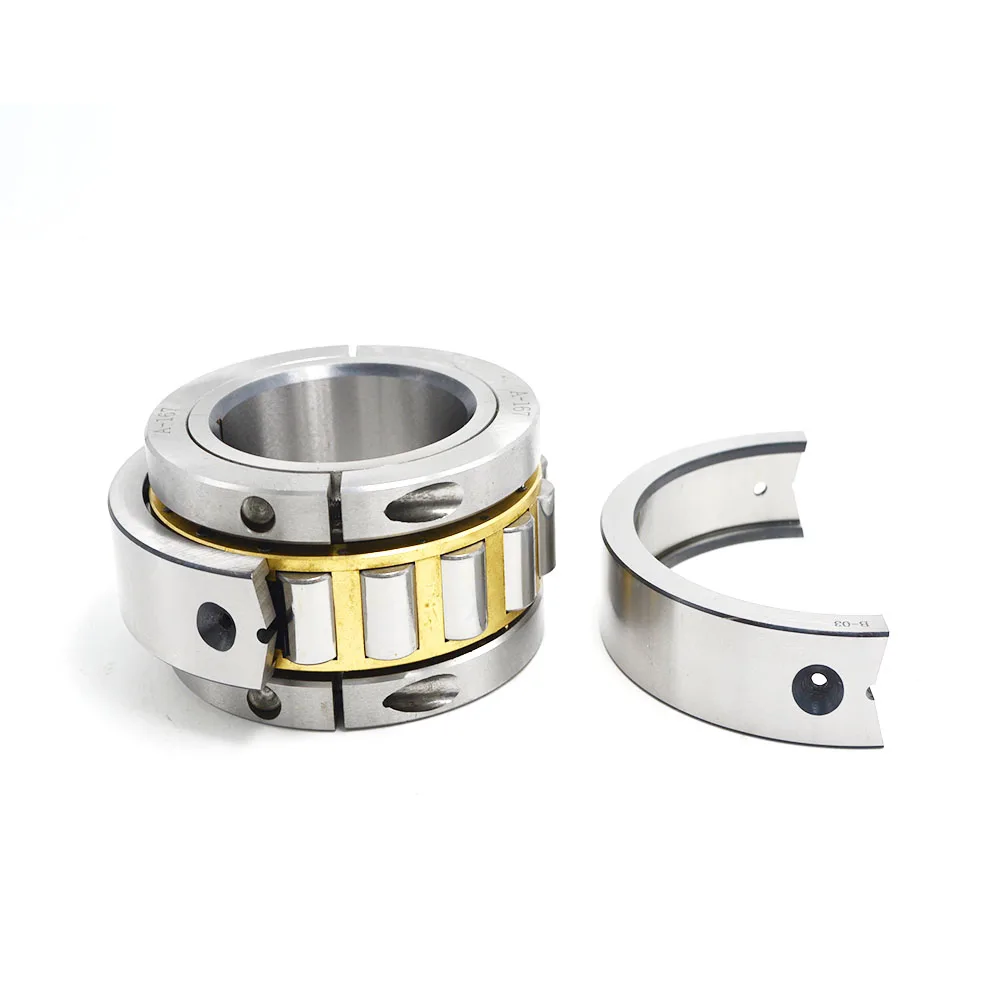

02B220M 03B220M Cooper Hkt Split Cylindrical Roller Bearing Split bearing 01B220M
