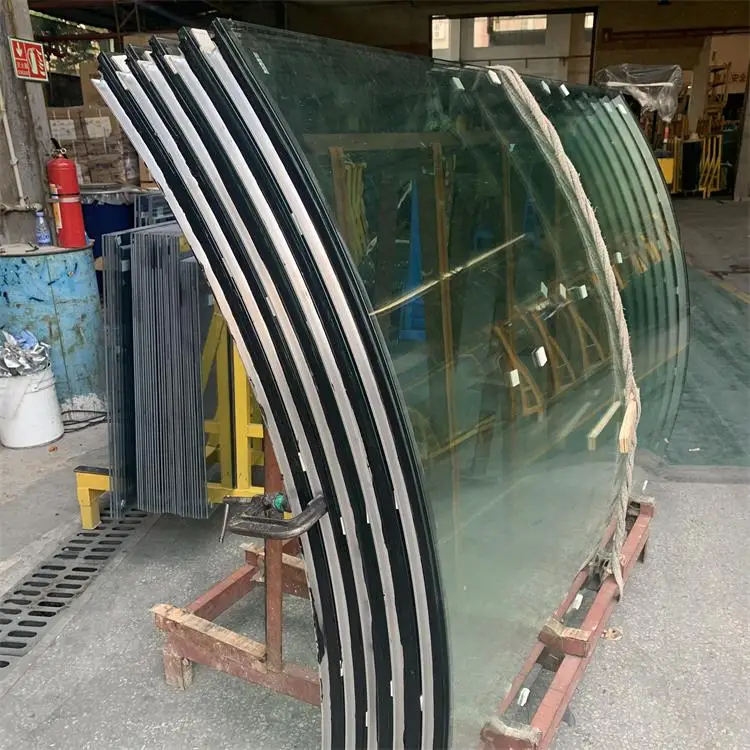

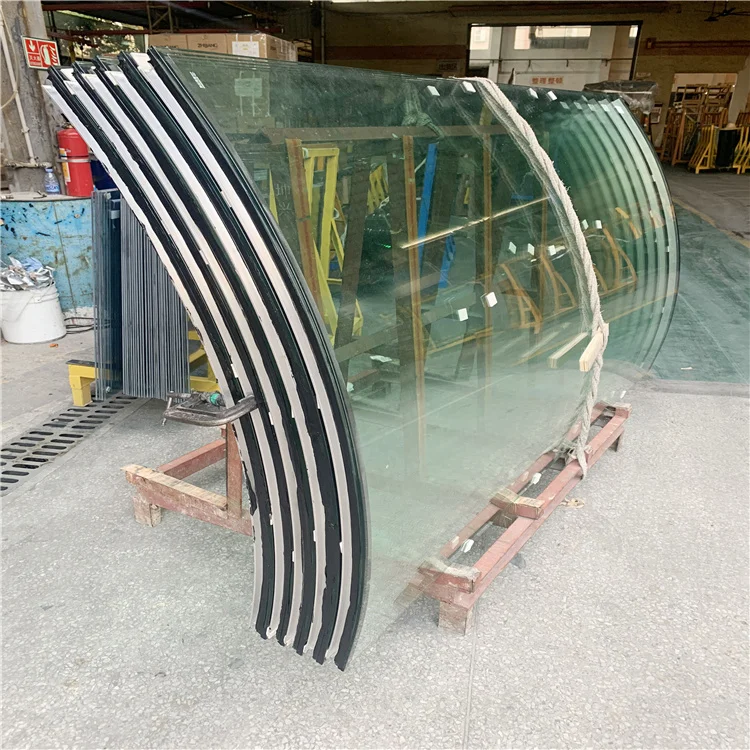

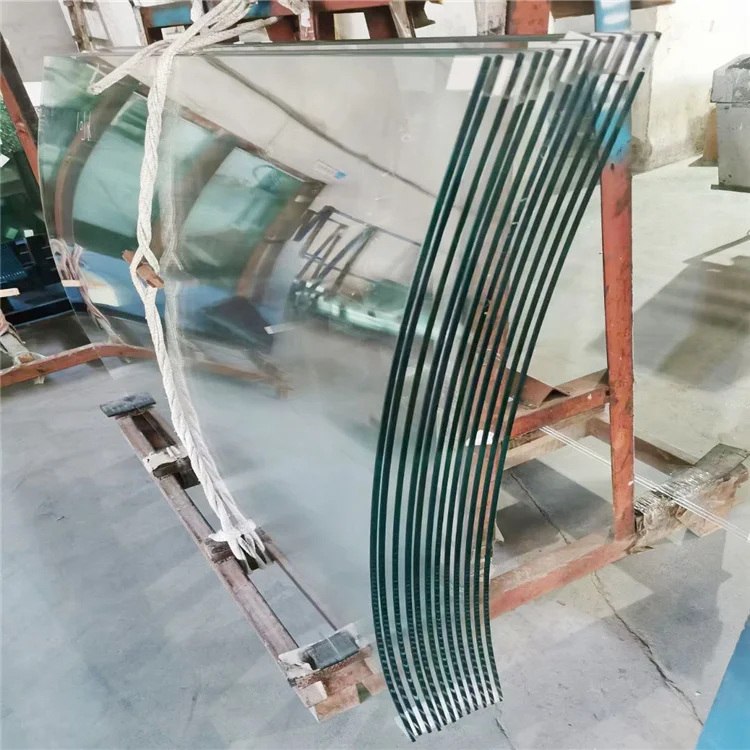

BTG высокого качества с покрытием ненесущая стена изогнутые ясно закаленное стекло
- Категория: >>>
- Поставщик: Dongguan Better Glass Tech Co. Ltd.
Сохранить в закладки 1600323377089:
Описание и отзывы
Характеристики
Production Description

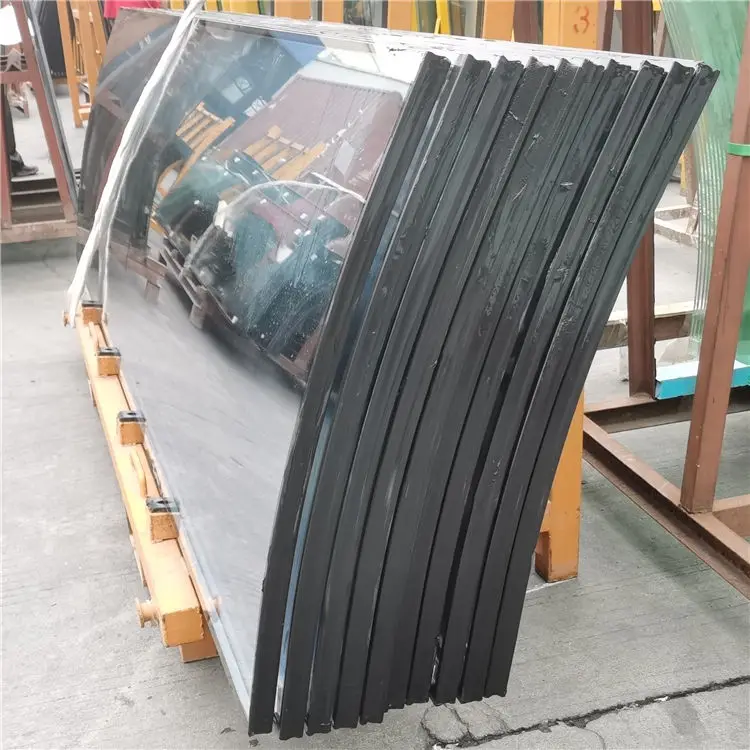

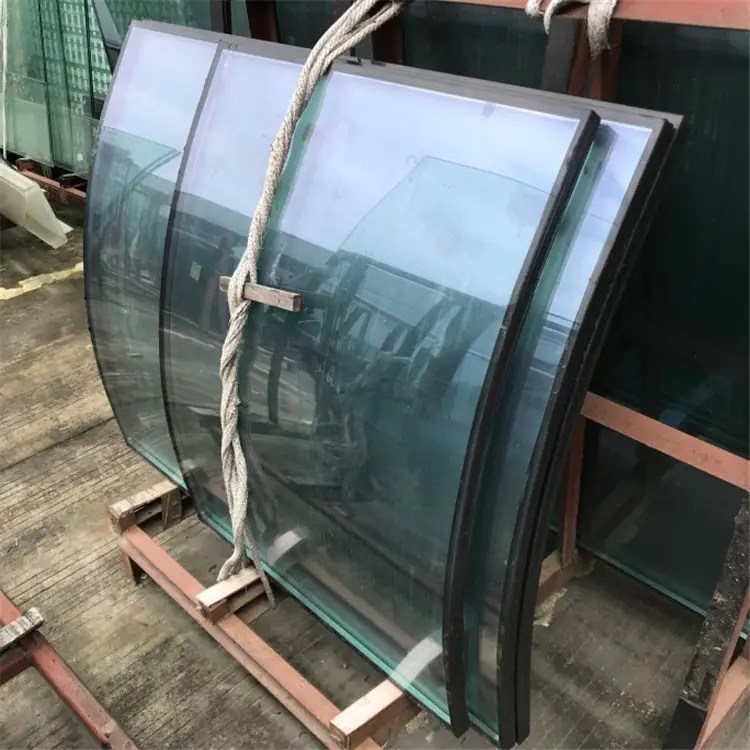

Insulated glass (IGU) is composed of two or more layers of flat or curved glass, surrounded by high-strength high-density
composite adhesive, the glass of the bonding and sealing. The middle fill with dry gas, the spacer fill with desiccant to ensure that the glass between the air dryness.
composite adhesive, the glass of the bonding and sealing. The middle fill with dry gas, the spacer fill with desiccant to ensure that the glass between the air dryness.
Monolithic Glass
Double-Glazed Insulating Glass Unit
Triple-Glazed Insulating Glass Unit
IG Unit Laminated Inboard
IG Laminated Outboard
IG Unit Laminated Inboard/Outboard
Quality Assurance Policy.
We promise to provide a 10-year warranty for all laminated glass produced by BTG.
BTG BETTER GLASS produce laminated glass by high quality adhesive interlayer and advanced bond technology. Tempered laminatedglass is produced by adhering two or more pieces of tempered glass together by inyerlayer film like PVB/SGP/EVA. The interlayerfilm will continue to hold the glass together in the event that it is struck or dropped.Company Profile
Our company BTG group has been specializing in the processing of architectural glass for more than 20 years and is rooted in China's famous world manufacturing base in Dongguan City, Guangdong, China.After years of development, it has grown into a large-scale glass manufacturer with customers all over the world. our company is fully equipped, the staff positions are fully and reasonable, the production capacity is stable with quality guaranteed, the certification is complete, and the service is prompt and thoughtful.Company with CE, ISO, CCC, BS6206, SGCC, CSI certificate etc.
Factory Equipment List
Machine Name | Origin | Qty | Years of service | Capacity | Size limit/Feature |
Full-automatic cutting machine | Italy | 3 | 1 | 8000 Sqm/day | Max.3300x8000mm |
Driller | Italy | 4 | 1.5 | 5000Sqm/day | Max.3300x8000mm |
Edging machine | China | 3 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Cleaning machine | China | 4 | 1 | 8000 Sqm/day | Max.2440x3660mm |
Water jet cutting | Germany | 1 | 1 | 1000 Sqm/day | Max.2500x3000mm |
Tempered glass furnace | China | 2 | 1.2 | 6000Sqm/day | Min Radius 750mm |
Laminated dust-free workshop | China | 2 | 1 | 5000Sqm/day | Max.3300x8000mm |
Autoclave machine | China | 1 | 1.3 | 4500Sqm/day | Max.3300x8000mm |
Automatic Insulating Glass gluing line | China | 2 | 1 | 6000Sqm/day | Max.3300x8000mm |
Ceramic glass digital printer | Israel | 1 | 1 | 300Sqm/day | Max.2500x8000mm |
Sewage treatment equipment | China | 3 | 1 | 300 ton/day | Sustainable/Recycle |
Curved glass machine | China | 2 | 1 | 1000Sqm/day | Min. R=750mm |
1. We are one of the biggest glass factory in China with over 20 year glass production experience, have advanced machines and experienced technicians.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Powerful transportation system and fast shipping time, long-term cooperation relationship with MAS, NYK, COSCO etc
7. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
Products Show
Insulated glass can be selected according to the requirements of various glass originals with different properties, such as colorless transparent float glass, low e glass, heat-reflective glass, wired glass, tempered glass, etc.
1.Clear/Low Iron Insulated Glass
2.Tinted Insulated Glass
3.Low E Insulated Glass
4.Reflective Insulated Glass
5.Ceramic Insulated Glass
6.Digital Printing Insulated Glass
Features of Insulated Glass
Insulated glass is a new type of building material that has good heat insulation, sound insulation, beauty and application, and can reduce the weight of the building.
Sound insulation performance: Insulated glass has a good sound insulation effect against mid-frequency noise (such as the sound of people talking, etc.).
Insulated glass can intercept the considerable energy emitted by the sun into the room.The heat transfer coefficient is better than ordinary single glass.
Insulated glass has a variety of colors, and can be used according to the needs to achieve a more ideal artistic effect.
Parameters Table
Tinted/Reflective Glass Color | Product Name | Visible | Solar | U values | Shading Coefficient (SC) | |||||||||||||
Trans | Reflect(%) | Trans | Reflect | Winter Nightime W/Sqm.K | Summer Daytime W/Sqm.K | |||||||||||||
(%) | Indoor | Outdoor | (%) | |||||||||||||||
light green tinted | 6mmFL | 75 | 11 | 6 | 46 | 7 | 5.81 | 5.24 | 0.69 | |||||||||
light green reflective | 6mmFLM | 25 | 34 | 26 | 35 | 19 | 5.84 | 5.27 | 0.4 | |||||||||
dark green tinted | 6mmZRL | 65 | 6 | 11 | 54 | 5 | 5.24 | 5.12 | 0.76 | |||||||||
green reflective | 6mmZRLM | 25 | 25 | 24 | 40 | 23 | 5.81 | 5.24 | 0.44 | |||||||||
light green reflective | 6mmFC | 68 | 11 | 9 | 47 | 11 | 3.7 | 3.6 | 0.54 | |||||||||
blue tinted | 6mmFTL | 55 | 12 | 7 | 47 | 6 | 6.1 | 5.8 | 0.71 | |||||||||
blue reflective | 6mmFTLM | 20 | 21 | 21 | 37 | 20 | 5.8 | 5.24 | 0.42 | |||||||||
dark blue tinted | 5mmBSL | 48 | 11 | 6 | 47 | 6 | 5.9 | 5.6 | 0.68 | |||||||||
dark blue reflective | 5mmBSLM | 25 | 23 | 13 | 43 | 18 | 5.84 | 5.27 | 0.59 | |||||||||
blue tinted | 6mmHYL | 56 | 11 | 6 | 54 | 7 | 5.98 | 5.4 | 0.63 | |||||||||
blue reflective | 6mmHYLM | 24 | 17 | 16 | 24 | 17 | 5.8 | 5.24 | 0.48 | |||||||||
light blue tinted | 5mmSJL | 75 | 12 | 7 | 59 | 7 | 6.94 | 6.72 | 0.76 | |||||||||
light blue reflective | 6mmSY | 68 | 9 | 6 | 52 | 10 | 4.1 | 4 | 0.68 | |||||||||
light grey tinted | 6mmLH | 64 | 6 | 6 | 57 | 6 | 5.81 | 5.24 | 0.79 | |||||||||
grey tinted | 6mmEH | 45 | 5 | 5 | 43 | 5 | 5.81 | 5.24 | 0.69 | |||||||||
dark grey tinted | 6mmLXH | 44 | 6 | 6 | 42 | 6 | 5.98 | 5.24 | 0.68 | |||||||||
dark grey reflective | 6mmLXHM | 20 | 14 | 12 | 27 | 13 | 5.81 | 5.24 | 0.47 | |||||||||
brown tinted | 6mmHC | 44 | 5 | 5 | 43 | 5 | 5.81 | 5.24 | 0.68 | |||||||||
brown reflective | 6mmHCM | 22 | 14 | 44 | 32 | 10 | 5.81 | 5.24 | 0.57 | |||||||||
brown tinted | 6mmJC | 36 | 6 | 6 | 35 | 7 | 5.81 | 5.24 | 0.58 | |||||||||
brown reflective | 6mmJCM | 21 | 16 | 45 | 30 | 12 | 5.81 | 5.24 | 0.48 | |||||||||
golden reflective | 6mm24K gold | 22 | 33 | 50 | 29 | 32 | 5.47 | 5.22 | 0.46 | |||||||||
golden reflective | 6mm18K gold | 37 | 35 | 29 | 45 | 34 | 5.22 | 4.62 | 0.52 | |||||||||
dark black tinted | 5mmDB | 5 | 32 | 28 | 5 | 28 | 5.98 | 5.24 | 31.5 | |||||||||
silver gray reflective | 6mm5Y | 50 | 22 | 18 | 45 | 15 | 5.46 | 4.87 | 0.65 | |||||||||
silvery reflective | 6mmYBM | 45 | 38 | 36 | 52 | 28 | 5.8 | 5.24 | 0.64 | |||||||||
clear | 6mmC | 89 | 7 | 6 | 81 | 7 | 5.81 | 5.24 | 0.98 | |||||||||
super clear | 6mmCH | 91 | 8 | 7 | 89 | 8 | 5.81 | 5.25 | 1.04 | |||||||||
Silver mirror | 6mm | 0 | 83 | 2 | 0 | 83 | / | / | / | |||||||||
High transparency | 6mmPG | 81 | 11 | 6 | 65 | 11 | 3.7 | 3.5 | 0.79 | |||||||||
Tips: Please contact with our sales before purchase to confirm whether we have stock at present. | ||||||||||||||||||
Customer Praise
BTG not only has good products, but also good services. We adhere to the principle of customer first & quality first.
BTG not only has good products, but also good services. We adhere to the principle of customer first & quality first.
Product Applications
Insulated glass is mainly used in buildings that require heating, air conditioning, noise or condensation prevention, and the need for direct sunlight and special light. It is widely used in residential, hotel, office buildings, schools, hospitals, shops and other places where indoor air conditioning is required.
1. Insulated Glass Curtain Wall
2. Insulated Glass Skylight
3. Insulated Glass Window
4. Insulated Glass Door
5. Insulated Glass Sunroom
6. Insulated Glass Partition
Our Certificates
Packing & Delivery
BTG use 12mm thick recycled hardwood board, no fumigation, hard plastic safety corner,plastic film covering the glass to avoid dirt, with a desiccant inside, to ensure that the glass is dry and not moldy during transportation.
Individual carton packaging options.
BTG use 5mm thick environmentally friendly corrugated boxes, 10mm thick foam board lining, 10mm thick recycled hardwood boards around the four sides of the glass to prevent damage to the edges, free transportation,suitable for retail storage of glass tabletops, shower rooms and other products
L-shaped iron frame packaging.
Welded iron frame, fixed with plastic-steel belt, built-in forklift space, can be quickly loaded and unloaded as a whole, which is convenient for stocking at the construction site.
FAQ
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more quantity, the better price.
Q: Could I have a small sample to verify the quality?
A : Sure, we welcome sample to be tested and checked quality.
Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production lines, and discussing orders in our office.
Q: Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time (more than 5 years).
Q: How do you control the quality of your products?
We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find little problem, we will replace the glass, to make sure every piece glass go to warehouse is in good condition.
Похожие товары

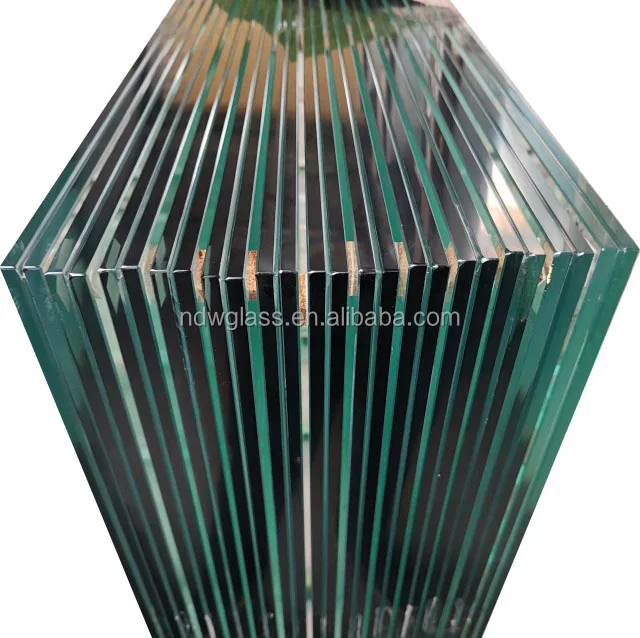

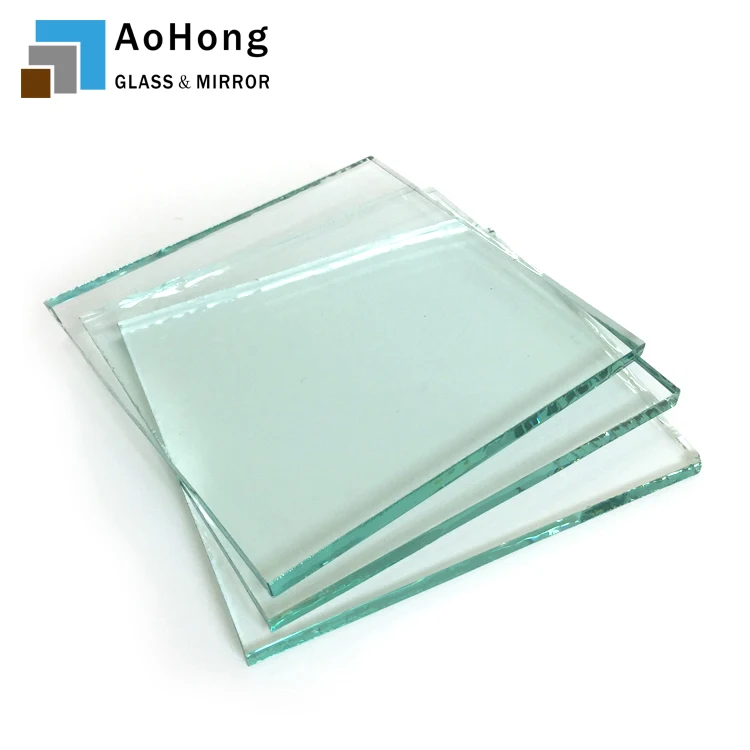

Прозрачное Закаленное Стекло thk 3 мм 4 мм 5 мм 6 мм 8 мм 10 мм 12 мм 15 мм 19 мм
527,08 ₽ - 556,24 ₽
5 мм поплавковое белое Черное Красное ламинированное декоративное закаленное заднее окрашенное Лакированное стекло для двери шкафа гардероба, столешницы
680,44 ₽ - 702,05 ₽

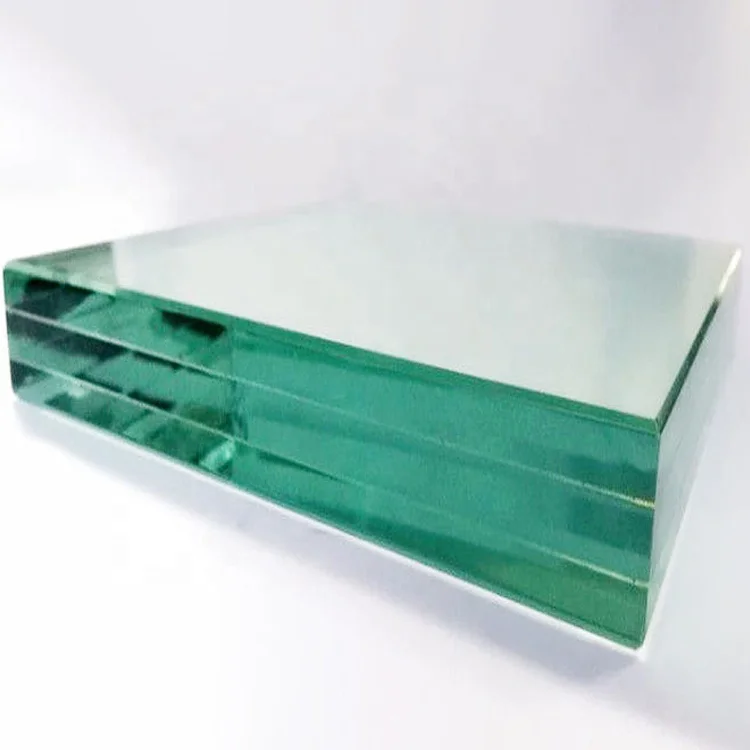

Ламинированное стекло SGP pvb, себестоимость за квадратный фут за квадратный метр

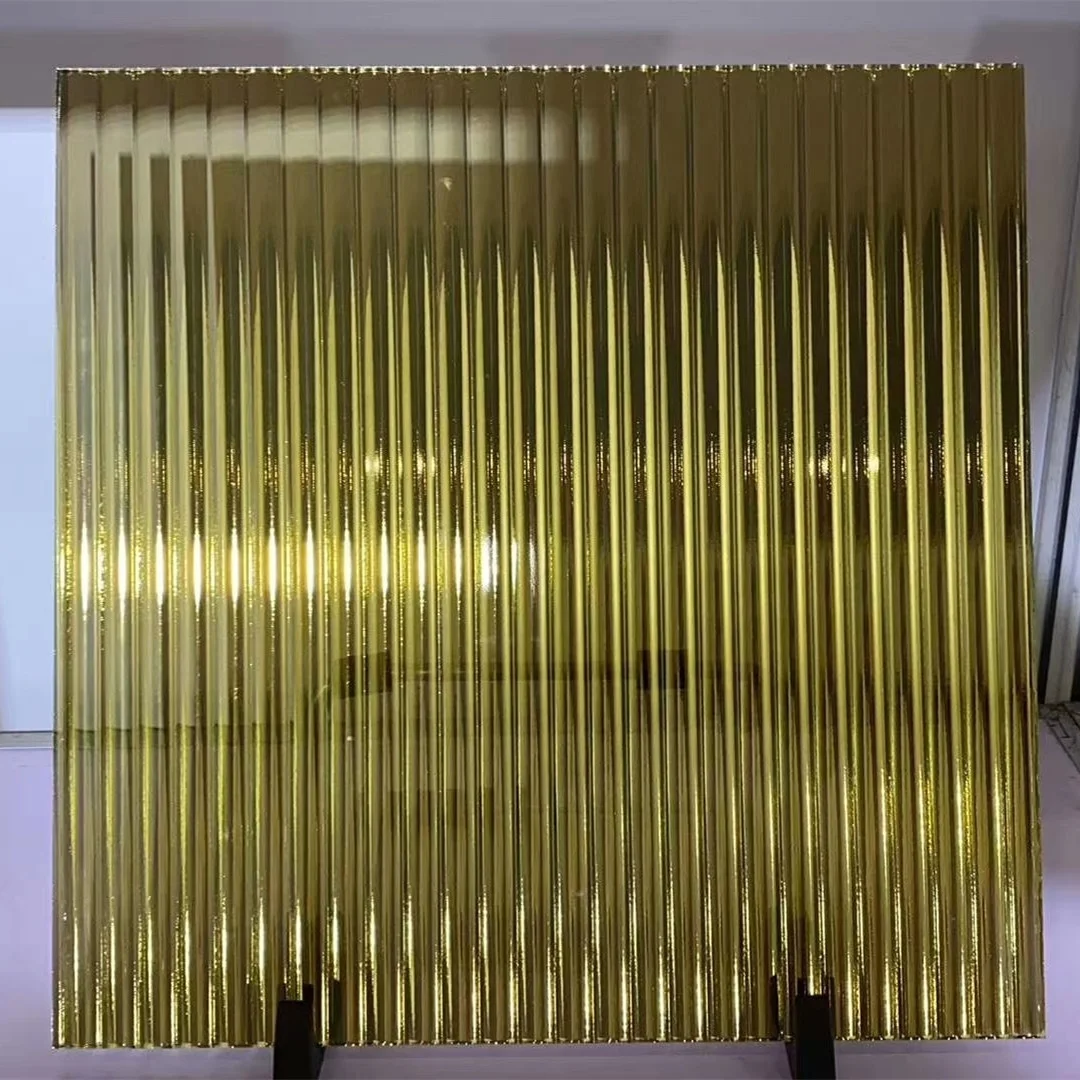

Китайская фабрика, Термостойкое отражающее ламинированное гофрированное Фигурное замшевое золотистое текстурированное плавающее стекло Moru
4 968,29 ₽ - 5 724,33 ₽

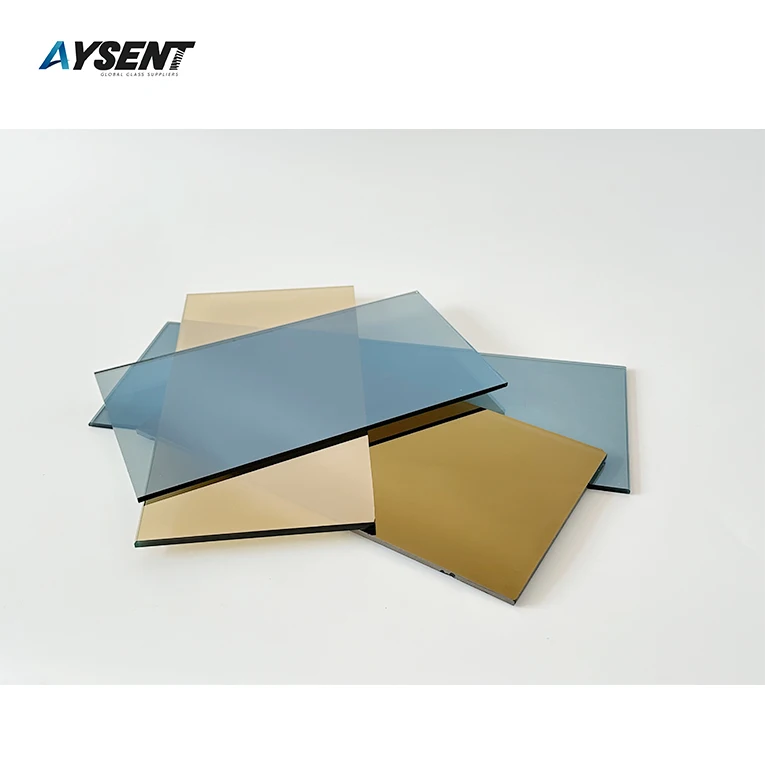

Светоотражающее стекло для наружных стен 2440*1650 2140*1650 4 мм 5 мм 6 мм
270,02 ₽ - 367,23 ₽
Стеклянная фабрика в Китае, строительное стекло, цена за тонну стекла
278,66 ₽ - 307,82 ₽

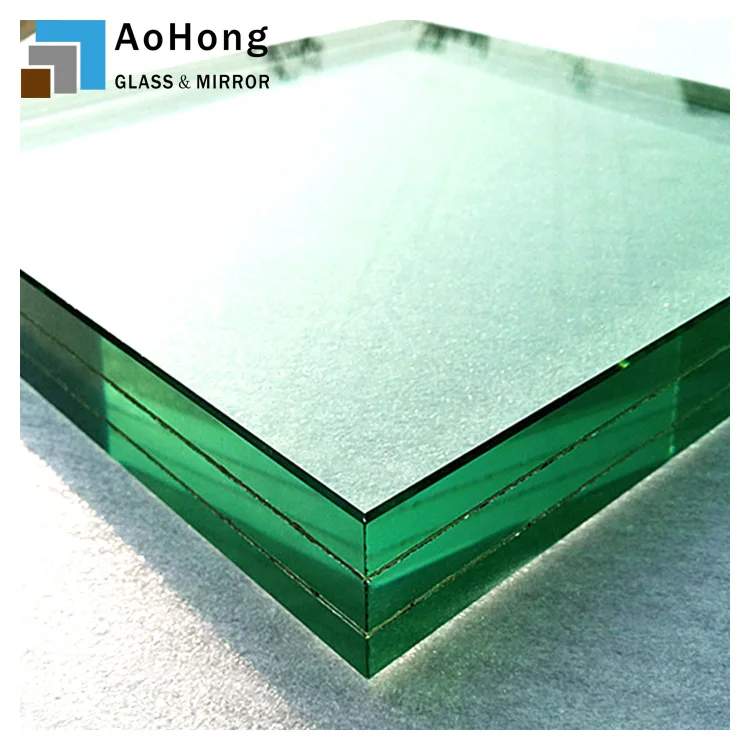

Ламинированное стекло 3 слоя
