PD 210X серии высокопроизводительный датчик давления
- Категория: >>>
- Поставщик: Doweston (china) Co. Ltd.
Сохранить в закладки 1600323456339:
Описание и отзывы
Характеристики

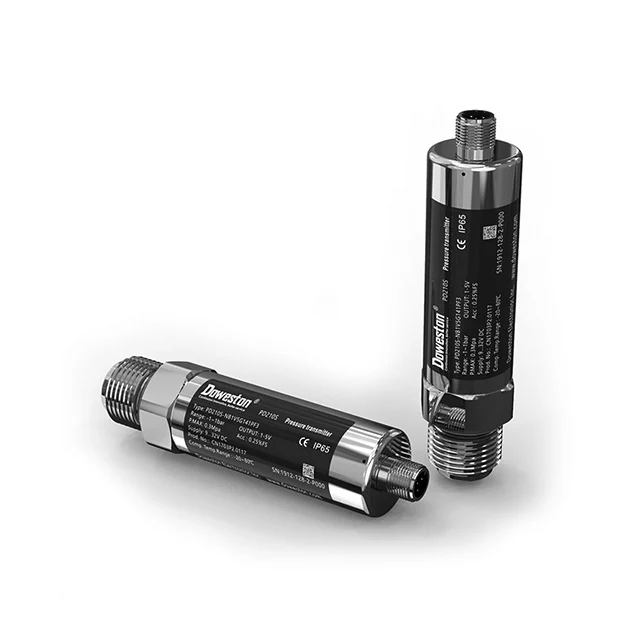

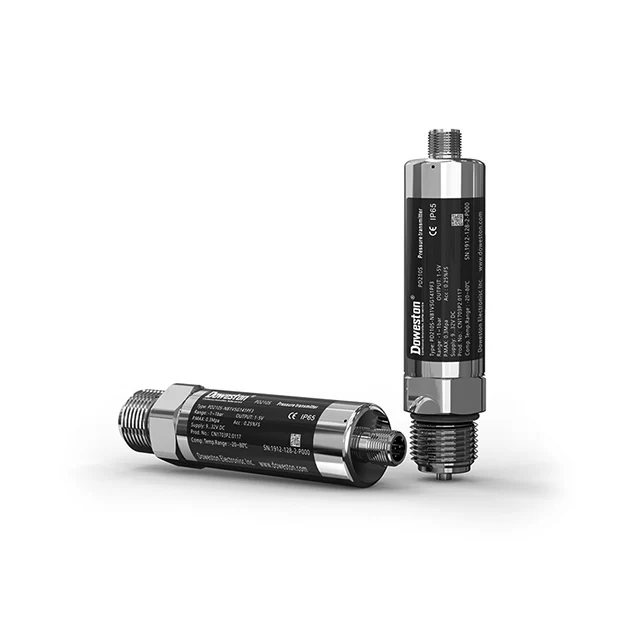

PD-210X series
High-performance pressure transmitter
High-performance pressure transmitter
The first choice for pressure measurement of extreme mechanical equipment, hydraulic pressure, pneumatic, etc.
The PD-210X series of high-performance pressure transmitters combine the latest ceramic piezoresistive sensing elements, with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear standard current or voltage signals, with high cost performance and vibration resistance , High overload protection, suitable for slightly corrosive fluids, gas media, diversified information output, thread, flange and other connection methods to meet the needs of different working conditions.
The PD-210X series of high-performance pressure transmitters combine the latest ceramic piezoresistive sensing elements, with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear standard current or voltage signals, with high cost performance and vibration resistance , High overload protection, suitable for slightly corrosive fluids, gas media, diversified information output, thread, flange and other connection methods to meet the needs of different working conditions.
Performance characteristics
The PD-210X series of high-performance pressure transmitters can convert the physical pressure parameters of gas, liquid, etc., felt by the load cell sensor into standard electrical signals (such as 4-20mADC, etc.) to provide indicator alarms, recorders, Secondary instruments such as regulators perform measurement, indication and process adjustment.
It is widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil well, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -1-70MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material:Ceramics (Al2O3 96%)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc.
■ Process connection: thread, flange
■ Protective connection: Horsman connector, direct wiring, waterproof gland
■ Seal: Fluorine rubber
It is widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military, petrochemical, oil well, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -1-70MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material:Ceramics (Al2O3 96%)
■ Working temperature: -40-125℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-5V, 0-10V, etc.
■ Process connection: thread, flange
■ Protective connection: Horsman connector, direct wiring, waterproof gland
■ Seal: Fluorine rubber
Technical parameter
Applicable medium | Dry gas, gas, liquid, slightly corrosive liquid, viscous liquid |
Measuring range | -1-70MPa |
Comprehensive accuracy | ±0.25%FS |
Repeat accuracy | ≤± 0.1%FS/year |
Zero temperature drift | ±0.02FS/℃ |
Input voltage | 12-36V DC |
Output | 4-20mA, 0-5V, 0-10V, etc. |
Operating temperature | -40-125℃ |
Overload pressure | 150%FS |
Burst pressure | 200%FS |
Ambient temperature | -40-80℃ |
Response time | ＜3-10ms (10...90%FS) |
Vibration resistance | ±20g 20-5000Hz |
Service life | ＞1*10^8 pressure cycles |
Liquid contact material | Ceramics (Al2O3 96%) |
shell material | Stainless steel 304 |
Protection level | Electrical part IP65 (optional IP68) |
Electrical connections | Terminals, Horsman connectors, |
Electrical protection | Overload/reverse phase protection |
seal | Fluorine rubber |
Installation method | Thread, flange |
weight | About 0.4kg |
Application areas:
■PD-210X series pressure transmitters are widely used in industrial fields such as water plants, oil refineries, sewage treatment plants, construction, light industry, machinery, etc., to realize the measurement of liquid, gas, and vapor pressure.
Похожие товары
Стабильные электронные весы Tcs с платформой
Оптовая продажа, мужские кожаные браслеты Marlary с гравировкой на заказ
3,20 $ - 4,99 $
Высококачественный высокоточный датчик давления 316L sstalloy c276
300,00 $ - 415,00 $
Заводской универсальный преобразователь давления по низкой цене
100% новый датчик давления Yokogawa EJA110E/EJA530E/ EJA430E/EJA210E
500,00 $
Искусственные цветы, танцующая леди, Орхидея, 10 веток, танцевальные орхидеи
0,30 $ - 0,40 $

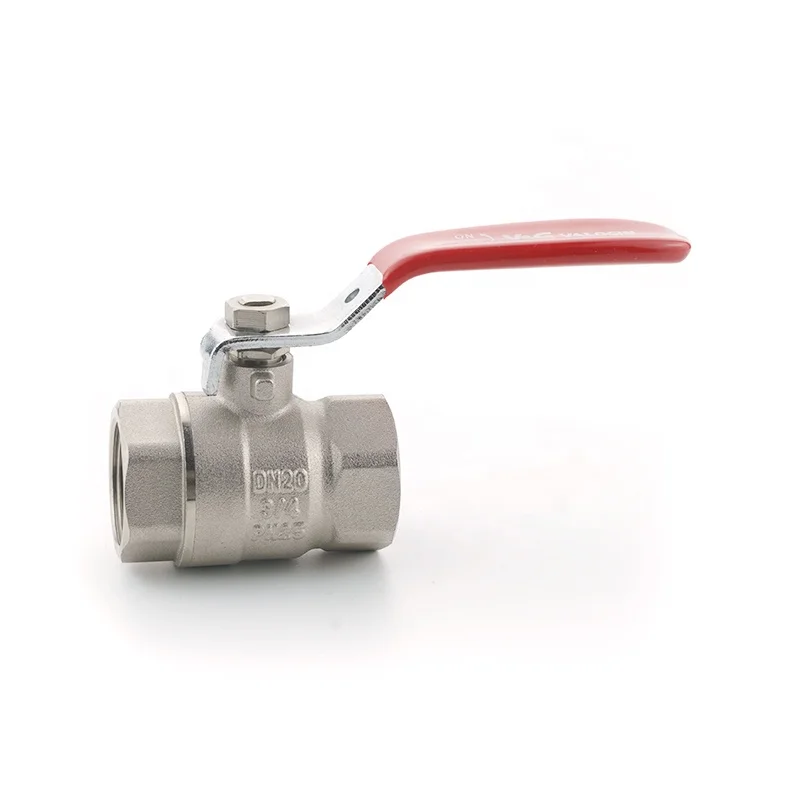

Оптом 1/2 - 2 дюйма Pn25 CW617n Рычажная ручка кованый латунный шаровой клапан от производителя
