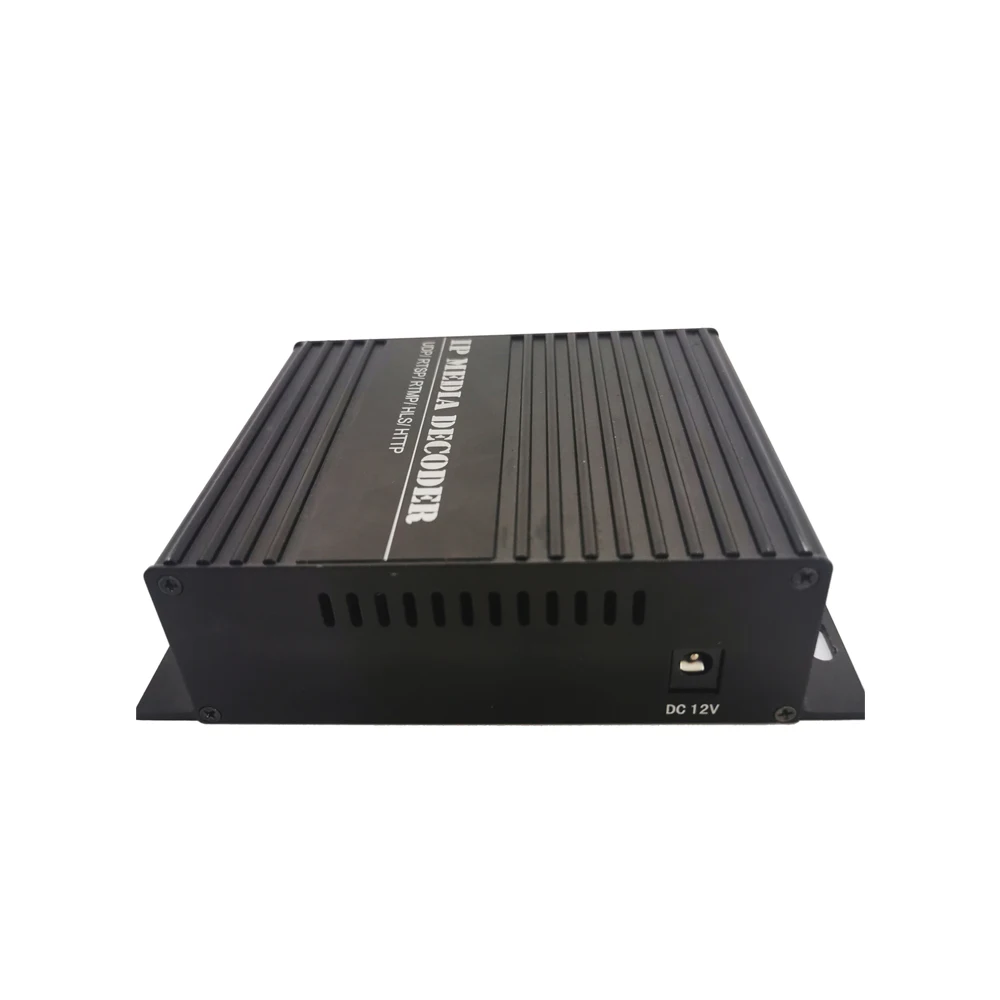

Декодер IP MPTS HTTP RTSP M3U8 RTMP UDP Unitcast SRT к HDMI CVBS

Outline

SNK-H9010D IP decoder is an UHD media decoder, it allows up to 4* H.264/ H.265 IP (RTMP/ RTSP/ RTP/
HTTP/ HLS/ UDP), MPEG1, MPEG2, MPEG4, SL hyperlink (P-P), VP8/ VP9 decoding and then output through 1port HDMI & 1port BNC (analog), 1ch 3.5mm audio CVBS. It completely supports 4096*2160p30, 1080 P/I 60.

meanwhile, RS485 supported ,IO input /output,It is easy to install, plug-play, no need to disassemble the machines, and there is no computer hardware compatibility issues.

Features:

•Supports 4 screen at the same time,it works with many different kinds of camera.quad decoder:3 streams 1080p+720p or 4 streams 720p

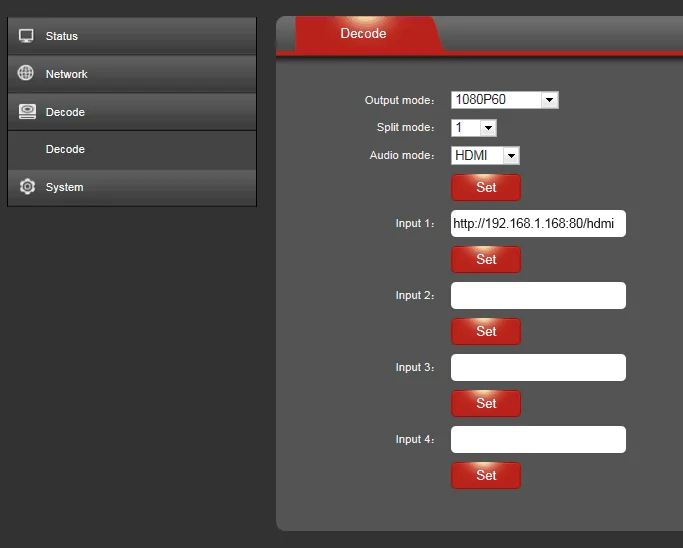

•Software IP finder,Video management platform,IOS Android APP.

•The embedded hardware decoding

•Support a computer with multiple devices at the same time display

•Support HDMI output or CVBS output, when HDMI cable plug,it will choose HDMI output,when CVBS cable plug.it will choose CVBS output.

Support HDMI 2.0,UP to 4Kp60 resolution(No fluctuating)

•Support  4096*2160p30/3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p

/720*576i/720*576p/640*480i solutions (customized)

•support UDP/RTP/HTTP/RTSP / RTMP/HLS protocols

•Support for multiple video stream splicing

•Rate Control CBR / VBR 16KBIT / S ~ 50MBIT / S

•Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, audio MP3, AAC,G711

•Support a healthy recovery of the default configuration

•The design of low power consumption

•Support set-top box decoder

•The design of low power consumption

P2P

Record video when streaming

Real-time preview

Private protocol with low latency:up to 200ms

 Specification

Application:

1) network TV IPTV HD encoder

2) can access the NVR hard disk recorder

3) digital signage HD streaming server

4) video conferencing system, video server

5) network conference system video capture

6) instead of HD video capture card

7) Hotel CATV system

8)Mobile live system

9)Online classroom system
