Новый дизайн AEON NOVA 14 1400x900 мм 60 Вт 80 RF30W CO2 Лазерная гравировальная и режущая машина
- Категория: >>>
- Поставщик: Shanghai Pomelo Laser Technology Co. Ltd.
Сохранить в закладки 1600324112828:
Описание и отзывы
Характеристики
Products Description
AEON NOVA 14 is a commercial standing model laser engraving and cutting machine. The working area is 1400*900mm. From the NOVA Series of machines, the designer moved his eyes to the cutting. Therefore, the machine engraving speed is not so fast as MIRA machines. Although it can go 1000mm/sec, the acceleration speed is 2G. However, this speed is enough to be outstanding over other similar machines on the market.
The machine is also built according to Class I laser standard, with a fully enclosed machine body and key lock on every door and window. The lid adopted tempered glass for fireproof purposes.
Overall, the NOVA14 is a very good commercial standing model of laser engraving and cutting machine. It can fit in larger size materials and could install higher power laser tubes to cut thick materials. It will be an ideal machine for your business and will bring you profit for sure.

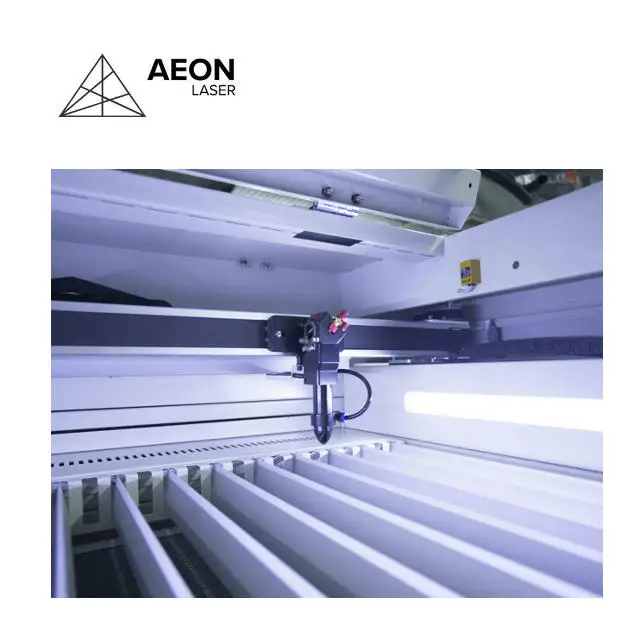

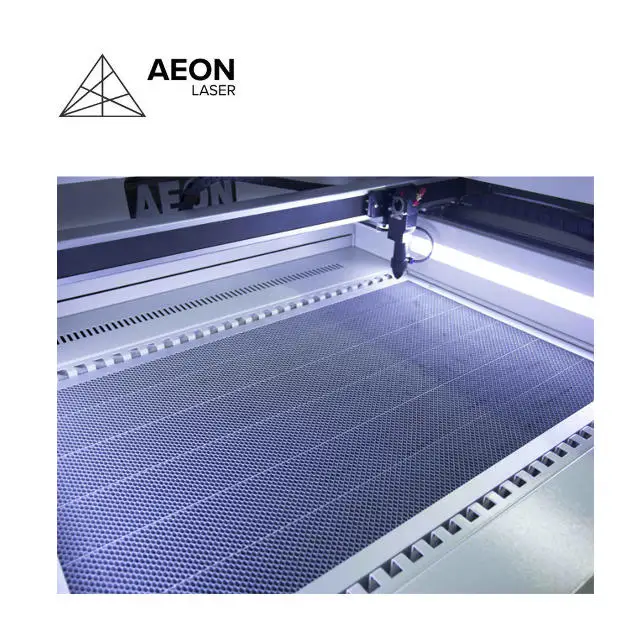

The structure of the machine is very strong, which makes it more steady. The machine equipped with honeycomb and blade worktable and with model 3000 or 5000 chillers, makes it possible to install 100W or even 130W laser tube. The Z-axis now increased to 200mm, so it can fit in higher products. The air assists system got pressure gauge and regulator to give the users option to add a more powerful compressor to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials.
The machine is also built according to Class I laser standard, with a fully enclosed machine body and key lock on every door and window. The lid adopted tempered glass for fireproof purposes.
Overall, the NOVA14 is a very good commercial standing model of laser engraving and cutting machine. It can fit in larger size materials and could install higher power laser tubes to cut thick materials. It will be an ideal machine for your business and will bring you profit for sure.
ITEM | DATA |
Working Area: | 1400*900mm |
Laser Tube: | 80W/100W/130W/150W |
Laser Tube Type: | CO2 Sealed Glass Tube |
Z Axis Height: | 100mm Adjustable |
Input Voltage: | 220V AC 50Hz/110V AC 60Hz |
Rated Power: | 1200W-1300W |
Operating Modes: | Optimized Raster,Vector and Combined Mode |
Resolution: | 1000DPI |
Max Engraving Speed: | 1200mm/sec |
Max Cutting Speed: | 680mm/sec |
Acceleration Speed: | 5G |
Laser Optical Control: | 0-100% Set by Software |
Minimum Engraving Size | Chinese Character 2.0mm*2.0mm, English Letter 1.0mm*1.0mm |
Locating Precision: | <=0.1 |
Cutting Thickness: | 0-10mm (Depending on Different Materials ) |
Working Temperature: | 0-45°C |
Buffer Memory: | 128Mb |
Compatible Software: | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |
Compatible Operation System: | Windows XP/2000/Vista,Win7/8//10, Mac OS, Linux |
Computer Interface: | Ethernet/USB/Wi-Fi |
Worktable: | Honeycomb + Blade |
Cooling system: | Built in Water Cooler with Cooling Fan |
Air Pump: | Built in Noise suppression Air Pump |
Exhaust Fan: | Built in Turbo Exhaust blower |
Machine Dimension: | 1920mm*1495mm*1025mm |
Machine Packing Weight: | 450Kg |
Option | Wi-Fi, Autofocus, Rotary Attachment |

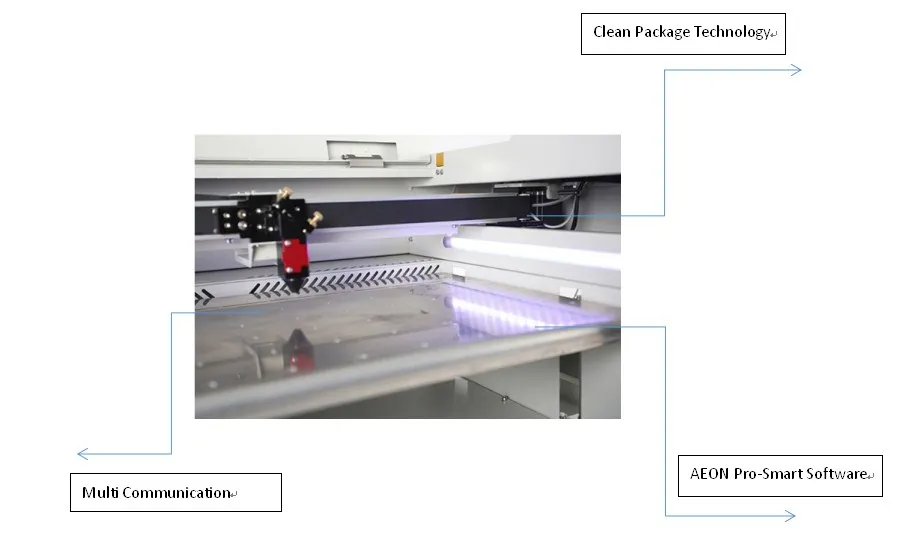

Clean Pack Design
Typical problems with laser machines are caused by dust, smoke and dirt particles getting into your motion control system,
damaging your guide rails and bearings. AEON clean pack technology is designed to protect your mechanic parts, giving you consistently high engraving results, ability to work at high speed, prolonged component life.
damaging your guide rails and bearings. AEON clean pack technology is designed to protect your mechanic parts, giving you consistently high engraving results, ability to work at high speed, prolonged component life.
All in One Design
All laser engraving machines need extraction, tube temperature control, air compression. The new MIRA smart design has all of these built into the unit. So no external devices are seen. Simplicity and smart thinking.
Only AEON offer this smart concept and design worldwide.
Only AEON offer this smart concept and design worldwide.

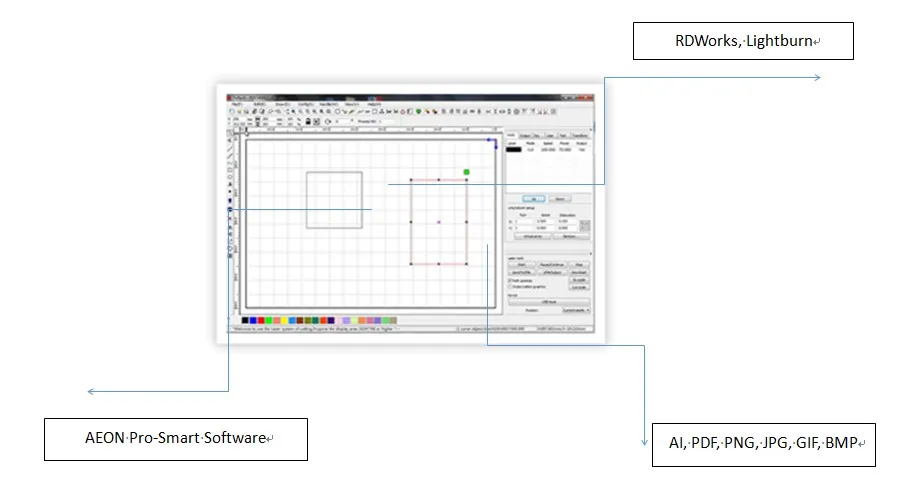

Lightburn Software
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
– Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
– Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
– Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
– Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
– Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
– Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
– Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
– Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.

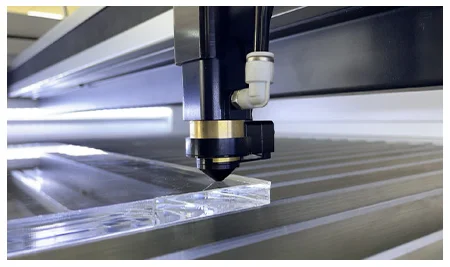

Integrated Autofocus
The newly designed laser head features an integrated autofocusing mechanism that is lightweight and a whole lot more accurate. Say
goodbye to collisions and gouged material.
goodbye to collisions and gouged material.
Clever Table Concept
Depending on your material you will have to use different working heights, especially when using a rotary device. The new MIRA series has Honeycomb table as standard -not optional. It has a rise and fall of up to 100mm and has an automatic focus function to control table height. With the opening front door open you can work with larger pieces of material giving maximum efficiency for a desktop laser.
Application
Shipping & Handling
1. Default shipping worldwide by sea, Port to Port, not to your address directly. Please let me know the arrival seaport before
your purchase.
2. There is only one shipping schedule each week, closed each Tue and ship leaves each Fri, not like the air shipping. Normally it
will take about 15-20 days to arrive in US/Europe, 25 days to Australia after shipped.
3. Freight here is suitable for the typical ports, not for all ports, such as New York, Long Beach, San Francisco, Log Angeles,
Miami, Boston etc.), you need pick it back after clearance yoursfelf or through the local shipping agent or your broker.
4. The buyer is responsbile for the import taxes, port charges, clearance cost etc. on arrival, those are NOT included in the
freight you paid. We will declare a much less value on shipment.
5. Delivery will be in 3-5 working days after receiving the cleared payment. Shipping time 25-35 business days (China Ocean
Shipping)
All packages to Brazil need CPF number by DHL/UPS/FedEx/EMS.
your purchase.
2. There is only one shipping schedule each week, closed each Tue and ship leaves each Fri, not like the air shipping. Normally it
will take about 15-20 days to arrive in US/Europe, 25 days to Australia after shipped.
3. Freight here is suitable for the typical ports, not for all ports, such as New York, Long Beach, San Francisco, Log Angeles,
Miami, Boston etc.), you need pick it back after clearance yoursfelf or through the local shipping agent or your broker.
4. The buyer is responsbile for the import taxes, port charges, clearance cost etc. on arrival, those are NOT included in the
freight you paid. We will declare a much less value on shipment.
5. Delivery will be in 3-5 working days after receiving the cleared payment. Shipping time 25-35 business days (China Ocean
Shipping)
All packages to Brazil need CPF number by DHL/UPS/FedEx/EMS.
Certifications
Company Profile
Long before Suzhou AEON Laser Technology Co., Ltd started its own factory to manufacture laser engraving and cutting machine, fiber laser marking machine in 2017, this industry has already been regarded as red sea market. Cheap Chinese laser machines with terrible quality flooded the world. Dealers are depressed for the low profit and end-users are complaint of the bad quality of Made in China. But, when the users looked around, they can’t find one laser machine that meets their demands for high quality at the same time as the price that they could bear.
AEON Laser just born in her time. We collected the disadvantages of all the laser machines throughout the world and redesign the machine ourselves to just cope with the current market trends. The first model of the All in one Mira series machine soon is brought to the market. And it proved to be very successful. With the endeavor of the engineers and the distributors, we react to the market feedback and upgrade the machines frequently to make them better and better. AEON Laser soon becomes a rising star in this business. We are proud to provide the highest quality laser machines to the global market and will do better and better.
We are different, We evolve, therefore, we survive!
FAQ
1. WHAT IS THE RELATIONSHIP BETWEEN AEON LASER AND POMELO LASER?
MANY PEOPLE CONFUSED ABOUT THESE TWO COMPANIES. THE AEON LASER AND POMELO LASER ARE THE SAME COMPANY ACTUALLY. WE REGISTERED TWO COMPANIES, POMELO LASER GOT THE RIGHT TO EXPORT GOODS TO OVERSEA MARKETS. SO, THE INVOICE AND BANK ACCOUNT IS IN POMELO LASER. AEON LASER IS THE FACTORY AND HOLD THE BRAND NAME. WE ARE ONE COMPANY.
2. Why your machines are expensive than other Chinese suppliers, why you are different with other Chinese laser machine
manufacturers?
This should be a very long answer. To make it short: First and most important, we design, other Chinese companies just copy. Second, we selected parts because it is best fit with our machine, not because the price or the function. A lot of Chinese manufactures just adopted the best parts, but they don't know how to make a good machine. Artist can create beautiful arts with ordinary pen, same parts in different manufacturers, the quality difference of the final machine can be huge. Third, we test machines carefully. We have set up a very strict testing rules and procedures, and we really enforce it.
Fourth, We improve. We react fast about customers' feedback, and improve our machine whenever is possible. We want a perfect machine, whereas other Chinese manufactures just want to earn money fast. They don't care what craps they are selling, we care.
That's why we could do better. To do better will cost more, that is for sure. But, we'll never let you down.
3.Can I buy your machine directly through your factory?
We won't encourage end customers to buy from us directly. We are increasing more agents, distributors and resellers through out the world. If we got distributors in your area, please buy from our distributors, they'll offer you complete service and take care with you all the time. If we don't have agents or distributors in your area, you could.
MANY PEOPLE CONFUSED ABOUT THESE TWO COMPANIES. THE AEON LASER AND POMELO LASER ARE THE SAME COMPANY ACTUALLY. WE REGISTERED TWO COMPANIES, POMELO LASER GOT THE RIGHT TO EXPORT GOODS TO OVERSEA MARKETS. SO, THE INVOICE AND BANK ACCOUNT IS IN POMELO LASER. AEON LASER IS THE FACTORY AND HOLD THE BRAND NAME. WE ARE ONE COMPANY.
2. Why your machines are expensive than other Chinese suppliers, why you are different with other Chinese laser machine
manufacturers?
This should be a very long answer. To make it short: First and most important, we design, other Chinese companies just copy. Second, we selected parts because it is best fit with our machine, not because the price or the function. A lot of Chinese manufactures just adopted the best parts, but they don't know how to make a good machine. Artist can create beautiful arts with ordinary pen, same parts in different manufacturers, the quality difference of the final machine can be huge. Third, we test machines carefully. We have set up a very strict testing rules and procedures, and we really enforce it.
Fourth, We improve. We react fast about customers' feedback, and improve our machine whenever is possible. We want a perfect machine, whereas other Chinese manufactures just want to earn money fast. They don't care what craps they are selling, we care.
That's why we could do better. To do better will cost more, that is for sure. But, we'll never let you down.
3.Can I buy your machine directly through your factory?
We won't encourage end customers to buy from us directly. We are increasing more agents, distributors and resellers through out the world. If we got distributors in your area, please buy from our distributors, they'll offer you complete service and take care with you all the time. If we don't have agents or distributors in your area, you could.
4.Can I resell your machine in our country?
Yes, we welcome agents, distributors or resellers to sell our machine in their area. But, we have some exclusive agents in some countries. Please feel free to contact us to check the opportunity to represent us in your market.
5.Are these machines designed in China?
Yes, many people are skeptical about our machine, they doubt these machines were not designed by Chinese. We could tell you that these machines are completely designed by our team in China. We got all the patents here in China. And will continue to design excellent machines in the future.
6. What is your warranty policy? How do you fulfill it?
We got one year warranty on our machine. For laser tube, mirrors, focus lens, we offer 6 months' warranty. For RECI laser tube, they were covered in 12 months.
7.How do i know the tube is nearly used up?
The normal color of the laser beam is purple while working. When a tube is dying, the color will become white.
8.What's the difference between the different laser tubes?
Usually, the power of the tube is decided by two parameters: The length of the tube, the longer the tube is the more powerful. The diameter of the tube, the bigger the tube is the more powerful.
9.What's the life time of laser tube?
The normal life tube of a laser tube is about 5000 hours according to how you use it.
10.Can I install different lens in your laser head?
Yes, you could install 1.5 inch and 2 inch focus lens in MIRA laser head. For NOVA laser head, you could install 2 inch, 2.5 inch and 4 inch focus lens.
Yes, we welcome agents, distributors or resellers to sell our machine in their area. But, we have some exclusive agents in some countries. Please feel free to contact us to check the opportunity to represent us in your market.
5.Are these machines designed in China?
Yes, many people are skeptical about our machine, they doubt these machines were not designed by Chinese. We could tell you that these machines are completely designed by our team in China. We got all the patents here in China. And will continue to design excellent machines in the future.
6. What is your warranty policy? How do you fulfill it?
We got one year warranty on our machine. For laser tube, mirrors, focus lens, we offer 6 months' warranty. For RECI laser tube, they were covered in 12 months.
7.How do i know the tube is nearly used up?
The normal color of the laser beam is purple while working. When a tube is dying, the color will become white.
8.What's the difference between the different laser tubes?
Usually, the power of the tube is decided by two parameters: The length of the tube, the longer the tube is the more powerful. The diameter of the tube, the bigger the tube is the more powerful.
9.What's the life time of laser tube?
The normal life tube of a laser tube is about 5000 hours according to how you use it.
10.Can I install different lens in your laser head?
Yes, you could install 1.5 inch and 2 inch focus lens in MIRA laser head. For NOVA laser head, you could install 2 inch, 2.5 inch and 4 inch focus lens.
Recommend Products
Похожие товары
XM взрывоопасный продукт лазерные машины горячая Распродажа 1080 co2 лазерная резка для пластиковых бутылок гравировка кожи
Лазерная гравировальная и режущая машина Storm600 Co2 для резьбы по ткани кожи шерсти акрила плексигласа с сервоприводом двигатель деревянных ключей
164 472,60 ₽
Волоконно-лазерный гравировальный станок с автофокусом волоконно-лазерный ювелирные изделия золото серебро маркер
197 367,12 ₽ - 372 694,92 ₽
Co2 лазерная гравировальная машина с USB-ключом для программного обеспечения King Rabbit лазерный гравер
Печатная плата принтера лазерная маркировка 10 Вт 20 30 SMT печатная гравировка UV CO2 маркировочная машина/прецизионные режущие машины
2 171 038,32 ₽ - 2 576 737,40 ₽

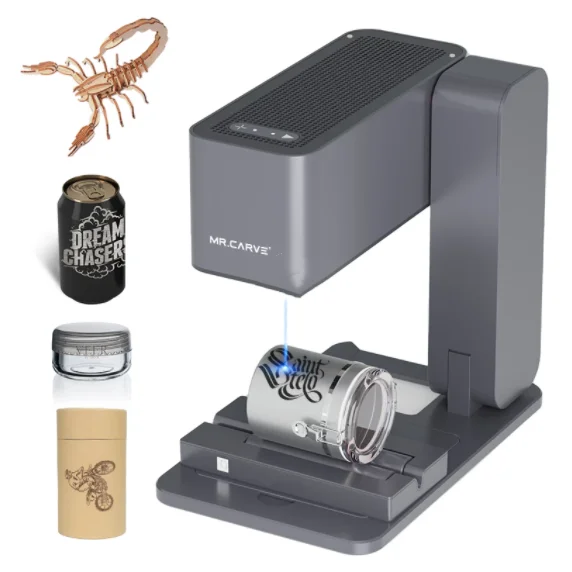

MR. Cave C1 портативный Автофокус для неметаллического материала адаптировать компьютер и мобильный телефон Daja гравировальный станок лазерный гравер
