10 тонн машина для производства чешуйчатого льда барабан испаритель машины в Китае (стандарты CE
- Категория: >>>
- Поставщик: Jinan Robin Machinery Co. Ltd.
Сохранить в закладки 1600324374872:
Описание и отзывы
Характеристики

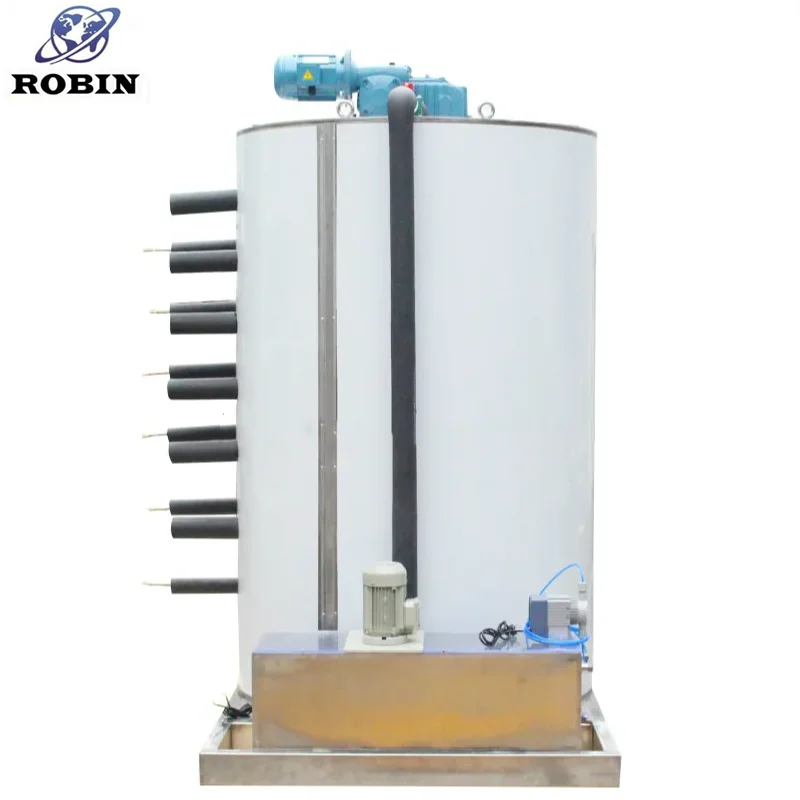

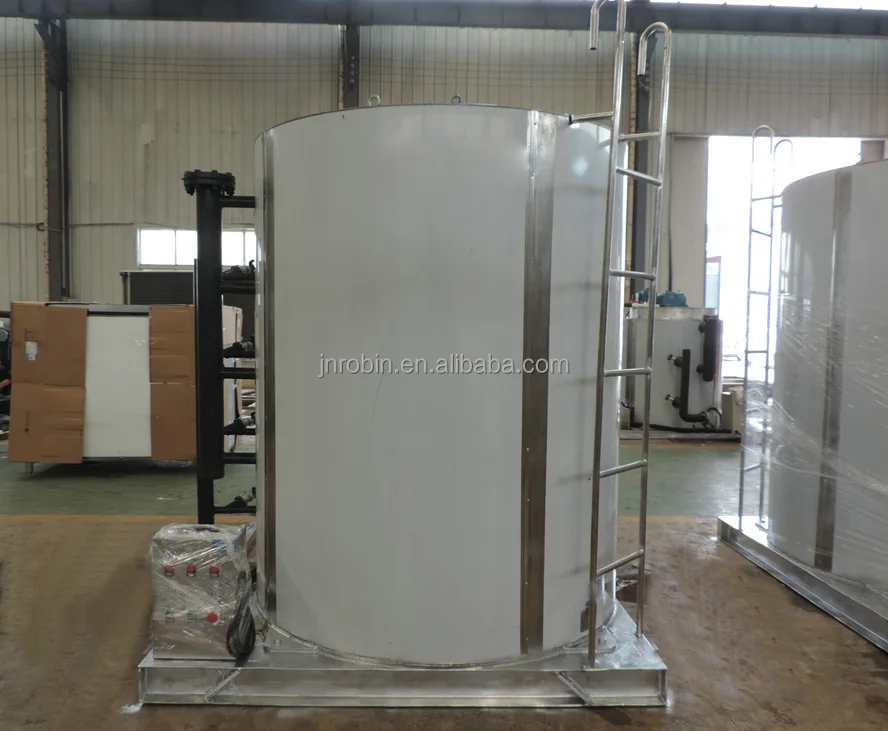

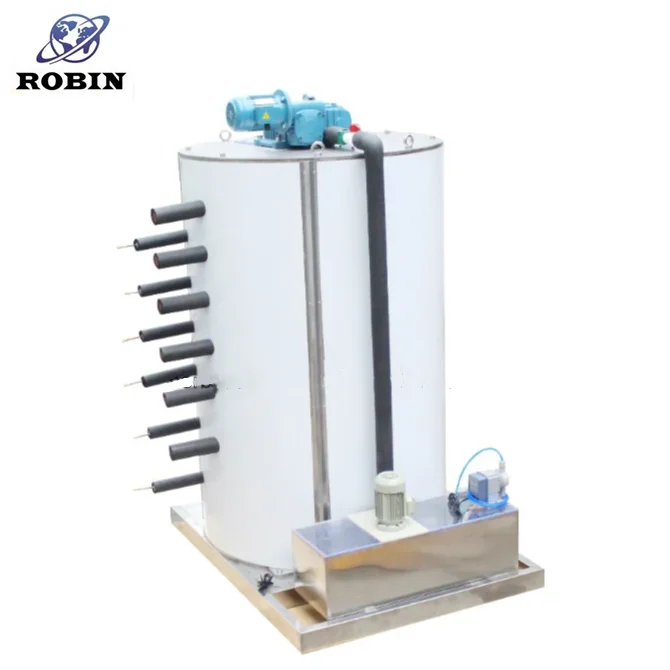

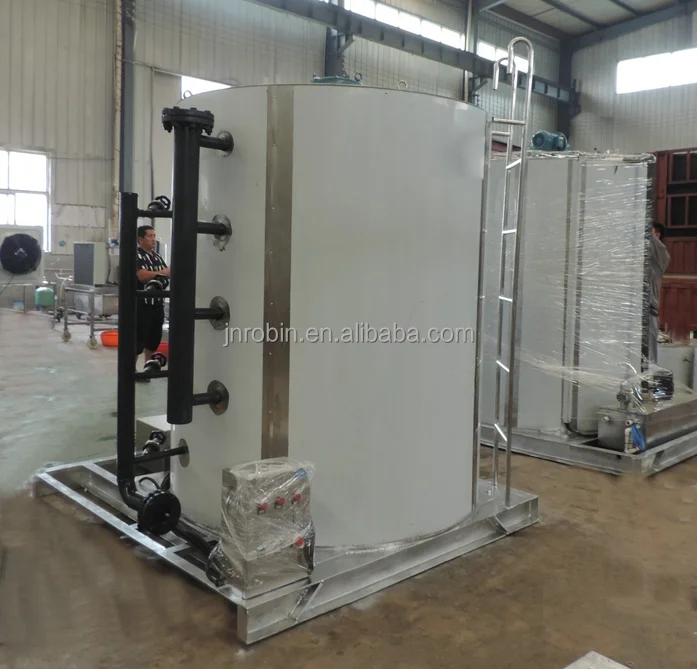

10 ton flake ice drum flake ice machine evaporator with CE
Product Description
The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.
Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.
Flake Ice Evaporators Characteristics:
---The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
---Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
---All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
---The flake ice is glittering and translucent, hard and pure
---Ice making and dropping in high speed
Technical Data for 10ton flake ice drum
Model | RBFE-10 |
Daily Ice Production | 10t/24h |
Refrigeration Capacity | 60 |
Power Consumption | 0.7kw |
Reducer Power | 0.55kw |
Water Pump Power | 0.15kw |
Power Supply | 3P/380V/50Hz or custom made |
Water Pressure | 0.1Mp-0.5Mpa |
Refrigerant | R404a&R22&R717 |
Water Pipe | 1/2" |
Weight | 1100kgs |
Dimensions | 1580X1500X1670mm |
If you are interested in the products, welcome to contact with us!!
Other models specifications
Model | RBFE-1T | RBFE-1.5T | RBFE-2T | RBFE-3T | RBFE-5T | RBFE-10T |
Daily output(Ton/24h) | 1 | 1.5 | 2 | 3 | 5 | 10 |
Necessary refriger(kw) | 6 | 9.8 | 12 | 18 | 30 | 60 |
Voltage |
|
| 380V/50HZ/3P | |||
Reductor power(kw) | 0.18 | 0.18 | 0.37 | 0.37 | 0.37 | 0.55 |
Water inlet /Drain pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 3/4" / 1/2" |
Deminsion(mm) | 790*580*900 | 790*580*1000 | 950*680*1050 | 950*680*1200 | 1180*1050*1420 | 1580*1500*1670 |
Weight(kg) | 160 |
|
| 280 | 370 | 1100 |
If you are interested in the products, welcome to contact with us!!
Drawings for flake ice drum

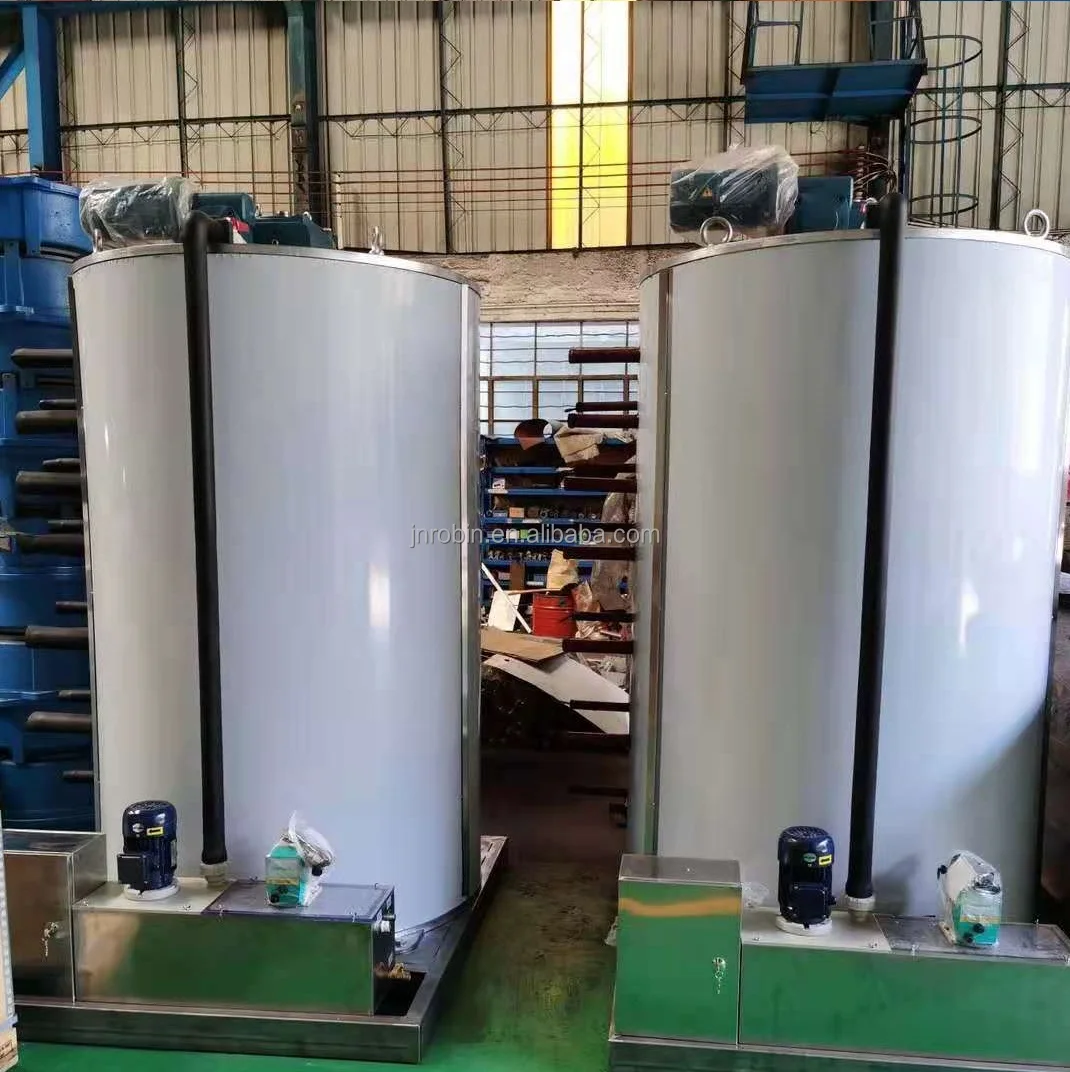

Flake ice drum production process
If you are interested in the products, welcome to contact with us!!
Flake ice machine project at clients site
Flake ice shapes
Pure, no cased, thickness is 1.8mm-2.5mm
Packing&Delivery
If you are interested in the products, welcome to contact with us!!
Company Information
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design, production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine, tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coal mine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Exhibition Shows
RAQ:
Q:Can we get some samples?
A:Of course, we can supply samples,but the sample cost and postage charge is on buyer's account.
Q:when we received the goods, if there have defecitve ice machines ice makers, how would you solve this problem?
A:If there has any defective ice machines,just take pictures, we will replace good machines to you one to one.
Q:Can you print my logo on the ice machines?OEM? and produce ice maker as our design?
A:Yes, we can supply label printing service, we alsp can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need we can produce ice machines as your design.
Q:What' s your normal lead time?
A:We will send out goods in 20-35 days after received your payment.
Q:How to install the ice machine?
A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,any problem our technicians team will solve at first time.
large ice block machine,tube ice machine ,flake ice machine , we will let our engineers help you install and debug in your country,pls rest about that.
Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Whole machine 12 months warranty, the compressor 5 years. Maintenance for life.
A:Of course, we can supply samples,but the sample cost and postage charge is on buyer's account.
Q:when we received the goods, if there have defecitve ice machines ice makers, how would you solve this problem?
A:If there has any defective ice machines,just take pictures, we will replace good machines to you one to one.
Q:Can you print my logo on the ice machines?OEM? and produce ice maker as our design?
A:Yes, we can supply label printing service, we alsp can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need we can produce ice machines as your design.
Q:What' s your normal lead time?
A:We will send out goods in 20-35 days after received your payment.
Q:How to install the ice machine?
A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,any problem our technicians team will solve at first time.
large ice block machine,tube ice machine ,flake ice machine , we will let our engineers help you install and debug in your country,pls rest about that.
Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
Whole machine 12 months warranty, the compressor 5 years. Maintenance for life.
Похожие товары

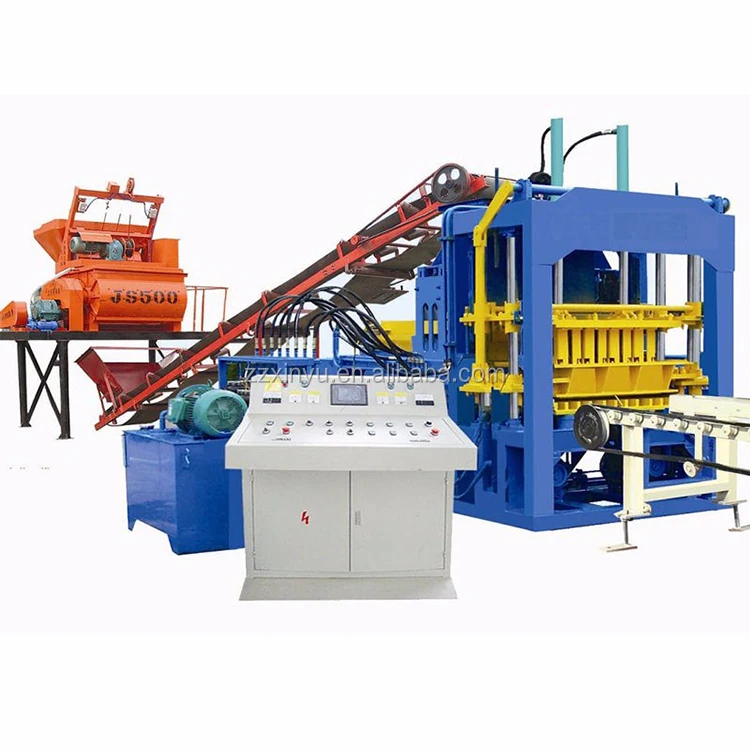

QT8-15 Автоматическая китайская машина для производства необожженного кирпича с Цена по прейскуранту завода-изготовителя

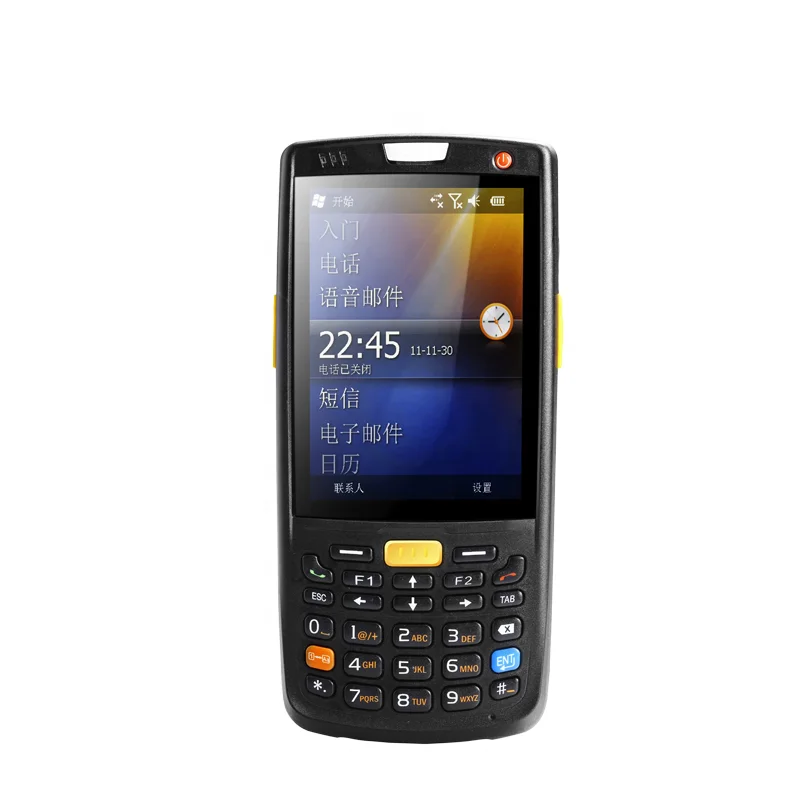

Android PDA RFID Reader промышленный портативный терминал
Кремовые румяна частная марка румян консилер
3,00 $ - 4,00 $
Amazon Ebay желаю OEM/ODM хорошего качества 6 видов цветов защита от воды, Длительное Действие, Увлажняющий Осветляющий обрезки натуральное жидкое средство кисть для румян
1,30 $ - 1,60 $

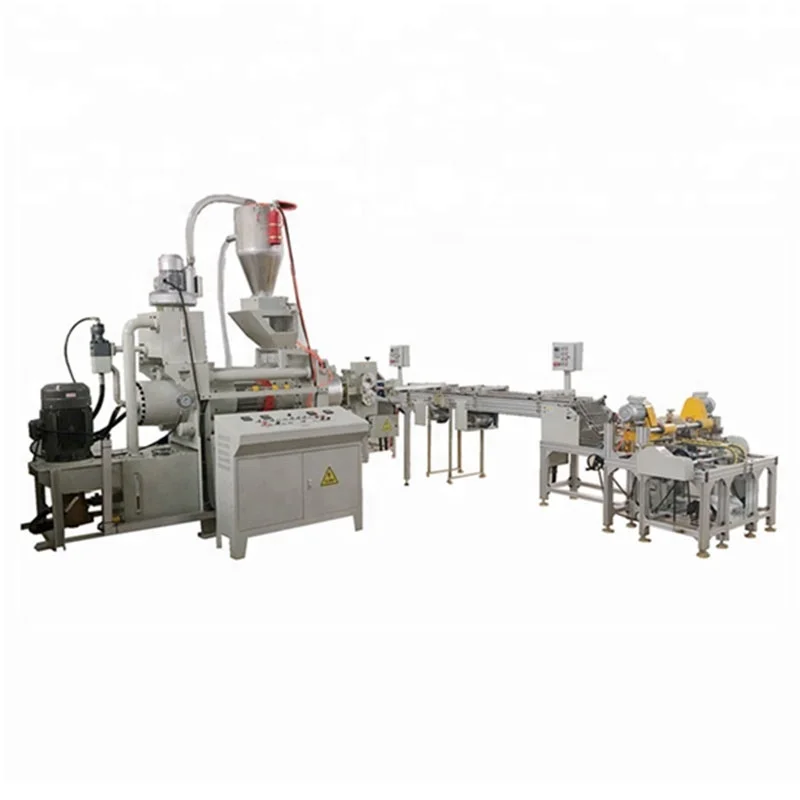

Полностью автоматический экструдер для свечей, формовочная машина
