Оборудование FTTH Smart Handhold Mini OTDR 1310 нм 60 км 22 дБ с OPM OLS VFL

Сохранить в закладки 1600324720264:


Цена:370,00 $ - 380,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Factory Supply FTTH Equipment Smart Handhold Mini OTDR 1310/1550nm 60KM with OPM OLS VFL



Product Description





Description

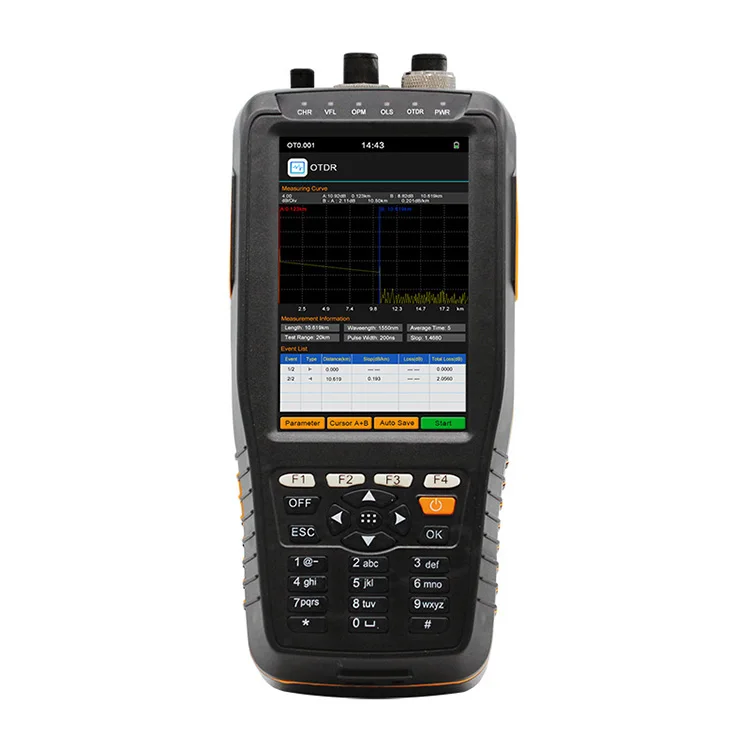

WL-TM290 Smart handy OTDR is portable fiber fault locator, it is quickly to detect fault location and type of optical fiber using OTDR element and stronger software analysis tool.


Detailed 1.jpgDetailed 2.jpgDetailed 3.jpgDetailed 4.jpgDetailed 5.jpgDetailed 6.jpg





Functions:


1. OTDR: 1310/1550nm , 22/20dB,  0-60km


2. Optical Power Meter : -70~+10dbm or -50~+26dbm


3. Visual Fault Locator : >=10mw


4. Optical Light Source : 1310/1550nm ,>-5dBm





Main Features:


Lightweight, portable, cost-effective


One Key Operation, Legible Test Data


Integrated with Visual Fault Locator system, it is easily to detect fault location of dead Zone


Use the rubber Key, good dustproof, waterproof, quakeproof ability, suitable for field maintenance work


Use big capacity battery, long working time, suitable for long time field working


Suitable for engineer construction and maintenance fault location of FTTx and access network





Applications


 It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.











Parameter:


1. OTDR

















































































Type



TM290



Wavelength



1310/1550nm



Dynamic Range



22/20dB



Measure distances



0-60km



Fiber type



SM



Type of Fiber



9/125um Single-mode optical fiber



Type of Connectors



FC/PC/; SC/PC



Peak Value of laser



>=30mW



UOM of Measurement



Meter,Feet,Mile



Dead Zone of Reflection Event



2m



Dead Zone of attenuation Event



12m



Accuracy Distance



About +_(1m+2 *10(-4)* distance)



(Reflection Event)



Number of test records saved



100



Power Supply



8.4V Li-ion Battery 4400mAH



Battery working time



>=5,000 times of measurements



Temperature



Operate :-5~50 ,Store:-10~60



Humidity



0~85%(Non-condensing)



Weight(g)



300





2. Visual Fault Locator






















Wavelength :



650nm



VFL Output Power



>=10mW



Mode



CW,1Hz,2Hz



Fiber type



SM/MM



Visual Fault Locator.jpg


3. Optical Power Meter



































 Measurement range dBm



-70~+10 dBm



-50~+26 dBm



Wavelength range(nm)



800~1650



Calibrated wavelength



850nm,1300nm,1310nm,1490nm,1550nm,1625nm(other wavelength will be on request)



Detector



InGaAs



Accuracy



<±3% (-10dBm,22℃)



Resolution



Linearity:0.1%,Non-linearity:0.01dBm



connector



Changeable  FC/PC SC/PC,( ST as Optional)



Optical Power Meter.jpg





4. Optical Light Source


































Emitter



FP-LD



wavelength (nm)



1310/1550nm



Connector



FC/PC(SC/ST as optional)



Output power



≥-5dBm



Output stability(dBm)



±0.04@20℃@15min



Modulation



CW/270Hz/1KHz/2KHz



Fiber type



SM



Optical Light Source.jpg

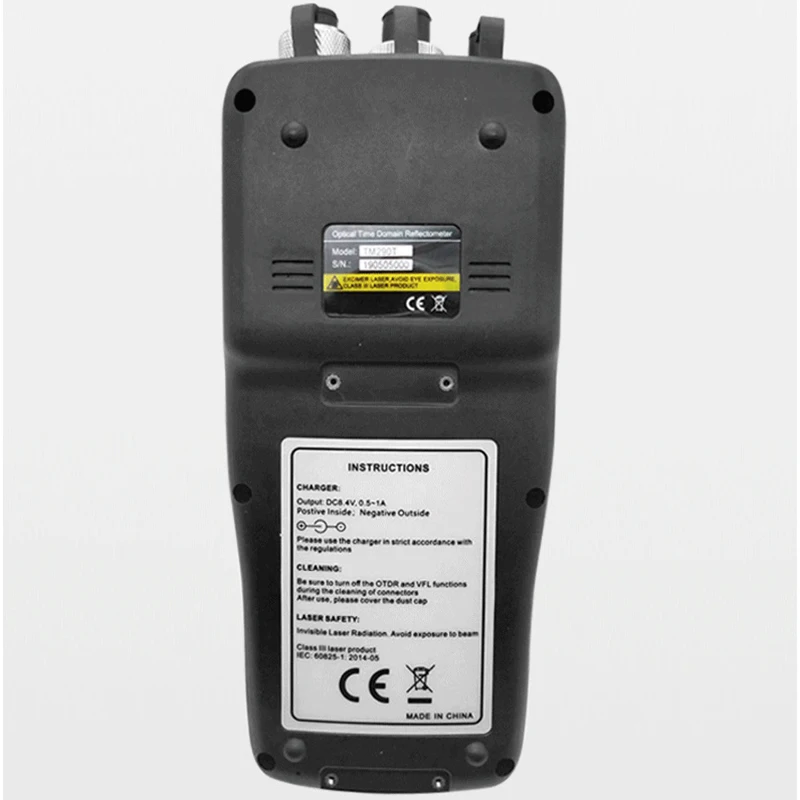

Product pics:


Detailed 12.jpgDetailed 13.jpgDetailed 14.jpg





Parts List


 Detailed 11.jpg





Partners







Wolon Cooperator
Wuhan Wolon



FAQ





More details, please kindly click here to ask the professional salesman.


Gentle reminder: When you make the order, please kindly tell us information as below:


1. What is the connector type you want, SC or FC, APC or PC?


2. What is kind of adapter plug you need, EU or American or UK or South Africa or Chinese standard?
