Высокоэффективная мельница для воздушного классификатора измельчитель бентонита производства порошка с системой сбора пыли
- Категория: >>>
- Поставщик: Jiangyin Lingling Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600325236376:
Описание и отзывы
Характеристики
High efficiency air classifier mill bentonite crusher machine for powder making with dust collecting system
MAIN APPLICATION

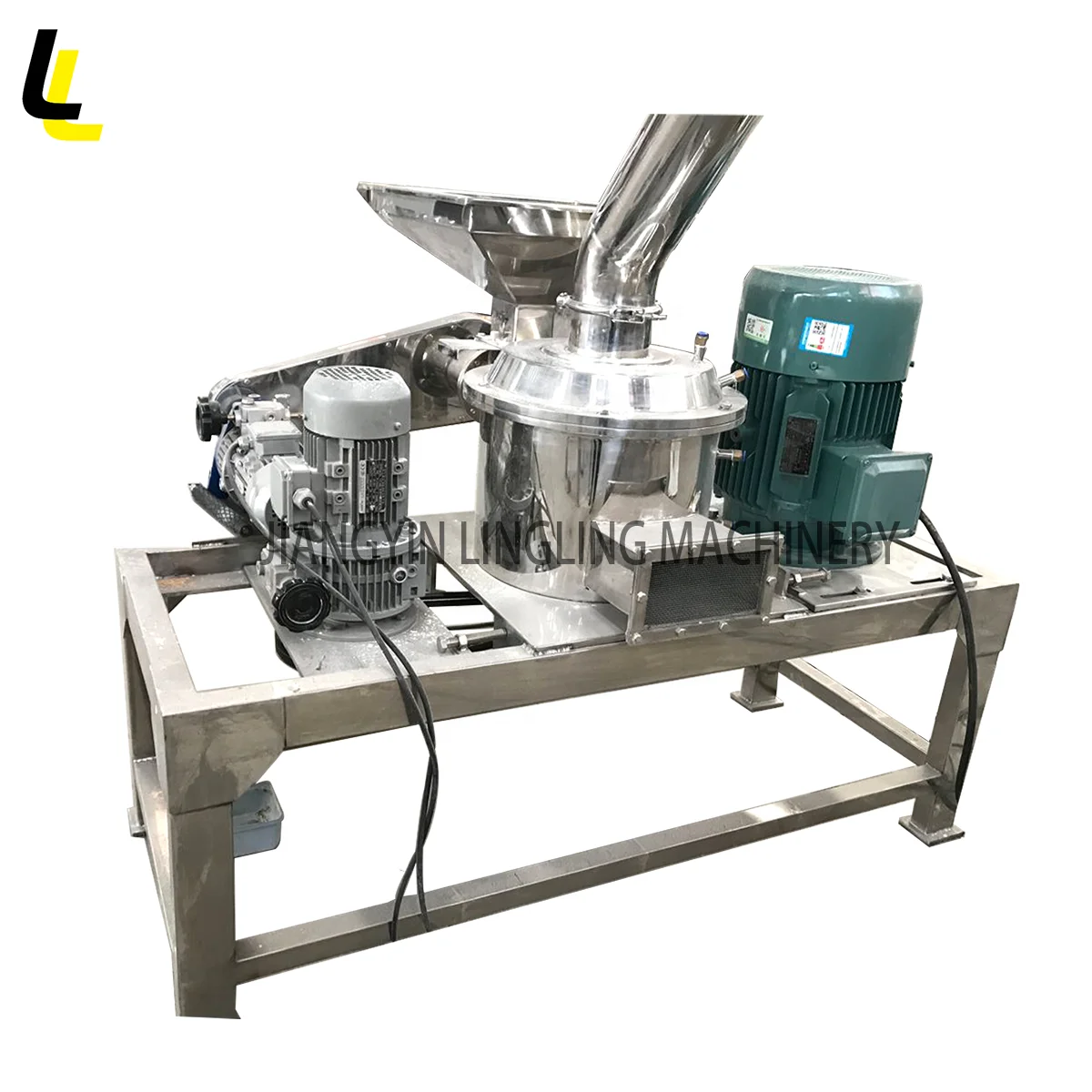

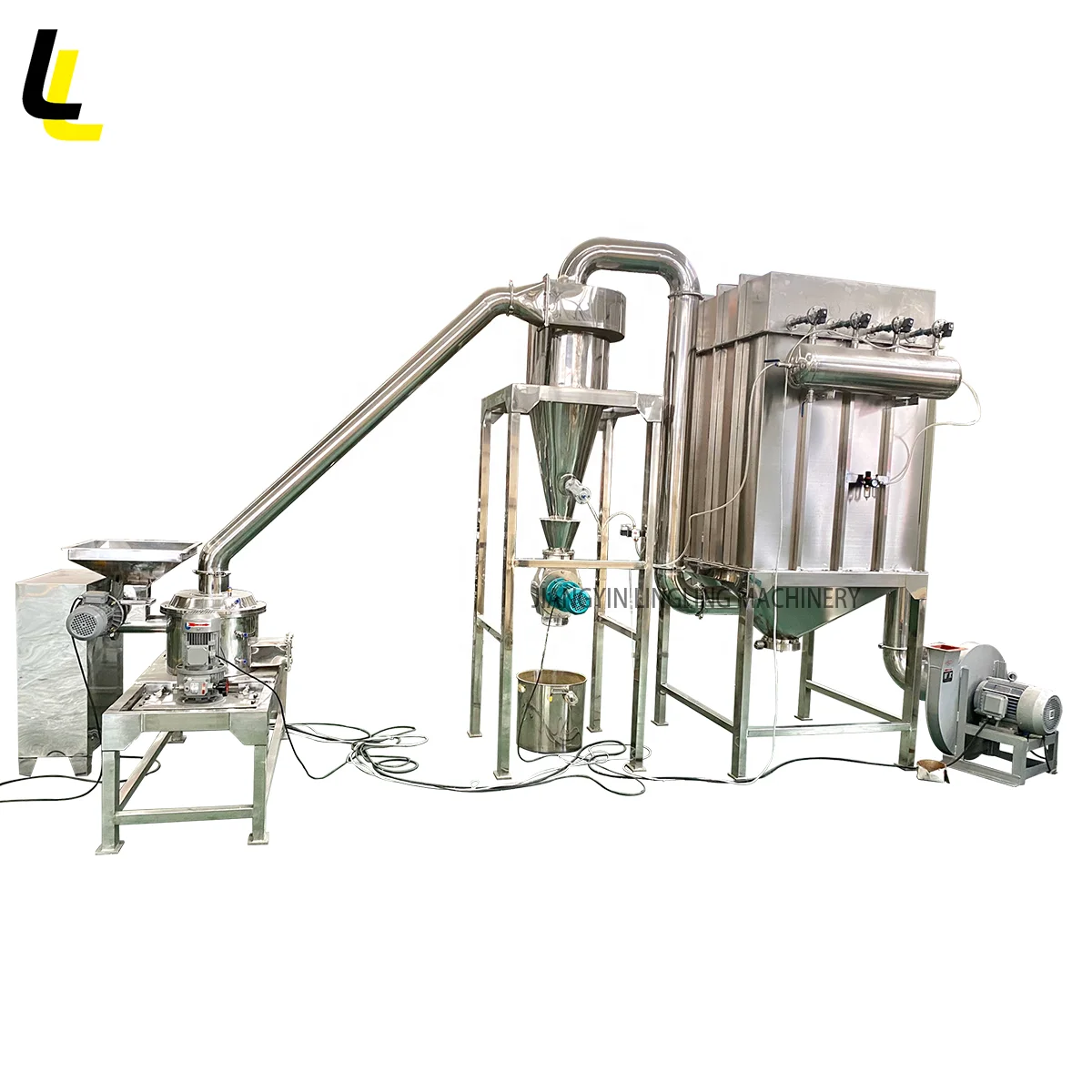

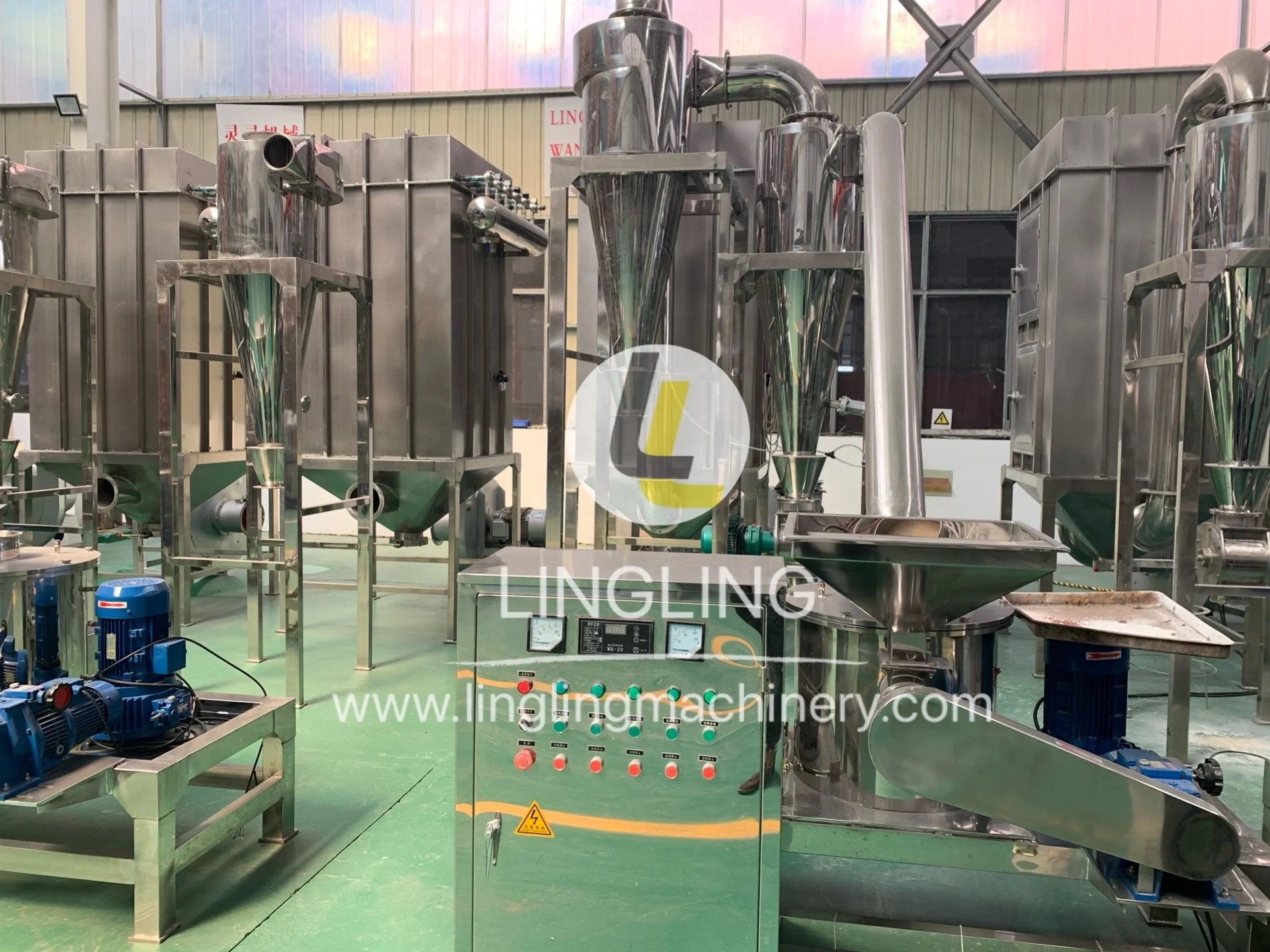

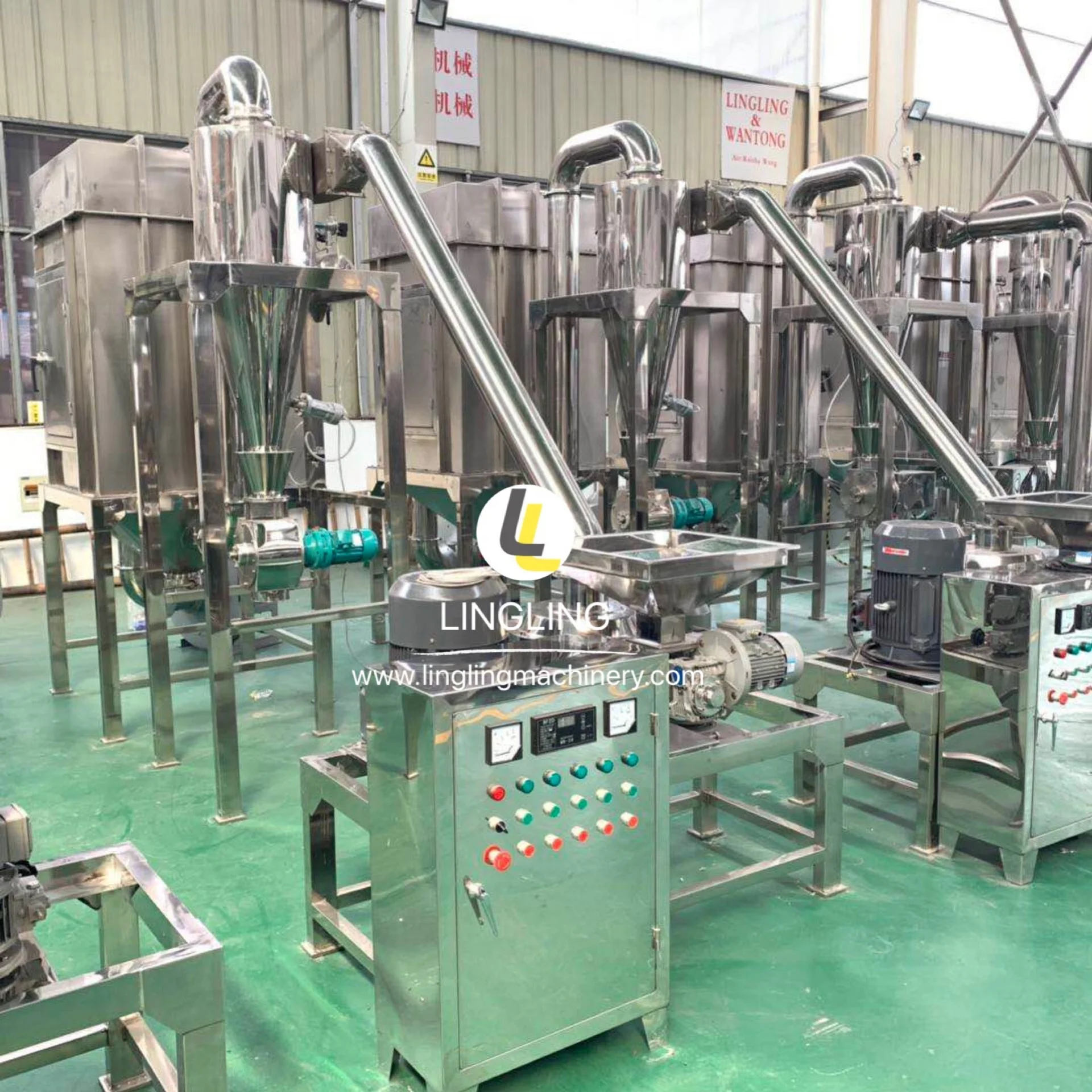

The machine is made up of three parts: main machine, discharge part and dust collecting part. The particle is filtered by
wind,which ensures the fineness and uniformity of the particle.It is widely used in food, medcine, pharmaceutial,
chemiacal,cosmetics, plastic, dyestuff, resin, colourant, and agricultural industry.
wind,which ensures the fineness and uniformity of the particle.It is widely used in food, medcine, pharmaceutial,
chemiacal,cosmetics, plastic, dyestuff, resin, colourant, and agricultural industry.
WORKING PRINCIPLE
Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades. The powder passes the guide ring and enters the classifier chamber. As the classification wheel is in rotation, both air force and centrifugal force act on the powder. As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a greater mass,they are thrown back into the mill chamber to be ground again,while the particles whose diameters are smaller than the critical diameter enter cyclone separator and dust-collecting box.
Technical Data:
Model | WFJ-10 | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | WFJ-100 | ||||||
Production Capacity (kg) | 10~50 | 50~100 | 80~200 | 200~400 | 400~800 | 500~1000 | 600~1200 | ||||||
Feeding size (mm) | <5 | <10 | <10 | <12 | <12 | <12 | <12 | ||||||
Crushing fineness (mesh) | 80-600 | ||||||||||||
Motor power (kw) | 12 | 13.37 | 18.37 | 42.5 | 77.5 | 96 | 138 | ||||||
Spindle speed (rpm) | 4000 | 5800 | 4200 | 3800 | 3200 | 2800 | 2000 | ||||||
Weight (kg) | 500 | 1000 | 1200 | 1800 | 2500 | 3000 | 4000 | ||||||
Overall dimension (L*W*H)(mm) | 1700x1800x2200 | 4500x1250x2700 | 6000x1250x2900 | 7100x1300x3650 | 8000x2300x4500 | 8500x2500x4600 | 10000x2800x5000 | ||||||
Company Profile

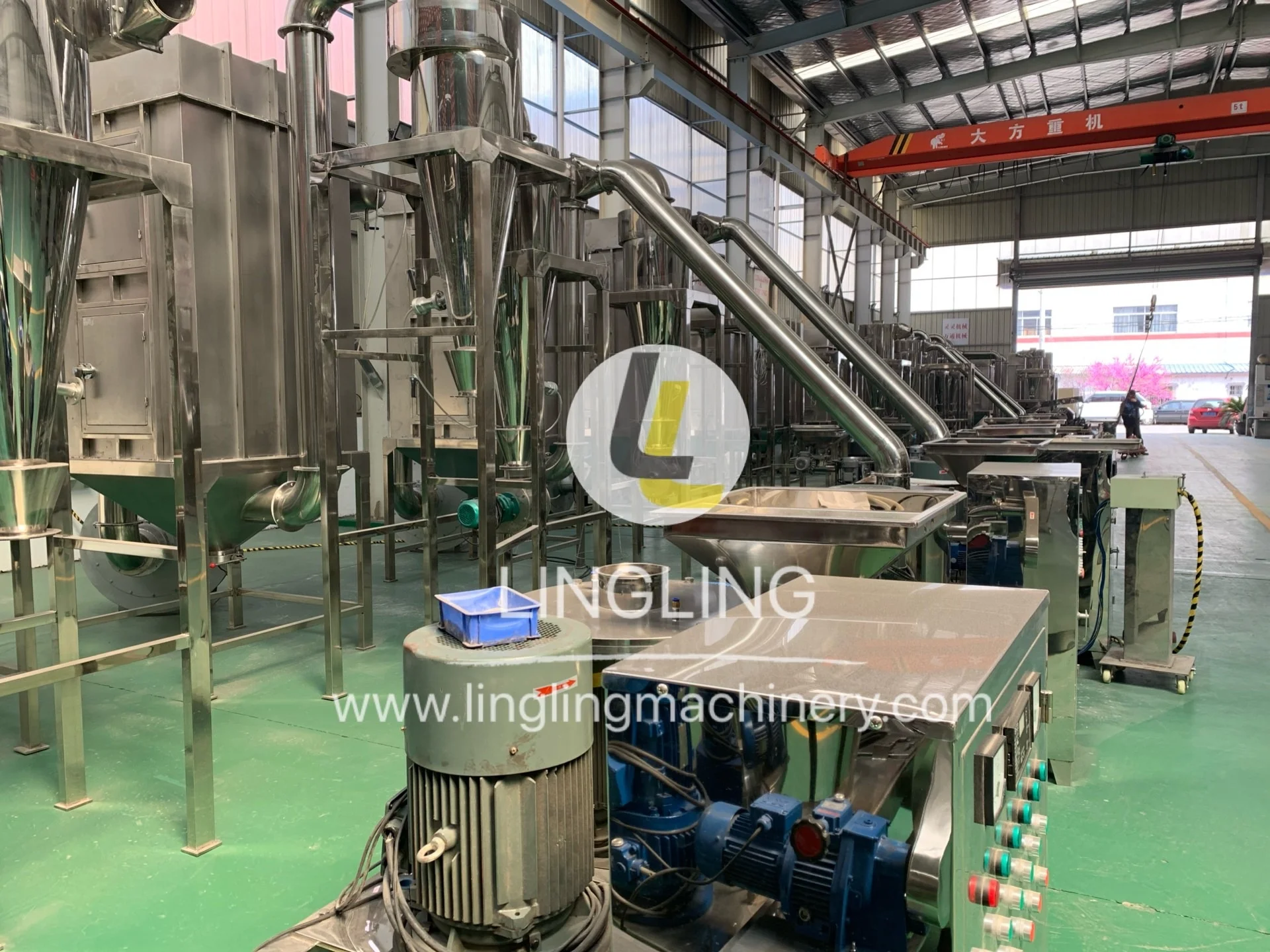

Jiangyin Lingling Machinery Manufacturing Co., Ltd. is located in the first foreign-trade town in the south of the Yangtze River Delta - Zhutang Town, with Shanghai in the east and Suzhou in the south, next to Shanghai-Nanjing Freeway which is famous for golden channel. So the transportation on land and water is very convenient.
Our company is specialized in pharmacy, chemicals, food and rubber smashing series products, including WF universal coarse crusher, WFJ series fine crusher, GFSJ series high-efficiency crusher, CXFJ-22 series super fine rubber crusher, ZS series rock screen, GHJ series V-type mixer, RXH series hot-air circulation oven and other related products.
Our company owns strong technical power and excellent products. Each product is made strictly according to GMP standard and reaches domestic advanced level. Other non-standard products are able to be made to order. These products are well sold all over the country, deeply loved by broad users.
We warmly welcome both domestic and foreign customers to order our products.
Our company is specialized in pharmacy, chemicals, food and rubber smashing series products, including WF universal coarse crusher, WFJ series fine crusher, GFSJ series high-efficiency crusher, CXFJ-22 series super fine rubber crusher, ZS series rock screen, GHJ series V-type mixer, RXH series hot-air circulation oven and other related products.
Our company owns strong technical power and excellent products. Each product is made strictly according to GMP standard and reaches domestic advanced level. Other non-standard products are able to be made to order. These products are well sold all over the country, deeply loved by broad users.
We warmly welcome both domestic and foreign customers to order our products.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to Eastern Europe(20.00%),Southeast Asia(20.00%),Domestic Market(20.00%),North America(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(3.00%),Northern Europe(3.00%),South Asia(3.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinder,Mixer,Granulator,Dryer,Conveyor
4. why should you buy from us not from other suppliers?
our factory mainly produce the Crusher, Pulverizer, Mixer, Dryer, Granulator. Conveyor.etc,May i invite you visit us and chat business,please.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2007,sell to Eastern Europe(20.00%),Southeast Asia(20.00%),Domestic Market(20.00%),North America(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(3.00%),Northern Europe(3.00%),South Asia(3.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grinder,Mixer,Granulator,Dryer,Conveyor
4. why should you buy from us not from other suppliers?
our factory mainly produce the Crusher, Pulverizer, Mixer, Dryer, Granulator. Conveyor.etc,May i invite you visit us and chat business,please.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDU；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
High efficiency air classifier mill bentonite crusher machine for powder making with dust collecting systemHigh efficiency air classifier mill bentonite crusher machine for powder making with dust collecting systemHigh efficiency air classifier mill bentonite crusher machine for powder making with dust collecting systemHigh efficiency air classifier mill bentonite crusher machine for powder making with dust collecting system
Похожие товары

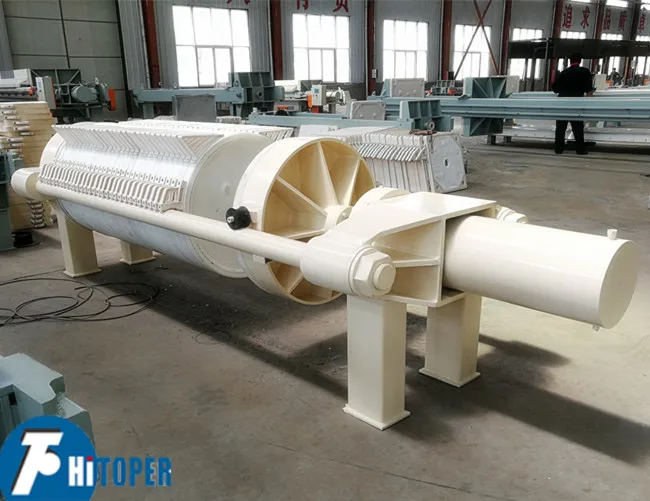

Фильтрующий Пресс высокого давления с круглой пластиной для обезвоживания бентонита
Сырье высокой чистоты 98% коэнзим Q10 порошок для пищевых добавок
580,00 $ - 650,00 $

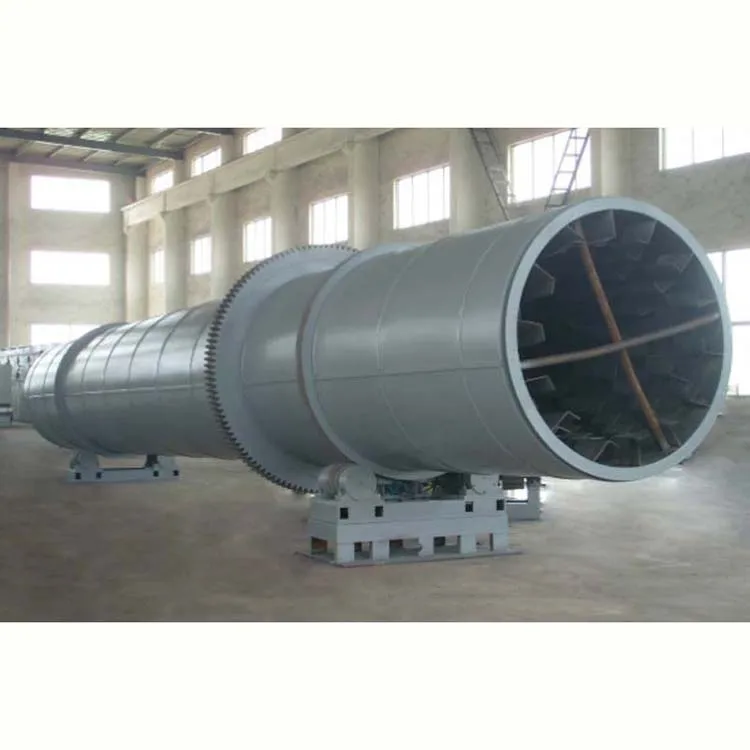

Высокоэффективная непрерывная вращающаяся барабанная сушилка HZG для активированной глины/активного бентонита
10 000,00 $

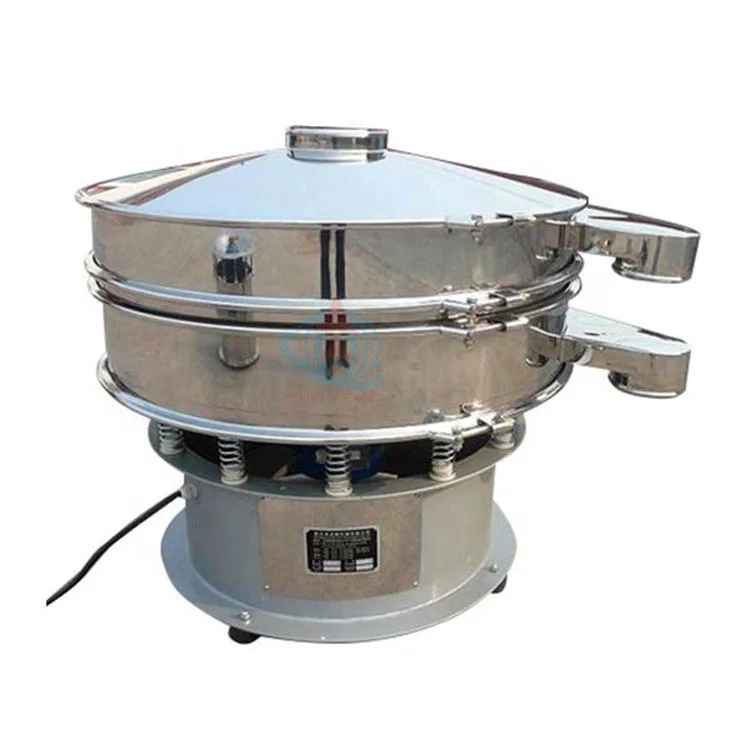

Недорогой ротационный Вибрационный шейкер для кошачьего туалета, бентонита
1 300,00 $ - 1 500,00 $
Горячая Распродажа, кошачий наполнитель, песок, кошачий наполнитель, 100% бентонит

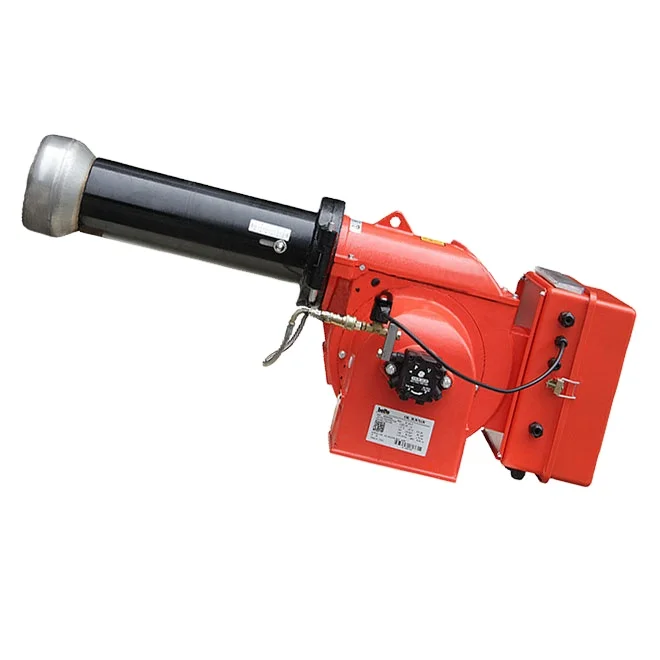

Двухступенчатая горелка с настраиваемым бентонитовым масляным горелкой для системы парового котла
383,40 $ - 410,40 $

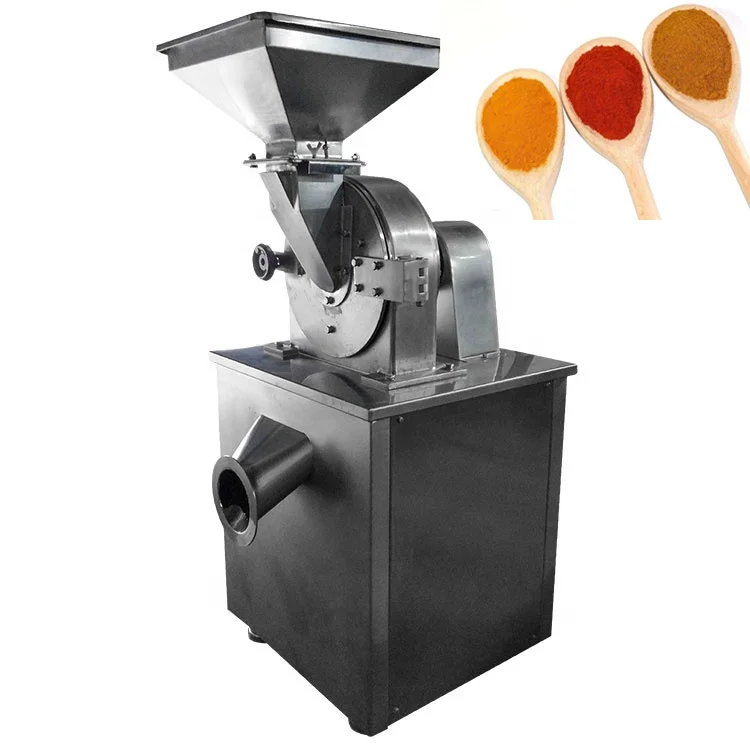

Измельчитель для специй, сухой лист, кассава, бентонит, корица
