Автоматическая линия порошкового покрытия с быстрой сменой цвета циклонный порошковый покрывающий Стенд от
- Категория: >>>
- Поставщик: Hebei Hanna Technology Co. Ltd.
Сохранить в закладки 1600325532426:
Описание и отзывы
Характеристики
Product Description
1-Pre-treatment system(Dipping tank/spraying/shotblasting)
2-Water drying oven
3-Powder coating system /paint booth/coating cabinet
4-Powder curing oven

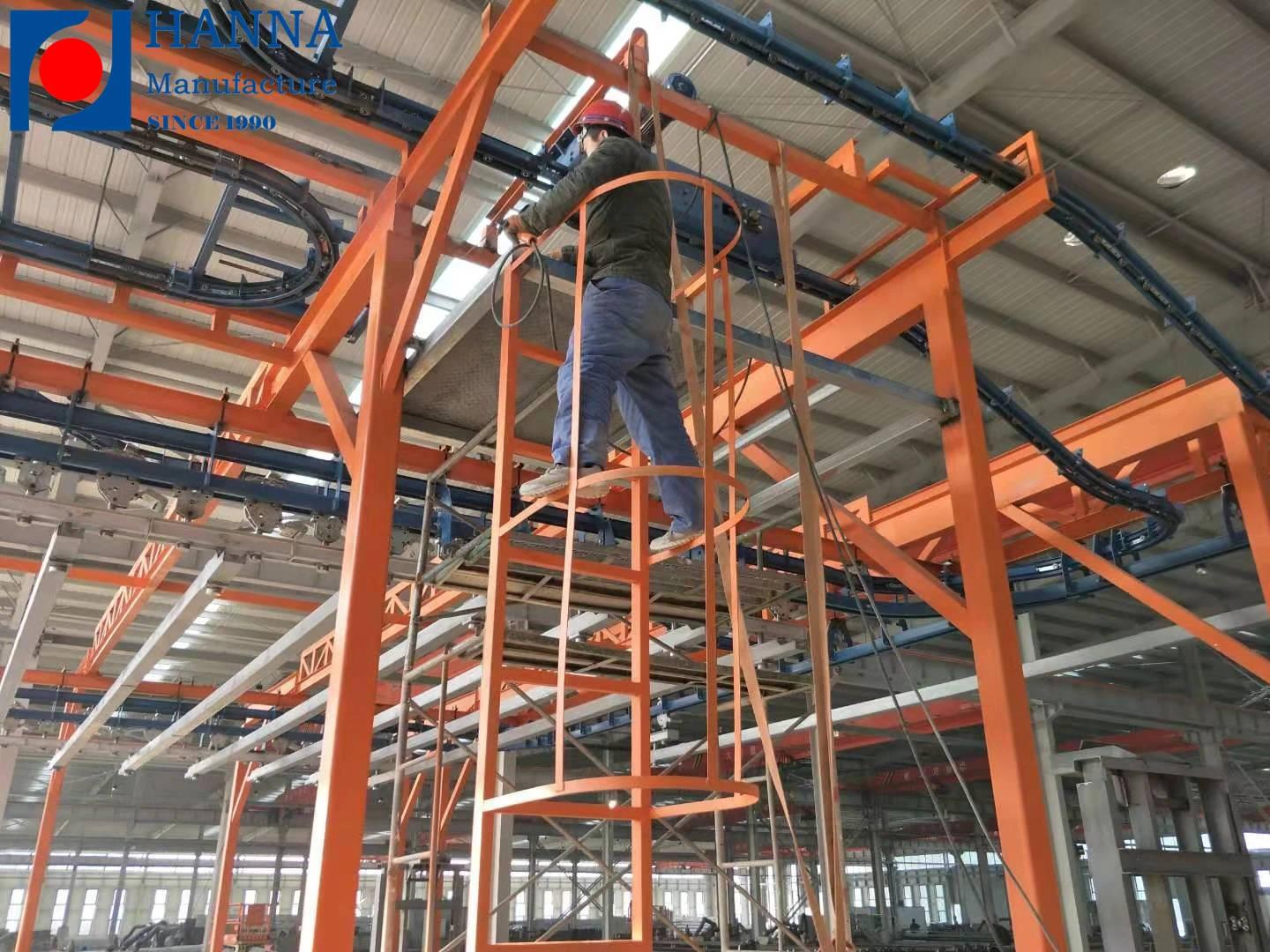

5-Conveyor system /Automatic chain system
Process Name | Mode | Temperature(℃) | Time | Remark |
Inspect raw material | RT | |||
Hanging material | Manual | RT | ||
Pretreatment | Automatic | RT | as per the chemical | |
water drying oven | Automatic | 80-180℃ | 5-10 mins | |
Powder coating | Automatic | RT | 1min | |
Curing | Automatic | 180-220℃ | 10-15min | |
Cooling | Natural | RT | ||
Unloading | Manual | RT | ||
Inspection&Package | RT |
Pre-treatment System
Stainless Chemical Tank With Pump
Spraying Nozzle
Stainless steel spraying tunnel
Process steps
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.
Powder Coating Booth

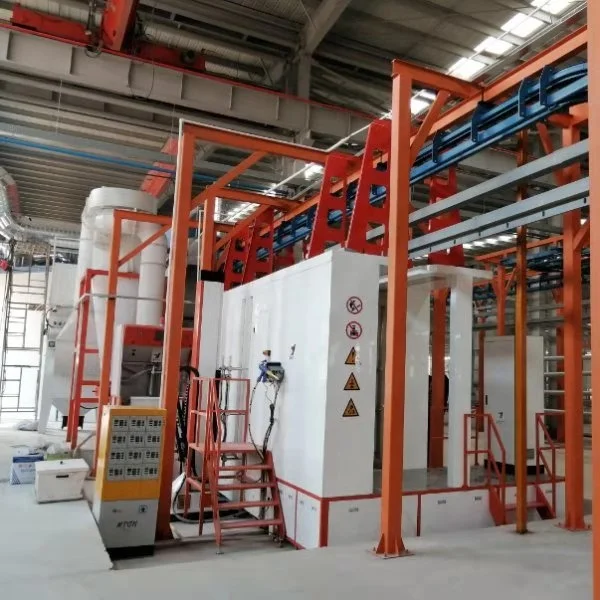

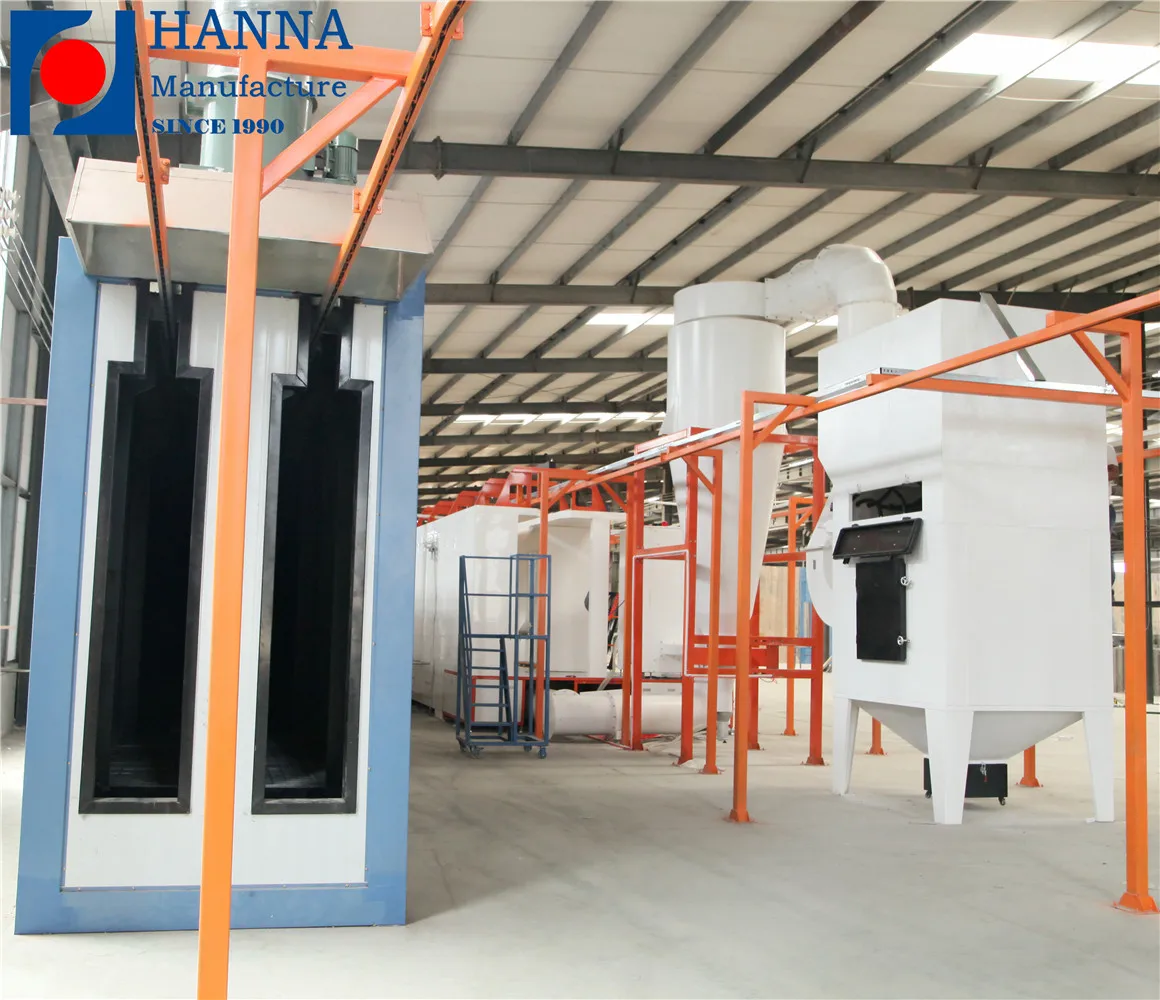

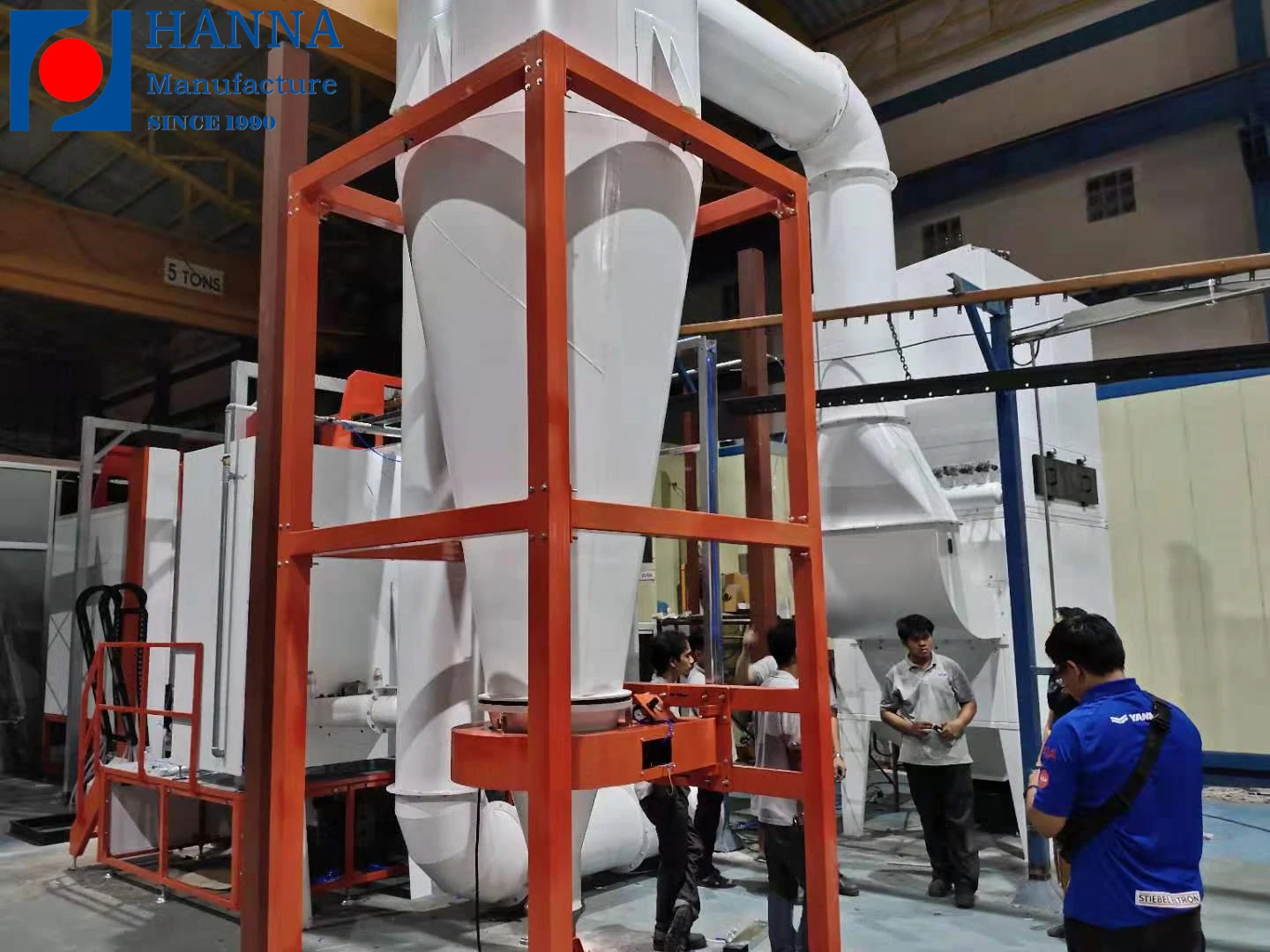

Quick color change powder coating booth with cyclone
Quick assemble filter recovery powder coating cabin
Drying Oven & Curing Oven
Hanna Brand Oven Advantage
1. Has Air Curtain At The Both Ends , The Hot Air In The Oven Won't Dissipate To Outside,Saving The Fuel .
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
150mm thickness insulation layer
Inside view for our curing oven
Oven temperature tracker record
Application
ALUMINUM PROFILES WINDOWS
STORAGE EQUIPMENTS
METAL CABINET/FURNITURE
Case Stories
Project show
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
Thailand Project
China Project
India Project
Qatar Project
UAE Project
Madagascar Project
Philippines Project
Bulgaria Project
Kenya Project
Certifications
About Us
Since 1990. Hanna focuses on the development and manufacture of manual and automatic powder coating equipment.
We can provide you with innovative, rational and turn-key solutions.
Design — production — installation — after-sales service
You won’t find a better combination of quality, value and support anywhere in this industry.
Has through CE &ISO9001 standards.
Our staff includes coating system designers, powder and chemistry experts, control systems engineers, technical support personnel, installation technicians and experienced trainers.You won’t find a better combination of quality, value and support anywhere in this industry.
Training operation and maintenance personnel in organization.
Tracking understand and maintenance of mechanical equipment performance and use effect.
Our mainly products include:Manual powder coating machine, Automatic powder coating line, Spray painting equipment, Pretreatment System, Drying Oven, Powder Spraying Gun, Reciprocator, Fast Automatic Color Change Equipment, Powder Coating Booth, Powder Recovery Equipment, Conveyor Chains, Curing Oven, etc .
Customized suitable powder coating equipment for customers.
Thank you for your interest in Hebei Hebei Hanna Technology Co., Ltd. Contacit us now
We can provide you with innovative, rational and turn-key solutions.
Design — production — installation — after-sales service
You won’t find a better combination of quality, value and support anywhere in this industry.
Has through CE &ISO9001 standards.
Our staff includes coating system designers, powder and chemistry experts, control systems engineers, technical support personnel, installation technicians and experienced trainers.You won’t find a better combination of quality, value and support anywhere in this industry.
Training operation and maintenance personnel in organization.
Tracking understand and maintenance of mechanical equipment performance and use effect.
Our mainly products include:Manual powder coating machine, Automatic powder coating line, Spray painting equipment, Pretreatment System, Drying Oven, Powder Spraying Gun, Reciprocator, Fast Automatic Color Change Equipment, Powder Coating Booth, Powder Recovery Equipment, Conveyor Chains, Curing Oven, etc .
Customized suitable powder coating equipment for customers.
Thank you for your interest in Hebei Hebei Hanna Technology Co., Ltd. Contacit us now
Похожие товары
900*450*1500mm 4 яруса металлическая полка для супермаркета, конец полки
56,00 $
Акриловые серьги в виде черепаховой черепахи, модные стильные милые индивидуальные Длинные акриловые серьги для женщин с уксусной кислотой
0,78 $ - 0,85 $
Мультяшные Игровые наушники с шумоподавлением, беспроводные наушники Bluetooth 5,0, умные сенсорные наушники со шнурком
6,99 $ - 9,52 $
150 Мбит/с наружный комнатный AP CPE 5 ГГц Wi-Fi до 10
21,99 $ - 28,99 $
Китай, бесплатный образец, гидравлический цилиндр, буферная штанга, уплотнение резины, ПТФЭ RS HBTS GSJ Step Seal
0,10 $ - 0,80 $
Рукоделие, хлопок, полиэстер, вышивка крестиком, ткань Aida
3,20 $ - 3,46 $

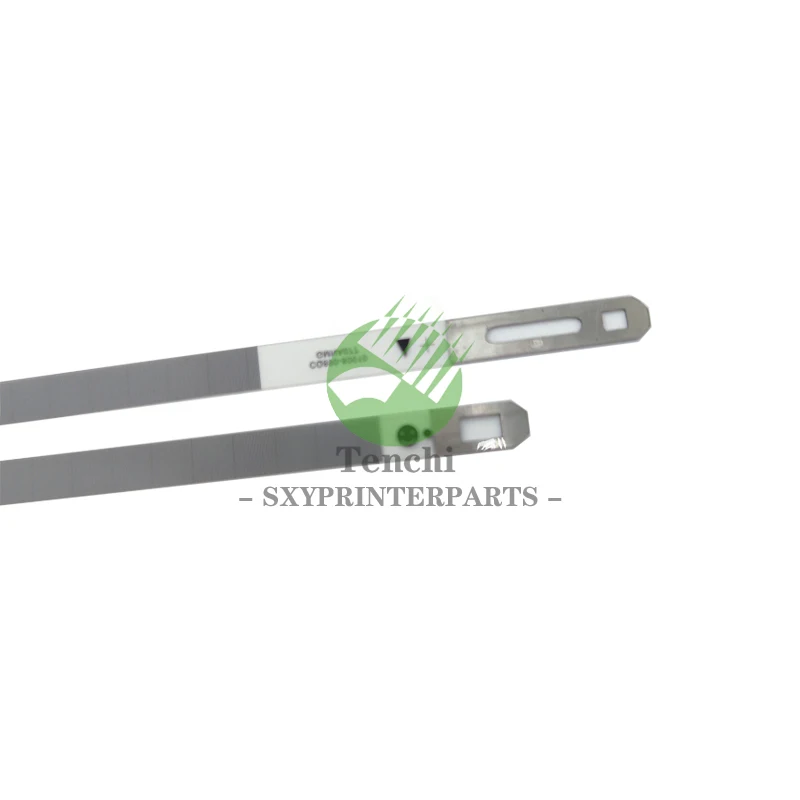

CQ890-80010 CQ890-60214 CQ890-67096 кодовой полосы для HP Designjet T120 T520 T830
