2 10 тонн Mini VRF центральный аэрокон многослойные кондиционеры для дома
- Категория: >>>
- Поставщик: Zhengzhou Tempmate Refrigeration Equipment Co. Ltd.
Сохранить в закладки 1600325579283:
Описание и отзывы
Характеристики
Products Line Up
12 Models from 2~10ton,
Cooling Capacity : 27.3kBtu - 114kBtu;
Heating Capacity : 32.4 kBtu - 128kBtu;

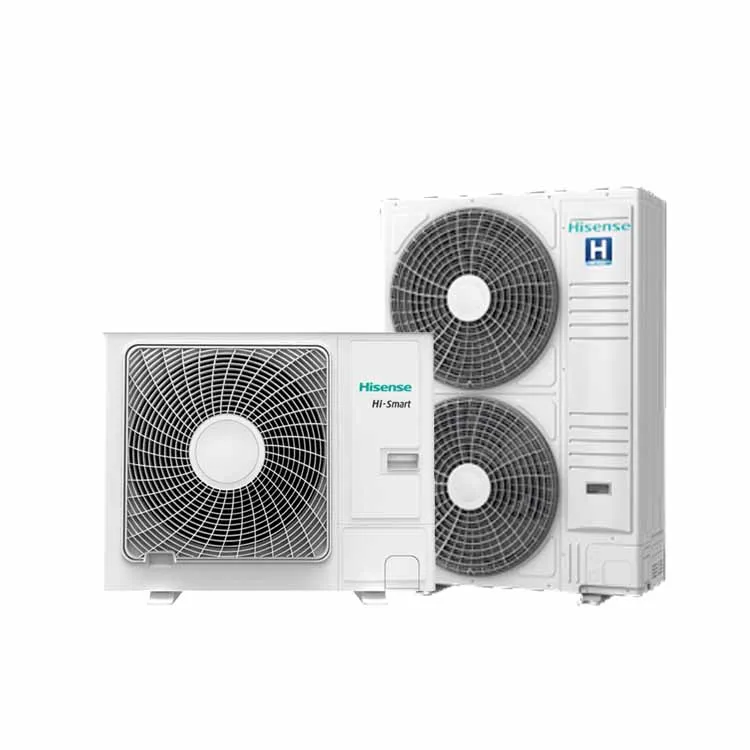

Hisense Hi Smart Mini VRF System with its high-efficient inverter compressors has four exciting features which are different from those found on traditional inverter air conditioners:
> Excellent energy-saving effect,
> More reliable and precise operation,
> Smarter network control,
> Providing users with best air conditioning experience.

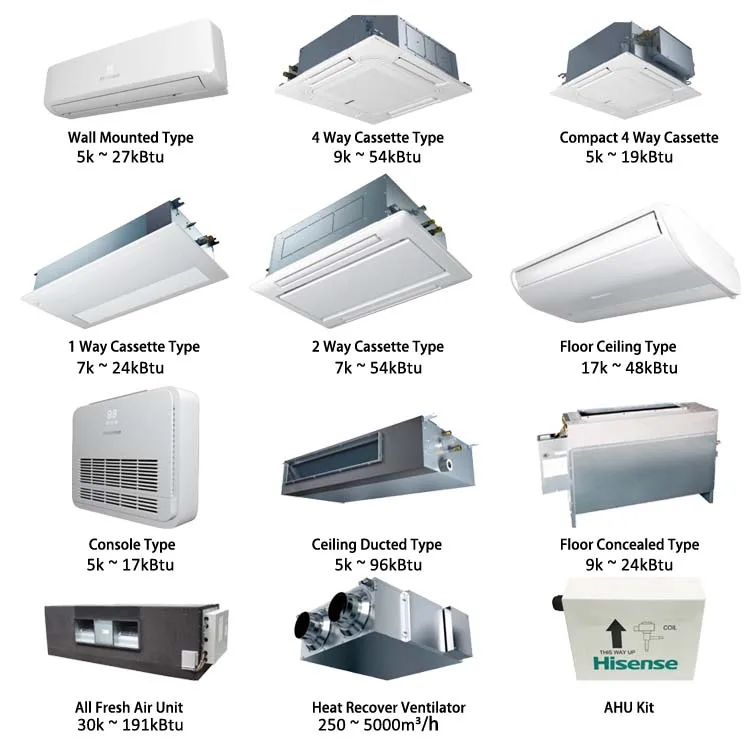

12 Types of Indoor Unit To Match With
Product Application
Product Paramenters

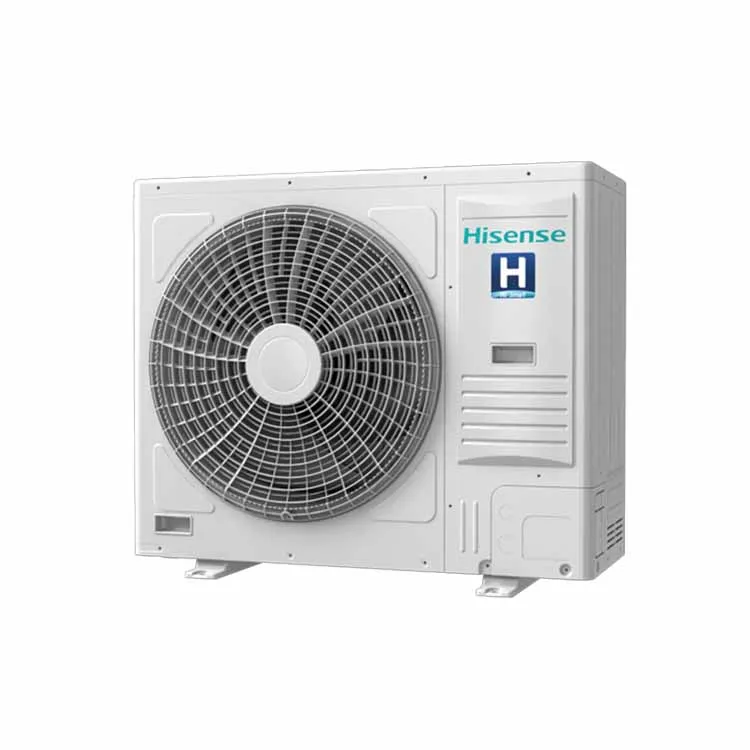

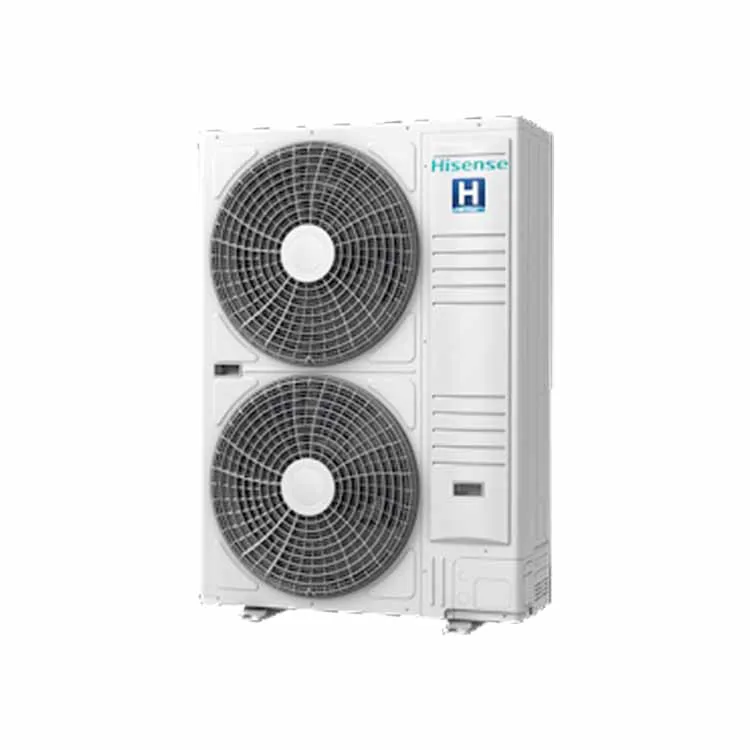

Outdoor Unit
Models | Cooling | Heating | Power Supply |
2ton | 27.3kBtu | 32.4kBtu | 1/208-230/60 |
3ton | 36kBtu | 42kBtu | 1/208-230/60 |
4ton | 48kBtu | 54kBtu | 1/208-230/60 |
5ton | 57.5kBtu | 61kBtu | 1/208-230/60 |
6ton | 76.5kBtu | 83.5kBtu | 3/208-230/60 |
8ton | 95.6kBtu | 107.5kBtu | 3/208-230/60 |
10ton | 114kBtu | 128kBtu | 3/208-230/60 |
Name | Description |
Compressor | DC Inverter Scroll |
Refrigerant | R410a |
Fan Motor | DC inverter |
Capacity adjustment range | 50%~200% |
Cooling Temp | -5~55°C |
Heating Temp | -25 ~ 30°C |
Indoor Temp | 16~32°C |
Indoor Unit
Model | Wall mounted | Compact 4-way cassette | 1-way cassette | Ceiling Ducted Slim | Console |
5kBtu | ★ | ★ | ★ | ★ | |
7kBtu | ★ | ★ | ★ | ★ | ★ |
9kBtu | ★ | ★ | ★ | ★ | ★ |
12kBru | ★ | ★ | ★ | ★ | ★ |
14kBtu | ★ | ★ | ★ | ★ | ★ |
17kBtu | ★ | ★ | ★ | ★ | |
19kBtu | ★ | ★ | ★ | ★ | |
22kBtu | ★ | ★ | |||
24kBtu | ★ | ★ | ★ | ||
27kBtu | ★ | ★ |
Model | Ceiling Ducted | 4-way cassette | 2-way cassette | Floor Concealed | Floor Ceiling |
7kBtu | ★ | ||||
9kBtu | ★ | ★ | ★ | ★ | |
12kBru | ★ | ★ | ★ | ||
14kBtu | ★ | ★ | ★ | ★ | |
17kBtu | ★ | ★ | |||
19kBtu | ★ | ★ | ★ | ★ | ★ |
22kBtu | ★ | ★ | ★ | ||
24kBtu | ★ | ★ | ★ | ★ | ★ |
27kBtu | ★ | ★ | ★ | ★ | |
30kBtu | ★ | ★ | ★ | ★ | |
38kBtu | ★ | ★ | ★ | ★ | |
48kBtu | ★ | ★ | ★ | ★ | |
54kBtu | ★ | ★ | ★ | ||
76kBtu | ★ | ||||
96kBtu | ★ |
Contact Us for Immediate Response
Tel: +86 1359 8080 630
Whatsapp/WeChat: +86 1359 8080 630
ken@tempmate.cn
Product Description
High-efficiency DC Inverter Compressor
A high-efficiency DC inverter dual rotary compressor is adopted. It features unique dual-pressure chamber design and symmetrical location, which can effectively reduce the vibration and noise and improve the compressor performance, especially the performance under low-frequency operation. Moreover, the dual rotary compressor has a small lubricating oil injection volume with stable oil return, and comes with a gas-liquid separator, which makes the system more reliable
Further Air Discharge Distance ;
An additional air duct like channel surrounding the fan is designed to further discharge the air and avoid discharge air from being absorbed again. Besides, together with the 30Pa external static pressure, air is tested to discharge up to 24% further compared with the conventional one.
Patented 360° Fitted Refrigerant Cooling Technology
The outdoor unit uses patented 360° fitted refrigerant cooling technology to cool the whole electronic box effectively. It can overcome poor heat dissipation and solve high ambient temperature issues inside the electronic box, maintaining an efficient and reliable operation under harsh environment.
Flexible Piping Connection
Installation restrictions on site does not stop Hisense mini VRF there with flexible piping directions which includes front, bottom, right, rear connections.
Slim and Refined Body Design
The compact outdoor unit can be flexibly placed according to outdoor condition. Low-height ducted type can be easily installed inside the low-height residential ceiling with a height of 192mm, which makes low height indoor units and elegant home decoration style set off mutually.
Wide Operating Range Meets Greater Demand
With a wide operating temperature range, the outdoor unit can run from -5°C to 55°C for cooling and from -20°C to 16.5°C for heating, which perfectly meets the customers’ needs in different environments.
Insect protection design
Special design nettings are placed on insect easy-entry openings, effectively preventing unnecessary electrical component damages
Flare-nut branch pipe
Hisense new refrigerant piping connection with flare-nut branch pipe breaks through the common way of connecting refrigerant copper pipes by replacing brazing processes with simple and safe flare nuts connections.
Company Introduction
TempMate Refrigeration Equipment Co, Ltd.
Tempmate Refrigeration Equipment is specialized in central air conditioning solution，provides our custoners the HVAC design, ,Equipments , installation and after services, covering household air conditioner, such as wall mounted ac, floor standing ac, commercial and industrial use air conditioner, such as: VRF system, chiller system, rooftop system and precision air conditioner, Tempmate also provide terminal ac systems such as air handling units and fan coil units etc. Tempmate owns a professional team of more than 10 yeas in air conditioner field, Tempmate is your reliable mate in temperature control
Exhibition
Packing & Delivery
Packing:
1: The Outdoor Unit is fixed on a plywoodwooden pallet, protected by carton or plywood booard;
2: The Indoor Unit is packed by carton protected by shock absorptive material
2: The Indoor Unit is packed by carton protected by shock absorptive material
Shippment: By sea, By land, or By air.
Note: We can help you to arrange cost effective shipping service, to get you fast shipment with less cost.
Usually we recommend full container shipment 20GP, 40GP, 40HQ.
Usually we recommend full container shipment 20GP, 40GP, 40HQ.
FAQ
Q1: What's your payment terms?
A: T/T or L/C.
Q2: What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading. If your have any special requirements, let us know.
Q3: Can you provide drawing service?
A: Yes, Our professional HVAC engineering team may give the optimized solutions, we can also provide professional HVAC drawings.
Q4: Can you provide installation accessories along with equipment?
A: Sure. we can calculate and quote you needed HVAC installation kit which includes copper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Q5: How long is the lead time?
A:For the standard model, the lead time is around 30days.
Q6: Do you have technical support?
A: All the product is guarantee for one year. And we will supply the technical support and spare parts after the warranty time. You can contact us 24 x 7 online.
Q7: How to transport the products to my country?
A: We can arrange the shipping by sea or by air.
Q8: How about the packing?
A:Usually we provide the packing as wooden pallet or carton.
Q9: What is loading port?
A:Usually the loading port is Qingdao China
A: T/T or L/C.
Q2: What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading. If your have any special requirements, let us know.
Q3: Can you provide drawing service?
A: Yes, Our professional HVAC engineering team may give the optimized solutions, we can also provide professional HVAC drawings.
Q4: Can you provide installation accessories along with equipment?
A: Sure. we can calculate and quote you needed HVAC installation kit which includes copper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Q5: How long is the lead time?
A:For the standard model, the lead time is around 30days.
Q6: Do you have technical support?
A: All the product is guarantee for one year. And we will supply the technical support and spare parts after the warranty time. You can contact us 24 x 7 online.
Q7: How to transport the products to my country?
A: We can arrange the shipping by sea or by air.
Q8: How about the packing?
A:Usually we provide the packing as wooden pallet or carton.
Q9: What is loading port?
A:Usually the loading port is Qingdao China
