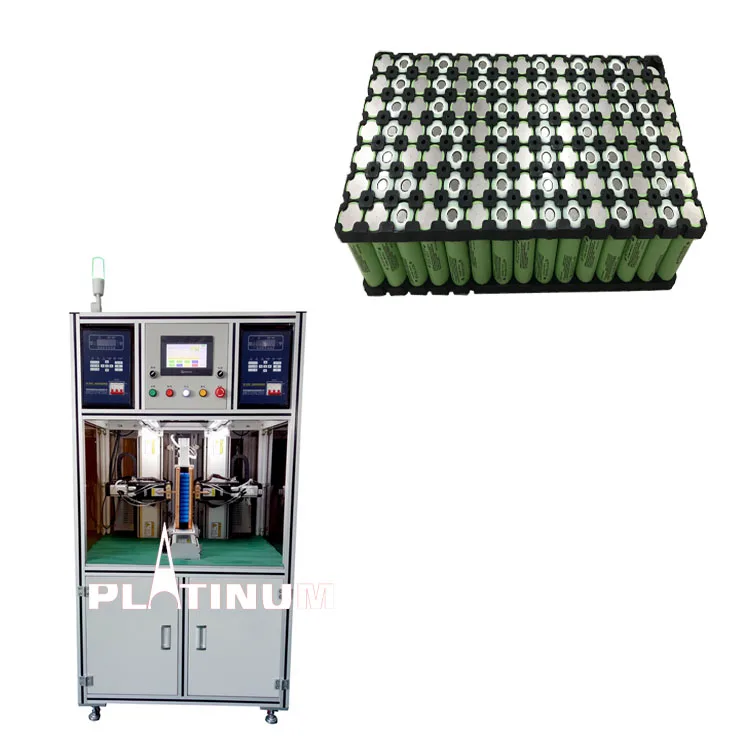

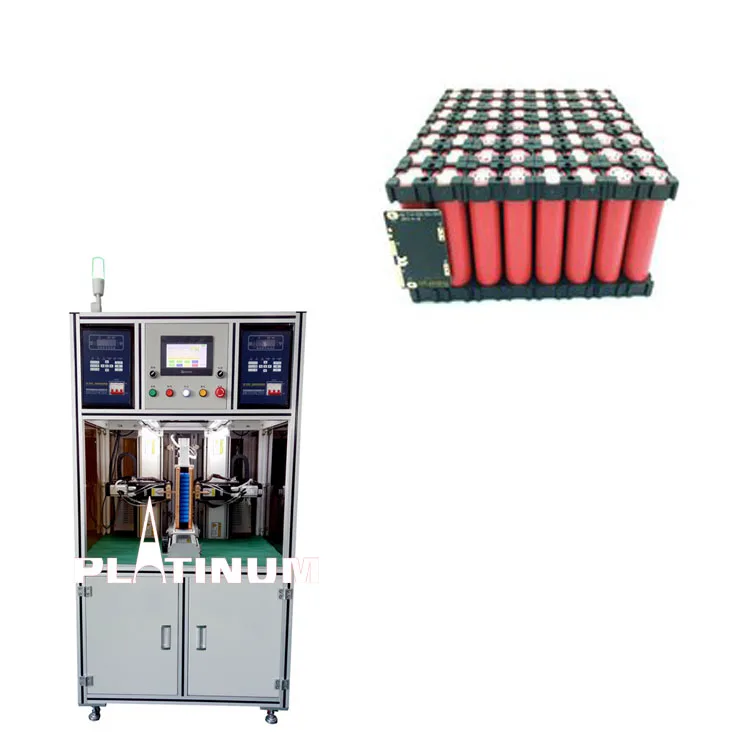

Двухсторонняя аккумуляторная машина с ЧПУ для точечной
- Категория: Spot Welders >>>
- Поставщик: Platinum Overseas Trade Inc.
Сохранить в закладки 1600325734280:
Описание и отзывы
Характеристики
Product Description
Summary
1.High performance CPU control, fast welding speed, 1.5-2 times faster than the standard capacitor discharge welder, LCD display, graphic display of the current working status, Chinese commentary
2.The latest IGBT discharge control, adjustable welding pulse width (discharge time), the standard capacitor discharge welder width is fixed
3.Adjustable welding pulse width, small welding spatter, no discoloration of the welded joint
4. High-speed polarity switching function, adjustable welding pulse width. Consistent energy output for each weld. Ensures that both weld joints are consistent. Can be realized with (single) double pulse energy storage welding, reduce welding spatter
5. Highly stable output, with welding voltage locking technology, electronic voltage stabilization function. Prevents fluctuations in network voltage from affecting welding current. Not affected by line voltage (grid) fluctuations.
6. Can monitor the welding current, current abnormal sound and light alarm
7. 10 custom welding specifications, can be flexibly called
8. With a 5-digit counter, counting the number of successful welding, can set the count alarm, prompting the repair of the welding pin
9. Self radio (RFI) and electromagnetic dry (EMI) protection.
10. Power head split design, pneumatic and foot pedal can be flexible with.
Specification
Power supply | AC 220V±10% 50Hz±2Hz |
Energy storage capacitors | 6600uf |
Maximum output power | 3000W |
Maximum output short-circuit current | 5000A |
Pre-soldering voltage | 80.0V-330V adjustable, accuracy 0.5V |
Welding Voltage | 80.0V-330V adjustable, accuracy 0.5V |
Welding time | 1.0ms-20.0ms adjustable, accuracy 0.1ms |
Weight | 60kg |
Dimension | 330L*180W*280H |
Parallel welding maximum thickness | 0.03mm~0.2mm |
Maximum thickness of upper and lower butt weld | 0.6mm +0.6mm |
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
Company Profile
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
Похожие товары
High-end ультразвуковой сварочный аппарат металла сверхзвуковой металлический точечной сварки накопленной энергией прикрепляющего липучки аппарата чехол для
2 000,00 $ - 10 000,00 $

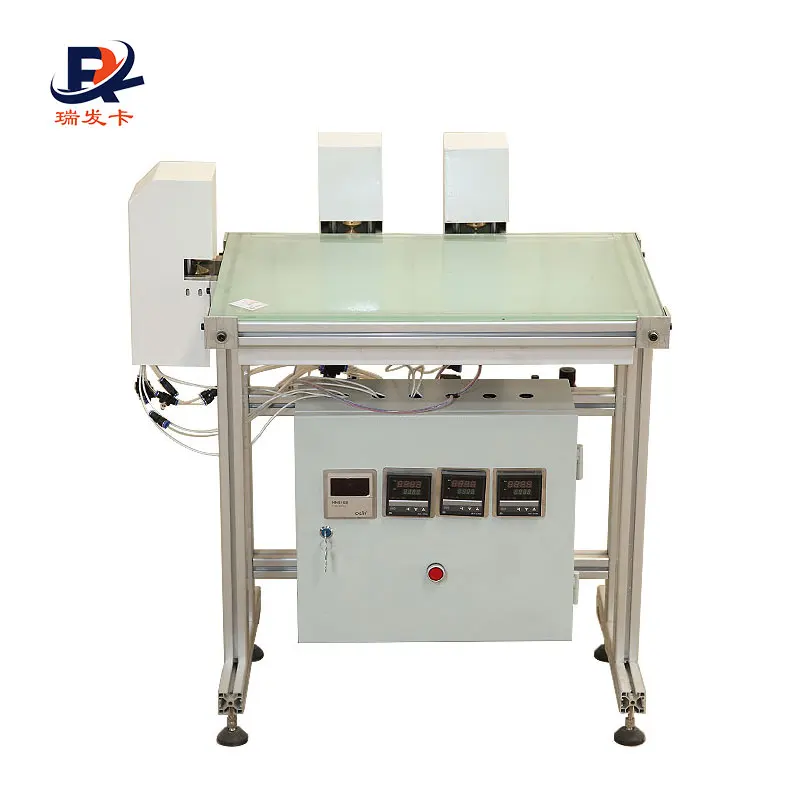

Ухань завод последняя модель ПВХ карты лист сопоставления и позиционирования Сварщик машина перед

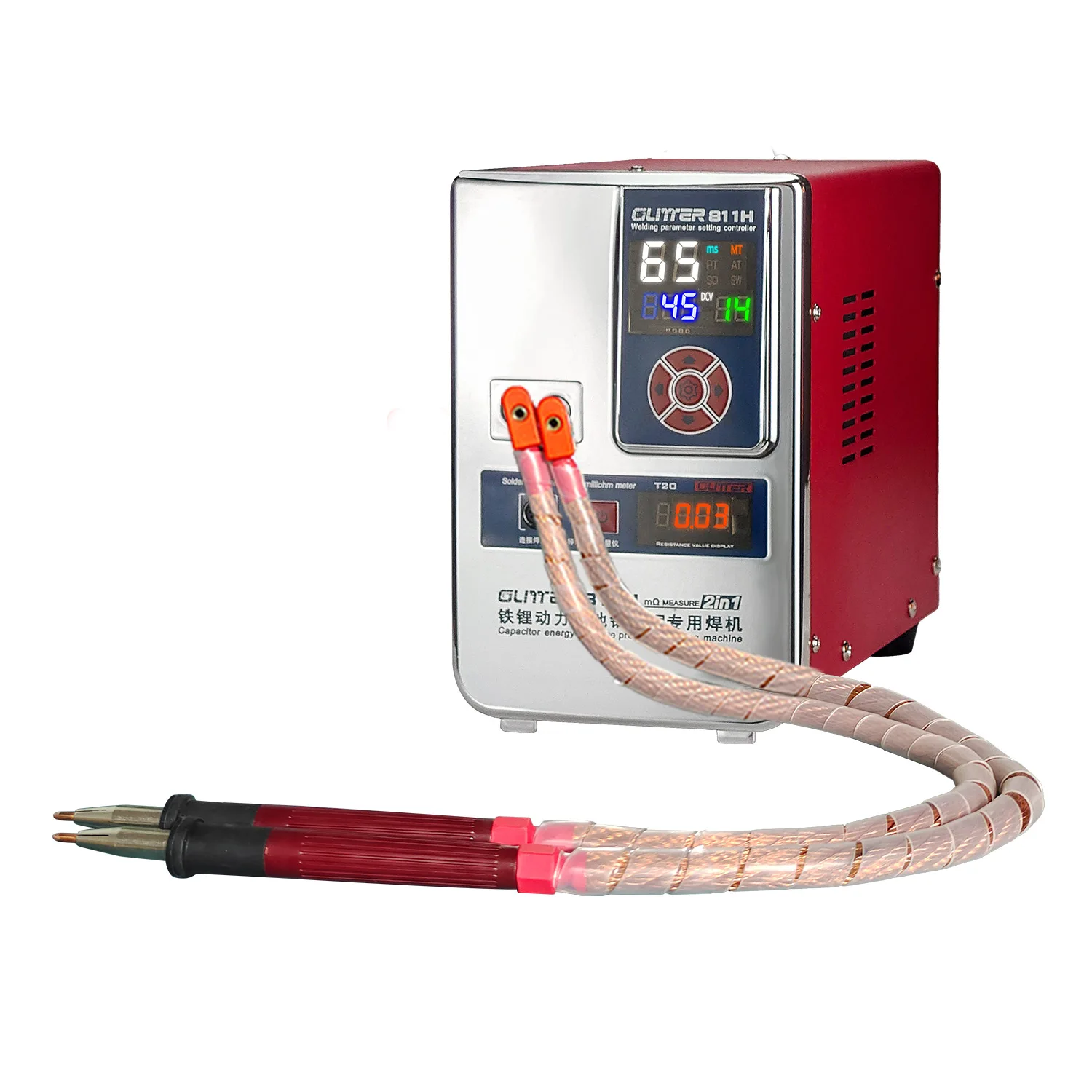

Аппарат для точечной сварки аккумуляторных батарей мощностью 811 ч 42 кВт 7000 А максимальная Сварка 0 45 мм медь литий ремонта электрических

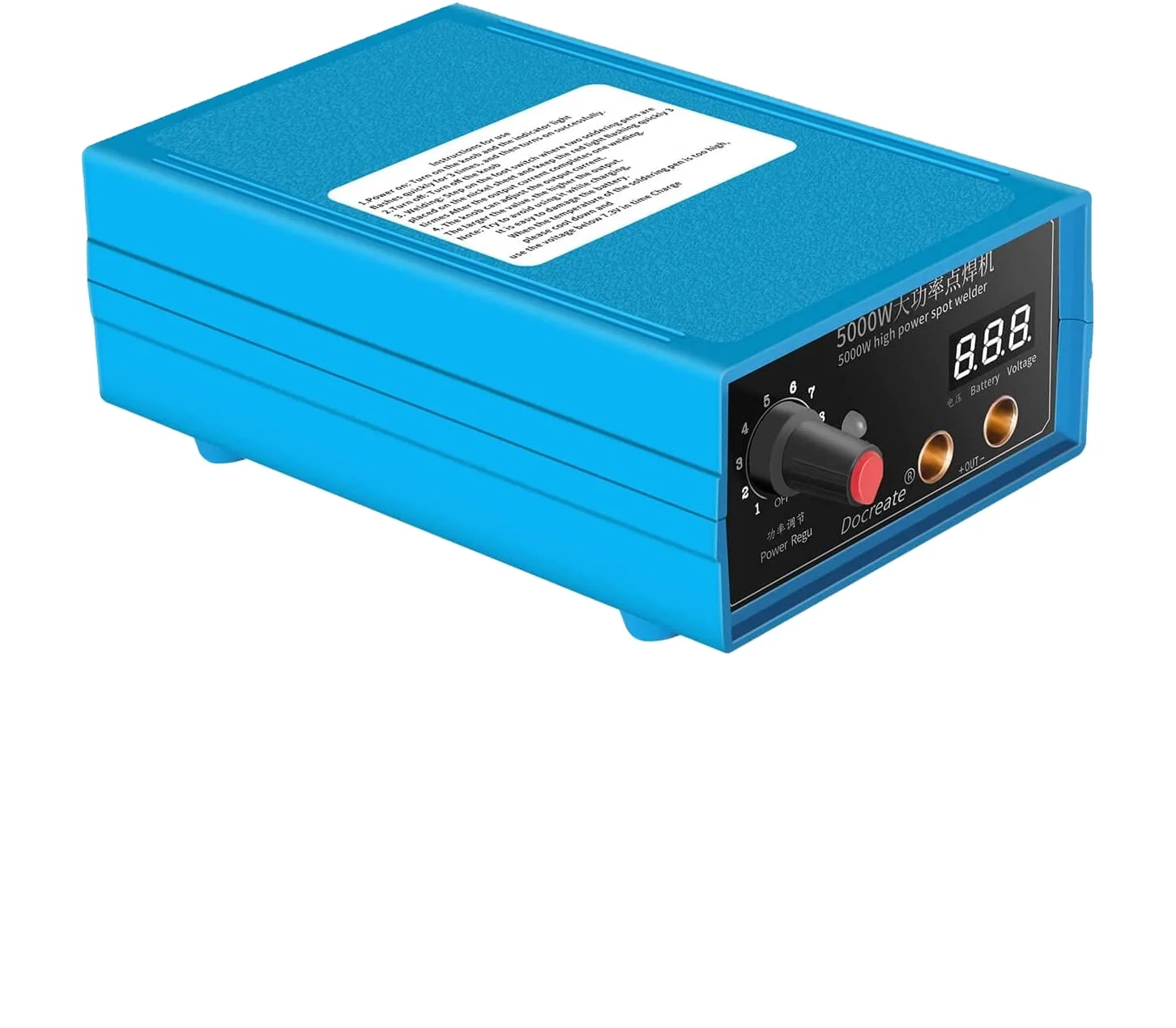

Портативный сварочный аппарат для точечной сварки мощностью 5000 Вт от 0 до 800 А регулируемые по току сварочные аппараты 18650 литиевая аккумуляторная Сварка 1-0 2
34,00 $ - 36,00 $

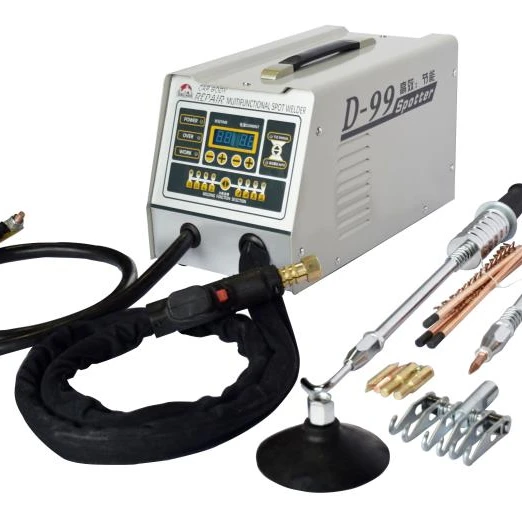

Устройство для удаления вмятин/аппарат точечной сварки транспортного

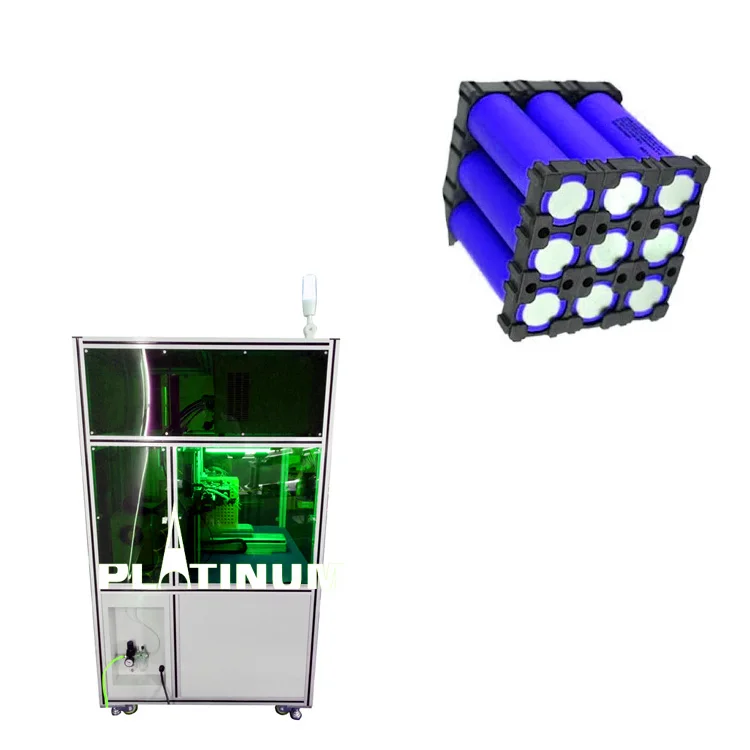

Двухсторонний автоматический роторный аппарат точечной сварки с ЧПУ для цилиндрической батареи в

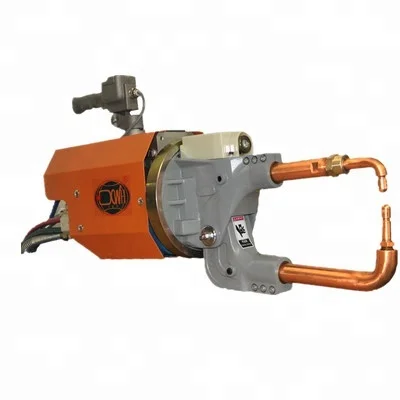

Аппарат для точечной сварки с сварочным
