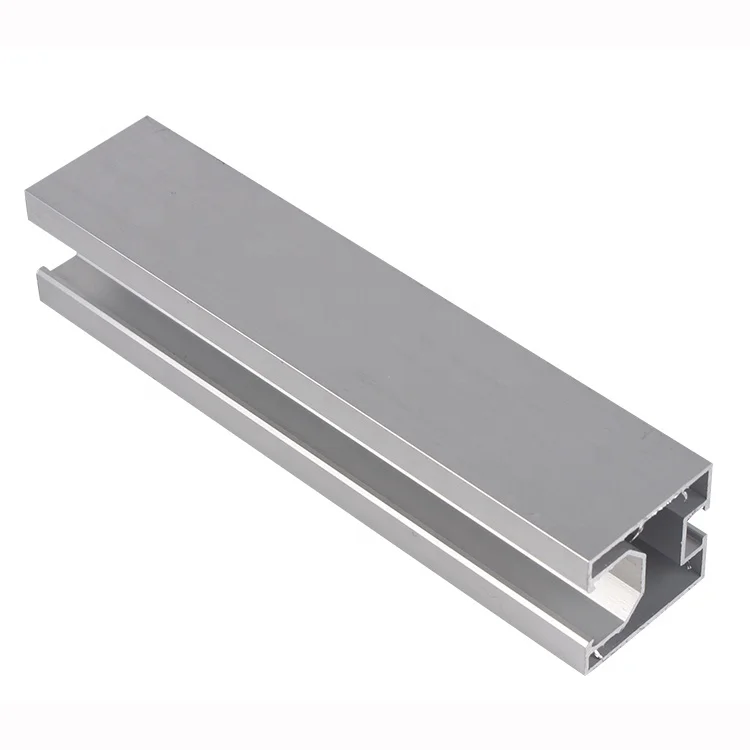

Алюминиевая Регулируемая подставка для панели солнечных батарей солнечные монтируемые кронштейны рН солнечный балласт рельс AL-6005-T5 1.5 килоньютонов/m2 L = 5200 мм 60 м/с
390,65-421,85 ₽
Комбайнер переменного тока с 4 входами 1 выходом переключателем или предохранителей NH00 для выходов солнечных инверторов
- Категория: >>>
- Поставщик: ZHEJIANG BENYI NEW ENERGY CO. LTD.ZHEJIANG LTD.
Сохранить в закладки 1600326169457:
Описание и отзывы
Характеристики
Why Choose Us
BENY with 30+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for residential, commercial, and utility-scale renewable energy projects.
With over 10 production lines, we produce over 200w annually and receive out orders at any volume. We also carry out quality testing that determines the durability of our combiner boxes under extreme conditions. Talk with us today for fast development and negotiable prices.
WE PROVIDE COMPREHENSIVE & PROFESSIONAL SERVICE
Consulting & Designing
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
We have a professional team that can assist you in knowing your particular solar panel combination box requirements. You can expect that we are here to support and guide you in every custom combiner box manufacturing stage, starting from designing up to laying the materials and costing.
Quality Control
Each of our PV combiner boxes is checked thoroughly to ensure that we only deliver IP-rated string combiner boxes. This means that our custom electrical enclosures are waterproof, dustproof, and can even resist corrosion that harsh weather conditions can cause.
Engineering & Assembly Support
BENY custom combiner box solutions are tailored-fit to provide output with efficiency and speed. Our company utilizes the latest tools to automize our manufacturing process. This is why BENY is outstanding in terms of production speed, aiming to fulfill bulk orders while ensuring the function and quality of our PV protection products.
5-year warranty
What’s more interesting, we offer a 5-warranty service to your solar combination boxes. Just reach us through our technical support hotline that is available 24/7.
Product Paramenters

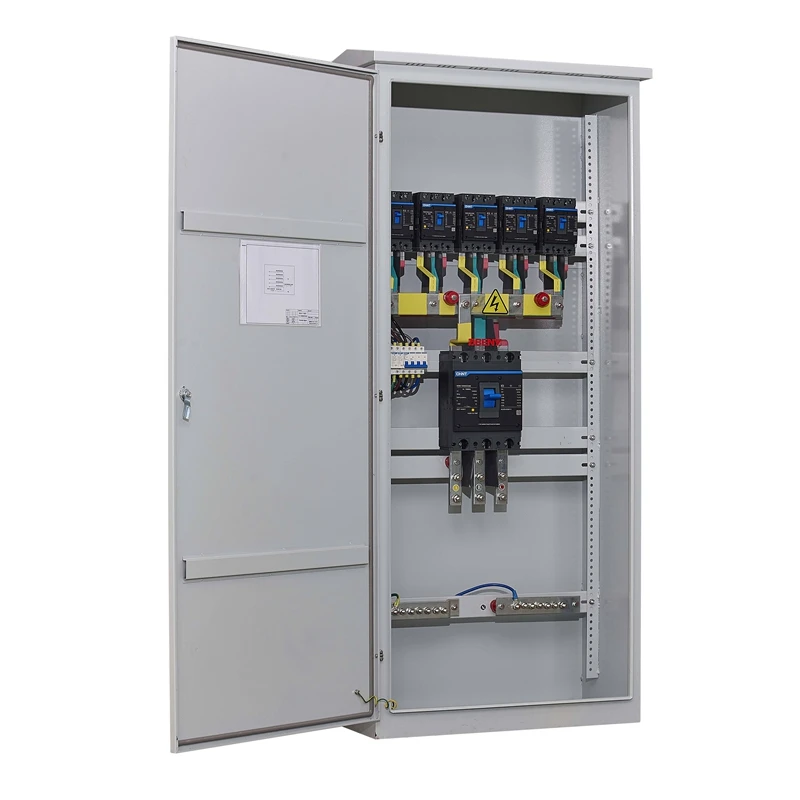

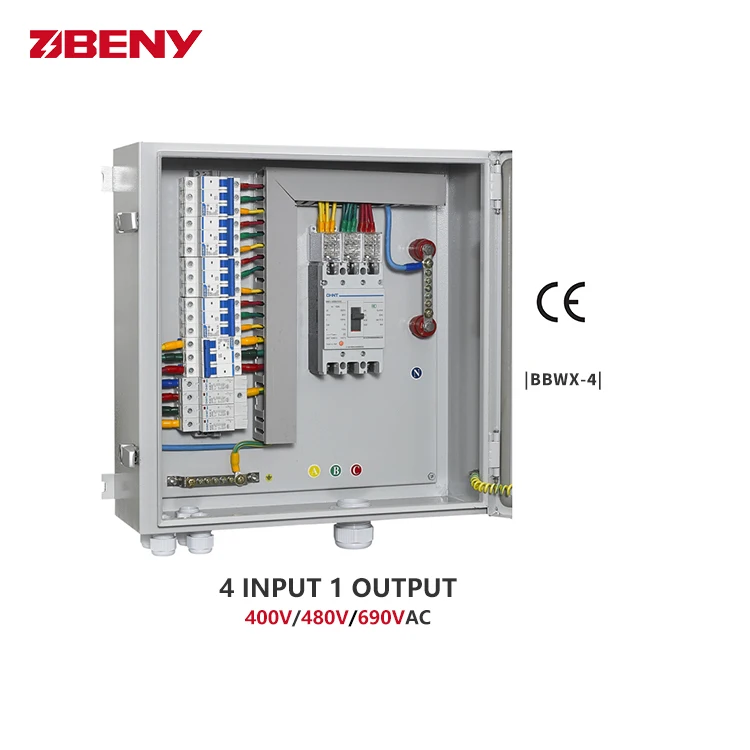

AC Combiner Box for up to 4* 80kW inverters
Solar string inverters are used more and more in the solar PV plants, requires reliable combiner and protection at AC side.
BBWX-4 is a solution with AC MCCB build-in for AC inputs and output, type 2 AC SPD for over-voltage protection.
Customized solutions are available for different projects requirements.
Features:
*3 phase inverter protection
*AC breaker or NH00 fuse switch for option
*Rated voltage 230V/400V
*4 AC input
*1 AC output
Model | BBWX-4 | ||||
Grid topology | TN-S (5-conductor system:L1, L2, L3, PE, N) | ||||
Rated Voltage (UN) | 230V/400V | ||||
Rated Insulation Voltage (Ui) | 690V | ||||
Frequency | 50Hz/60Hz | ||||
Operating Temperature | -25 °C up to +60 °C | ||||
Enclosure | Up to IP65 (IEC 60529) / IK 10 (IEC62262) | ||||
Material | Powder Coating Metal | ||||
Dimension | 180*80*40cm | ||||
AC Input | |||||
Number (Inverter) | 4 *up to 50KW solar inverters | 4 *up to 60KW solar inverters | 4 *up to 80KW solar inverters | ||
AC Breaker | 4*230V/400V 160A | 4*230V/400V 200A | 4*230V/400V 250A | ||
Rated Current per Input (Inc) | Up to 160A | Up to 200A | Up to 250A | ||
Connection | Via V-clamp (for Al and Cu cables) | ||||
AC Output | |||||
Number | 1 per phase (Optionally 2) | ||||
AC Breaker | 1*230V/400V 630A | 1*230V/400V 800A | 1*230V/400V 1000A | ||
Rated Current Output(InA) | 630A | 800A | 1000A | ||
Connection | Via V-clamp (for Al and Cu cables) | ||||
Surge Protection Device | |||||
Type | Type 2 275VAC 4P | ||||
Details Images
CUSTOMIZATION OPTIONS
WHAT CAN YOU CUSTOMIZE FOR A COMBINER BOX
A solar combiner box is an electrical enclosure where multiple Solar circuit components are housed. Here in BENY, we offer custom solar combiner boxes to ensure that our clients’ preferences are met. We provide custom features that introduce the general inverter requirements, including your logo, box measurement, components, DC inputs and outputs, and chosen over-voltage protection degree. Send us your requirements.
To improve rooftop fire protection in residential and commercial applications, we offer numerous custom features that cover all common inverter concerns, from logo to components . Each of our combiner boxes has different numbers of DC inputs and outputs and 3 MPPT variants.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.
Choose from class I or II variants of overvoltage protection, along with voltage level and IP protection functions that fit into your specific application.

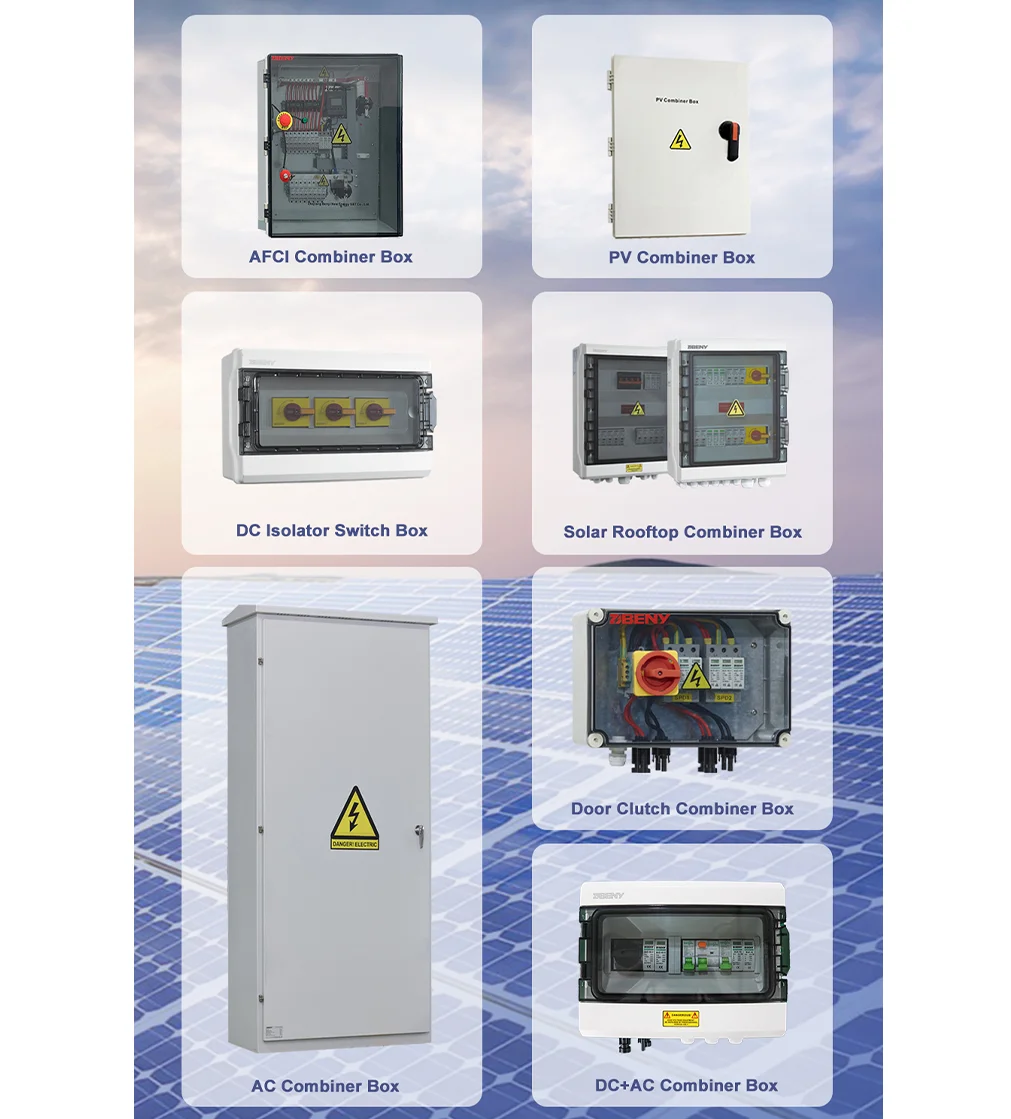

OUR QUALITY SELECTION OF SOLAR COMBINER BOXES

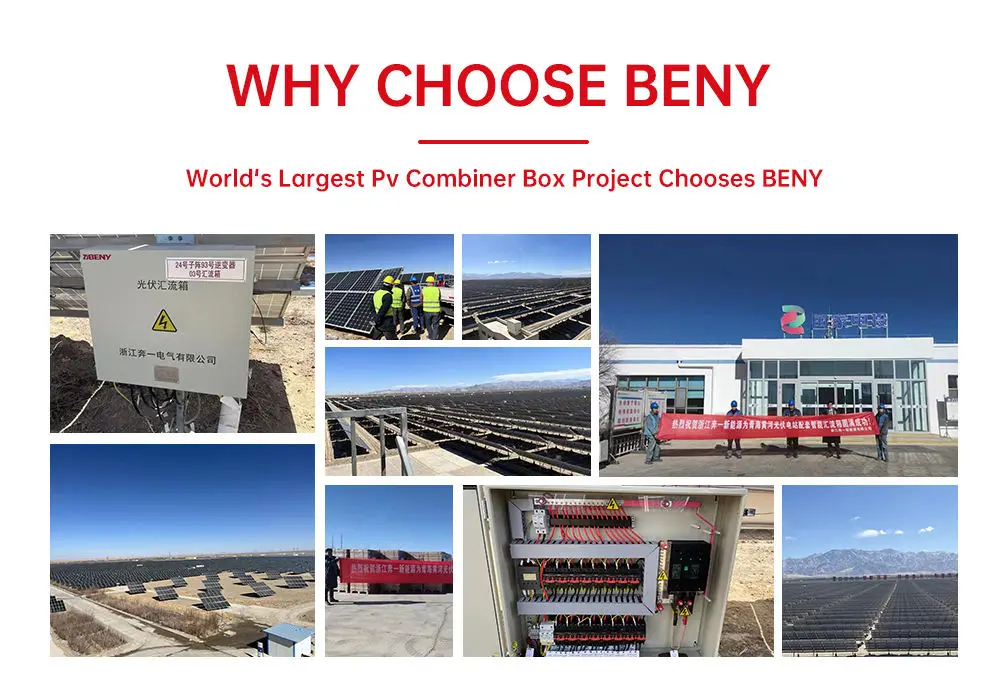

WHY CHOOSE BENY SOLAR COMBINER BOX
Grade IP 65/66
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.
Our combiner box is waterproof, dustproof and anti-corrosion, resisting harsh conditions for long-term and uninterrupted use.
PV Solar String Current Aggregation
We offer multiple strings input up to 24 solar strings, with a maximum of 30 A per string.
Effective Isolating
Series Isolator Switches with a max voltage up to 1500V DC widely meet various demands from PV power systems.
Lightning Protection
We install a pluggable BU-40/3 Surge protector device, providing lightning protection for your PV power system.
Over-current Protection
A BR-30 touch-safe fuse with LED indicator light offers over-current protection for stable performance.
Short-Circuit Protection
BD and BB1 series circuit breakers provide short-circuit protection, preventing damages and accidents.
600V DC COMBINER BOX
With one or two true solar DC disconnect switches and type 2 surge arrestors, our combiners prevent over-voltage and ensure consistent functionality for specified solar PV systems.
DC ISOLATOR BOX
IP65 PC enclosure with two or more isolators build-in, for the solar system which requires multiple strings and isolators.
1000V DC COMBINER BOX
Designed with different numbers of strings inputs and string outputs, our combiners are equipped with the latest DC-PV2 disconnect switch for added protection from over current.
1500V DC COMBINER BOX
A compact and affordable solution, our 1500V DC combiners have 2P fuse holders and other disconnect components that guarantee full
over-current and over-voltage protection.
over-current and over-voltage protection.
AFCI SOLAR COMBINER BOX
BENY Electric’s AFCI solar combiners detect wide ranges of electrical arc faults to keep power systems from igniting, improving action responses against fires.
DC+AC COMBINER BOX
Our DC+AC combiner boxes come with over-voltage and over-current protection for solar DC sides, and RCBO and AC SPD for AC side protection.
AC COMBINER BOX
Each AC combiner comes with AC MCCB build-in for AC inputs and type 2 AC SPD for over-voltage protection.
AC DISTRIBUTION BOX
Our distribution boxes reduce system connection cable length and provide great switching isolation.
MODULAR ENCLOSURE
Made of high thermal stability plastic, our modular enclosures possess UV resistance and flame retardance, working at operating temperatures from -25 to 100 degrees.
Company Profile
Похожие товары

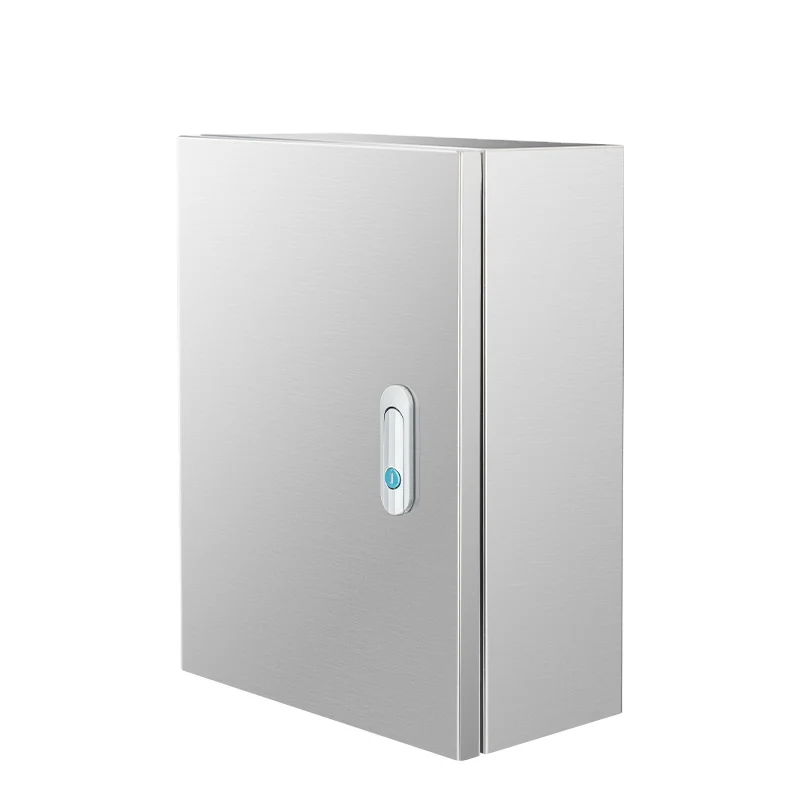

Электрический металлический корпус распределительный шкаф IP54 наружный водонепроницаемый настенный блок питания
4 070,65-4 297,19 ₽
Металлическая распределительная коробка для солнечной панели
1 897,74-2 372,17 ₽

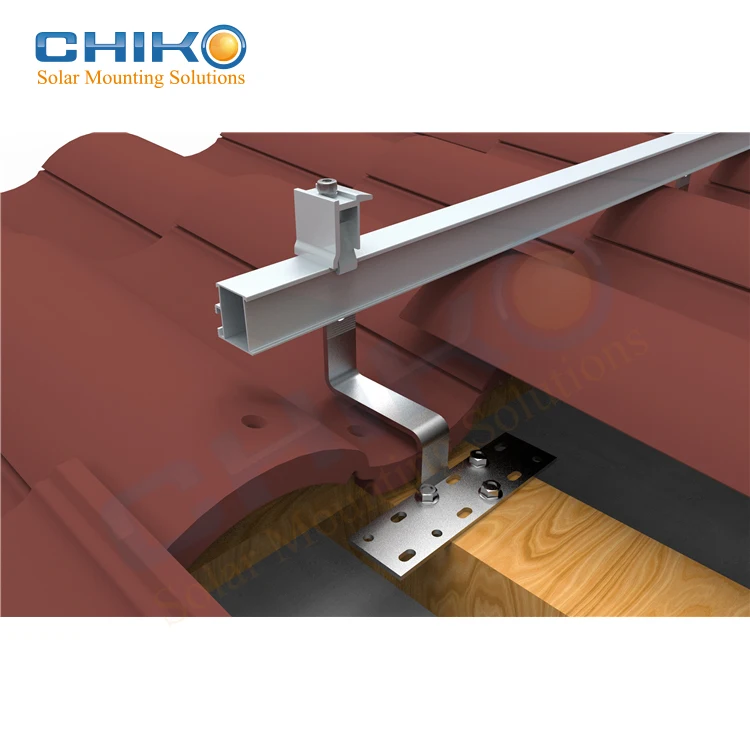

Китайский поставщик, крюк для крыши на солнечной батарее, регулируемая система крепления на солнечной батарее, регулируемый кронштейн на солнечной батарее
3,56-4,75 ₽

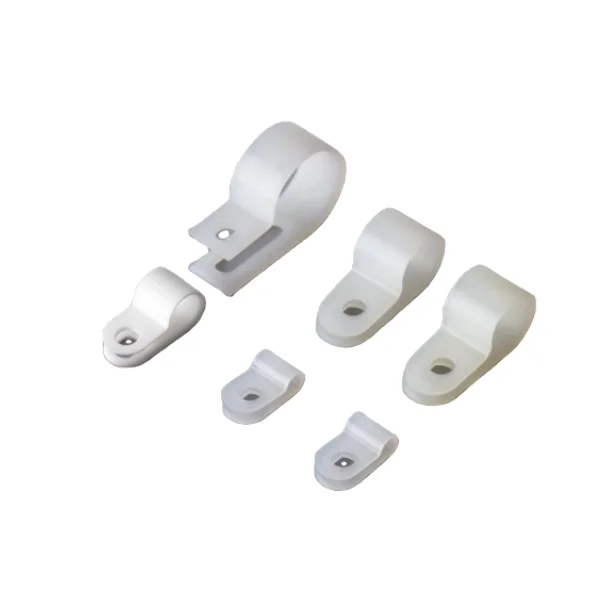

Пластиковые проволочные зажимы R-типа нейлоновые кабельные R-Тип Винтовые отверстия белые фиксирующие Кабельный органайзер зажим
