WFC automatic dried banana spice flour grinding machine chili powder making machine price sugar production line
WF COMPLETE PULVERIZER
(SEPARATED TYPE)
(SEPARATED TYPE)
This machine is mainly used in chemical industry, medicine (TCM), food, spices, resin powder, besmear powder etc, sex material and high temperature resistant material, crushing and dust collection as a whole is a new generation crushing equipment.
Working Principle
This machine adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow which produced when crushing, crushing fineness can be decided by different sieves.
The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.
The unit make the materials crushed by the impact & grind function of the relative motion between active and fixed fluted discs, and impact between the materials. Smashed materials enter into the capture bag by rotating centrifugal force function, the dust filtered and recycled by dust collector through a bag filter box. This machine designed according to GMP standard and wholly made of stainless steel materials, has no flying dust during production. It can improve the utilization rate of material and reduce cost of enterprise, and has reached the international advanced level at present.
Product Paramenters
Model | Capacity (kg) | Feed size (mm) | Output size(mesh) | Total power(kw) | Main speed(r/min) | Dimension(mm) | Weight (kg) |
WF-40C | 50-300 | <10 | 12-120 | 11.75 | ~3800 | 6000*1200*2900 | 700 |
WF-50C | 80-400 | <12 | 13.75 | ~3400 | 6300*1300*2900 | 1000 | |
WF-60C | 100-500 | <12 | 25.1 | ~2900 | 7000*1500*2900 | 1200 | |
WF-80C | 300-800 | <15 | 41.6 | ~2400 | 7500*1500*3650 | 1500 | |
WF-100C | 400-1500 | <15 | 83.5 | ~2200 | 8400*2500*4850 | 2000 |

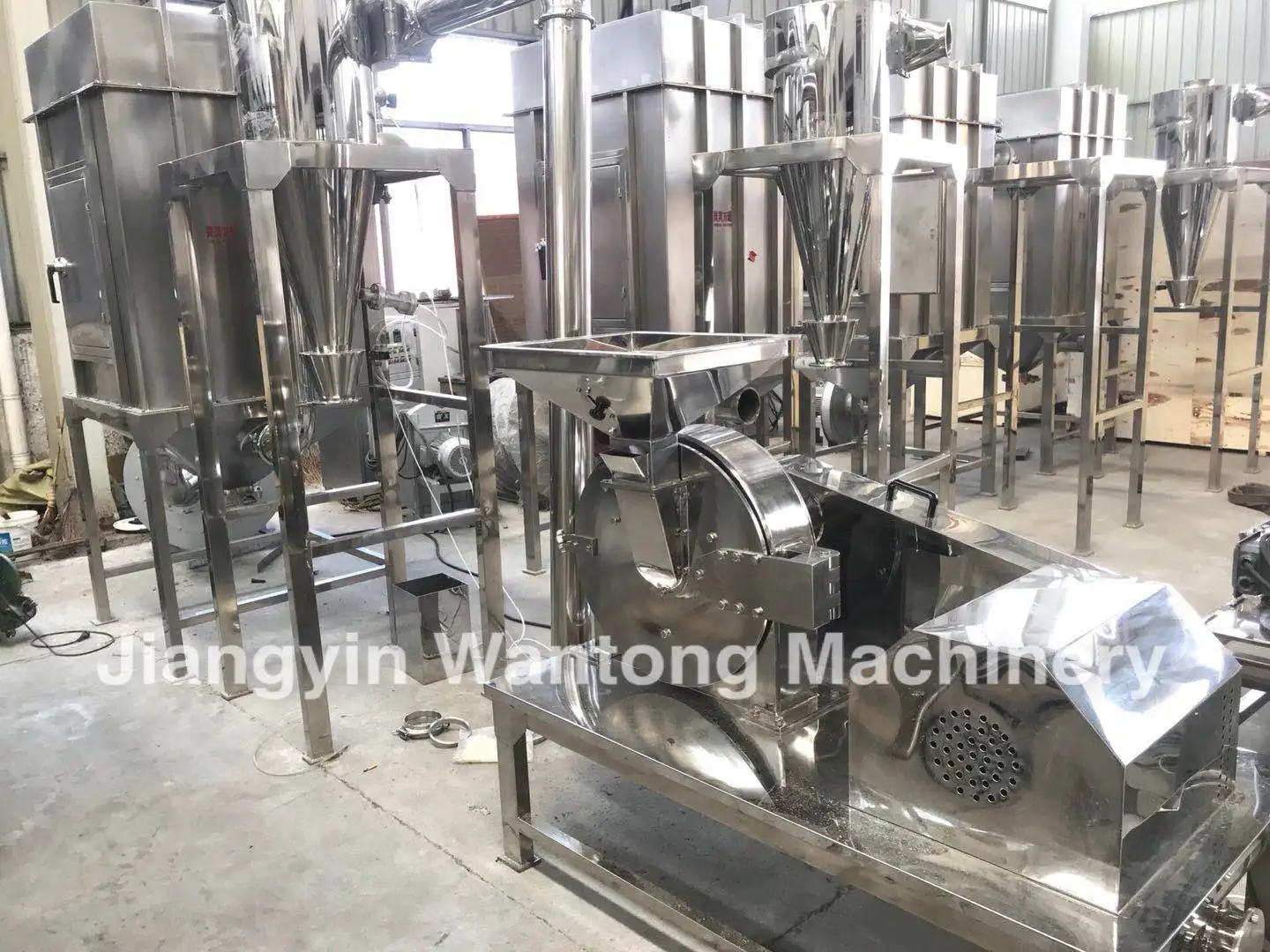

Details Images
OTHER RELATED PIC:
Company Profile
MORE MACHINE TYPE, INTO OUR WEBSITE: https://jywantong.en.alibaba.com
* More than 20 years old
* The big factory with rich experience and technology in Jiangyin
* Have many branches through the whole china.
* Own many honors, awards and certificates.
* Contact me by WHATSAPP or WECHAT, provide video/photos ALIVE.
* Our machine itself and our big factory will be our strongest and best explanations.
* We have many machines in the stock, we will be glad if you can visit us to get more real and effective information about the machine.
FOR MORE INFORMATION, PLEASE Click into Our Company
* The big factory with rich experience and technology in Jiangyin
* Have many branches through the whole china.
* Own many honors, awards and certificates.
* Contact me by WHATSAPP or WECHAT, provide video/photos ALIVE.
* Our machine itself and our big factory will be our strongest and best explanations.
* We have many machines in the stock, we will be glad if you can visit us to get more real and effective information about the machine.
FOR MORE INFORMATION, PLEASE Click into Our Company
NOTE: All machine photos are all true belong to us, without permission shall not be used without authorization !
FAQ
ARE YOU REAL FACTORY OR TRADING COMPANY?
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory in this !!
WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call me +86 13921209007 anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only
damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory in this !!
WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?
Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.
CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE
YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!
HOW TO VISIT YOUR COMPANY?
Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call me +86 13921209007 anytime you arrive Wuxi, i will go to pick you.
WHAT'S YOUR BEFORE & AFTER SERVICE ?
1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only
damaged by machine itself).
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
WHAT'S YOUR SHIPPING ITEM PROCESS?
We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .
If your need , we can help you do custom clearance .
Packaging Details: 1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Delivery Details: Machine will be finished in about 25 workdays after payment.
HOW ABOUT YOUR PAYMENT TERM?
1. Normally we can work on T/T or L/C.
2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.
3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine
contact us
PLEASE LET US BE MORE HONEST, THEN ANY QUESTION WILL BE REPLYED 100%SINCERELY AND VERY EFFCIENTLY BY CONTACTING ME.
Contact way in my company website https://jywantong.en.alibaba.com contact us page.
===>CONACT ME NOW FOR new and live videos/photos, talk to u in the VIDEO CALL !
STILL ON LOOKING FOR GOOD AND REAL MANUFACTURER IN CHINA?
MAY I INVITE YOU VISIT US?PLEASE. YOU ALREADY FIND US.
Contact way in my company website https://jywantong.en.alibaba.com contact us page.
===>CONACT ME NOW FOR new and live videos/photos, talk to u in the VIDEO CALL !
STILL ON LOOKING FOR GOOD AND REAL MANUFACTURER IN CHINA?
MAY I INVITE YOU VISIT US?PLEASE. YOU ALREADY FIND US.
WFC automatic dried banana spice flour grinding machine chili powder making machine price sugar production line WFC automatic dried banana spice flour grinding machine chili powder making machine price sugar production line WFC automatic dried banana spice flour grinding machine chili powder making machine price sugar production line WFC automatic dried banana spice flour grinding machine chili powder making machine price sugar production line
Похожие товары

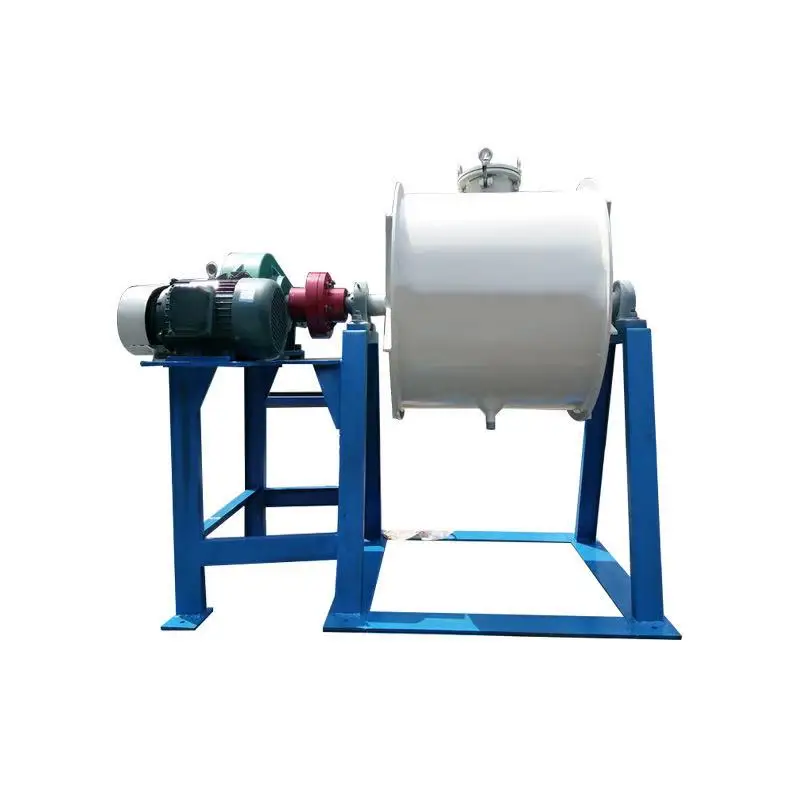

Горизонтальная шлифовальная шаровая мельница для продажи портативная маленькая лабораторная мини-шаровая

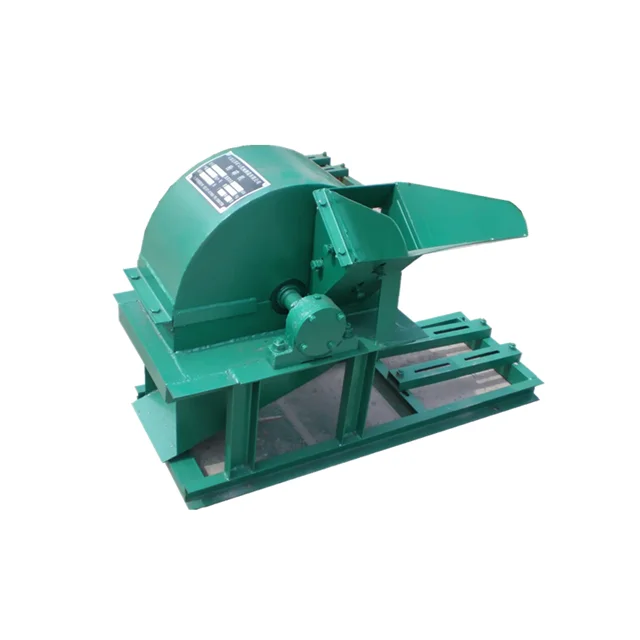

Деревянная молотковая мельница с

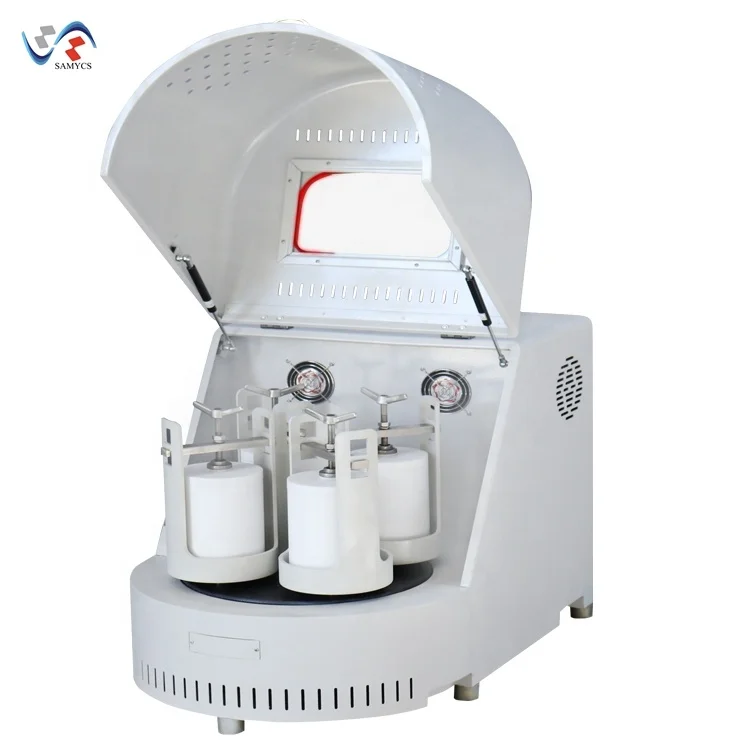

4*100 мл Высококачественная мелкая Планетарная шаровая мельница для
1 700,00 $ - 1 820,00 $
40B Универсальная Промышленная мельница для специй
3 000,00 $
Малазийская миниатюрная мельница для кукурузы/мельница зерна кукурузы
490,00 $ - 850,00 $

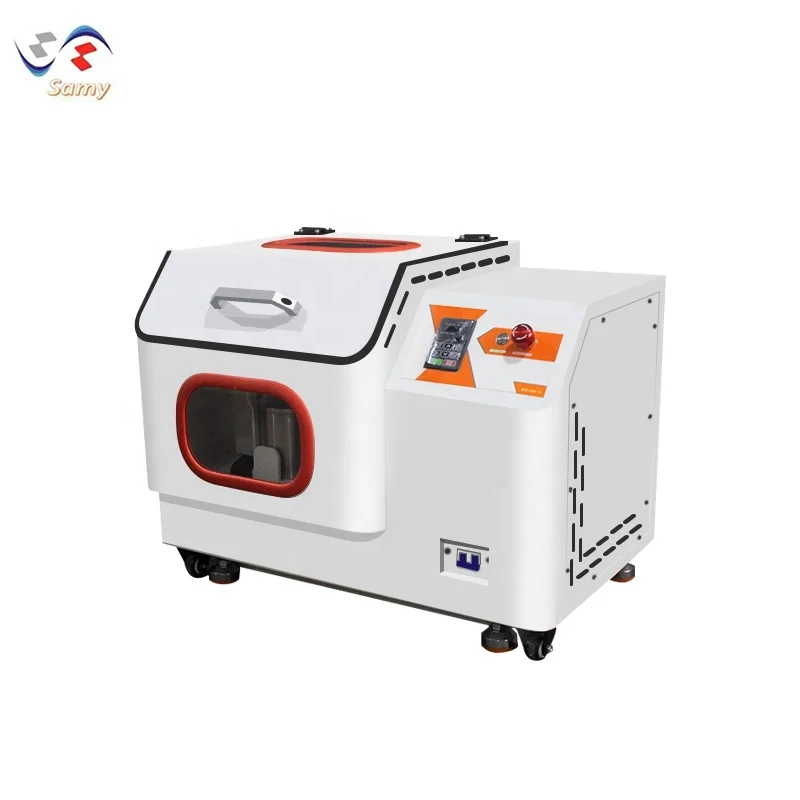

Samy SQM-16L профессиональная полукруглая высококлассная лабораторная Планетарная шаровая мельница большого объема из нержавеющей стали шлифовальные
3 922,28 $ - 4 388,68 $

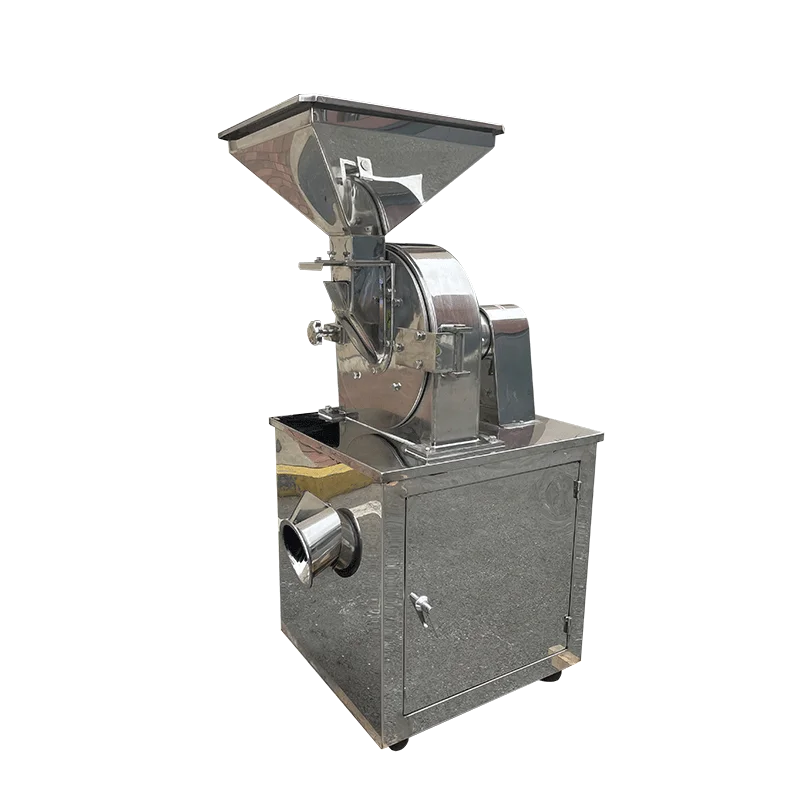

Высокоскоростная Промышленная дробилка для измельчения сахара из нержавеющей стали по индивидуальному заказу от
