Компрессионный разделенный нагреватель горячей воды, синий Солнечный поглощающий тепло плоский Солнечный коллектор
92,00 $ - 110,00 $
Сетевой медный пленочный поглотитель солнечных батарей для коллекторов
- Категория: >>>
- Поставщик: Shandong Feitian New Energy Co. Ltd.
Сохранить в закладки 1600327415619:
Описание и отзывы
Характеристики
Product Description
Working principle:
Flat panel collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Bontel can supply you different kinds of high quality absorber plate with selective film.

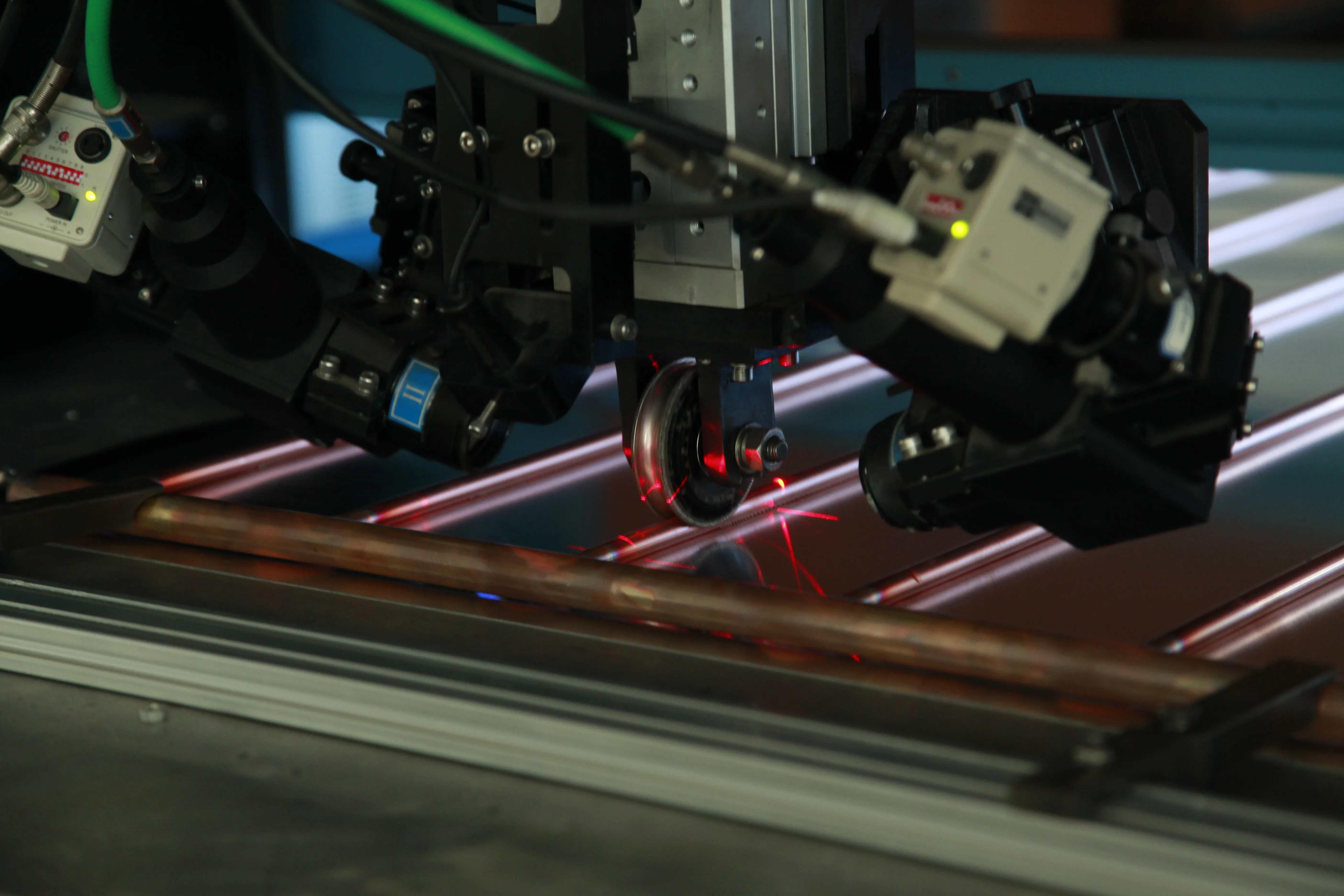

Laser bonding:
Our absorber is welded by laser.The welding spots are uniform and the combination is firm
Specification
Coating Thickness (mm) | Width(mm) | Coating Material | Absorber Coating | Header Copper(mm) | Riser Copper(mm) |
0.12 | 140 | Copper Fins | Black Coating | / | 8/10/12/15mm |
0.4 | 750 | Aluminum Plate | Black Coating/Blue Coating | 22/25/28mm | 8/10/12/15mm |
0.4 | 950 | Aluminum Plate | Black Coating/Blue Coating | 22/25/28mm | 8/10/12/15mm |
0.4 | 1250 | Aluminum Plate | Black Coating/Blue Coating | 22/25/28mm | 8/10/12/15mm |
Product Details
Advantages:
(1) The laser welding Line developed a small melting pool, it means enhanced the connection strength between absorber and riser pipes, the result is promise longer life of solar absorber;
(2) The appearance of solar collector without welding line is more beautiful and integrated well with building’s roof;
(3) The is no destroy of the surface of blue coating film, in the flat plate solar collector;
(4) The distance between two welding spots is 3mm, more welding spots take high transmission to system.
(2) The appearance of solar collector without welding line is more beautiful and integrated well with building’s roof;
(3) The is no destroy of the surface of blue coating film, in the flat plate solar collector;
(4) The distance between two welding spots is 3mm, more welding spots take high transmission to system.
The appearance of solar collector without welding line is more beautiful and integrated well with building’s roof.
There are light pipes, inner wires, and outer wires at the connection, which can be customized
Level 1 leak detection
Secondary leak detection
Heat absorption film, blue film & black film, sufficient raw materials
Copper tube: the size of a variety of customized flat solar collectors

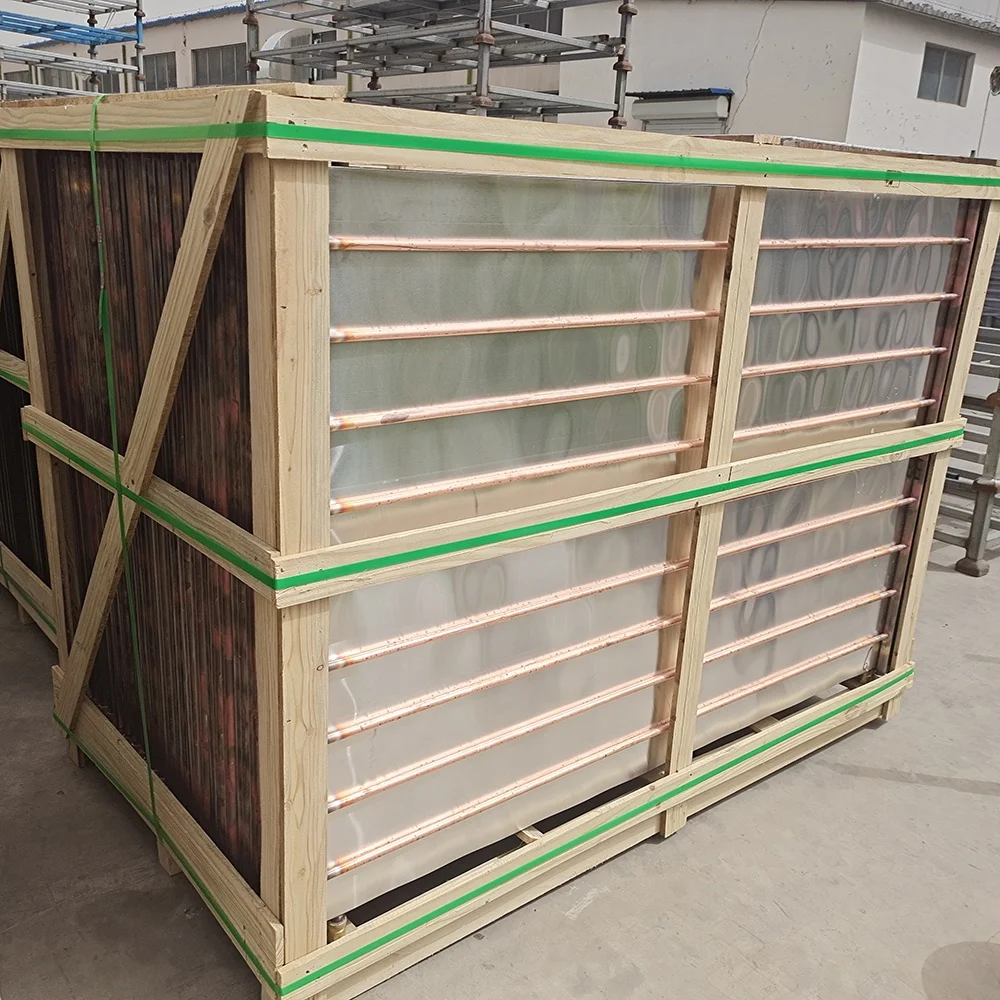

Packing&Shipping
Use Case
Multiple flat plate collectors form a heat collection array.Provide plenty of hot water for hotels, hospitals and schools.
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use.
It consists of thousands of flat plate collectors.To provide winter heating for the whole city

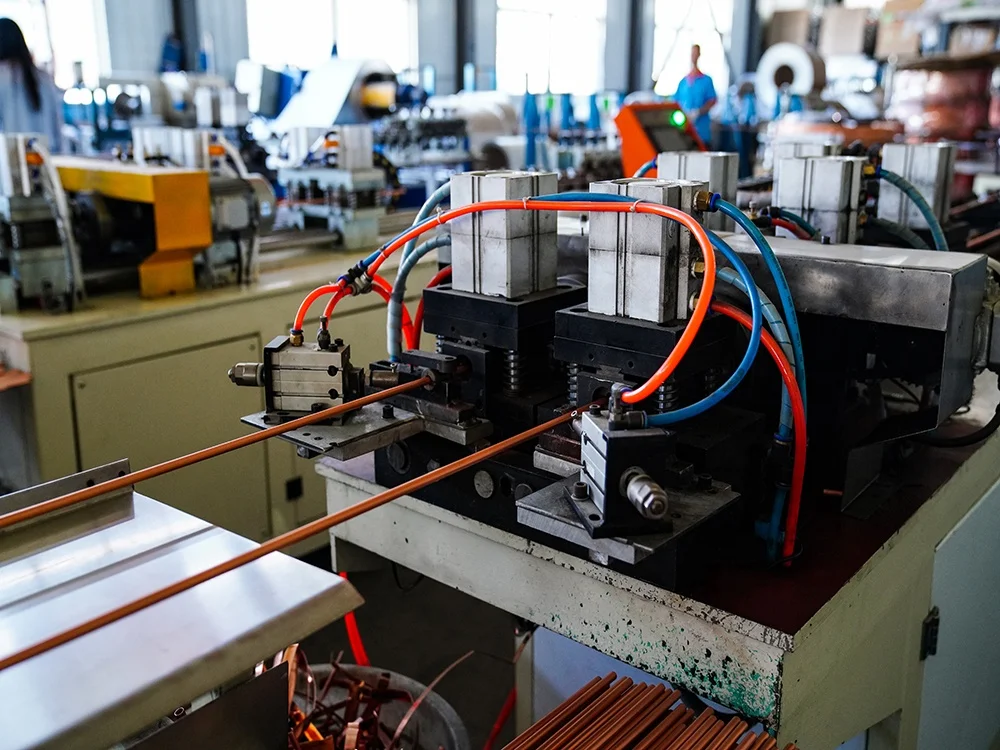

Professional Production Line
Company Profile
Shandong Feitian New Energy Co., Ltd
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream!
FAQ
1. Is your company a trading company or factory?
We have own factory. Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
24000PCS.
Похожие товары
БТЕ лазерная сварочная Солнечная абсорбционная пластина для плоского солнечного коллектора
50,00 $
Szsbdz Rk097g аудио герметичный двойной потенциометр 5K 10K 20K 50K 100K 6 футов 8 с
Алюминиевая вакуумная трубка с голубым селективным покрытием, медные поглотители, гибридный солнечный коллектор
90,00 $ - 105,00 $
Новинка 2021, алюминиевые медные плавники, впитывающие Плоские солнечные коллекторы высокого давления для линейных солнечных коллекторов
85,00 $ - 95,00 $
Алюминиевый лист с голубым покрытием шириной 1250 мм, селективная краска для солнечных коллекторов с плоской пластиной
7,80 $ - 10,00 $
Поглощающая черная Хромированная Пластина для поглощения солнечных батарей ODM 96%, используемая для солнечных тепловых коллекторов
58,00 $ - 60,00 $

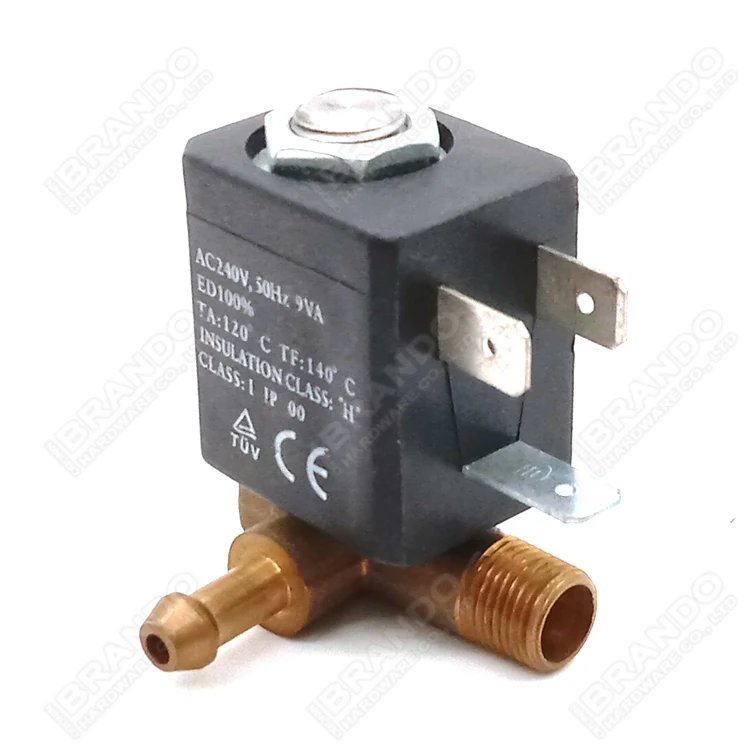

Маленький латунный электромагнитный клапан управления парой 5523 1/8 дюйма 24 В постоянного тока 220 в 230 240 переменного для кофемашины эспрессо и парового
