Коаксиальный кабель питания RG59 RG11 RG58 для камеры CATV CCTV 75 Ом антенный
- Категория: >>>
- Поставщик: Dongguan HOOHA electrical machinery company limited
Сохранить в закладки 1600328864452:
Описание и отзывы
Характеристики
Specification
Jacket | PVC/PE |
Wire Core Material | 1.02 Bare Copper / CCS |
Number of Conductors | 1 |
Out Conductor | Al Foil +70%,90%,95% Braid 6.80-7.0mm |
Out Jacket Dielectric | 4.57-4.80mm FPE |
Braid Material | Al-Mg,CCA,BC,TC |
Connector | Fconnecor or BNC |
Color | White,Black or Customized |
Certification | CE/RoHS |
Product Description

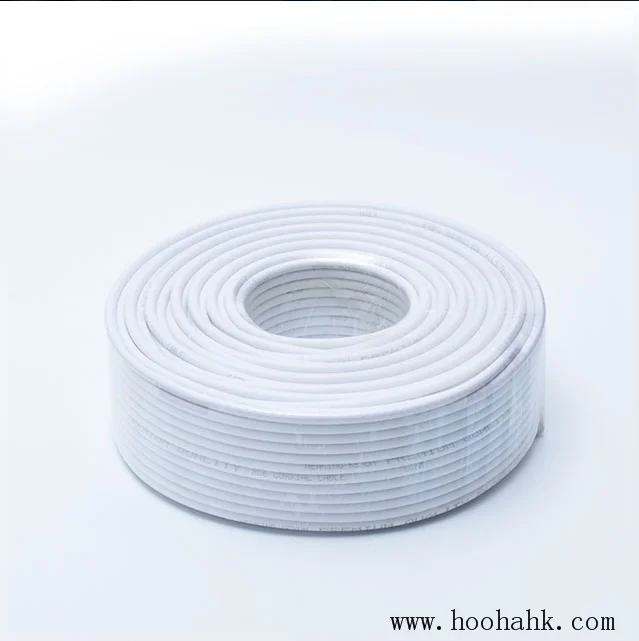

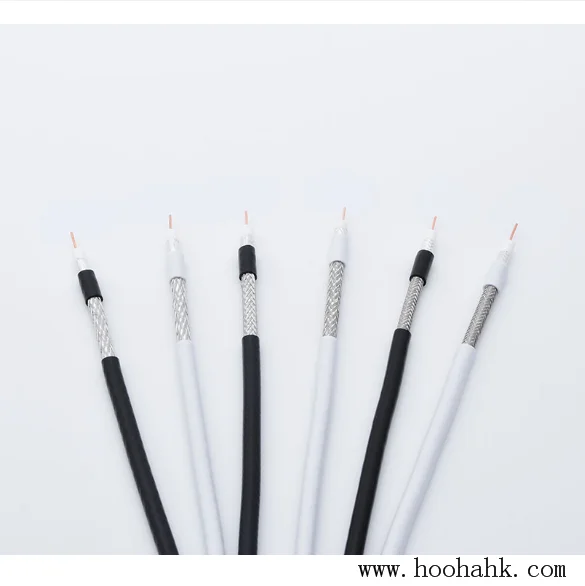

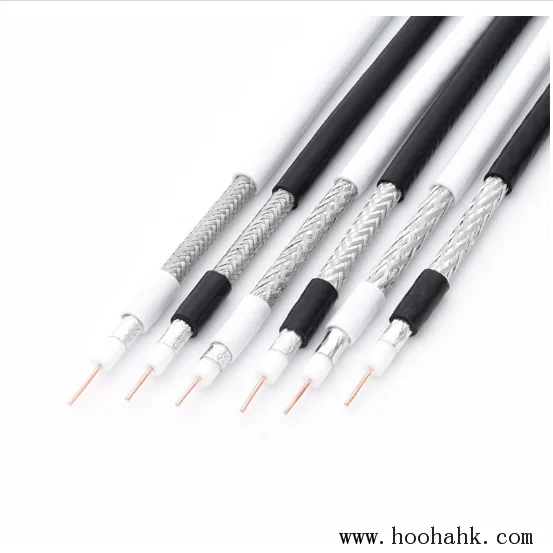

RG6 Coaxial Cable for Wireless Network Annunciator and Television
Specifications:
1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC
2,CE.ROHS,ISO
3,MOQ:30KM
4,Price:Factory price
5,Lead time:15 days

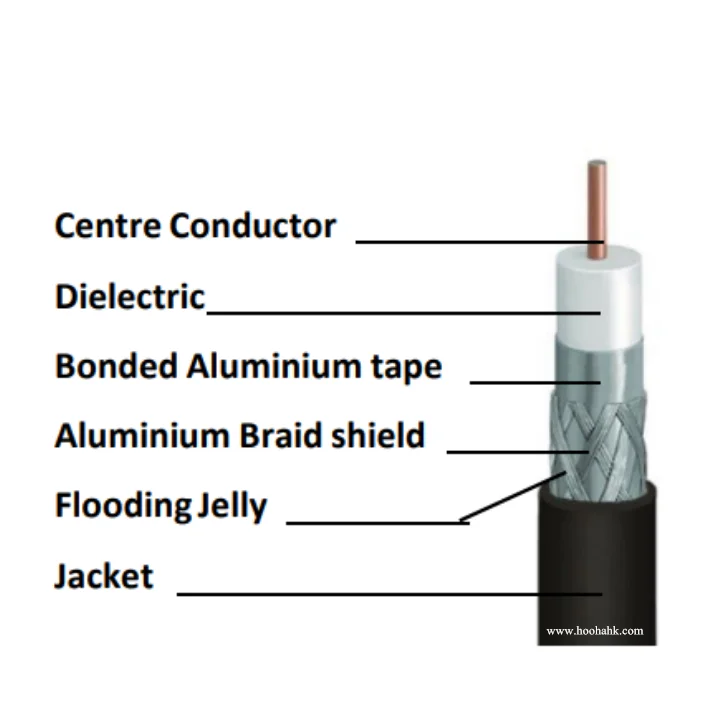

Construction:
Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized
Cable Structure:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
Attenuation Performance | ||||
Frequency(MHz) | Maximum (dB/100ft) | Maximum (dB/100m) | ||
5 | 0.58 | 1.90 | ||
55 | 1.60 | 5.25 | ||
211 | 2.87 | 9.41 | ||
250 | 3.10 | 10.16 | ||
300 | 3.43 | 11.25 | ||
350 | 3.72 | 12.20 | ||
400 | 4.00 | 13.11 | ||
450 | 4.26 | 13.97 | ||
500 | 4.55 | 14.92 | ||
550 | 4.71 | 15.44 | ||
600 | 5.05 | 16.56 | ||
750 | 5.59 | 18.33 | ||
865 | 7.50 | 19.51 | ||
1000 | 6.54 | 21.44 | ||
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
The Production Line

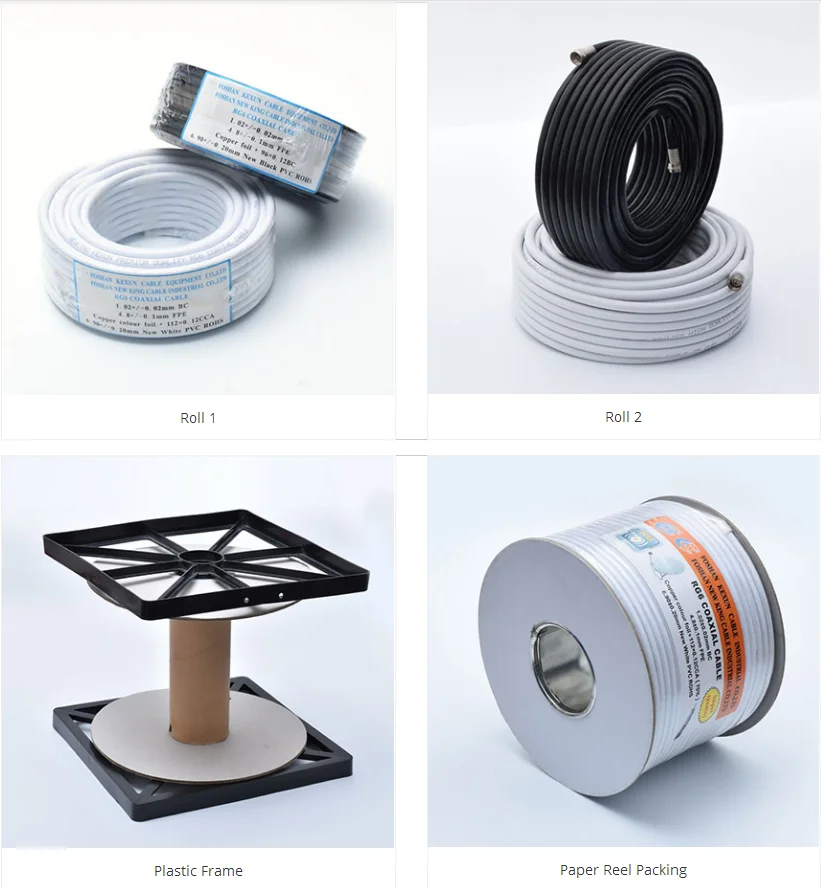

Packing & Delivery
Packaging Details ：Can be packed in clarity film, several rolls into one carton.
Company Profile
Hu Machine Designer
20 years engineering design experienceBi Head Engineer
Responsible for project type engineeringChen Senior Engineer
Machine design for 30 years
Professional and Strong Manufacture and Sales Team | ||||||||||
Name | Education | Position | Mainly responsible for project | Specializing in project | work year | |||||
zanyang Xie | college | General Engineer | The total project design and planning | power cable machine | 15 years | |||||
xiaohua Hu | college | Vis general engineer | The total project design and planning | net cable,data cable machine | 10 years | |||||
Changhong Cheng | college | Engineer | Drawings and after-sales service | Teflon,Optical fiber cable machine | 25 years | |||||
xiuwu Chen | college | General Engineer | The total project design and planning | copper drawing machine | 15 years | |||||
lixin Yuan | college | Engineer | The project design and planning | coppwer wire making technical | 16 years | |||||
zhenghai Qiu | college | cable engineer | After service | cable making and cable factory management servie | 15 years | |||||
jinxin Liu | college | Marketing engineer | After service | electrical engineer | 7 years | |||||
xingguo Tang | High school | Electrical engineer | After service | electrical engineer | 10 years | |||||
changqiang Li | High school | Maintain engineer | After service | machina maintain and install service | 10 years | |||||
haipin Li | University | Engineering director | Marketing and sales | project consulting | 8 years | |||||
sen Yang | University | Engineering translator | Marketing and sales | project consulting | 5 years | |||||
Certificates and Exhibitions
Customer Cases
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,
We are based in Guangdong, China, start from 2017,
sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%).
There are 5-10 professional worker in HOOHA.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Похожие товары
Высококачественный Нож для суши из нержавеющей стали, кухонный нож для рыбы, нож для сашими с ручкой G10
23,72 $ - 27,00 $

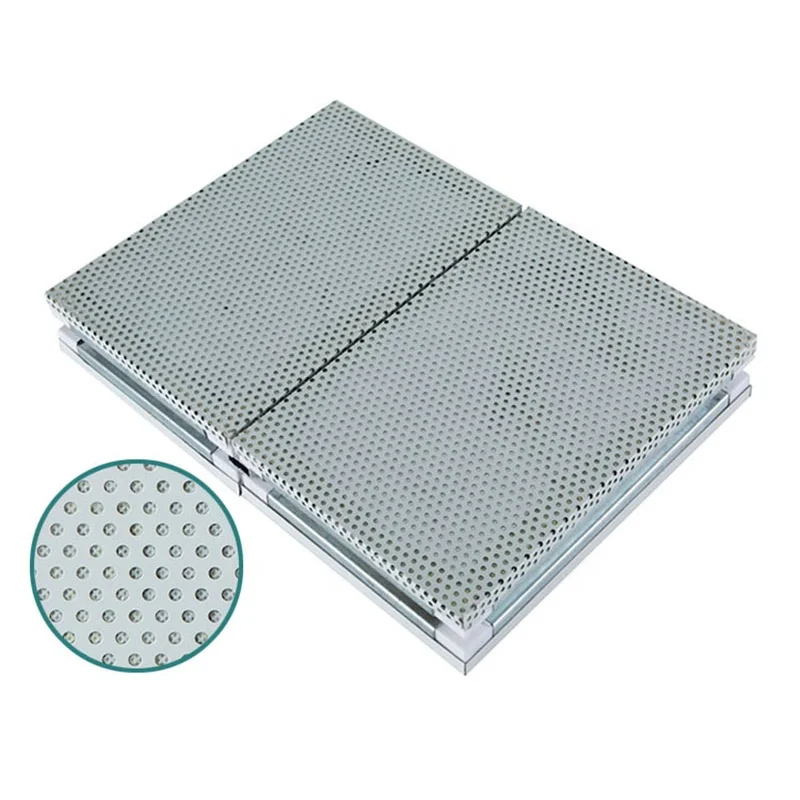

Адиабатические звукопоглощающие панели ручной работы из минеральной ваты для пожарной мастерской
10,98 $ - 13,45 $

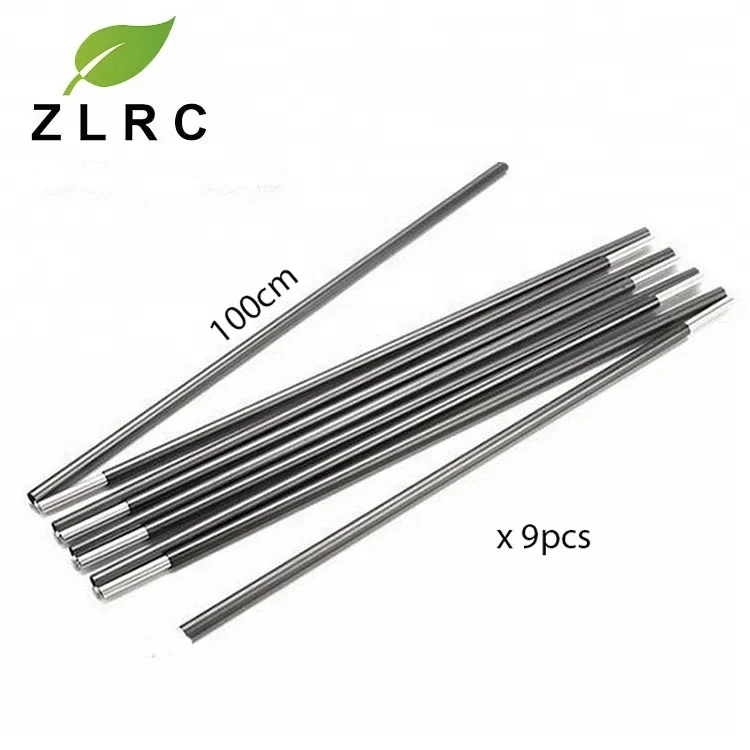

Палатки из стекловолокна для продажи
Проводной Электрический Пылесос Ласточка циклонная система HEPA фильтр 220 В
2,60 $ - 13,60 $
Низкоаллергенная Органическая натуральная постоянная платиновая серая краска для волос домашнего использования
3,00 $ - 3,50 $

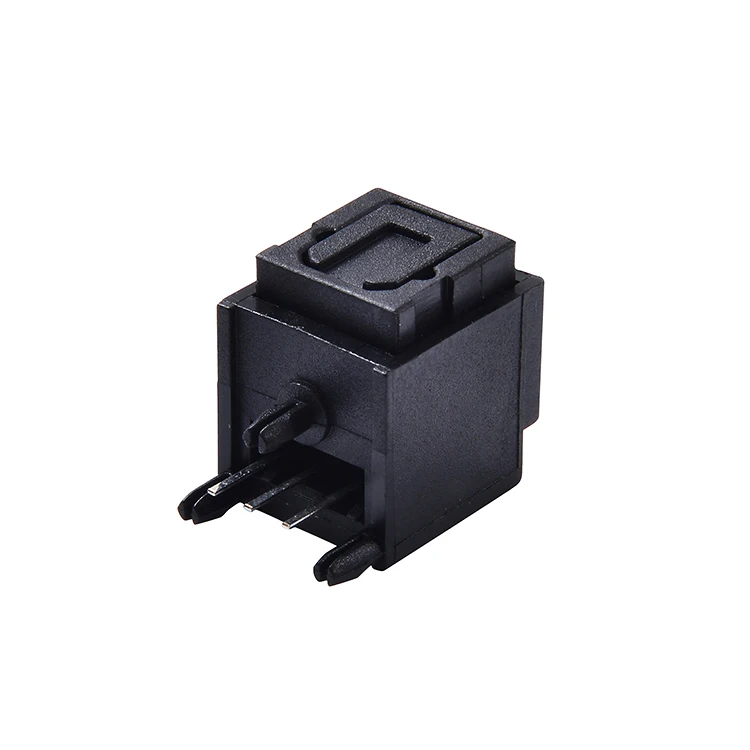

Высококачественный оптический мини-разъем Spdif Dlt1170 Dlr2170 DLT2170 DLR Высокоскоростная передача сигнала цифровой Toslink аудио
