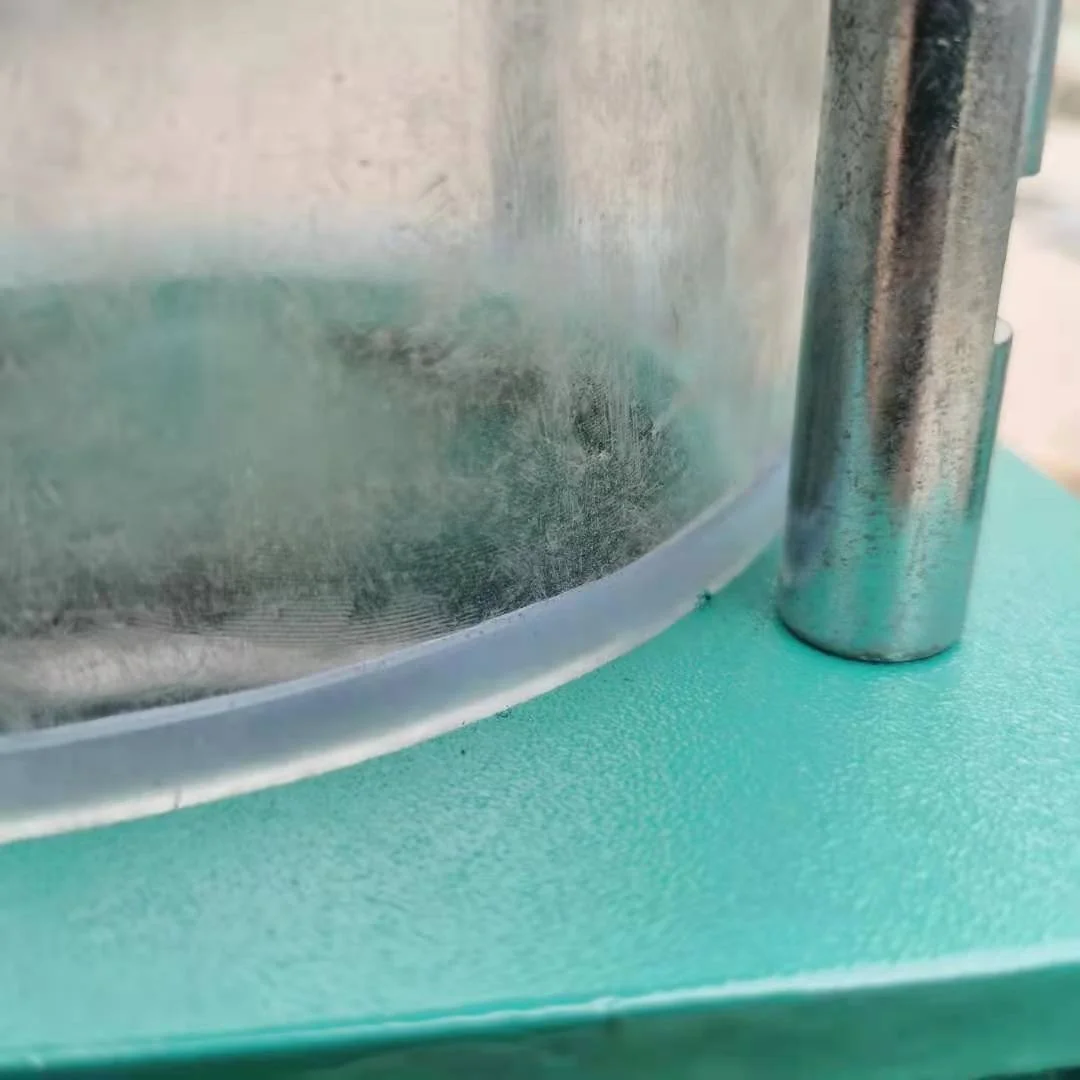

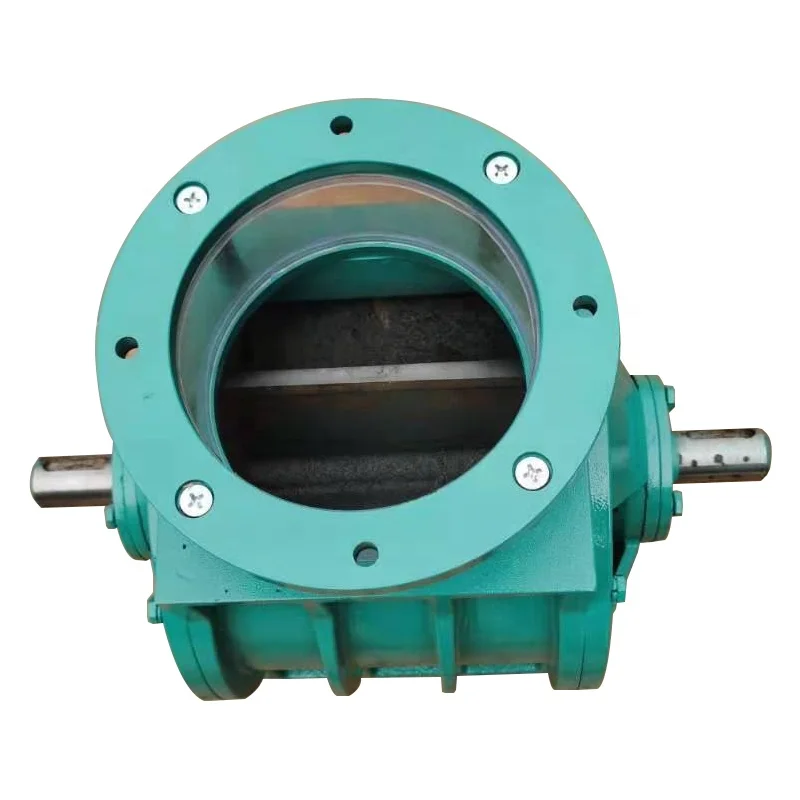

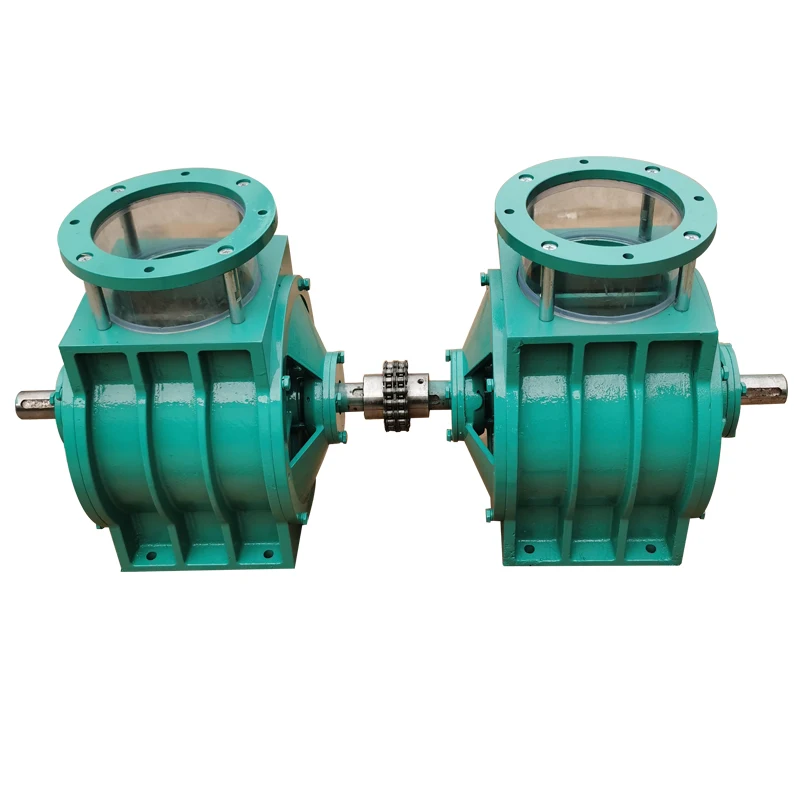

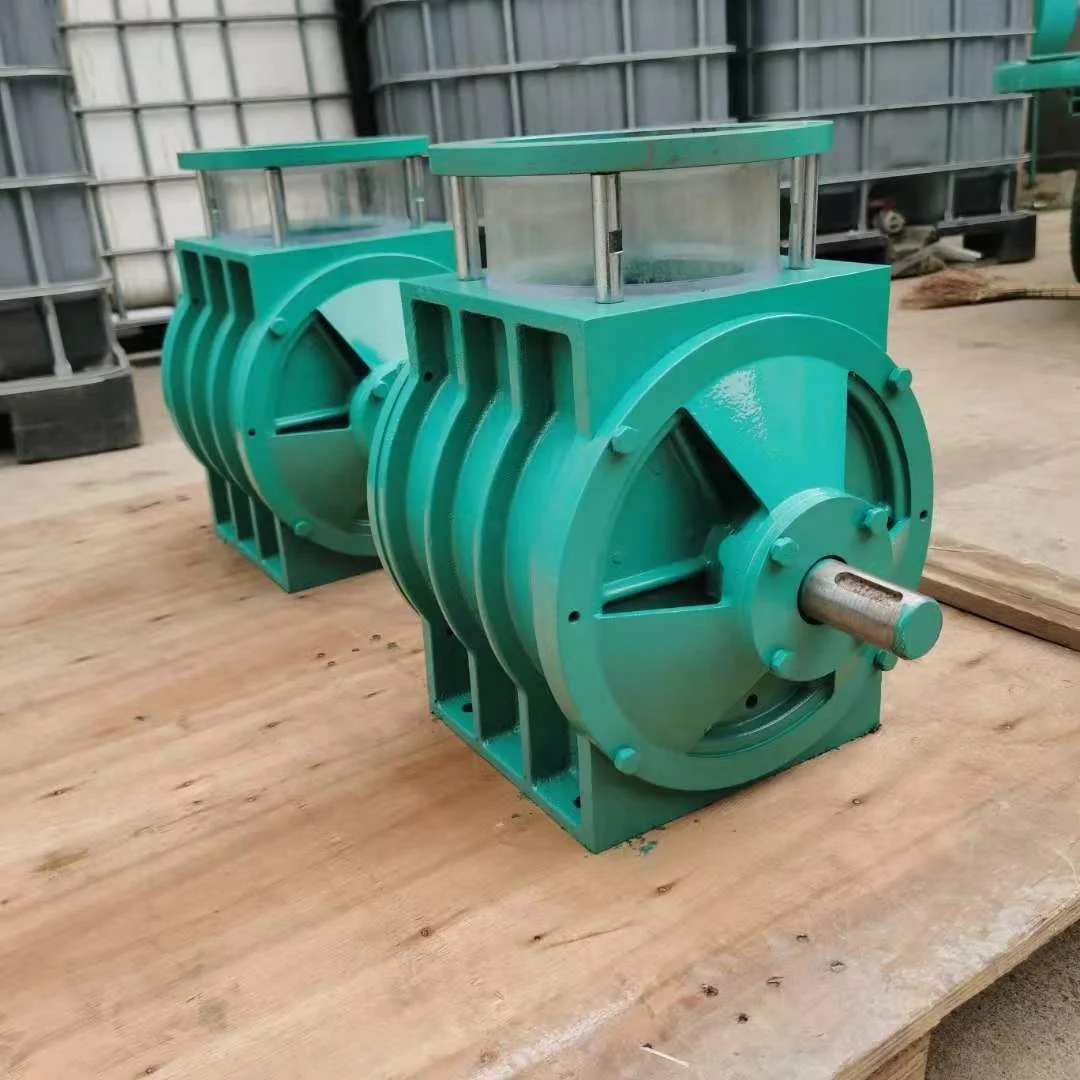

Вращающийся воздушный запорный клапан для пылесборника из нержавеющей стали новый
- Категория: >>>
- Поставщик: Luohe Zhongzhiyuan Grain And Oil Machinery Co. Ltd.
Сохранить в закладки 1600329484764:
Описание и отзывы
Характеристики
Product Description
Air Valve Industrial Discharge the Materials Tool Heavy Duty Rotary Airlock Feeder/Discharge Valve
Model | Capacity (L) | Rotary speed (r/min) | Power (kw) | Weight (kg) |
TGFY-4 | 4 | 45-60 | 0.75 | 25 |
TGFY-5 | 5 | 45-60 | 0.75 | 30 |
TGFY-7 | 7 | 45-60 | 0.75 | 40 |
TGFY-9 | 9 | 45-60 | 1.1 | 50 |
TGFY-13 | 13 | 45-60 | 1.1 | 70 |
TGFY-16 | 16 | 45-60 | 1.5 | 85 |
TGFY-25 | 25 | 27-33 | 2.2 | 120 |
TGFY-40 | 40 | 25-30 | 3 | 150 |
1.Product introduction
Airlock valve,also named discharge valve,star discharger,cindervalve,is an important equipment for pneumatic,conveying system and dust removal system.
It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure environment.
The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fiber continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.
It is mainly used to discharge the material continuously from the tripper and dust collector,and make sure the inner pressure not exposed to atmosphere pressure environment.
The airlock valve is made of gear motor,sealing element,impellers and rotor housing on which many rotating blades are set.It is capable of discharging powder,small particles,flaky or fiber continuously by the differential pressure of material.Now it has been widely used in chemical,pharmacy,drying,grains,cement,environmental protection and power industry etc.
2.Product features
• main parts of the mainframe shell are cast closely, with strong structure, high strength, not easy to deform and beautiful appearance;
• simple and stable operation, low noise, easy to use;
• high precision ensures its minimum clearance;
• the cross section of the main body shell is specially designed to effectively prevent the extrusion and crushing of granular materials;
• exhaust channels and exhaust pipe joints are provided in the casing to balance the pressure, thus improving work efficiency and preventing material accumulation;
• a variety of materials and sizes can be selected according to customer requirements: stainless steel, carbon steel, cast iron,etc.;
• multiple flange options: round or square flange design.
• main parts of the mainframe shell are cast closely, with strong structure, high strength, not easy to deform and beautiful appearance;
• simple and stable operation, low noise, easy to use;
• high precision ensures its minimum clearance;
• the cross section of the main body shell is specially designed to effectively prevent the extrusion and crushing of granular materials;
• exhaust channels and exhaust pipe joints are provided in the casing to balance the pressure, thus improving work efficiency and preventing material accumulation;
• a variety of materials and sizes can be selected according to customer requirements: stainless steel, carbon steel, cast iron,etc.;
• multiple flange options: round or square flange design.

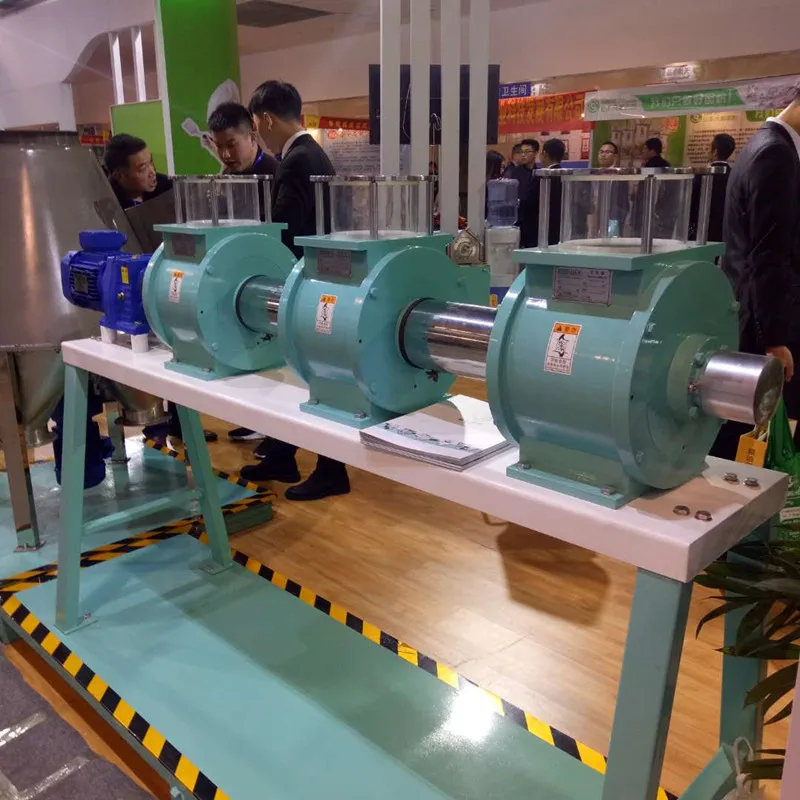

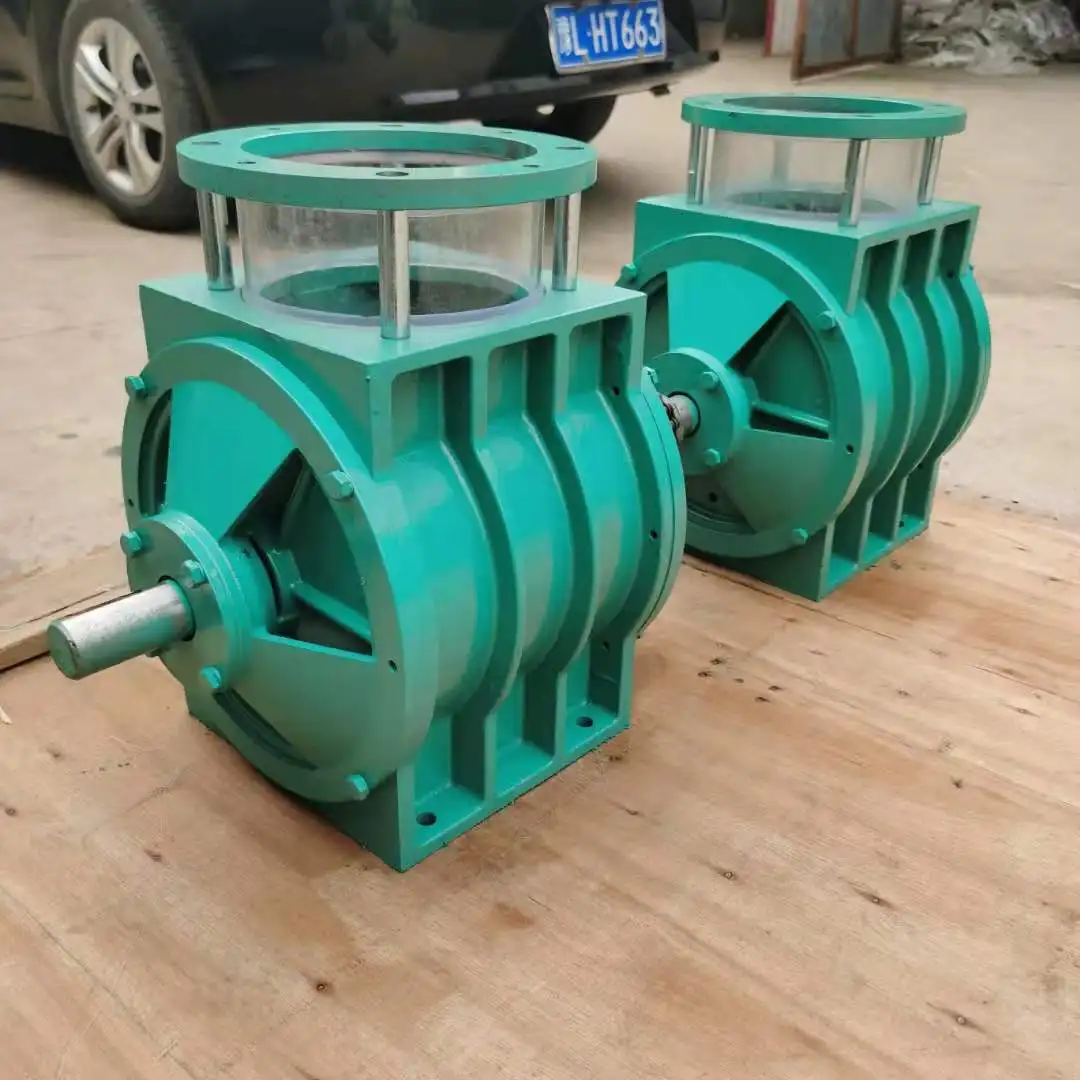

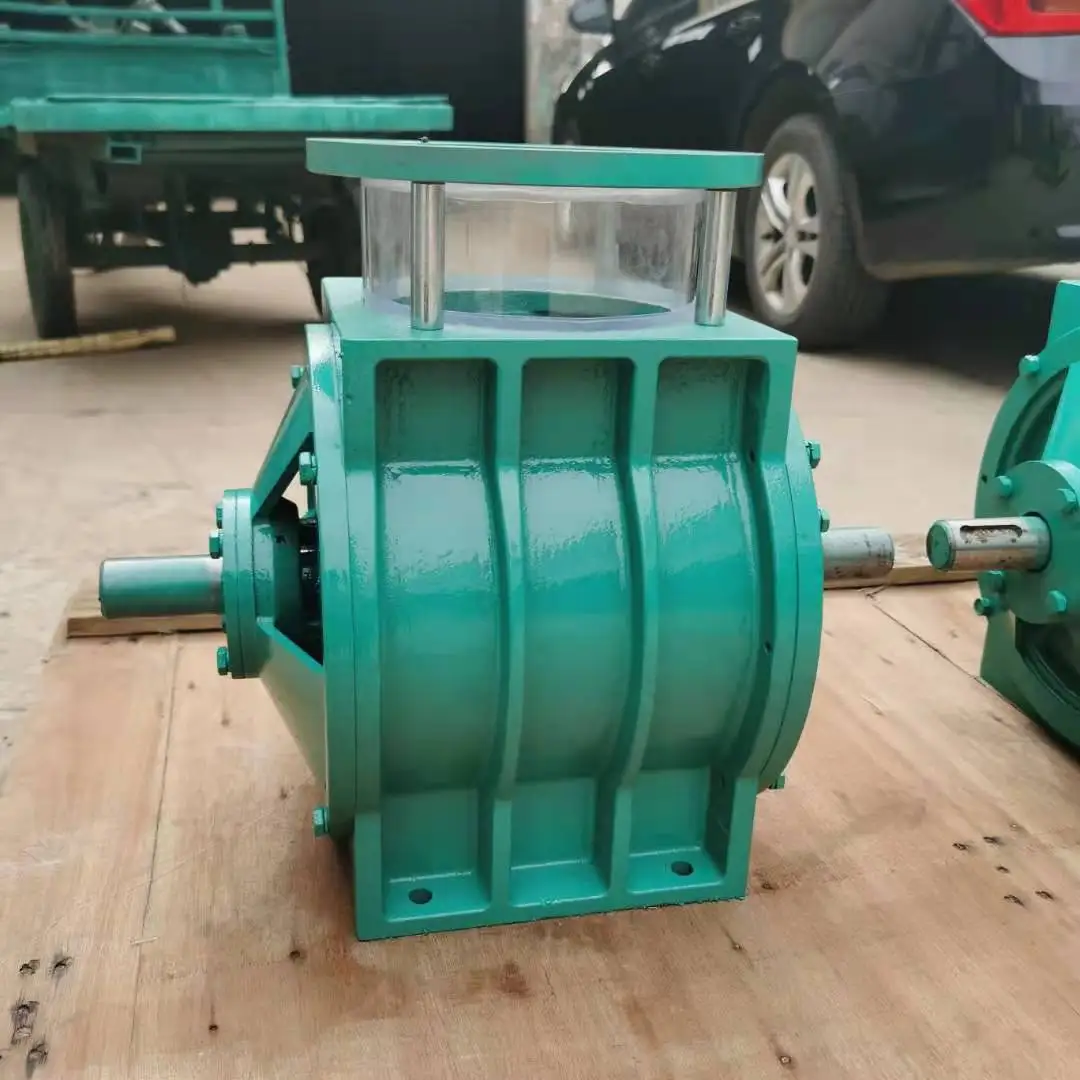

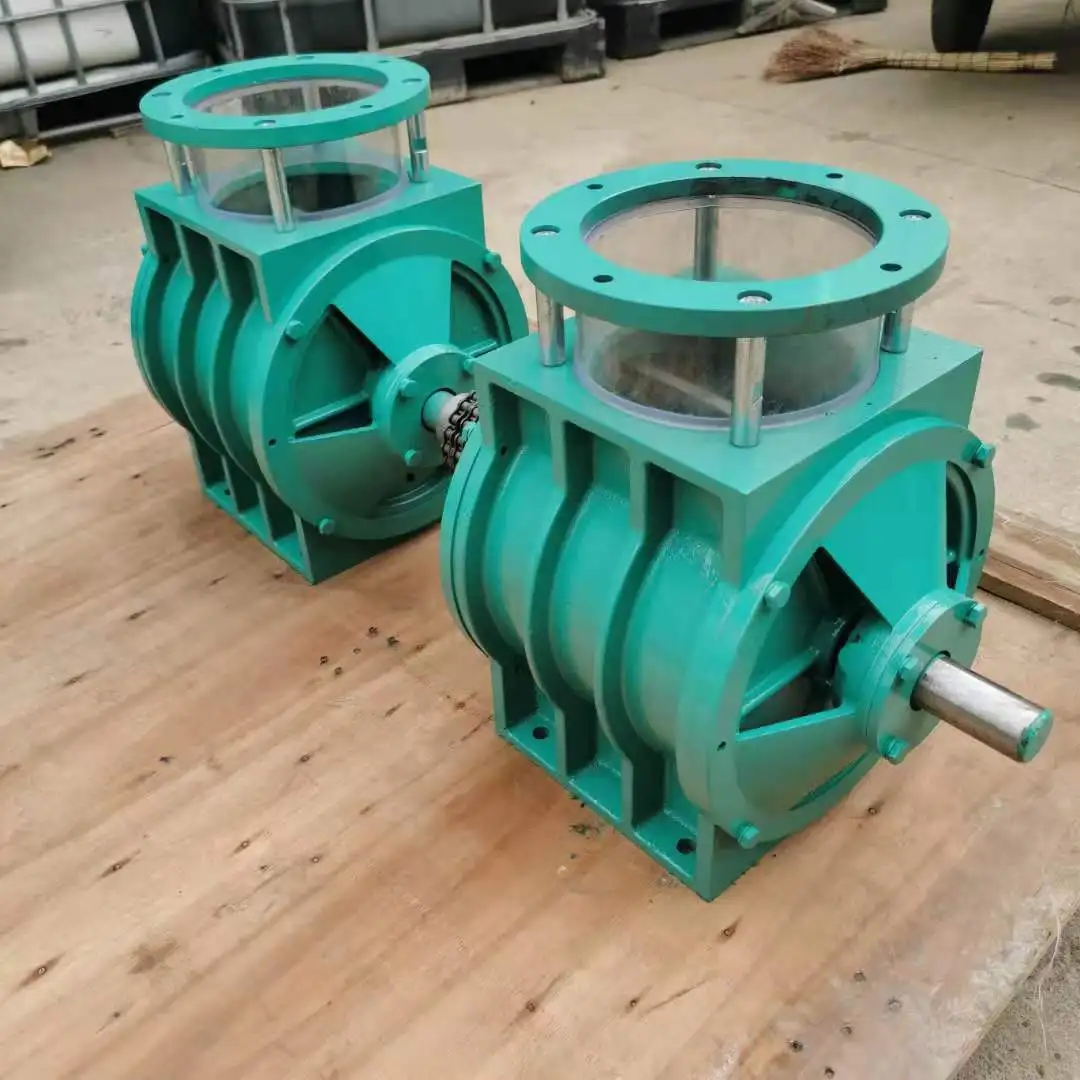

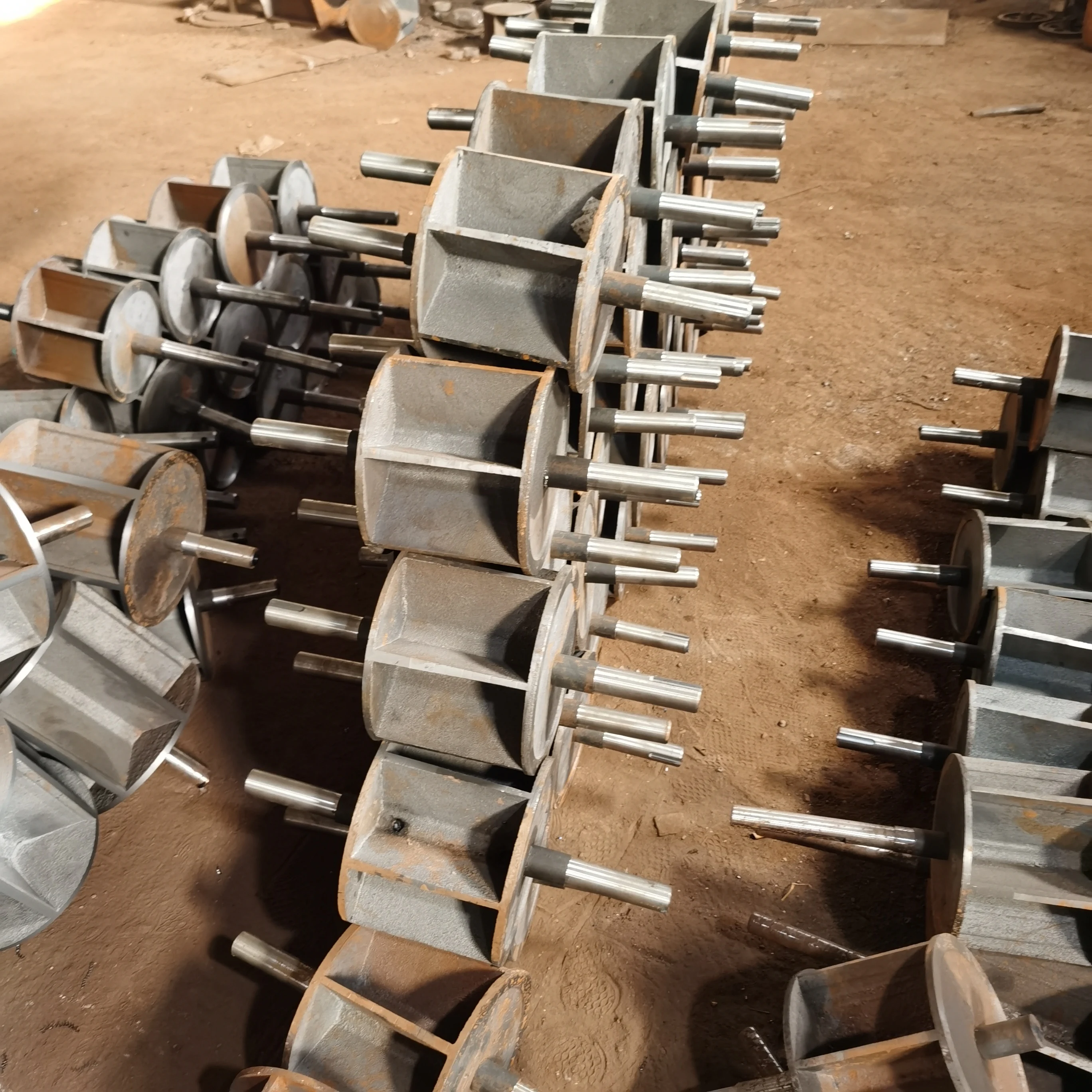

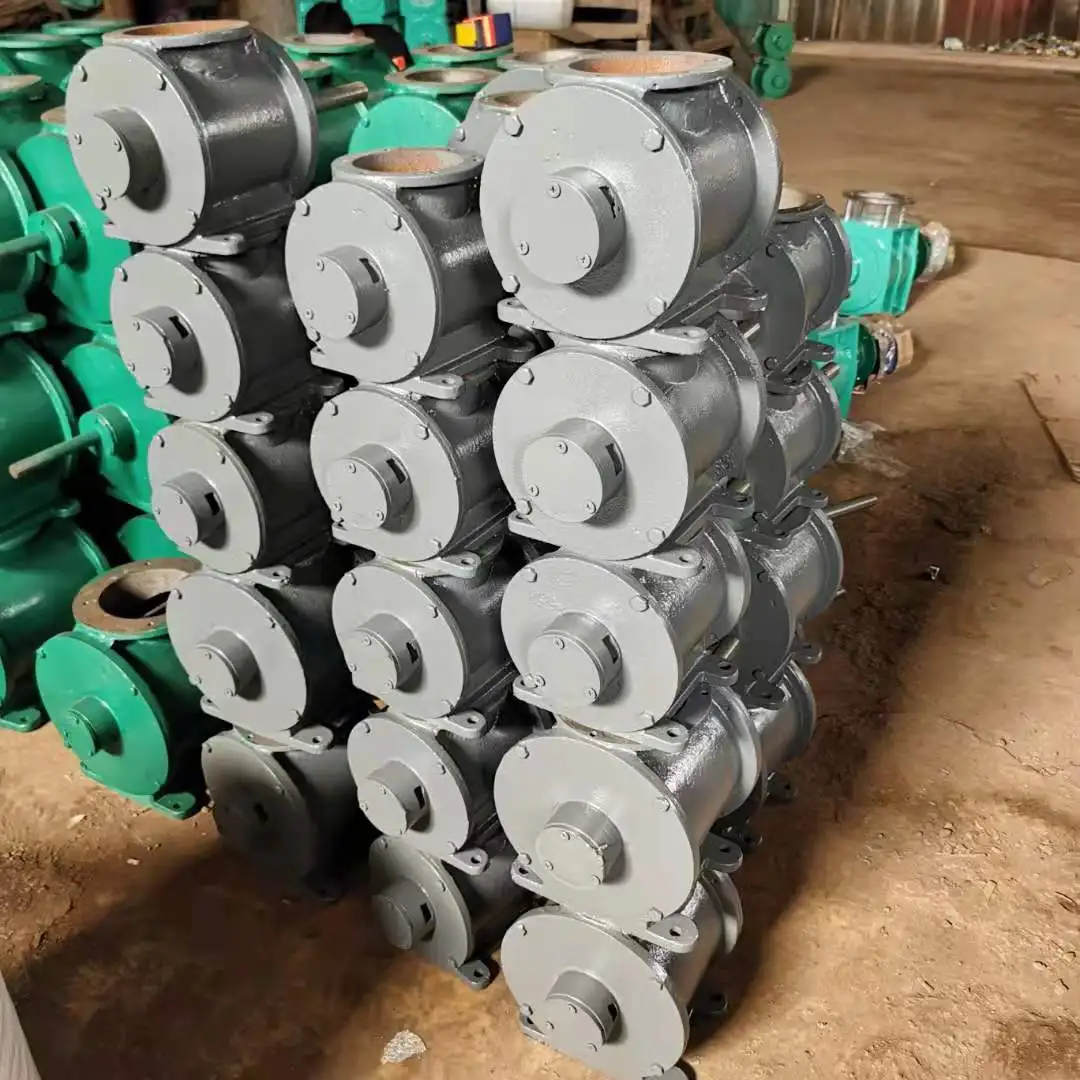

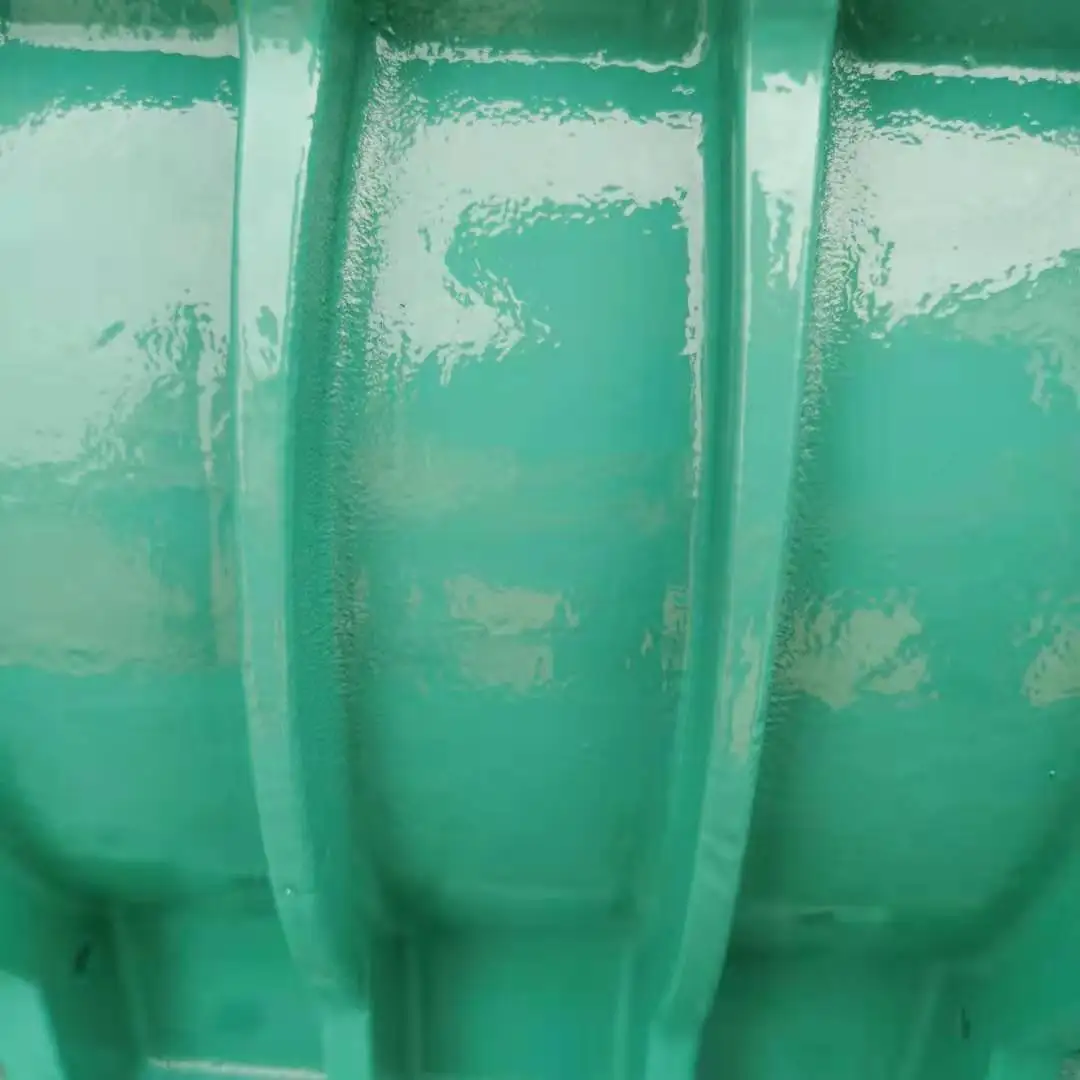

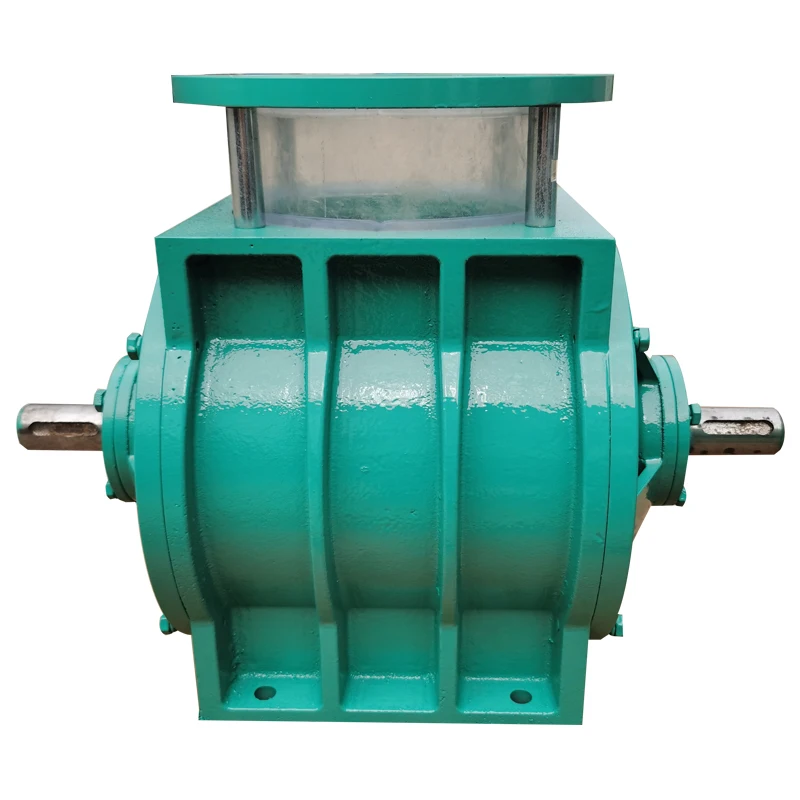

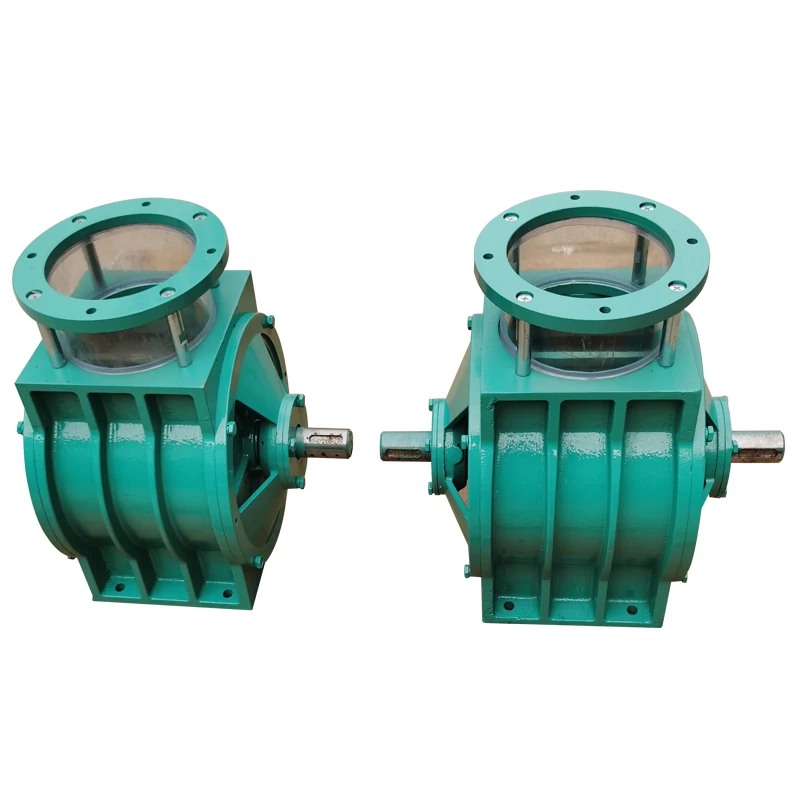

Product Show

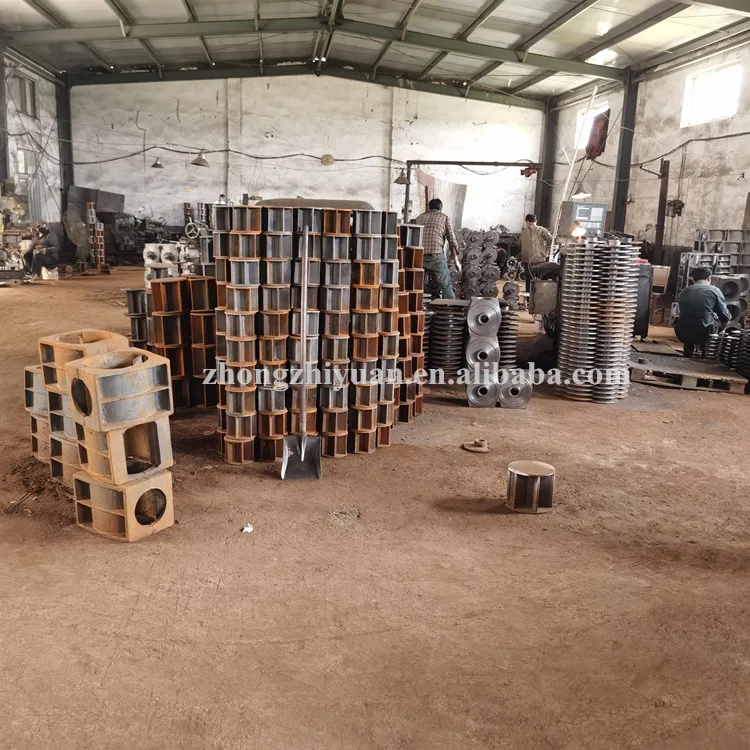

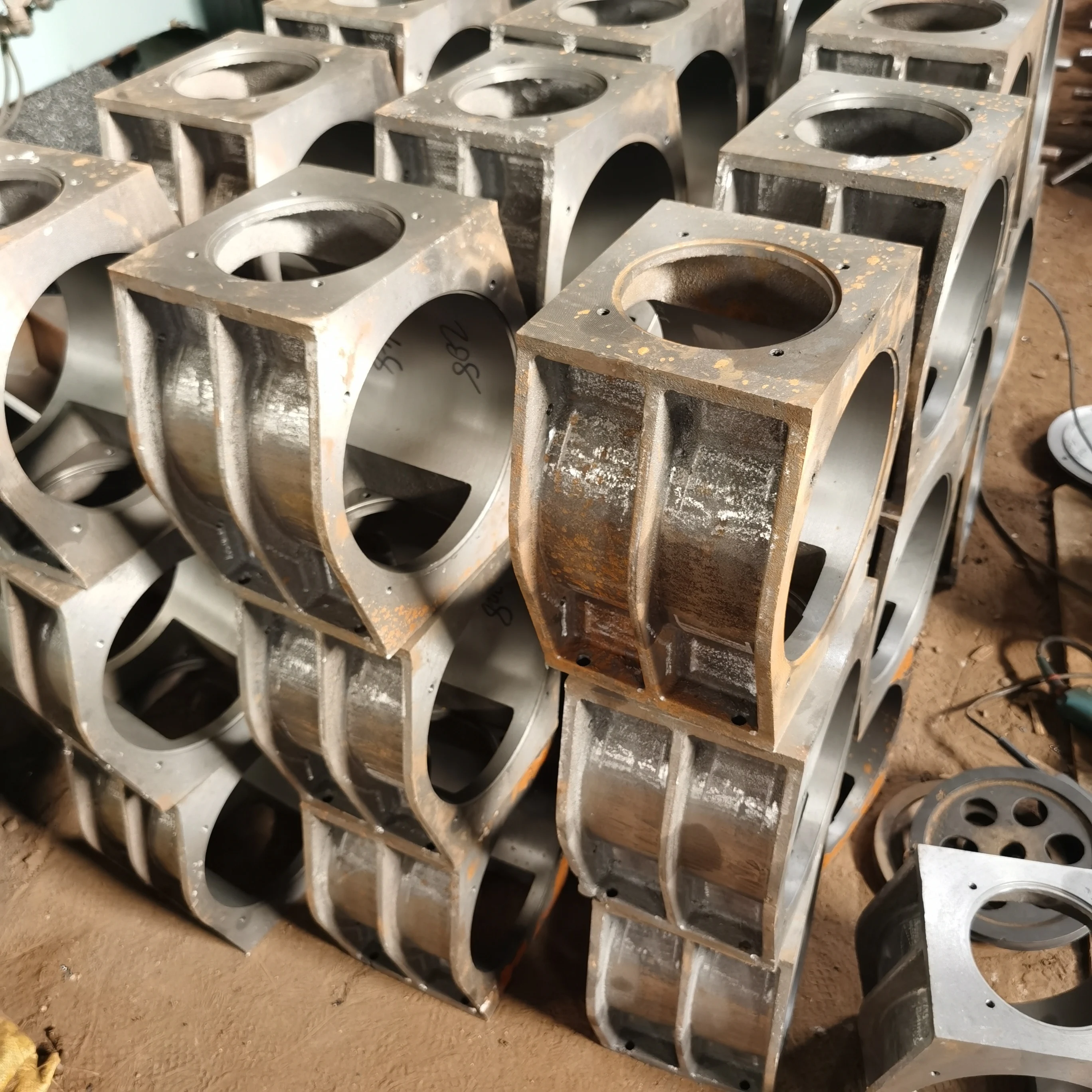

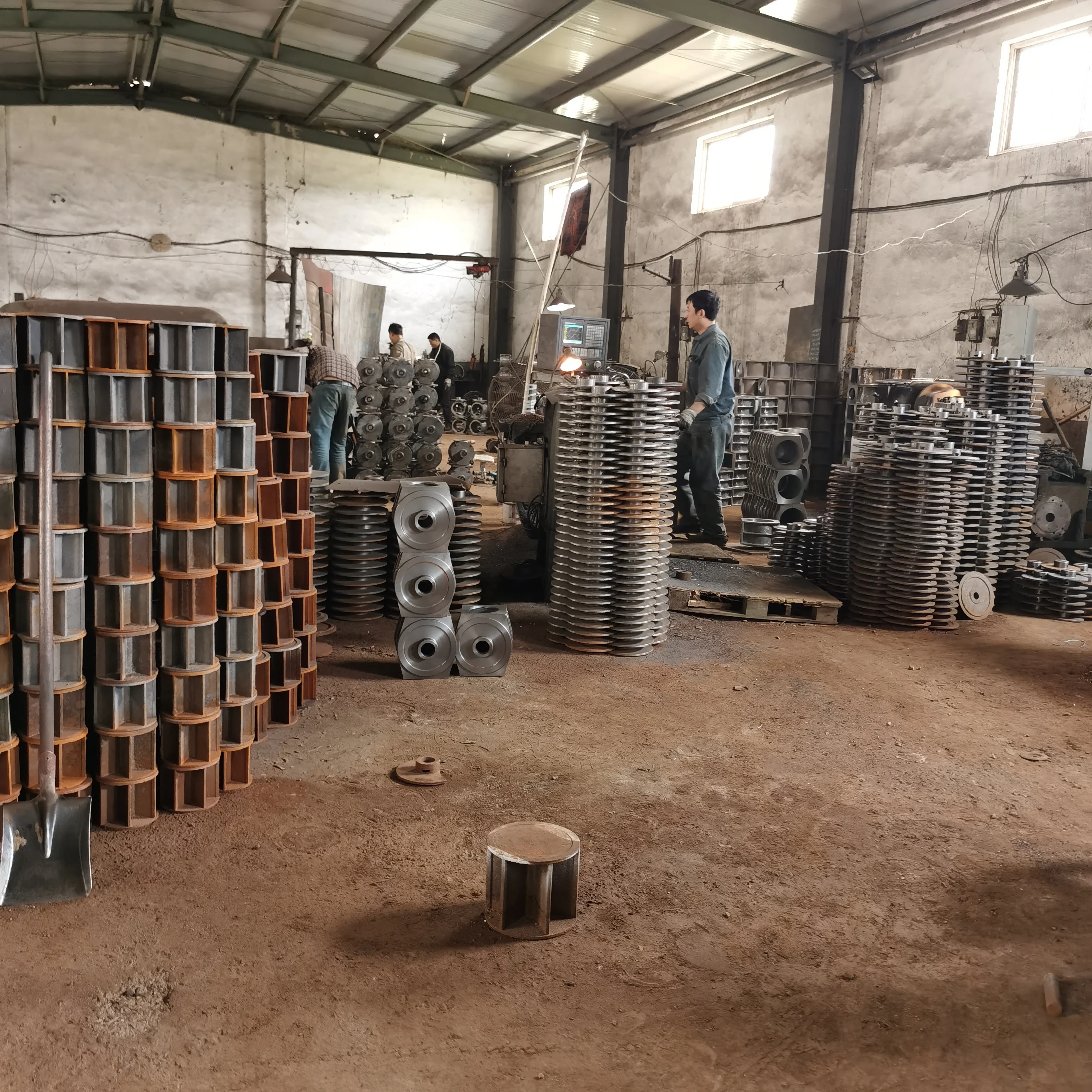

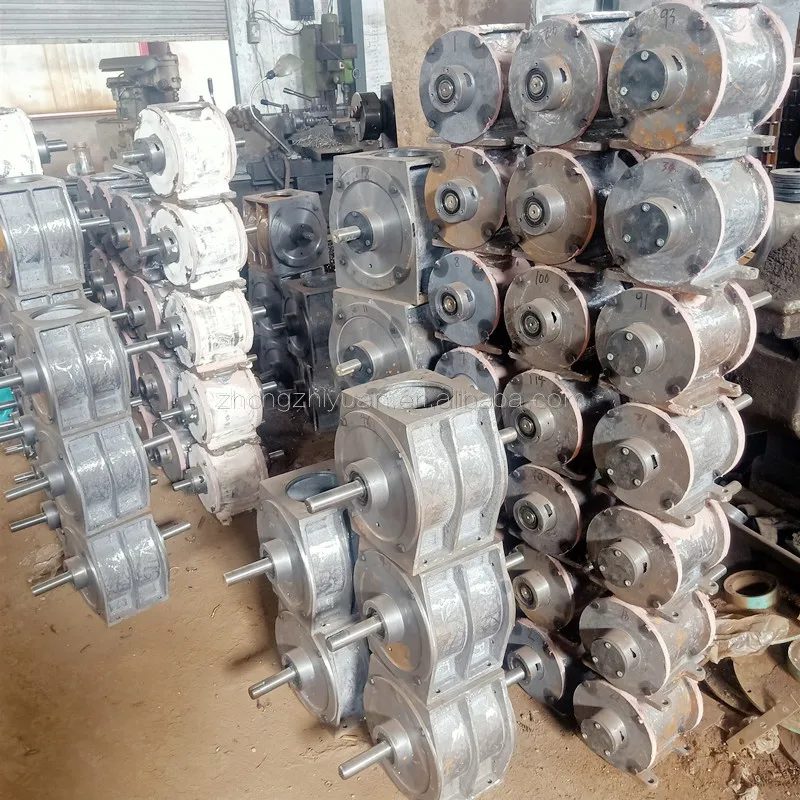

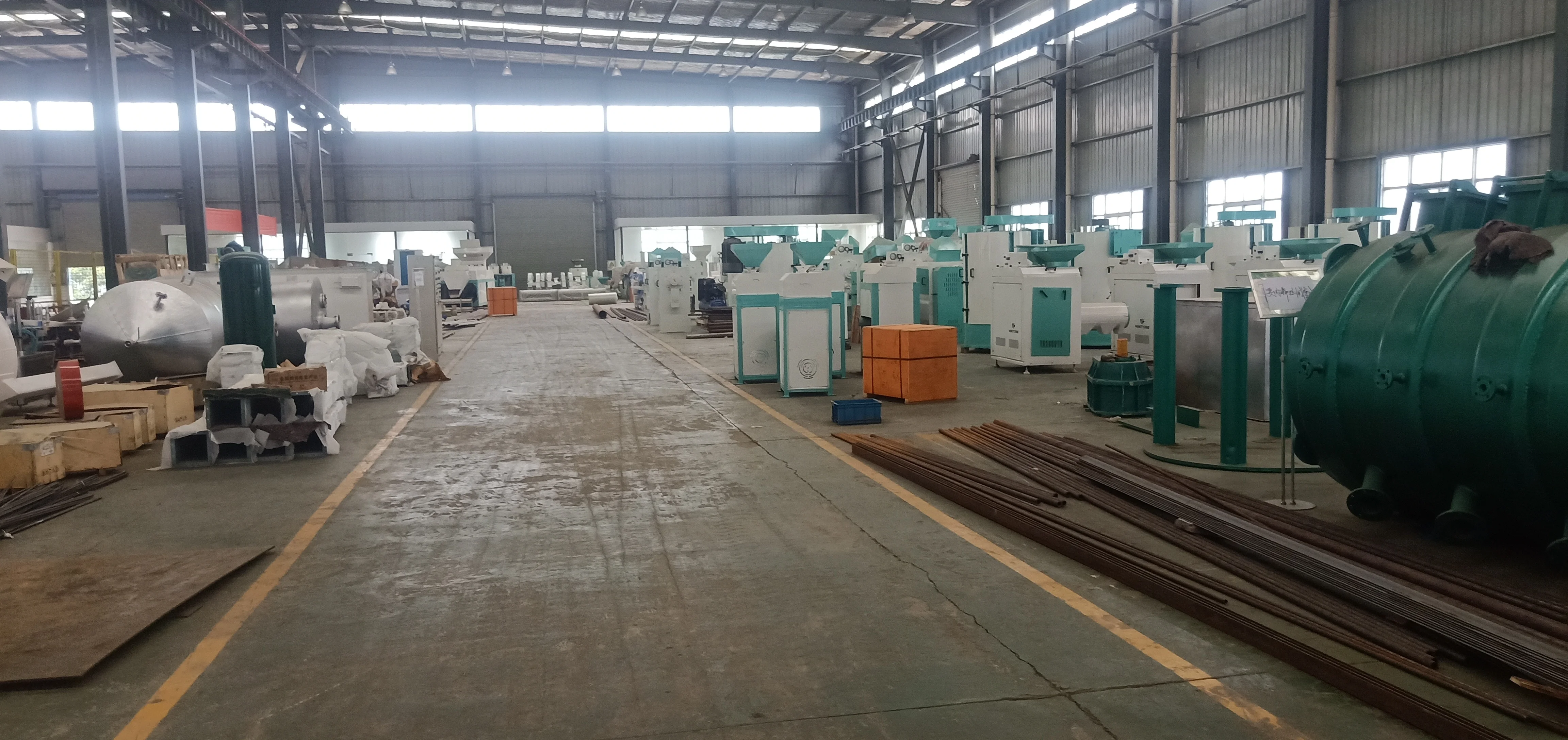

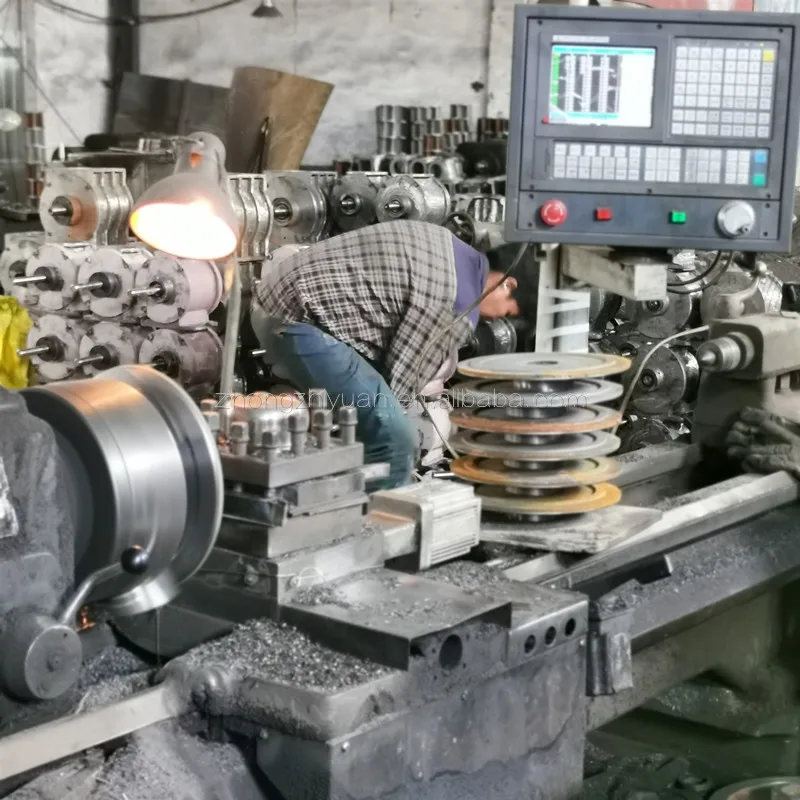

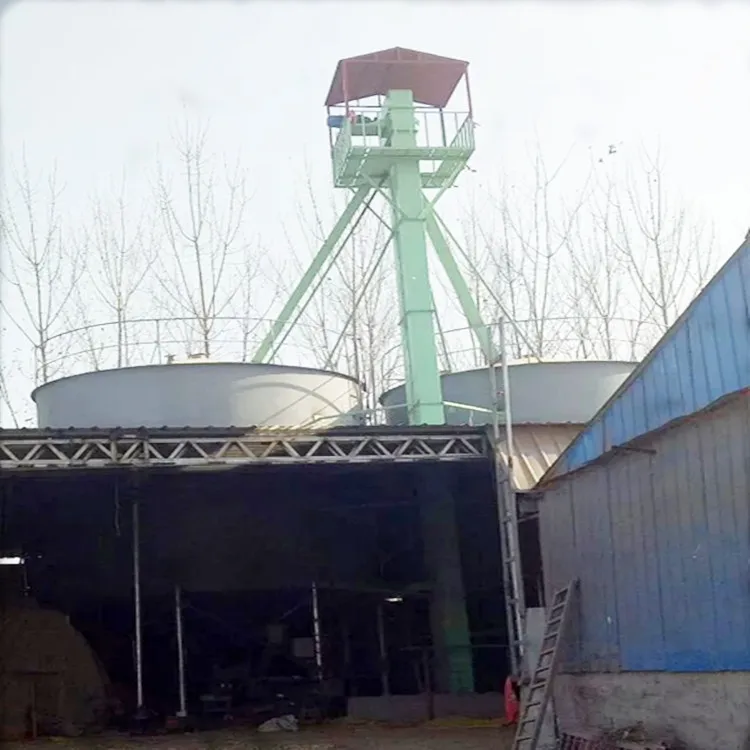

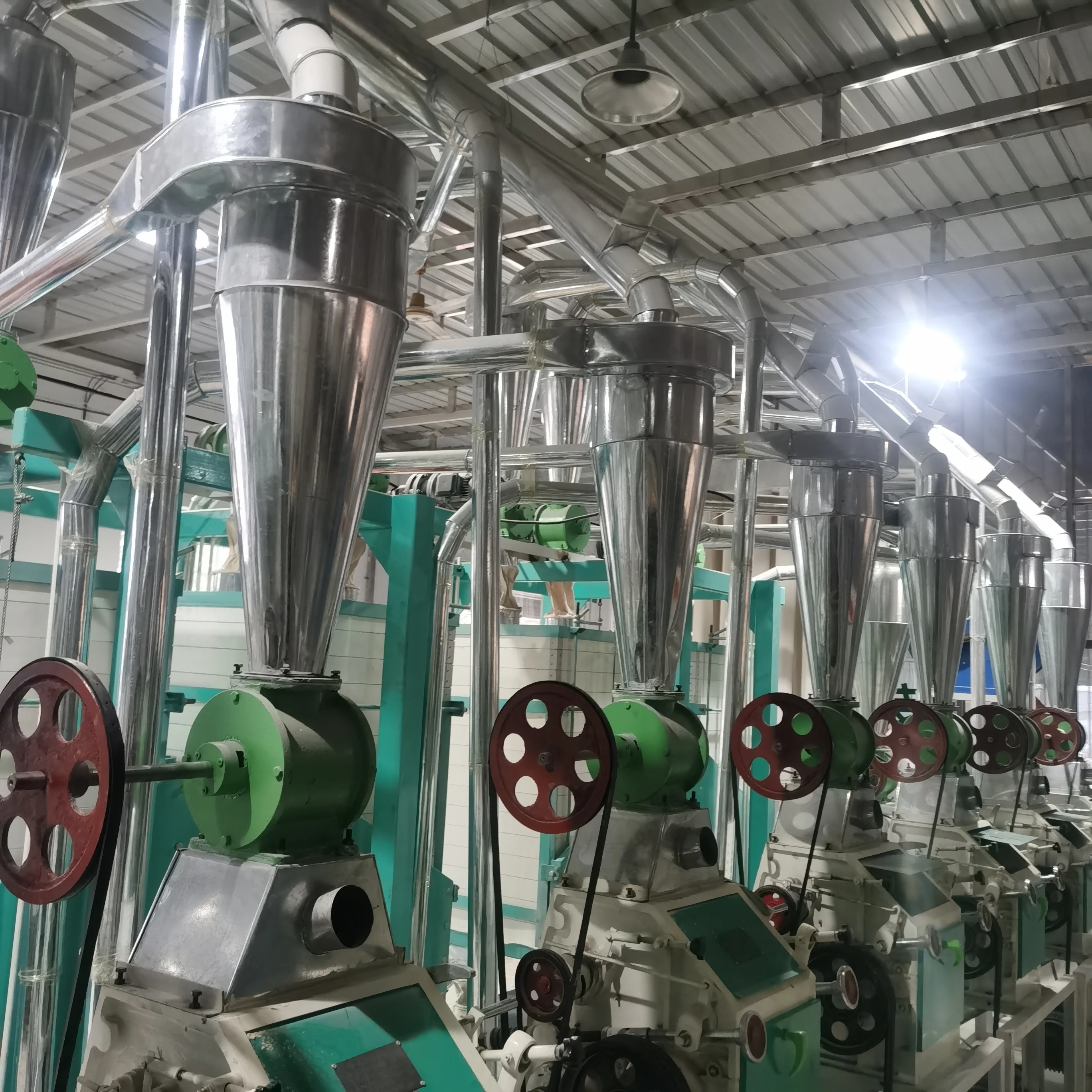

Our working shop
Working Principle:
Material falls onto the blades and rotates with the blades to the outlet under the airlock valve.Material can be discharged
continuously.In pneumatic conveying system,the airlock valve can lock the air and supply material continuously. The low speed of the rotor and tiny space can prevent the airflow from reverse flow,and ensure a stable air pressure and regular discharge of the material.The arilock valve acts as the material discharger in the material collecting system.
Material falls onto the blades and rotates with the blades to the outlet under the airlock valve.Material can be discharged
continuously.In pneumatic conveying system,the airlock valve can lock the air and supply material continuously. The low speed of the rotor and tiny space can prevent the airflow from reverse flow,and ensure a stable air pressure and regular discharge of the material.The arilock valve acts as the material discharger in the material collecting system.
Application:

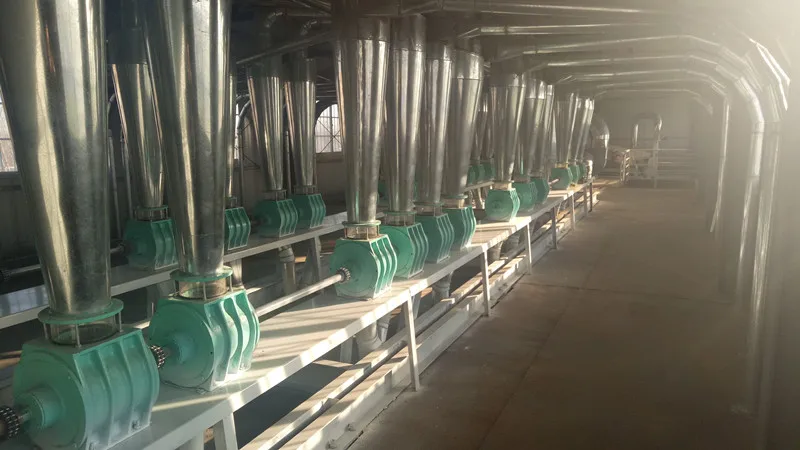

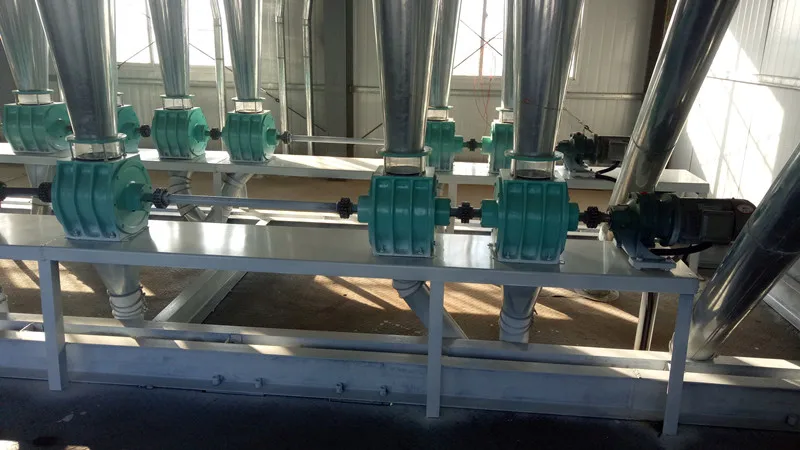

The discharge valve is generally installed at the bottom of the dust ash hopper. In order to ensure the connection of air leakage, it should often keep the height of the dust in the upper portion of the rotary discharge valve (storage). Because of the impeller rotates, the dust impeller turns on the two side often without dust. So it is easy to make the air leakage. The ssh column in order to keep a certain height, and unloaded not empty.
Packing&Shipping
1.Usually we use steel frame and plywood box packing.
2.if the clients order the large qty , we use the container.
After Sales Service
Full Service
♥.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♥.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept
together with you.
♥.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♥.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept
together with you.
♥.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.

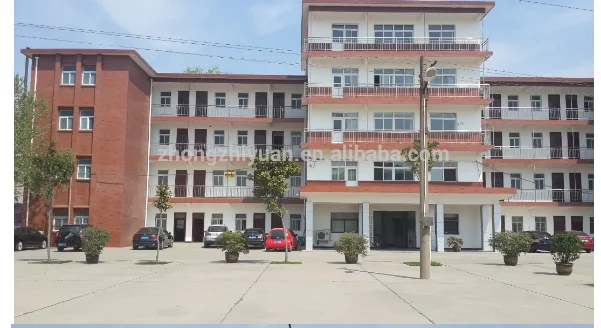

Company Introduction
Our products include TDTG series bucket elevator, LSS series screw conveyor, TQLZ series vibration cleaning screen, TQLM series plane rotary screen, TQSF and MTSC series stone removing machine, TGSS and THSS series scraper conveyor, TDXZ series silo bottom vibration unloader and BLM series pulse cloth bag dust collector and other advanced supporting equipment.Our undertakes a complete set of engineering optimization scheme for 5-1000 tons of flour production line and5-200 tons of coarse grain production line per day, and implements one-stop service from plant planning, equipment modeling,engineering design to installation and commissioning.
Company successively more than hundred food processing enterprise at home and abroad to establish a long-term stable cooperation relations, production technology with the good faith management and excellent product quality by the user's high praise, and exported to Russia, Canada, America, Africa and the Middle East market and other regions, and with "high quality, high technology content, good quality of service", and many other advantages, was rated "excellent supplier" and so on many enterprise users.The company will give full play to its innovative advantages, location advantages and resource advantages, uphold the core values of"credit, responsibility, technology, quality", and constantly create better social and economic benefits, and promote the
continuous realization of new leaps.
Company successively more than hundred food processing enterprise at home and abroad to establish a long-term stable cooperation relations, production technology with the good faith management and excellent product quality by the user's high praise, and exported to Russia, Canada, America, Africa and the Middle East market and other regions, and with "high quality, high technology content, good quality of service", and many other advantages, was rated "excellent supplier" and so on many enterprise users.The company will give full play to its innovative advantages, location advantages and resource advantages, uphold the core values of"credit, responsibility, technology, quality", and constantly create better social and economic benefits, and promote the
continuous realization of new leaps.
Our customer
FAQ
Q:Are you a manufacture or a trade company?
A:We are the factory for 60 years experience with professional technical engineers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according toquantity.
Q: what is MOQ?
A: No MOQ, 1PC ok. Small order welcome.
Q: Do you make customized products?
A: Yes, we accpet it.
Q: Refund term?
A: Support 7days refund if case of quality problem.
Q: About after-sales service?
A: After sales service 24/7.
CONTACT US
sales manager:
Caroline Jia
whatsapp/wechat: 0086 13613952517
Tel:0086 13613952517
Email:jiashuyun@lhwyjx.com
wyls.en.alibaba.com
luohe zhongzhiyuan grain and oil machinery co.,ltd
Add: ZHONGZHIYUAN ROAD,MENGMIAO TOWN,YANCHENG DISTRICT,LUOHE,HENAN
Tel:0086 13613952517
Email:jiashuyun@lhwyjx.com
wyls.en.alibaba.com
luohe zhongzhiyuan grain and oil machinery co.,ltd
Add: ZHONGZHIYUAN ROAD,MENGMIAO TOWN,YANCHENG DISTRICT,LUOHE,HENAN
