Product Description

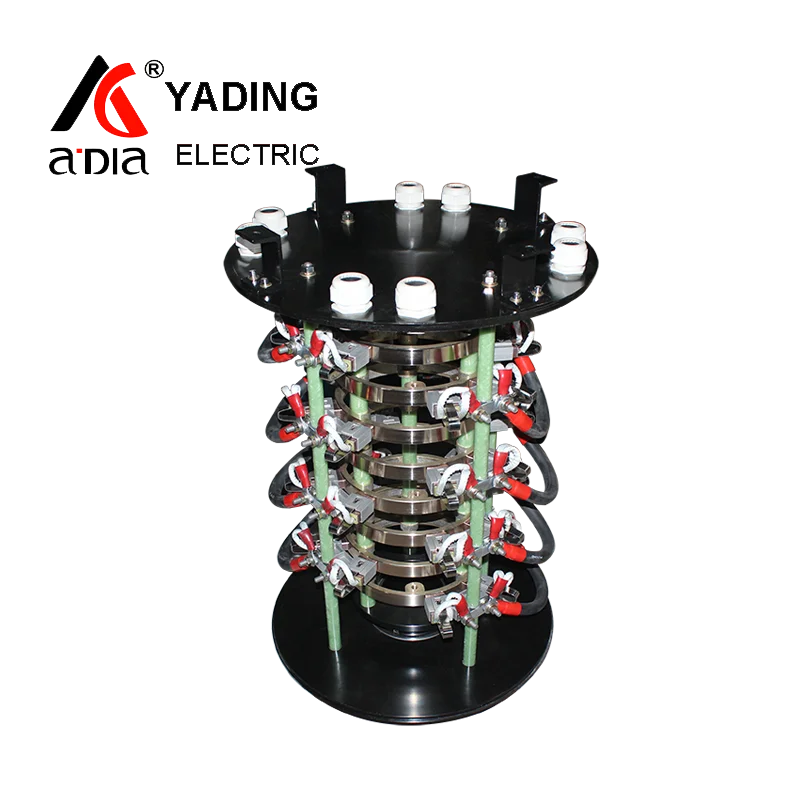

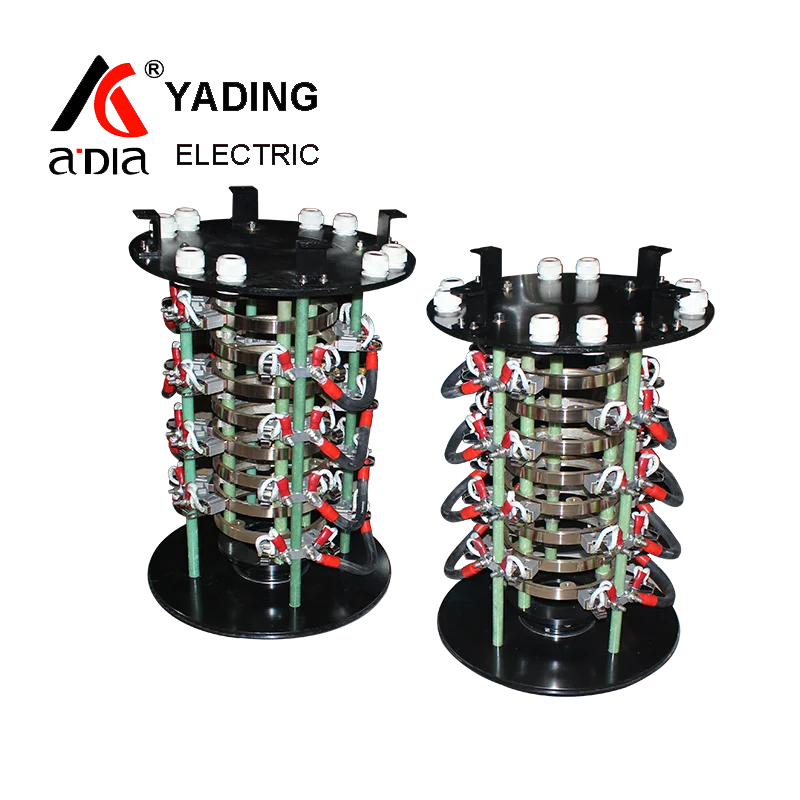

Center Slip Ring Carbon Brush Conductive Slip Ring
The central collector is also called the central collector ring, which is widely used in the slewing mechanism of port machinery, water conservancy machinery, mining, metallurgy and construction machinery to complete the continuous transmission of current signals from fixed equipment to rotating parts.
Custom Scope
Number of rings:2-300 rings
Current：Milliampere to Kiloampere
Inside Diameter:According to customer needs
Protection Level:IP51~IP68
Installation and Maintenance
The central collector should be installed vertically;
Regularly check the wear of the carbon brushes, remove the carbon powder and replace the carbon brushes;
Keep it dry, and proper drying treatment should be done when restarting after deactivation.
Regularly check the wear of the carbon brushes, remove the carbon powder and replace the carbon brushes;
Keep it dry, and proper drying treatment should be done when restarting after deactivation.
Features and Advantages
◆ Convenient installation and maintenance
◆ High concentricity, strong anti-tilt ability
◆ Large current and low temperature rise
◆ Strong signal anti-interference ability, maintenance-free
◆ High-voltage safety, stable insulation performance
◆ High concentricity, strong anti-tilt ability
◆ Large current and low temperature rise
◆ Strong signal anti-interference ability, maintenance-free
◆ High-voltage safety, stable insulation performance
◆ It can be integrated with optical fiber, radio frequency, liquid (gas) rotary joint ◆ Heat dehumidification device, heat sink,
etc. can be attached
◆ Strong environmental adaptability, high and low temperature, vibration, shock, conditions such as salt spray, damp and heat can be met
etc. can be attached
◆ Strong environmental adaptability, high and low temperature, vibration, shock, conditions such as salt spray, damp and heat can be met
Application Field
Product Paramenters
Electrical Data | Value | ||
Rated Voltage | 0~380VAC/240VDC | 0~240VAC/VDC | |
Insulation Resistance | ≥500MΩ/500VDC | ≥300MΩ/300VDC | |
Wire Specification | AWG20#Teflon | AWG30#Teflon | |
Dielectric Strength | 800VAC@50Hz，60s | ||
Mechanical Data | Value | ||
Working Speed | 0~250 rpm | ||
Working Temperature | -20℃~80℃ | ||
Contact Material | 4x12 J164Carbon brush | ||
Shell Material | Plexiglass | ||
Protect Grade | IP51 | ||
Certifications
Companies and Exhibitions
Delivery Logistics Options
FAQ
PAYMENT METHOD
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.
TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.
OEM Available
WARRANTY One year
QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;
DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.
MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.
SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.
PACKAGE Carton Package ,Inner Package: Bubble PVC Bag. Products can also be packaged according to customers' needs.
LOADING PORT Shanghai or Ningbo Port
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.
TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.
OEM Available
WARRANTY One year
QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;
DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.
MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.
SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.
PACKAGE Carton Package ,Inner Package: Bubble PVC Bag. Products can also be packaged according to customers' needs.
LOADING PORT Shanghai or Ningbo Port
Похожие товары
2021 оригинальный пустой картридж с резьбой 510, цветной картридж для вейпа
1,00 $ - 1,15 $
Пустой стеклянный картридж для вейпа, полностью стеклянная керамическая катушка, 510 резьбовой картридж с упаковкой, оптовая продажа
Картриджи для вейпа Cali Plug, картриджи для вейпа, масляный испаритель 1 мл, 0,8 мл, стеклянный резервуар, толстый масляный атомайзер, пустые вапорайзеры для электронной сигареты Met
0,90 $ - 1,05 $
В наличии, картридж GLO на 0,8 мл, 1 мл, картридж GLO Cart с упаковочной коробкой, 510 резьба, керамическая катушка, стеклянный резервуар, атомайзер
Горячая Распродажа, одноразовый картридж, Cbd масляный резервуар для вейпа, пустой картридж с резьбой 510
1,22 $ - 1,60 $
Умный светодиодный диско-шар, декоративная лампа с управлением через приложение, комнатный вечерний ночник, проектор, лампа для дома, свадьбы, USB, Звездные светильники
10,50 $ - 10,83 $

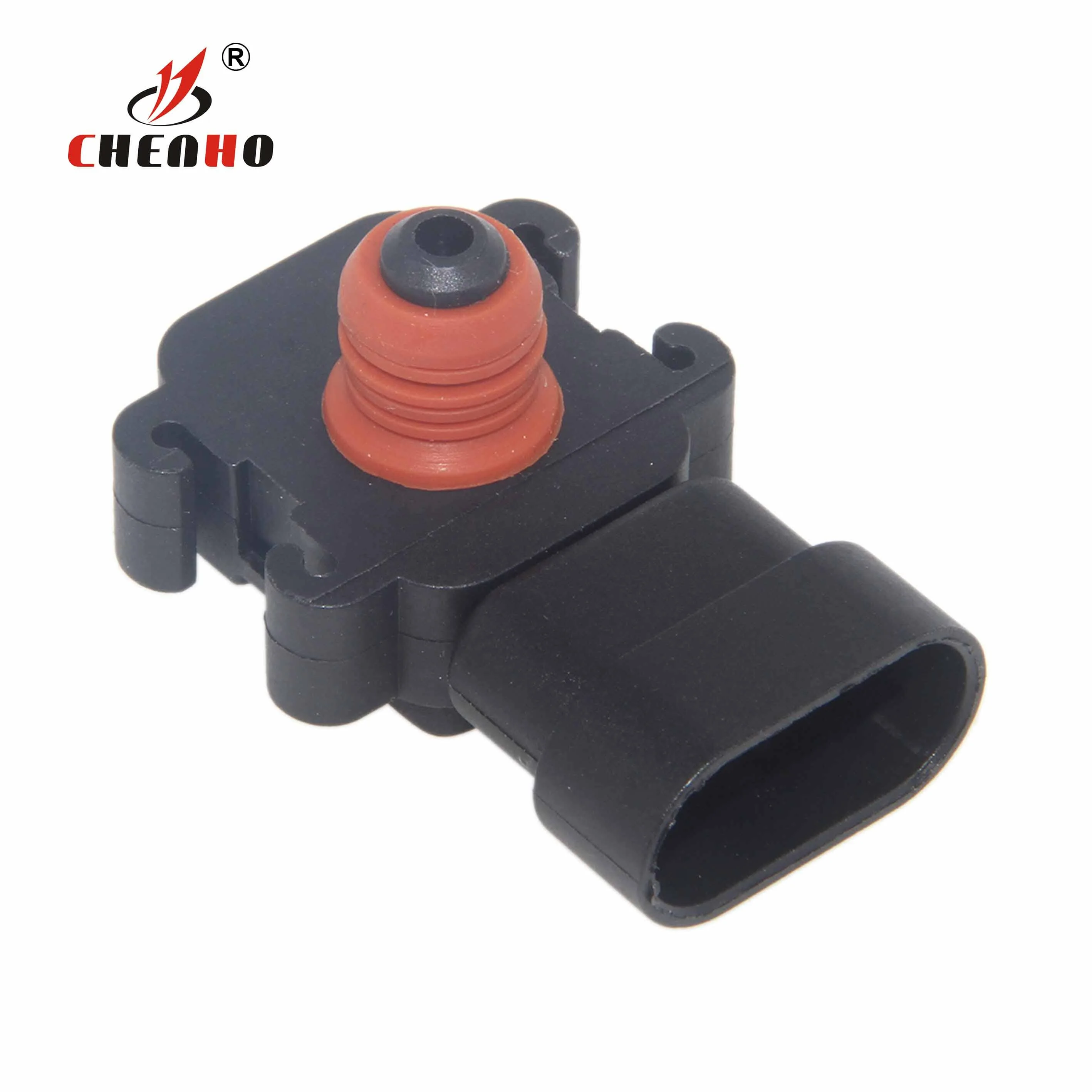

Датчик давления воздуха для Buick 12614973 09359409 16187556
