Product Description
Working principle:
solar thermal hot water heater systems gyesers Solar Absorber for solar collector
Flat panel collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Bontel can supply you different kinds of high quality absorber plate with selective film.

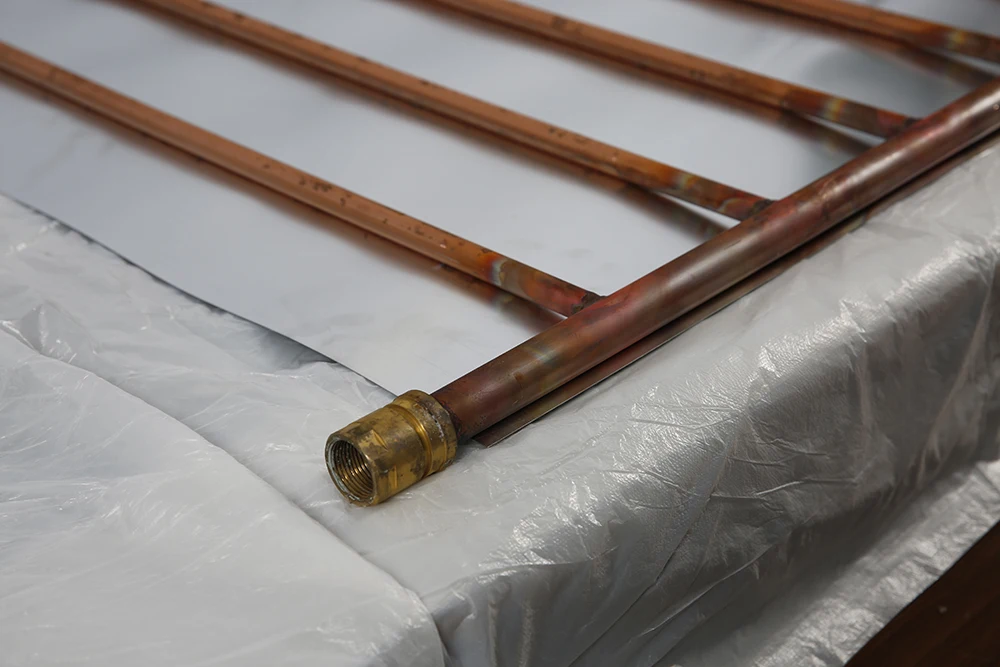

Laser bonding:
Our absorber is welded by laser.The welding spots are uniform and the combination is firm
Specification
solar thermal hot water heater systems gyesers Solar Absorber for solar collector | ||||||
Specification | BTEB-I/0.6-L-2.0 | BTEF-I/0.6-L-2.0 | BTEG-I/0.6-L-2.0 | |||
Film | Black Film | Blue Film | Germany imported Blue Film | |||
Overall size(mm) | 1000x2000x80/95 | 1000x2000x80/95 | 1000x2000x80/95 | |||
Absorption area(m2) | 1.89 | 1.89 | 1.89 | |||
Header pipe | CopperTP2 Φ22x0.6 | CopperTP2 Φ25x0.6 | CopperTP2 Φ28.5x0.6 | |||
Grid pipe | CopperTP2 Φ15x0.5 | CopperTP2 Φ15x0.5 | CopperTP2 Φ15.7x0.5 | |||
Transmittance | ≥92% | ≥92% | ≥92% | |||
Working Pressure | 0.8MP | 0.8MP | 0.8MP | |||
Remark | 1.Frame: Aluminum 6063-T5; 2.Our full automatic production line can produce different specification products according to your own requirements; 3. We can supply Self-cleaning Glass for all collectors. | |||||
Product Details
Advantages:
Sun power panel Collector solar geyser high pressure Solar Absorber
1. The high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by Bontel;
2. With Bonding heat transferring technology and laser welding technology;
3. High quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4. Circulation fluid in closed copper pipes, no glass tubes. So collectors without corrosion and circulation fluid leaking;
5. The solid built-in absorber plate can absorb all solar radiation improve working efficiency and integrated well with buildings.
The appearance of solar collector without welding line is more beautiful and integrated well with building’s roof.
There are light pipes, inner wires, and outer wires at the connection, which can be customized
Level 1 leak detection
Secondary leak detection
Heat absorption film, blue film & black film, sufficient raw materials

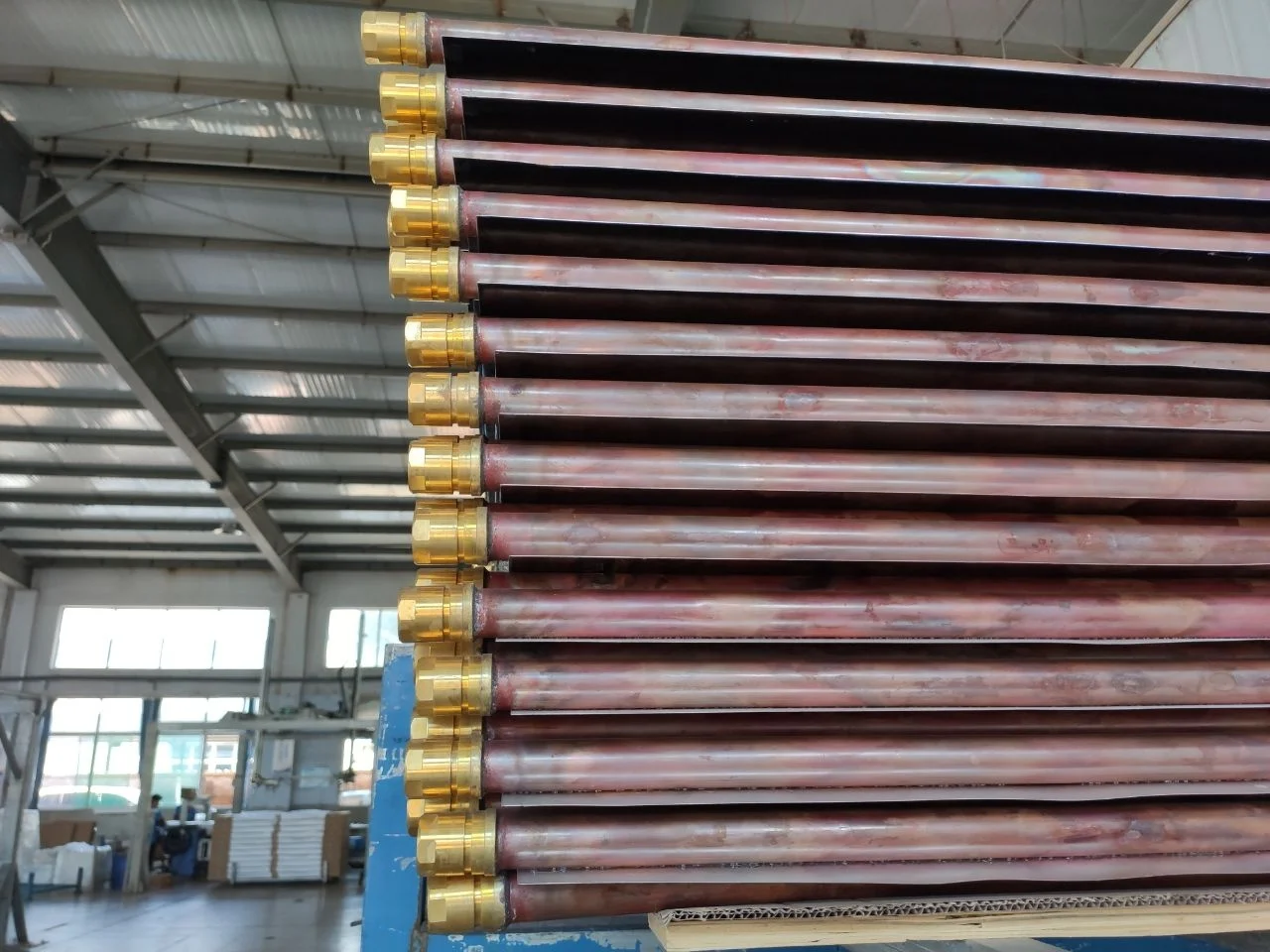

Copper tube: the size of a variety of customized flat solar collectors

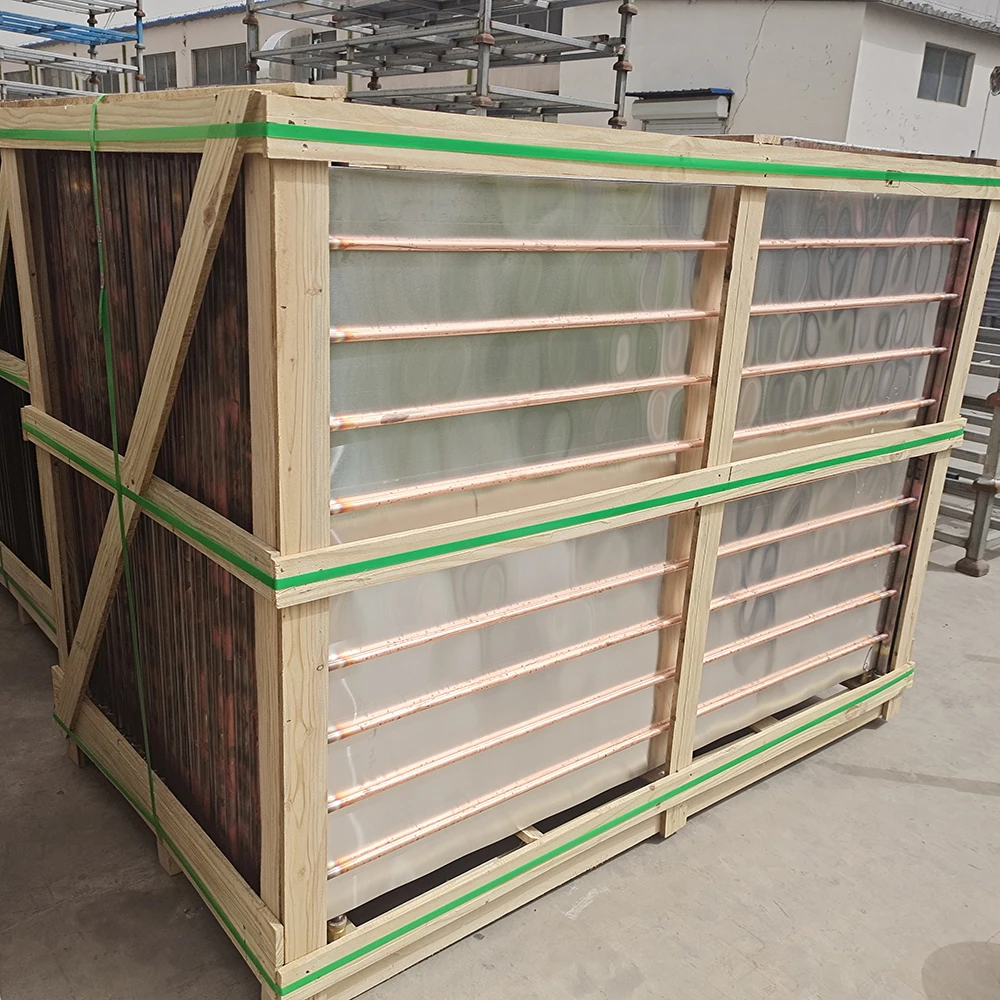

Packing&Shipping
Use Case
Multiple flat plate collectors form a heat collection array.Provide plenty of hot water for hotels, hospitals and schools.
The flat plate collector is matched with a water tank and bracket to form a solar water heater for use.
It consists of thousands of flat plate collectors.To provide winter heating for the whole city
Professional Production Line
Company Profile
Shandong Feitian New Energy Co., Ltd
Shandong Feitian New Energy Co., Ltd., located in Dezhou, Shandong, is an innovative enterprise focusing on the field of solar thermal application. With a number of independent intellectual property rights of the core technology, has been committed to the development, manufacturing and sales of solar thermal products and equipment.
In 2002, Feitian was established. Relying on the strong technical background, it entered the solar thermal field. In the same year, it successfully developed the solar engineering integrated tank and produced a special production line for the industry, and the products were highly recognized by the industry leaders.In the field of solar thermal energy, Feitian New Energy was established in April 2018 with positive innovation, tenacious enthusiasm and breakthrough development. Feitian provides customers high quality products and services for its own responsibility, over the years to forge their own management team, establish a scientific and perfect management system. In 2010, the company passed the ISO9000 quality management system certification, and all kinds of products passed the inspection of national quality testing institutions. Good corporate reputation, excellent product quality and excellent service to win customers widely recognized. Feitian never stops exploring the pace, the old and new kinetic energy conversion, new power, new engine, takeoff light heat Chinese dream!
FAQ
1. Is your company a trading company or factory?
We have own factory. Welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order:10days. Full container order:14days.
LCL order/Sample order:10days. Full container order:14days.
3. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
4. What is your MOQ?
1 set.
5. What is your Packing?
LCL order/Sample order in woden case. Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
7. What is your Monthly Production Capacity?
30000PCS.
Похожие товары
Малая емкость 12,8 В 6 Ач lto призматический аккумулятор для игрушек/электроинструментов
9,20 $ - 10,00 $
hytech siemens 15KW converter Inverter frequency converter vfd Sinamics G120C PN, 6SL3210-1KE23-2UF1 vfd
639,90 $ - 699,90 $
Сменный литий-ионный аккумулятор 1300 мАч 3,7 в для pos-аппарата Pax IS257 D200T
Новинка, алюминиевые литиевые батареи Lto 200Ah глубокого цикла, Lfp, призматическая батарея LiFePO4, батарея 3,2 В 100Ah
7,00 $ - 10,00 $
12 дюймов диаметр ПВХ трубы 9 70 мм 280 размер пластиковых водопроводных труб заводской
1,33 $ - 1,43 $

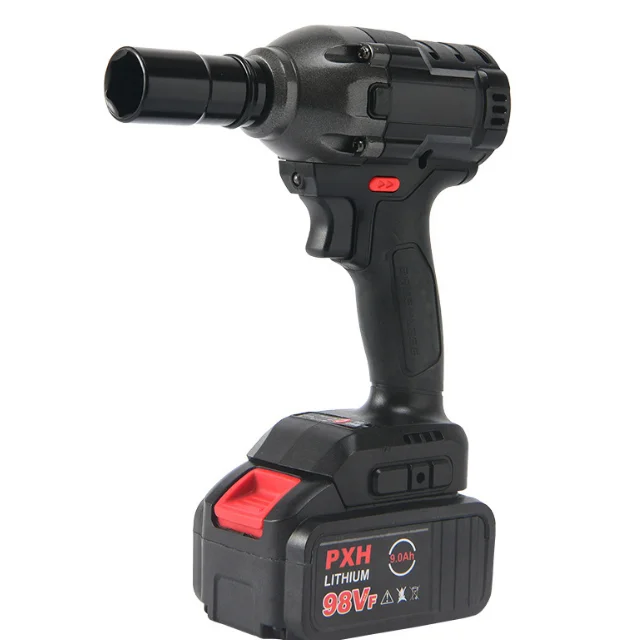

Электрический ударный гайковерт с бесконечной скоростью, бесщеточный ударный электрический гайковерт 108vf, 16800 мАч, перезаряжаемая литиевая батарея
