Три в одном ротационный тип малая емкость машина для наполнения и закупорки газированных напитков производственная линия CSD
- Категория: >>>
- Поставщик: Zhangjiagang Paima Import And Export Trading Co. Ltd.
Сохранить в закладки 1600334522853:
Описание и отзывы
Характеристики
Product Overview
Full automatic Soda drink filling machines
Introductions of soda drink filling machines. This type of machine is suitable for filling and sealing aluminum canned beer and carbonated soft drinks. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling repose fully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system.
It is the preferred equipment for the medium beer and beverage plant. And we are able to provide the complete pop cans / tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system ,which is widely used for the beverage, beer, juice industry and so on.
PRODUCT SPECIFICATIONS
Soda drink / Sparkling beverage / Carbonated drink filling machines
Bottle Material: PET Bottle
Cap: PE
Bottle Volume: 100-2500ml
Production Speed: 1000-36000bph
Suitable Bottle:
Height 170-320
Diameter 20-100
Main Features of soft drink filling machine
1. It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
2. There is no need to adjust the height of equipment through the neck holding tech for bottle transportation. And what is only to change some spare parts.

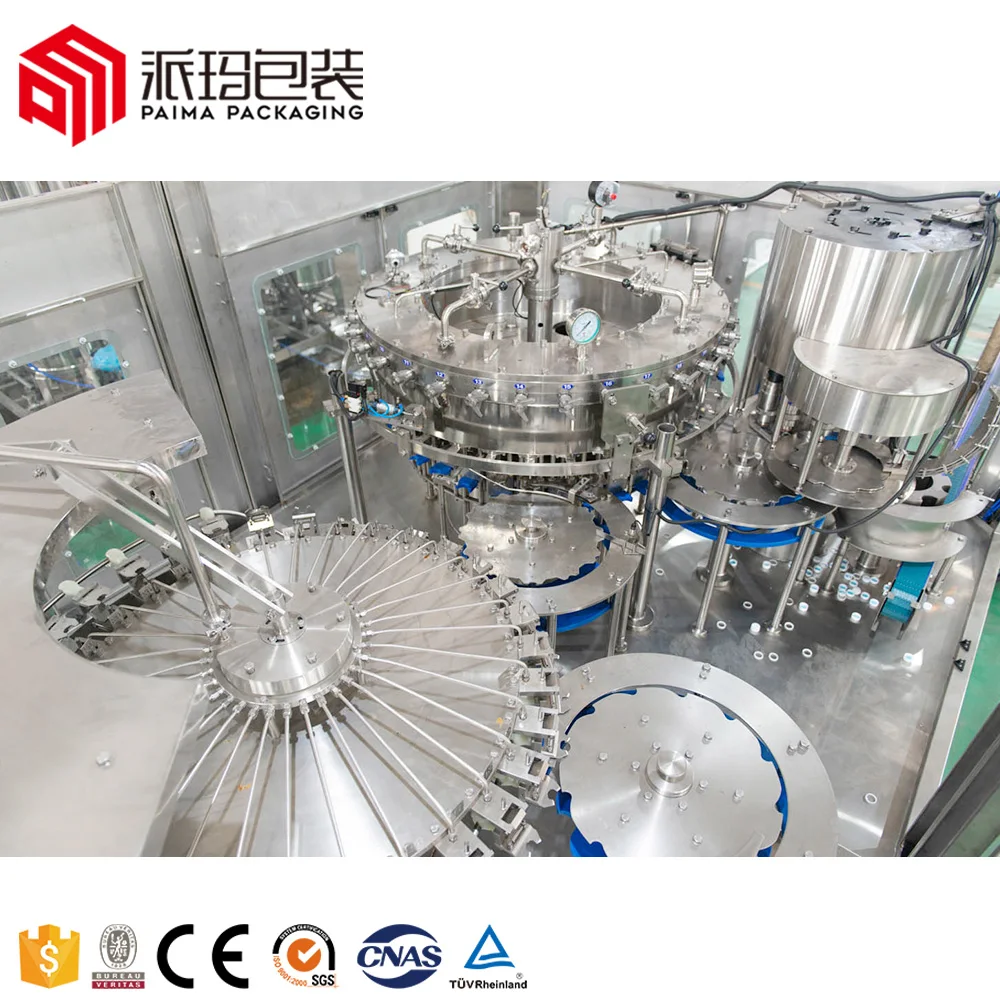

3. By 3-in-1 monoblock, the bottle goes through rinsing, filling, and capping with little abrasion, and the transferring is
stable, bottle changing is easier.
4. High-speed filling line is clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
5. Especially designed stainless steel bottle clamp does not contact the thread parts of the bottleneck, avoiding the second contamination.
6. High speed and large flow filling valve assure the high filling speed and exact fluid level.
7. Parts in contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8. The bottle-out starwheel is of screw down shape. When bottle size is changed, there is no need to adjust the transferring chain's height.
Project | Carbonated drink bottling machine | Data | |||||||||||
Model | DCGF 8-8-3 | DCGF 14-12-5 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-16 | ||||||
Capacity | 3000 | 5000 | 8000 | 12000 | 15000 | 18000 | 20000 | ||||||
Bottle shapes | PET circular or square bottles | 125Ton | |||||||||||
Bottle height (mm) | 160-320 | 96kN | |||||||||||
Bottle diameter(mm) | Dia50-115mm | ||||||||||||
Compressor air pressure(Mpa) | 0.3-0.7Mpa | 60kN | |||||||||||
Washing meidum | Aseptic water | 6750ml | |||||||||||
Rinsing pressure(Mpa) | >0.06Mpa <0.2Mpa | 500N.m | |||||||||||
Application | Soft / Sparking / Carbonated drink water bottling production line | ||||||||||||
Total power (KW) | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 | 8.6 | ||||||
Overall dimensions (L*W*H) | 2300*1900*2300 | 2500*1900*2500 | 2800*2150*2500 | 3100*2500*2500 | 3800*2800*2500 | 4500*3300*2600 | 4850*3800*2750 | ||||||
Weight(kg) | 2500 | 3200 | 4000 | 4500 | 6000 | 8000 | 9500 | ||||||
Devices | Brand | Origins |
PLC | SIEMENS | Germany |
Inverter | ||
Touch Screen | ||
Switch | ||
Contactor | ||
Relayer | ||
Solenoid Valve | AIRTAC | Taiwan, China |
Drive motor | FEITUO | Swiss |
Reducer | CNP | China |
Water Pump | SKF | China |
Main Bearing | AUTONICS | Sweden |
Sensor | AIRTAC | Korea |
Air component | ABB | Taiwan, China |
FEATURES AT A GLANCE
Working Principles of soft drink filling machines

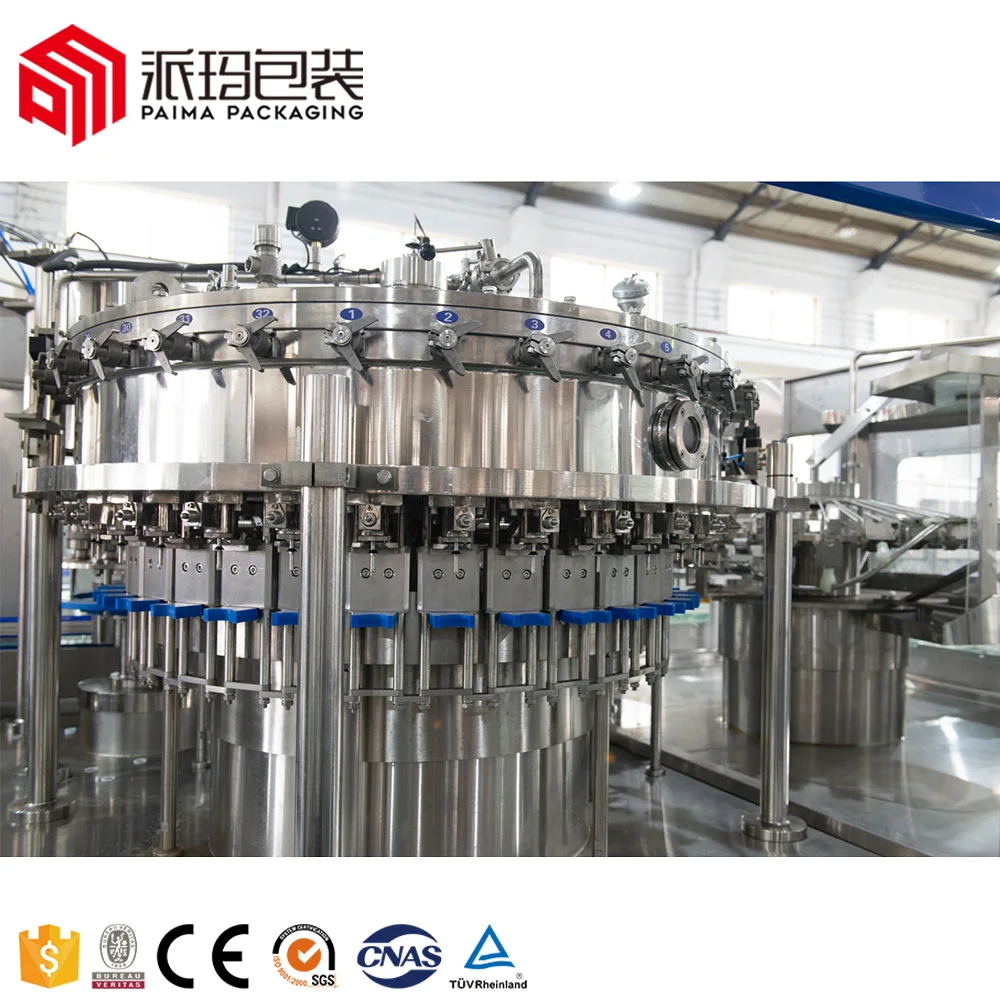

The carbonated beverage filling machine is self-designed and manufactured according to the principle of equal pressure filling, which can fill liquid into the bottle washing machine sent by the bottle washing machine. The filling valve adopts an equal pressure mechanical valve, the filling is fast and sensitive, and the filling level has high accuracy. The centering guide adopts guide rod centering and unique bottle mouth clamping technology, which can ensure the
accurate sealing between the bottle mouth and the filling valve and reduce the leakage of materials from the bottle mouth. The main transmission adopts gear transmission, that is, open combined transmission, which has high efficiency, low noise, long service life, convenient maintenance and sufficient lubrication. The frequency converter is used to control the speed of the main motor of the machine, and the machine adopts stepless frequency conversion control. The bottle guide system has a simple structure and can be quickly and easily replaced according to the bottle type.
The whole machine adopts a bottleneck structure for transportation. The whole machine is automatically controlled by PLC, and online display of bottle jams, missing bottle caps and other faults. The material in the filling tank is automatically controlled, and the liquid level sensor detects the height of the liquid level to ensure a stable liquid level and reliable filling.
PRODUCT CONFIGURATION

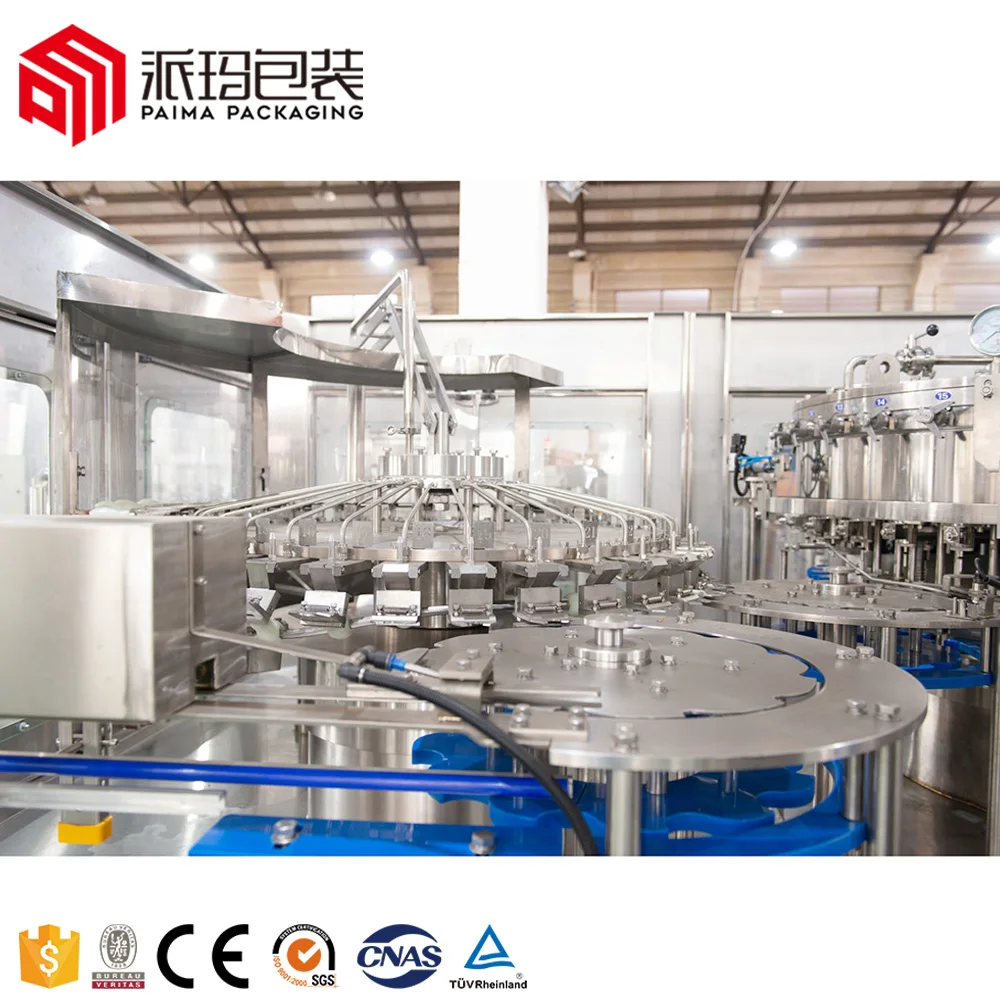

WASHING PARTS
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

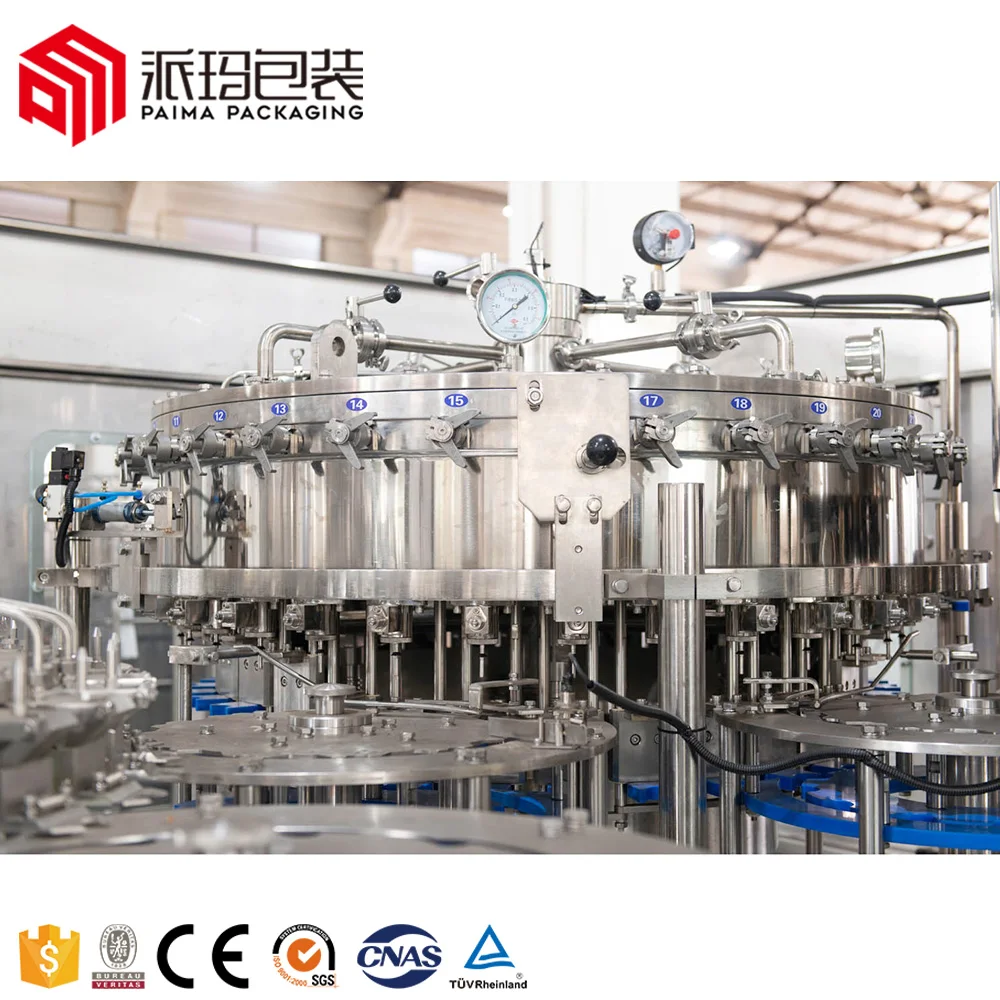

FILLING PARTS
1.Filling method for equal pressure filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

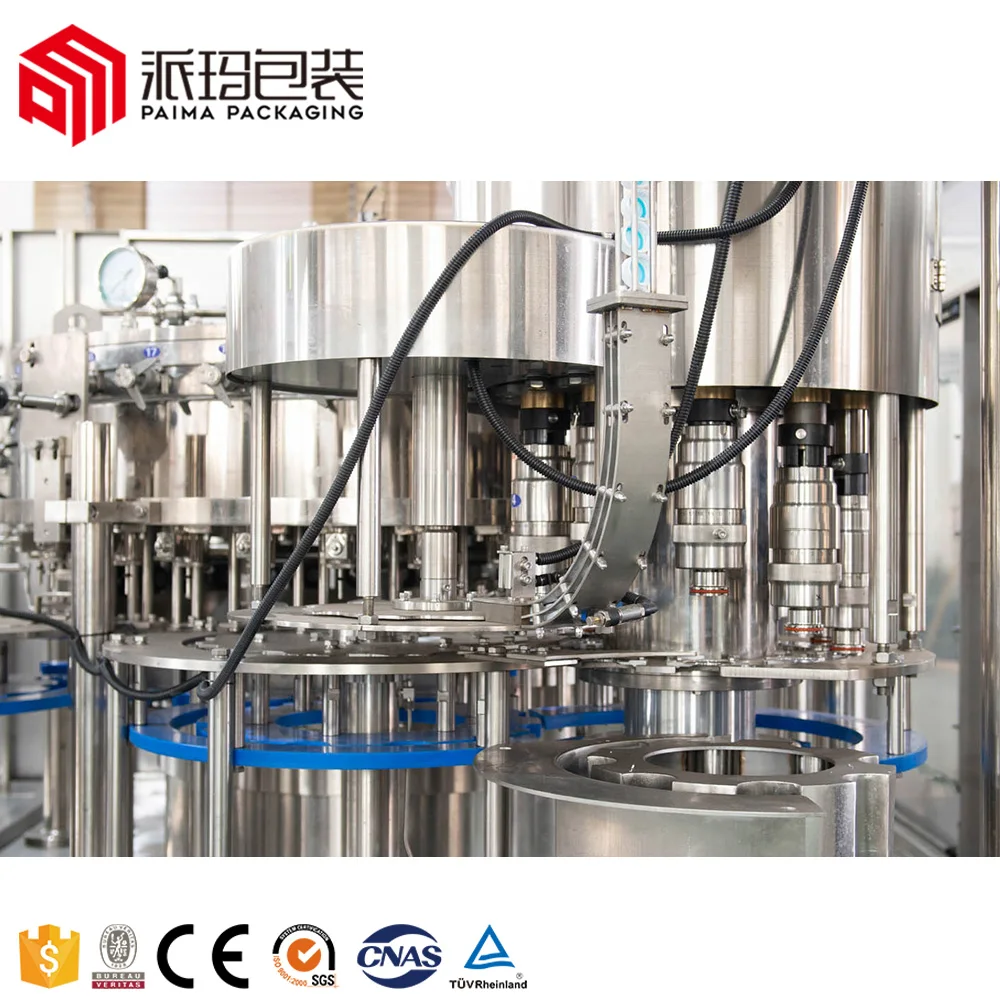

CAPPING PARTS
1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of
photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
Related Products
Complete carbonated drinks production line
1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Sugar melting tank & syrup filter
5. Flavour blending tank & syrup cooler
6. Co2 drink mixer & Co2 filter
7. Water chiller
8. Auto bottle washing, filling and capping line
9. Labeling machine
10. Date of manufacture printer
11. Final products film packaging machine and so on.
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage.
This Shrink Sleeve Labeling Machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated. It adopts combination designing of modularization, and makes
the machine reasonable.
PE film Shrink wrapping machine is suitable for wrapping of such products as mineral water, bottles beer, drinks etc without bottom-tyay (or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing process adopt the Germany aduanced technics.
Successful Project
Water Project in Ethiopia
Water Project in Yemen
Water Project in Georgia
