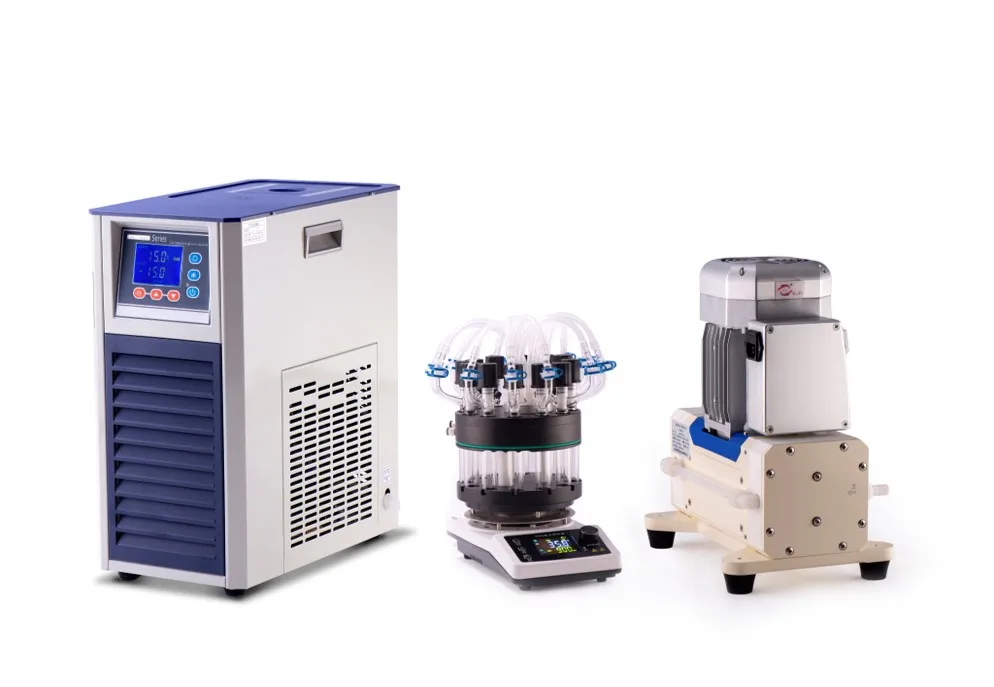

Лабораторные химические стеклянные параллельные реакционные станции синтезатор реакторные системы 1 мл 25 мл
- Категория: >>>
- Поставщик: Liming Research & Design Institute Of Chemical Industry Co. Ltd.
Сохранить в закладки 1600335003917:
Описание и отзывы
Характеристики
Product Description
PRS series parallel synthesis
Model: PRS-12
Characteristics:
The PRS-12 parallel synthetic reaction station converts a standard Heat-Up Magnetic Agitator system into a 12-bit Parallel synthesis with condensation, which is with the ability to proceed multiple parallel synthesis experiments, increase the experimental efficiency, reduce the ratio of operators, and occupy a very small space. Most importantly, it realized that the experimenter can obtain the required multiple synthetic experimental results at a minimal cost.
Using the heating plate, the heating and stirring reactions in 12 test tubes can be carried out at the same time.
The single glass reaction tube various with a working volume of 1 to 25 ml per tube.
The single rotating magnetic field of the disk hot plate agitator is used to stir all positions evenly and effectively. The distance from each stirrer to the magnetic point in the center of the magnetic stirrer is the same, so that each reaction sample is fully stirred at the same stirring speed. The mixing speed is adjustable from 20 to 1500 rpm, and a variety of mixers can be selected.
The heated base is directly heated by the heating plate of the mixer to provide the working temperature range: ambient temperature to 220 ℃, and the temperature accuracy is ± 0.5 ℃.
The reaction vessel can withstand 3 atmospheric pressures.

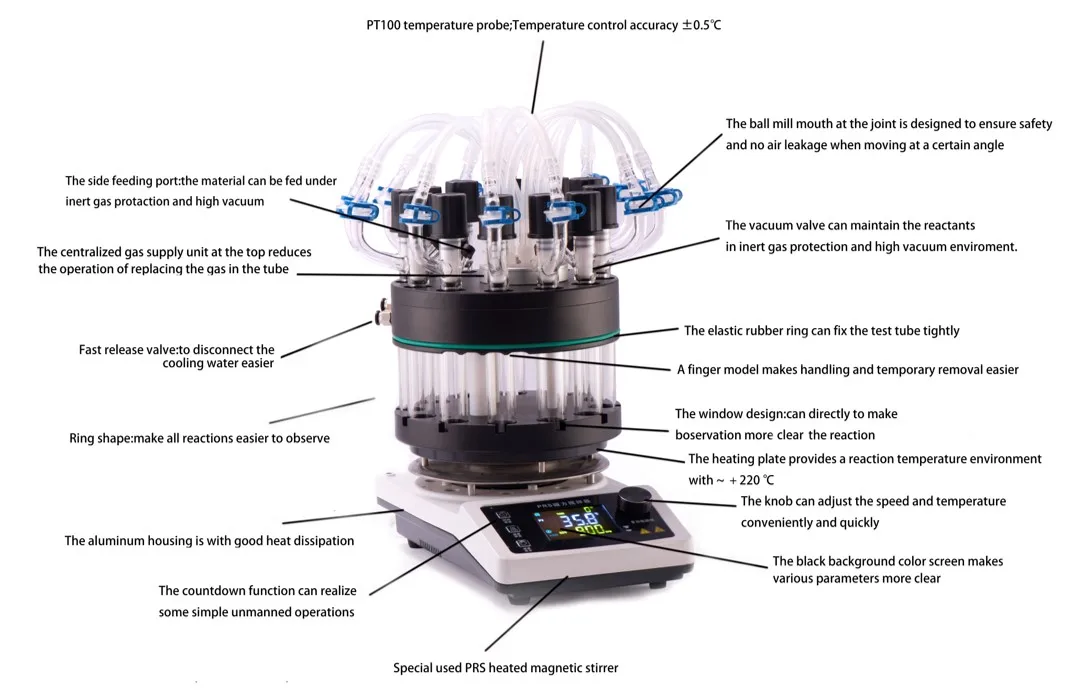

Advantage:
* Condensation mode : the water aluminum backflow head replaces the traditional glass condenser to provides efficient backflow.
* Quick fitting makes replacing the inlet / outlet hose simple.
* The bottom finger mold of the condensing module allows you to easily remove all the test tubes together with the condensation
module from the heated bottom, so as to put the test tubes in the cooling container when needed easier.

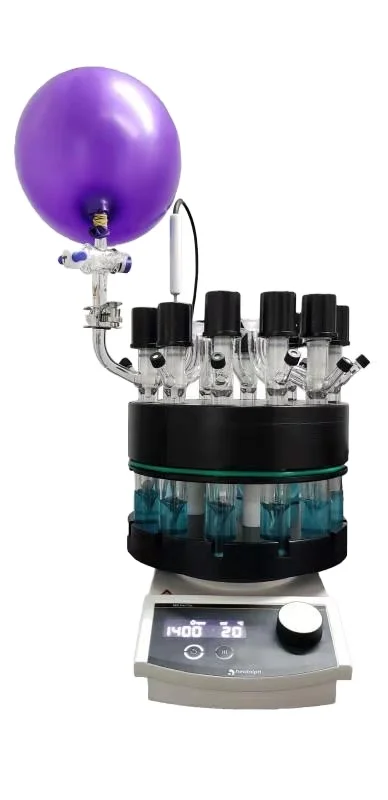

* Innovative methods of replacing air with inert gas allow experiments to react under vacuum as well as inert gas protection,
and greatly reduce the cost of use.
* Round design, rotating at will, with a full window slot at the heated bottom, making all the reaction tubes‘ reagents and solvents clearly visible which no need to move or tilt equipment, and making the feeding easier.
* Reliable integrated maintenance-free operation design with no electrical or moving parts.
* Simple operation, easy to set up, and short operator training time.
* The design is safe and reliable, allowing all removal of reaction tubes simultaneously from magnetic stirring without cutting off the supply of inert gas or water.
* The fully inert fluoropolymer coating is easy for cleaning and provides high chemical resistance to the exposed reactor surface.
* PRS magnetic stirring can be set with the countdown.
* The cooling module can be installed, the centralized supply gas unit at the top and mechanical mixing module to meet different experimental requirements.
The PRS-12 parallel synthetic reaction station converts a standard Heat-Up Magnetic Agitator system into a 12-bit Parallel synthesis with condensation, which is with the ability to proceed multiple parallel synthesis experiments, increase the experimental efficiency, reduce the ratio of operators, and occupy a very small space. Most importantly, it realized that the experimenter can obtain the required multiple synthetic experimental results at a minimal cost.
Using the heating plate, the heating and stirring reactions in 12 test tubes can be carried out at the same time.
The single glass reaction tube various with a working volume of 1 to 25 ml per tube.
The single rotating magnetic field of the disk hot plate agitator is used to stir all positions evenly and effectively. The distance from each stirrer to the magnetic point in the center of the magnetic stirrer is the same, so that each reaction sample is fully stirred at the same stirring speed. The mixing speed is adjustable from 20 to 1500 rpm, and a variety of mixers can be selected.
The heated base is directly heated by the heating plate of the mixer to provide the working temperature range: ambient temperature to 220 ℃, and the temperature accuracy is ± 0.5 ℃.
The reaction vessel can withstand 3 atmospheric pressures.
Advantage:
* Condensation mode : the water aluminum backflow head replaces the traditional glass condenser to provides efficient backflow.
* Quick fitting makes replacing the inlet / outlet hose simple.
* The bottom finger mold of the condensing module allows you to easily remove all the test tubes together with the condensation
module from the heated bottom, so as to put the test tubes in the cooling container when needed easier.
* Innovative methods of replacing air with inert gas allow experiments to react under vacuum as well as inert gas protection,
and greatly reduce the cost of use.
* Round design, rotating at will, with a full window slot at the heated bottom, making all the reaction tubes‘ reagents and solvents clearly visible which no need to move or tilt equipment, and making the feeding easier.
* Reliable integrated maintenance-free operation design with no electrical or moving parts.
* Simple operation, easy to set up, and short operator training time.
* The design is safe and reliable, allowing all removal of reaction tubes simultaneously from magnetic stirring without cutting off the supply of inert gas or water.
* The fully inert fluoropolymer coating is easy for cleaning and provides high chemical resistance to the exposed reactor surface.
* PRS magnetic stirring can be set with the countdown.
* The cooling module can be installed, the centralized supply gas unit at the top and mechanical mixing module to meet different experimental requirements.
Speed range of 0-1500rpm, stirring amount of 1ml-25ml;
Maximum 12 samples to support simultaneous stirring and heating;
The sample can be protected by an external inert gas source;
External vacuum equipment can be added;
PTFE coating has good thermal insulation effect, and the surface treated heating plate is resistant to high temperature and
corrosion;
The independent electronic circuit with safety automatically stops heating when the safety temperature is exceeded;
The DC brushless motor is maintenance-free, with a stable and accurate and controllable rotational speed;
Strong magnetic magnets, effectively prevent the mixer from the escape;
Metal housing facilitates internal original heat dissipation, and protection grade IP42, ensures service life and service safety.
The parallel synthetic reaction station produced by Kallper is a modular system with the ability to perform parallel synthesis
reactions with complete inert gas for common chemical parallel reactions.
Maximum 12 samples to support simultaneous stirring and heating;
The sample can be protected by an external inert gas source;
External vacuum equipment can be added;
PTFE coating has good thermal insulation effect, and the surface treated heating plate is resistant to high temperature and
corrosion;
The independent electronic circuit with safety automatically stops heating when the safety temperature is exceeded;
The DC brushless motor is maintenance-free, with a stable and accurate and controllable rotational speed;
Strong magnetic magnets, effectively prevent the mixer from the escape;
Metal housing facilitates internal original heat dissipation, and protection grade IP42, ensures service life and service safety.
The parallel synthetic reaction station produced by Kallper is a modular system with the ability to perform parallel synthesis
reactions with complete inert gas for common chemical parallel reactions.
Specification
Product model | PRS-12 |
Heating plate size | 145 / 180 (mm) |
plate material | Aluminum die-cast spraying tetrafluoride surface |
Motor type | DC brushless motor |
Quantity of reaction vessels | 12 (Test tubes) |
Motor input power[W] | 40 |
Motor output power[W] | 25 |
Power of [W] | 500 |
Voltage [V] | 110/220 |
Frequency [Hz] | 50/60 |
Temperature control accuracy[℃] | ±0.5 |
Quantity of stirring points | 12 |
Maximum reaction capacity (H2O) [ml] | 25 |
stirer | cylinder/fusiform body /Hexagonal prism |
Speed range [rpm] | 0-1500 |
Speed display | LCD |
Heating temperature range [℃] | Room temperature-220 |
Temperature display | Digital number |
Heating plate safety temperature [℃] | 220 |
Allowable ambient temperature [℃] | 5-40 |
item | value |
Applicable Industries | Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining |
After Warranty Service | Video technical support, Online support, Field maintenance and repair service |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine |
Condition | New |
Place of Origin | China |
Brand Name | Liming |
Voltage | 110V |
Power | 2kw |
Dimension(L*W*H) | 25*25*85 |
Weight | 10kg |
Warranty | 1 Year |
Online support | |
Key Selling Points | High Safety Level |
Company Profile
Why Choose Us
For a lab equipment, the most valuable is the quality configuration and after sales support!
1.All glassware test by china authorities certification， our products get Green product certification,China famous product
certification and ISO9001 quality management system certification.
2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery!
3.Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine withoutquality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.
1.All glassware test by china authorities certification， our products get Green product certification,China famous product
certification and ISO9001 quality management system certification.
2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery!
3.Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine withoutquality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.
4. Online support and vedio to introduce the operation.
Contact Us
Ms. Amanda
Email: 1957847742@qq.com
Related products
PSR - 6 lab parallel synthesis reactors
Rotary evaporator
Похожие товары

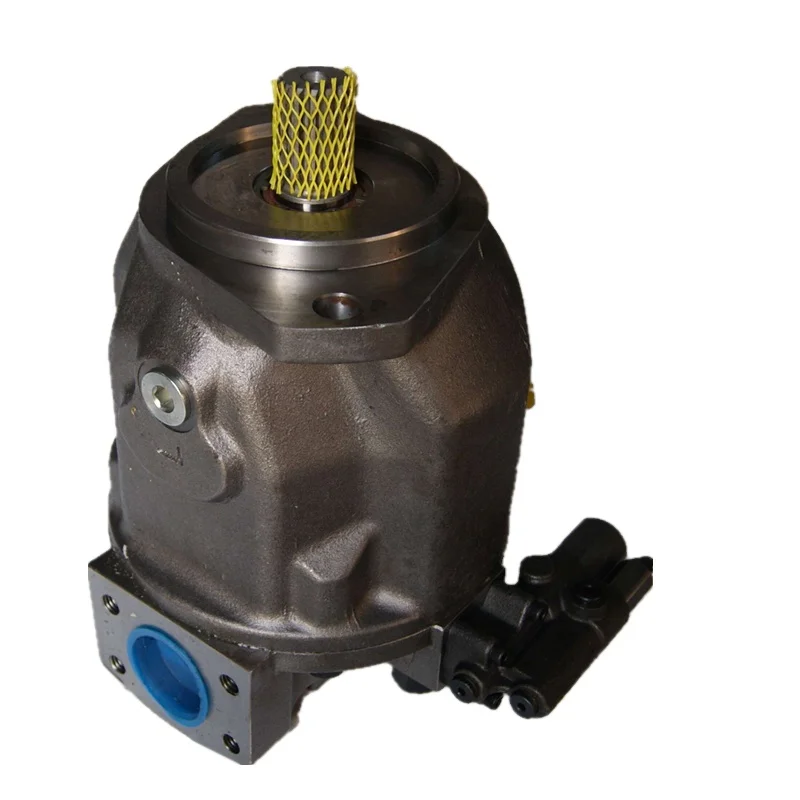

Гидравлический осевой поршневой насос серии A10VSO100DFLR A10VSO140DR A10VSO140DR/31R-VPB12N00
300,00 $ - 565,00 $
Тормозная камера пневматической пружины LBLS T3030DP T30/30DP T24/30DP для европейского пневматического тормозного клапана грузовика

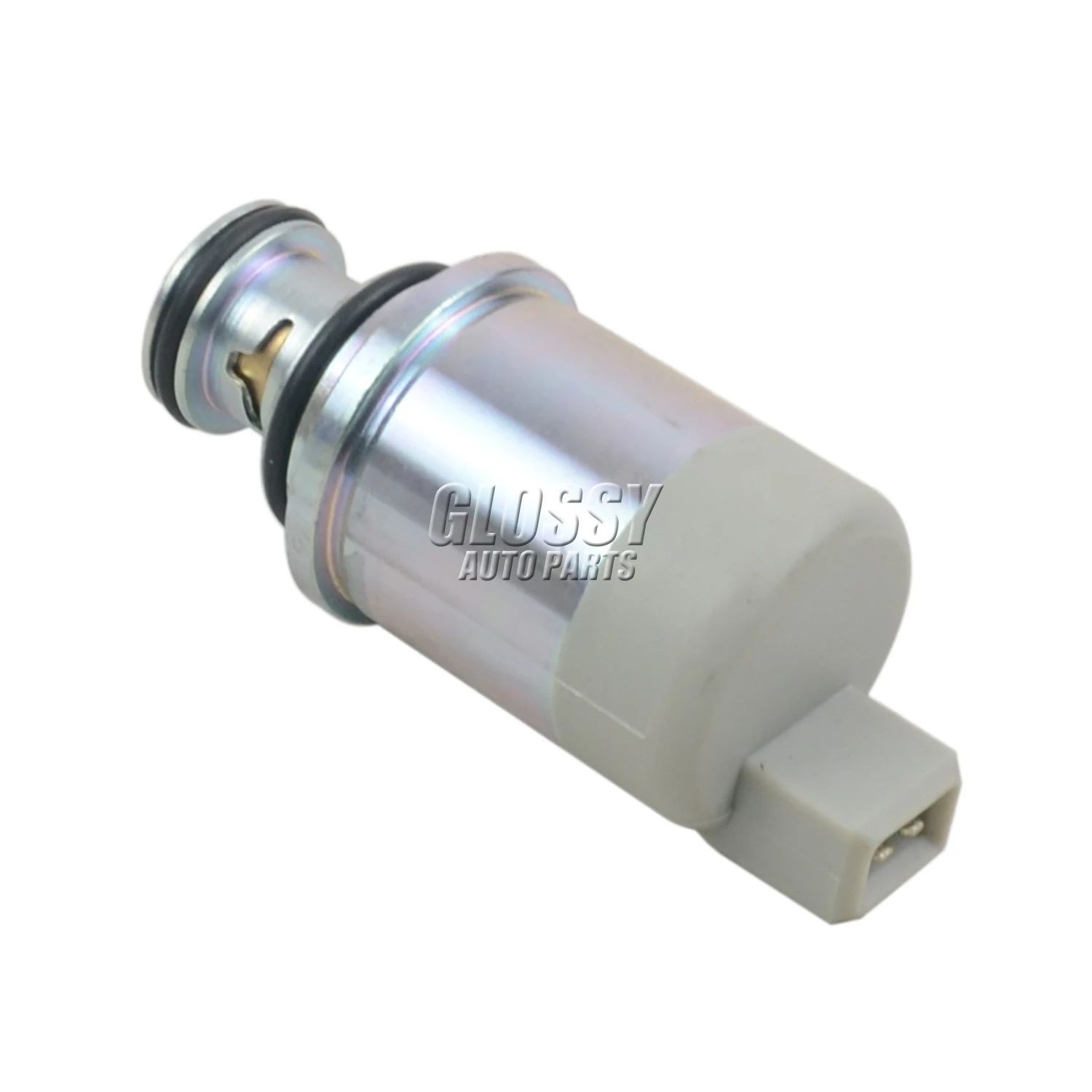

Глянцевый клапан управления скоростью холостого хода для MK II 60808200 Y B09 853
Винтовой воздушный компрессор AtlasCopco glib 1622870400 для
10,00 $

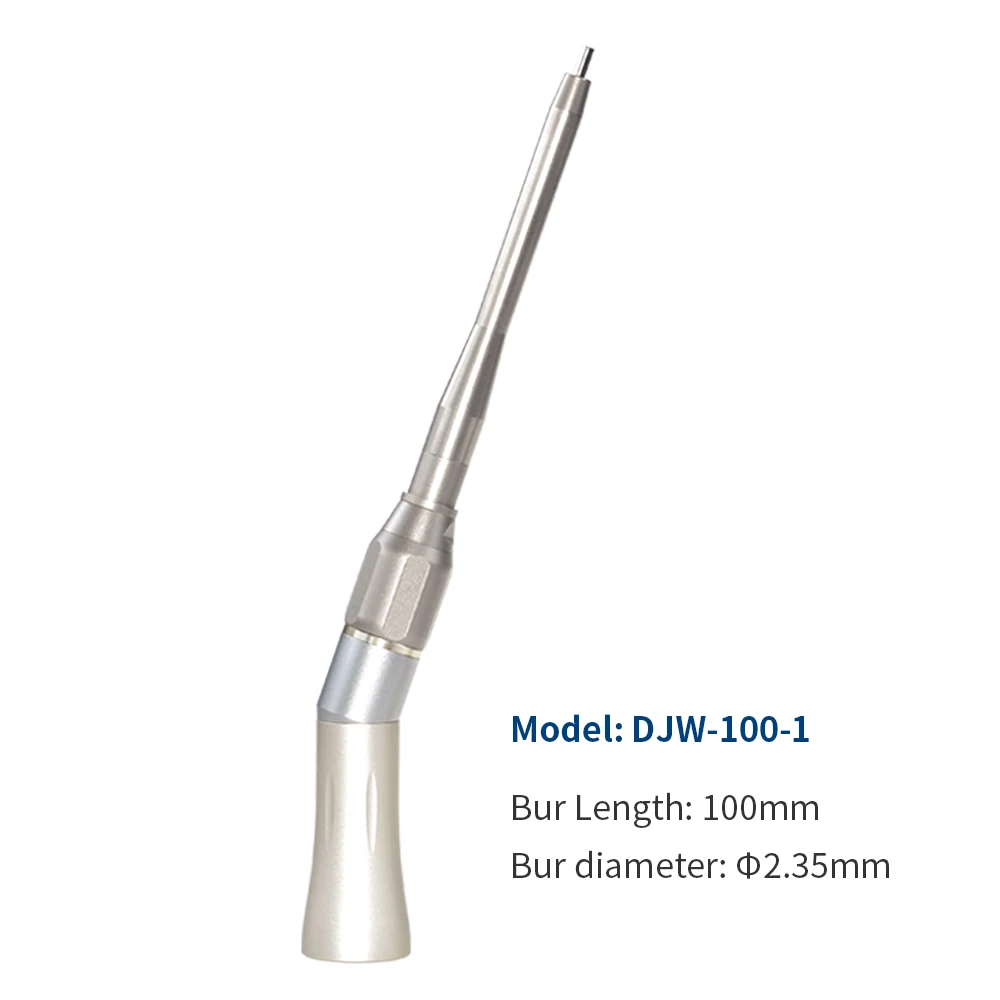

DJW-100-1 100 мм 2,35 мм хирургии наружной струей воды низкоскоростные стоматологические угловой наконечник для бормашины прошедший сертификацию по стандартам ISO E тип разъема

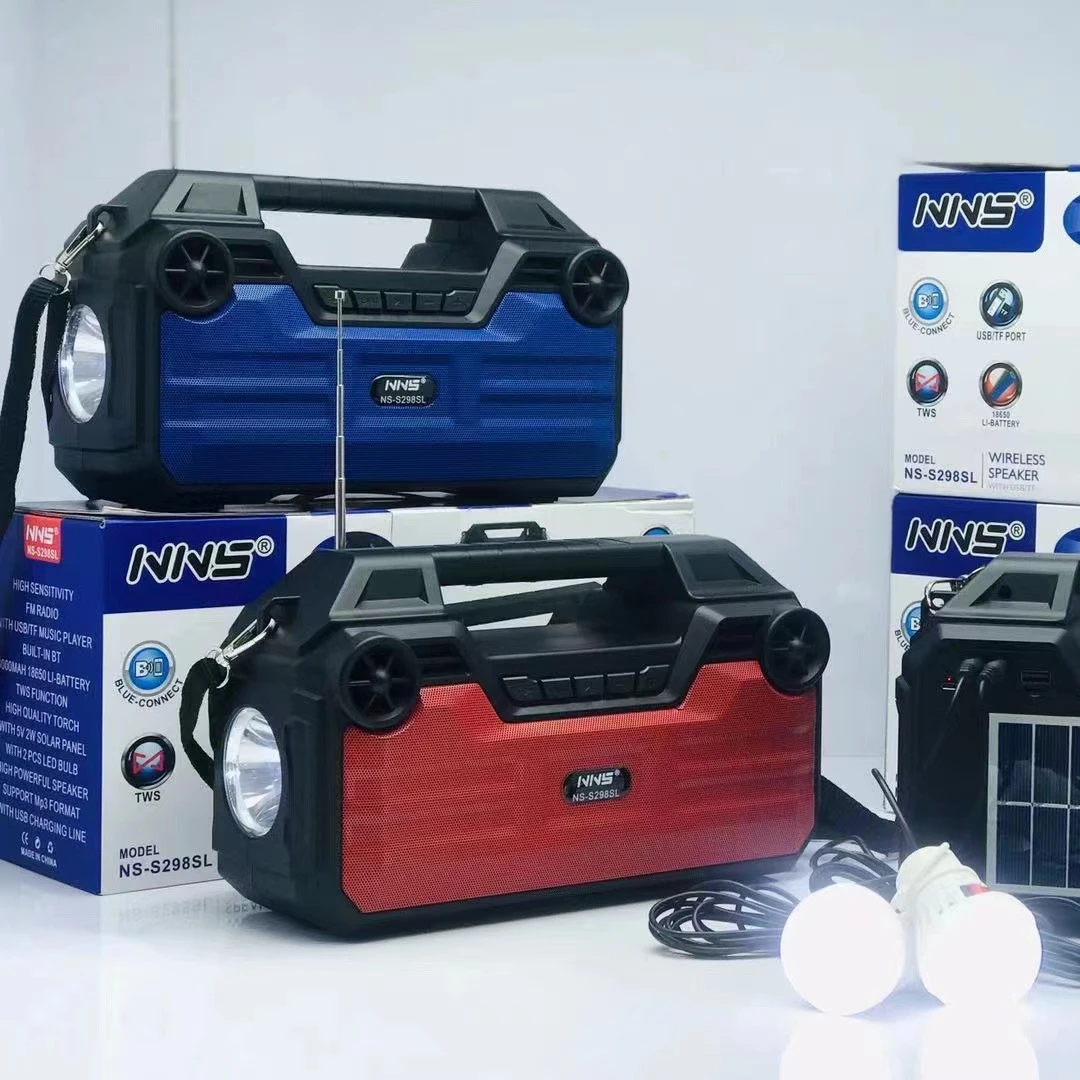

NNS S298SL Am Fm портативное радио Перезаряжаемый Usb-приемник со светодиодным фонариком хорошее качество радио
