1.Introduction
MK103 is a small bluetooth gateway integrated bluetooth and WIFI wireless communication technology.With the shape of ordinary plug,you can use it whenever it connects to power.MK103 can scan BLE devices nearby to gather some location information via bluetooth,and then update these messages to the cloud servers by WIFI,so as to realize location tracker in room and environment monitoring.
2.Features
- Built in ESP32 module, support BLE& WiFi communication
- Support many countries with different types: AU/US/UK/EU/FR/Brazil/Japan/Israel etc
- Support different encryption modes, no authentication / one-way authentication / two-way authentication
- The maximum scanning distance of bluetooth can reach 130m
- OTA firmware upgrade
- MOKO standard firmware and APP(MokoScanner) can be used directly, the APP can be downloaded from Googleplay or APP store
- Support multiple server platforms such as EMQTT, AWS, ALI,and also provide configuration protocol for customers to access their own server platform
- Provide IOS and android SDK for customers to develop their own APP
- Schematic diagrams are available for customers to develop firmware
3. Basic parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Wireless technology | BLE&WIFI | |
| 2 | Input voltage | 90V-240VAC | |
| 3 | Output voltage | 90V-240VAC | |
| 4 | Max load current | 16A | |
| 5 | Max load | 3520W | |
| 6 | Operation temperature& humidity | 0ºC~40 ºC/10%~90% | |
| 7 | Plug type | US/UK/EU/AU/FR | |
| 8 | Dimensions | 110x62.3x34.9mm |
4. Technology parameter
4.1 WiFi
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | WIFI protocol | 802.11b/g/n | |
| 2 | Frequence band | 2.4GHz-2.5Ghz(2400MHz-2483.5MHz) | |
| 3 | Coverage | <100m | Open and no shielding space |
| 4 | Transmission power | 11n MCS7 13dB,11b 18.5dB |
4.2 Bluetooth
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Bluetooth standard | Bluetooth V4.2 | |
| 2 | Max scanning distance | 130m | Open and no shielding space |
| 3 | Max scanning devices quantity | 300/min | |
| 3 | Bluetooth scanning rate | 150 times/s | Quantity of broadcast frames scanned per second |
| 4 | Receiving sensitivity | -97dB |
4.3 Hardware parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | ESP32 | BLE&WiFi | |
| 2 | RGB | Different colors used to distinguish the device status | |
| 3 | Button | Reset&control bluetooth broadcast on/off |
4.4 Software parameter
| NO. | Type | Description | Remark |
|---|---|---|---|
| 1 | Communication protocol | MQTT V3.1.1 | |
| 2 | Encryption protocol | TLS V1.2 | |
| 3 | Encryption mode | OPEN/WEP/WPA_PSK/WPA2_PSK/WPA_WPA2_PSK | |
| 4 | Firmware upgrade mode | OTA | |
| 5 | Software development | Standard firmware supports MQTT servers, also provide schematic diagrams for customers to develop firmware connecting to their own server | |
| 6 | User configuration | IOS&Android with MOKO Scanner |
4.5 Indicator status
| NO. | Indicator status | Description | Remark |
|---|---|---|---|
| 1 | Blue and green lights flash alternately once | Factory reset successfully | |
| 2 | Indicator light is off | Device is not powered/Device is powered but bluetooth is off | |
| 3 | Flash green | Bluetooth is on and broadcasting data | |
| 4 | Solid green | APP successfully connected to the device bluetooth | |
| 5 | Flash blue | Configuring MQTT information and connecting to router | |
| 6 | Solid blue | Device is successfully connected to server |
4.6 Button Functions
- Short press button: set the bluetooth broadcast status. For devices that not connected to network, short press button can change the bluetooth broadcast status.
- Long press button for 10s: restore factory settings. In any case, after the device is powered on, press the button and hold for 10s to enter the factory reset.
4.7 Product Appearance

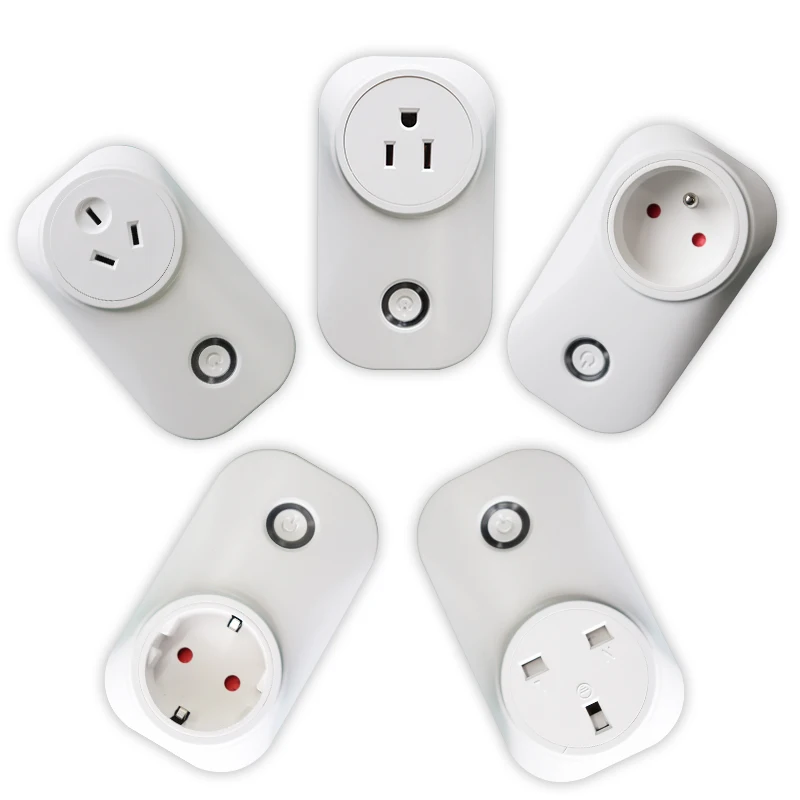

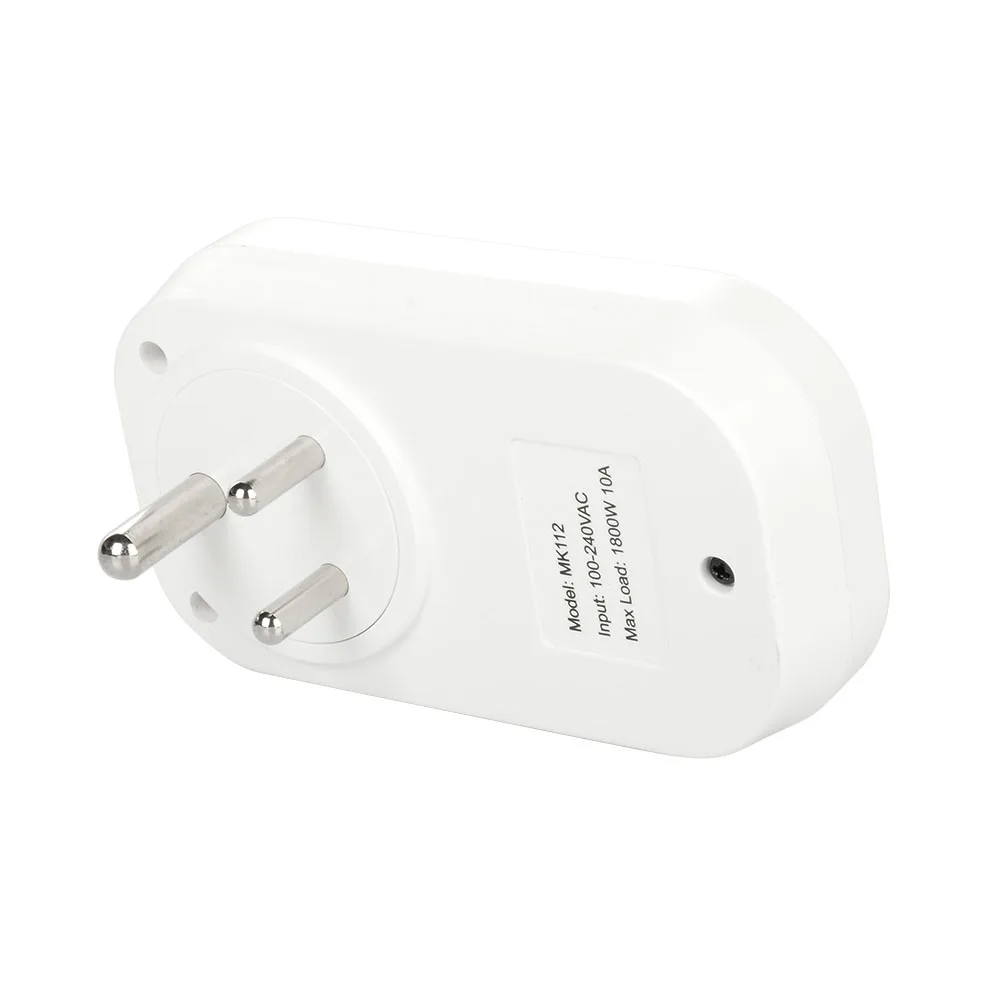

This following appearances and product models are currently commonly used.we can also provide Israeli/Brazilian/Japanese/India types.

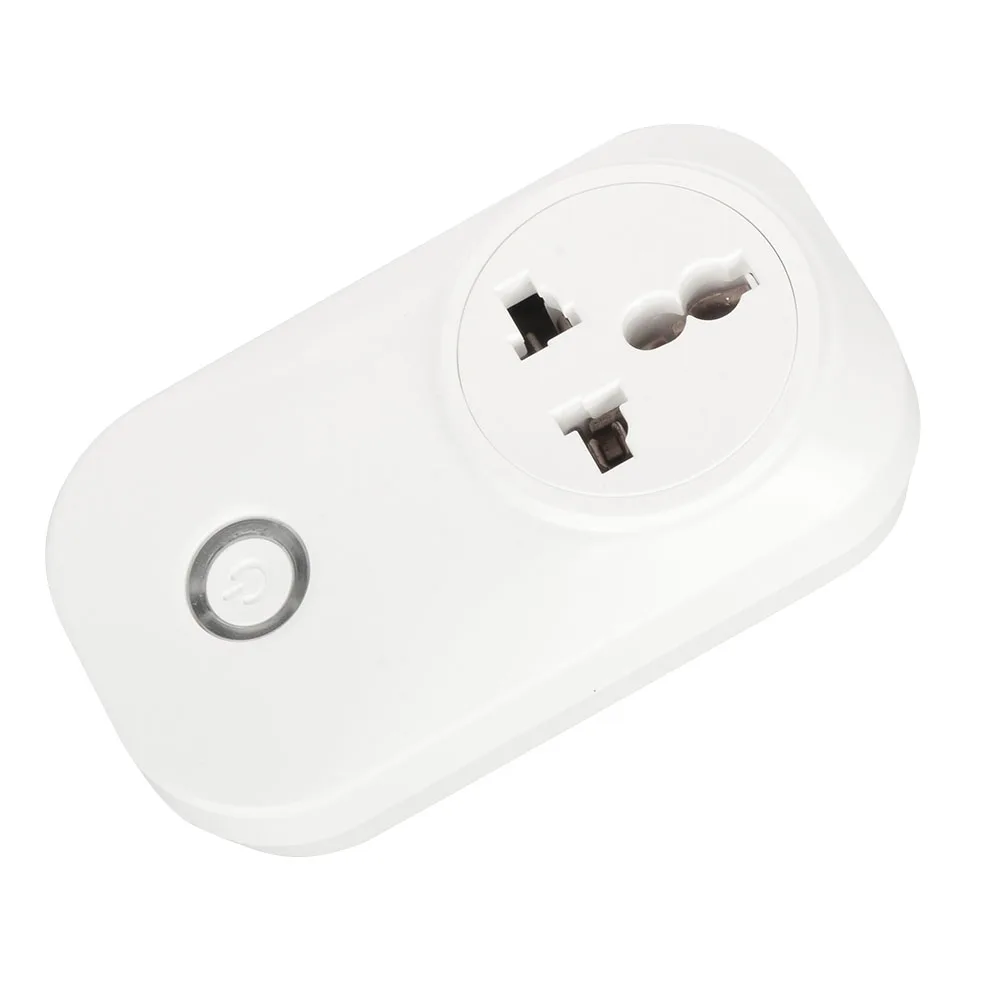

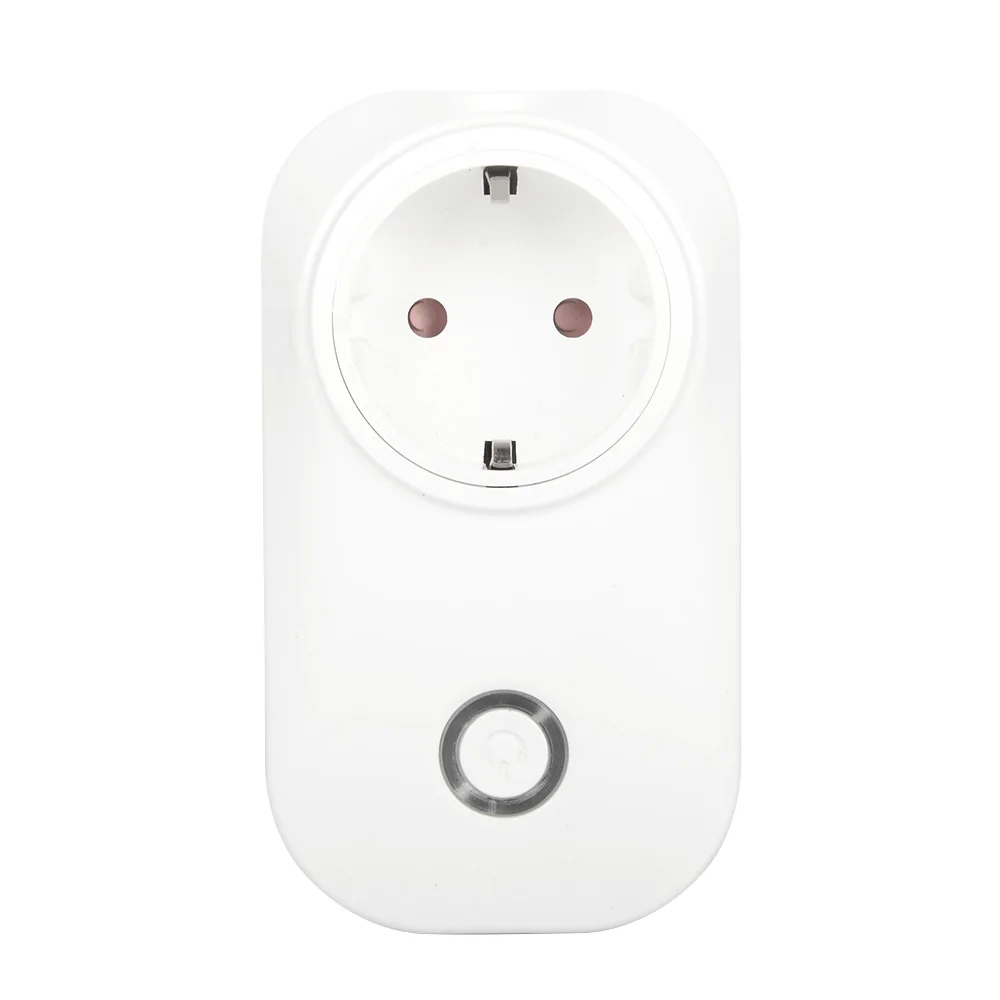

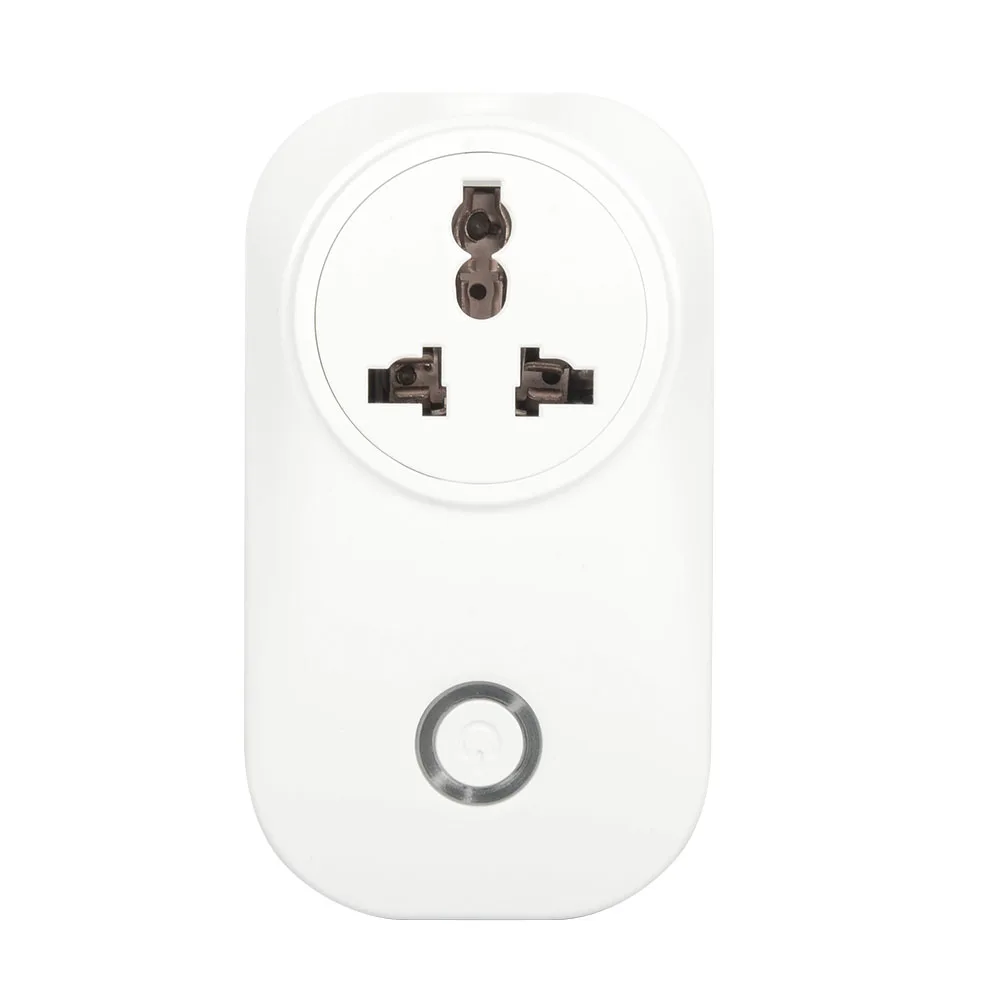

4.7.1 Appearance Picture![]()
4.7.2 Production Dimensions
| Model | MK103-F | MK103-I | MK103-G | MK103-B | MK103-E |
|---|---|---|---|---|---|
| Plug Type | EU | AU | UK | US | FR |
| Length(mm) | 62.3 | 62.3 | 62.3 | 62.3 | 62.3 |
| Width(mm) | 110.00 | 110.00 | 110.00 | 110.00 | 110.00 |
| Thickness(mm) | 71.9 | 64.1 | 62.4 | 55.6 | 71.9 |
Dimensions Picture:
What's MOKO advantage?
*Can make custom upgrades existing features(function development or customized firmware)
*Can support multiple wireless communication ways,including Wi-Fi,Bluetooth,Lora etc.
*Can provide related SDK and configuration app(IOS&Android)
*Can support connect to multiple cloud platform(Amazon/MS Azure/Google etc)
*Can customize enclosure
*Can design packaging box,label, etc
*Can communicate with certification authority directly if you have any needs
MOKO could also provide one-step solution for IOT plug.
Company Information
FAQ
Q1:Could you provide the design solution for us?
A:Yes,we can custom the product according to your requirement
Q2: What kind of solution you can offer?
A:1.PCB Design and Manufacturing
2.Enclosure Design and Manufacturing
3.Function Development and Customized Firmware
4.Customized APP
5.Package Design and Manufacturing
6.Certification services
Q3:How to work with you?
A:1.You provide the your requirement then we confirm it.
2.Establish the project and R&D department research and development
3.Confirm the first sample and testing
4.Modifing the first sample then confirm the final one
5.Mass production
Q4:What is your MOQ?
A: For our existing products,there are no MOQ,we can provide you samples to test our quality first.
Q5: How long is your products quality warranty?
A: We provide one year factory quality warranty.
