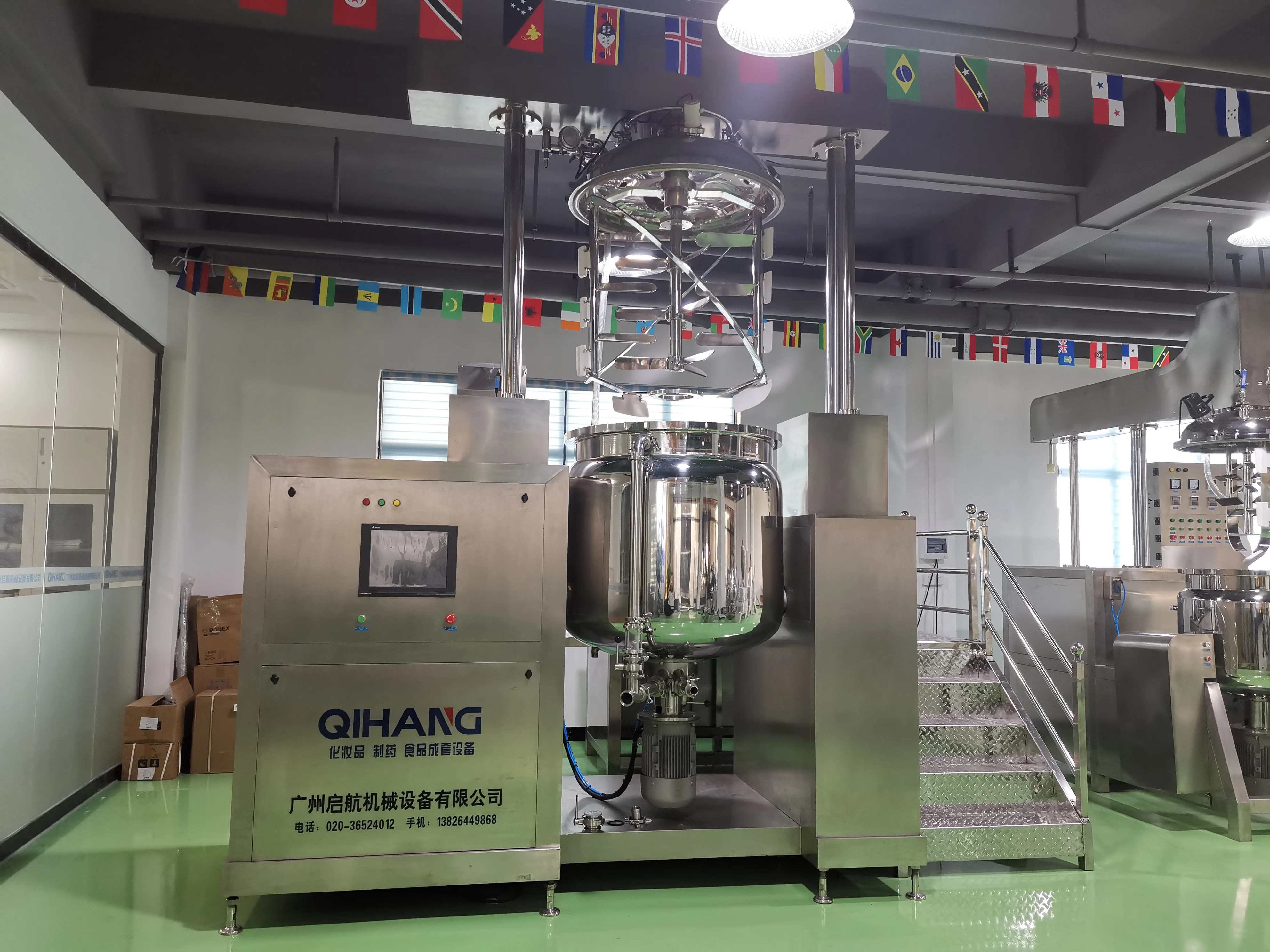

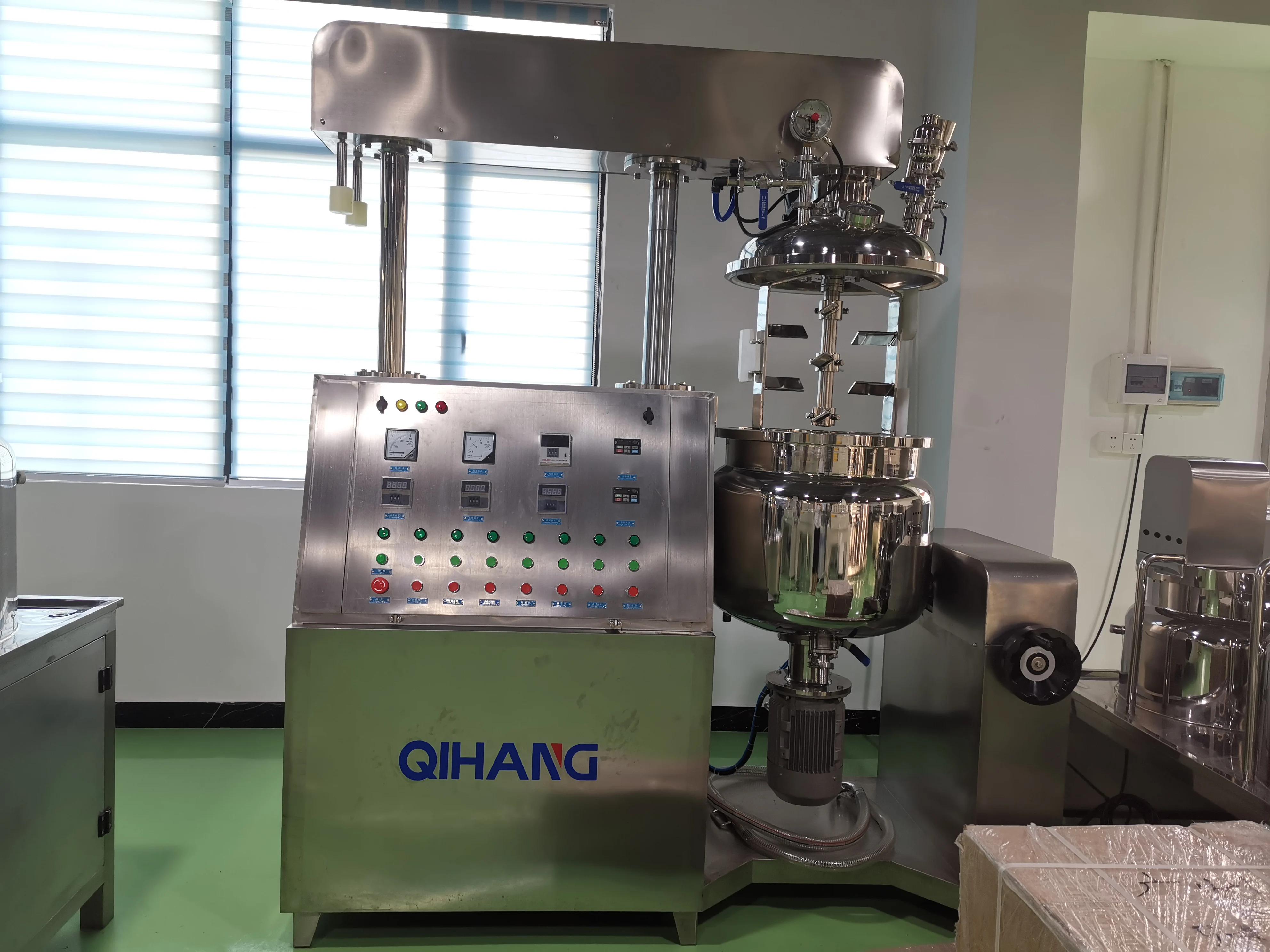

Chemical Mixing Machinery Ointment Vacuum Emulsifying Mixer 200-500l Creams Homogenizer Vacuum Emulsifier


Main composition:
The chemical mixing machinery ointment vacuum emulsifying mixer 200-500l creams homogenizer vacuum emulsifier is mainly composed of water pot, oil pot, emulsifying pot,vacuum system, lifting system(optional), electric control system(PLC is optional), operation platform, etc.






Siemens motor:
1. Higher efficiency levels reduce energy consumption and directly enable users to save costs.
2. The higher protection level (IP55) ensures safe and reliable use by customers.
Delta inverter:
1. High energy-saving machine efficiency
2. Efficient input and output power factor
3. Highly flexible expansion method
4. Low overall investment and maintenance costs
High shear homogenization:
1. High uniformity, good polishing, energy saving, stable operation
2. Speed of fast homogenizing stirrer:0-3500r/min (frequency conversion speed regulation)
Mixing part (Material: SUS316, GMP standard):
1. Speed: slow wall scraping stirrer speed: 0-63r/min (frequency conversion speed regulation)
2. Siemens motor + reducer provide strong and stable power for mixer, panasonic brand frequency inverter, PTFE material scrape blade.





Model
Effective Capacity
Homogeneous
(r/min)
Agitator
(r/min)
Vacuum Pump
Electric Heating Power
Steam Heating Power
QHE-C500L
500L
0~3000
0~63
—0.09
30
12
QHE-C1000L
1000L
0~3000
0~63
—0.09
45
16
QHE-C2000L
2000L
0~3000
0~63
—0.09
48
18
QHE-C3000L
3000L
0~3000
0~63
—0.09
60
24
QHE-C5000L
5000L
0~3000
0~63
—0.09
75
30




Type stirring blade were left to right:
single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer




Final product:




Obvious by Comparison:




Recommend Products






Company Profile


Guangzhou Qihang Machinery & Equipment Co., Ltd
Guangzhou Qihang Machinery & Equipment Co., Ltd. is a professional manufacturer of whole-set equipment for such industries as cosmetics, medicine, food and daily chemicals, providing clients with various solutions for special applications and meeting diversified demands of clients. Qihang is dedicated to providing solid support for enterprises in such industries as cosmetics, medicine, food and daily chemicals to become more powerful and bigger.

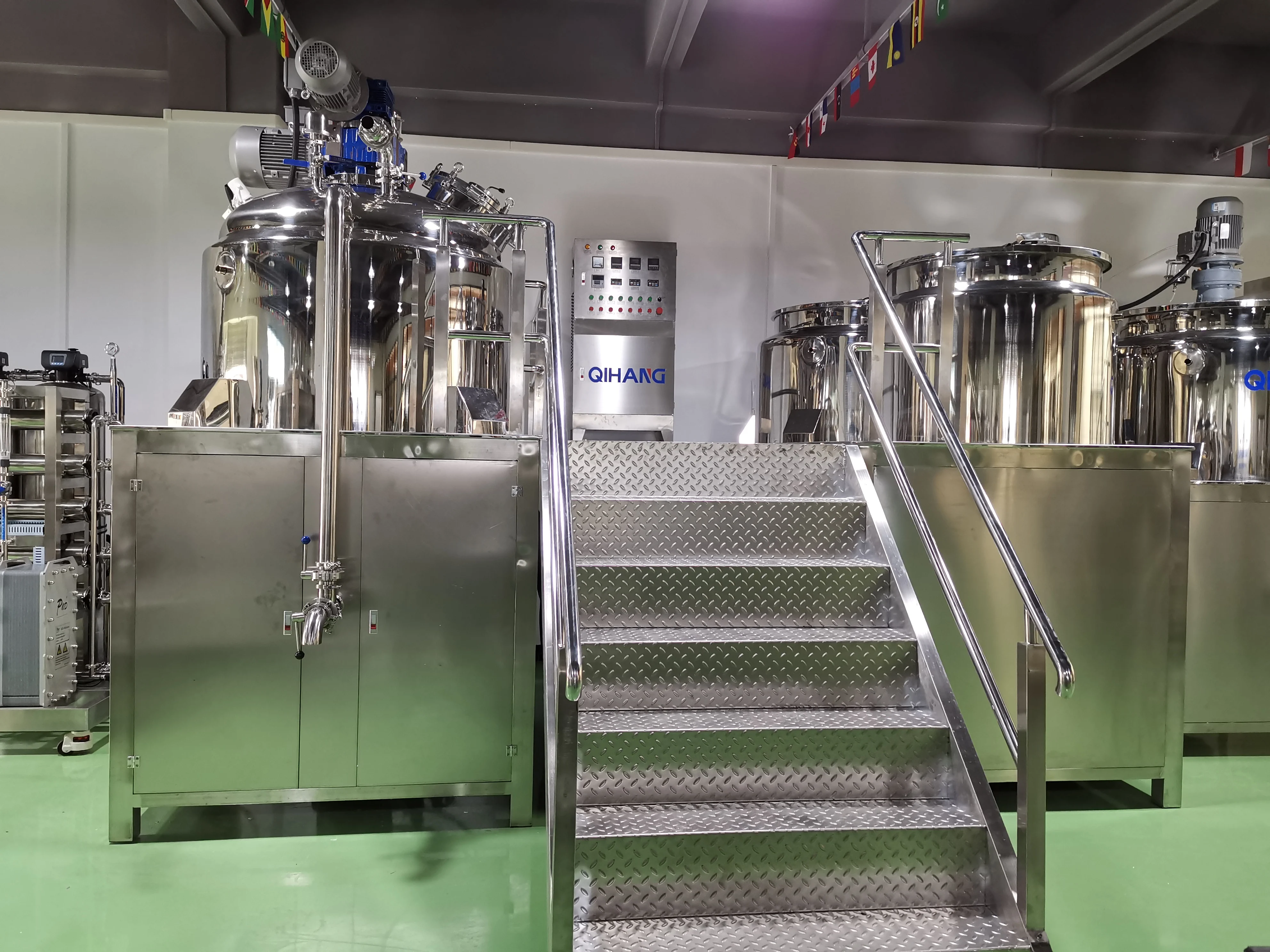

Our Factory




Exhibition






Certifications

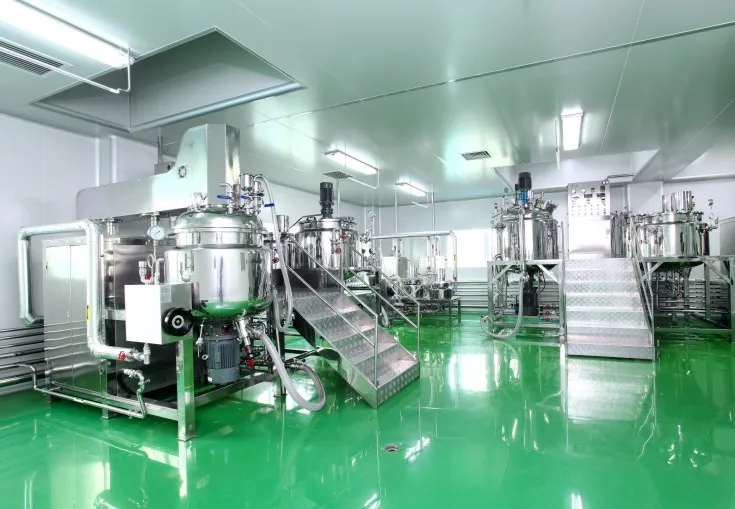

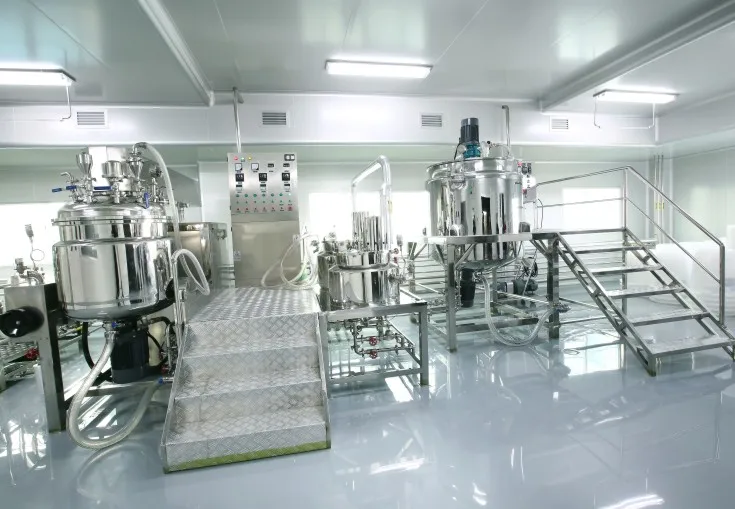

project cases




FAQ


Q1: Are you a factory or trading company?
A1: We are a factory specialized in cosmetic, food, pharmacy,and daily chemical industry. Such as,reverse osmosis water treatment, shampoo and liquid soap mixers , vacuum homogenization emulsifying machine,
storage tank, filling and other packing machines.


Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: Where is your factory location? How can I visit there?
A3: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour), then we will pick u up.

Q4: How does your factory do regarding quality control?
A4: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q5: How about the after service?
A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
