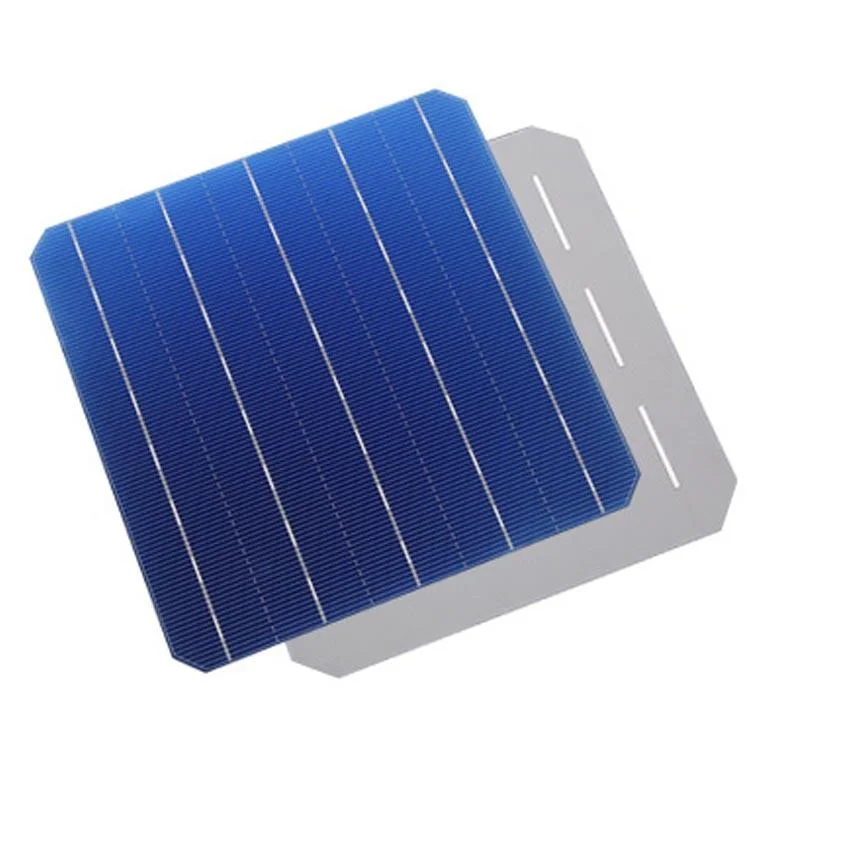

Полуэлементные солнечные панели lampu taman элементы органические

Сохранить в закладки 1600338726090:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description








Electrical Characteristics


Efficiency
Pmpp
Umpp
Impp
Uoc
Isc
FF
22.30%
5.62W
0.583V
9.666A
0.684V
10.245A
80.52%
22.2%
5.59W
0.580V
9.661A
0.681V
10.235A
80.47%
22.1%
5.57W
0.578V
9.657A
0.679V
10.224A
80.42%
22.00%
5.54W
0.576V
9.651A
0.677V
10.214A
80.39%
21.90%
5.52W
0.573V
9.647A
0.675V
10.210A
80.21%
21.80%
5.49W
0.571V
9.644A
0.674V
10.192A
80.16%
21.70%
5.47W
0.568V
9.640A
0.671V
10.185A
80.12%
21.60
5.44W
0.565V
9.638A
0.669V
10.162A
80.10%

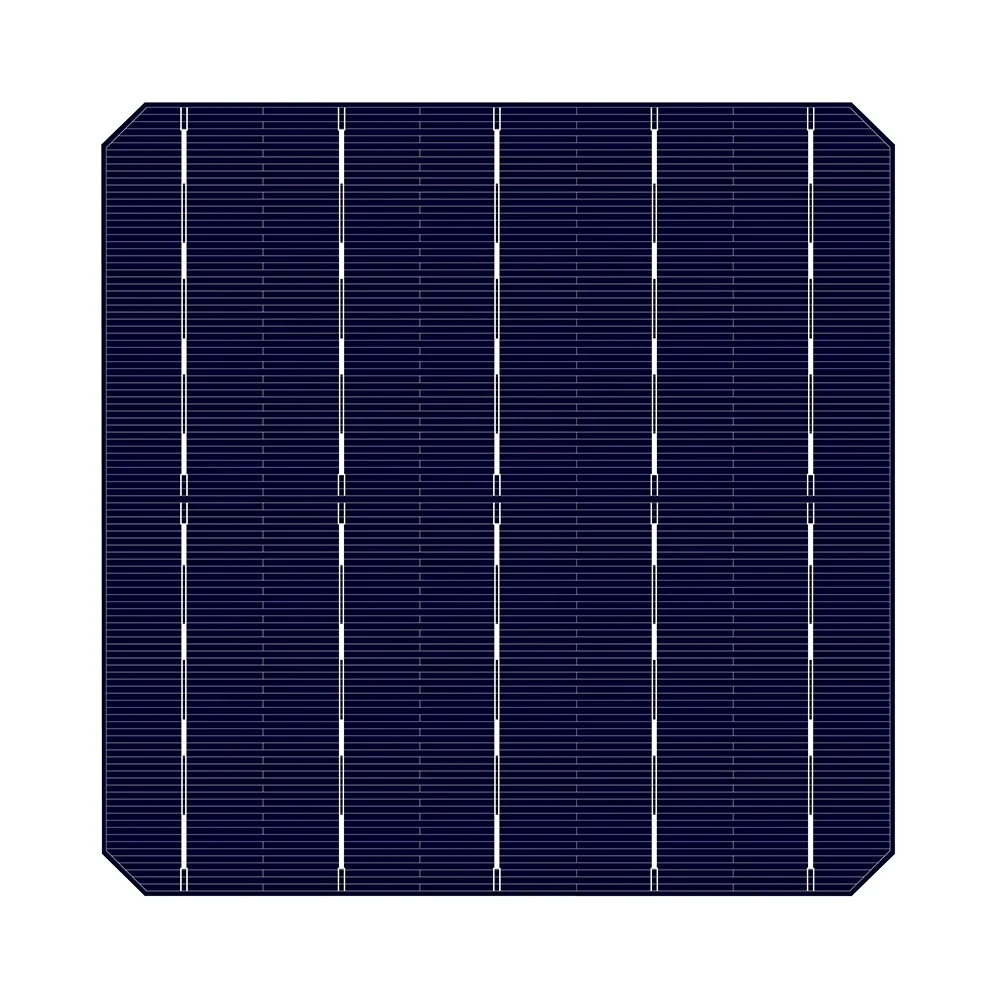

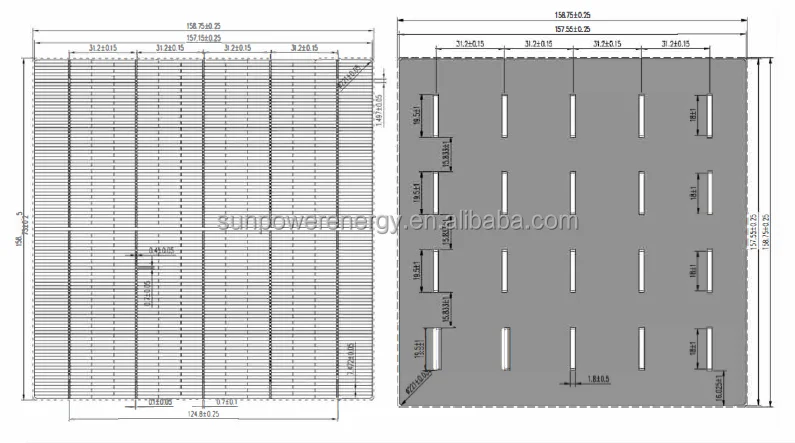

Dimension
158.75mm*158.75mm ± 0.25mm
Thickness
175 ± 17 um
Front(-)
5*0.7mm busbars(silver), 1086 fingers, blue anti-reflecting coating(silicon nitride)
Rear(+)
1.8mm wide soldering pads(silver), back surface field(aluminum), laser grooving pattern (perpendicular to the electrode)

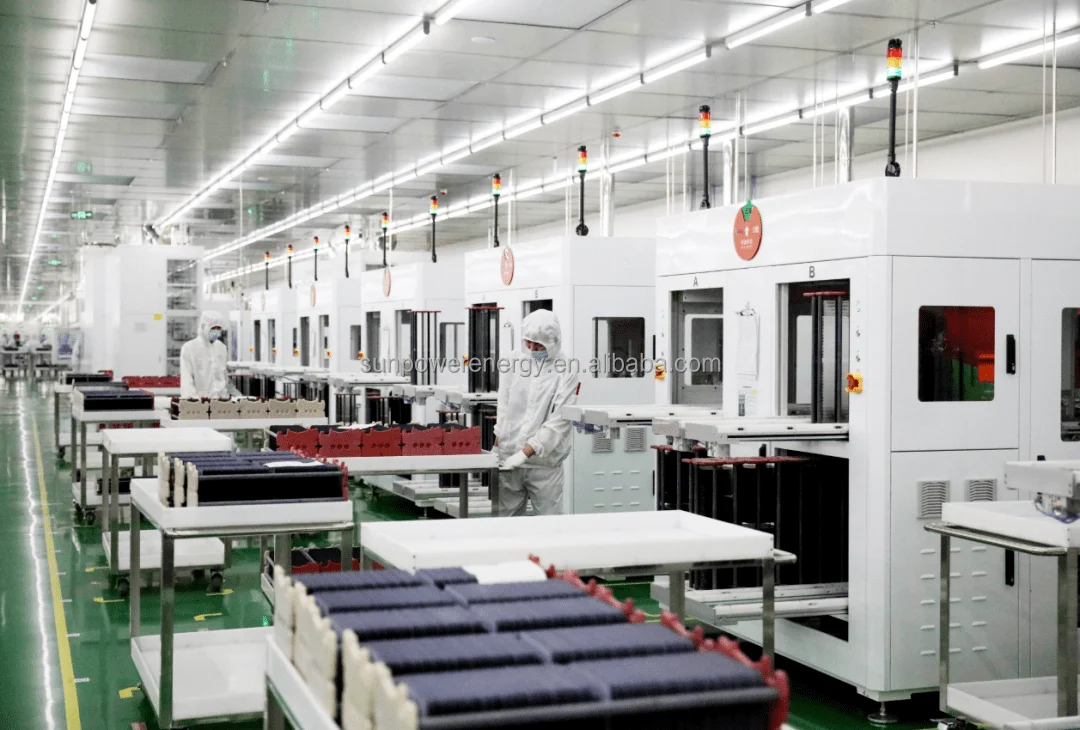

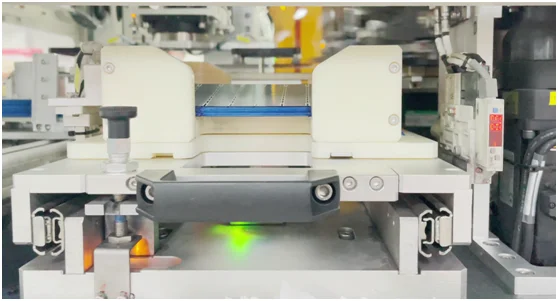

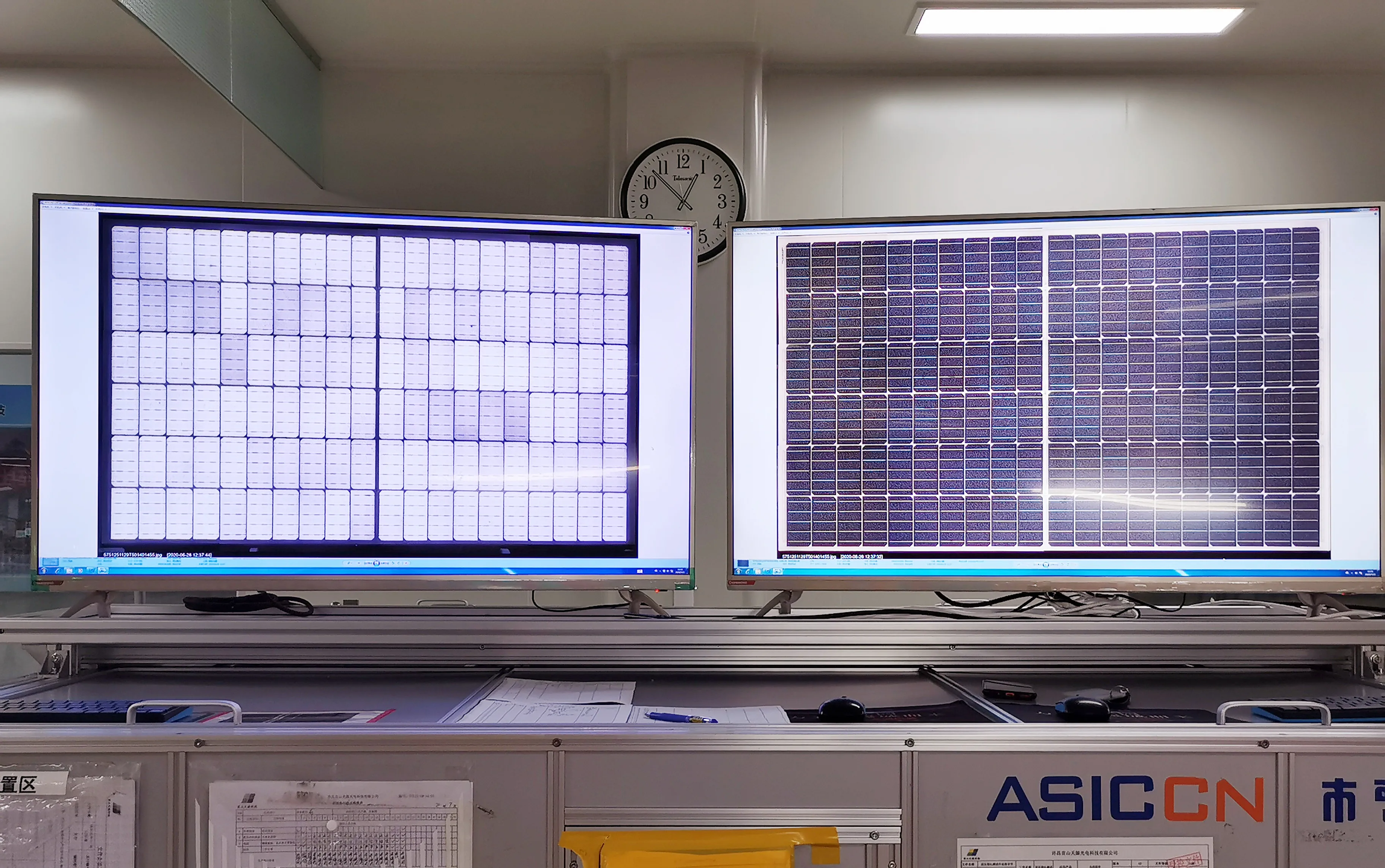

Manufacturing Technique

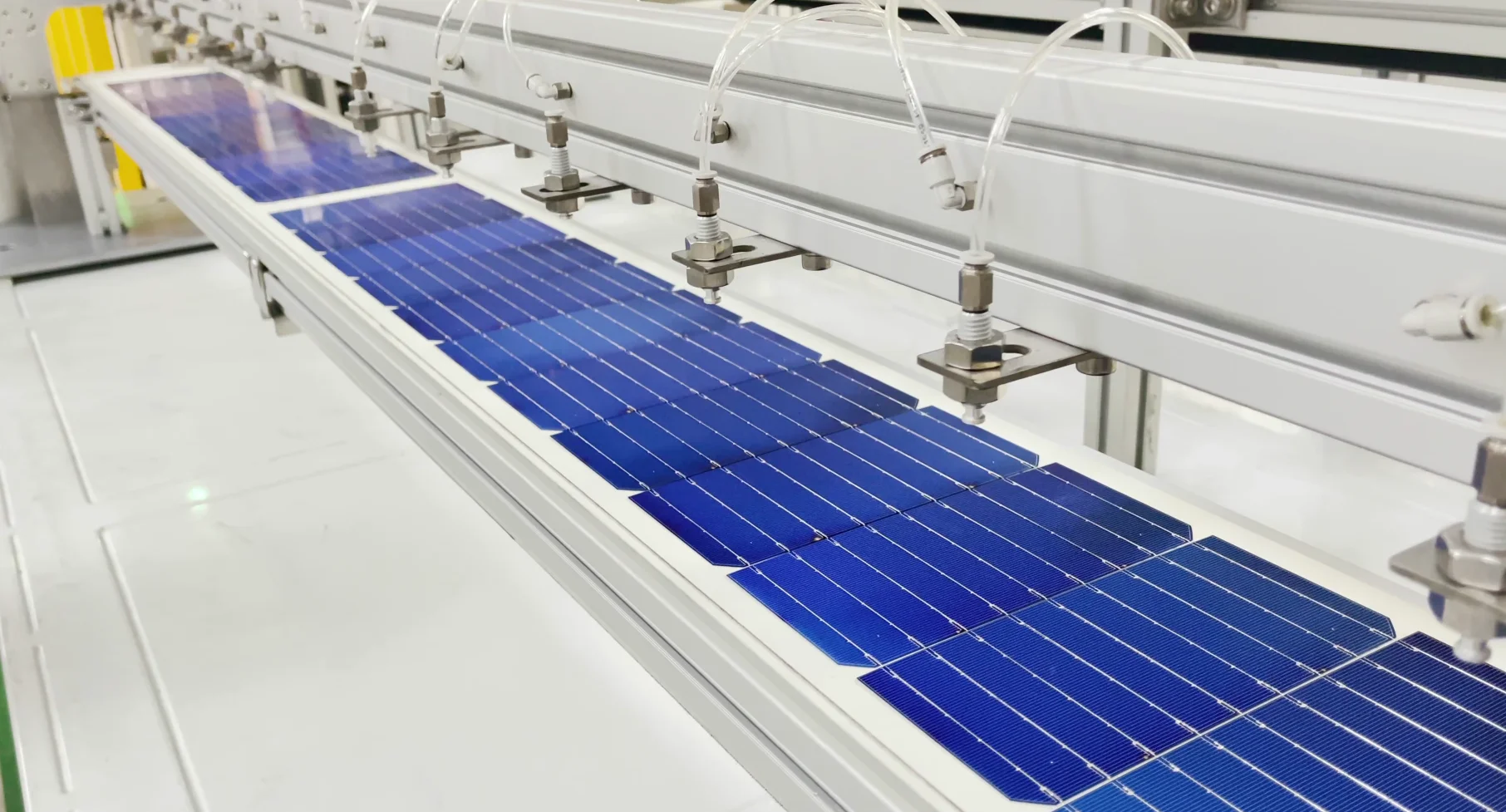

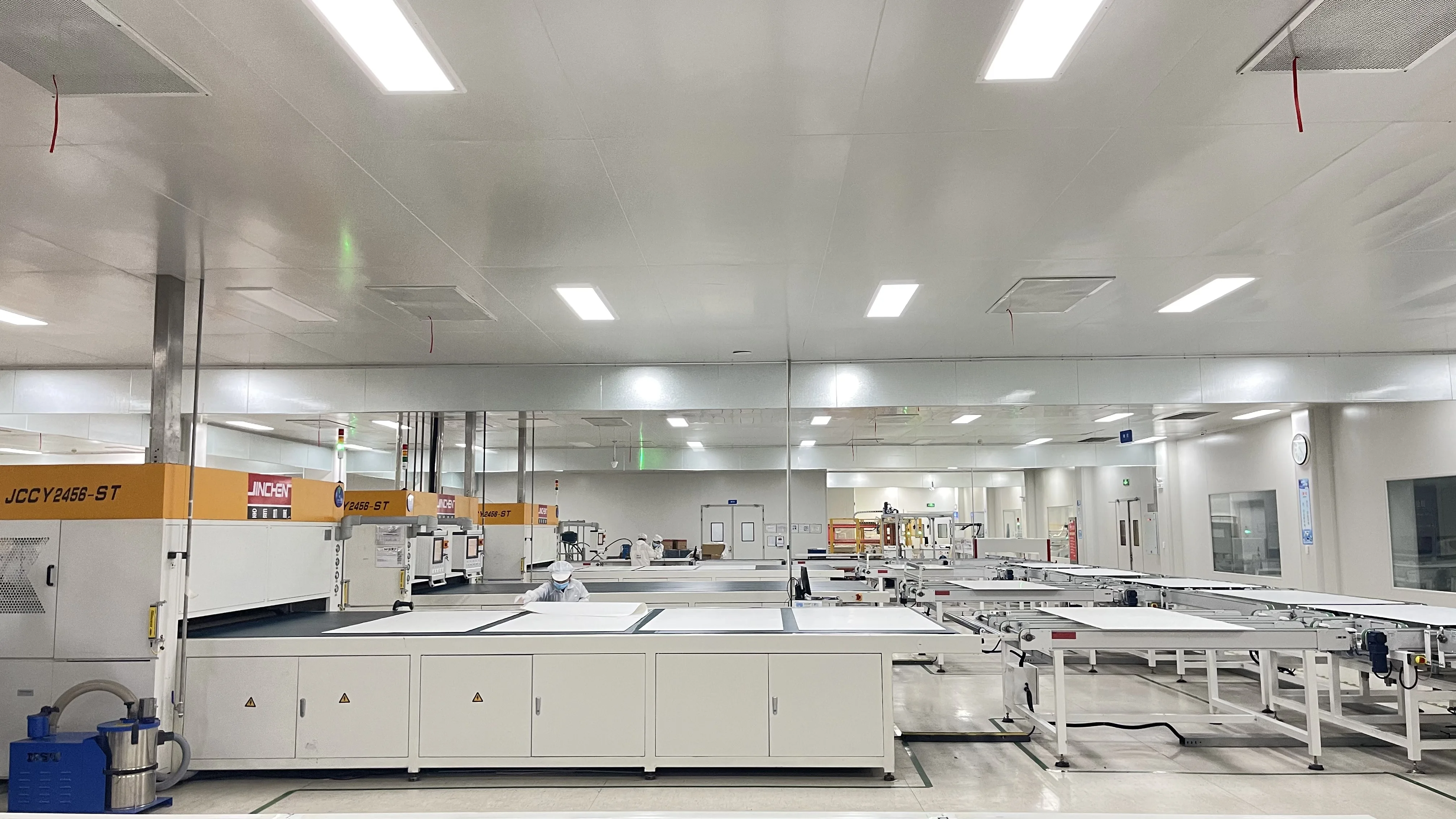

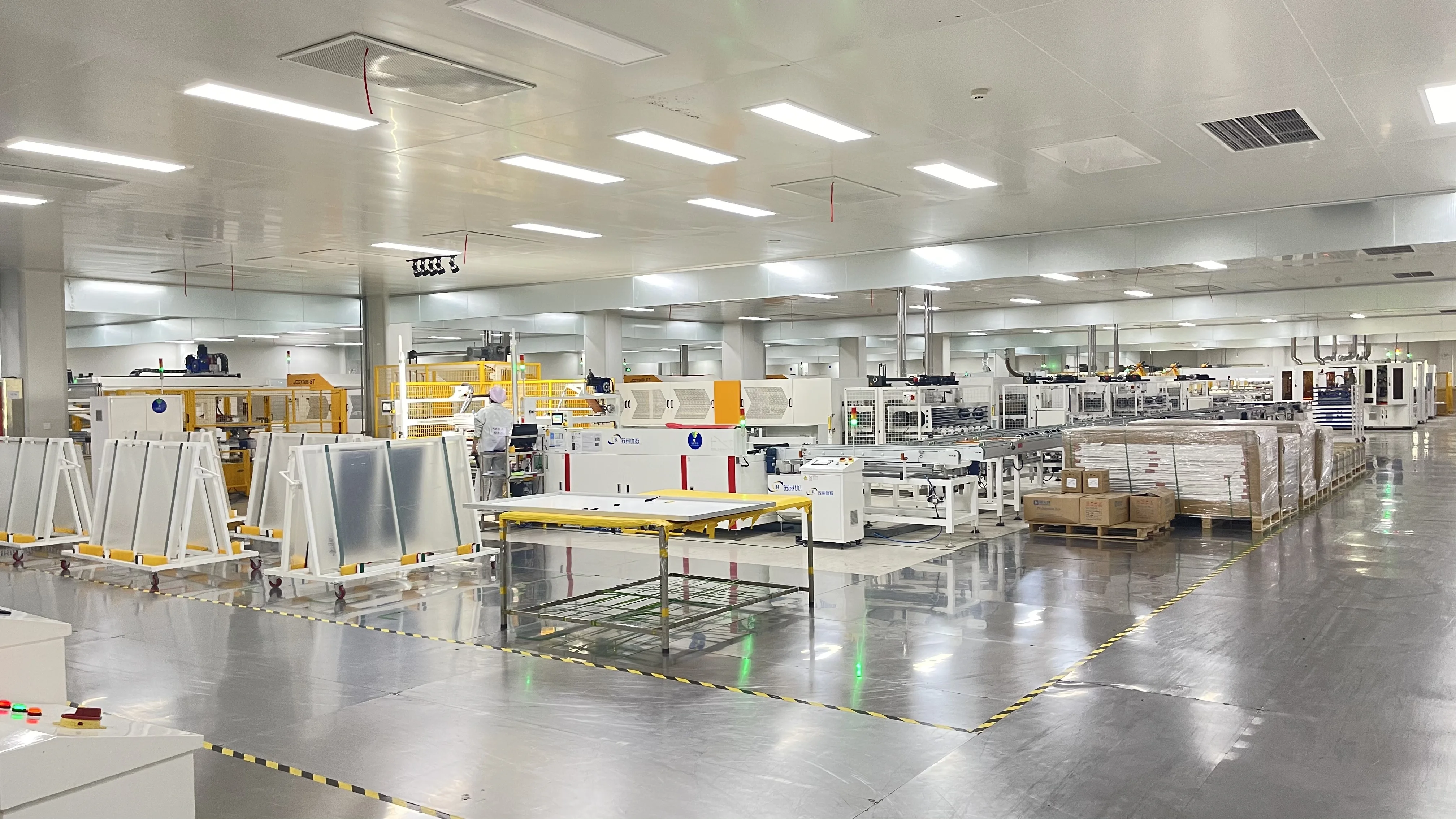

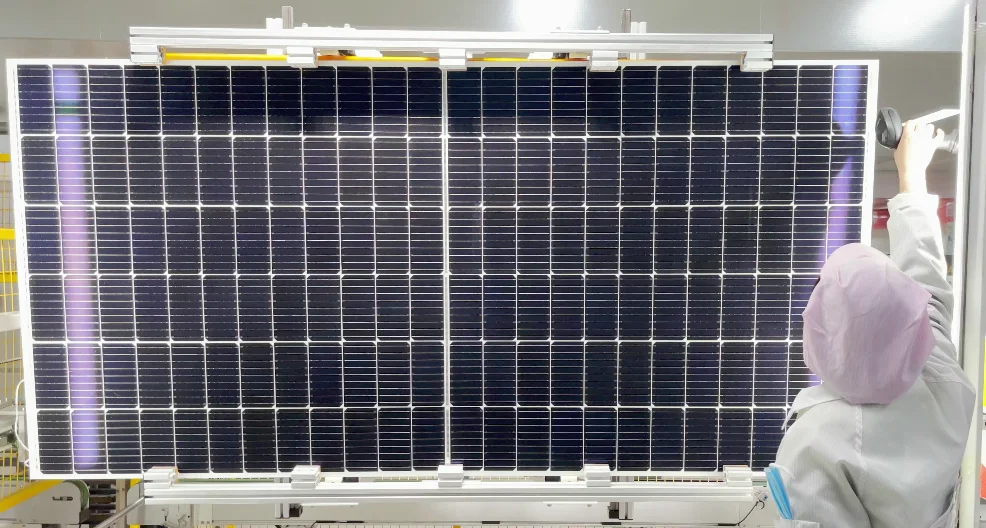

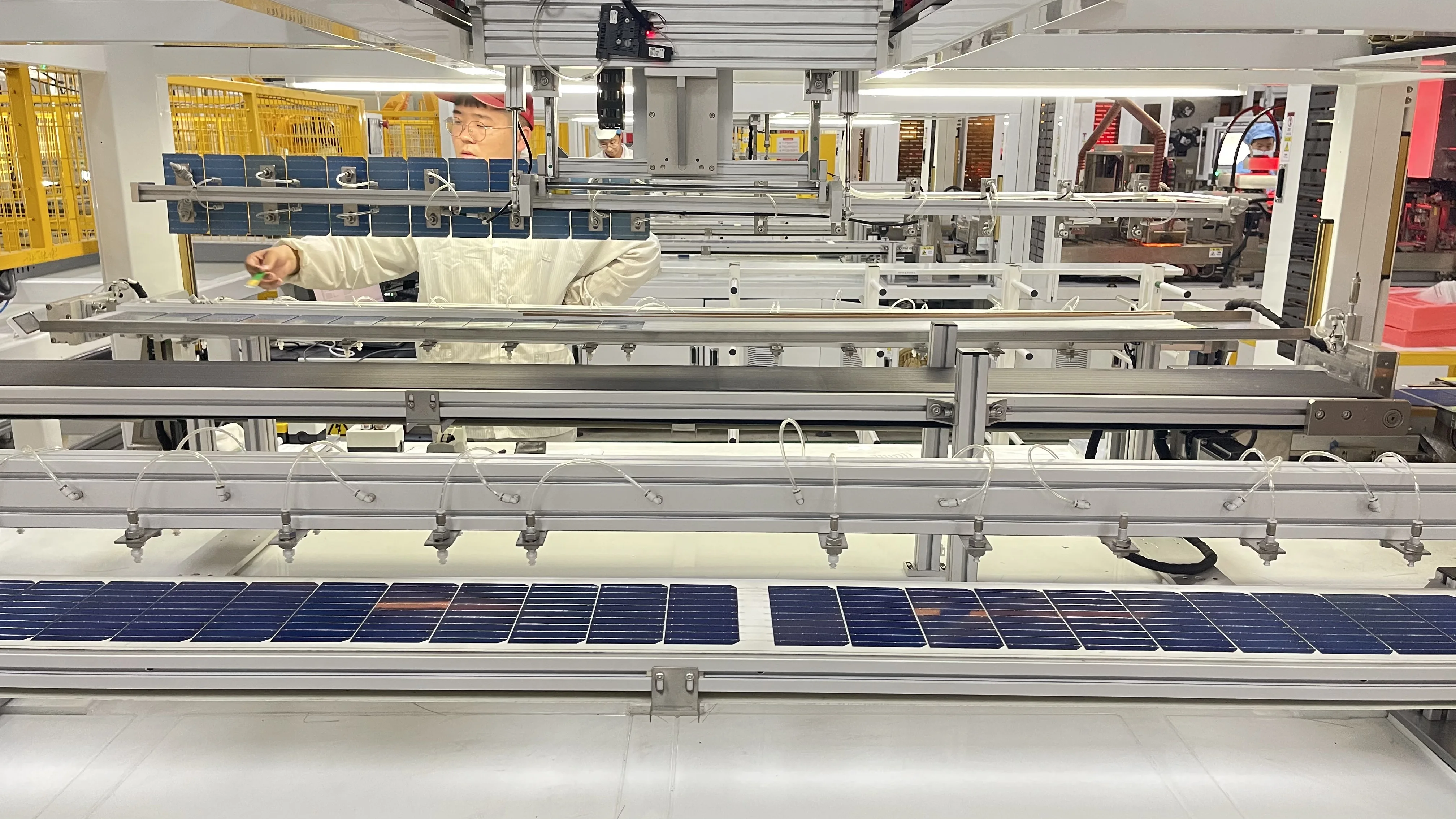

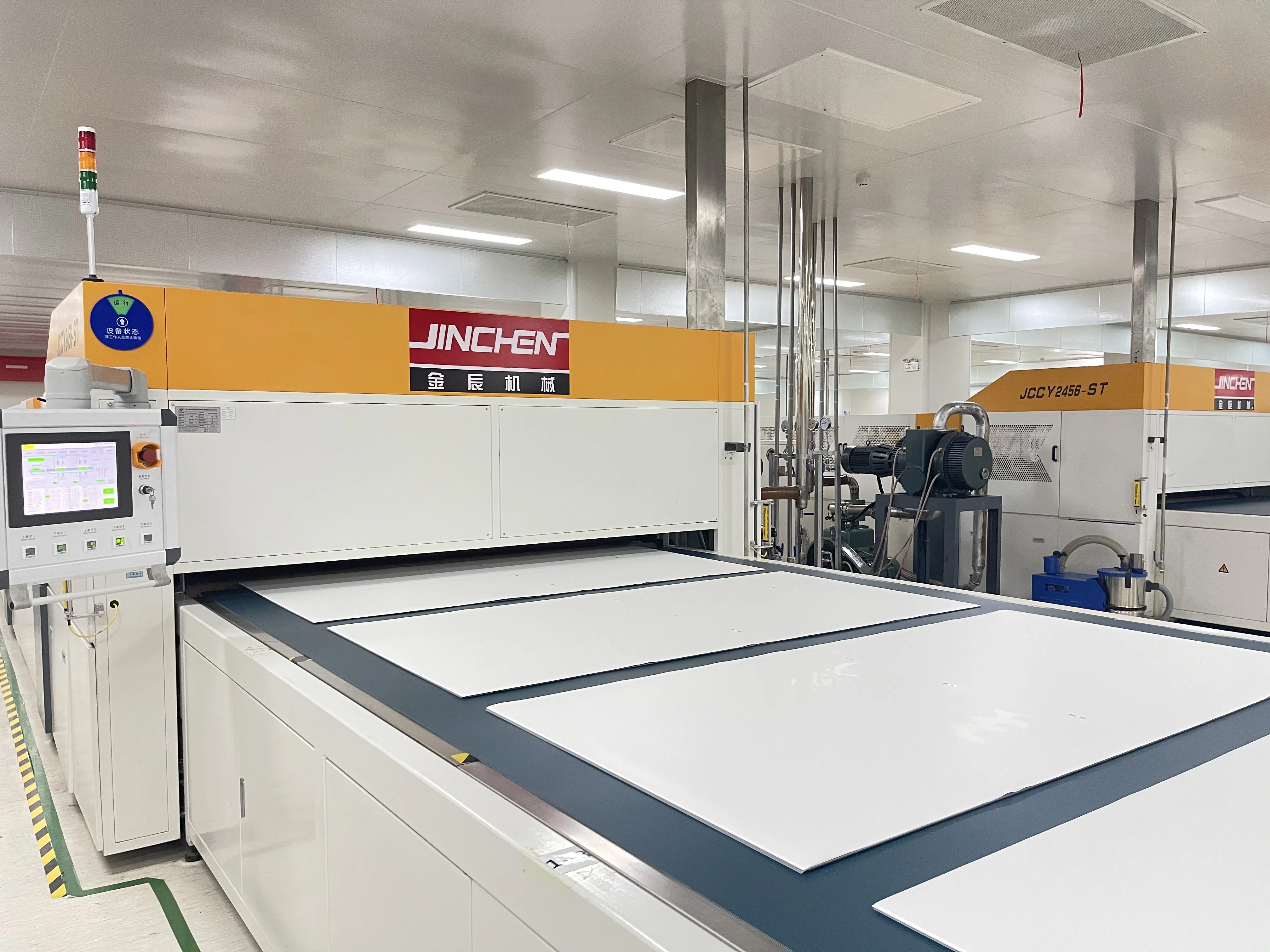

Production line

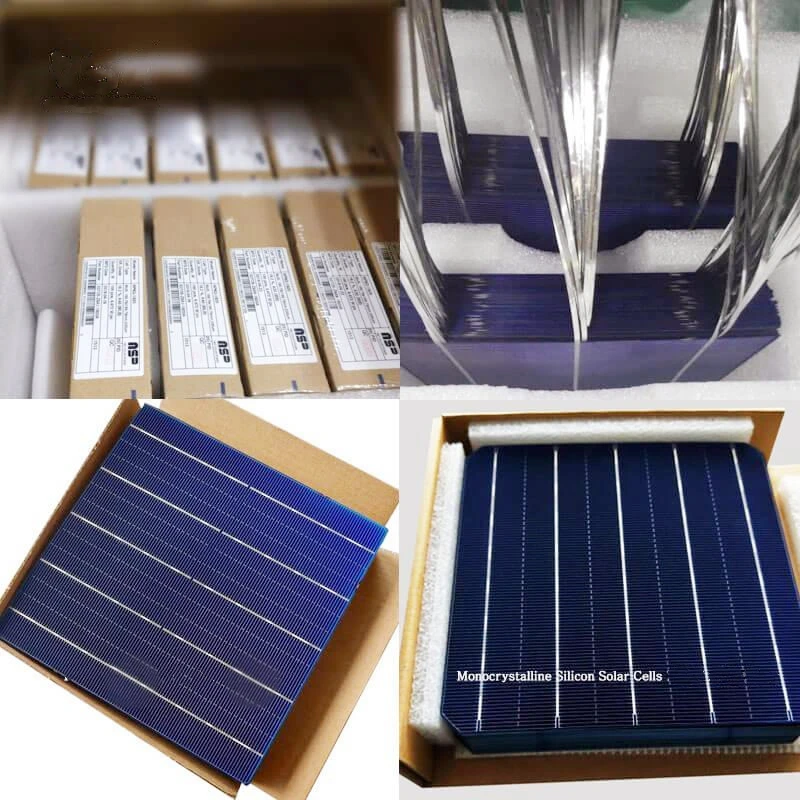

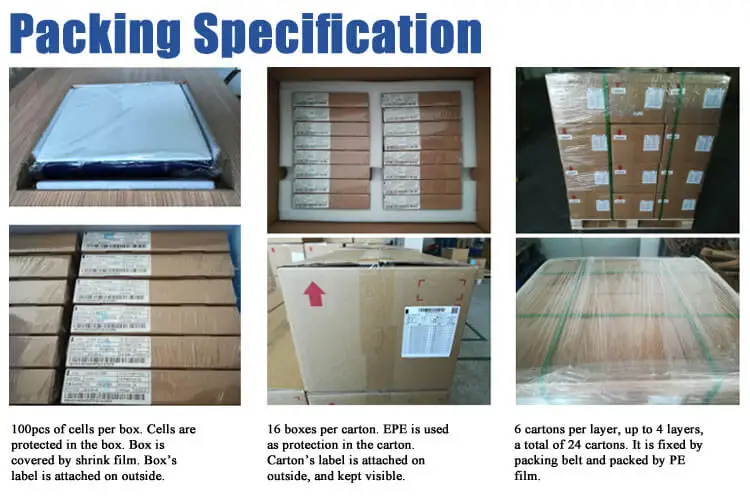

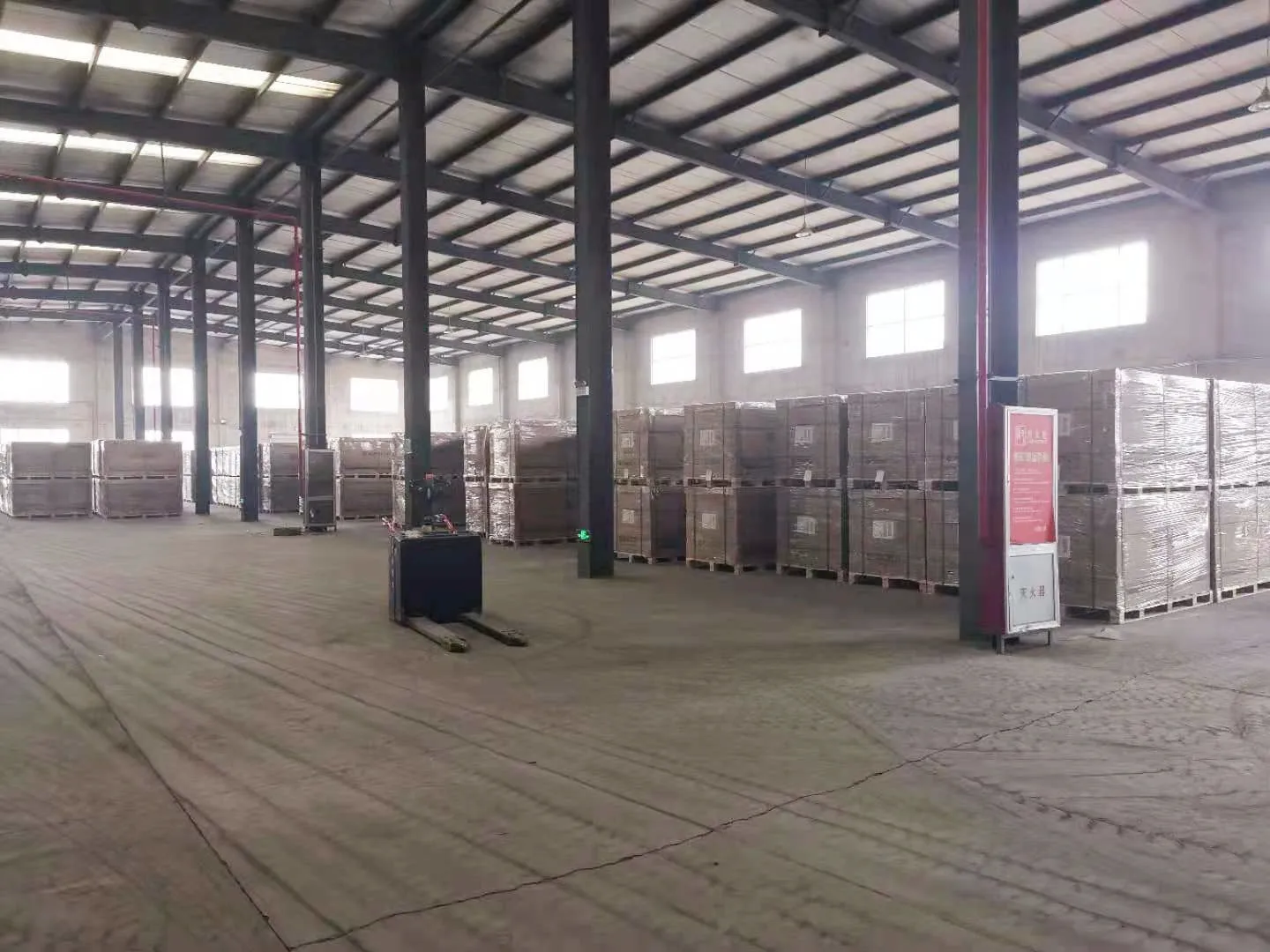

Packing & Delivery

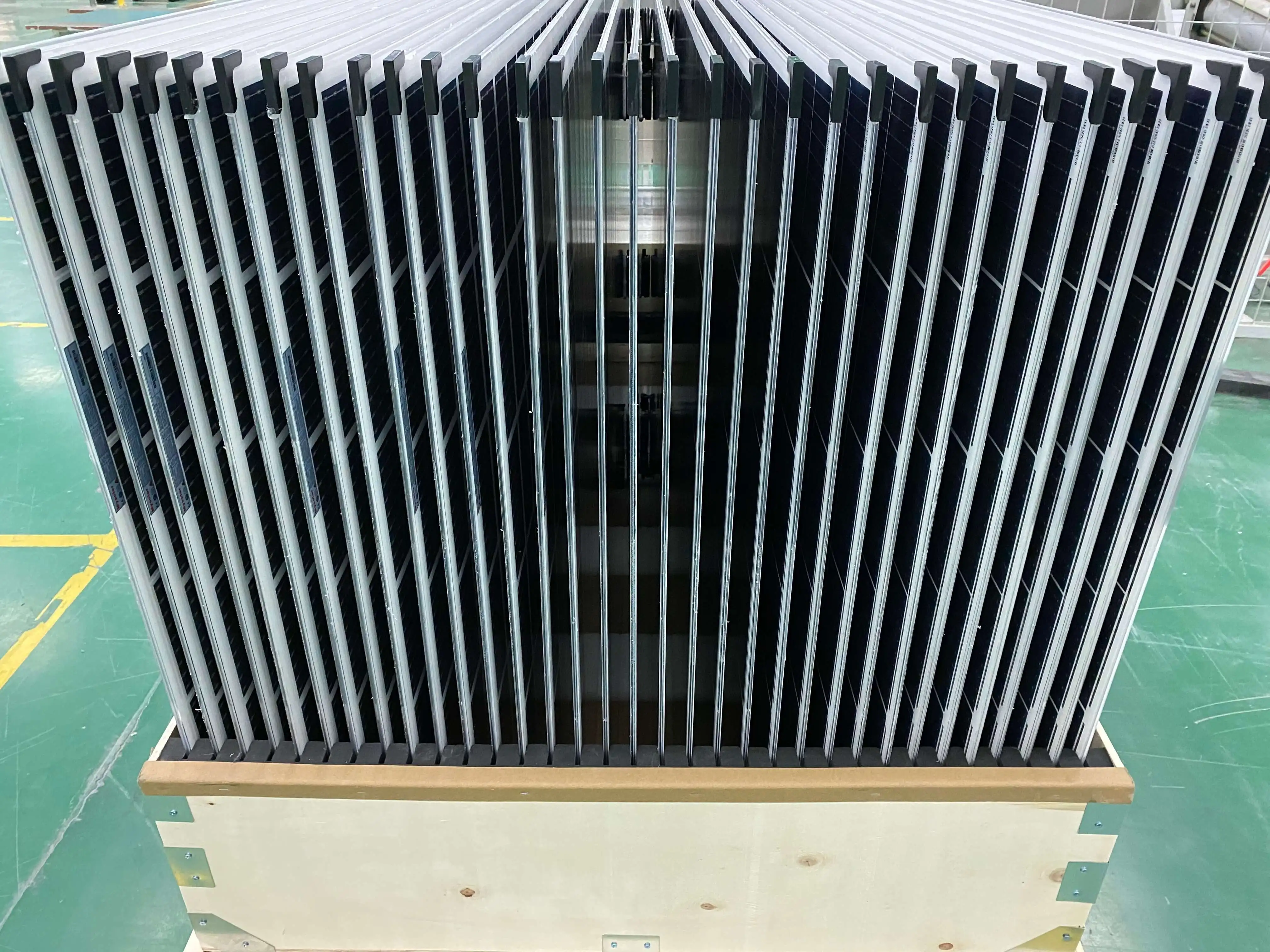

Packing
Quantity
Note
Box
100 pcs

Carton
16 boxes
Customized
Layer
24 cartons
Customized

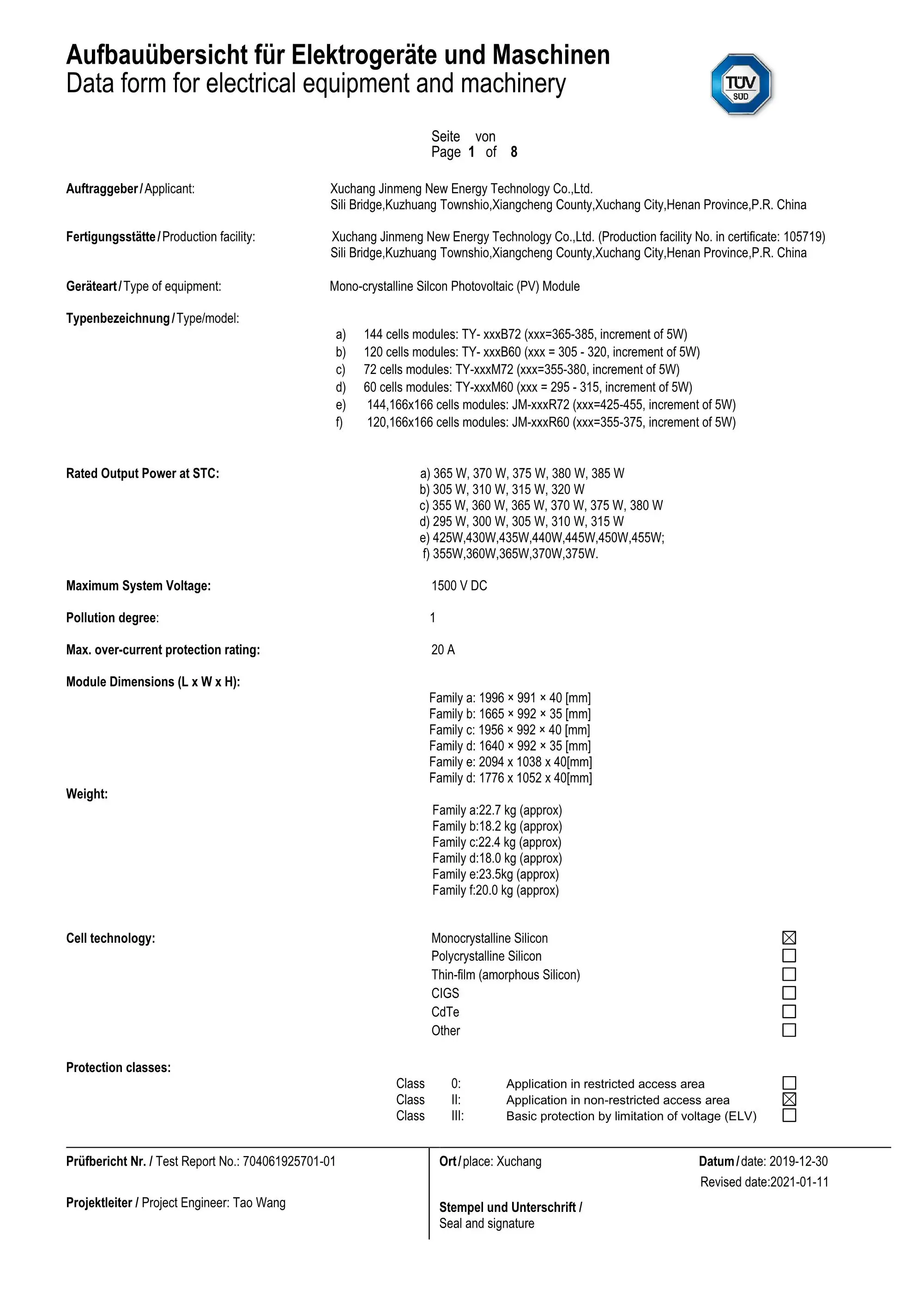

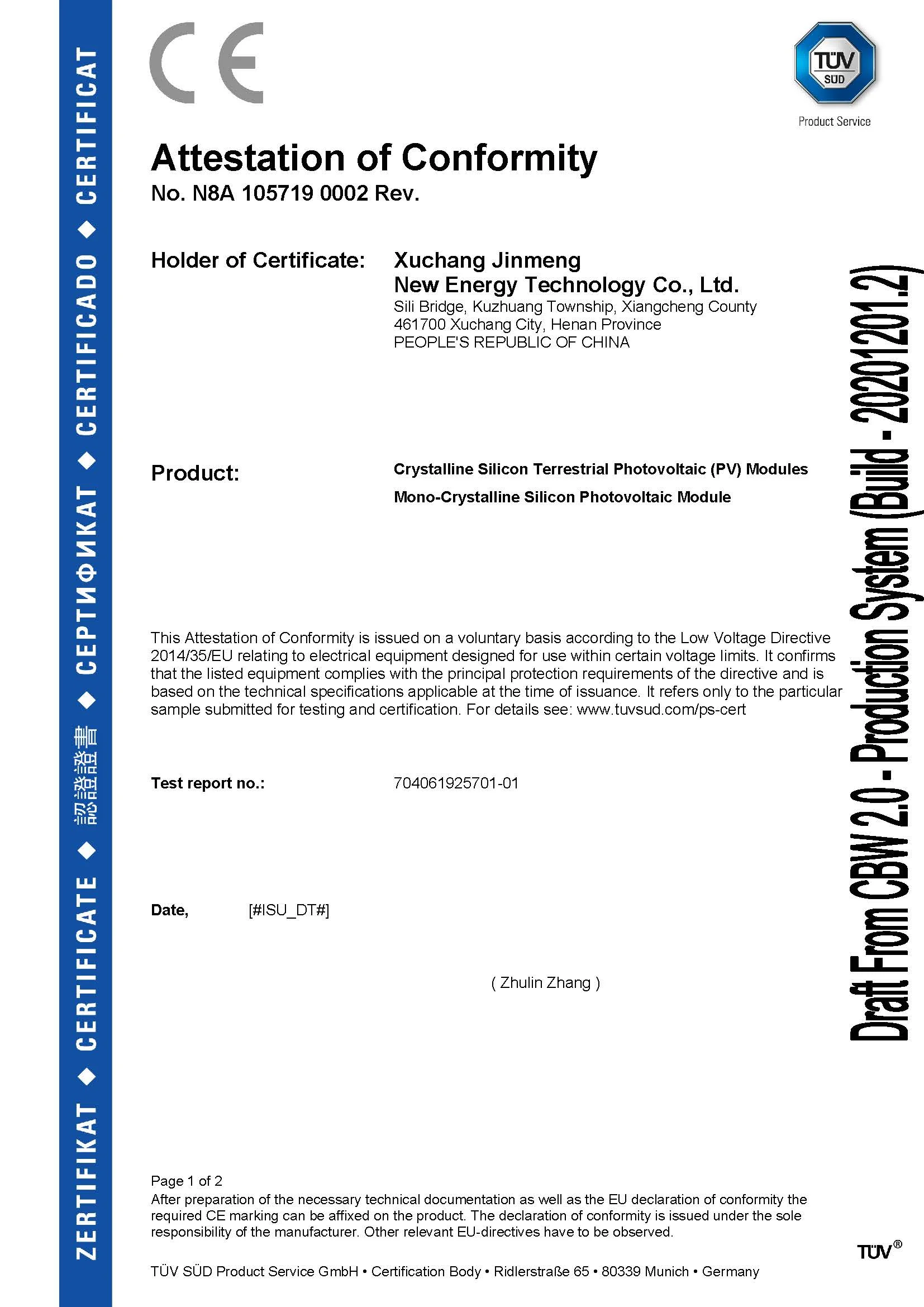

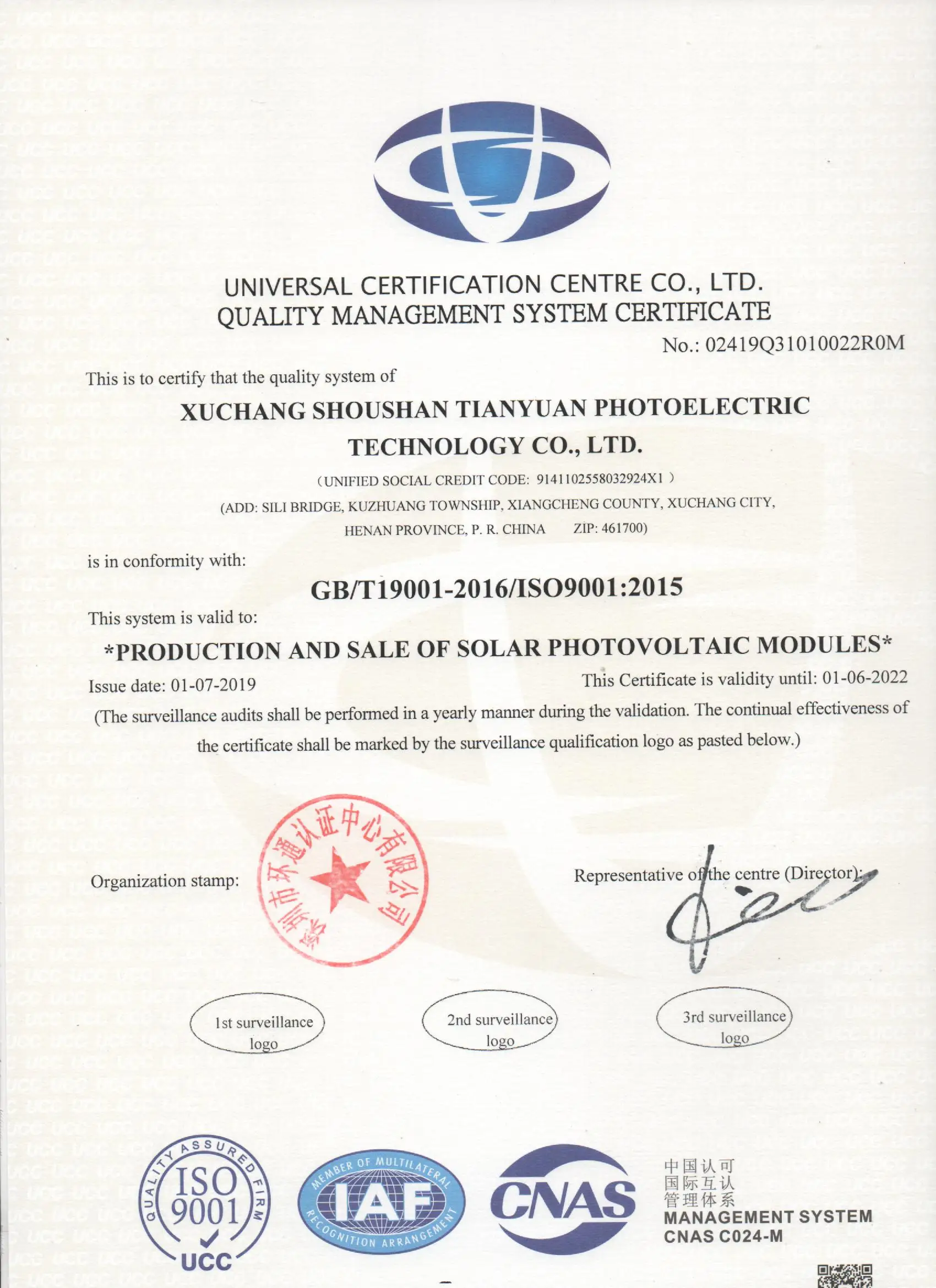

Certifications

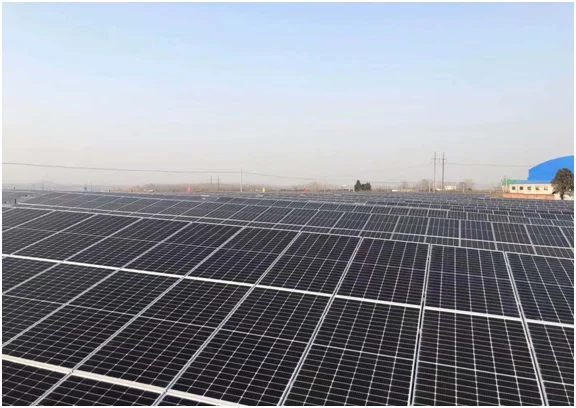

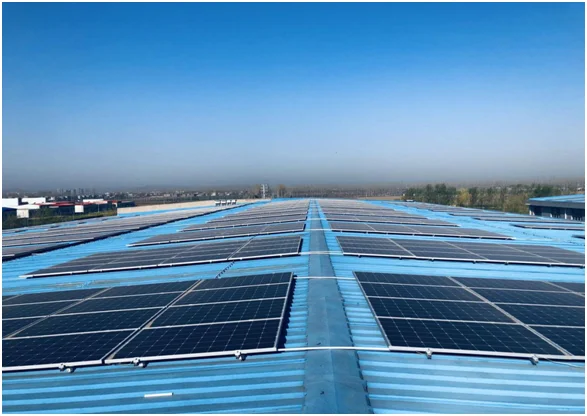

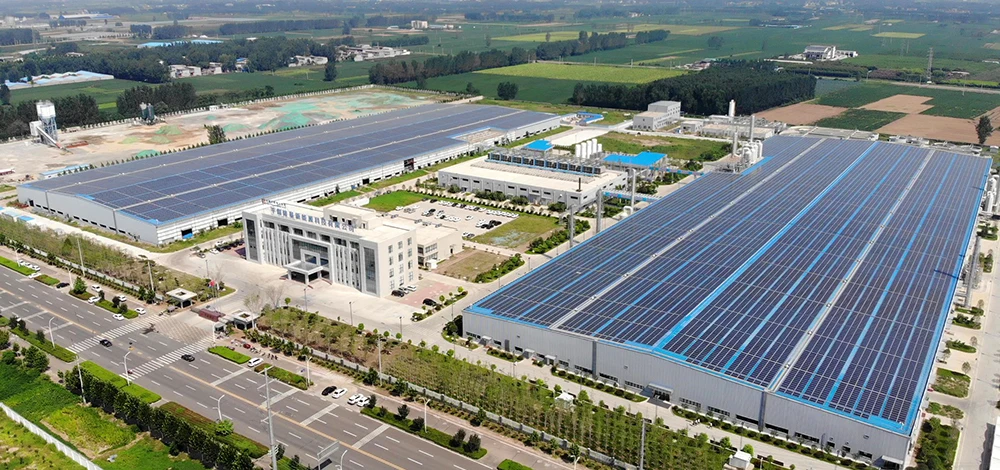

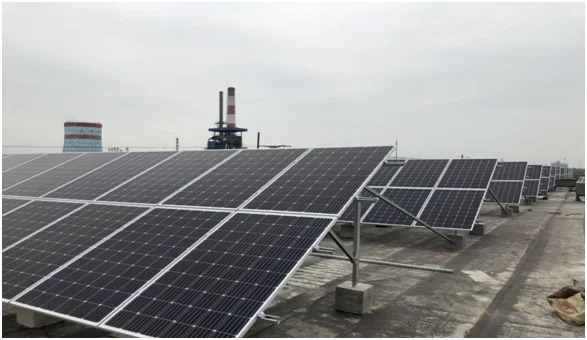

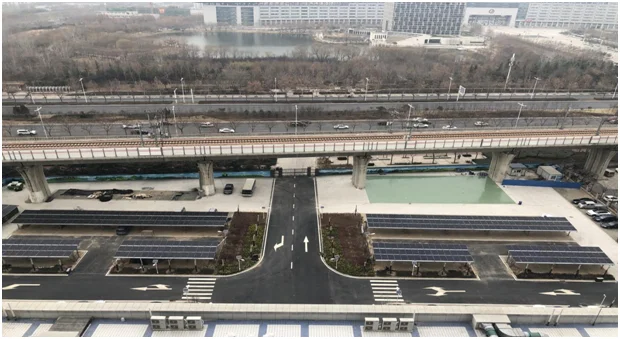

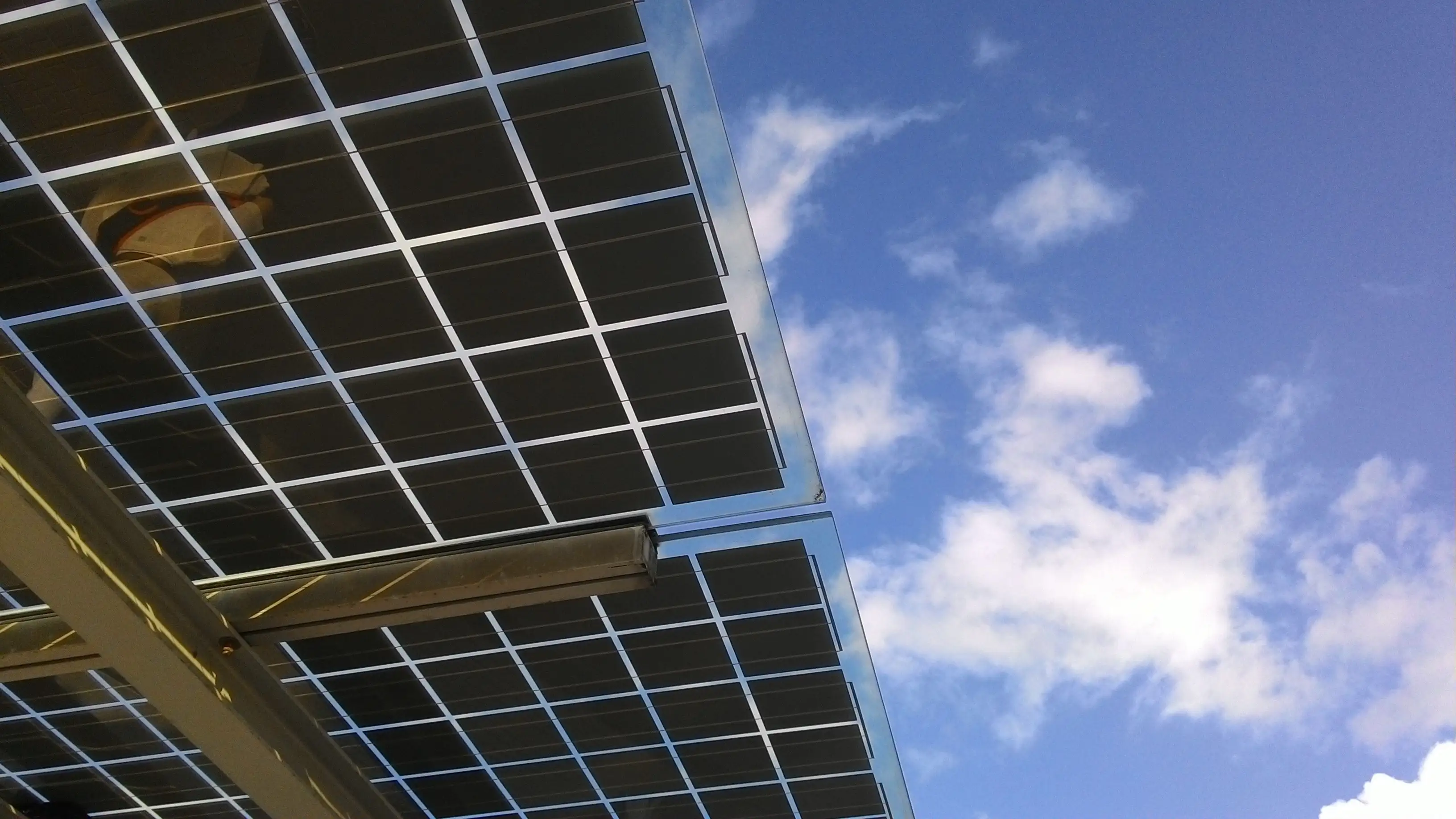

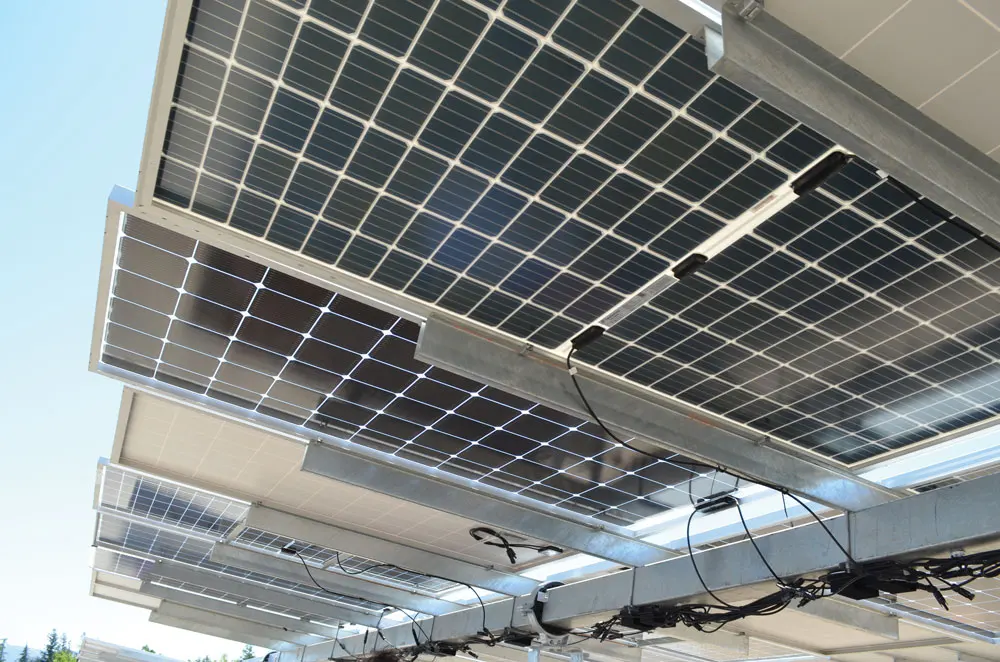

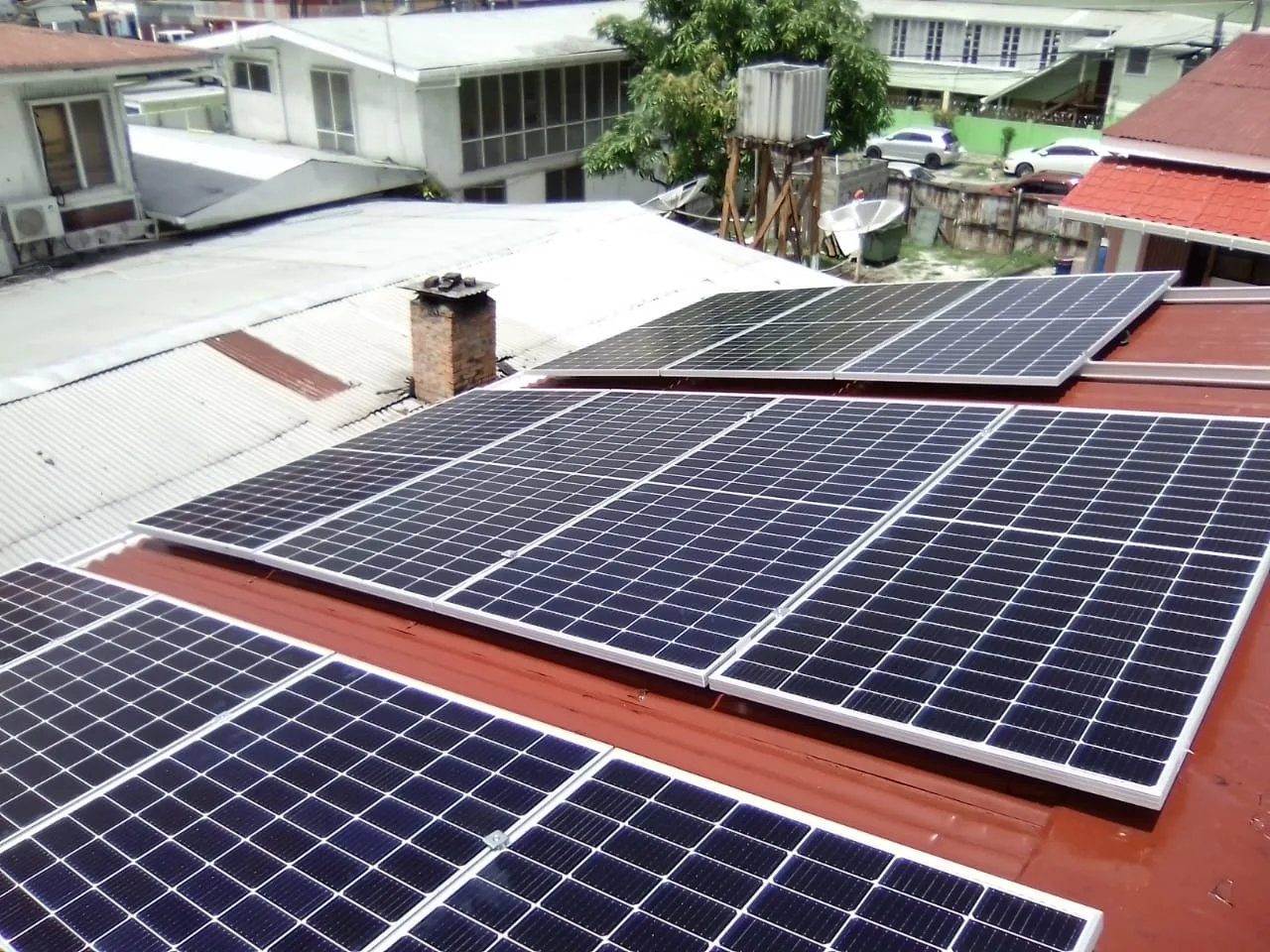

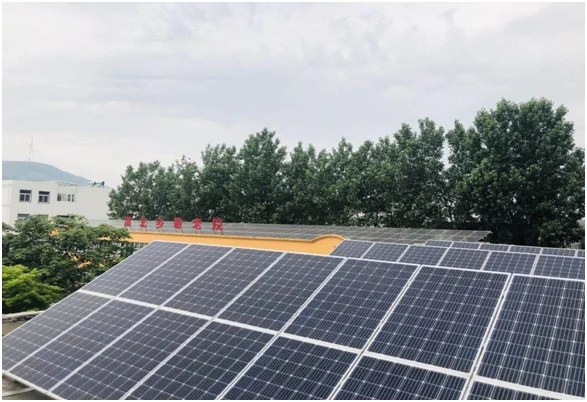

Solar Project












FAQ


Q1: Can we get samples of the solar cells and what's min order quantity?
Answer: yes, we can provide the samples of solar cells and the MOQ is 1000 pcs.
Q2:Solar cell do you have on-stock?
Answer: Yes,we have on-stock, ready to ship. usually 5000 pcs shall be delivered within 1 -2 days. 10000 pcs shall be deliver within 1-3 days after receive the payment.
Q3:Are you factory manufacturer or trade company?
We have a solar cell and solar panel factory, which also do OEM for LONGI,SUNTECT and GCL.
Q4:What is your terms of payment, how can we pay?
Answer: Our payment terms: T/T ( USD, EUR,RMB), alipay,wechat pay,paypal, cash, western union. If you have any other payment requirements, please contact us directly.
