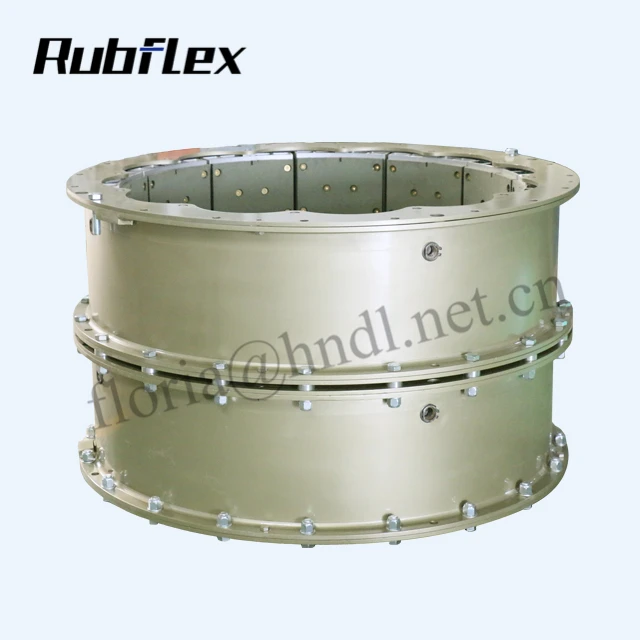

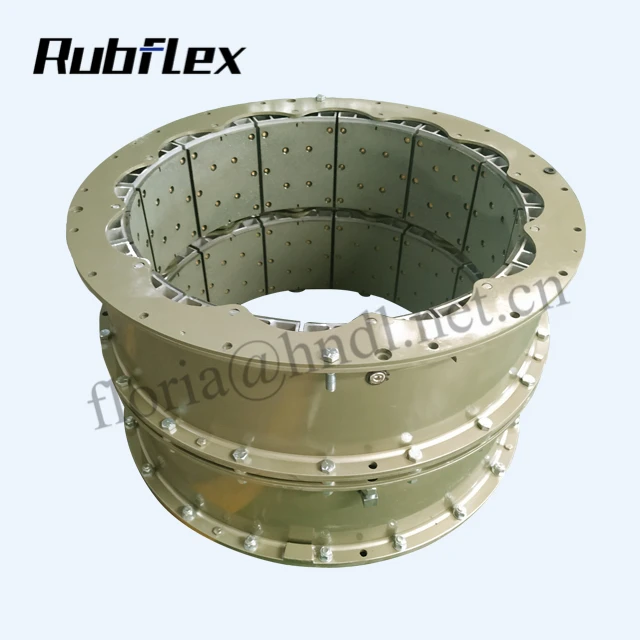

Сцепление и тормоз Rubflex VC 38VC1200 Dual 142127 142739 для судна
- Категория: >>>
- Поставщик: Henan Dalin Rubber And Telecommunications Apparatus Co. Ltd.
Сохранить в закладки 1600339189196:
Описание и отзывы
Характеристики
Product Description
VC series is specially designed for heavy equipment clutch brake products, such as ball mill,grinding machine, ship propulsion and metal forming, oil, natural gas machinery and equipment. VC type pneumatic clutch is especially outstanding in heat dissipation, it solves the problem that the traditional clutch reduces the efficiency and shortens the life time because of the large amount of heat generated by the load starting and the continuous skidding.
The VC pneumatic clutch realizes the segmented start of the mill, starting the motor first and then starting the mill, so that the entire starting process is very stable, which can effectively reduce various production costs and improve production efficiency.
How to work

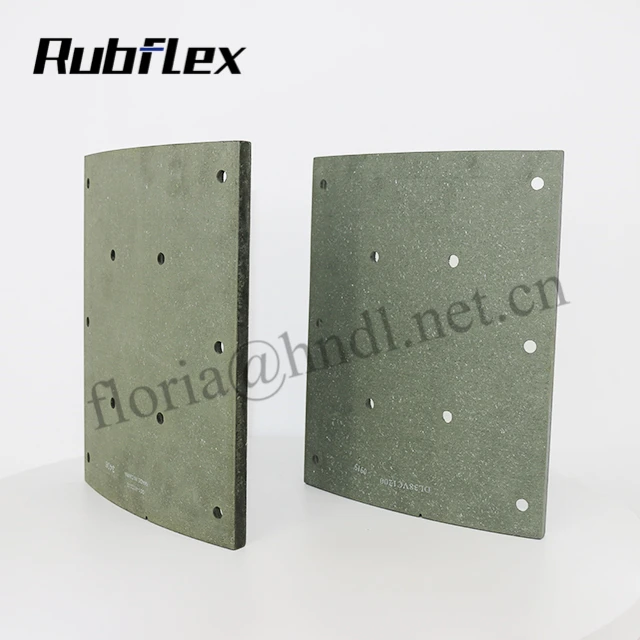

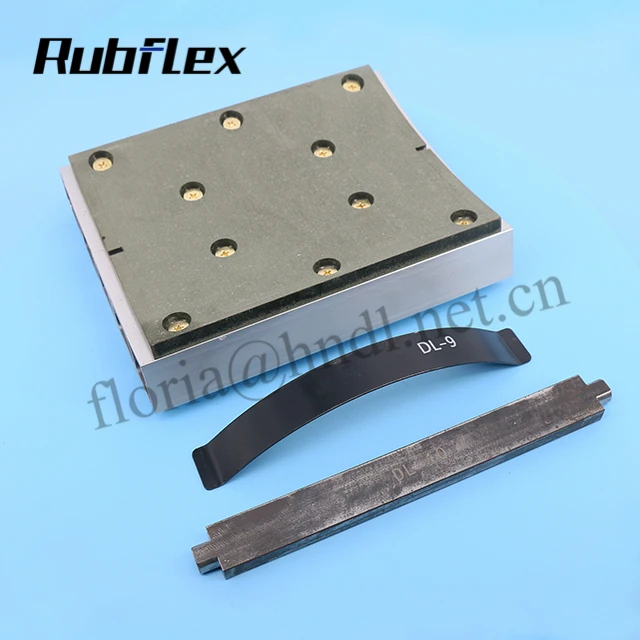

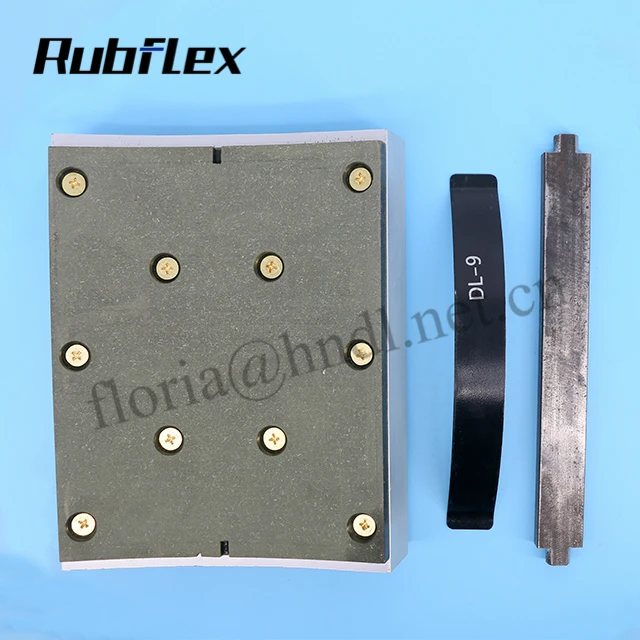

The large Torque of VC type can make it have smaller diameter, this reduces contact speed in high-speed applications, the ventilation structure allows cooling air to pass through, quickly taking away heat generated by the friction plate, Torque from the device side plate through the Torque bar to the friction plate.
Features
High starting loads Sustained slippage Improved efficiency
Extended operating life Smaller diameters with lower contact velocity
Extended operating life Smaller diameters with lower contact velocity
Size | Torque Rating | Maximum Speed | Centrifugal Loss Constant | Moment of inertia | Weight | Friction Area |
14vc1000 | 9610 | 1800 | 1.52E-06 | 5.33 | 96 | 2258 |
16vc1000 | 12900 | 1400 | 1.86E-06 | 8.90 | 109 | 3032 |
20vc1000 | 18200 | 1300 | 2.55E-06 | 12.98 | 128 | 4096 |
24vc1000 | 24700 | 1250 | 3.17E-06 | 23.18 | 171 | 4644 |
28vc1000 | 34400 | 1100 | 3.80E-06 | 34.69 | 195 | 5418 |
32vc1000 | 46900 | 1050 | 4.35E-06 | 65.94 | 283 | 6192 |
38vc1200 | 76800 | 740 | 5.66E-06 | 97.86 | 310 | 8772 |
42vc1200 | 92500 | 670 | 5.93E-06 | 154.10 | 405 | 9675 |
46vc1200 | 107000 | 600 | 7.45E-06 | 202.90 | 444 | 9097 |
52vc1200 | 137000 | 550 | 8.76E-06 | 306.00 | 594 | 10256 |
51vc1600 | 182000 | 550 | 8.63E-06 | 444.40 | 830 | 15351 |
60vc1600 | 247000 | 520 | 10.01E-06 | 852.30 | 1077 | 18060 |
66vc1600 | 316000 | 480 | 12.83E-06 | 1044.00 | 1191 | 19866 |
SI | N.m/@5.2bar | rpm | bar/rpm2 | kg.m2 | kg | cm2 |
Related Products
Exhibition Photos
Packing&Shipping
1.About Packing:
strong carton, wood case, or other exported packing as your need.
2.About Shipment:
We will deliver the goods according to the stipulated time without any delay.
3. About Ports: Qingdao/Tianjin/Shanghai
strong carton, wood case, or other exported packing as your need.
2.About Shipment:
We will deliver the goods according to the stipulated time without any delay.
3. About Ports: Qingdao/Tianjin/Shanghai
After Sales Service
CUSTOMERS’ SERVICE:
1. Well trained and experienced staffs at your service.
2. Short lead time.
3. International standard matched.
4. Designed in accordance with customers’ request.
5. Packed and delivered by customers’ requirement.
1. Well trained and experienced staffs at your service.
2. Short lead time.
3. International standard matched.
4. Designed in accordance with customers’ request.
5. Packed and delivered by customers’ requirement.
Company Introduction
1.More than 25 years production experience.
2.Boast complete set of production equipment and technical instruments.
3.Registered Captical:$8,300,000
4.Number of staff:200
5.Address:1 Jiushan Road,Huixian,Xinxiang,Henan,China
6.Website:www.dalinmotion.com
2.Boast complete set of production equipment and technical instruments.
3.Registered Captical:$8,300,000
4.Number of staff:200
5.Address:1 Jiushan Road,Huixian,Xinxiang,Henan,China
6.Website:www.dalinmotion.com
Our Services & Strength
We have our own R & D team and a complete set of transmission experimental testing
systems, which can provide theoretical and practical technical support and after-sales service for our products.
A good software and hardware foundation provides a strong and reliable guarantee for the company's product quality. We focus on quality, reputation, and delivery time. Our company's as always is our purpose! We hope to cooperate successfully and create brilliant !
systems, which can provide theoretical and practical technical support and after-sales service for our products.
A good software and hardware foundation provides a strong and reliable guarantee for the company's product quality. We focus on quality, reputation, and delivery time. Our company's as always is our purpose! We hope to cooperate successfully and create brilliant !
FAQ
1. Are you Manufactory or trade company?
We are Manufactory specialized in designing and manufacturing for pneumatic air tube and its accessories.
2. Do you have stock?
Yes,we have most standard products in stock.
3.What is your MOQ?
1 PCS for most standard products.
4. How to control quality?
We have a very strict quality controlling system which promises that goods we produced are always of the best quality.
5. How soon can you deliver the goods?
We will deliver the goods in 3-5days after we receive the payment.
6. About payment:
We accept T/T, Paypal, Western Union or credit card.
.
We are Manufactory specialized in designing and manufacturing for pneumatic air tube and its accessories.
2. Do you have stock?
Yes,we have most standard products in stock.
3.What is your MOQ?
1 PCS for most standard products.
4. How to control quality?
We have a very strict quality controlling system which promises that goods we produced are always of the best quality.
5. How soon can you deliver the goods?
We will deliver the goods in 3-5days after we receive the payment.
6. About payment:
We accept T/T, Paypal, Western Union or credit card.
.
Please feel free to send us your detailed requirements,you should be satisfied with our service.
Похожие товары
Авто Генератор JA180IR RF01-18-300 R264-18-300 RF09-18-300 RF30-18-300B подходит Mazda E2200 Econovan
Стартер двигателя Lester 33311 M009T61471 20732977 20397219 подходит для Renault Kerax Volvo FM 300 340
Закрытый Электрический трехколесный велосипед для пожилых людей, экспорт в США и Европу
2 199,00 $ - 2 799,00 $
Сухой Детокс фруктовые ломтики 20 формула полная добавка Vc Фруктовый Цветочный чай смешанные ароматизаторы на заказ
0,35 $ - 0,45 $
Стартер двигателя Lester 17898 04896464AC 4896464AC M000T21071 подходит для Chrysler 300 Dodge Charger Magnum

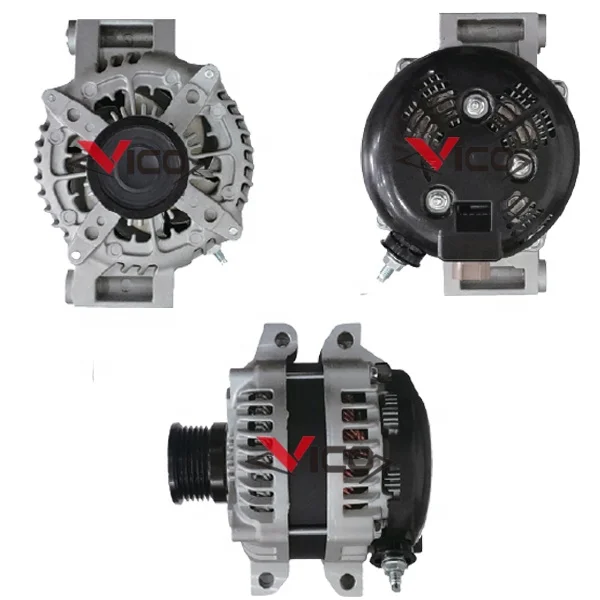

Автомобильный генератор переменного тока 104210-6591 4801835AC 4801835AB P04801835AB P04801835AC подходит Jeep Cherokee Chrysler 300

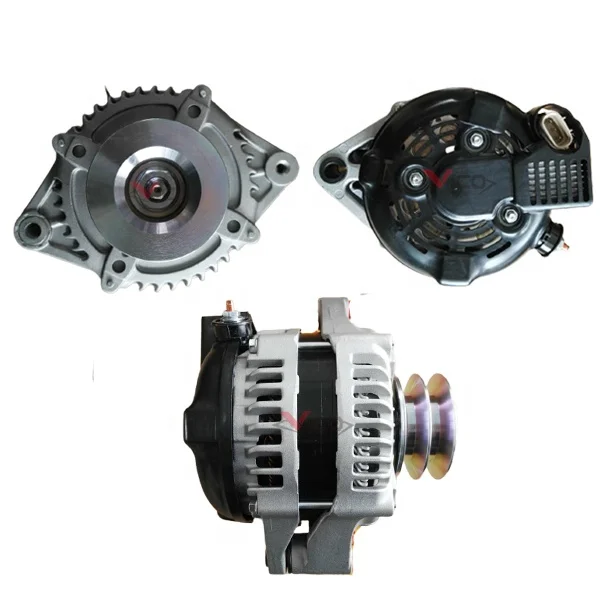

Авто Генератор 104210-1810 104210-1811 104210-3800 104210-3802 подходит для кобелко-Экскаватора 300 N04C-TJ Toyota Dyna
