Измеритель диаметра лазерного кабеля для измерения проводов и кабелей

Сохранить в закладки 1600340224817:


Цена:4 220,00 $ - 4 235,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Specification


item
value
Place of Origin
China
Brand Name
HOOHA
Measuring Precision
±lum±-0.008%*Dz
Effective range
0.1-50MM
Light exposure duration
on:< 200 us
Scan Rate
1200 time/ s
Interface
modbus or RS-485
Single gross weight
10.000 kg
Transport Package
Wood Package
Origin
Dongguan China
HS Code
8479400000
Warranty
12 months
Specification
CE ISO


Product Description

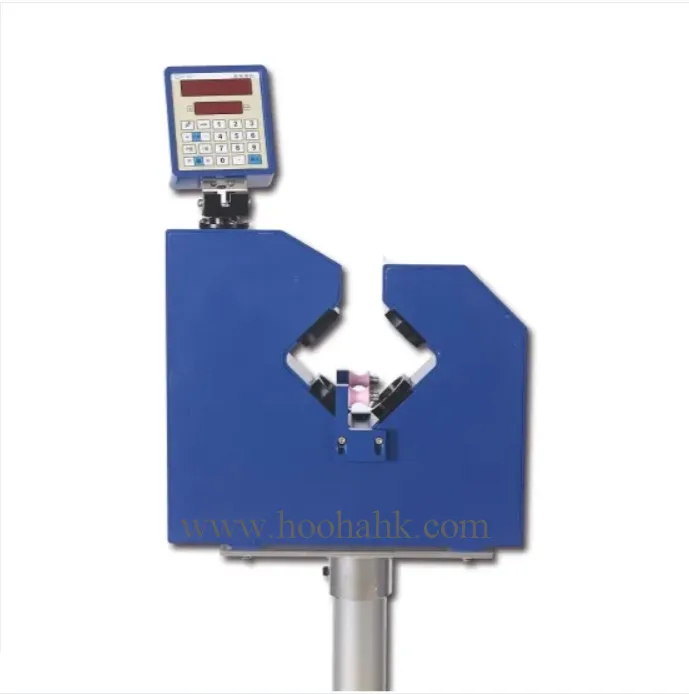

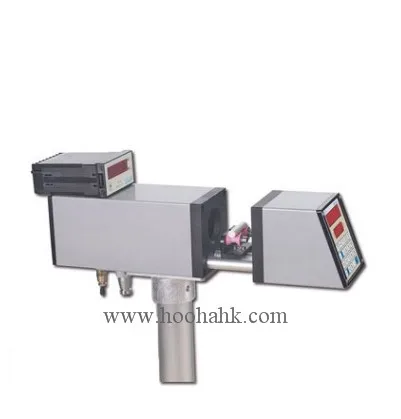

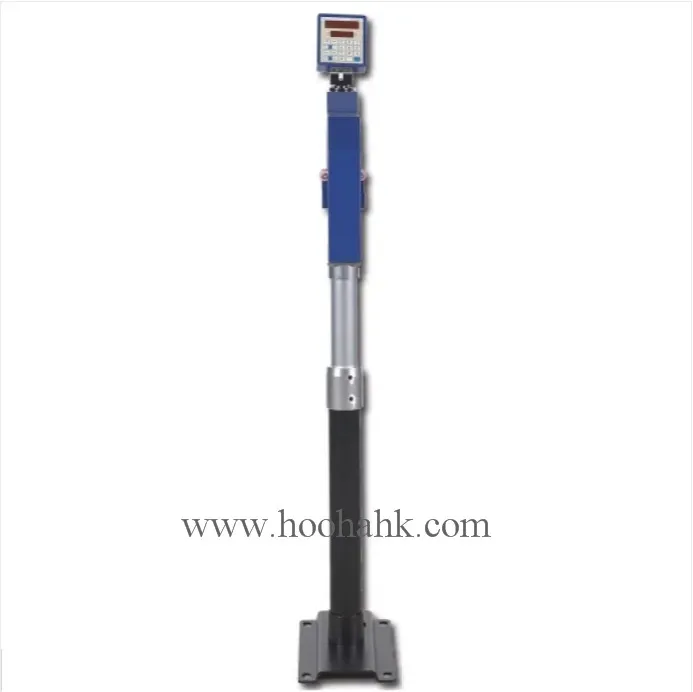

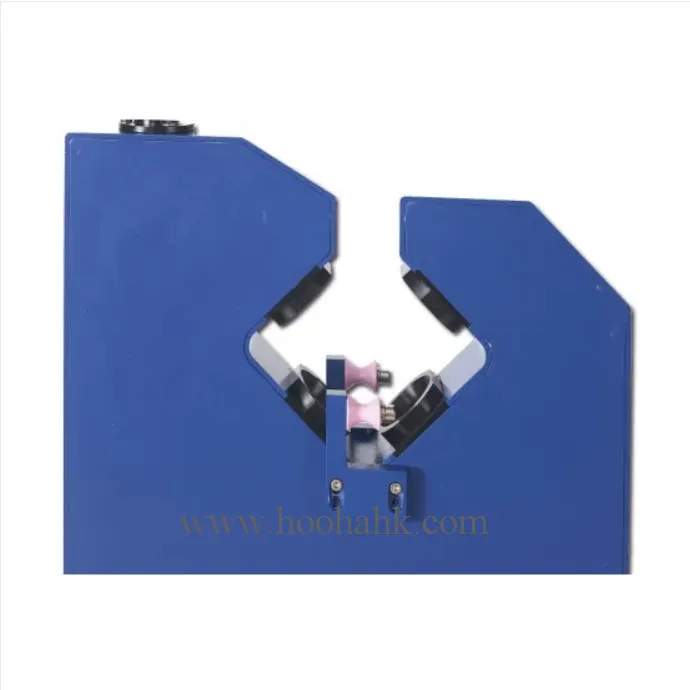

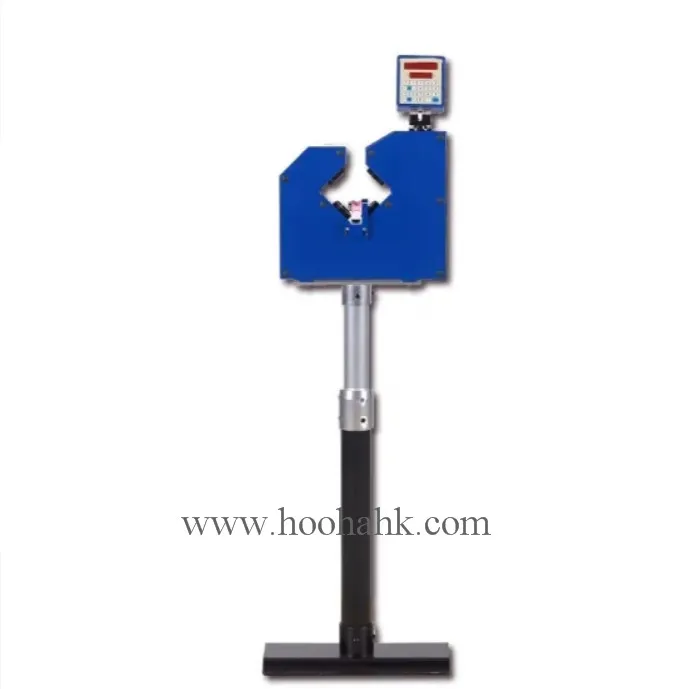

Laser Cable Diameter Gauge for Wire and Cable Measurement
Applications:
1.Various transparent and translucent objects such as glass tubes and glass rods
2.Local area network (LAN) cable
3.Coaxial cable
4.Optical fiber, flat cable
5.Frequency camera cable, communication cable
6.Power cables, pipes, wires



Remote display product description:

Installation opening size: 91.5*43;
Features: not only has a remote display function, but also has a number;
Interface: RS485/232;Feedback voltage output: 0-10V;
PID control output: ±0.1-2.1V; Out of tolerance alarm output voltage (12V), the maximum distance up to 300 meters.




The product description:
Non-contact optical measurement
Operation panel display from multiple perspectives
Laser or LED long life light source
USES the advanced DSP processing technology
The fine dust, the resistance design
Degree of protection IP65, NEMA4
S232/485 communication interface
Automatic closed-loop control technology, automatic feedback control line size
Measurement is not affected by velocity and vibration, the wire diameter out-of-tolerance alarm automatically
Scan speed 600 times per second fastest (up to 1400 times per second)


Specification
HH-3025
HH-3040
HH-70/90/100/140
Effective measuring range:
0.2-25mm
0.5-40mm
1-70/120/140mm
Measuring Precision:
±0.002mm
±0.003mm
±0.004mm
Resolution:
0.001mm
0.001mm
0.001mm
L*W*H:
290*66*170mm
400*68*175mm
504*86*230mm
Weight:
5KG
8KG
10KG


Power cable production line:




Related Products:




The Wire Samples




The machine is mainly used for All kinds of transparent, translucent objects, such as glass tubes, glass rod local area network (LAN) cables, Coaxial cable, Optical fiber, flat cable, Frequency perturbation cable, communication cable, Power cable, pipe, wire.
