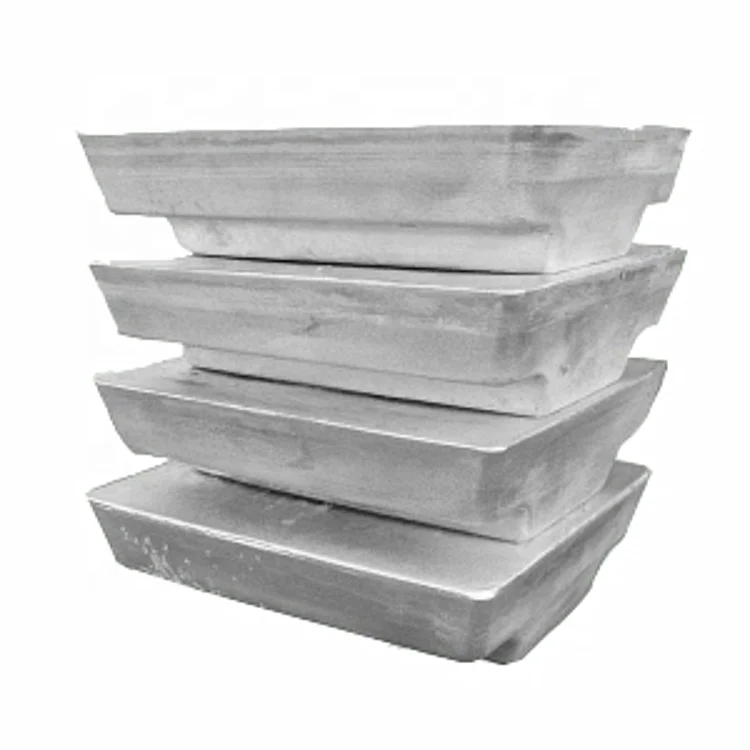

Алюминиевый слиток ADC 12 A5 A7 алюминиевый сплав слиток Экструзия алюминия сделано в Китае
1 500,00 $ - 2 400,00 $
Горячая Распродажа сушильная печь ct c с циркуляцией горячего воздуха для вяленой говядины/промышленной печи
- Категория: >>>
- Поставщик: Changzhou Jumei Drying Equipment Co. Ltd.
Сохранить в закладки 1600340587029:
Описание и отзывы
Характеристики

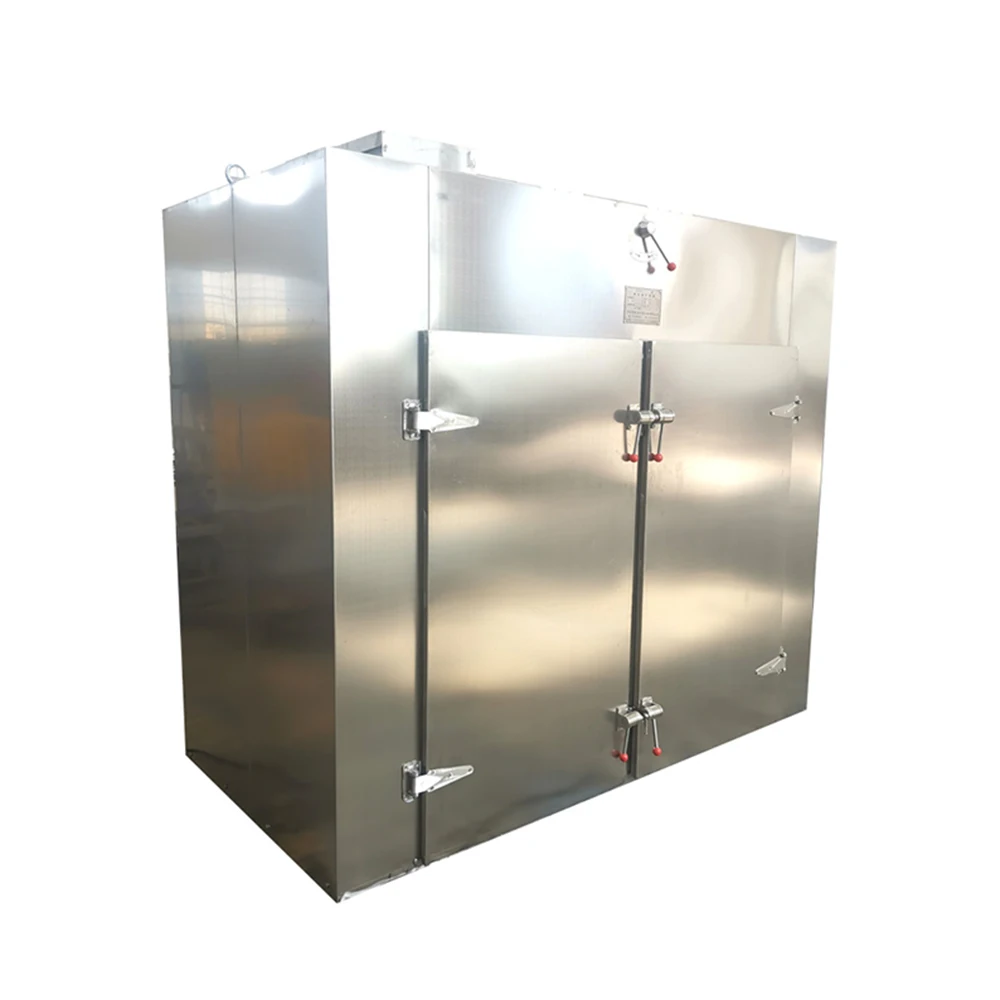

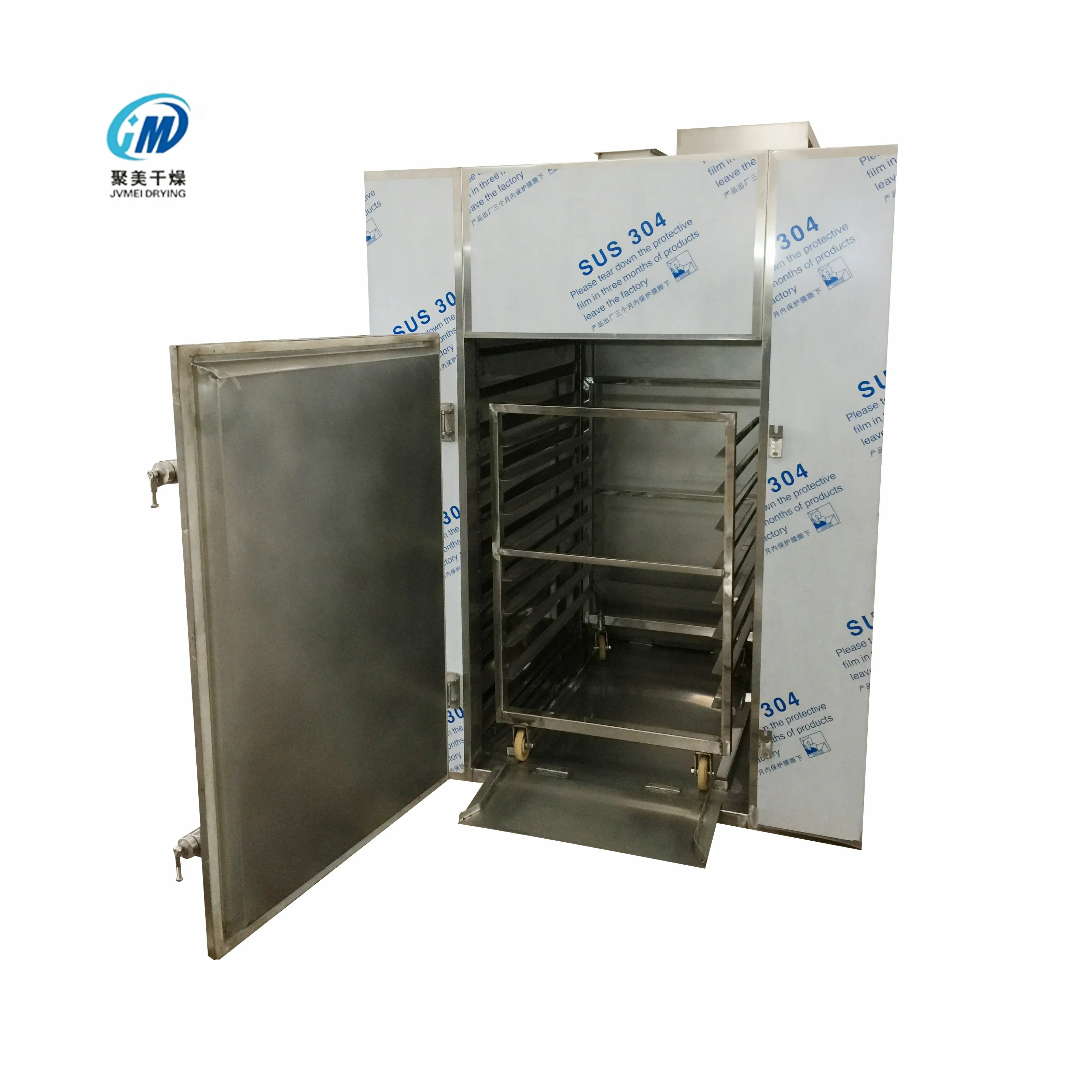

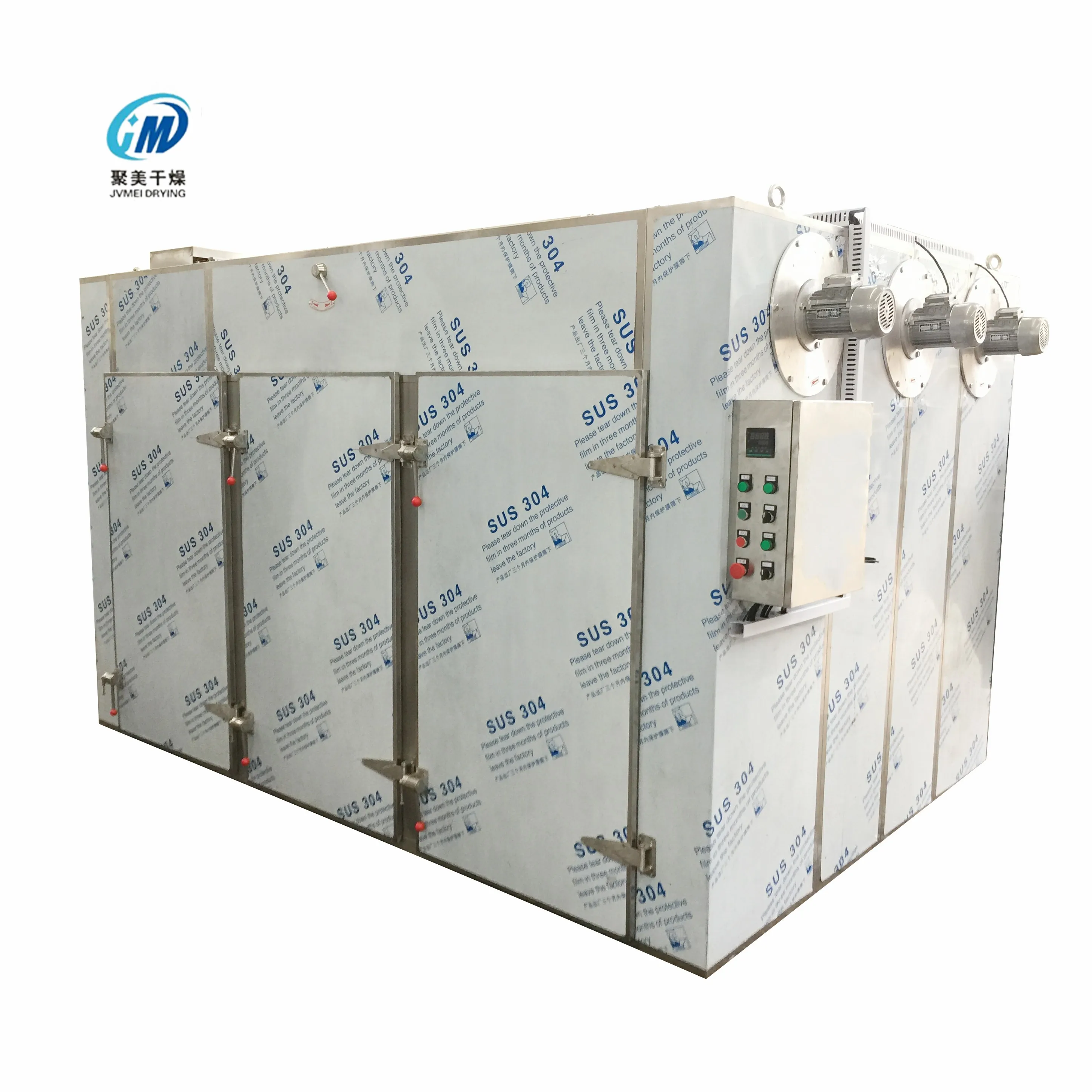

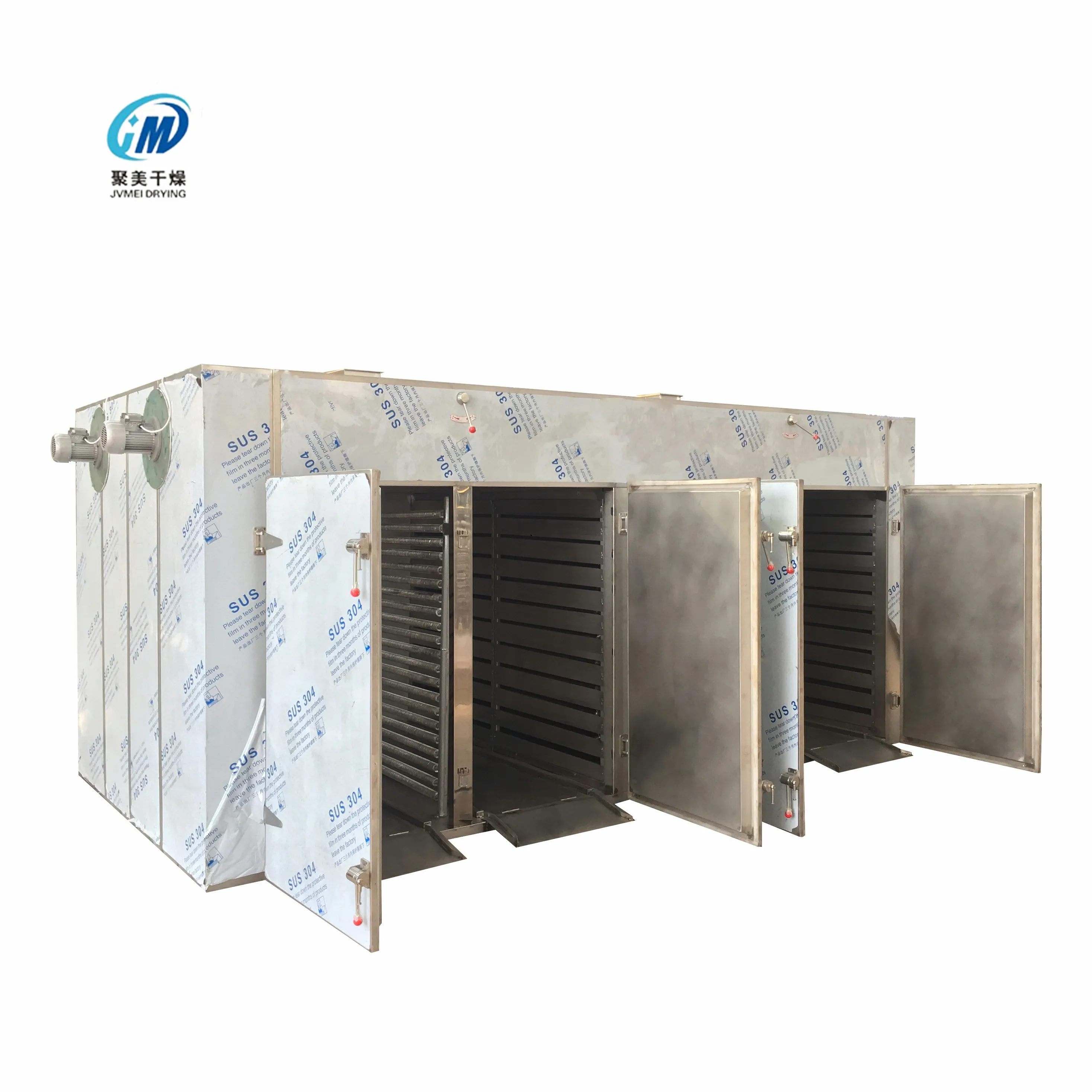

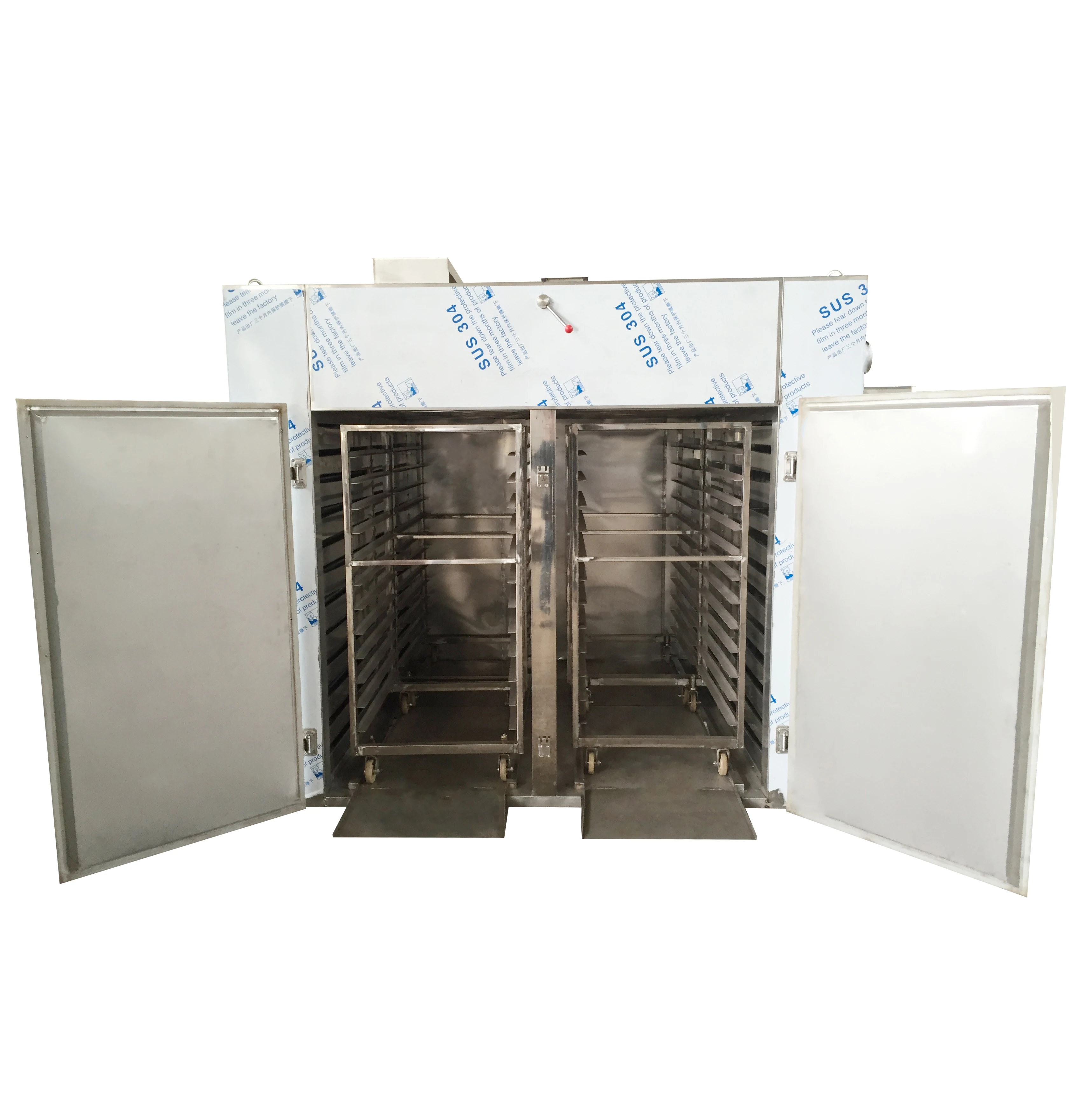

2021 Custom Medical Hot Air Circulation Drying Oven Hot Air Circulating Drying Oven
Introduction
CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature
control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7%
of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design
of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the
world. It saves energy and increases the economic benefit.
control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7%
of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design
of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the
world. It saves energy and increases the economic benefit.
Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating
function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly. The heating source
might be steam, hot water, electricity and far infrared, with a wide selection. The whole machine is low in the noise. The
operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application
is wide. The machine can be used for drying various materials and is a versatile drying equipment.
function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly. The heating source
might be steam, hot water, electricity and far infrared, with a wide selection. The whole machine is low in the noise. The
operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application
is wide. The machine can be used for drying various materials and is a versatile drying equipment.
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity. 2.Drying temperature: steam heating
50-130˚C, Max.140˚C. 3.Electricity and far infrared:50-300˚C.Automatic control system and computer control system on request.
4.Commonly using steam pressure 0.2-0.8MPa(2-8 bar). 5.For CT-C-I, electric heated, rated power consumption:15kW, real consumption
: 5-8kW/h. 6.The special requirements should be indicated at the time of order. 7.For operation temperature of over 140˚C or less
than 60˚C, please indicate when order. 8.The ovens and baking trays made by our factory are uniform in dimensions, and can be
exchanged each other. 9.Baking plate dimensions:460x640x45mm.
50-130˚C, Max.140˚C. 3.Electricity and far infrared:50-300˚C.Automatic control system and computer control system on request.
4.Commonly using steam pressure 0.2-0.8MPa(2-8 bar). 5.For CT-C-I, electric heated, rated power consumption:15kW, real consumption
: 5-8kW/h. 6.The special requirements should be indicated at the time of order. 7.For operation temperature of over 140˚C or less
than 60˚C, please indicate when order. 8.The ovens and baking trays made by our factory are uniform in dimensions, and can be
exchanged each other. 9.Baking plate dimensions:460x640x45mm.
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical,
food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material
medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill,
packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking
varnish and etc.
food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material
medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill,
packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking
varnish and etc.
industry standard Spec. No. | spec. | batch drying capacity (Kg) | Power (Kw) | Steam to be consumed (Kg/h) | Heat radiation arer (m2) | velocity (m3/h) | Temperature between the top and the bottom (°C) | Baking trays (piece) | |||||||
RXH-5-C | CT-C-0 | 25 | 5 | 5 | 5 | 3400 | ±2 | 8 | |||||||
RXH-14- C | CT-C- IA | 50 | 0.45 | 10 | 10 | 3400 | ±2 | 24 | |||||||
RXH-14- C | CT-C- I | 100 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | |||||||
RXH-27- C | CT-C- n | 200 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | |||||||
RXH-41- C | CT-C- m | 300 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | |||||||
RXH-54- C | CT-C- IV | 400 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | |||||||
RXH-25-A | high efficiency and high temperature far infrared sterilizing oven | ||||||||||||||
01
Stainless Steel Material, One Year Warranty
02
Customized Models Available
03
Smooth Running Effect
1、Q: Is Changzhou Jumei drying equipment Co.,Ltd. a manufacturer , trading company or a third party?
A:We are a manufacturer and our company was foundedin 2013.
2、Q:Where is your factory?
A: Jumei is located in Changzhou City，Jiangsu Prov-ince,China, which is located in the Yangtze River Delta,the economic center of China.
3、Q:How can l get to your factory?
A: You can fly directly to Shanghai Pudong or HongqiaoInternational Airport,and then take the high-speed rail-way to Changzhou station (it's only one hour by train fromShanghai to Changzhou). We arrange to meet you atChangzhou station to our company. Our company isabout 30 kilometers away from Changzhou station.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
We sincerely welcome you to visit our company at anytime.
Похожие товары

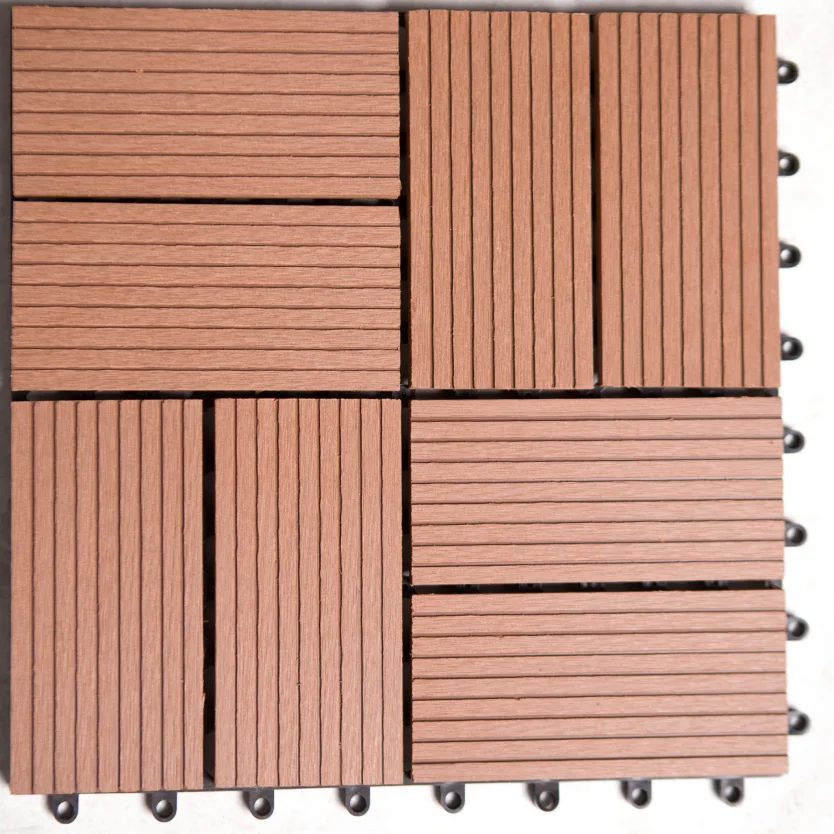

Оптовая продажа наружной твердой древесины ПВХ композитный DIY Настил Напольная Плитка для сада
1,89 $ - 2,29 $
15 шт. кошка фетр кошачьи игрушки Интерактивная кошка футболист игрушки милый кот чистка зубов игрушки
1,40 $ - 1,80 $

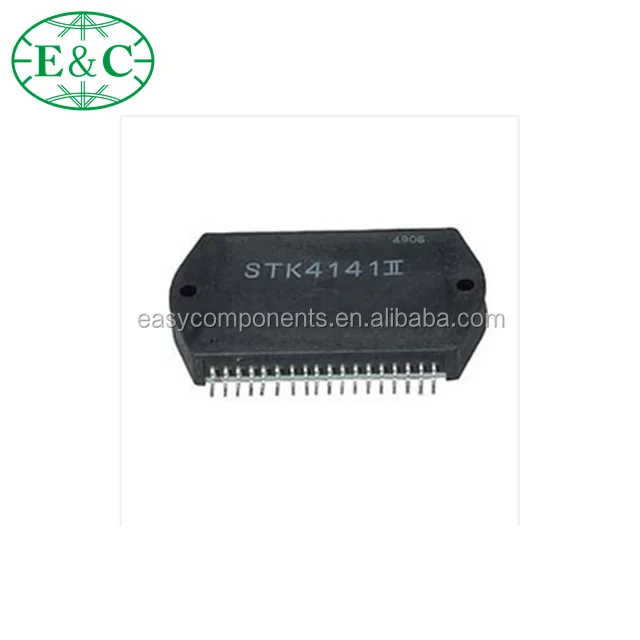

Аудио усилитель высокой мощности ic stk4141

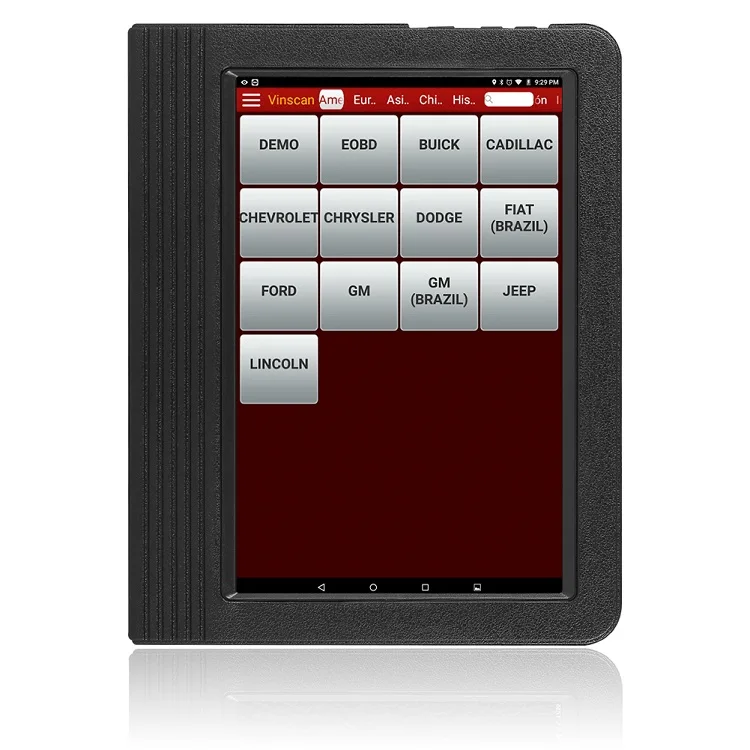

Launch x431 v плюс бензиновых и дизельных автомобилей диагностический сканер escaner para внешние gasolina y дизельного топлива
