Устройство для защиты водителя от засыпания система оповещения о безопасности ученика превышении скорости в режиме реального времени монитор предупреждения усталости
- Категория: >>>
- Поставщик: Guangzhou Hao Nai Electronics Technology Co. Ltd.
Сохранить в закладки 1600340653430:
Описание и отзывы
Характеристики
Product Description
Driver anti sleep device pupil detect safe driver alert system overspeed real-time driver anti fatigue driving warning monitor

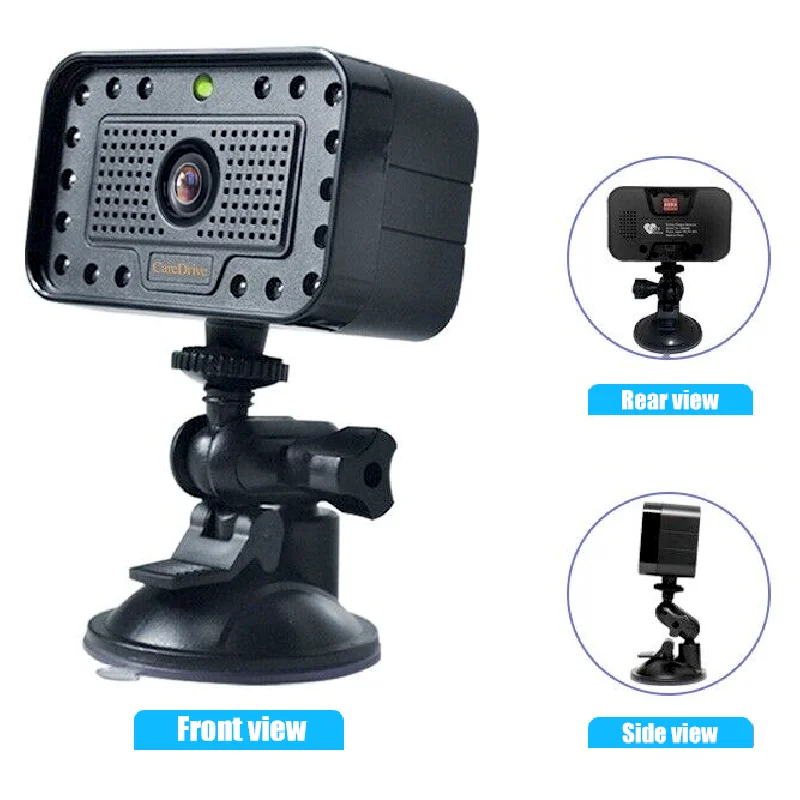

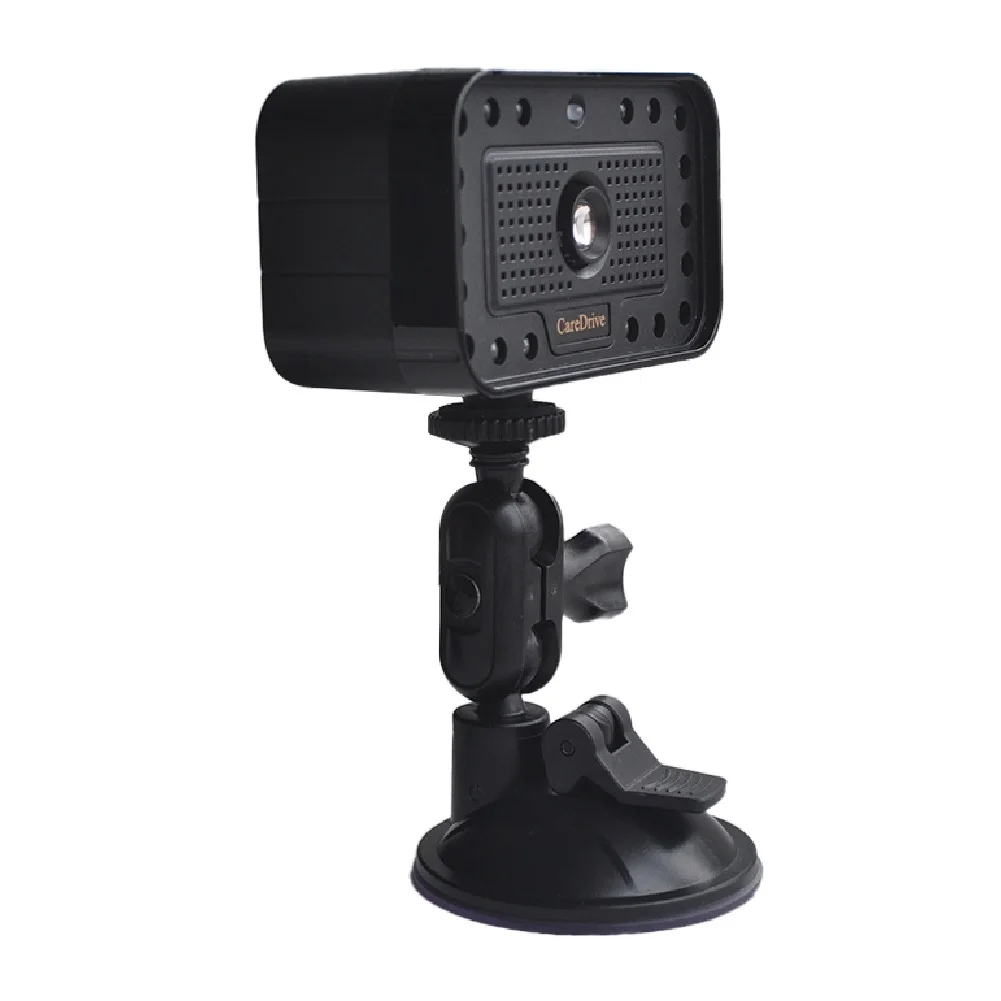

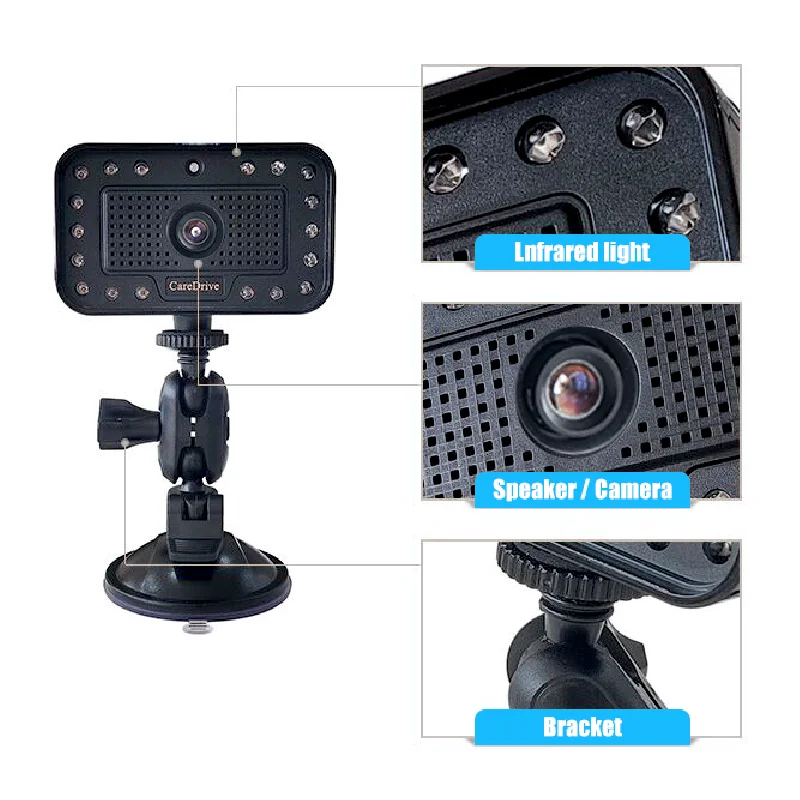

Driver Fatigue Monitor MR688b is a driver and vehicle safety product which can accurately predict and warn driver's sleeping during the driving to protect driver's life and avoid the damage to the vehicle. We started this product with military, and now lots of military, mining, fleet and government's vehicles are using our product MR688b. It is getting more and more popular around the world.
Product Paramenters
Items | Parameter |
Product Model: | MR688B |
Product Size: | 91.5*42.5*127.5mm |
Camera Type: | CMOS |
Operating Voltage: | DC12/24V |
Minimum Operating Voltage: | 9V |
Maximum Operating Voltage: | 32V |
Working Current: | 12V power, about 380mA 24V power, about 180mA |
Working Temperature: | -10℃~+50℃ |
Storage Temperature: | -45℃~+85℃ |
Detection Distance: | 60-100cm |
Detection Accuracy: | 96% |
Vibration Measurement: | Max Gs is 27G |
Driver Drowsiness Recognition (sec): | Min.1s It can be modified to setup sensitivity |
Volume: | Adjustable |
Over Speed Alarm: | Optional |
Signal Output: | Optional |
Image Output: | Optional |
Video Output: | Optional, NTSC/PAL |
Video Resolution: | Optional, CVBS Black and White |
Video Connection Port: | 4 pin aviation connector (pin 1: reserved, pin 2: GND, pin 3: reserved, pin 4: video) |
Integration of Driver Fatigue Monitor :
1. Connect with Vibration Cushion
When driver fatigue monitor MR688b outputs warning alarm, vibration cushion will shake to warn the driver to pay high attention to the road at the same time.
1. Connect with Vibration Cushion
When driver fatigue monitor MR688b outputs warning alarm, vibration cushion will shake to warn the driver to pay high attention to the road at the same time.
2. Connect with Vehicle Management System
Driver fatigue monitor MR688b can output warning signals or images to AVL system to monitor driver's real time status and realize a better fleet management.
Driver fatigue monitor MR688b can output warning signals or images to AVL system to monitor driver's real time status and realize a better fleet management.
Features and Functions
Packing
1pc packed in one color box, 20sets packed in one 7-ply carton box.
Customer's Review
Recommend Products
Company Profile
Exhibition
FAQ
MR688B
1. Are the infrared lights harmful to my eyes and body?
RE：The infrared lights of MR688B have passed the SGS test report of infrared lights. It is less than 0.2W and less than 1/10 of indoor nature lights, which can’t be seen and awared its existing with mixed lights.
2. I’m worried about too many noisy alerts.
RE: MR688B will only issue audio alerts when the driver trigger the alarm. And you can also adjust the sensitivity to control the alarm response time. If you set a lower sensitivity, MR688B will take a little bit longer to issue the alerts.
3. Will it influent my sight? Did I need to always look at it?
RE：No, MR688B is small and will not influent the driver’s sight, and you also don’t need you to stare at it, just leave it alone after you have adjusted the angle toward your eyes.
4. Is it difficult to install?
RE: No, CareDrive will provide the installation guide and video to help you install, and also provide remote assistance if needed. Most clients can install by themselves even they are new in this field.
5. How long is the warranty?
RE: Two years.
FLEET SAFETY MANAGEMENT /PERSONAL SAFETY PROTECTION, HELP REDUCE 90% SAFETY ACCIDENT
Похожие товары
Высококачественный зажим для бумаги 85 мм, зажим для файлов, стационарные аксессуары, зажим для A4
0,19 $ - 0,25 $
Экстракт цветка грейпфрута эфирное масло натуральный органический шампунь против выпадения волос, зуда и эффективное лечение перхоти
8,00 $
Наружная свадебная АРКА макраме и декор Бохо декор свадебный фон занавеска изголовье стены
Недорогой агент экспресс-доставки DHL/FEDEX в Индию из Китая

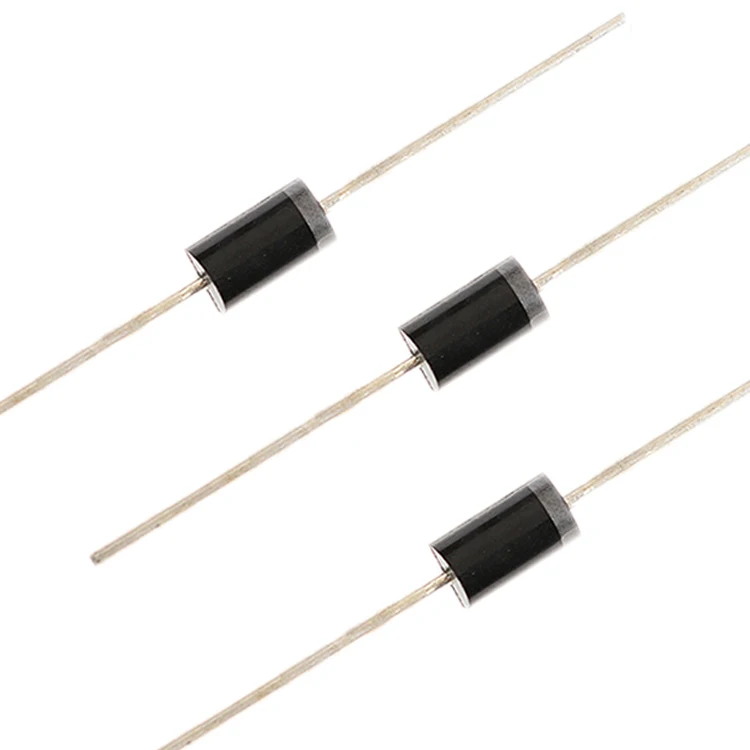

Выпрямительные диоды всех серий Diode1N4007 1N5399 RL207 1N5408 6A10 P600M

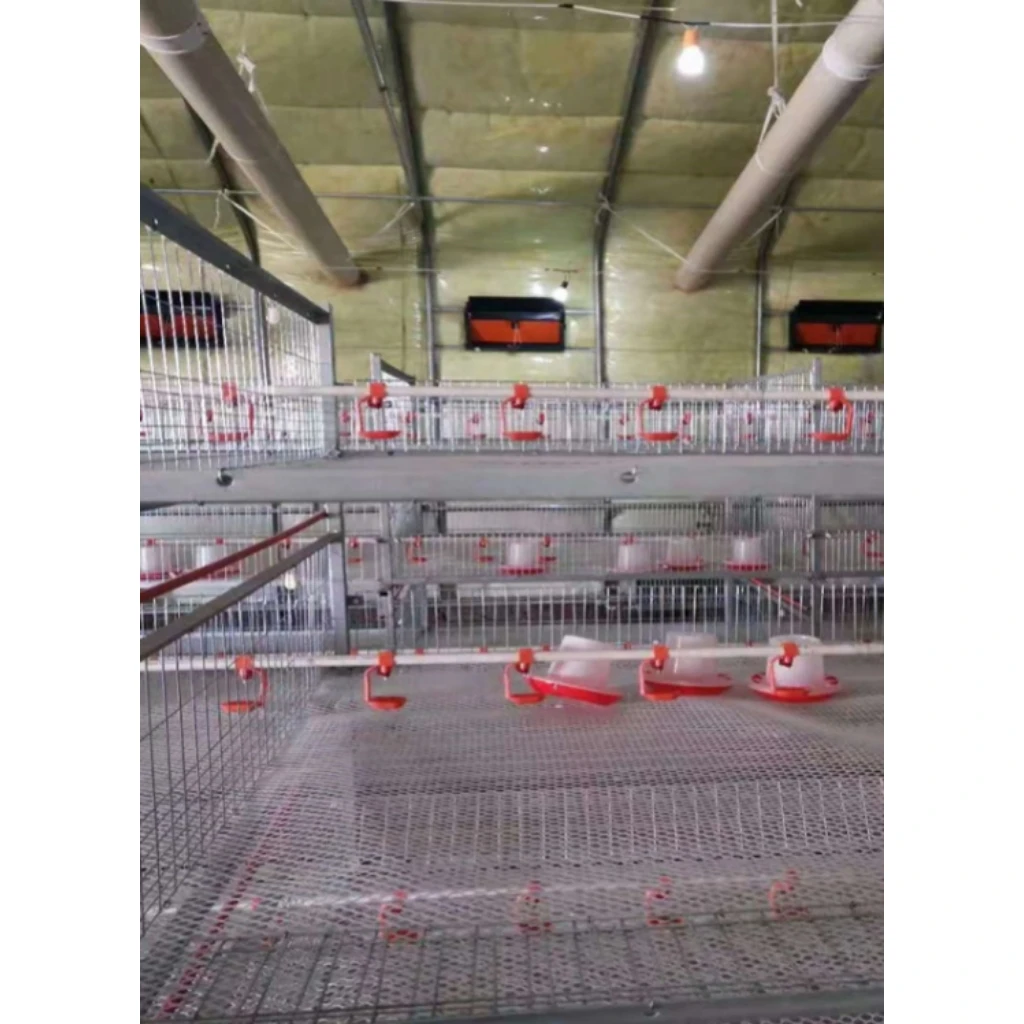

Птицеферма типа А Детская цыпленка Брудер клетка для цыплят/Обычная цыплят/клетка вывода цыплят на
