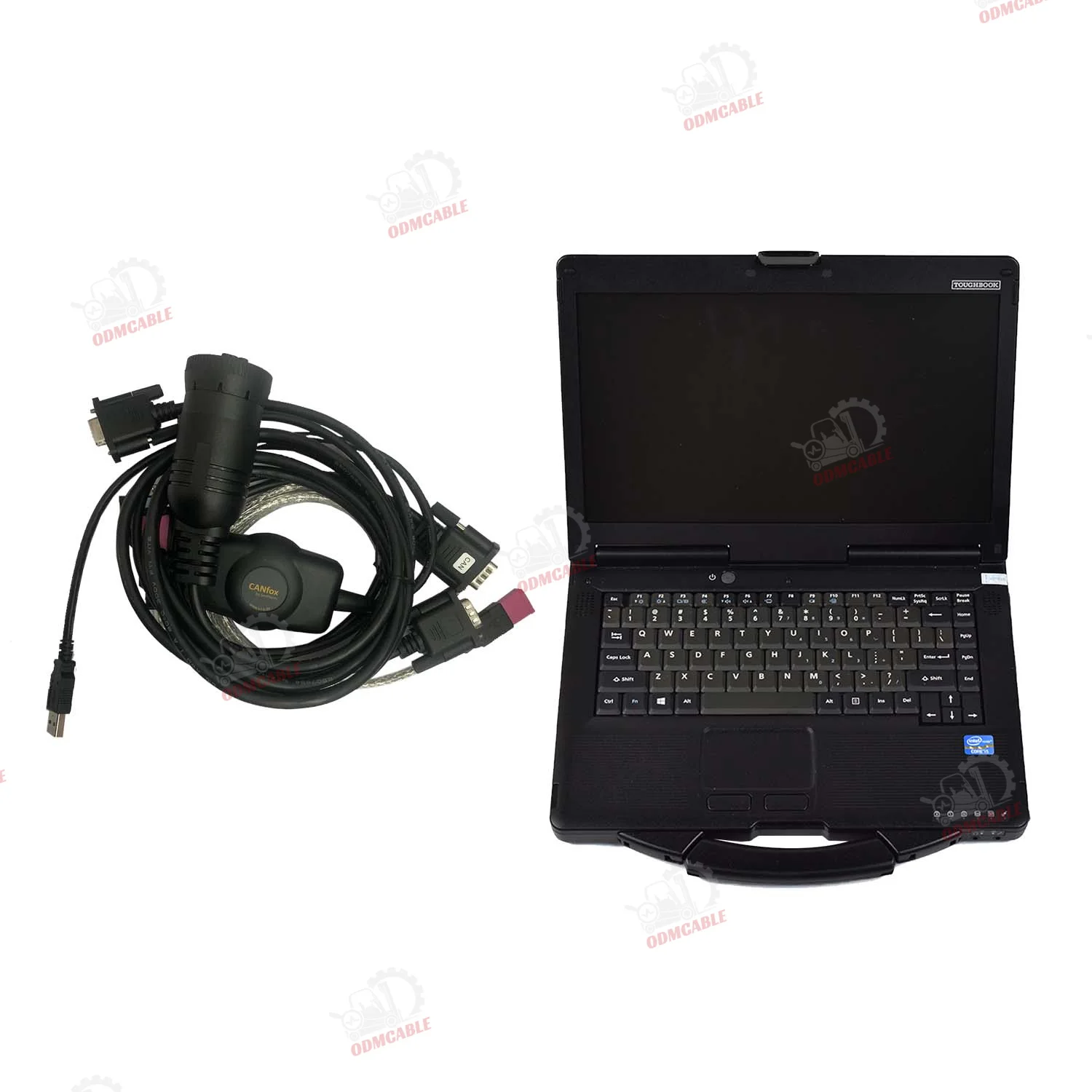

Полный комплект для ноутбука Cf53 с диагностическим устройством Libeherr Canfox Liebherr Sculi Lidia 2024 Ecu2 Ecu2-Hd Ecu3 Edc17 Viu1
235 744,06 ₽ - 290 568,26 ₽
Зеленый Deutsch 9 контактный разъем J1939 женский OBD II 16 контактный и мужской грузовик Y КАБЕЛЬ
- Категория: >>>
- Поставщик: Shenzhen Jelinn Technology Co. Ltd.
Сохранить в закладки 1600340666509:
Описание и отзывы
Характеристики
Product Description
Green Deutsch 9-Pin J1939 Female to OBD-II 16-Pin Female and J1939 Male Truck Y Cable | ||
J1939 female socket | equivalent of Deutsch HD16-9-1939S-P080 | |
Type of J1939 female socket | Type 2 | |
J1939 male receptacle | equivalent of Deutsch HD10-9-1939P | |
Type of J1939 male receptacle | Type 1 | |
OBD2 female connector | with KET terminals | |
Wire | 20AWG, pure copper | |
Material of J1939 connector | PA66 + glass fiber | |
Material of OBD2 connector | PA66 | |
Pin assignment or pin out | customized | |
Cable length | customized | |
Pins or terminals | copper, nickel-plated or gold-plated | |
Contact Resistance | 3 ohm max. | |
Insulation Resistance | 5M ohm min. | |
Working Temperature | −25℃ ~ +85℃ | |
Testing | 100% open, short and mis-wire testing | |
Testing Voltage | DC300V 5M ohm/10ms | |
Warranty | 1 year | |
We made plastic molds of 9-pin J1939, OBD2 OBDII J1962, RP1226 and 6-pin J1708 connectors, sockets, plugs, receptacles by ourselves. We can always manufacture the cables with excellent connectivity and durability.
The end of J1939 female and male connectors can be overmolded or not, according to your needs.
The Deutsch 9 Pin female socket is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 female sockets can be inserted into Type 1 or Type 2 J1939 male receptacles.
The Deutsch 9 Pin male receptacle is Type 1, so its Pin F is with bigger diameter. Type 1 or Type 2 J1939 female sockets can be inserted into Type 1 J1939 male receptacles.
The OBD2 female connector is with KET terminals which make the OBD2 female connector more endurable.
Pin assignment or pin out
Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):
Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):
OBD2 female | Signal | J1939 female | J1939 male |
4 or 5 | Ground | A | A |
16 | Battery | B | B |
6 | J1939, CAN-H | C | C |
14 | J1939, CAN-L | D | D |
OBD2 female | Signal | J1939 female | J1939 male |
4 or 5 | Ground | A | A |
16 | Battery | B | B |
6 | J1939, CAN-H | C | C |
14 | J1939, CAN-L | D | D |
2 | J1708-H | F | F |
10 | J1708-L | G | G |
OBD2 female | Signal | J1939 female | J1939 male |
4 or 5 | Ground | A | A |
16 | Battery | B | B |
6 | J1939, CAN-H | C | C |
14 | J1939, CAN-L | D | D |
12 | J1708-H | F | F |
13 | J1708-L | G | G |
The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be wired, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the cable will be higher because the raw material and labour cost will be higher.
Application
This cable is used to connect telematics, fleet management devices or trucking technology devices such as GPS Trackers or ELDs (Electronic Logging Devices) to commercial vehicles that have the J1939 9-pin round Deutsch ports.
This cable will also allow OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to connect to the round J1939 connector.
This cable is used to connect telematics, fleet management devices or trucking technology devices such as GPS Trackers or ELDs (Electronic Logging Devices) to commercial vehicles that have the J1939 9-pin round Deutsch ports.
This cable will also allow OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to connect to the round J1939 connector.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
Skype: orchard.guo (any time to contact)
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
Skype: orchard.guo (any time to contact)
