Коробка для сухого льда изолированная коробка 315 л 250 кг хранения охлаждения
- Категория: >>>
- Поставщик: Xiamen Icecon Cold Chain Technology Co. Ltd.
Сохранить в закладки 1600341002503:
Описание и отзывы
Характеристики

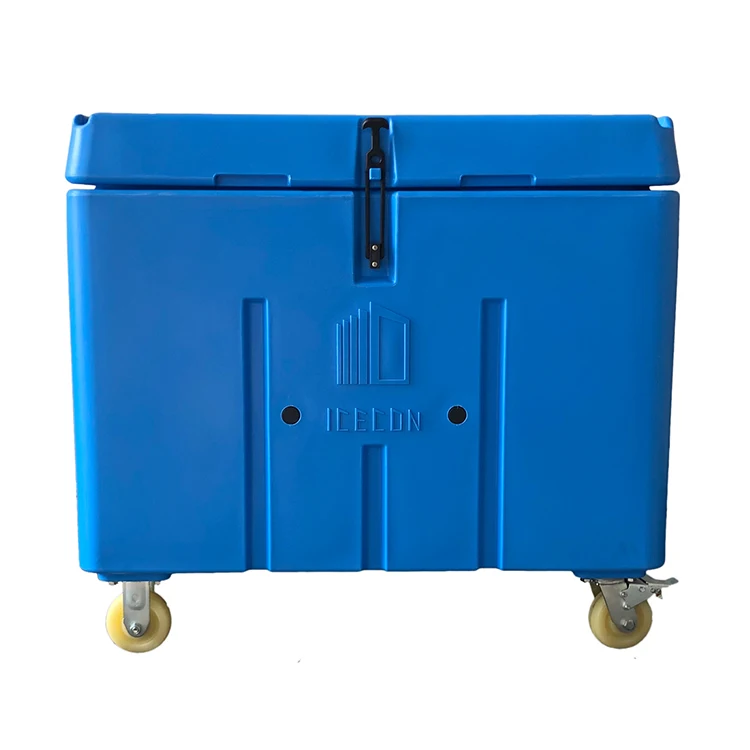

315L volume LLEDP and polyurethane foam dry ice container
1) Imported food-grade PE raw materials are used, which can directly store and transport food.
2) The material is resistant to low temperature -80 degrees, anti-ultraviolet, and is not easy to fade.
3) The box cover is equipped with a silicone sealing ring, which is more sealed and reduces the loss. The 24-hour volatilization rate is 4.6%.
4) Steering universal wheels, rubber buckles and integral handles make the box more portable.
5) The box is made of seamless integral molding rotomolding process, which is durable and anti-collision.
6) In order to maintain the thermal insulation effect of the box, pollution-free and environmentally friendly polyurethane PU foam is used.
7) Suitable for long-term transportation and preservation of food, medicine, precision instruments and other items, especially suitable for the transportation of dry ice.
2) The material is resistant to low temperature -80 degrees, anti-ultraviolet, and is not easy to fade.
3) The box cover is equipped with a silicone sealing ring, which is more sealed and reduces the loss. The 24-hour volatilization rate is 4.6%.
4) Steering universal wheels, rubber buckles and integral handles make the box more portable.
5) The box is made of seamless integral molding rotomolding process, which is durable and anti-collision.
6) In order to maintain the thermal insulation effect of the box, pollution-free and environmentally friendly polyurethane PU foam is used.
7) Suitable for long-term transportation and preservation of food, medicine, precision instruments and other items, especially suitable for the transportation of dry ice.
8）Professional incubator factory, with a large number of stocks, you can place an order directly
Specification
Product Features | ||
Material | LLDPE+Polyurethane foam | |
Inner dimensions (L*W*H) | 1100*700*1000mm | |
Outer dimensions (L*W*H) | 920*520*645mm | |
Weight empty | approx.8cm | |
Volume | 315L | |
24-hour average storage loss | approx. 4.5% | |
3mm particle capacity | 270kg | |
Capacity with blocks | 350kg | |
Products Description
Special raw materials
1、Food grade LLDPE raw materials
2、Environmentally friendly and odorless
3、Very strong toughness, low temperature resistance
4、UV resistant, the cabinet is not easy to fade
1、The PE thickness of the box wall is uniform and the craftsmanship is good
2、Polyurethane PU foam3、Uniform pores, low thermal conductivity, good heat insulation
4、The dry ice container is about 8cm thick
1、Food grade silicone seal，
Can effectively reduce dry ice loss
2、Rubber buckle, long use time, easy to operate
3、Four wheels, two can steer
The wheels are made of low temperature resistant material, suitable for cold storage
4、Novel Design and Elegant Performance.
Side of box
1、Wheel stacking position
2、Side handles for easy transportation
3、The black circle is the PU foam injection port
4、Appearance patent，Novel and beautiful appearance design
1、 can add your logo on the lid of the box
2、If you need, you can customize boxes with different volumes
3、Has a good insulation effect
Boxes of different sizes | ||||||||||||||||
Model | HO30 | ICO30 | ICO60 | ICO130 | ICO300 | ICO330 | ICO400 | ICO480 | ||||||||
Weight | 10.5KG | 9.5KG | 23KG | 38KG | 61KG | 72KG | 71KG | 98/105KG | ||||||||
Capacity | 30L | 30L | 60L | 130L | 315L | 335L | 400L | 480L | ||||||||
Outside size | 550*427*380mm | 425*365*510mm | 460*460*910mm | 800*590*835mm | 1100*700*1000mm | 1150*730*1020mm | 1235*730*945mm | 1200*1000*1000mm | ||||||||
Inner size | 415*315*232mm | 310*250*400mm | 320*320*610mm | 610*410*530mm | 920*520*645mm | 945*545*655mm | 1080*570*655mm | 985*785*635mm | ||||||||
Chest wall thickness | 6cm | 5.5cm | 6cm | 7cm | 8cm | 9cm | 6.5cm | 10cm | ||||||||
Volatilization rate | 15% | 13% | 10% | 8% | 4.6% | 3.8% | 5.3% | 4% | ||||||||
Dry ice storage | 27KG | 27KG | 50KG | 100KG | 250KG | 270KG | 320KG | 400KG | ||||||||
1. Food grade material, can withstand low temperature minus 80 degrees Celsius, can be used for transportation and storage of dry ice, ice cream, ice cream, frozen products, etc.
2. It can be used for heat preservation and transportation of low-temperature medicines and equipment, etc.
3. We can customize insulation transportation solutions for customers
Packing & Delivery
Plastic film packaging.
Use environmentally friendly packaging to effectively protect the surface of the box from scratches，Stored in a container, safe and environmentally friendly
Carton packaging.
Some models of boxes are equipped with cartons, or customers require additional cartons, which need to be customized and increase packaging costs
Plastic film packaging.
The use of environmentally friendly and low-carbon plastic film protective layer can achieve the same protective effect as a carton, waterproof and environmentally friendly
Company Profile
Xiamen ICECON Cold Chain Technology Co., Ltd.is an enterprise focusing on the development of rotomolding thermal insulation containers. It has a 32,000 square meter factory building and a variety of advanced production equipment. The thermal insulation technology from China's aerospace engineering is our core, especially the material. Insulation effect, ICECON has three series of products: dry ice container, hot and cold food insulation container, and constant temperature transportation box. With rich production experience, we can provide customers with customized products.
The enterprise team has 22 years of experience in the dry ice making machine and dry ice production industries. More than half of the customers in China's dry ice industry choose ICECON, which is reasonably priced and has a long service life. Other heat preservation containers are also recognized by many customers.
The company's products have passed ISO9001 system certification and obtained CE and other certificates. It has branches and offices in Japan, South Korea, Thailand, Singapore, Italy, Finland and other countries and regions, which can provide good services to customers around the world.
The enterprise team has 22 years of experience in the dry ice making machine and dry ice production industries. More than half of the customers in China's dry ice industry choose ICECON, which is reasonably priced and has a long service life. Other heat preservation containers are also recognized by many customers.
The company's products have passed ISO9001 system certification and obtained CE and other certificates. It has branches and offices in Japan, South Korea, Thailand, Singapore, Italy, Finland and other countries and regions, which can provide good services to customers around the world.
Product flow
1、Raw material
2、Milling the PE
3、Roto molding
4、Demold
5、Foaming
6、Assembling
7、Testing
8、Cleaning
9、Packing
Certification
Exhibition
FAQ
Q1: How can I get sample and how long does it take?
A: Place the sample order to us,we will send you PI for payment,sample leadtime is 2-5days.
Q2: Can I have the own customized product?
A: Yes, you can customized logo & color & pattern as your required, but the quantity must meet our target quantity.
Q3: What's the MOQ?
A: Except for customized products, all styles are in stock. The bigger on the order, The cheaper on the price.
Q4: What's the delivery time?
A: Normally production leadtime is 10-35days,it depends on order quantity and our production plan.
Q5.Do you have other size?
A: Yes,we have 30L,60L,130L,300L,330L,400Land480L，Other insulated containers
Q6.What's the difference of this container with other cooler box？
A: The dry ice container is made of low temperature resistant material LLDPE, the middle is purple PU, and the deepest water layer
A: Place the sample order to us,we will send you PI for payment,sample leadtime is 2-5days.
Q2: Can I have the own customized product?
A: Yes, you can customized logo & color & pattern as your required, but the quantity must meet our target quantity.
Q3: What's the MOQ?
A: Except for customized products, all styles are in stock. The bigger on the order, The cheaper on the price.
Q4: What's the delivery time?
A: Normally production leadtime is 10-35days,it depends on order quantity and our production plan.
Q5.Do you have other size?
A: Yes,we have 30L,60L,130L,300L,330L,400Land480L，Other insulated containers
Q6.What's the difference of this container with other cooler box？
A: The dry ice container is made of low temperature resistant material LLDPE, the middle is purple PU, and the deepest water layer
customer service
if you have wechat, please feel free to pick up you phone, then scan qrcode to contact further discussion about you project!--Jason
Похожие товары
Большой Классический походный вращающийся водонепроницаемый кулер GiNT
49,99 $
Легкий складной палаточного городка солнечной палатка кемпинг телескопический шест палатки

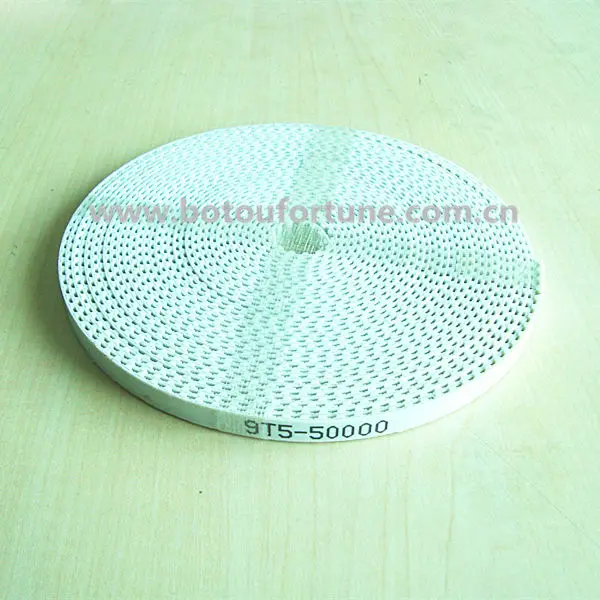

Ремень синхронного привода PU t5
EVERCOOL, 20 литров, 12 В постоянного тока, автомобильный мини-холодильник, охлаждающий контейнер для улицы, изолированные термобанки с буквами
20,00 $ - 22,00 $
Купон со скидкой на Everich, горячая распродажа, портативный охладитель, жесткий охладитель для кемпинга, охладитель пива, льда, Ланч-бокс
1,45 $ - 2,45 $

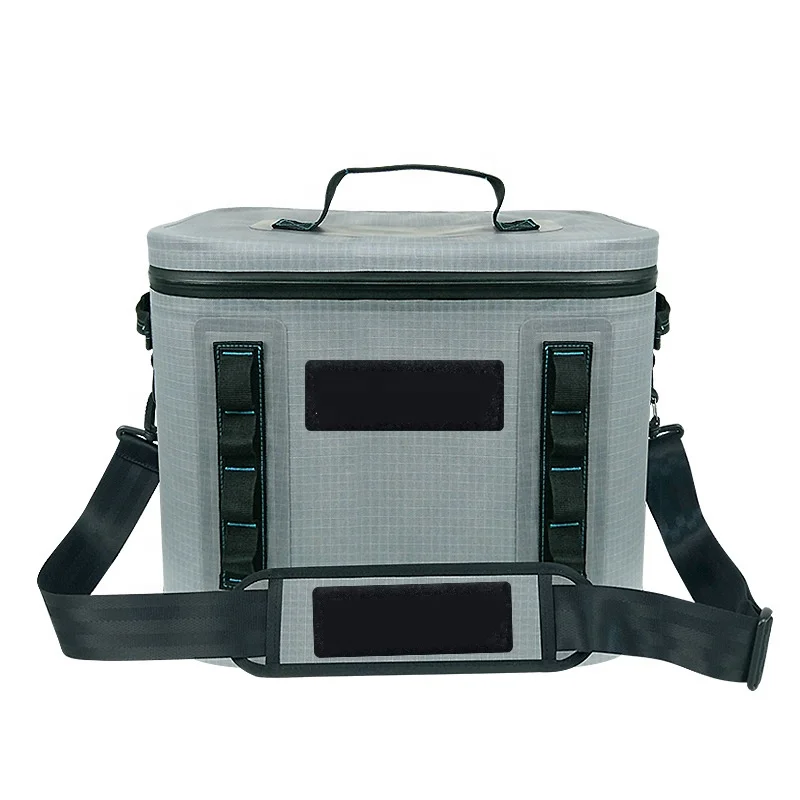

Уличная сумка-холодильник для пикника, водонепроницаемая изолированная сумка-холодильник из полиэстера 600D с солнечной батареей
