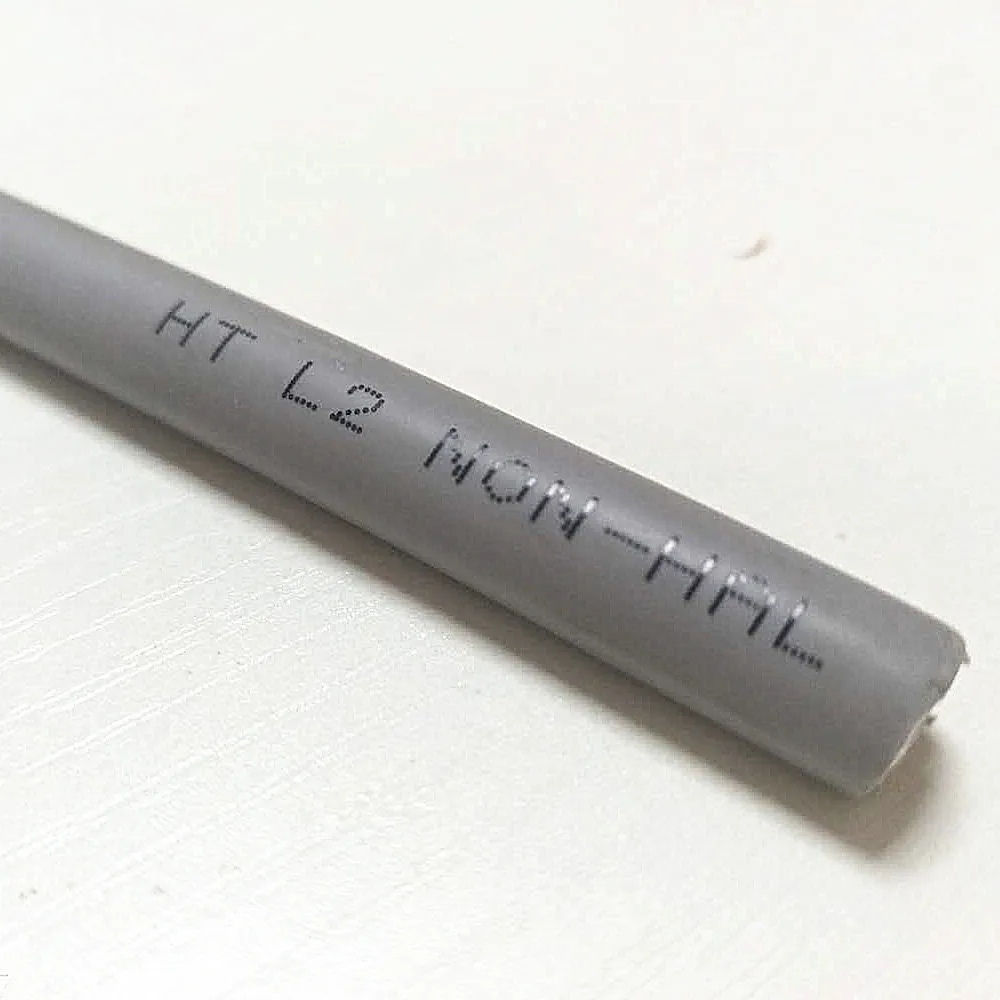

2/0 AWG TELCOFLEX II KS24194 L2 Central Office Power Wire

Allowable Ampacity for 2/0 AWG Telcoflex II KS24194 L2 Central Office Power Wire: 175 Amps 75°C, 195 Amps 90 °C

Applications:

TELCOFLEX is a durable and flexible electrical cable designed for telecommunications and power distribution in conducts and cable tray systems. It is used in cell towers, data centers, and CATV. The electrical cable is suitable for use in temperatures up to 105°C in dry conditions and up to 60°C in wet conditions. TELCOFLEX II Central Office Power Cable is rated at 600 volts.

Also Known As:

2/0 TELCOFLEX II Central Office Power Cable, 2/0 TELCOFLEX II Telephone Central Office Power Cable, 2/0 TELCOFLEX II Telecom Power Wire

Standards:

• UL listed as Central Office Power Cable


• ASTM B-33 and B-172


• NEC (RHH/LS)


• UL Standard 44 (Type RHH/ST1 Thermoset Insulated), Physical and Electrical tests


• Telcordia Specification GR 347 GORE


• CT Rated in gauges 1/0 and larger


• VW-1


• FT-4 Flame Test


• ASTM B-33 and B172 for Flexible Strand


• CSA AWM / B 105°C, 600V


• IEC 60674, IEC 60332


• RoHS/ Reach Compliant


• WP93811 for Cold Flow (Creep) and Cut-Through

Construction:

Conductors:

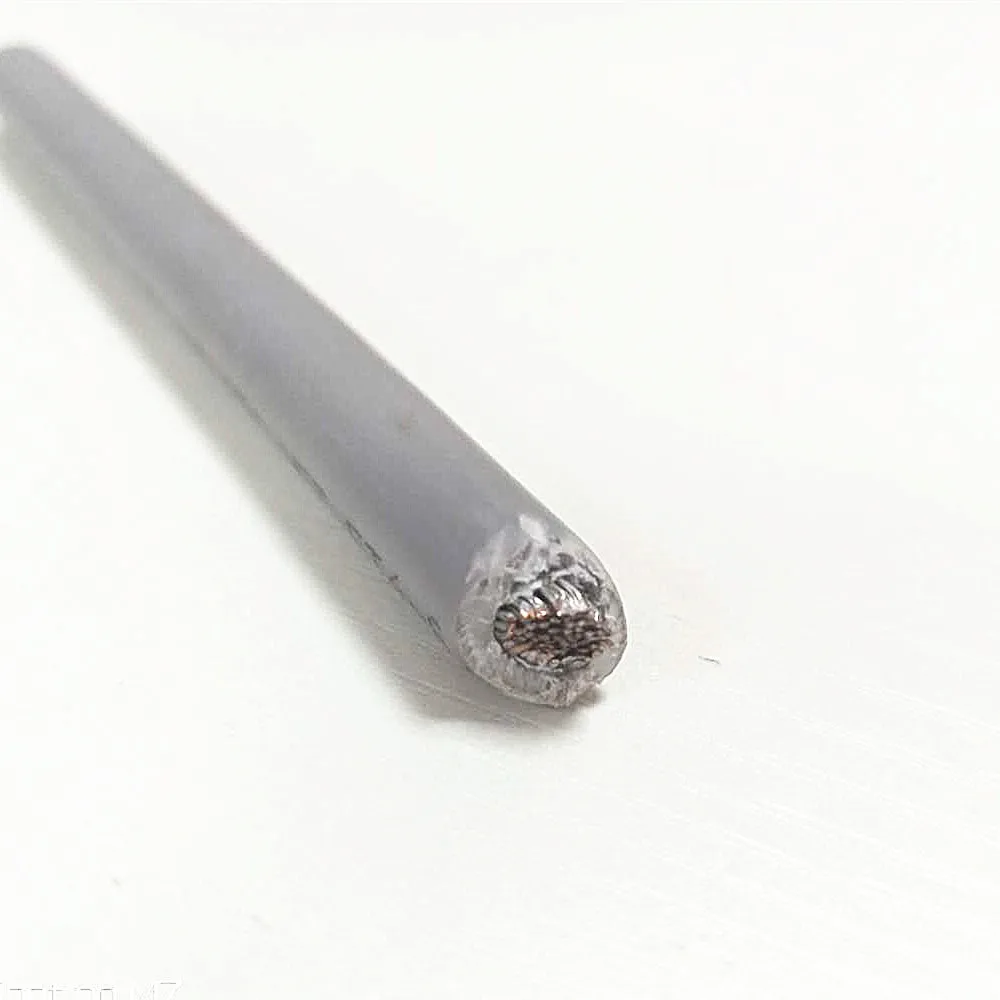

The cable comes with stranded tinned copper conductors per B-33 and B-172. The conductors are Class I bunched in sizes 8 and 6 AWG, and rope-bunched in sizes 4 AWG and larger. For easier stripping, the conductors are covered with opaque mylar tape that acts as a separator.

Insulation:

The cable is known for its environmentally friendly, low-smoke, lead-free, silicone-free, and halogen-free insulation named TelcoHyde 522. It reduces the emission of toxins and harmful gases. The insulation has a limited oxygen index of 35 percent. TelcoHyde 5221 is resistant to smoke, flames, impact, abrasion, chemicals, acids, and halogen. The insulation is covered with a cotton braid with a saturant that makes it resistant to moisture and flames.

Specifications:

• Size AWG: 2/0


• Weight: 0.57 lbs per ft


• Number of Strands:  342/.0201


• Outside Diameter: 0.620 inches


• Insulation: TelcoHyde 522


• Insulation Thickness: 0,080 mils


• Max. D.C. Resistance: .0868

CNAS accredited national level laboratory.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
