FTTH Layer 3 16 Port OLT GPON поддержка CATV ONU

1.    Overview(  FTTH Layer 3  16 Port  OLT  GPON Support CATV GPON ONU)

OLT GPON  16PORTS GPON OLT    Mini 1U  16 PON Ports  OLT GPON  16PORTS GPON OLT    Mini 1U  16 PON Ports  OLT GPON  16PORTS GPON OLT )

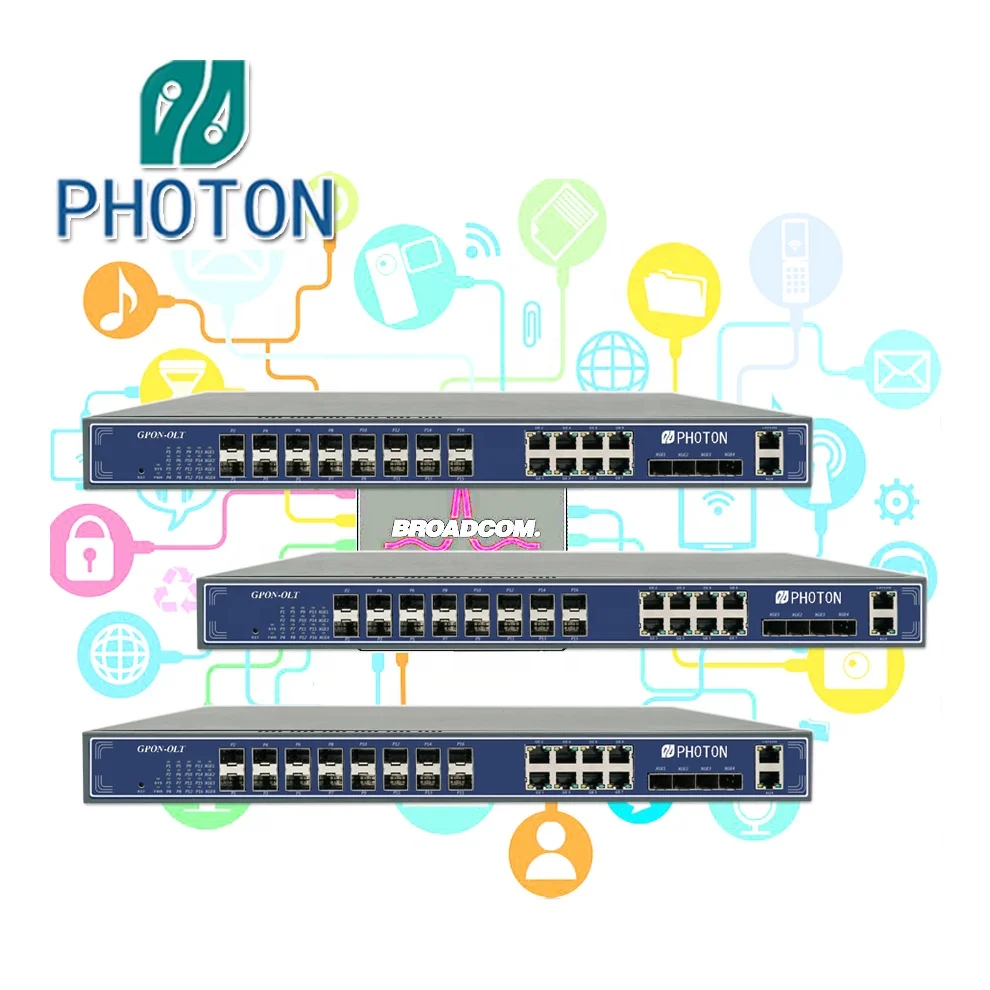

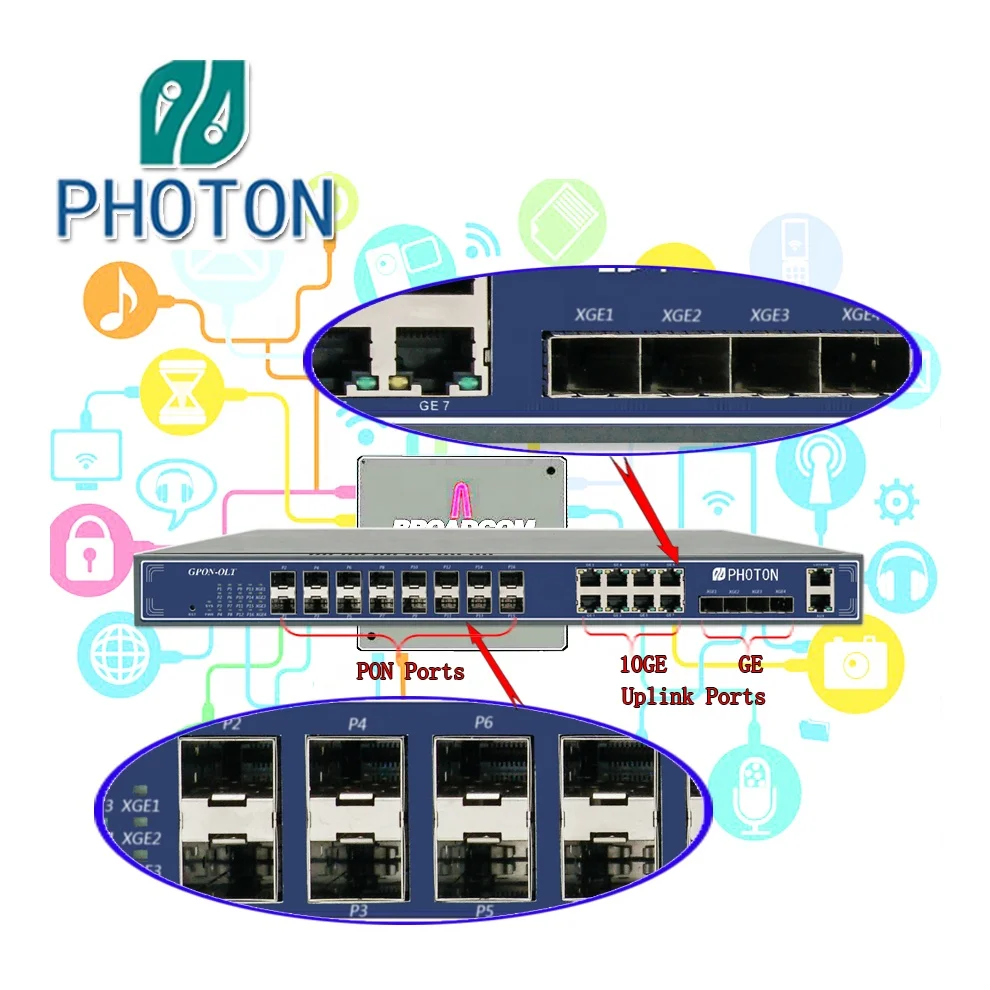

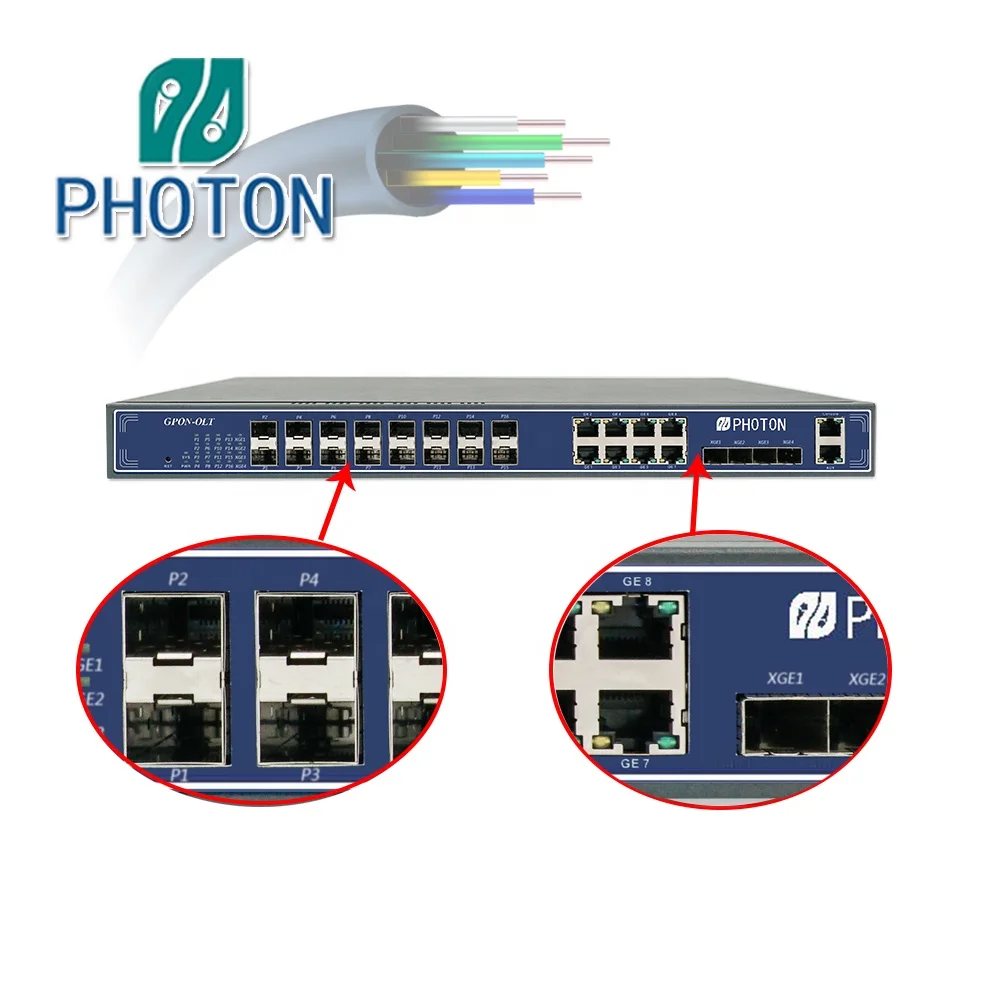

PTF3716E-BCM BroadCom chipset GPON OLT provides 16 GPON ports, 4GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.

PTF3716E-BCM OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

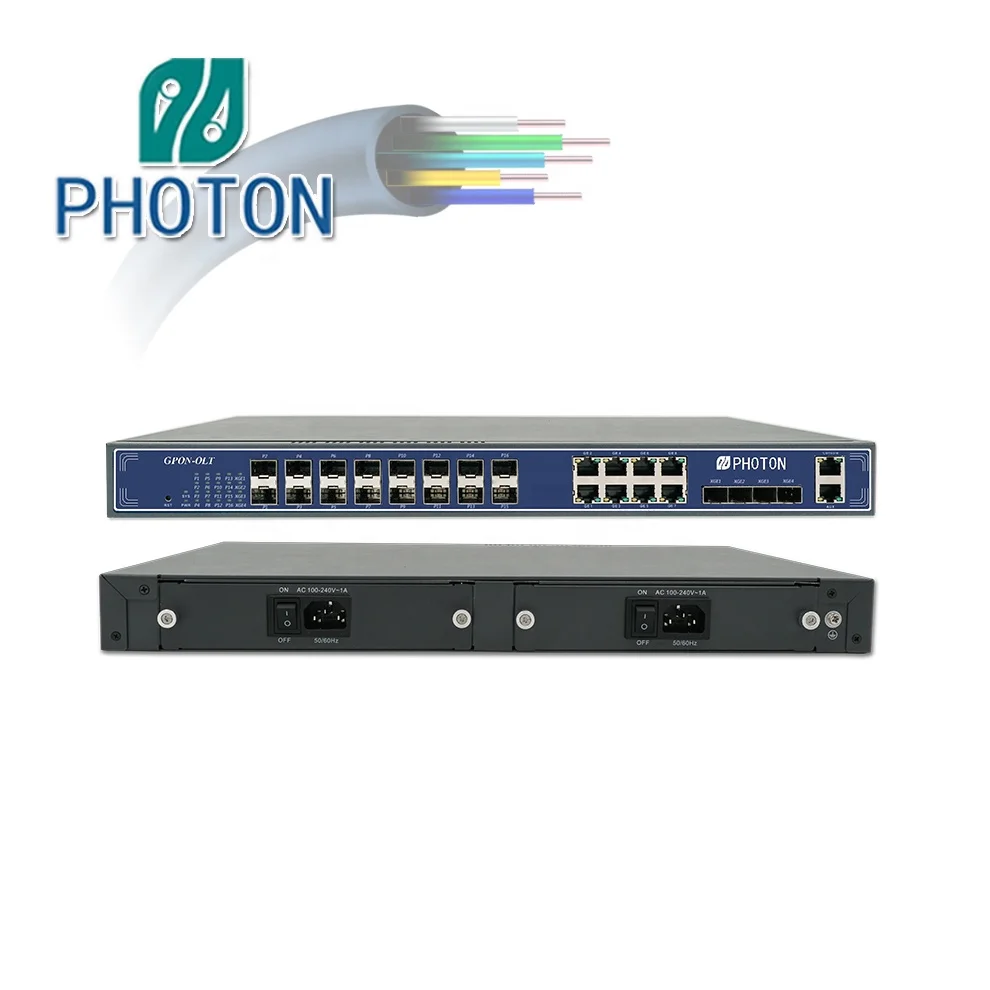

Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play”applications.

2.    Features(  FTTH Layer 3  16 Port  OLT  GPON Support CATV GPON ONU)

Ø  1U 19 inch standard chassis GPON OLT with 16PON ports

Ø  Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements

Ø  Friendly EMS/Web/Telnet/CLI/SSH v1/v2 management

Ø  Remote online ONT configuration and management(WAN, WiFi, POTS, etc);

Ø  32K Mac address

Ø  Support IPv6,IPv4

Ø  ARP proxy,,4096 hardware Host Routes,4096 hardware Subnet Routes;

Ø  Support MLD v1/v2 snooping(Multicast Listener Discovery snooping);

Ø  Support 802.1X,Radius,Tacacs+;

Ø  Support 4096 VLANs, port VLAN and protocol VLAN;

Ø  Support VLAN tag/Un-tag ,VLAN transparent and QinQ transmission;

Ø  Support port isolation;

Ø  Support port rate limitation;

Ø  Support 802.1D and 802.1W;

Ø  Support static LACP,Dynamic LACP;

Ø  QoS based on port, VID, TOS and MAC address;

Ø  Access control list;

Ø  IEEE802.x flow control;

Ø  Port stability statistic and monitoring;

Ø  Support IGMP snooping, 256 IP Multicast Groups

Ø  DHCP server,DHCP relay,DHCP snooping,DHCP option82;

Ø  Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

Ø  Support ONT auto-discovery, auto configuration/link detection/remote upgrade of software;

Ø  Support power-off alarm function, easy for link problem detection;

Ø  Support broadcasting storm resistance function;

Ø  Support ACL and SNMP to configure data packet filter flexibly;

Ø  Specialized design for system breakdown prevention to maintain stable system;

Ø  Support RSTP,IGMP Proxy;

Ø  Support Dynamic Bandwidth Allocation (DBA)

Ø  Support remote software upgrade,download firmware to OLT from web/tftp/ftp

Ø  Two power supply redundancy design

3.    Parameters(  FTTH Layer 3  16 Port  OLT  GPON Support CATV GPON ONU)

4.    Shipping packaging( FTTH Layer 3  16 Port  OLT  GPON Support CATV GPON ONU)

Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.

OEM&ODM:We can help you to design and put your good idea into products.

Warranty:1 year
