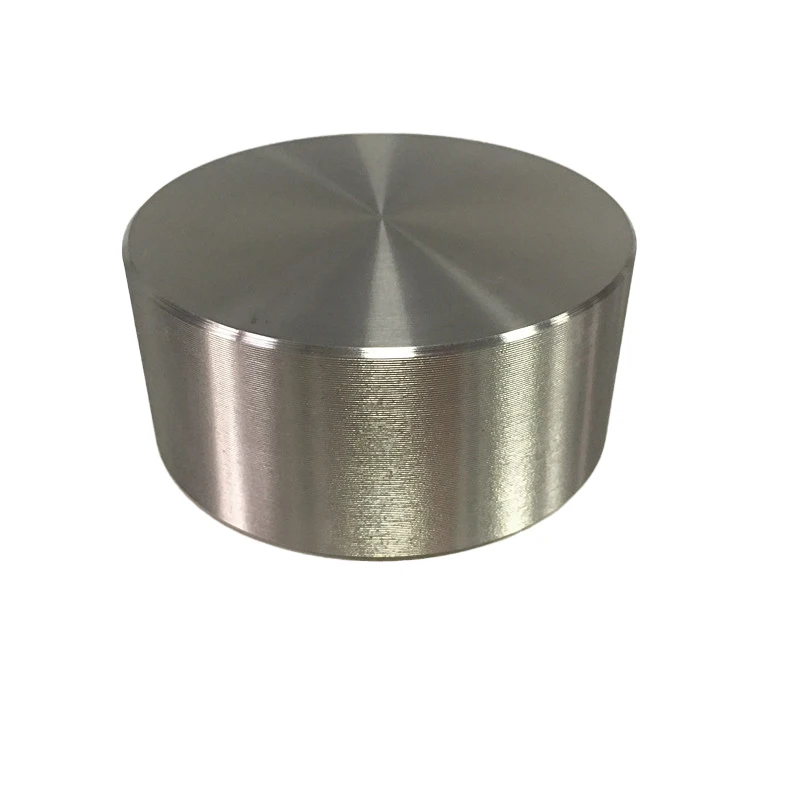

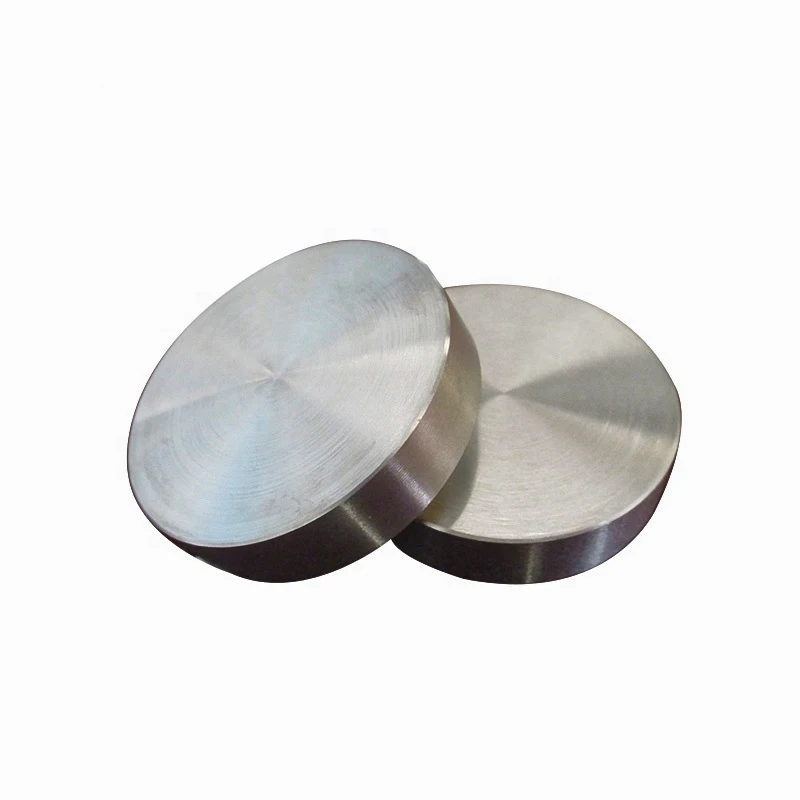

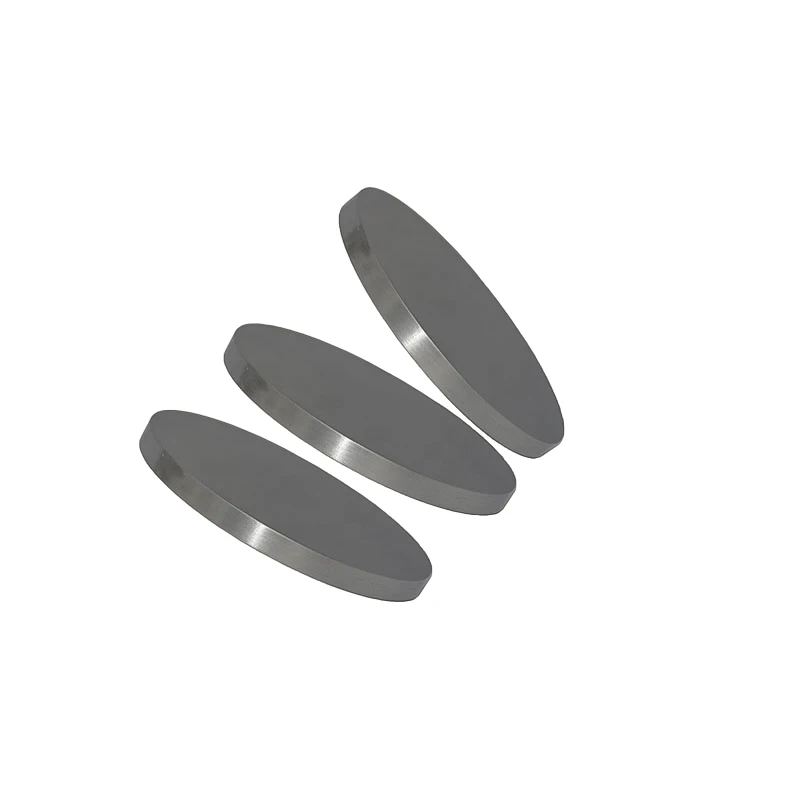

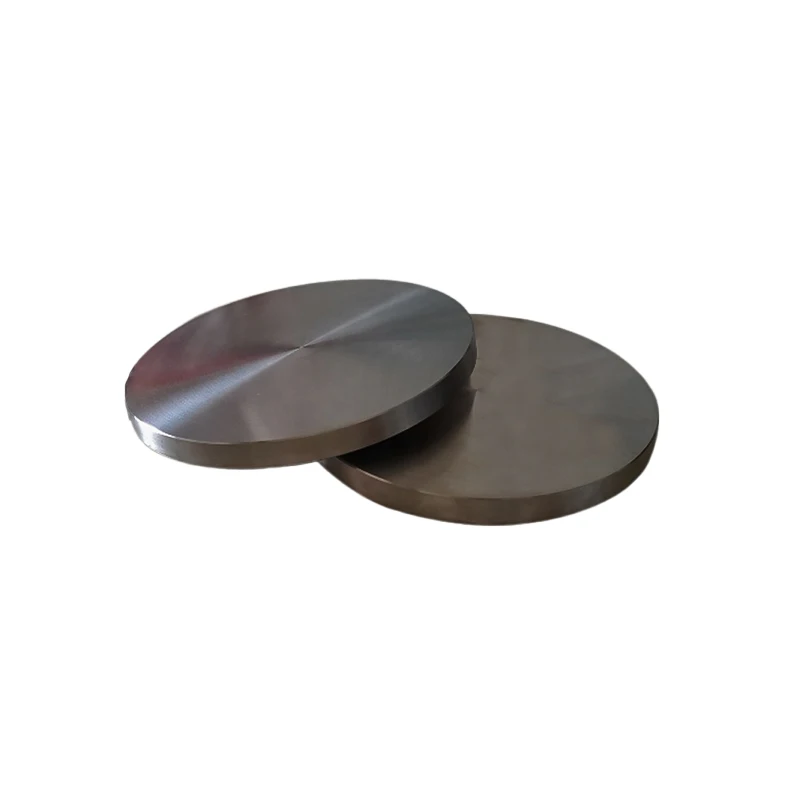

99.95% чистый полированный круглый Танталовый sputtering target Ta диск для вакуумного покрытия
- Категория: >>>
- Поставщик: Beijing Renyuan Changyi Metal Co. Ltd.
Сохранить в закладки 1600342499035:
Описание и отзывы
Характеристики
99.95% Pure Tantalum Tungsten Tube Price Per kg, Tantalum Tungsten Alloy Tube for Sale
Product Description
RYCY Metal provides vacuum electron beam melting and powder metallurgy technology tantalum sputtering target. We use different manufacture process according to the different requirements of customers. The original manufacturing process similar to ordinary tantalum sheet, using the unique rolling technology, the process is more complex. the annealing temperature and time of cooperate more precise, so as to ensure the tantalum target material grain size below 40 microns, to guarantee the high quality level of the tantalum target material. Because the tantalum has high conductivity, high heat stability and resistance to foreign atoms, so the use of sputtering deposition method in integrated circuit plating can prevent the copper spreading in the silicon substrate.
| Name | Pure tantalum wire |
| Purity | 99.95% min |
| Grade | R05200, R05400 |
| Standard | ISO9001, material test certificate acc EN10204.3.1 |
| Size | Dia. * High Customized |
| Condition | 1. Hot-rolled/Cold-rolled; 2.Alkaline Cleaning 3.Electrolytic polish; 4. Machining, grinding; 5.Stress relif anealing |
| Surface roughness | Ra 0.4 Maximum |
| Flatness | 0.1mm or 0.10% maximum |
| Diameter Tolerance | +/- 0.2mm |
Application
Used for optical fiber, semiconductor wafer and integrated circuit of sputtering deposition coating.
Used for glass, ceramic, LCD coating.
Used for the cathode sputtering coating, high vacuum suction active material etc
Packaging & Shipping
Packaging
Firstly, pack the tantalum target in vacuum bags. It could isolate air and the pollutants from outside world effectively, and keep the surface of tantalum target clean. Secondly, use pearl cotton (expandable polyethylene) packing to avoid collisions damage between the products in transit. Finally, pack in wooden cases, to avoid the outside world pollutants in the process of delivery, ensure the integrity of products from production to delivery.
Company Information
Huasheng Metal was incorporated in 2003 with a mission to provide a competitive source for high purity metals, mainly focus on the Tungsten, Molybdenum, Tantalum, Niobium, Ruthenium & Hafnium etc., which has over 6 series including more than 40 kinds of products currently.
We are keeping large and comprehensive inventory with highest quality in forms of Powder, Bar, Rod, Sheet, Ingot, Wire and Block etc., to ensure our customer with fast shipment and stability quality control.
Over the many years of work, our company was deeply trusted by our customers in spread of Aerospace, Ship, Automotive & Minitary Industry etc.
Related product
We are professional supplier for Tungsten Molybdenum Tantalum Niobium material , more than 22 years experience, please kindly check other material if you need .
FAQ
What information should to provide for a quotation?
Please let us know your material demensions, like Thickness x Width x Length, Diameter x Length, if provide us drawings is better.
Please also mentioned us the Surface Condition, Tolerance Request, Mechanical and technical details, if you can provide us application spec, we will recommend the most suitable products with detailes for confirmation.
What is the transportation way by reference?
G/W ≤ 45Kgs, better for express like DHL, TNT and FedEx etc.;
G/W around above 45 Kgs to 100 Kgs, by express or by air transportation;
G/W > 100 Kgs, suggest you to choose by Air or by Sea;
How can I contact with your company?
We are always ready to serve you via mobile phone, whatsapp, wechat and email.
Phone: +86 15010632687
Whatsapp: +86 15010632687
Do you provide free sample?
Yes, we can provide a free sample to you for testing, and very appreciate if you can take the shipping cost.
What is the lead time?
Sample L/T within 3 working days after order confirmed;
100-1000Kgs L/T within 15 working days after order confirmed;
1 Ton and above L/T within 30 working days after order confirmed;
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal.
Похожие товары

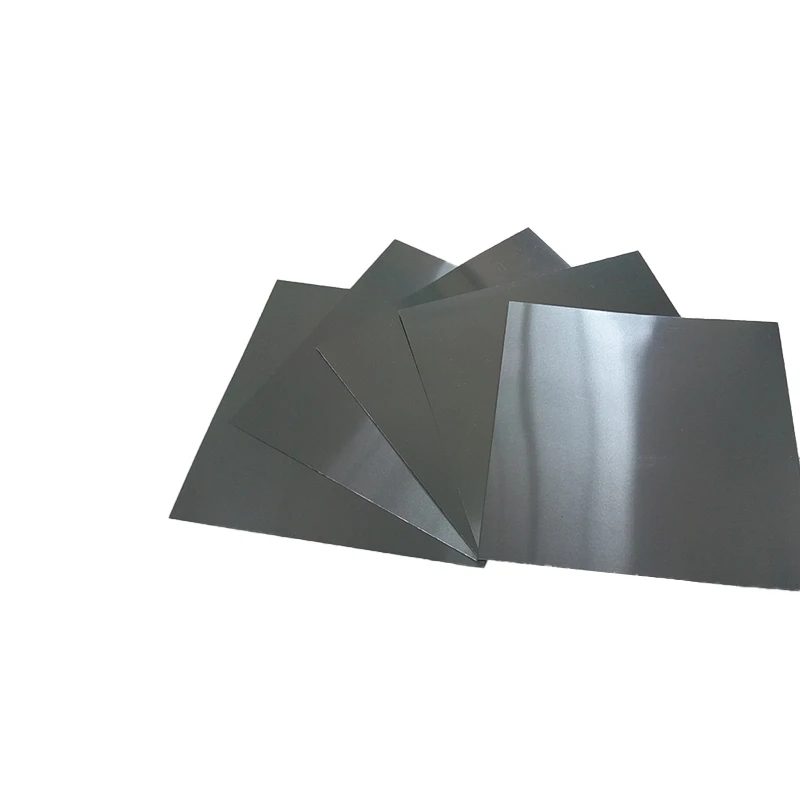

HSG высокочистый Танталовый лист, плоский тонкий кусок, кусочек танталовой пластины, цена на продажу
450,00 $ - 600,00 $
Высокочистый Танталовый лист, плоский тонкий кусок, пластина, низкая цена, Танталовый лист
550,00 $

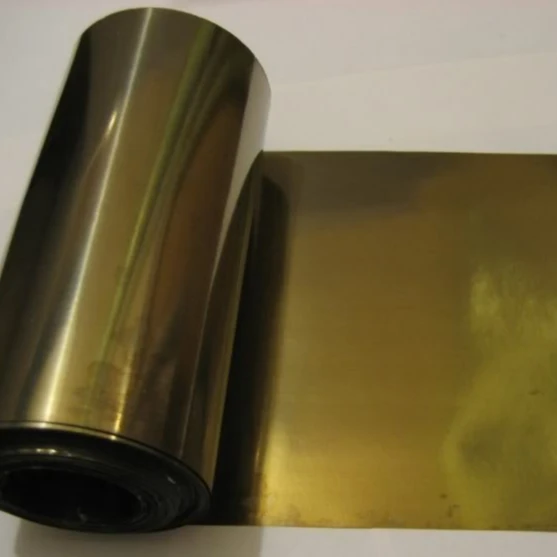

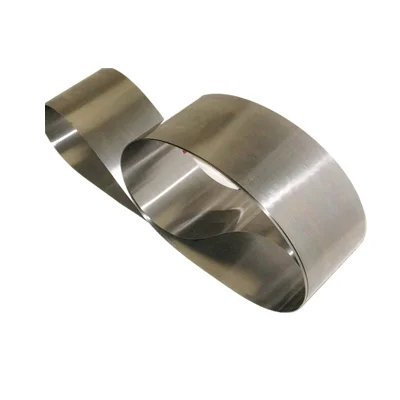

TANTALUM FOIL
500,00 $
Биполярный шаговый или двойной DRV8428ERTER 35 В, 1 А

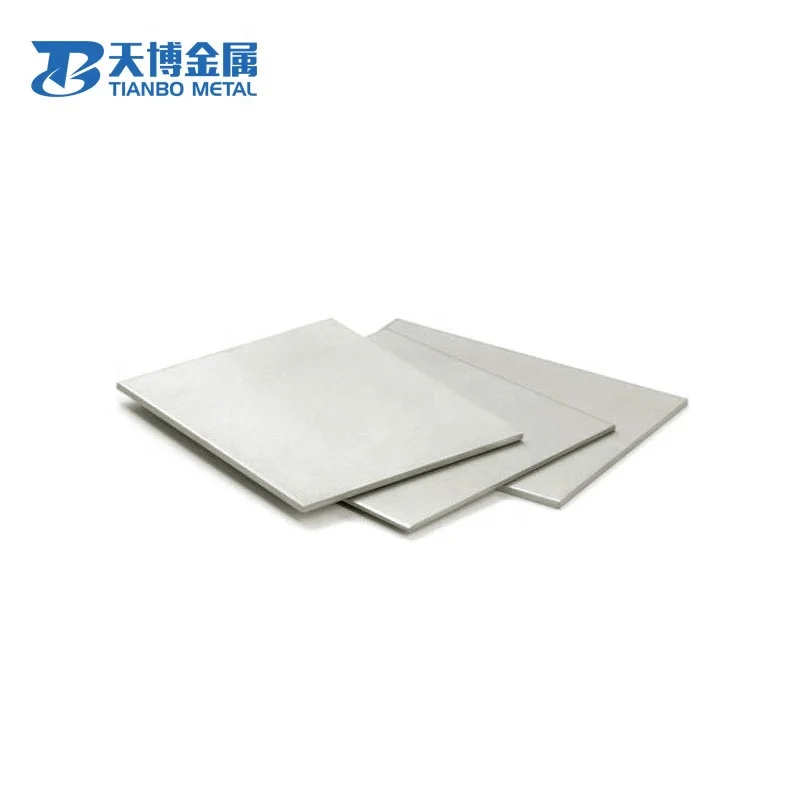

Высокочистый 99.95% полированный чистый Танталовый пластинчатый теплообменник для ювелирных изделий от производителя baoji tianbo metal company
512,00 $ - 525,00 $

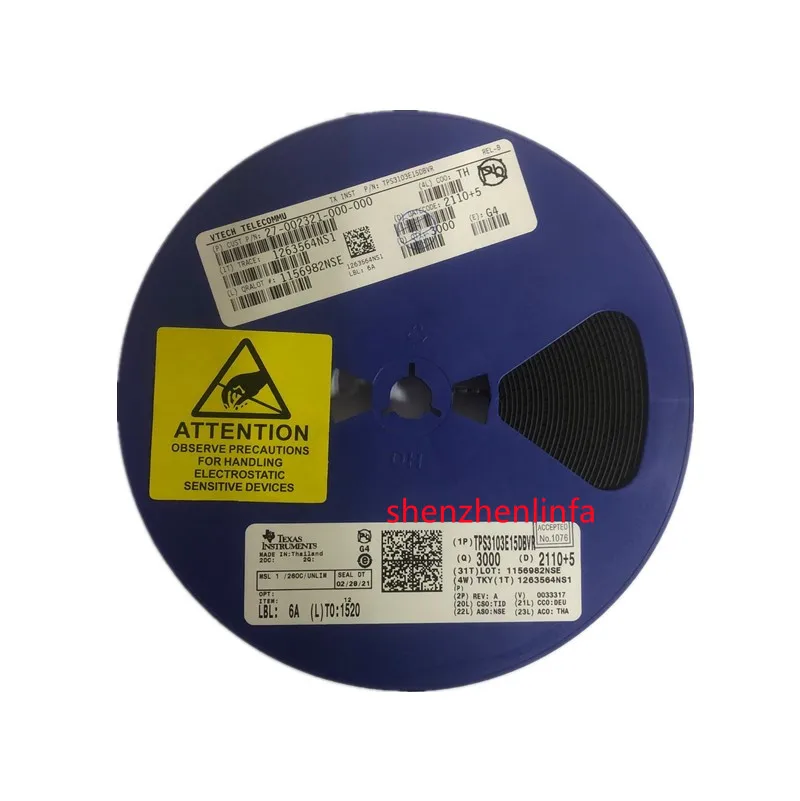

Биполярный шаговый двигатель DRV8426ERGER 35 в, 1,5 А или DUA
