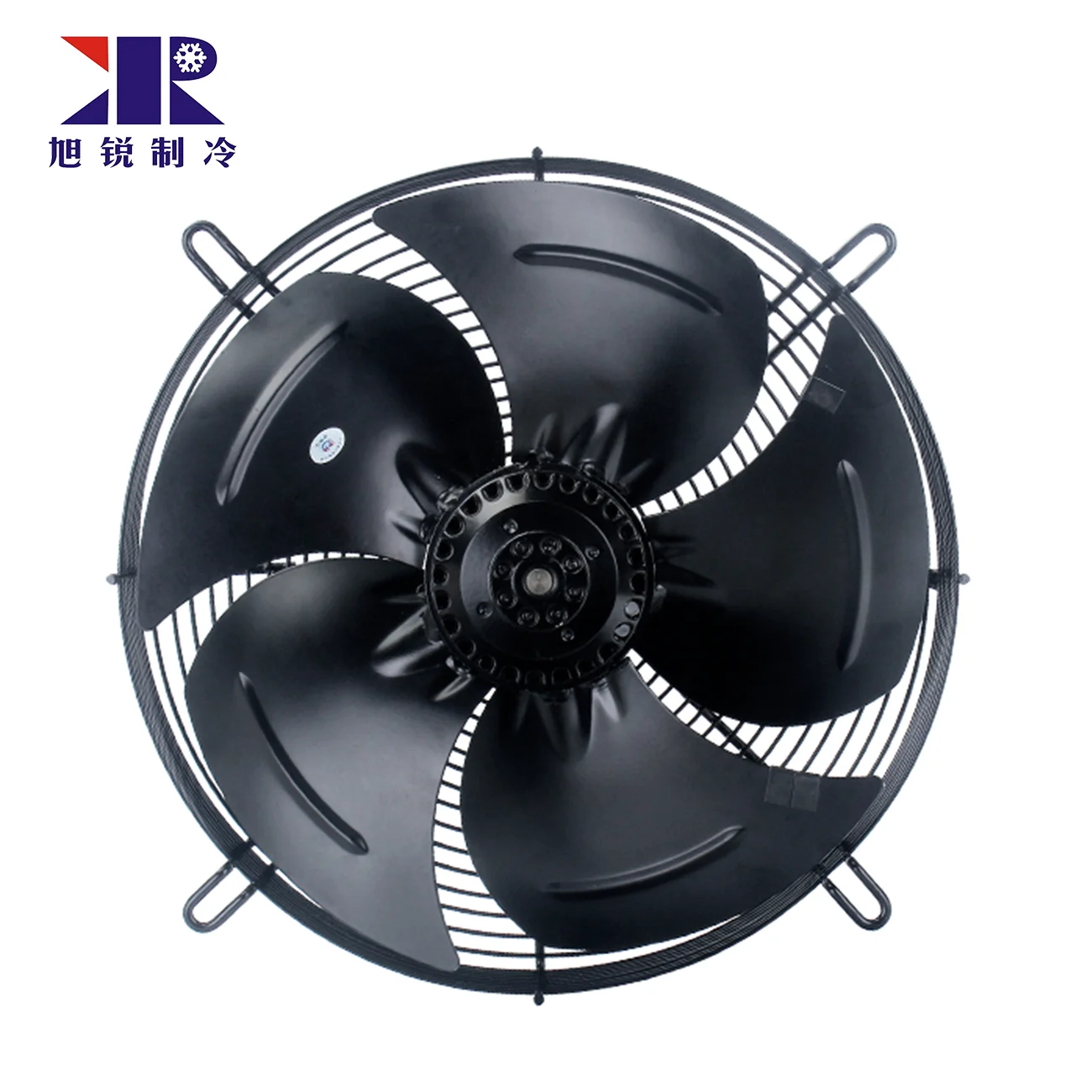

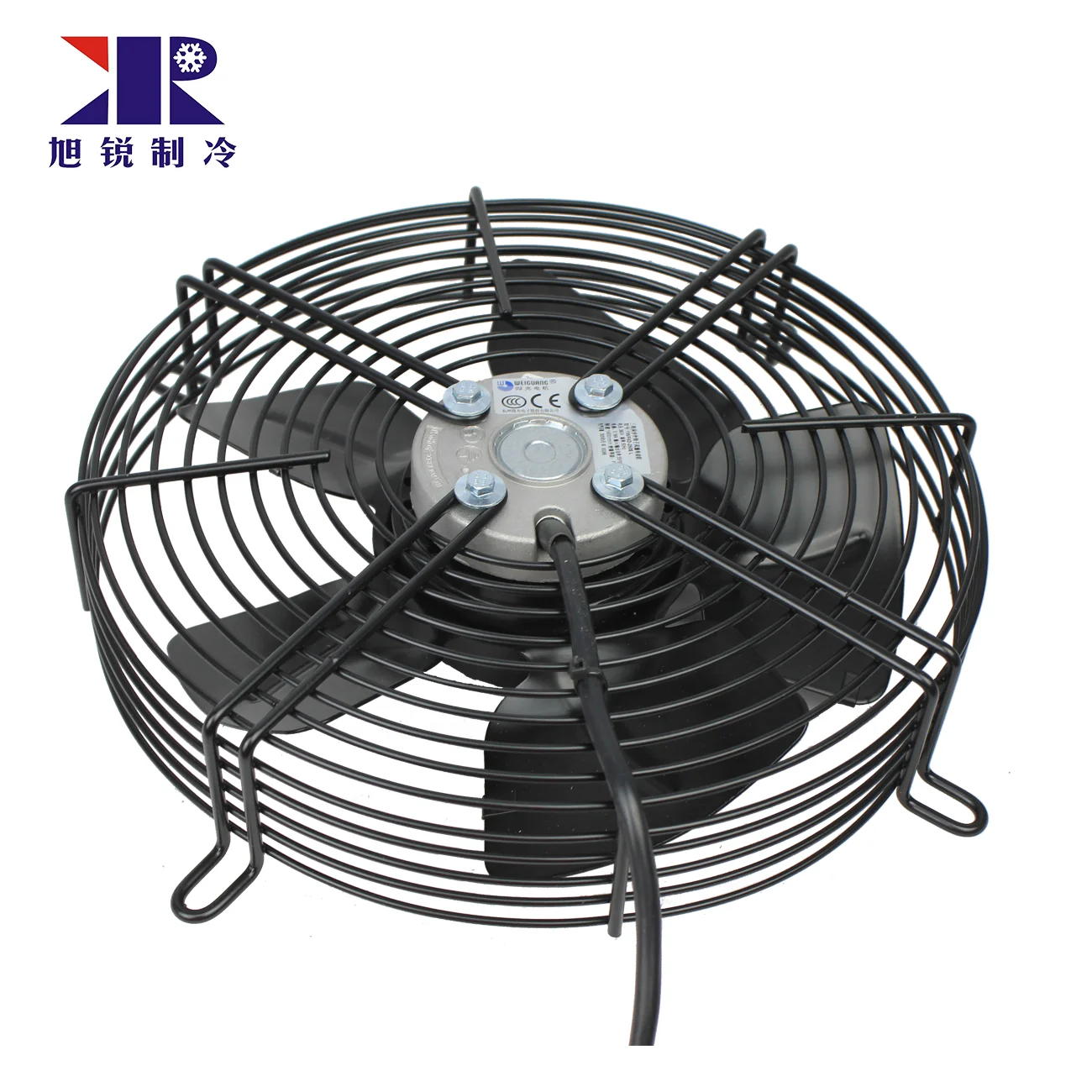

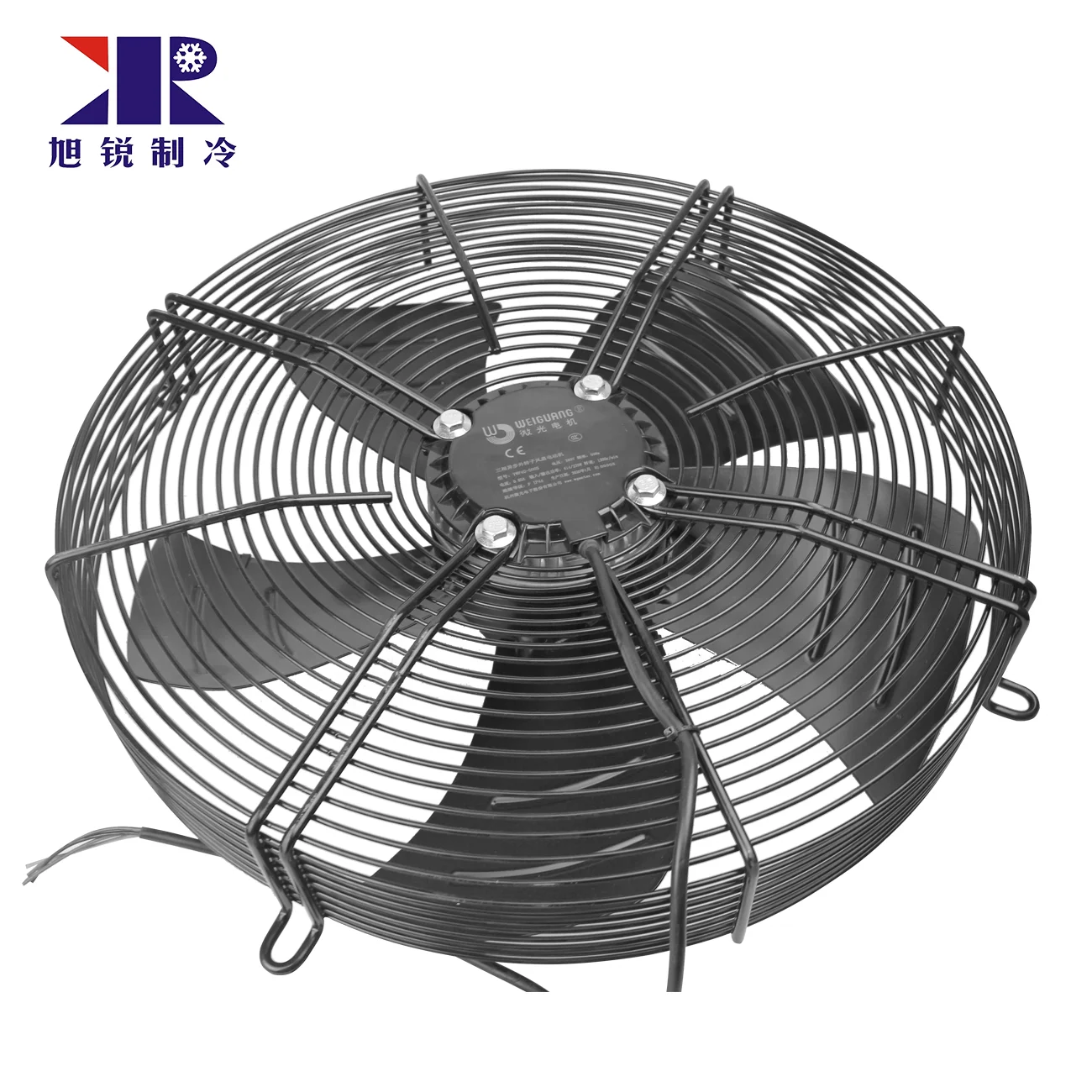

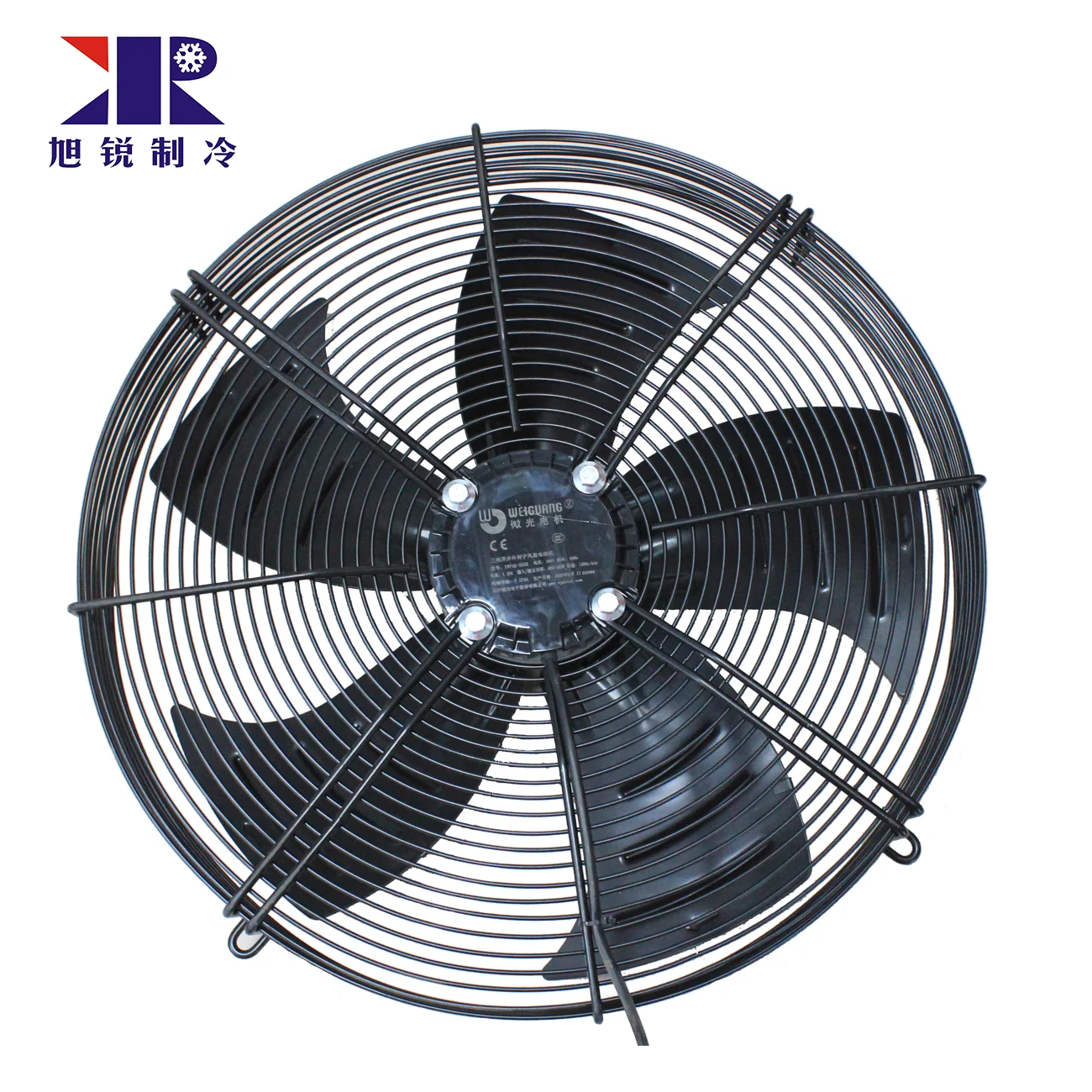

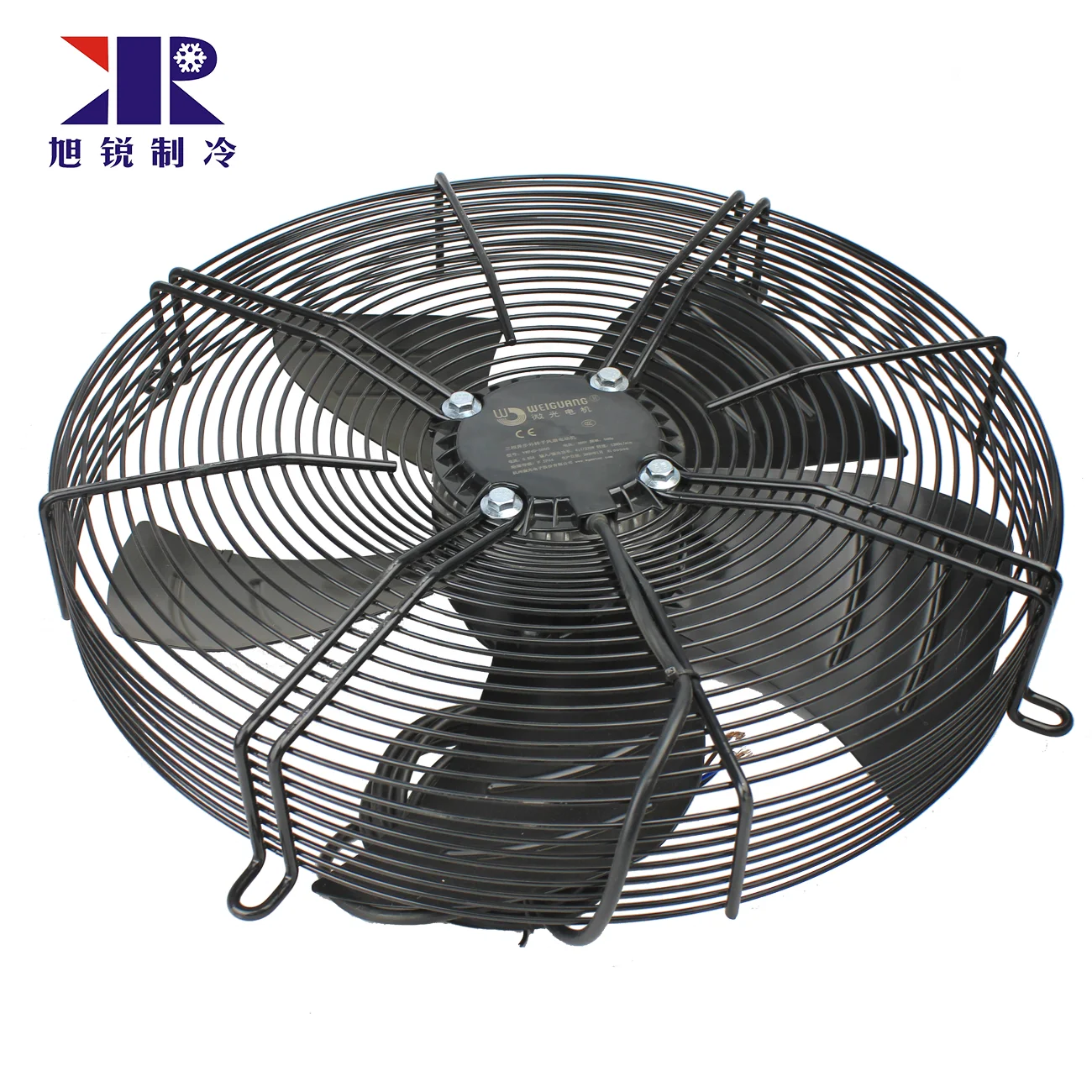

YWF Axial Fan Features
·Standard Axial Fan Include:
Mesh cover, fan motor (customized voltage), fan blade, wiring
Mode of operation: S1
Insulation class: B, F
Type of protection: IP44, IP54
Certificates: CCC, CE, U/L
Ambient temperature: -30℃~+60℃
Target energy efficiency: ErP2015
Energy effciency data according to ErP 2015 directive:
Measurement category: A
Efficiency category: Static
Power range (Pin kW): 0.125≤P≤10
Target energy efficiency: ŋ=2.74 x ln(P) - 6.33 + 40
·Feature:
1. YWF series axial fans are external rotor fan motors. These motors have characteristics of compact structure, convenient installation, energy conservation and high efficiency.
2. YWF series axial fan motors have two types, single phase asynch ronous capacitor run fan motor and three phase asynchronous fan motor. They are widely used in condenser, evaporator and other refrigeration equipments and ventilating cycle areas.
3. The insulation class of the YWF series axial fans is B or F.
4. Voltage: The voltage of the single phase fan is 220v/50Hz and the voltage of the three phase fan is 380v/50Hz. We can also supply other fan with different voltages and frequescies according to cilents' requirement.
5. The standard length of the electrical wire on the fan is 1.5m and we can also supply the fans with connection box for clients' choices.
6. The applicable ambient temperature of the fans used in condenser is from -30℃ to 60℃.
7. The average service life of fans is over 30000 hours.
8. All fans are certified by CCC, CE, UL.
9. Before operating the fan, make sure the earth wire of the fan connected with the external grounding device.
10. Test condition: Fan characteristic measured is square frame without guard grill.
Parameters Table
Model | Voltage | Input Power (w) | Speed (r/min) | Blade | ||||
YWF4E-200S | 220v/1p/50hz | 40 | 1400 | 9 | ||||
YWF4D-200S | 380v/3p/50hz | 35 | 1400 | 9 | ||||
YWF4E-250S | 220v/1p/50hz | 50 | 1380 | 5 | ||||
YWF4D-250S | 380v/3p/50hz | 55 | 1400 | 5 | ||||
YWF4E-300S | 220v/1p/50hz | 85 | 1380 | 5 | ||||
YWF4D-300S | 380v/3p/50hz | 75 | 1380 | 5 | ||||
YWF4E-315S | 220v/1p/50hz | 95 | 1380 | 5 | ||||
YWF4D-315S | 380v/3p/50hz | 80 | 1380 | 5 | ||||
YWF4E-330S | 220v/1p/50hz | 100 | 1380 | 5 | ||||
YWF4D-330S | 380v/3p/50hz | 85 | 1380 | 5 | ||||
YWF4E-350S | 220v/1p/50hz | 129 | 1400 | 5 | ||||
YWF4D-350S | 380v/3p/50hz | 129 | 1400 | 5 | ||||
YWF4E-400S | 220v/1p/50hz | 180 | 1380 | 5 | ||||
YWF4D-400S | 380v/3p/50hz | 180 | 1380 | 5 | ||||
YWF4E-450S | 220v/1p/50hz | 250 | 1350 | 5 | ||||
YWF4D-450S | 380v/3p/50hz | 250 | 1350 | 5 | ||||
YWF4E-500S | 220v/1p/50hz | 380 | 1320 | 5 | ||||
YWF4D-500S | 380v/3p/50hz | 414 | 1300 | 5 | ||||
YWF4E-550S | 220v/1p/50hz | 550 | 1300 | 5 | ||||
YWF4D-550S | 380v/3p/50hz | 600 | 1300 | 5 | ||||
YWF4E-600S | 220v/1p/50hz | 700 | 1360 | 5 | ||||
YWF4D-600S | 380v/3p/50hz | 780 | 1360 | 5 | ||||
YWF4E-630S | 220v/1p/50hz | 750 | 1360 | 5 | ||||
YWF4D-630S | 380v/3p/50hz | 800 | 1320 | 5 | ||||
YWF6D-710S | 380v/3p/50hz | 830 | 900 | 7 | ||||
YWF6D-800S | 380v/3p/50hz | 1200 | 900 | 7 | ||||
YWF Axial Fan Application
Axial fans are widely used in condenser, evaporator and other refrigeration equipments and ventilating cycle areas.
FN Type Condenser
FNV Type Condenser
Evaporator
Condensing Unit
Wiring Diagram
Single Phase
Three Phase
Company Profile
About us
Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel...
All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.
Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.
Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.
Our factory
Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui
Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
Our Advantages
At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer:
• Top quality used or new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
• Top quality used or new equipment for any size refrigerated building.
• Experienced crews to build your box from walls to ceiling.
• Experience in special needs such as insulated floors, refrigeration parts.
• Turnkey projects available.
• Custom sizes and design services.
• We will go anywhere to do the job.
Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.
Transportation & Installation
We provide the best packing service to our customers! Arrival safely.
Recommend Products
Похожие товары
Заводские безалкогольные напитки оптом 500 мл Кола Японские Пластиковые бутылки бренды Vimto углеродный синий Кола напиток
5,60 $ - 6,30 $
Vimto безалкогольные напитки оптом 330 мл
Pepsi, Sprite, Lilt, Barr, Cawston, Dalstons, Ben Shaws, whites,Vimto, честный напиток

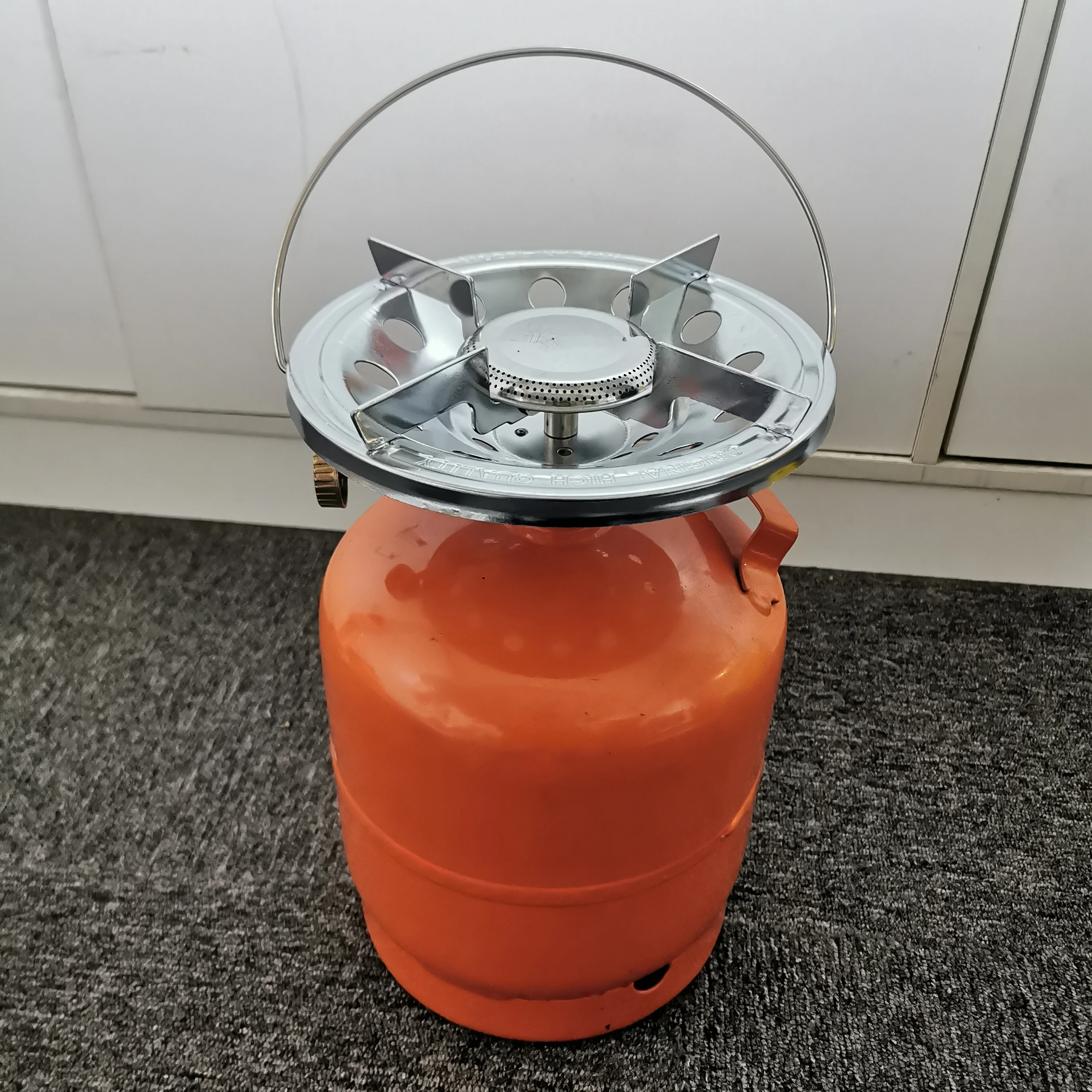

Газовый баллон сжиженного нефтяного газа 3 кг для домашнего использования
