Find the right Clamp Meters
What is your basic need?
General universal measurements
Industrial measurements
Measurements in utility or heavy industry environment
Product Description
Earth Ground loop resistance measurements for commercial, industrial, and utility applications

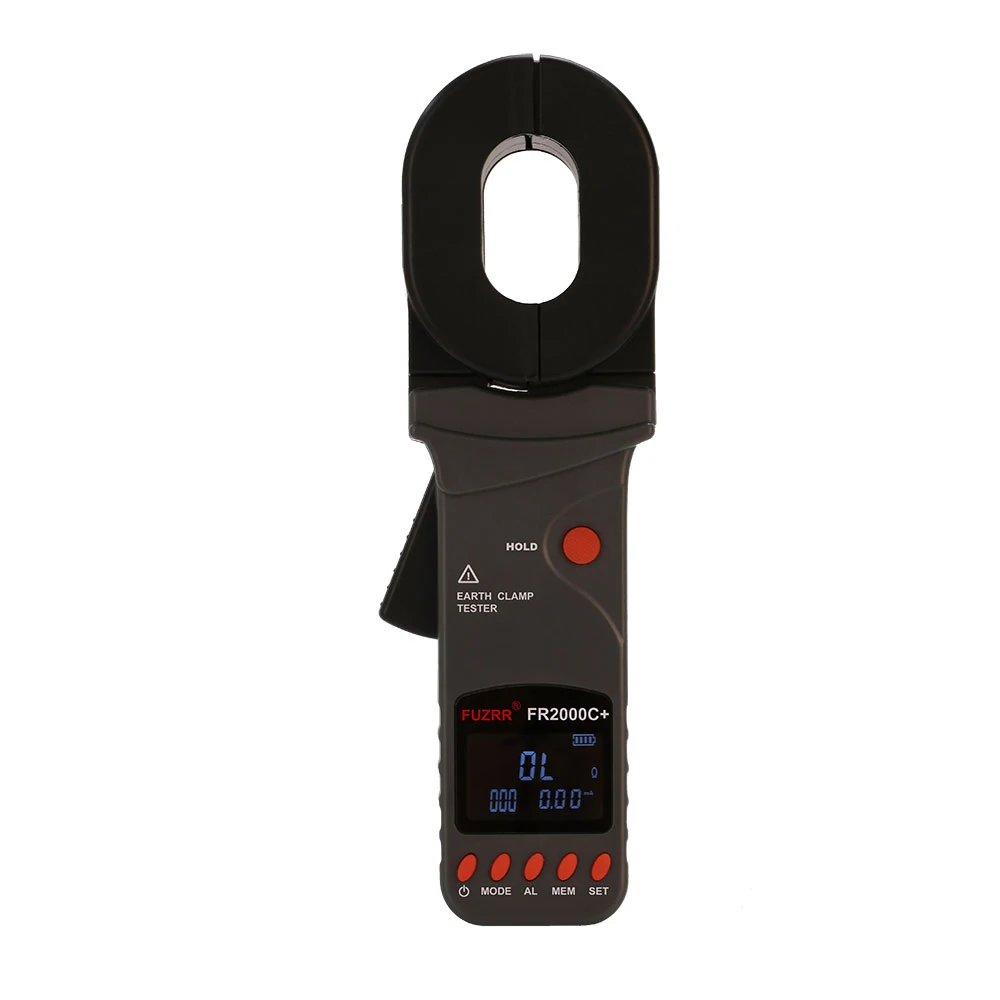

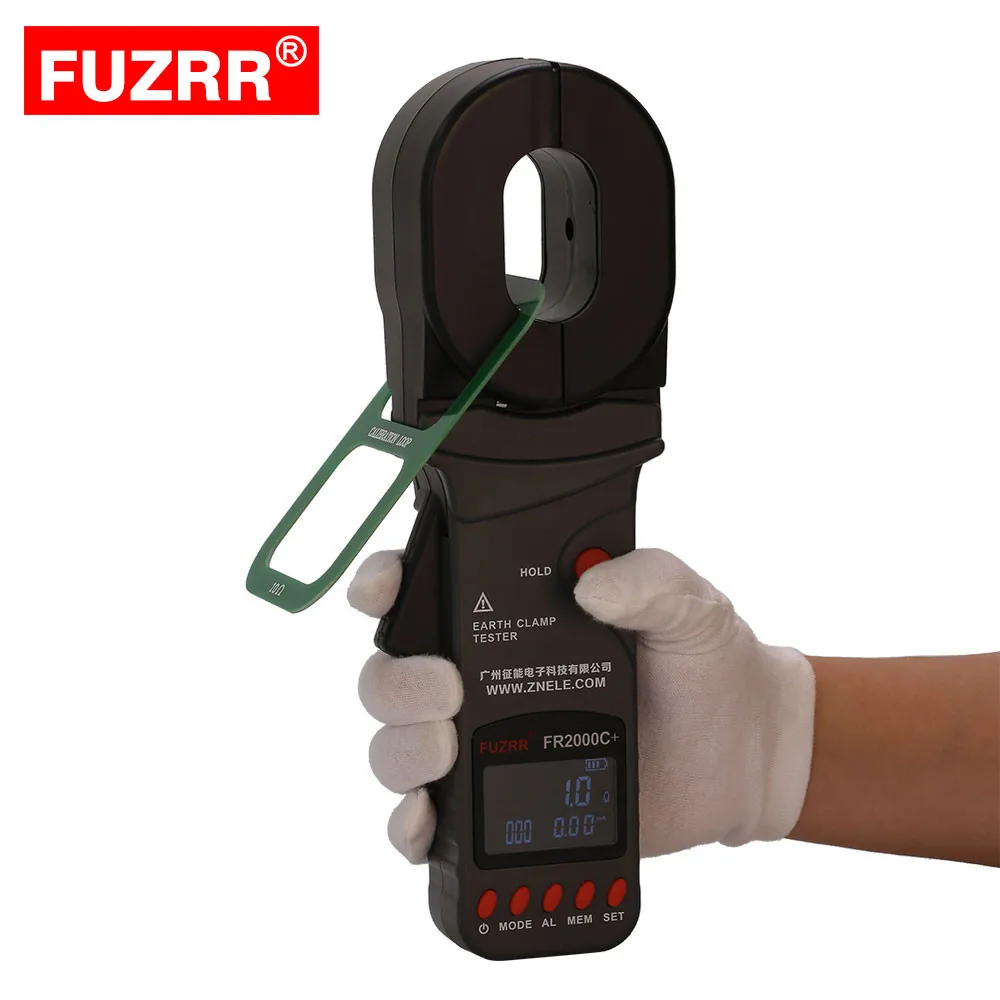

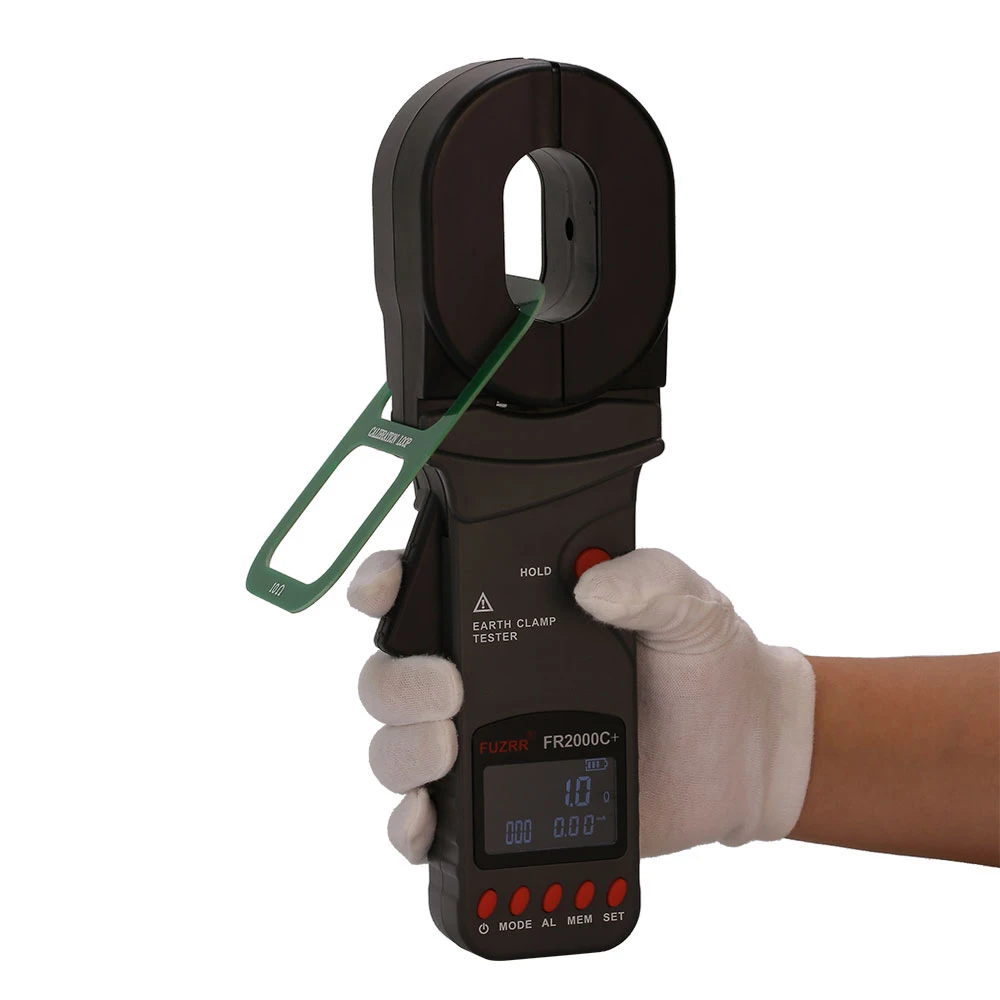

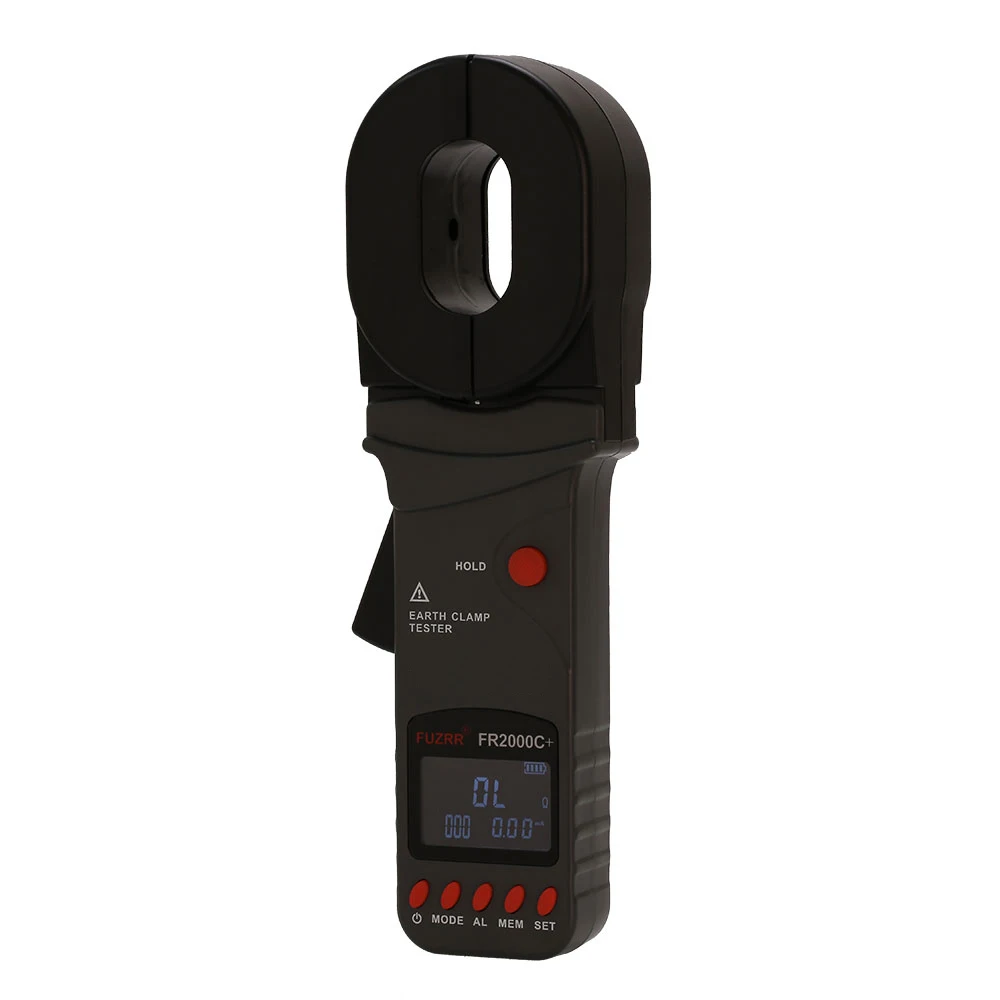

The clamp-on ground testing technique used by the Fuzrr 2000+ simplifies ground loop testing
and enables non-intrusive leakage current measurement.
The compact and rugged design makes the Fuzrr 2000+ easy to use in small places and harsh environments, while the ‘display hold’ and the continuity testing with an audible alarm function
ensures convenience in use.The novel technique means that earth ground looptesting
and continuity testing can be completed without breaking the circuit.
This is a advanced intelligent earth resistance tester. FR2000+ series can quickly and
safely measure the grounding system without disconnecting circuit ground lines.New
design, panel operation with 6 buttons, better performance.
FUZRR clamp-type grounding resistance tester is widely used in grounding
resistance measurement and loop resistance measurement of electric power,
telecommunications, meteorology, oil field, construction and industrial electrical
equipment. When measuring a grounded system with a loop, there is no need to
disconnect the ground lead and no auxiliary electrode,which is fast and reliable.
The FUZRR Clamp Ground Resistance Tester canmeasure ground faults that cannot
be measured with traditional methods, and can be used in situations where traditional
methods cannot.
| Function | Ground resistant test, Loop resistance test
|
| Range | 0.01Ω-500Ω
|
| Resolution |
|
| Accuracy | ±1%±0.01Ω
|
| Power Supply | DC6V Alkaline Dry Battery (1.5V LR6 X 4)
|
| Measurement Method | Mutual induction
|
| Clamp Diameter | 65mmx32mm
|
| Clock Function | Have
|
| Display Mode | 4-digit LCD display, black screen design
|
| LCD Dimension | 46mm×29mm
|
| Meter Dimension |
|
| Sampling Speed | About 2 times/second
|
| Data Storage | 300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full
|
| Data Review | "MR" symbol indication when reviewing data
|
| Overflow Display | Exceed measurement range overflow function: “OL ” symbol display
|
| Test Method | Clamp CT, Integral Method
|
| Interference Test | Automatic identify interference signal, "NOISE" symbol indication when the interference current is large
|
| Alarm Function | Alarm when the measured value exceeds the alarm setting value
|
| Battery Voltage | Real-time display of battery power, reminding timely charging when battery voltage is low
|
| Automatic shut-down | "APO" instruction, automatic shutdown after 5 minutes boot
|
| Power Consumption | 50MA Max
|
| Weight | Instrument: 1180g (with battery)
|
| Working Temperature and Humidity | -10°C~40C; below 80% rh
|
| Insulation Resistance | 20Ω or more (500V between circuit and outside)
|
| Pressure Resistance | AC 3700V/rms(between circuit and outside)
|
| Suitable for Safety Regulations | IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance)
|
Product function
Grounding resistance test, loop resistance test.
What is grounding?
Grounding is the neutral point (zero line) of the power system and electrical installation, the conductive part of electrical equipment leakage, and the part of the device that is connected
to the earth via a conductor. Can be divided into, working ground (zero wire), lightning
protection ground (ground wire) protective ground (ground wire), shield ground (ground wire),
anti static ground (ground wire)
Accessories
| Meter | 1PC |
| Meter box | 1PC |
| 5# dry battery | 4PCS |

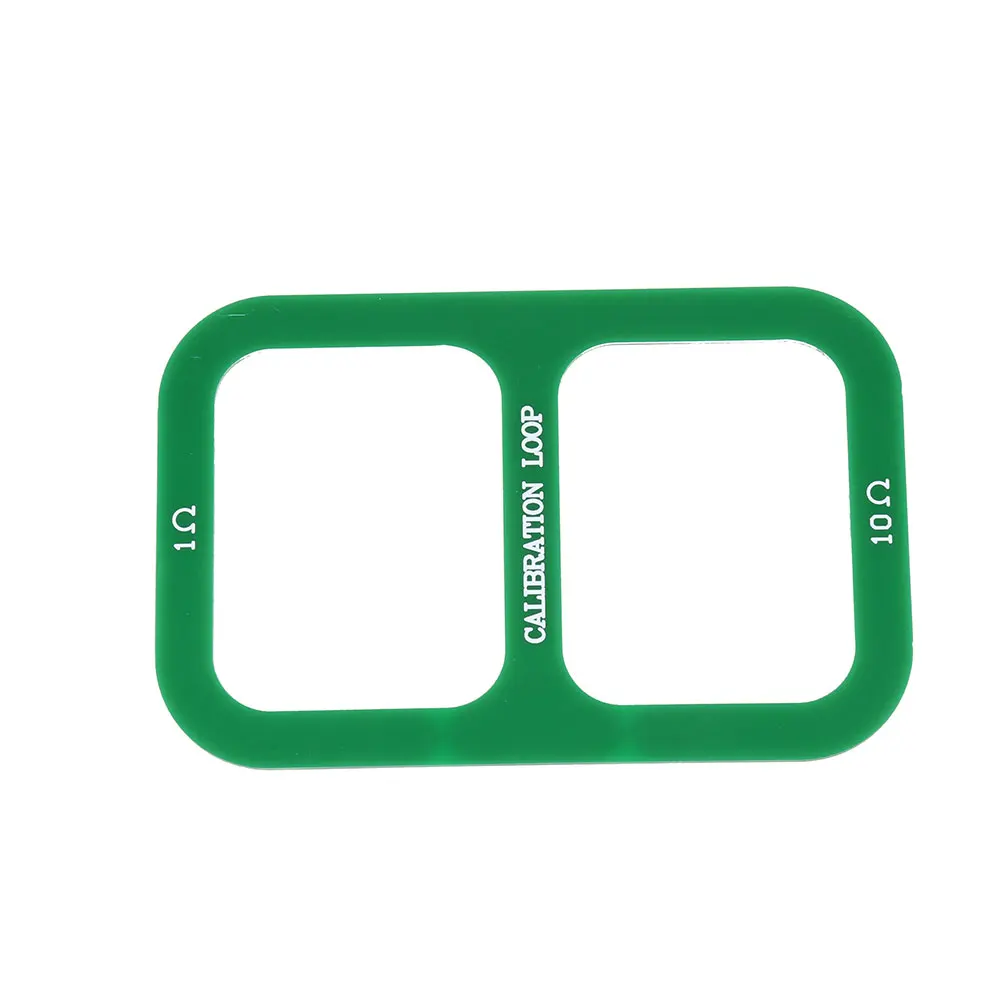

| Calibration ring | 1PC |
| Manual, certificate | 1SET |
Product Images:
Features of use
FR2000+ series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω
FR2000+ series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω
with a resolution of 0.001Ω. FR2000+ can also measure leakage current up to 20A. These
clamps’ double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.
Applies to all kinds of ground lead. (Round bar, flat bar, angle iron)
Non-touch measured resistance, safe, fast.
Need not use assistant ground rod.
with double protecting insulation.
with strong anti-interference ability and high accuracy.
Use dry batteries, convenient for customers.
Non-touch measured resistance, safe, fast.
Need not use assistant ground rod.
with double protecting insulation.
with strong anti-interference ability and high accuracy.
Use dry batteries, convenient for customers.
Applications:
Grounding resistance measurement in electricity, telecommunication, meteorology,
oilfield, architecture and industrial electric equipment
1. Resistance limit alarm
2. Auto range
3. Low battery indication
Grounding resistance measurement in electricity, telecommunication, meteorology,
oilfield, architecture and industrial electric equipment
1. Resistance limit alarm
2. Auto range
3. Low battery indication
The Fuzrr digital clamp meter is a workhorse tool for everyday use.
Product Certificate
Packaging
To better ensure the safety of your goods, professional, environmentally friendly,convenient and efficient packaging services will be provided.
Sea Shipping Container shipping
DHL Express UPS Express FedEx Express EMS Express
Factory image
Office and workshop image
Now we move to a new factory, there are new office and new workshop, welcome to different friends visit our factory.
Test Equipment
Company Profile
GuangZhou ZhengNeng Electronics Technology Co., Ltd is a high-tech enterprises including R & D and production and sales departments.
GuangZhou ZhengNeng Electronics Technology Co., Ltd is a high-tech enterprises including R & D and production and sales departments.
ZhengNeng Company is committed to online monitoring equipment, portable electrical measuring instruments.
ZhengNeng in line with scientific and technological innovation,people-oriented principle for many years has been recognized by customers.
The company has professional technical team, and cooperat with Guangzhou major university, scientific research institutes, to provide high-quality products and perfect after-sales service to the national electric power industry.
Company's main products are power quality monitor, field calibration meter, phase volt ampere meter, relay protection test instrument, clamp power meter, grounding resistance tester, grounding fault tester,Insulation resistance tester, high voltage current clamp meter, high voltage CT ratio tester, loop resistance tester, DC resistance tester,leakage protection testing instrument and other products.
Easy to use, stable performance, safe and reliable and high precision products,for many years has been recognized by the State Power Grid, China SouthernPower Grid Company, China EPRI, China Meteorological Administration.Products have been widely used by electricity, coal, oil, chemical, metallurgy, construction, railways, communications, defense and otherdepartments.
ZhengNeng has professional technical team and strict quality control system,and has passed ISO9001:2008 quality system authenticatio,adhere to scientific and technological innovation, excellence, mutual benefit and win-win business spirit to seek greater development.
Company Attend Fair
FAQ
1.Q: Are you trading company or manufacturer?
A: We are factory.
We have R&D department, OEM& ODM services available.
2.Q: How long do your delivery time?
A: We will arrange shipment in 3 to 5 days after check the payment.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not free; you need pay charge and the cost of freight.
4.Q: What is your term of payment?
A: Payment 30% T/T in advance, balance before shipment.
5.Q: What is the payment method?
A: We can accept Bank Transfer, PayPal, Western Union, Money Gram, Cash etc.
6.Q: Will you provide OEM service?
A: OEM & ODM warm welcome.
7.Q: How long is the product warranty?
A: 1 year.
Похожие товары
ITC T-521UH PLL UHF длинная и стабильная передача Ручной FM микрофон беспроводной
5V1W DC DC-DC низкая изолированные нерегулируемый, модуль источника питания с HLK-1D0505
0,10 $ - 0,20 $
В наличии, оригинальный, On-Bright IC OB25133JPA для зарядного модуля с использованием микросхемы интегральной схемы MCU
Регулируемый домкрат для поддонов, гидравлическая тележка для поддонов, ручная тележка для поддонов
91,00 $ - 95,00 $

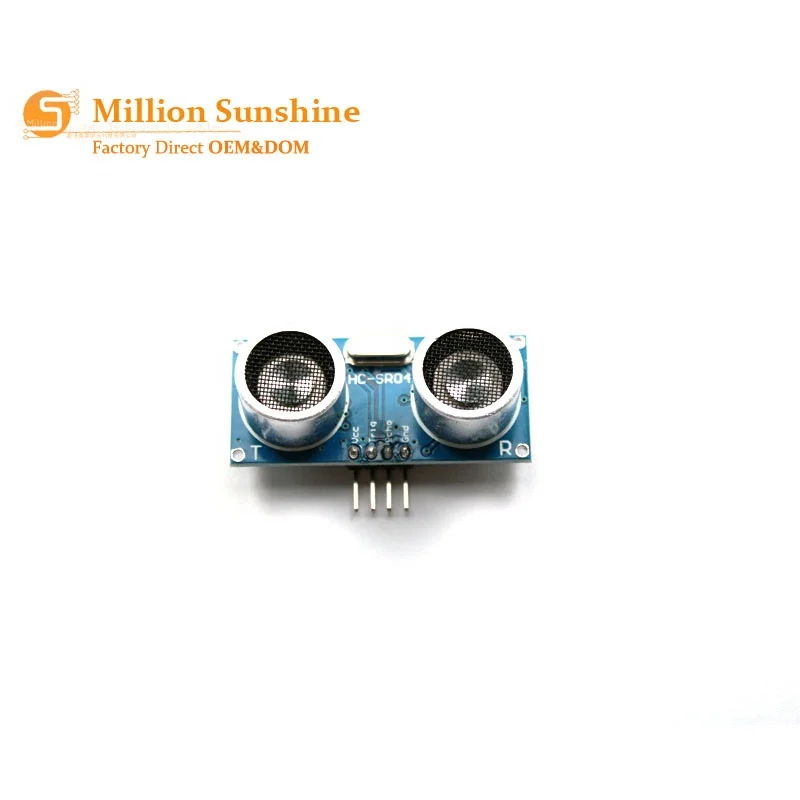

HC-SR04 HCSR04, ультразвуковой датчик, датчик волны, модуль измерения
0,50 $ - 0,60 $

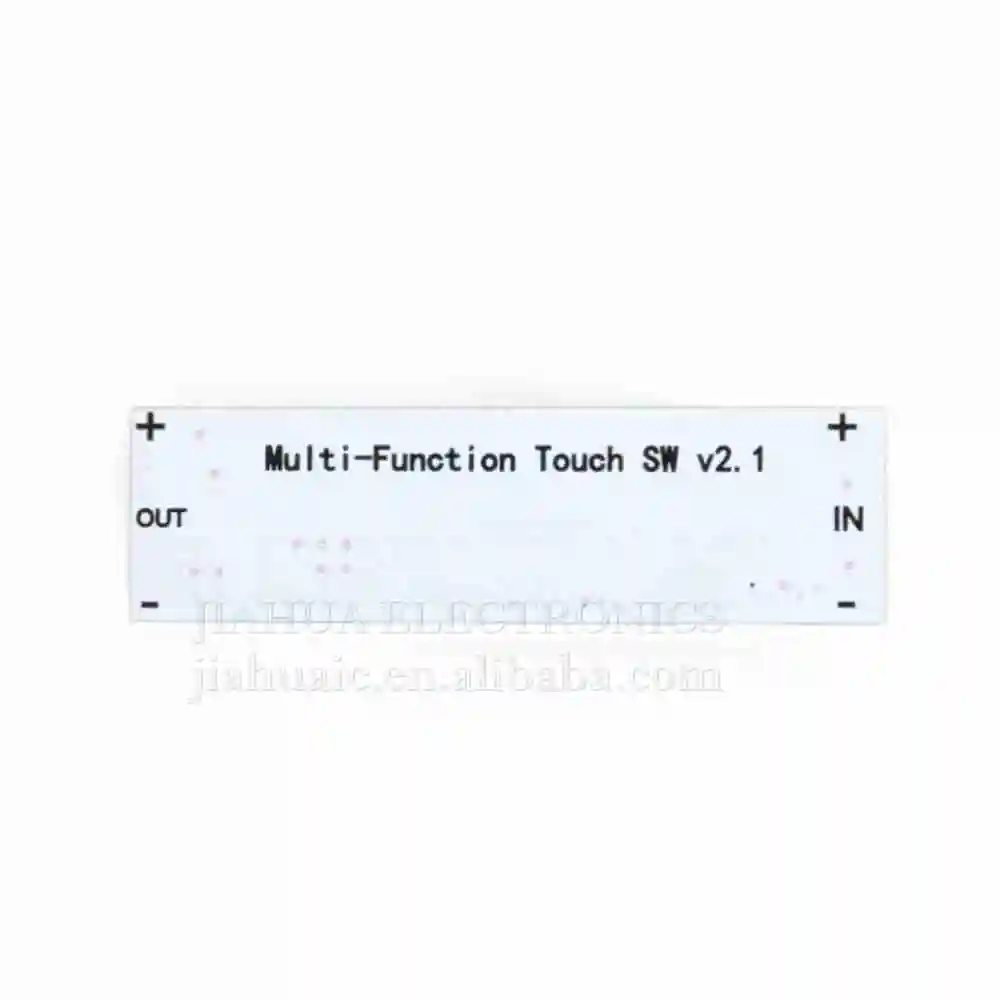

Сенсорный выключатель, многофункциональная бесступенчатая Затемняющая лампа для шкафа, интеллектуальный модуль выцветания
0,10 $ - 0,20 $

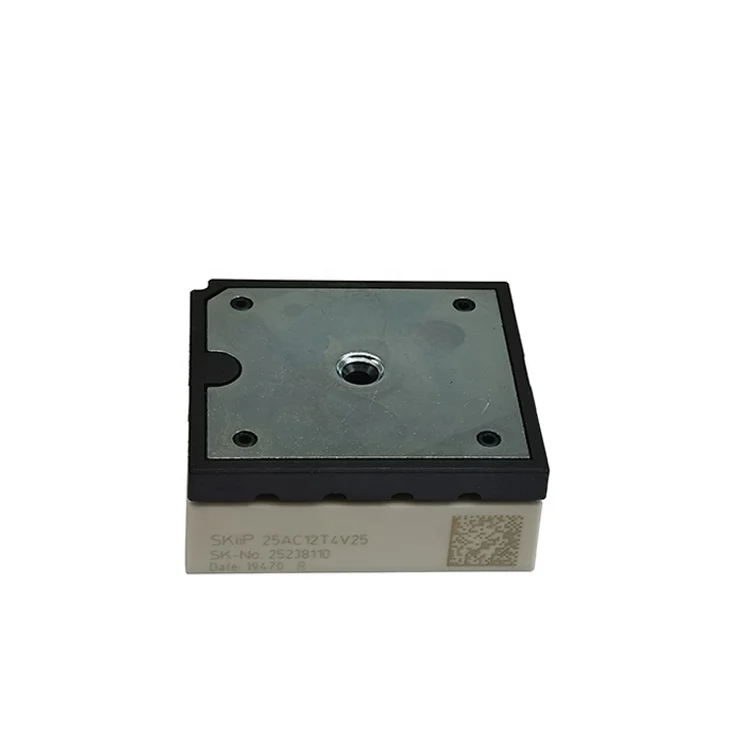

Zhida Shunfa SKIIP25AC12T4V25 SKIIP25AC12T4 SKIIP25AC12 SKIIP25 Новое поступление оригинальный igbt модуль питания SKIIP25AC12T4V25
