Products Description
Freeze dryer is widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. it is used to produce vaccines, drugs and permanently store biological tissues/organs.
LTDG-CX Series freeze dryer is specialized designed for small batch test in laboratory.The Bench Top and Console freeze dryers are with advanced design and occupies smaller area.
Main Technical Data
Model | LTDG-10S | LTDG-10T | LTDG-10P | LTDG-10PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 | ||||||
Vacuum Degree (Pa) | <10 | ||||||
Condenser volume (L) | 9 | ||||||
Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | |||
Ice condenser capacity (Kg/24h) | 3 | ||||||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 | |||
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze drying time (h) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | Y | Y | Y | |||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 260 | 195 | |||||
Penicillin bottle Φ16 | 480 | 360 | |||||
Penicillin bottle Φ12 | 920 | 690 | |||||
Model | LTDG-12S | LTDG-12T | LTDG-12P | LTDG-12PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 OR -80 | ||||||
Vacuum Degree (Pa) | <10 | ||||||
Condenser volume (L) | 9 | ||||||
Freeze drying area (m2) | 0.12-0.18 | 0.09 | 0.12-0.18 | 0.09 | |||
Ice condenser capacity (Kg/24h) | 4 | ||||||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 300 | ||||||
Material loading capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze drying time (h) | 24 | ||||||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | ||||||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 260 | 195 | |||||
Penicillin bottle Φ16 | 480 | 360 | |||||
Penicillin bottle Φ12 | 920 | 690 | |||||
Model | LTDG-18S | LTDG-18T | LTDG-18P | LTDG-18PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering | |||
chamber with 8 port manifold | |||||||
Final condenser temp (℃) | -55 OR -80 | ||||||
Vacuum Degree (Pa) | <10 | ||||||
Condenser volume (L) | 23 | ||||||
Freeze drying area (m2) | 0.18-0.27 | 0.135 | 0.18-0.27 | 0.135 | |||
Ice condenser capacity (Kg/24h) | 6 | ||||||
Qty of shelf | 4 | 3 | 4 | 3 | |||
Material loading capacity/shelf (ml) | 450 | ||||||
Material loading capacity (ml) | 1800 | 1350 | 1800 | 1350 | |||
Freeze drying time (h) | 24 | ||||||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Y | ||||||
Drying Chamber(standard) | Transparent acrylic | ||||||
Vacuum Pump | Speed: 2L/S | ||||||
Control System | Microprocessor, touch screen | ||||||
Power supply (V/Hz) | 220V/50Hz,60Hz | ||||||
Exterior dimension (WxDxH mm) | 582*541*374/684 | ||||||
Penicillin bottle Φ22 | 350 | 270 | |||||
Penicillin bottle Φ16 | 740 | 555 | |||||
Penicillin bottle Φ12 | 1320 | 990 | |||||
Product Highlights
Humanized Design
7" colorful touch panel, can display the product samples temperature, cold trap temperature and vacuum etc in digital and curve.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Optional for gas interface: can inject inert gas
Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
Accessories
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Похожие товары

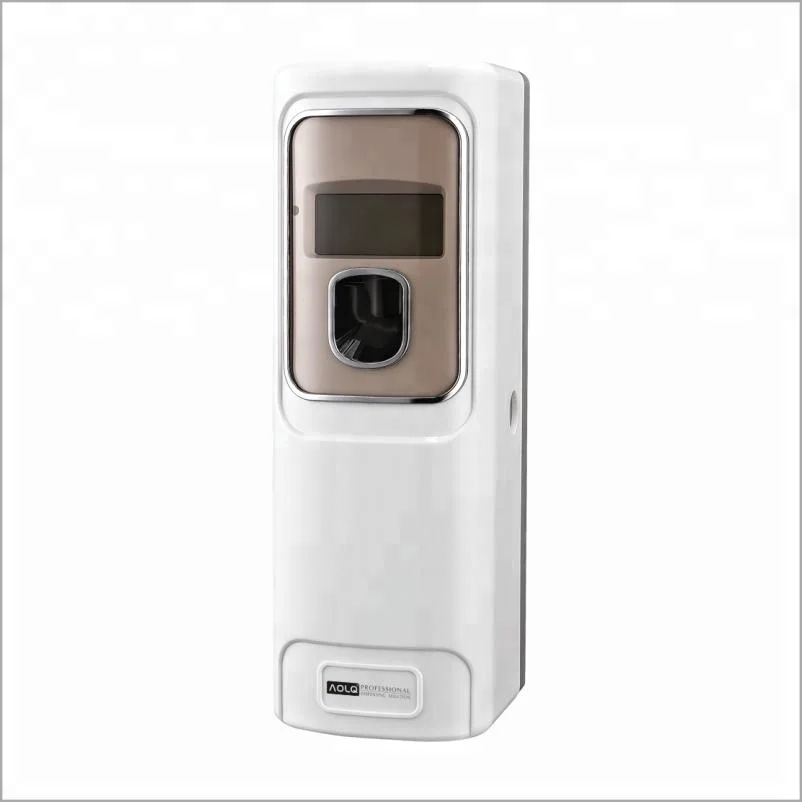

Оптовая продажа, автоматический аэрозольный диспенсер для ароматов на батарейках для унитаза с ЖК-дисплеем

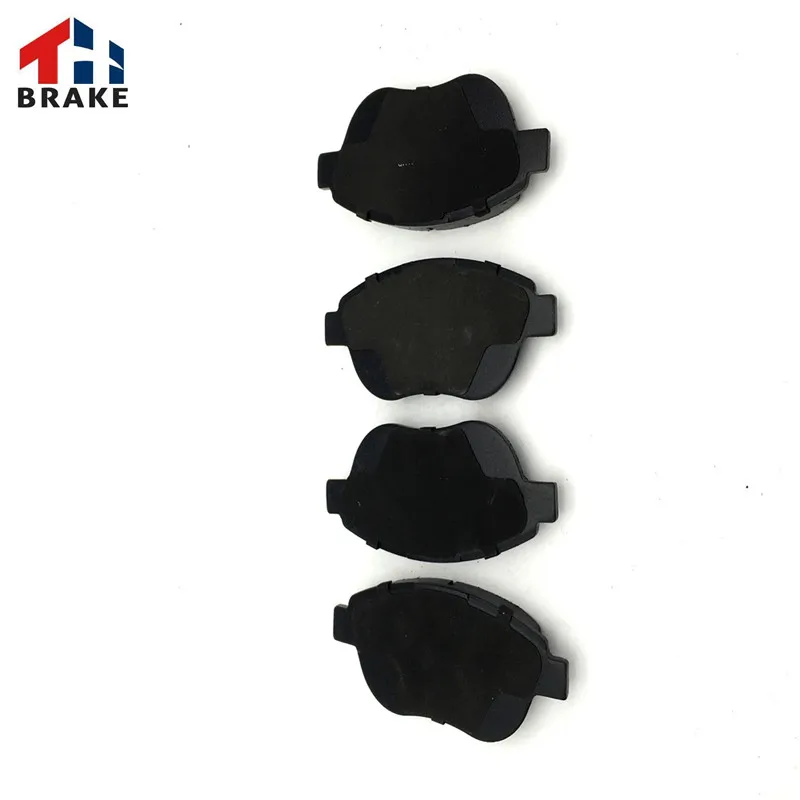

Китай, производственная линия hebei, автомобильные дисковые Тормозные колодки для PEUGEOT sp2073
3,50 $
Шерстяные коврики белого, синего цвета и другие индивидуальные цвета на ваш выбор с современным дизайном для бега, лестницы, распродажа
Детский игровой автомат с монетами, аркадный молоток, запасные части

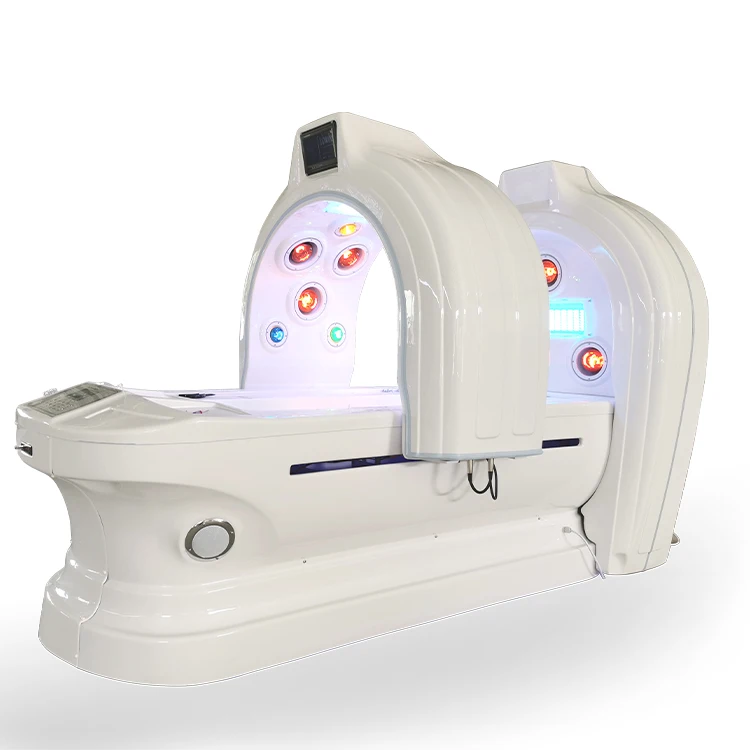

Новая технология озоновая инфракрасная сауна спа капсула/фототерапия дальняя инфракрасная EMS подушечки меридиановая кисть для потери веса Сауна туннель
2 800,00 $ - 3 000,00 $

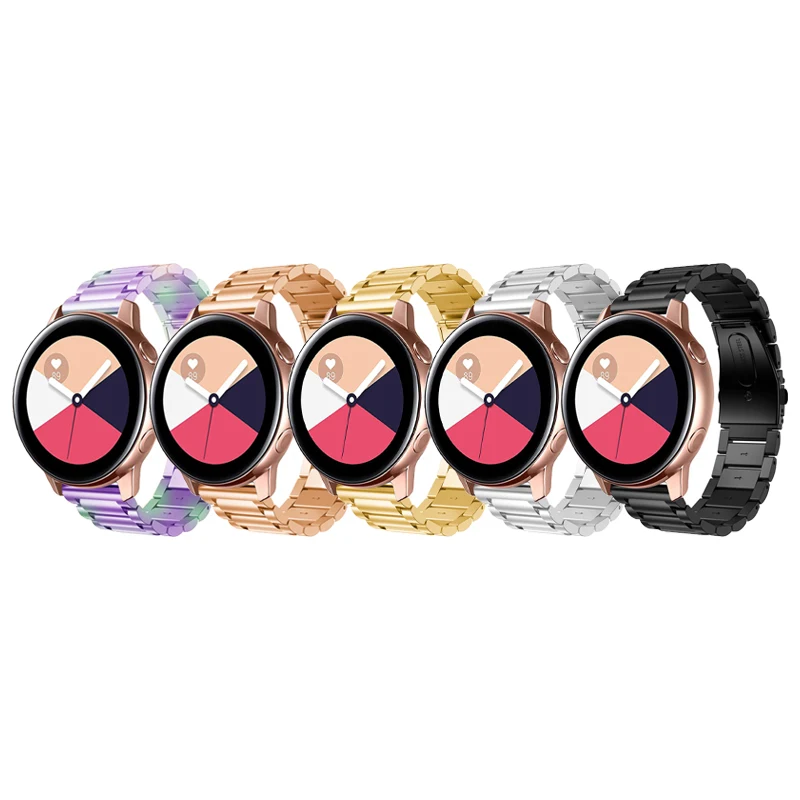

Браслет из нержавеющей стали для Samsung Galaxy Watch 42 мм 46 мм, оригинальный Активный браслет для Samsung Gear S3, 20 мм 22 мм
