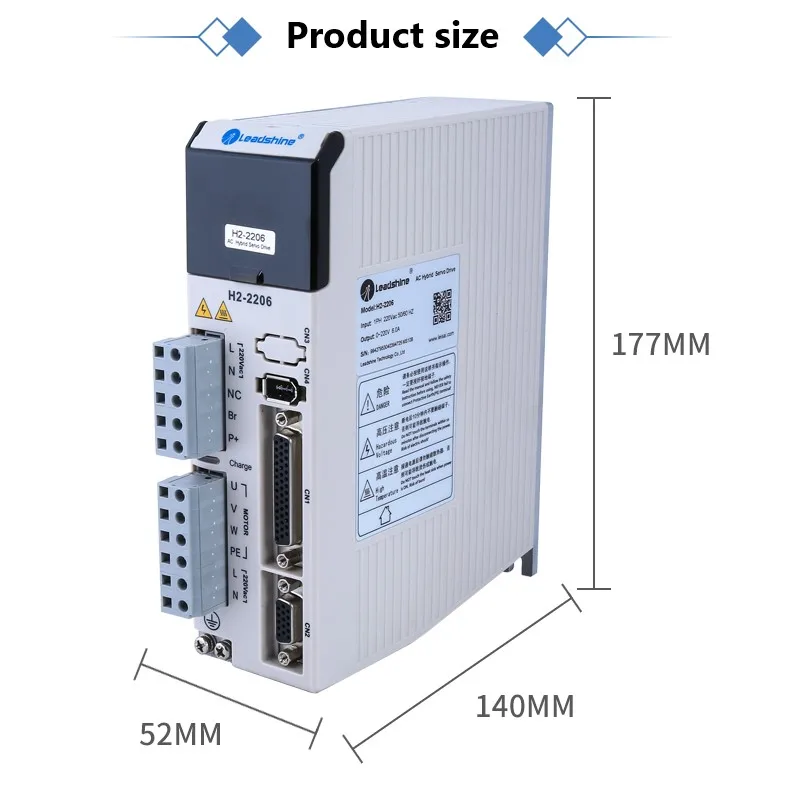

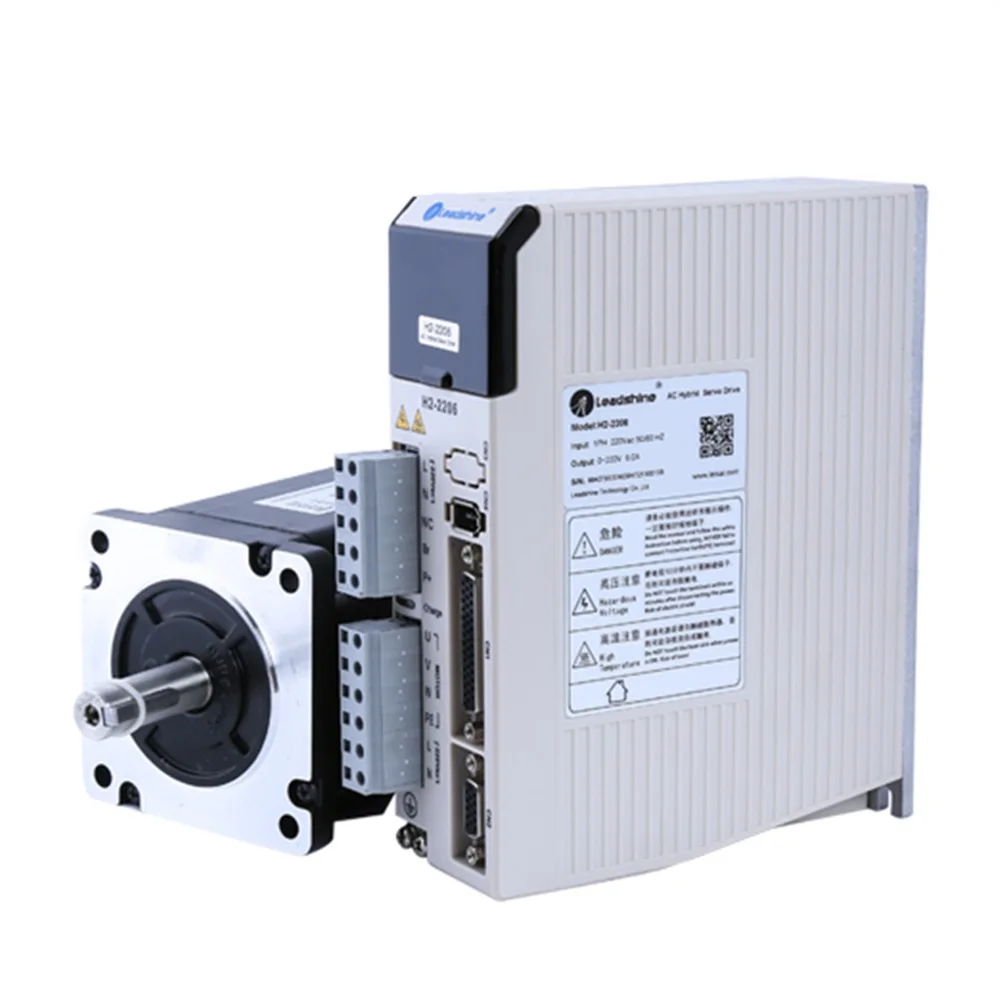

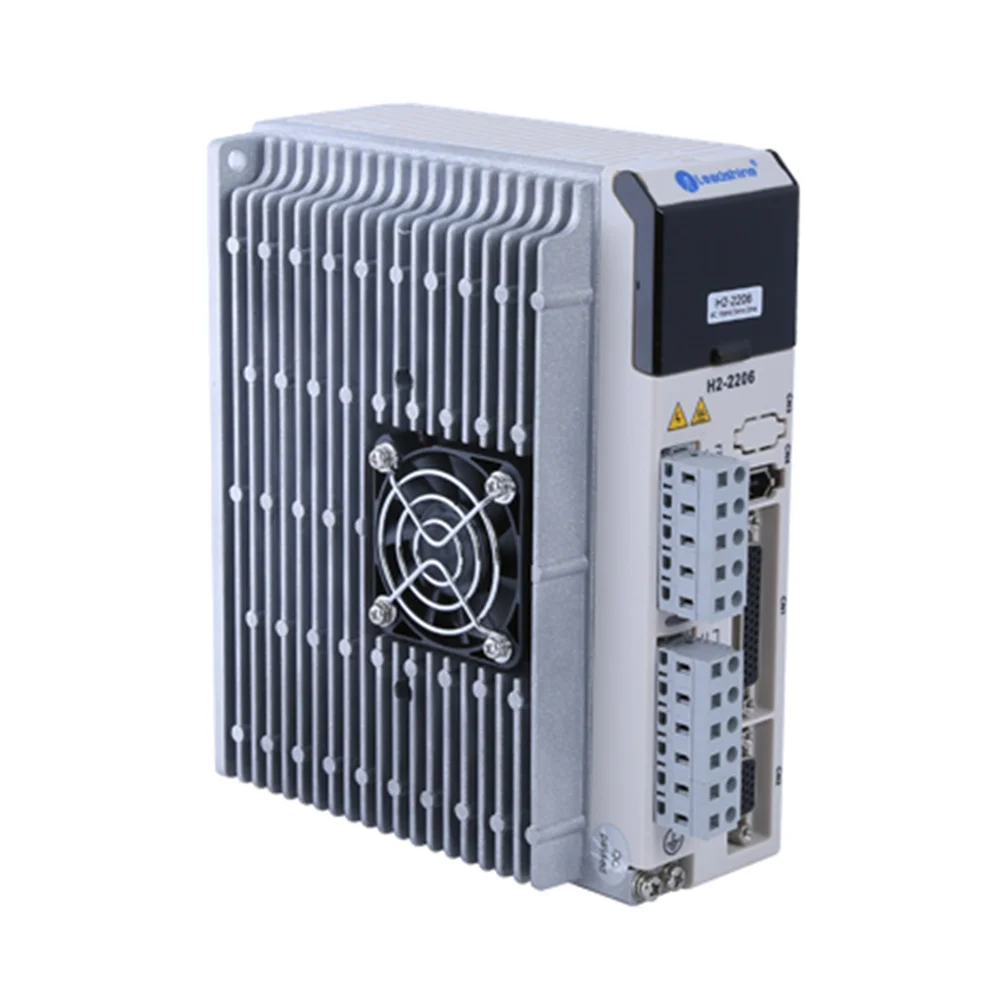

2021 Hbs2206 высококачественный шаговый двигатель переменного тока 220 В
- Категория: >>>
- Поставщик: Jinan Ruike International Trade Co. Ltd.
Сохранить в закладки 1600344156777:
Описание и отзывы
Характеристики

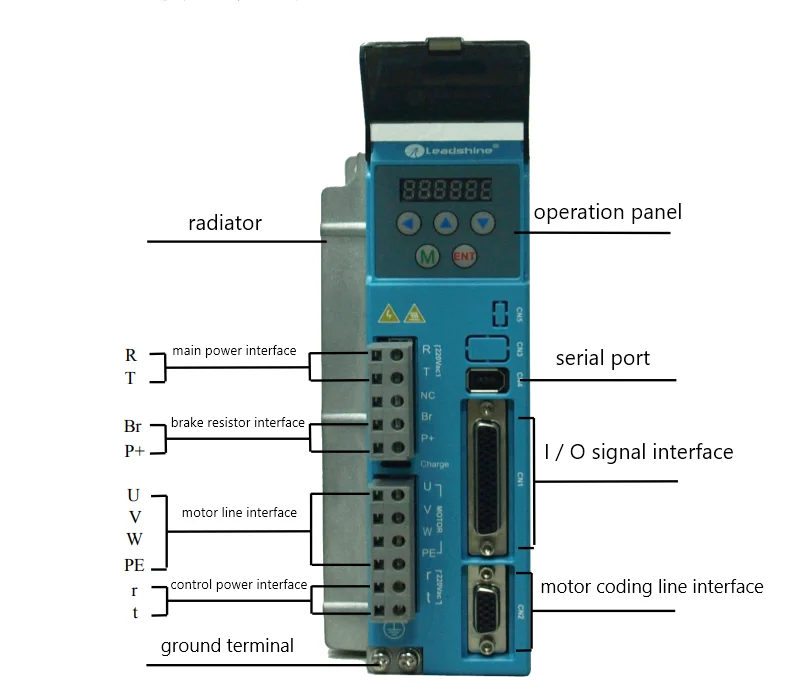

driver terminal identification | definition | explain |
R | Main power supply | Connected to AC 220 V |
T | ||
r | Control power supply | Connected to AC 220 V |
t | ||
Br | Brake resistor interface | No answer |
P+ |
Technical features
*A new 32-bit DSP chip for motor control is adopted;
*Advanced vector closed loop control technology is adopted;
*It has trapezoidal wave test function;
*The output current can be adjusted automatically (within the range of 0-6a);
*It can drive 86 and 110 high voltage hybrid servo motors;
*The optocoupler isolates the differential signal input;
*The impulse response frequency is 200kHz;
*Subdivision setting (within 200 ~ 51200);
*With overcurrent, overvoltage and tracking error out of tolerance protection;
*Six digit nixie tube display, it is convenient to set parameters and monitor motor running status
*A new 32-bit DSP chip for motor control is adopted;
*Advanced vector closed loop control technology is adopted;
*It has trapezoidal wave test function;
*The output current can be adjusted automatically (within the range of 0-6a);
*It can drive 86 and 110 high voltage hybrid servo motors;
*The optocoupler isolates the differential signal input;
*The impulse response frequency is 200kHz;
*Subdivision setting (within 200 ~ 51200);
*With overcurrent, overvoltage and tracking error out of tolerance protection;
*Six digit nixie tube display, it is convenient to set parameters and monitor motor running status
Be careful
The default current loop, position loop and speed loop parameters of the driver are the best parameters of the matching motor. Generally, customers do not need to modify them. They just need to select the motor subdivision and the percentage of open and closed loop current according to the needs of system control.
1. Select motor:
external pulse stop sending. Press the key to select the 42 parameter and select the motor to be matched. The default parameter is 863hbm70h-1000. If the motor frame size or torque selected by the customer is less than the default motor, the parameters in step 2 should be reduced accordingly, otherwise, it needs to be increased.
2. Change parameters:
PA03 position loop KP: proportional gain coefficient of position loop, which is about 1 / 4 of PA05 speed loop KP.
PA04 speed loop ki: current loop proportional gain coefficient, the value is about 1 / 8 of PA05 speed loop KP.
PA05 speed loop KP: speed loop proportional gain coefficient, equivalent to rigidity. Within the acceptable noise and vibration range of customers, the larger the parameter, the better the mechanical effect. Generally no more than 1000.
The default current loop, position loop and speed loop parameters of the driver are the best parameters of the matching motor. Generally, customers do not need to modify them. They just need to select the motor subdivision and the percentage of open and closed loop current according to the needs of system control.
1. Select motor:
external pulse stop sending. Press the key to select the 42 parameter and select the motor to be matched. The default parameter is 863hbm70h-1000. If the motor frame size or torque selected by the customer is less than the default motor, the parameters in step 2 should be reduced accordingly, otherwise, it needs to be increased.
2. Change parameters:
PA03 position loop KP: proportional gain coefficient of position loop, which is about 1 / 4 of PA05 speed loop KP.
PA04 speed loop ki: current loop proportional gain coefficient, the value is about 1 / 8 of PA05 speed loop KP.
PA05 speed loop KP: speed loop proportional gain coefficient, equivalent to rigidity. Within the acceptable noise and vibration range of customers, the larger the parameter, the better the mechanical effect. Generally no more than 1000.
