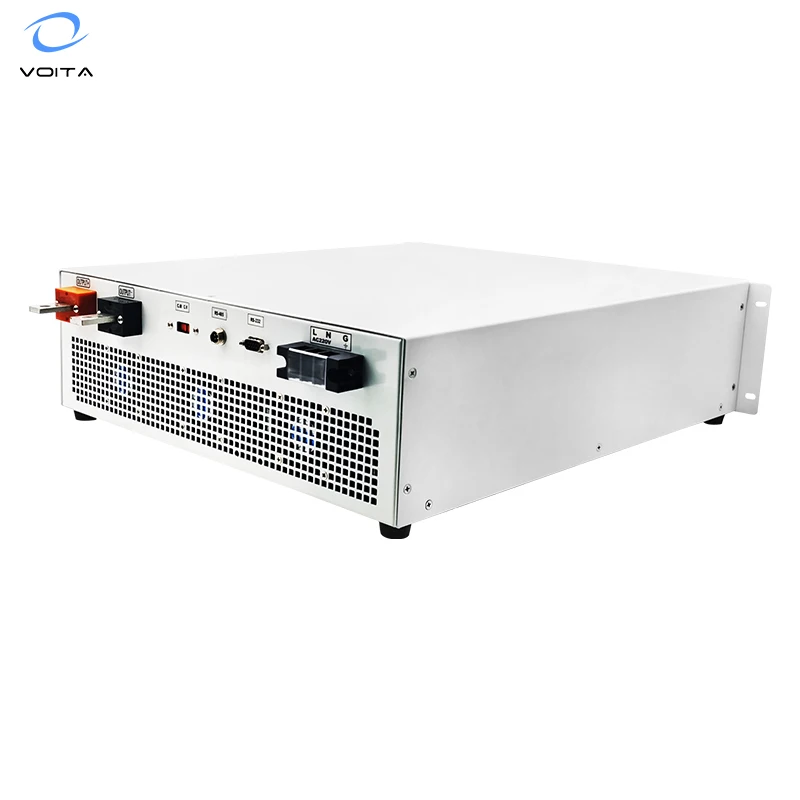

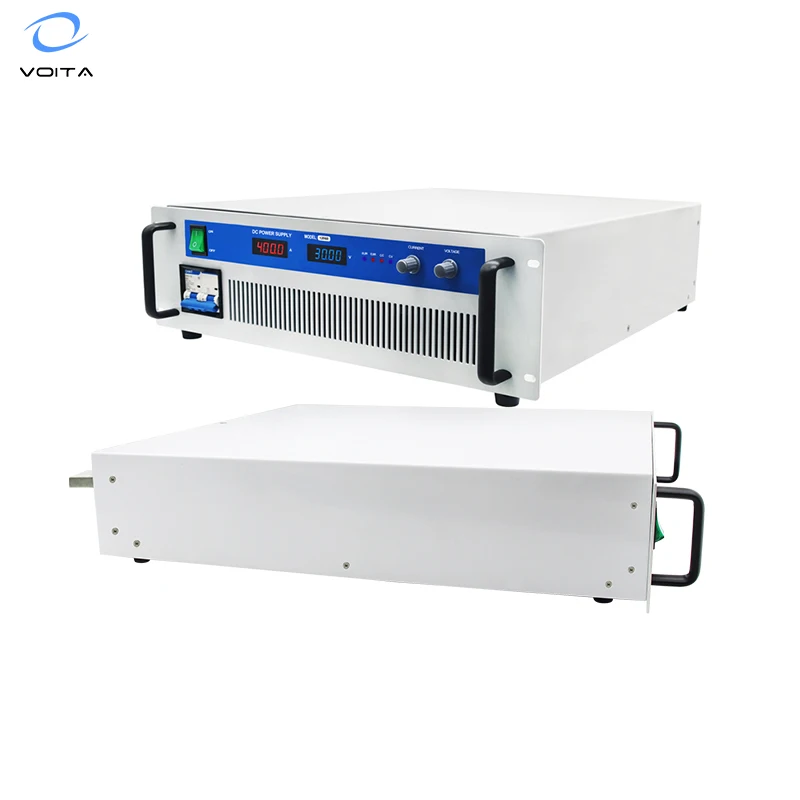

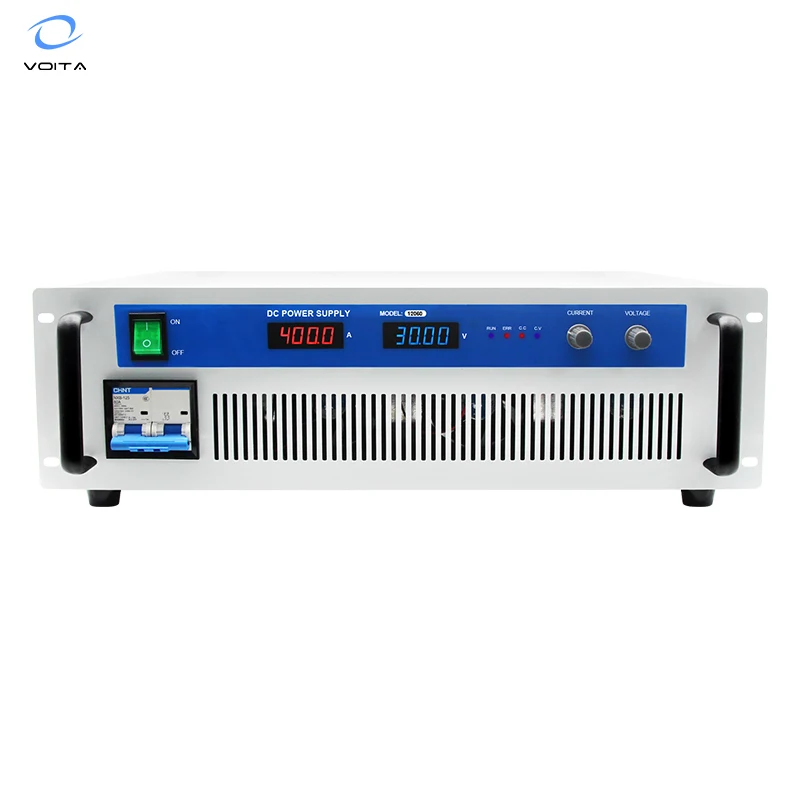

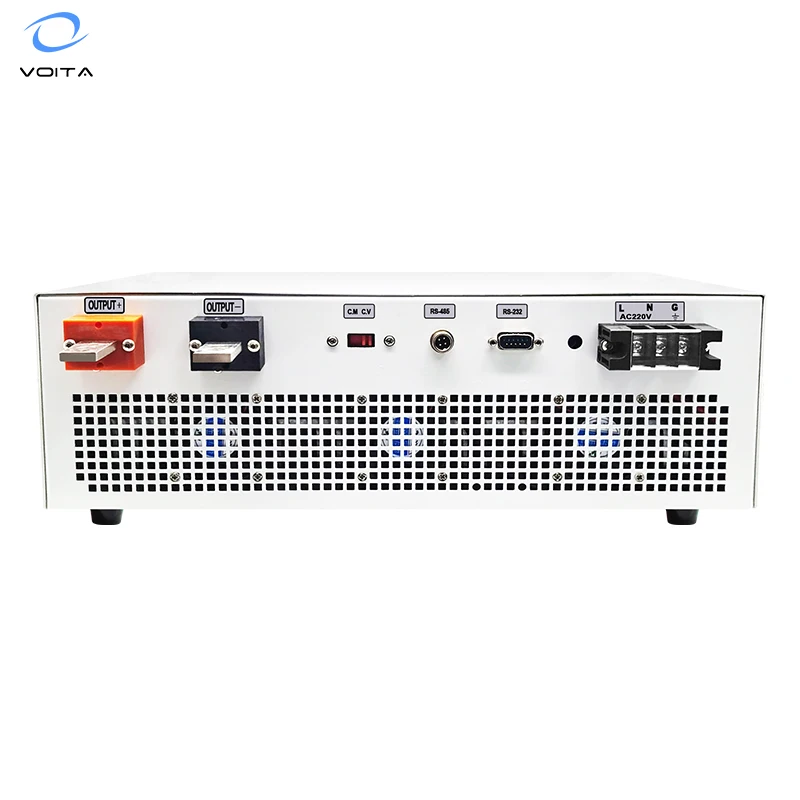

Регулируемый источник питания VOITA 5000 Вт 500 в 10 А постоянного тока со светодиодным дисплеем
- Категория: >>>
- Поставщик: Guangzhou Voita Electronic Technology Co. Ltd.
Сохранить в закладки 1600344493406:
Описание и отзывы
Характеристики
Character
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
4. Low noise and low ripple.
5. High gain amplifier circuit design, with good rapid response characteristics.
6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
8. It is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Feature
1.Small size and light weight, suitable for working table and rack installation.
2.Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3.Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
4.Low noise and low ripple.
5.High gain amplifier circuit design, with good rapid response characteristics.
6.Voltage and current digital display meter with 4-b it high sampling rate and high resolution.
7, Built-in O.V.P over voltage protection line and 0. T. P over temperature protection line, protection function is perfect and reliable.
8. This product is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
4. Low noise and low ripple.
5. High gain amplifier circuit design, with good rapid response characteristics.
6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
8. It is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Feature
1.Small size and light weight, suitable for working table and rack installation.
2.Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3.Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
4.Low noise and low ripple.
5.High gain amplifier circuit design, with good rapid response characteristics.
6.Voltage and current digital display meter with 4-b it high sampling rate and high resolution.
7, Built-in O.V.P over voltage protection line and 0. T. P over temperature protection line, protection function is perfect and reliable.
8. This product is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Model | VT-ADP50010 | ||||||
AC Wide Input | 1 Phase: AC110V±10%,50Hz/60Hz; 1 Phase: AC220V±10%,50Hz/60Hz; 3 Phase: AC380V±10%,50Hz/60Hz; | ||||||
Output voltage | 0-500V | ||||||
Output current | 0-10A | ||||||
Power | 5000W | ||||||
Source Voltage Regulation | Constant Voltage ≤0.2% | ||||||
Load Regulation | Constant Voltage ≤1%; Constant Current≤2% | ||||||
Line Regulation | Constant Voltage ≤0.3% | ||||||
Ripple Voltage | Total Ripple Vpp≤2% (Max Voltage) 100Hz Ripple: Vpp≤0.5%(Max Voltage) | ||||||
Work Conditions | Indoor use design,Temperature:0℃~40℃;Humidity: 10%~85%RH | ||||||
Efficiency | ≥86% | ||||||
Digital Meter | Voltage Meter And Current Meter | ||||||
Digital Display | Precision Of Output Voltage±1.5% Precision Of Output Current±2.0% | ||||||
Insulating Resistance | Input-Output:≥20MΩ Input— Shell:≥20MΩ Output-Shell:≥80MΩ | ||||||
Insulating Strength | Input-Output:AC1500V,10ma,1minute Input— Shell:AC1500V,10ma,1minute Output-Shell:AC1500V,10ma,1minute | ||||||
Unbalancedness Of Equalized Current | ≤5%+2.5A | ||||||
Protection | Temperature Control Fan, Over-Temperature Automatic Protection; Output Overvoltage, Over-Current And Short-Circuit Protection; Switch-On Delay Soft Starting Can Avoid The Over Swung Output Voltage When Switching On. | ||||||
Over-Temperature Protection | (70~80)℃ | (70~80)℃ | |||||
MTTF | ≥50000h | ≥50000h | |||||
External Dimension | 483*575*135mm | 165(W)×330(D)×88(H)mm | |||||
Weight | NW:21.5(KG) | NW:3.5(KG) | |||||
The default input is AC220V. (Please contact us for other input)
Parameter | Detail Specification for option | |||||||
Input | 1 Phase: AC110V±10%,50Hz/60Hz; 1 Phase: AC220V±10%,50Hz/60Hz; 3 Phase: AC380V±10%,50Hz/60Hz; | |||||||
Output Voltage | 1~3000V,Stabilizer value. 0% to 100% adjustable | |||||||
Output Current | 1~2000A,Constant current value. 0% to 100% adjustable | |||||||
Output Power | 150W~100KW | |||||||
Addition function | 0-5Vdc /0-10Vdc analog signal control output voltage & current | |||||||
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | ||||||||
0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | ||||||||
4-20mA analog signal control output voltage & current | ||||||||
RS232/RS485 Communication port control by computer | ||||||||
Noted: Factory accept OEM /ODM Customized service for all customer | ||||||||
