Product Description
Product Application

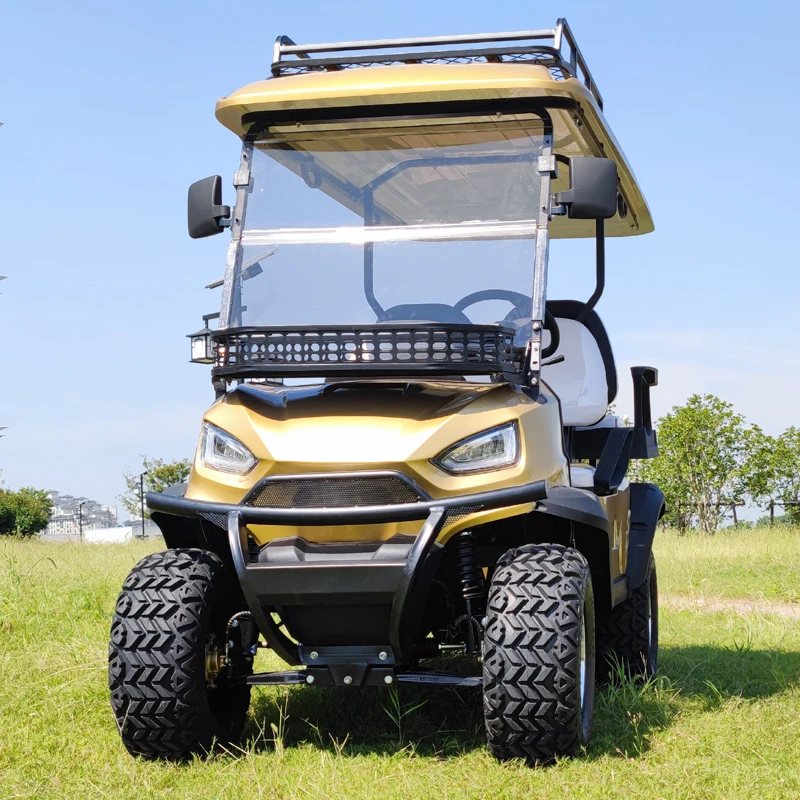

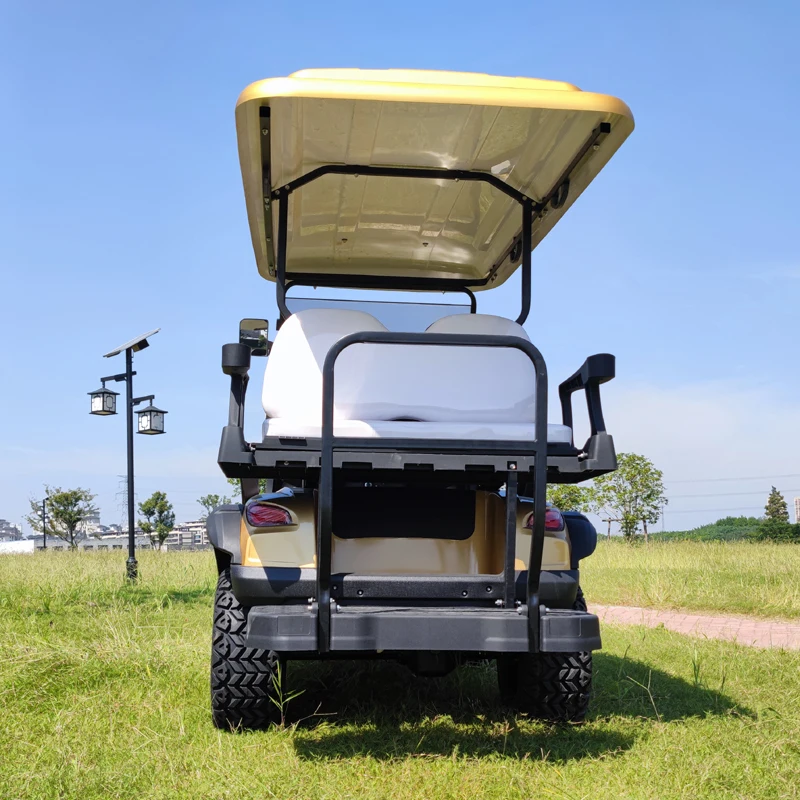

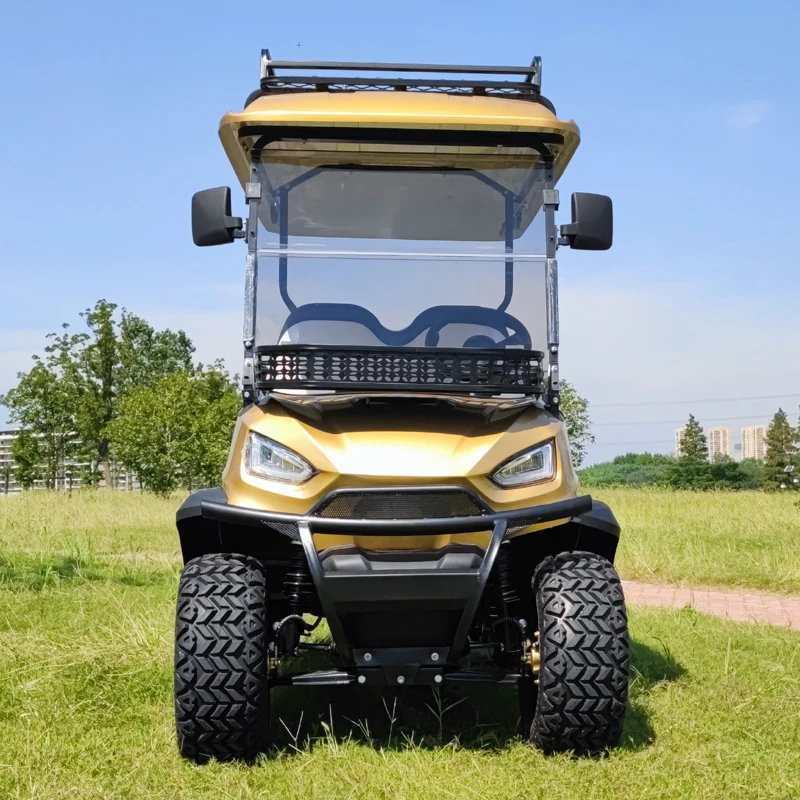

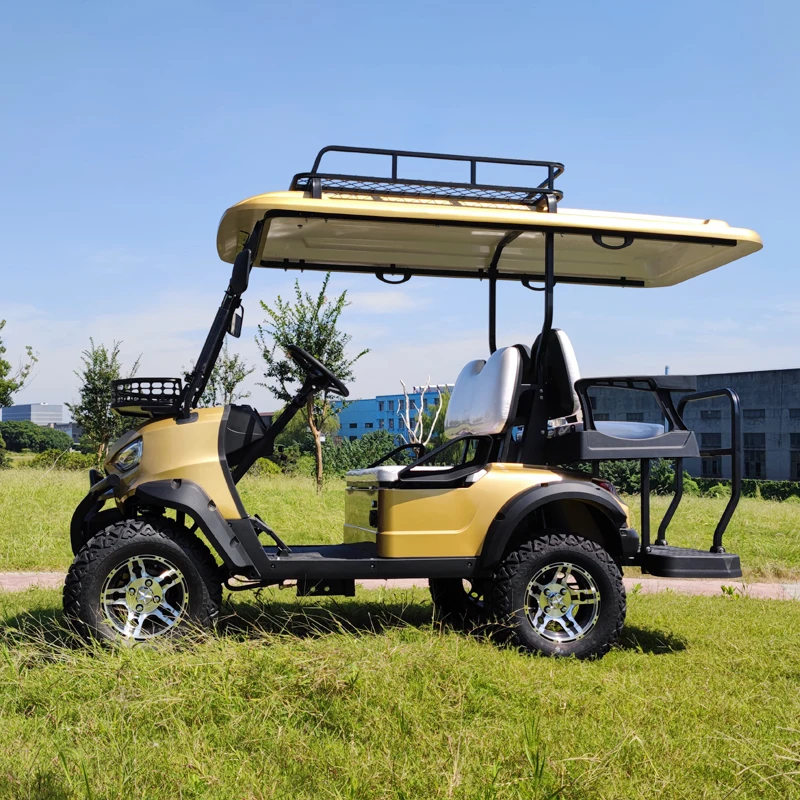

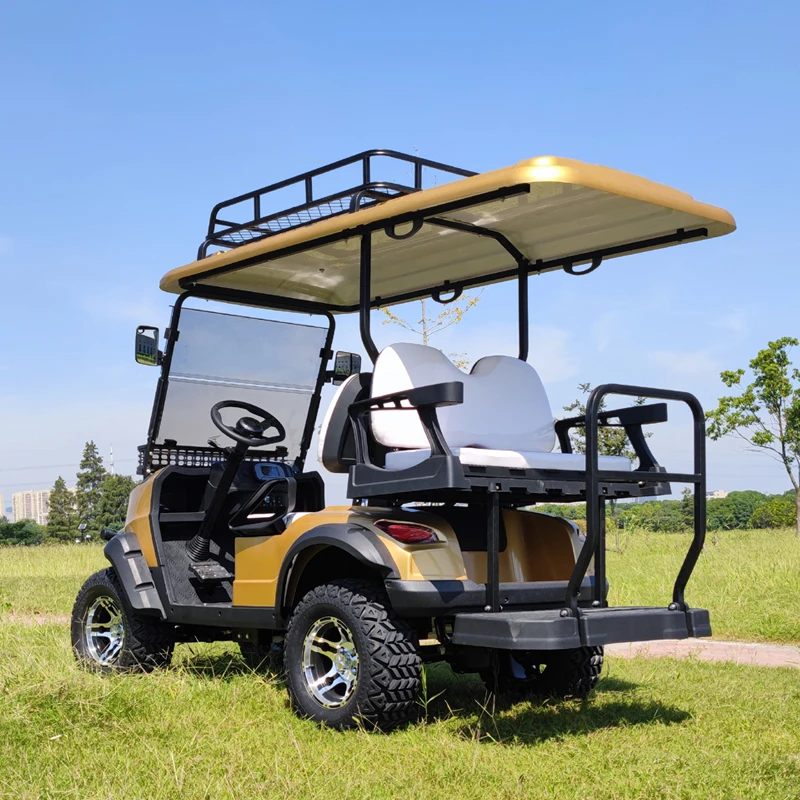

LS2020ASZ is a 4 Seater Electric Lifted Golf Buggy Club Car with rear facing flip flop seat, it's powered by 72V 126AH lithium battery and 72V/4KW 5KW or 7KW AC motor. The rear flip flop seat can be either used for people moving or cargo delivery. It has front MacPherson independent suspension, 4 wheel hydraulic brake with front disc brake, all LED light, digital meter and many other features. The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..
SPECIFICATIONS OF 4 Seater Electric Lifted Golf Buggy Club Car LS2020ASZ | ||||||
Key Components | Controller | Curtis Brand, SME or China Local Brand | ||||
Motor | 4KW/5KW/7KW AC motor | |||||
Battery | 72V126AH Lithium Battery | |||||
Performance and Dimensions | Passenger Capacity | 4 (2+2) | ||||
Range (Loaded) * | 90-100kms | |||||
Max.speed | 32-40km/h | |||||
Min. Turning Radius | 3.7m | |||||
Max. Gradeability | 20%-30% | |||||
Max. Loading Weight | 320kgs | |||||
Net Weight | 510kgs | |||||
Overall Dimensions | 2950X1340X1990mm | |||||
Body and Frame | ||||||
Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | |||||
Body and Roof | PP plastic front body and rear body; PP vacuum form roof | |||||
Windshield | Organic plastic windshield, splited tinted | |||||
Roof supports | Carbon Steel, powder coated | |||||
Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | |||||
Floor | Galvanized Steel plate and anti-slip rubber floor mat | |||||
Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | |||||
Side trim | Plastic | |||||
Sider mirror | 2pcs, foldable | |||||
Electric System | ||||||
Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | |||||
Backup Buzzer | 12V | |||||
Digital Meter | LCD screen, with speedometer, odometer, battery power meter and various indicators | |||||
Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A | |||||
Steering, Brake, Transmission and Suspension | ||||||
Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | |||||
Brake system | 4 Wheels hydraulic front disc rear drum brake, regen brake | |||||
Accelerator | Stepless speed change | |||||
Driving mode | Rear axle two stage deceleration, motor direct driving | |||||
Rear axle | Integrated, Gear ratio12.49:1 | |||||
Suspension system | Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber | |||||
Wheel & Tyre | 12x7 aluminum rim & 23*10.5-12 Tire | |||||
3 Years Warranty Lithium Battery
LG pouch cells made lithium ion battery pack. 72V/120Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App for easy operation. 4000 times life cycles based on 99% DOD. 3 Years warranty to be provided!
Lower life cost, you are deserved to have!
72V AC Curtis or SME Controller
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty
72V 4KW, 5KW or 7KW AC Motor
Very Powerful and Maintenance Free AC motor. Motor power varies from 4KW, 5KW and 7KW. With 7KW motor, the climbing ability can be 35%.
High Quality Rear Axle
Rear axle with aluminum case, durable and silent
Details Make Difference
Front Disc Brake
Front Macpherson Suspension
Sports Steering Wheel
Digital Meter
LED Headlight
LED Taillight
12‘ Aluminum Rim
Charging Receptacle
Split Tinted Windshield and Side Mirror
Optional Accessories For Choose
2-point Seatbelt
2-tone Color Seat
Front Brush Guard and Basket
Sewed Pattern Seat
USB Port
12V Plug
Rear Under Seat Ice Bucket
Wooden Finish Dashboard
14' Wheel.
Let us know if you want anything specially!
Packing & Delivery
Packaging | ||||
Container Size | Disassembled (with top and front basket) | Disassembled(without top and front basket) | ||
20'ft Container | 6 | 6 | ||
40'GP Container | 12 | 14 | ||
40'HQ Container | 18 | 20 | ||
Packing Method | it's packed in steel crate as left image shows | |||
Certifications
Our Company
More than 12 years experiencein electric vehicle business
The partners of Suzhou Lexsong have been in electric vehicle business for more than 12 years, can provide valuable suggestion and support to your purchasing and your business.
3 Production Lines with Production Capacity of 15000 units yearly
Our factory has 3 production lines, one line for golf carts and its variants; one line is personal carrier, sightseeing bus and their variants; one line is for various customized vehicles
Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
10 Categories 100 models for different applications
We have 10 different categories and more than 100 models for different applications, golf cart, utility cart, personal carrier, sightseeing car, electric truck, garbage truck, fire truck, etc. Moreover, we customize electric vehicles as per customer's request at reasonable cost, short lead time and high quality.
Our Service
12+ Years EV Expertise
The partners of Suzhou Lexsong has more than 12 years experience in electric vehicles. With that expertise, we can help you grow your business.
Life-time Spare Parts Supplies
In the life-time of the vehicles or maximum within 5 years we stop the production of any model, we still supply the spare parts for after service
One Year Warranty
We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
Flexible Payment Terms
We offer different payment terms to different customers according to customer's special request, in order to support your business.
18x7x360 Technical Support
We provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.
Main Categories
Electric Golf Cart
Personal Transport Vehicle
Electric Shuttle Bus
Electric Industrial Vehicle
Electric Car
Special Vehicles
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 3 years to lithium battery and 1 year warranty for other parts except fast worn parts . And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
Contact Us Right Now for Further Product Information and Price Via Below Method
Or Just Send Us Inquiry Below
