Product Description
Best Price Shell And Tube Titanium Heat Exchanger Water Cooled Steam Condenser

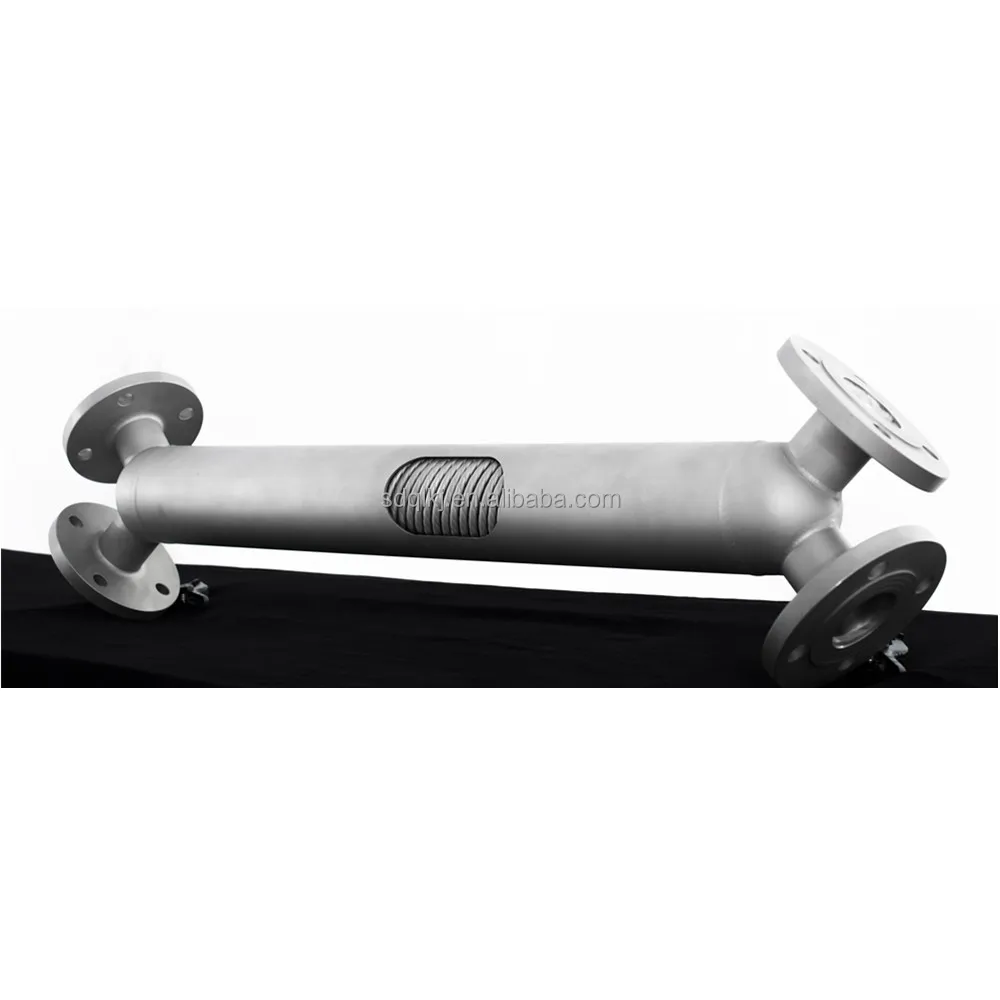

01 Spiral Wound Tube Heat Exchanger
1. The spiral winding structure enhances the heat transfer effect and utilizes the irvine turbulence chattering frequencyprinciple.
2. Stainless steel production,High temperature and high pressure resistance ,long service life.
3. Small size, light weight, easy to install.
4. 90 degree Angle connection, no holdup area, reduce dirt generation.

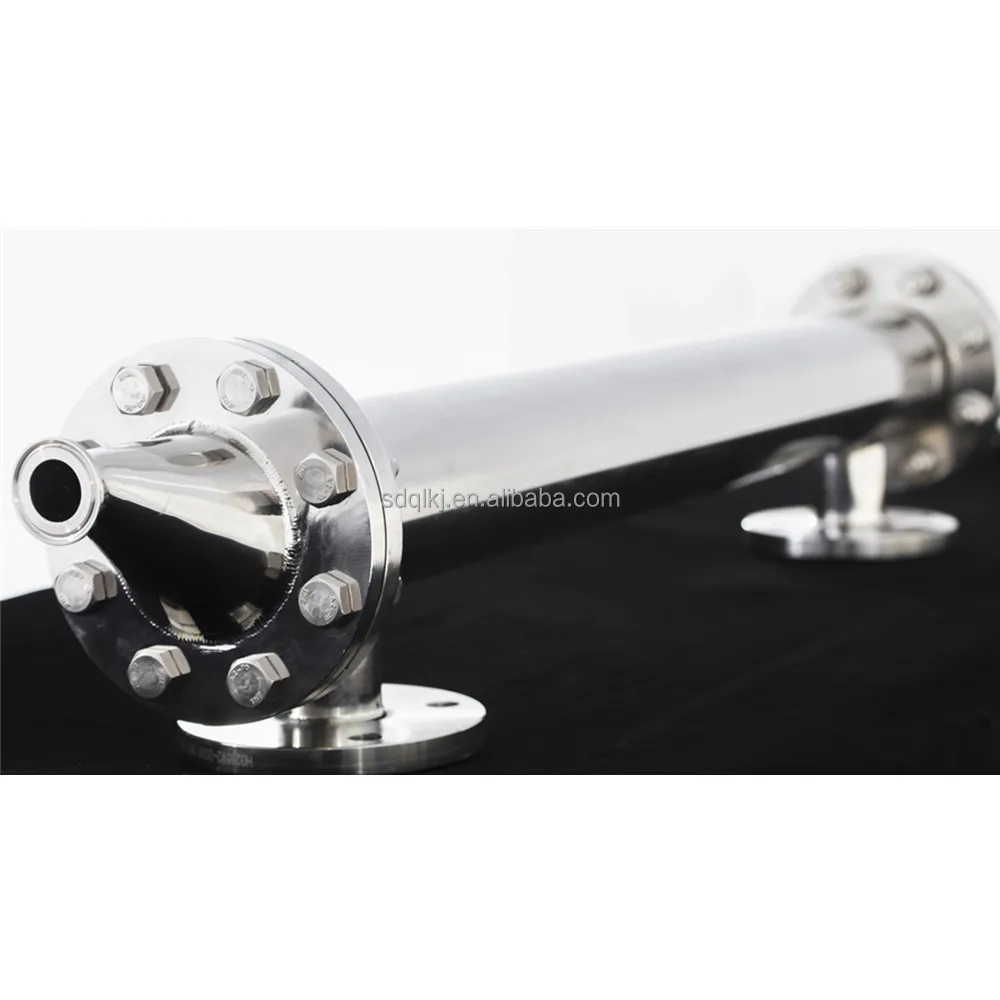

02 Double Tube Plate Heat Exchanger
1. Designed and manufactured according to cGMP requirements.
2. Double tube plate structure to prevent cross contamination.
3. Tube pass full drain design, no dead Angle, no residue.
4. All made of high quality stainless steel 316L.
5. Surface roughness of tube <0.5μm,
6. Double groove expansion connection, reliable sealing
7. Hydraulic tube expansion technology
8. Heat exchange tube specifications complete θ6,θ8,θ10,θ12.
1. Designed and manufactured according to cGMP requirements.
2. Double tube plate structure to prevent cross contamination.
3. Tube pass full drain design, no dead Angle, no residue.
4. All made of high quality stainless steel 316L.
5. Surface roughness of tube <0.5μm,
6. Double groove expansion connection, reliable sealing
7. Hydraulic tube expansion technology
8. Heat exchange tube specifications complete θ6,θ8,θ10,θ12.

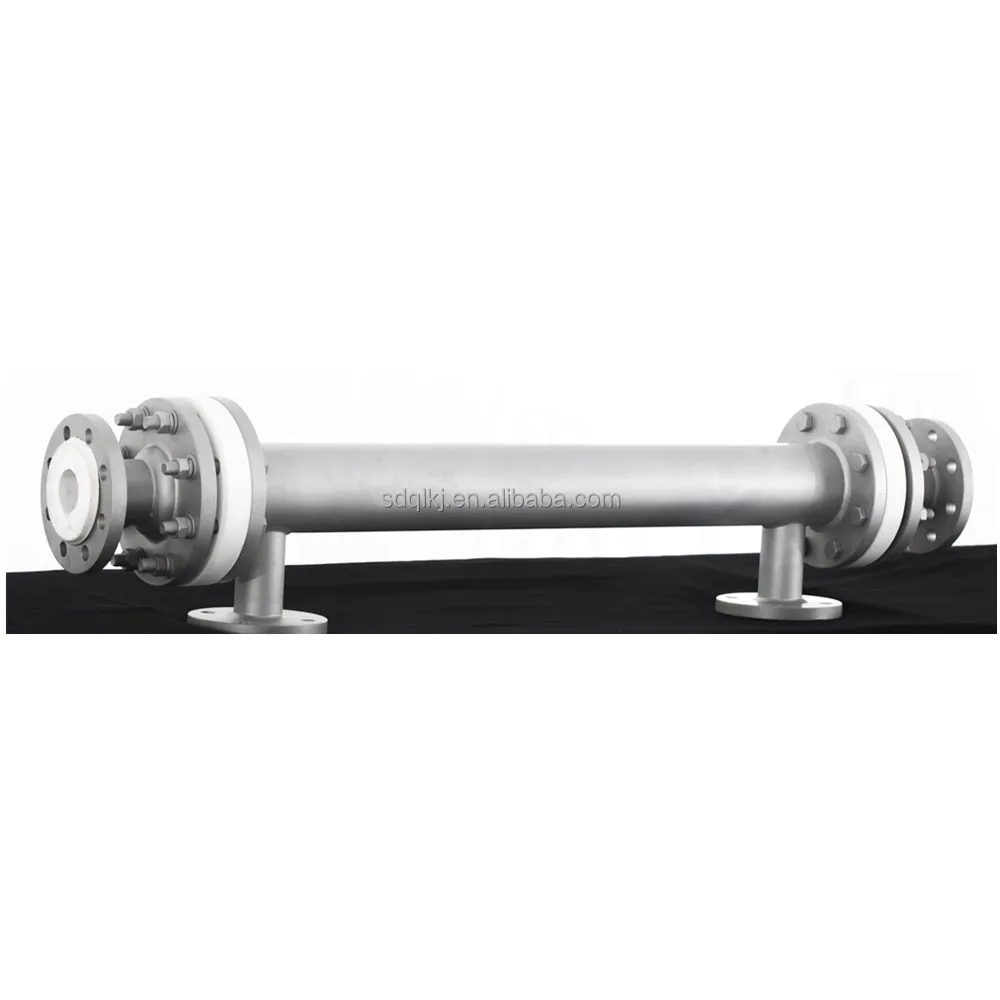

03 Silicon Carbide Heat Exchanger
1. Super corrosion resistance, suitable for all kinds of strong corrosion conditions.
2. The surface is smooth and not easy to scale.
3. The heat exchange tube has high hardness and extremely wear resistance.
4. High temperature resistance 250ºC, pressure 1.0MPa.
5. Choose high purity pressureless sintered tube, put an end to reaction sintered tube.
6. Imported perfluoroether sealing ring, high temperature and corrosion resistance.
7. Head flow-passing surface lined with tetrafluorine or ceramic.
8. Innovative installation method, safe and reliable, convenient maintenance.
9. Special working conditions can use double tube plate design, double protection..
1. Super corrosion resistance, suitable for all kinds of strong corrosion conditions.
2. The surface is smooth and not easy to scale.
3. The heat exchange tube has high hardness and extremely wear resistance.
4. High temperature resistance 250ºC, pressure 1.0MPa.
5. Choose high purity pressureless sintered tube, put an end to reaction sintered tube.
6. Imported perfluoroether sealing ring, high temperature and corrosion resistance.
7. Head flow-passing surface lined with tetrafluorine or ceramic.
8. Innovative installation method, safe and reliable, convenient maintenance.
9. Special working conditions can use double tube plate design, double protection..

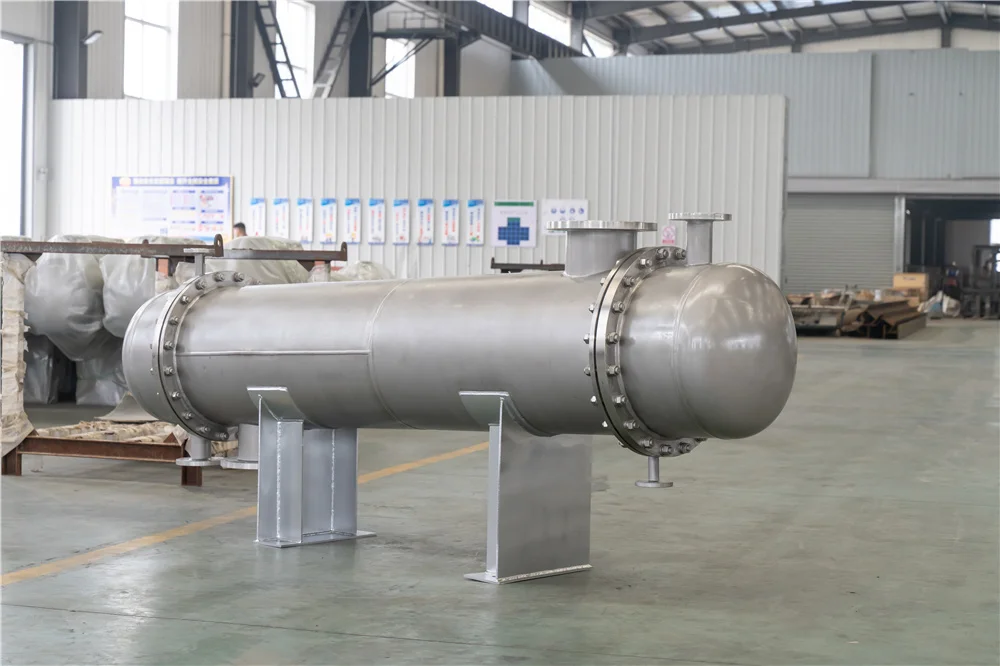

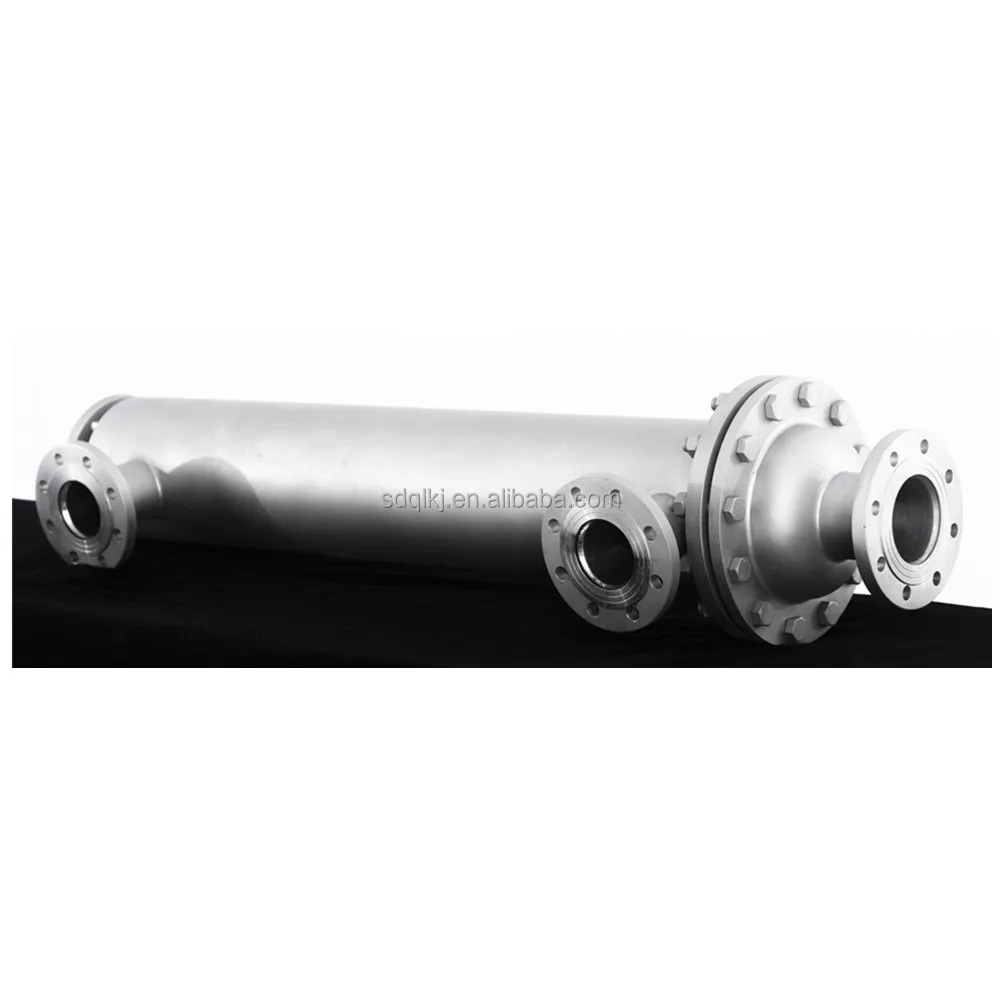

04 Tubular Heat Exchanger
We can customize various specifications of tube heat exchanger, U - tube heat exchanger, multi - flow heat exchanger.
Optional material: Carbon steel, stainless steel 304,316L, duplex stainless steel 2205, Titanium.
Optional pipe diameter: θ19, θ25, θ32, etc.
Tube wall thickness: 1mm-3mm.
We can customize various specifications of tube heat exchanger, U - tube heat exchanger, multi - flow heat exchanger.
Optional material: Carbon steel, stainless steel 304,316L, duplex stainless steel 2205, Titanium.
Optional pipe diameter: θ19, θ25, θ32, etc.
Tube wall thickness: 1mm-3mm.
What is shell and tube heat exchanger?
Shell and tube heat exchanger is the equipment that can transfer certain heat from the thermal fluid to the cold fluid. It is the essential equipment to achieve the heat exchange and transfer during the production process.Tube heat exchanger is a high-efficiency heat exchanger suitable for steam-steam, steam-liquid and liquid-liquid heat transfer.
Applicable Field
It is widely using in heating and cooling treatment of materials during production in food, beverage, pharmacy, chemical industry, etc. The tube heat exchanger could be designed and produced according to customer's various requirements. different materials, size accepted.Specification
Specification for tubular heat exchanger | ||
Optional material | SS 304, 316L, duplex steel 2205, 2507, carbon steel , pure titanium, zirconium, Hastelloy , etc. | |
Tube | φ8, φ10, φ12, φ14, φ16, φ19 ,φ25 etc | |
Heat exchanger area | 0.1- 200 | |
Installation type | Horizontal/Vertical | |
Carried standard | Our national standard, GBT151-2014 | |
You can tell me your need (medium, inlet/outlet temperature, working pressure, flow quantity etc) or send me the drawing,We can design and manufacture all types of tubular heat exchanger to order based on your requirements or select from our stock range of products.We will work together with you to develop a solution that meets your needs.

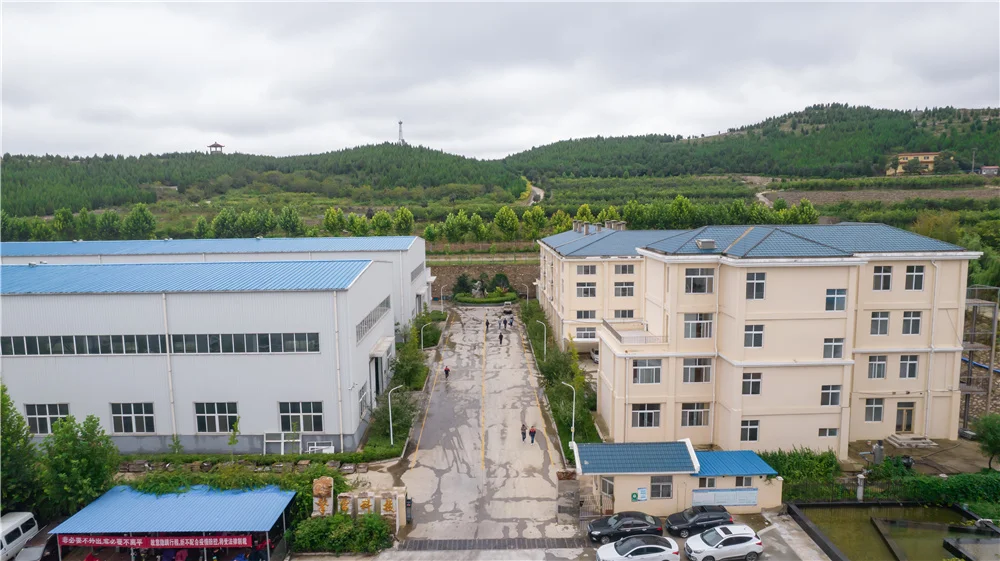

Company Profile

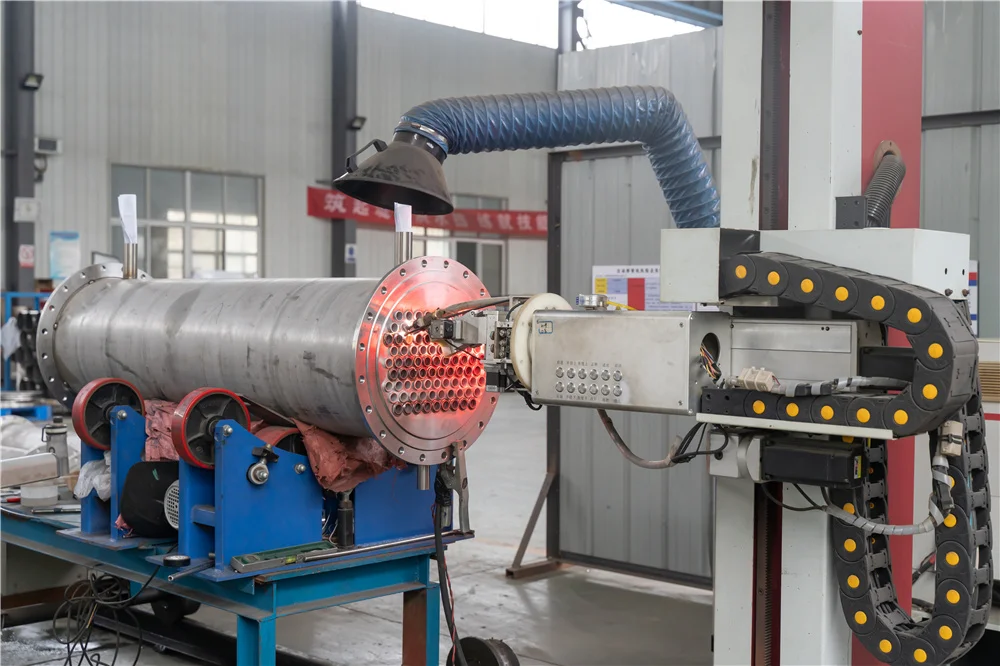

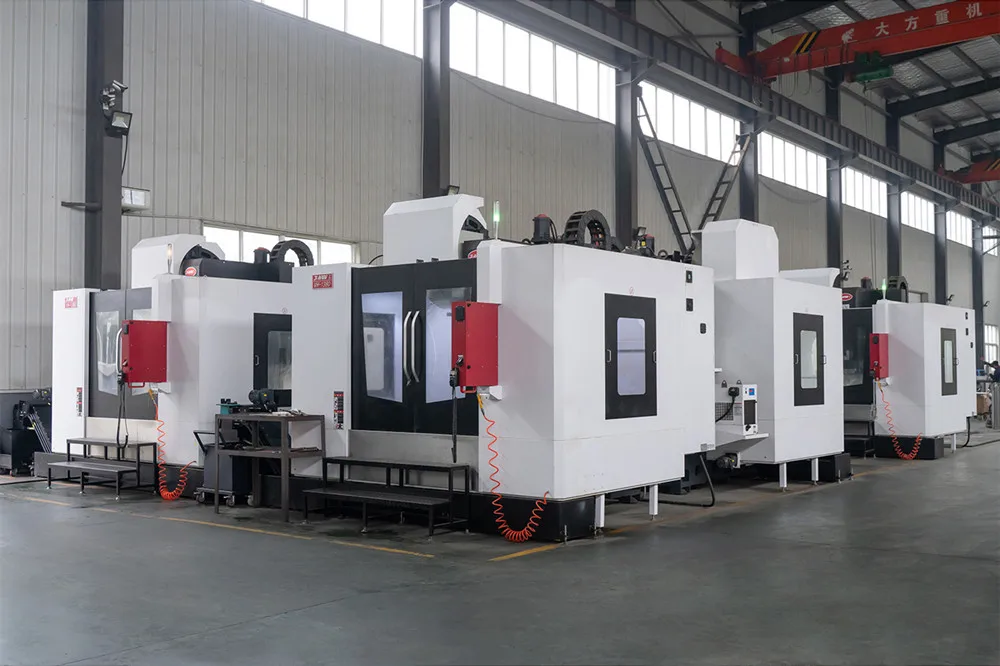

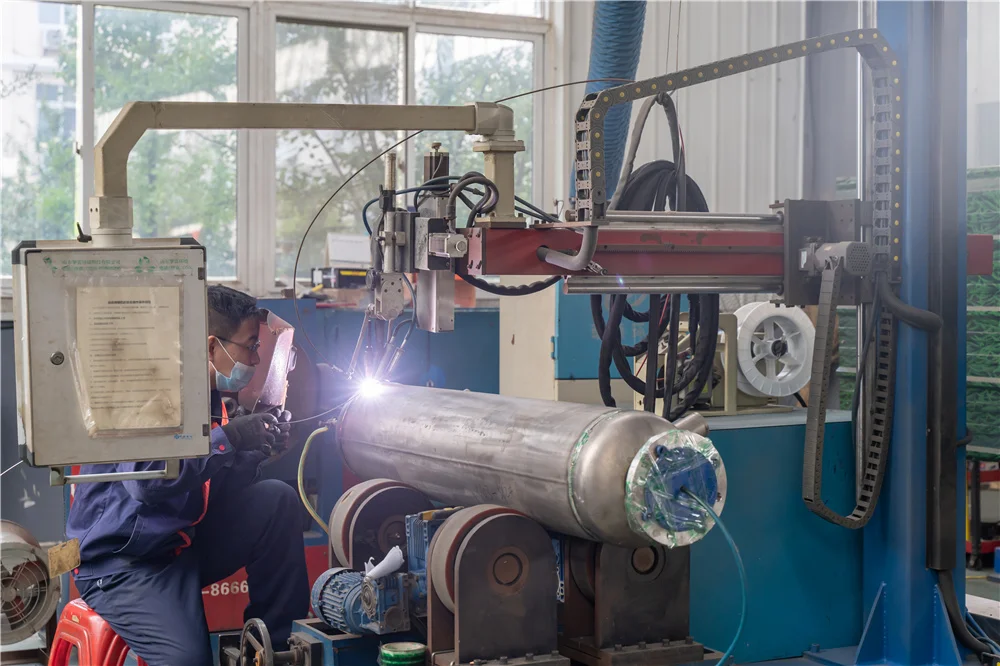

Qinglei has been designing and manufacturing heat exchangers since 2010 to the energy (oil & gas, nuclear), petrochemical, pharmaceutical, marine servicing and repair, food and drink industries.The company has an experienced team of energy-saving and electromechanical equipment design experts, with 20 engineers and 30 technicians, with a complete set of management, production, inspection systems, advanced production equipment, using automatic welding technology, automatic winding technology, With higher thermal efficiency, less energy consumption, lower fouling tendency, and higher cost performance, our heat exchangers are exported to many countries and regions. We provides tailored heat transfer solutions for petrochemical, heat, power, food and pharmaceutical industries.
Our mainly products are spiral tube heat exchanger, shell and tube heat exhcanger, sanitary double plate tube heat exchanger, silicon carbide heat exchanger, plate heat exchanger,heat exchanger unit,storage tank, pressure vessel, reactor, temperature control unit etc.Our experience has helped customers solve difficult fluid flow, heat transfer, and corrosion problems with sophisticated material selection and creative fabrication designs.
Our mainly products are spiral tube heat exchanger, shell and tube heat exhcanger, sanitary double plate tube heat exchanger, silicon carbide heat exchanger, plate heat exchanger,heat exchanger unit,storage tank, pressure vessel, reactor, temperature control unit etc.Our experience has helped customers solve difficult fluid flow, heat transfer, and corrosion problems with sophisticated material selection and creative fabrication designs.
Certifications
Project Cases
Tubular heat exchanger widely using in heating and cooling treatment of materials during production in food, beverage,
pharmacy,chemical industry, etc, the tube heat exchanger could be designed and produced according to customer's various requirements.different materials, size accepted.They are widely distributed in industry, being useful for condensers, turbine coolers, evaporators, feed water preheating, and much more.
*High Efficiency Reflux Condenser
It can be used in Reaction kettle for condensing organic matter like ethylene glycol. The condensed organic matterare always purified and refused...
*Recycling of Dichloromethane Heat Exchanger
These heat exchangers are used to recycle organic exhaust gas from plant to protect environment.,
*Industrial Reboiler and Condenser
Our heat exchanger acts as the top condenser. Distillation is fine separation, generally in the raw materials, chemical industry solvent recovery application, this recovery solvent requires high purity.
pharmacy,chemical industry, etc, the tube heat exchanger could be designed and produced according to customer's various requirements.different materials, size accepted.They are widely distributed in industry, being useful for condensers, turbine coolers, evaporators, feed water preheating, and much more.
*High Efficiency Reflux Condenser
It can be used in Reaction kettle for condensing organic matter like ethylene glycol. The condensed organic matterare always purified and refused...
*Recycling of Dichloromethane Heat Exchanger
These heat exchangers are used to recycle organic exhaust gas from plant to protect environment.,
*Industrial Reboiler and Condenser
Our heat exchanger acts as the top condenser. Distillation is fine separation, generally in the raw materials, chemical industry solvent recovery application, this recovery solvent requires high purity.
Exhibition
Packing & Delivery
1.Usually use standard export wooden box.
2. Packing according to customer requirements, welcome to contact us.
2. Packing according to customer requirements, welcome to contact us.
FAQ
1.Are you manufacturer or trading company?
A: Yes,we are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
A: Yes,we are the professional heat exchanger manufacturer in China.
2.How could we confirm the details of the products?
A: Qinglei will provide the detail drawings for you to confirm.
3. How long the warranty will be?
A: 1 Year warranty.
4.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.
Похожие товары

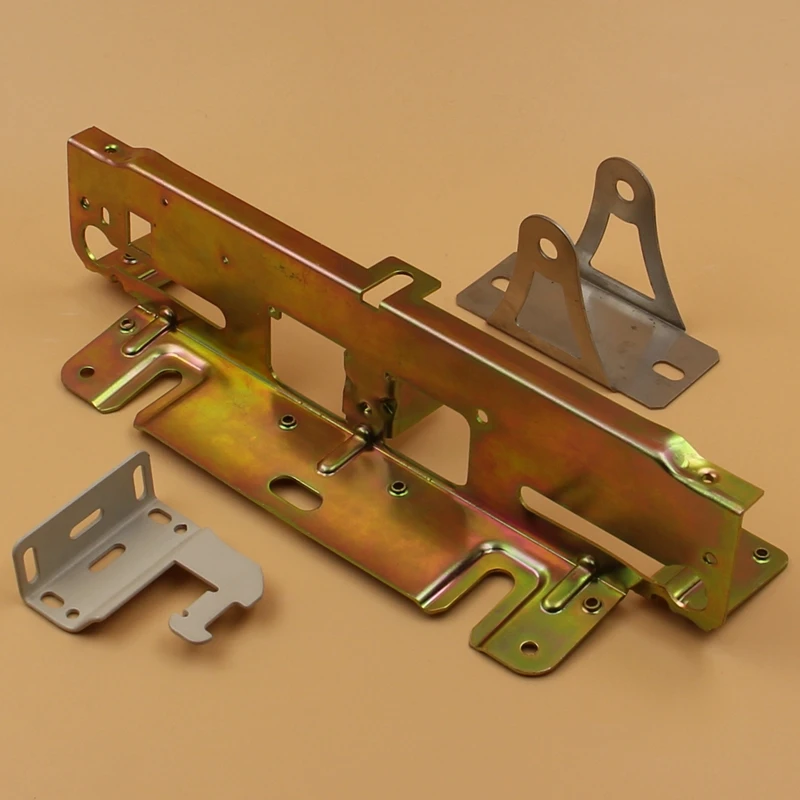

Штамповка заводской заказной Регулируемый Маленький Металлический кронштейн u-образный алюминиевый кронштейн

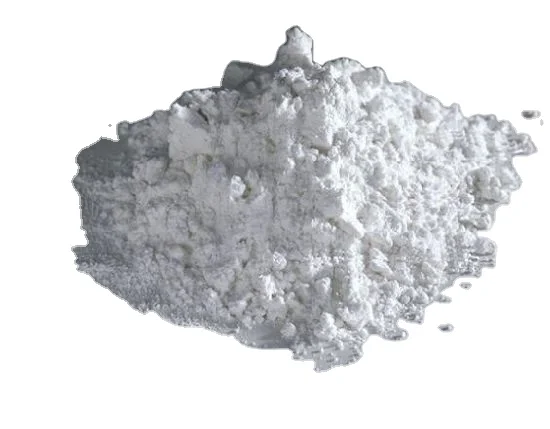

Диоксид титана cr-512 tio2 Наночастицы
