Аккумуляторная литиевая батарея MUST 48 в 50 Ач LifePO4 для гибридных солнечных систем наличии

Аккумуляторная литиевая батарея MUST 48 в 50 Ач LifePO4 для гибридных солнечных систем наличии

Категория: >>>
Поставщик: Must Energy (guangdong) Tech Co. Ltd.

Цена:190 864,08 ₽ - 199 320,08 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

MUST New Arrival Lithium ion Batteries Rack Type 50Ah 100AH 200AH 48V 51.2V Lithium Battery Pack

Sales Engineer: Nancy+86 13597810791

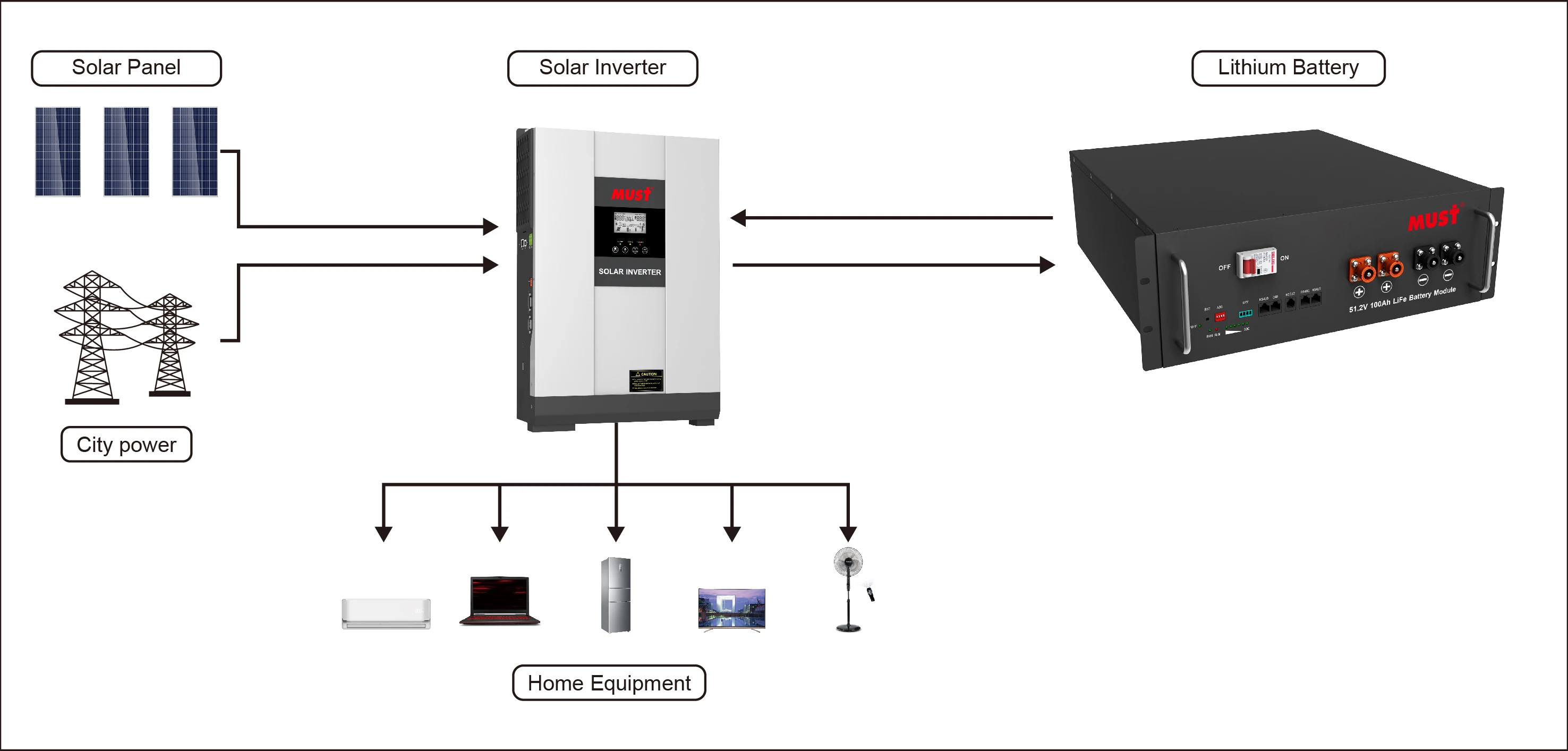

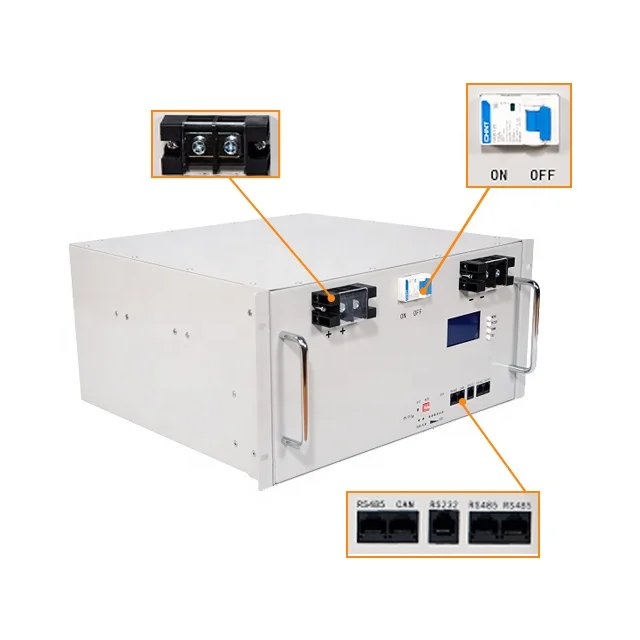

LP18-48100 (51.2V100Ah).jpg LP18-48100 System Picture.jpg

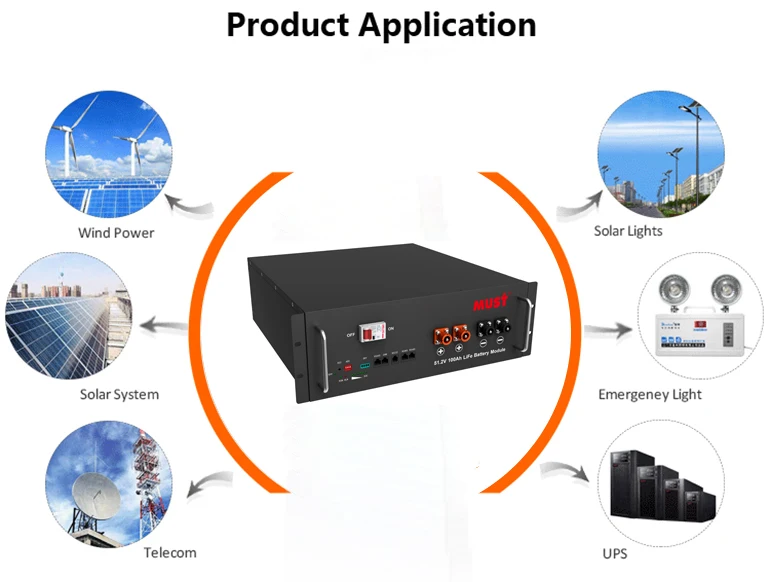

It’ s long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflects the real requirements of end users and strongest technical capability of MUST's.Widely used in microgrid energy storage, photovoltaic energy storage, computer data ROM stand-by power, UPS and etc.

Features:

4000 cycles @80% DoD for effectively lower total of ownership cost;

Low maintenance batteries with stable chemistry;

Battery Management System (BMS) is incorporated against abuse;

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

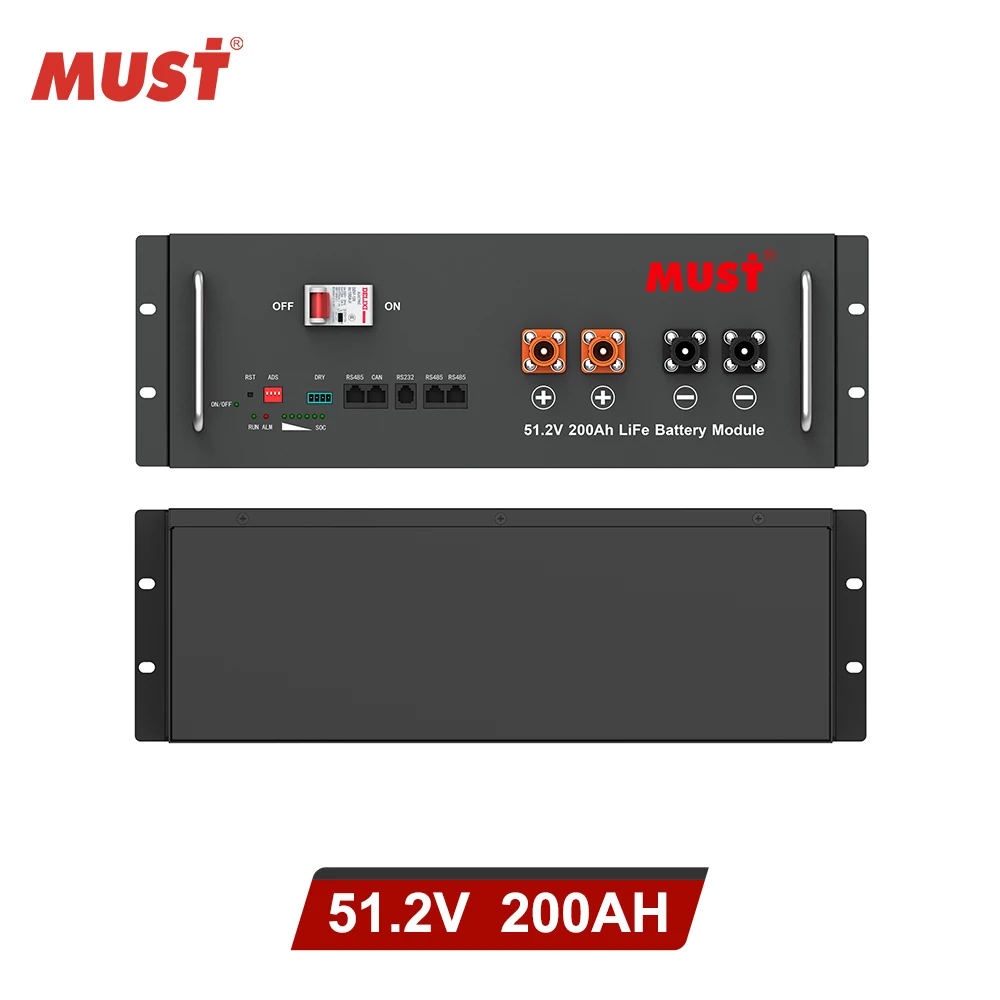

ELECTRICAL PERFORMANCE

Nominal Voltage	51.2 V
Nominal Capacity	200 Ah
Capacity @ 20A	600 min
Energy	10240 Wh
Communication	CAN2.0/RS232/RS485
Resistance	≤45 mΩ @ 50% SOC
Efficiency	>96%
Module Parallel	Up to 8 packs

CHARGE PERFORMANCE

Recommended Charge Current	20A
Maximum Charge Current	100A
Recommended Charge Voltage	57.6V
BMS Charge Cut-Off Voltage	<58.4 V (3.65V/Cell)
Reconnect Voltage	>57.6 V (3.6V/Cell)
Balancing Voltage	<57.6 V (3.6V/Cell)
Maximum Batteries in Series	16 (*Consult MUST)

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current	100 A
Peak Discharge Current	110 A (3s)
BMS Discharge Cut-Off Current	150 A (300ms)
Balancing open voltage	55.2 V (3.45V/Cell)
Recommended Low Voltage Disconnect	44 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage	>32.0V (2s) (2.0V/Cell)
Reconnect Voltage	>40.0 V (2.5V/Cell)
Short Circuit Protection	250 ~ 500 μs

COMPLIANCE

Certifications	CE (battery) UN38.3 (battery)UL1642 & IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9

MECHANICAL PERFORMANCE

Dimension (L x W x H)	482 x 500 x 222 mm19.0 x 19.7 x 8.7″
Approx. Weight	35.7 lbs (80 kg)
Terminal Type	DIN POST
Terminal Torque	80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material	SPPC
Enclosure Protection	IP65

TEMPERATURE PERFORMANCE

Discharge Temperature	-4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature	-4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature	23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off	149 ºF (65 ºC)
Reconnect Temperature	131 ºF (55 ºC)
