Product Description


     22/44kw AC EV charger for public/commercial use



  • Ideal choices for residential, community, and commercial AC EV charger

  • Input : 3phase:3P+N+PE 400VAC

  • 5 inch Antroid touching display (optional)

  • IP55 & IK10 for indoor/outdoor applications

  • Firmware updates via OCPP remote connection

  • Optional internet connection for server management

  • Optional RFID card reader for user identification and management

  • Charging plug: Type 2, J1772,IEC62196-2

  • Load balancing





Detail Specification
















































































































Model Name





22KW AC EV CHARGER



44KW AC EV CHARGER


Rated Input Voltage


3 Phase:3P+N+PE 400VAC

3 Phase:3P+N+PE 400VAC
 Output AC Current3 Phase:32A  3 Phase:63A
 Frequency50Hz 60Hz
 Ground Fault ProtectionLost input ground connection
 OCP
< 35.2 A

 <69.3A
 OVP
> 265 VAC


 UVP
< 190 VAC



 Residual Current Device


(TypeB opertion)



Type A : lΔn 30 mA , Type B : lΔn 30 mA + dc 6 mA

 Manual recovery after protection triggers

 Output Cable Length

2~5m



 Rugulation
IEC 61851-1:2017 , IEC 61851-21-2

 Charging Plug/Socket

IEC 62196-2:2016,DIN70121 or ISO15118

Type2 Plug,Type2 socket


 Thermal Protection YES
 IP Degrees IP55
 Storage Temperature -60°C ~ +70°C
Operation Temperature -60°C ~ +50°C
 Humidity at operation Condition
95%RH max.


 Humidity at storage Condition 95%RH max
 Communcation Lan(standard)/4G(optianal) or Wifi(optianal)
 Backend Communication
OCPP 1.6 JSON/SOAP

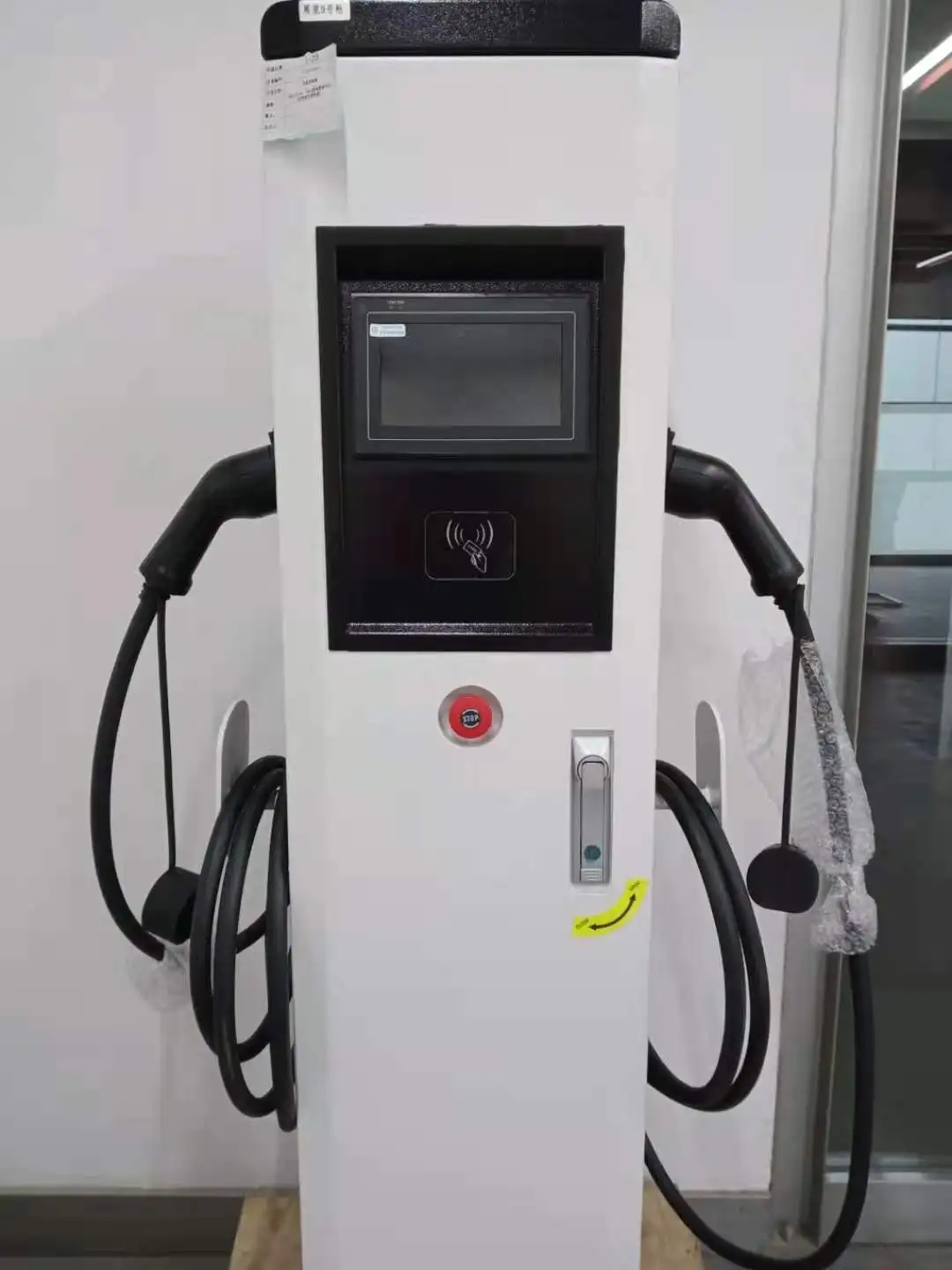

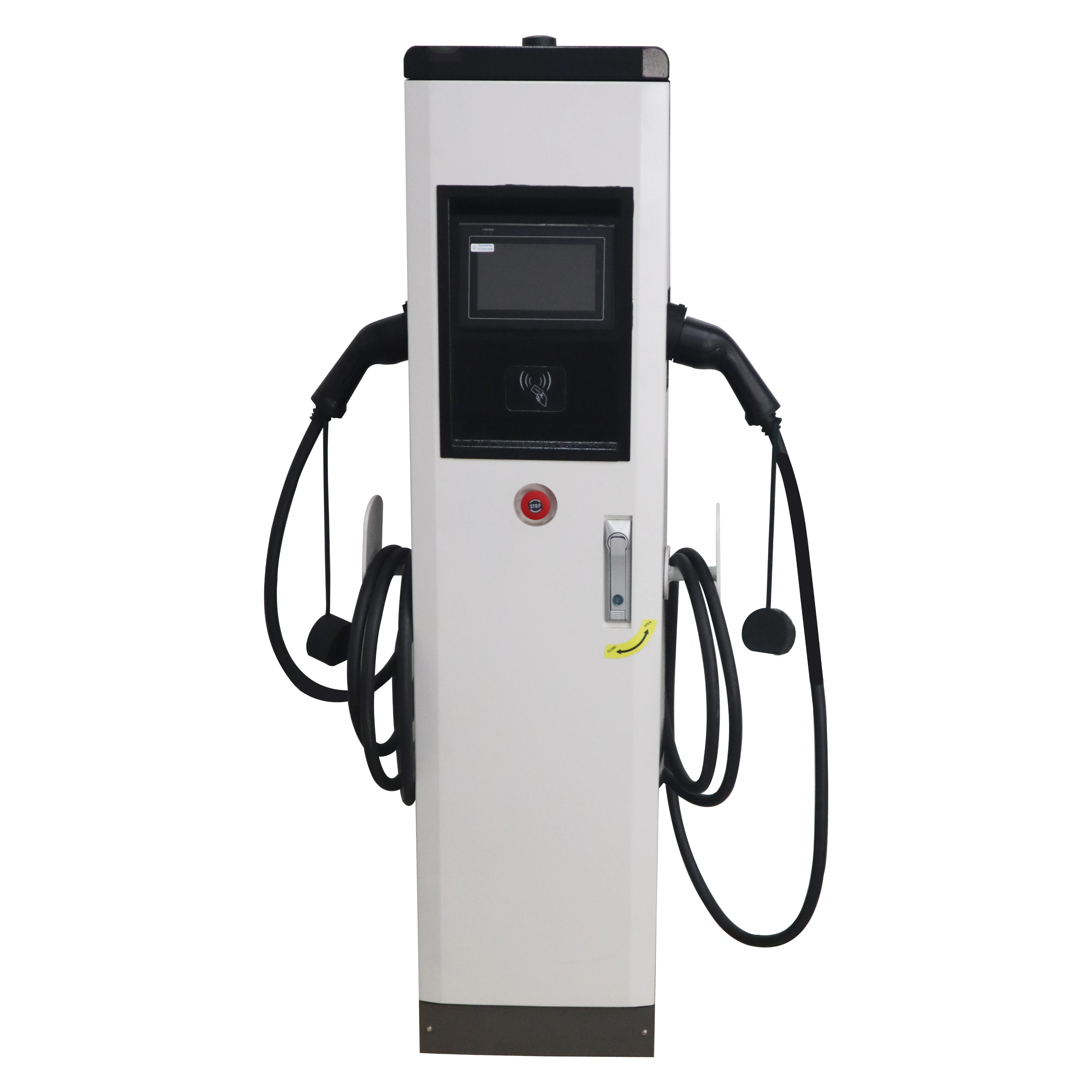

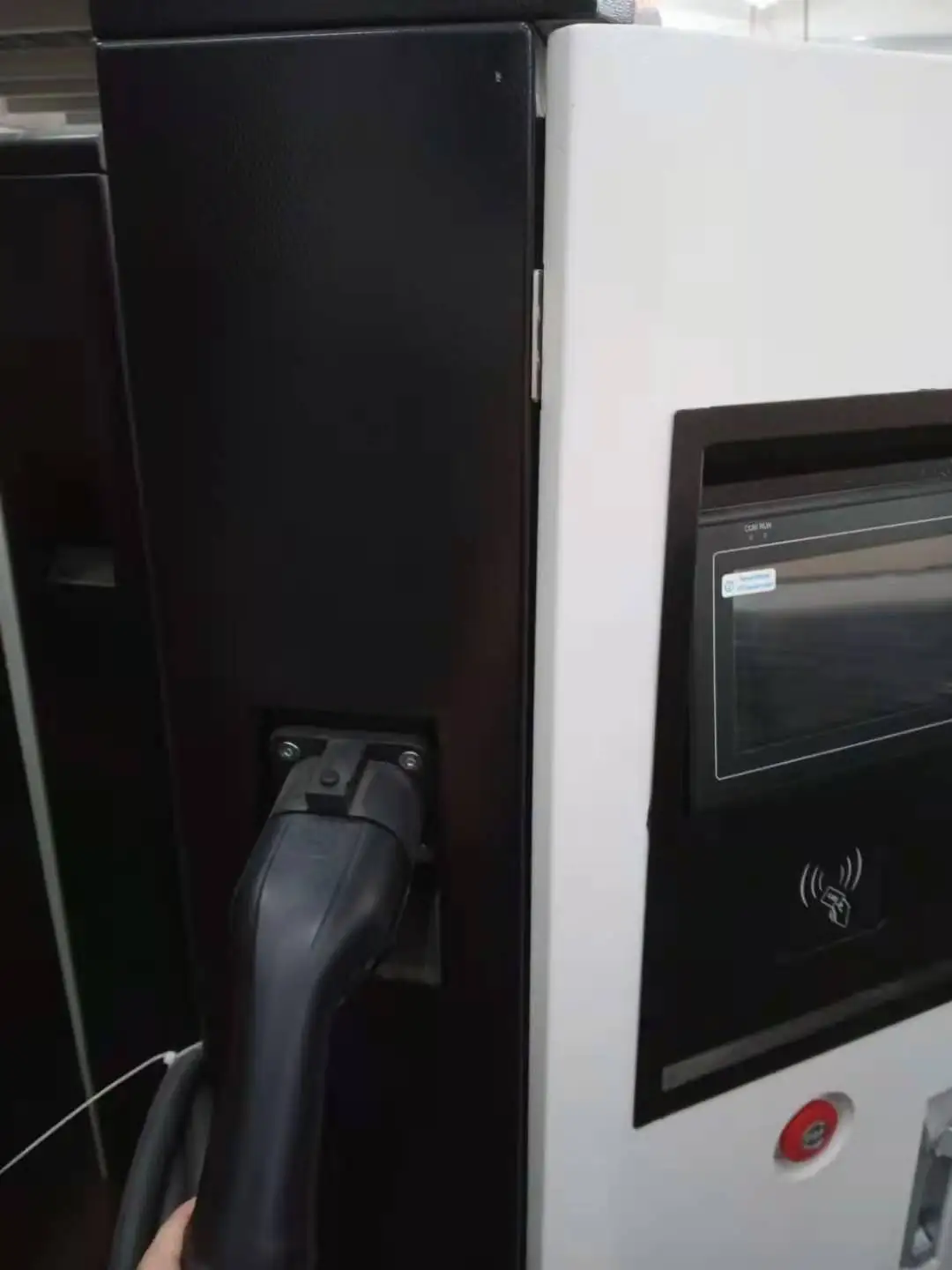

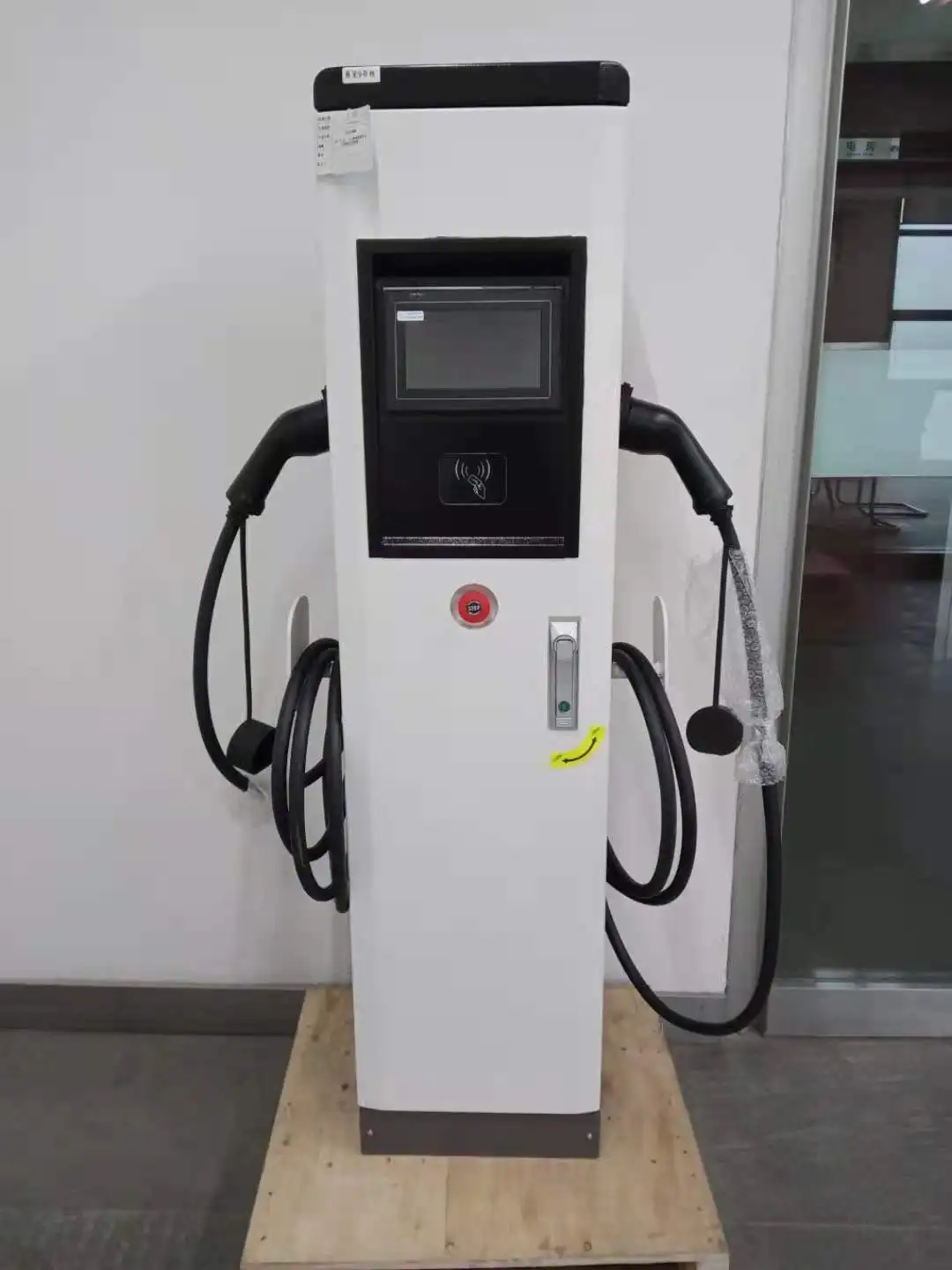

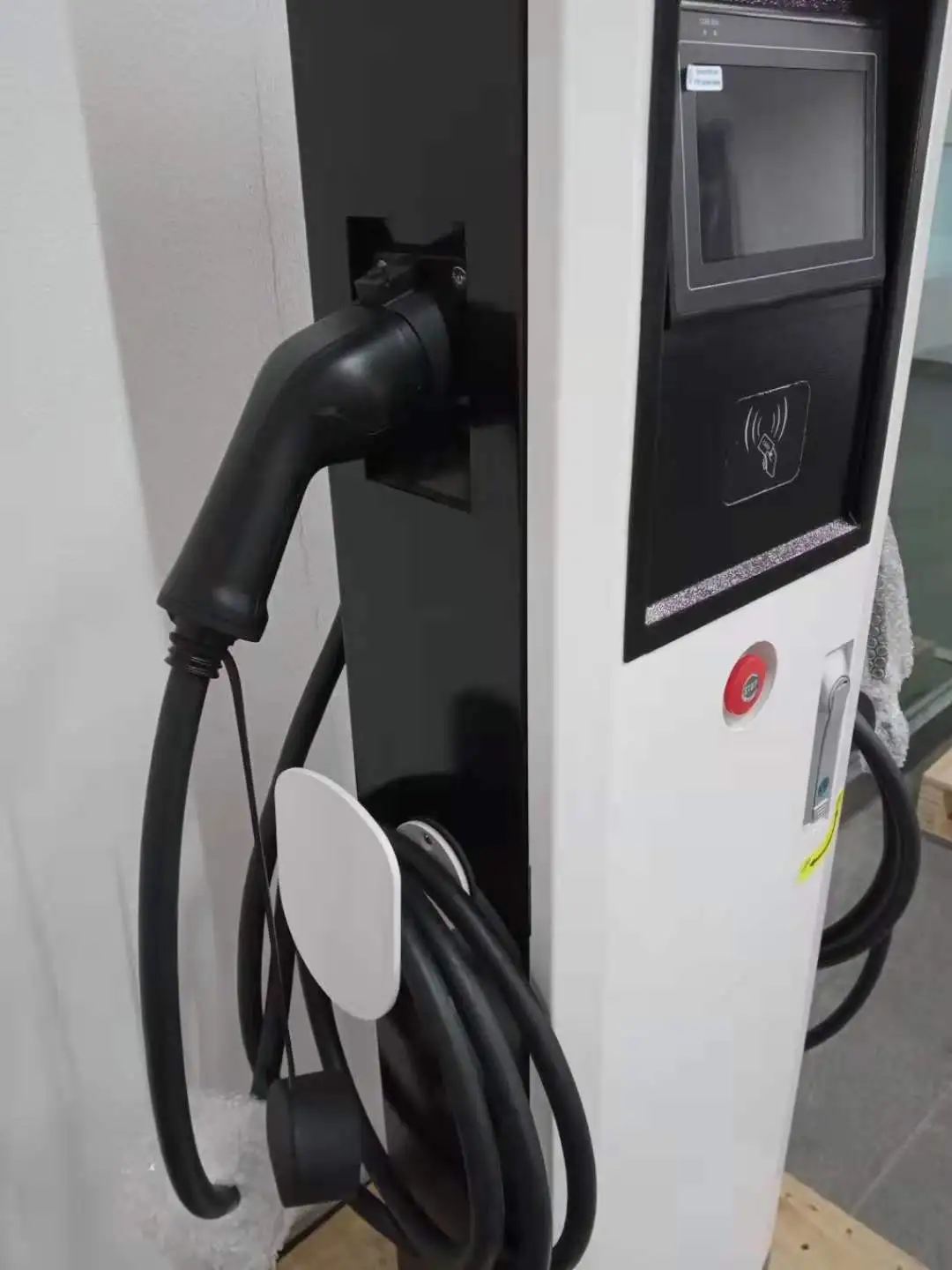

Detailed Images

charging levelgrid chargingauto charging stationVertical chargingVertical AC chargingVertical AC stationAC charging










Packaging & Shipping


1pcs per carton ,
Sending by Express TNT , Fedex ,  DHL or By air , By sea by Customized


Express Freight cost Prepaid or Collect are both ok !








Hot selling products


DSC01594.jpg    DSC01510-1.jpg  DSC01566.jpg





           V2H solution            30KW wallbox  charging station   15KW portable charging station











Company Information


Guangzhou Electway Technology Co., Ltd was founded on March 20th,2012.It is located in Huangpu District, Guangzhou.Since its establishment, our company has been focusing on R&D, production, sales and other services of hardware&software products of power electronics in the field of new energy.
At present, Our company's main products are: a variety of domestic and international standard electric vehicle AC and DC charging station (stationary&wall-mounted), mobile off-board DC chrger,all Series of AC charging EVSE,charging connectors,off - grid electric vehicle discharge device V2H, changing power module and its peripheral products.


Our company invest great efforts on the development of technology and the accumulation of high-quality talents. We have a professional R&D team of more than 10 people.We pay highly attention to the accumulation and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents, andregistered the trademark "ELECTWAY". Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea, and have gained a high reputation in the industry.











Certifications


ELECWAY_1





FAQ


Q1:Are you a manufacturer or trading company?


A: We are a manufacturer





Q2: Where is your factory located? Can I visit it?


A:Our factory is located in Guangzhou city, Guangdong Province,China.


All our clients,from home or abroad,are warmly welcome to visit us.





Q3:What’s the payment terms?


A:We accept T/T,L/C,Western Union,MoneyGram and so on.





Q4: What’s the transportation way?


A: By sea,by air or by express. According to clients requirements.





Q5: How about your delivery time?


A: Generally, it will takes 7-14 days. The specific delivery time depends on the items and the quantity of your order.





Q6: What about your after sale service.


A: We will according to the international quality standards to inspect every products before delivery.





Q7: Can you provide samples?


A: Yes,we can provide samples.The sample fee and the shipping cost will be charged by the buyers.





Q8: Can you make customized products and customized packing?


A: Yes, all products can customized according to customer requirements.


About custom packing, we can put logo or other info on the packing box.





Q9: Can I be an Agent/Dealer of your products?


A: Welcome! But please let me know your Country/Area first, We will have a check and then talk about this. If you want any other kind of cooperation. Please don’t hesitate to contact us.
