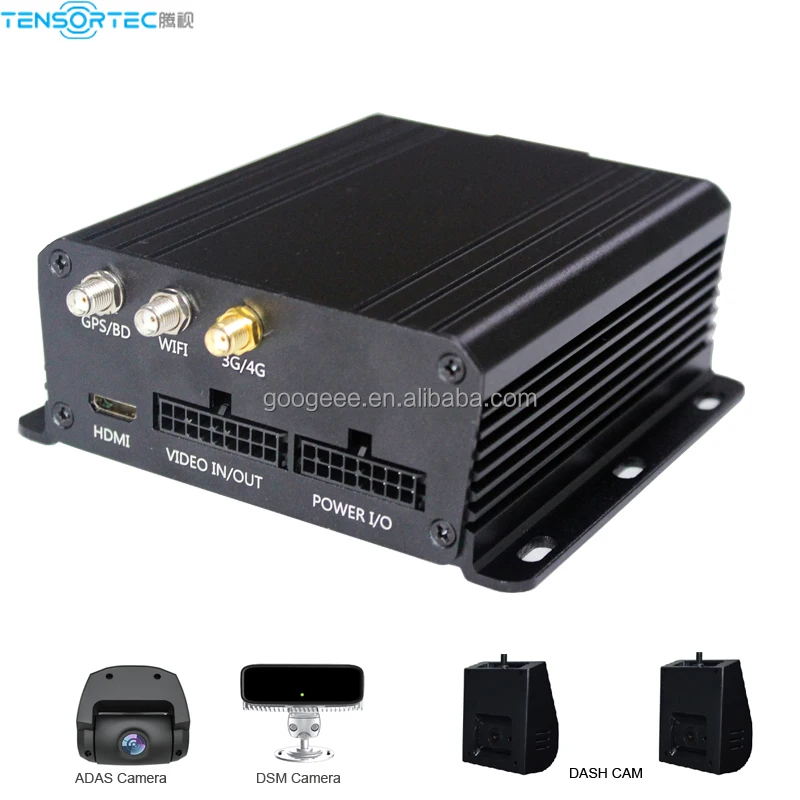

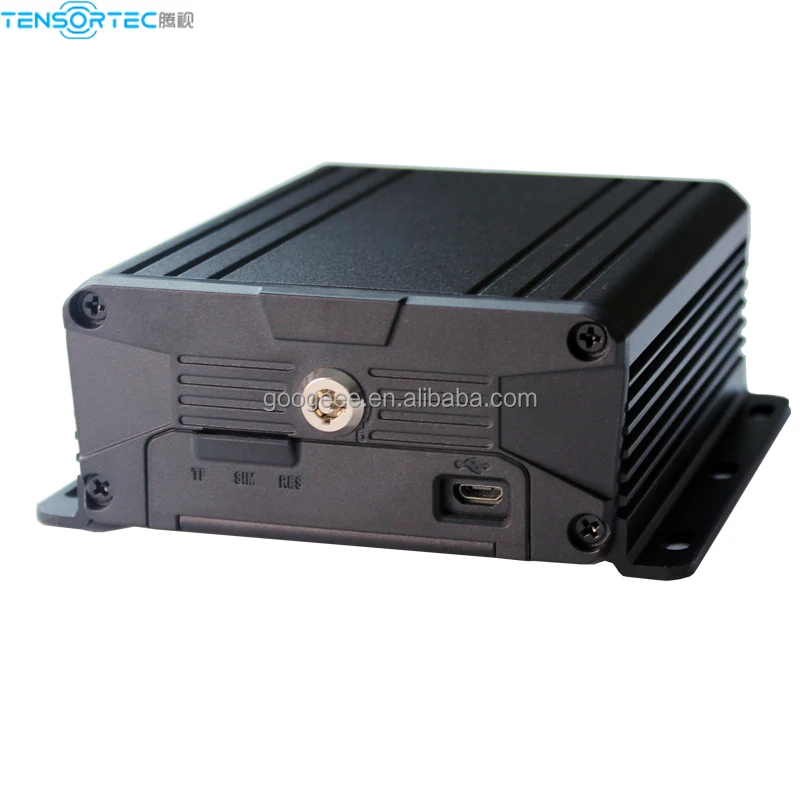

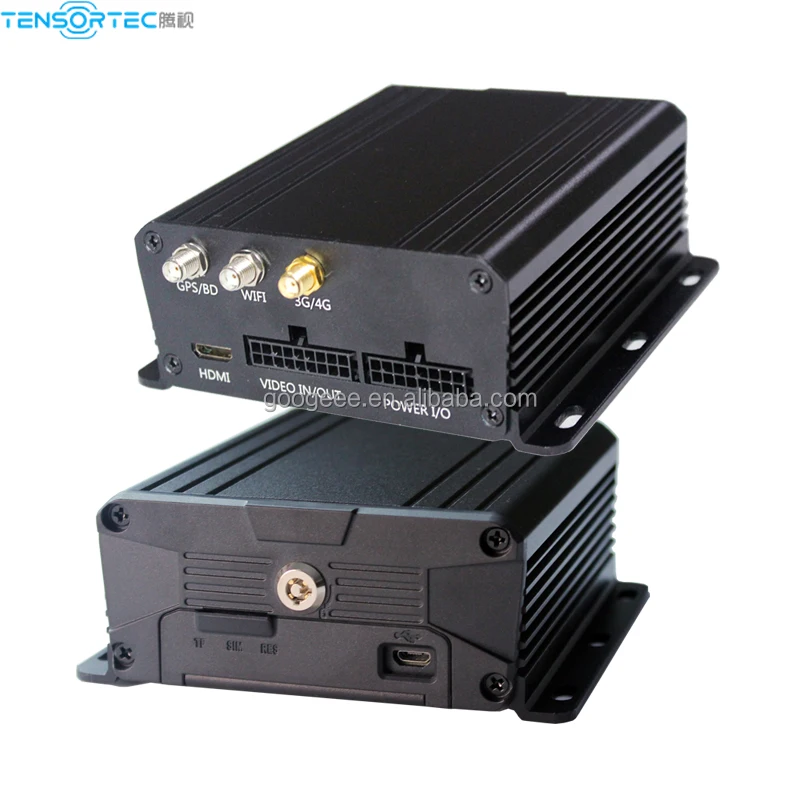

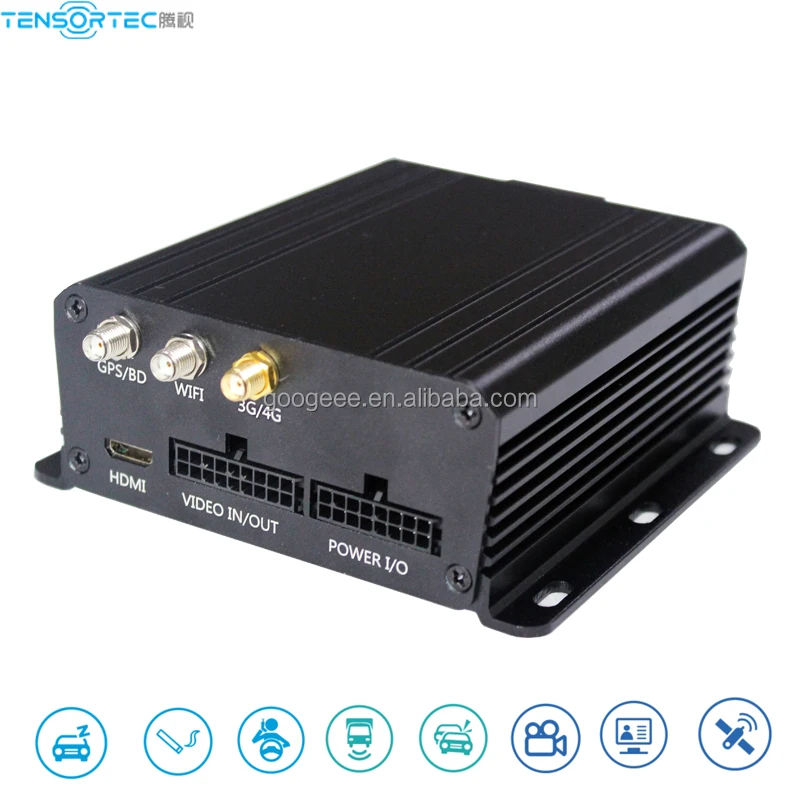

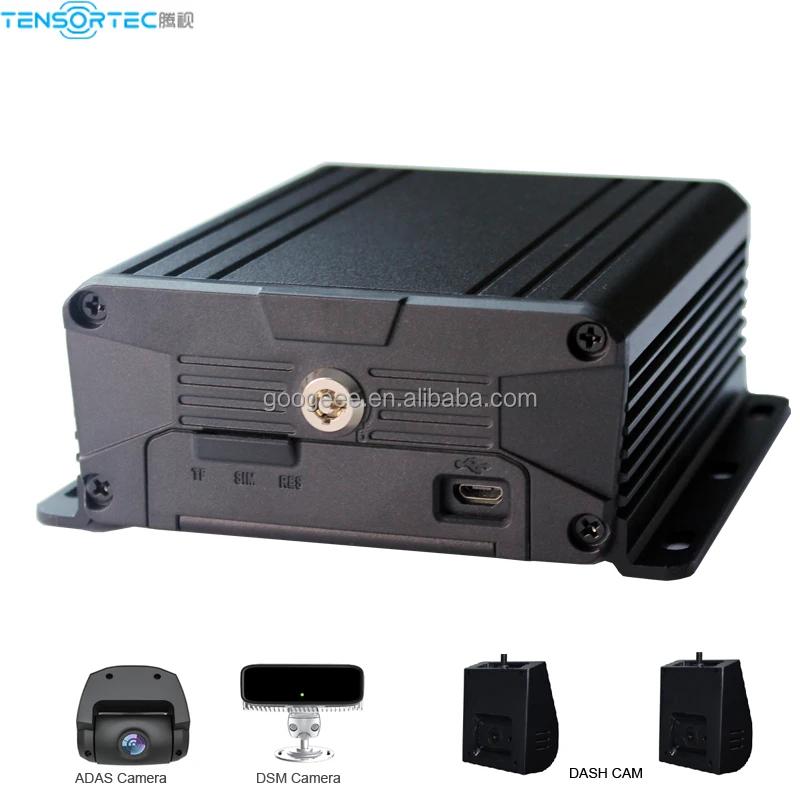

Производитель 4G статус Водителя GPS отслеживание 4CH монитор активной безопасности автомобиля профессиональный MDVR
- Категория: >>>
- Поставщик: Shenzhen Googeee Video Technology Co. Ltd.
Сохранить в закладки 1600348064289:
Описание и отзывы
Характеристики
Manufacturer 4G Driver State GPS tracking 4CH Car active safety monitor professional MDVR
Product Description
Product Name | Car active safety monitor professional MDVR |
Operating system | Android |
Video coding | H.264 main profile |
Video input | 1 channel DSM AHD720P, 1 channel ADAS AHD720P |
Video output | 1 channel HD HDMI output |
Dual stream | Main stream recording, Sub-streaming network transmission |
Audio input and output | 1 channel audio input, 1channel audio output |
Audio compression | G.726 / PCM /AMR |
Recording mode | Power on / alarm event recording |
Playback mode | PC playback analysis software |
Communication 3G/4G | EVDO / WCDMA / FDD LTE / TDD LTE |
GNSS | Support GPS / BEIDOU / GLONASS |
Positioning accuracy | Less than 15m |
Storage medium | TF card (single card supports up to 128G) |
Interface jack | USB2.0, RS232*1, RS485*1, CAN*1, |
Network interface | RJ45 network port*1, 10M/100M adaptive network interface |
I/O interface | 2 inputs, 2 outputs |
Working distance | 50-110cm |
Working conditions | Day and night |
Detection type | Glasses, Sunglasses |
Interface | USB 2.0 & Serial port RS232 |
Working voltage | 9V-36V |
Power output | +12V @ 1A |
Working current | <1A |
Working temperature | -20℃ ~ + 70℃ |
Storage temperature | -40℃ ~ + 85℃ |
IP grade | IP54 |
Material | Metal |
Size | 119.5*97*40.4mm |
Weight | 345g |
Package | giftbox |
Main functions of products
Intelligent Real Time Dsm Audio Truck Car Bus Dvr And Driver Speed Security Online Driver State Status Fatigue Camera Monitor.
This product is a cost-effective and extensible device specially developed for vehicle video surveillance. Built-in our company independently developed image intelligent processing core algorithm, real-time collection of driver fatigue status, driving calls, yawning, driving smoking, looking left and right, changing reminders and other features using dedicated camera, while integrating a dedicated ADAS advanced auxiliary system, with the functions of front car collision reminder, Lane deviation, pedestrian detection, etc., the system uses high-speed processing. It combines advanced H. 264 video compression and decompression technology and network technology in the field of IT with embedded operating system. It can realize video recording in CIF, HD1, D1, analog HD720P and digital HD720P formats, and integrate wireless data upload in 4G/wifi. The product adopts modular design, which has the characteristics of high reliability, flexible installation and convenient maintenance.
Driver Monitoring Systems: Keeping Drivers Awake, Alert, and Alive
Function:
1.DMS function:Real-time audio alarm once driver fatigue,yawning,smoking,calling,distraction etc.
2.ADAS function : Real-time warning before Lane Departure,Forward Proximity ,Forward collision.
3.Over speed alarm.
4.Build-in 4G and GPS,optional.
5.Support WiFi and 3G ,4G upload data.
6.DMS, ADAS 10 sec alarm video real-time upload on the platform and App
7.Connect with 3rd party platform ,APP for real time management.
8.I/O output to monitor or Vibration Cushion,etc.
9.Alarm linkage function: support alarm linkage, while SOS warning occur,
Benefit :
1.GPS fleet monitoring.
2.Train driver remove bad behavior,choose most suitable driver and Insurance.
3.Reduce labor costs,maintenance and operating costs
4.Improve productivity
5.Increase safety
6.Reduce whole company operating costs
7.Reduce car accident
8.Increase vehicle life span
Optional languages warning such as English, Spanish, Portuguese, Turkish, Japanese, Chinese.
Intelligent Real Time Dsm Audio Truck Car Bus Dvr And Driver Speed Security Online Driver State Status Fatigue Camera Monitor.
This product is a cost-effective and extensible device specially developed for vehicle video surveillance. Built-in our company independently developed image intelligent processing core algorithm, real-time collection of driver fatigue status, driving calls, yawning, driving smoking, looking left and right, changing reminders and other features using dedicated camera, while integrating a dedicated ADAS advanced auxiliary system, with the functions of front car collision reminder, Lane deviation, pedestrian detection, etc., the system uses high-speed processing. It combines advanced H. 264 video compression and decompression technology and network technology in the field of IT with embedded operating system. It can realize video recording in CIF, HD1, D1, analog HD720P and digital HD720P formats, and integrate wireless data upload in 4G/wifi. The product adopts modular design, which has the characteristics of high reliability, flexible installation and convenient maintenance.
Driver Monitoring Systems: Keeping Drivers Awake, Alert, and Alive
Function:
1.DMS function:Real-time audio alarm once driver fatigue,yawning,smoking,calling,distraction etc.
2.ADAS function : Real-time warning before Lane Departure,Forward Proximity ,Forward collision.
3.Over speed alarm.
4.Build-in 4G and GPS,optional.
5.Support WiFi and 3G ,4G upload data.
6.DMS, ADAS 10 sec alarm video real-time upload on the platform and App
7.Connect with 3rd party platform ,APP for real time management.
8.I/O output to monitor or Vibration Cushion,etc.
9.Alarm linkage function: support alarm linkage, while SOS warning occur,
Benefit :
1.GPS fleet monitoring.
2.Train driver remove bad behavior,choose most suitable driver and Insurance.
3.Reduce labor costs,maintenance and operating costs
4.Improve productivity
5.Increase safety
6.Reduce whole company operating costs
7.Reduce car accident
8.Increase vehicle life span
Optional languages warning such as English, Spanish, Portuguese, Turkish, Japanese, Chinese.
Product Usage
Accessories:
Packing&Shipping
Company Introduction
Shenzhen Tensor Technology Co., Ltd is a supplier of vehicle active safety products and solutions based on AI technology. We offer AI technology algorithm of DMS and ADAS , vehicles safety and intelligent video surveillance devices, platform software and industries solutions.
Our Team
Our core R&D team comes from Huawei and professional vehicle devices companies. We have our own core AI algorithm and product R&D capabilities, and got the national high-tech enterprise certificate.
Main Products
Our main products include DMS, ADAS, Mobile DVR and AI platform, the vehicle activity safety solutions of passengers vehicle , dangerous cargo truck, freight carrier, taxi, school bus, mining truck etc.
FAQ
Q: Can we put our LOGO on the product?
A: Yes, we support OEM and ODM. Also we support customize package, silk-printing, manual,
software and open new mold.
Q: How do you ship the goods?
A: Usually, sample and small order ship by DHL, Fedex, UPS, or TNT, mass order by Air or by Sea.
Q: What is your delivery port?
A: Our nearest port is in Shenzhen China.
Q：Do you offer guarantee for the products?
A: Yes, we offer 1 year guarantee for the products.
Q: What is the your lead time?
A: Sample is 2-5 days, OEM / Mass order 25-30 days after received deposit and artwork confirmed.
Q: Can I have a sample order?
A: Yes, welcome sample order to test and check the function & our quality. Please contact us first to confirm . We do not provide
free sample and the shipping fee for sample should be paid by buyers.
Q: Do you have any MOQ limit?
A: Normally OEM order MOQ: 1000pcs each model. For trial order support 10-500pcs.
Q: What is your main products line?
A: Tensor is a professional manufacturer of Action cameras and Dash camera, DSM camera, ADAS camera ,Mobile DVR.
Q: Are you factory or trading company?
A: We are a manufacturing factory with 5 years experience. Welcome you to visit our factory.
software and open new mold.
Q: How do you ship the goods?
A: Usually, sample and small order ship by DHL, Fedex, UPS, or TNT, mass order by Air or by Sea.
Q: What is your delivery port?
A: Our nearest port is in Shenzhen China.
Q：Do you offer guarantee for the products?
A: Yes, we offer 1 year guarantee for the products.
Q: What is the your lead time?
A: Sample is 2-5 days, OEM / Mass order 25-30 days after received deposit and artwork confirmed.
Q: Can I have a sample order?
A: Yes, welcome sample order to test and check the function & our quality. Please contact us first to confirm . We do not provide
free sample and the shipping fee for sample should be paid by buyers.
Q: Do you have any MOQ limit?
A: Normally OEM order MOQ: 1000pcs each model. For trial order support 10-500pcs.
Q: What is your main products line?
A: Tensor is a professional manufacturer of Action cameras and Dash camera, DSM camera, ADAS camera ,Mobile DVR.
Q: Are you factory or trading company?
A: We are a manufacturing factory with 5 years experience. Welcome you to visit our factory.
Похожие товары
Китай топ один подшипник GTS200 Vespa GTS 200 мотоцикл запасные
12,00 $ - 13,50 $

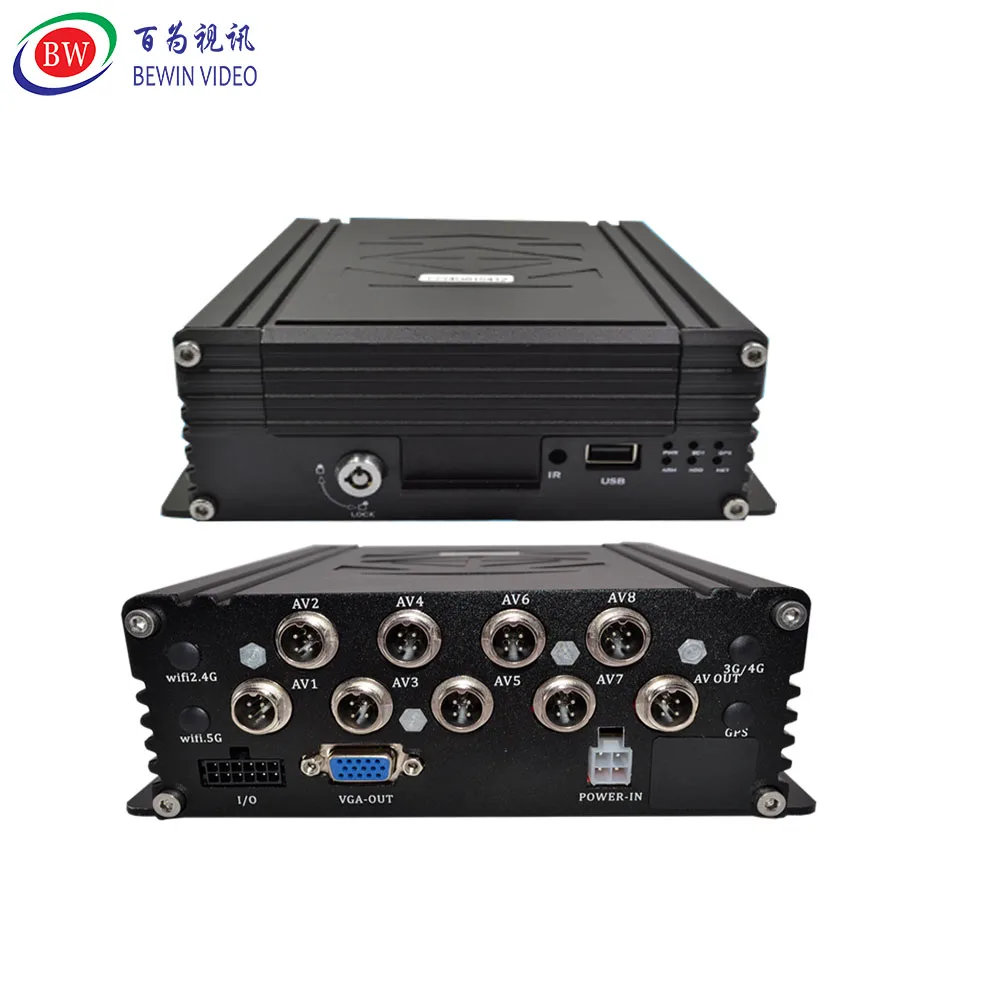

2021 1080p мобильный видеорегистратор материнская плата такси транспортное средство Mdvr система камеры безопасности 2 канала Super Ahd 1080p Sd мобильный видеорегистратор для автобуса
Китайский производитель, высокое качество, 4g Мобильный видеорегистратор с wifi, gps, mdvr для автобусной системы безопасности

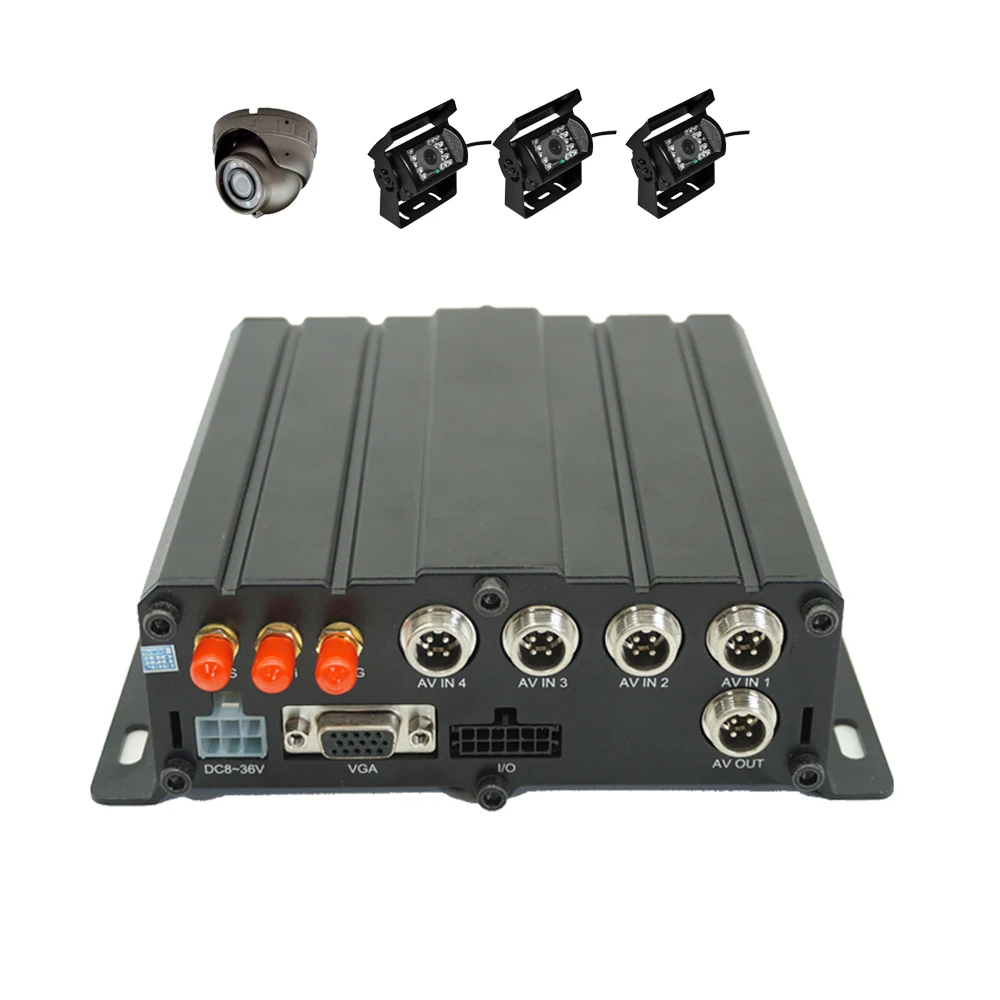

4CH 1080P 4G WIFI GPS Мобильный dvr для всех транспортных средств от оригинального производителя
115,00 $ - 125,00 $
Fenglai Производство Беспроводных людей счетчик датчиков для подсчета людей
650,00 $ - 670,00 $

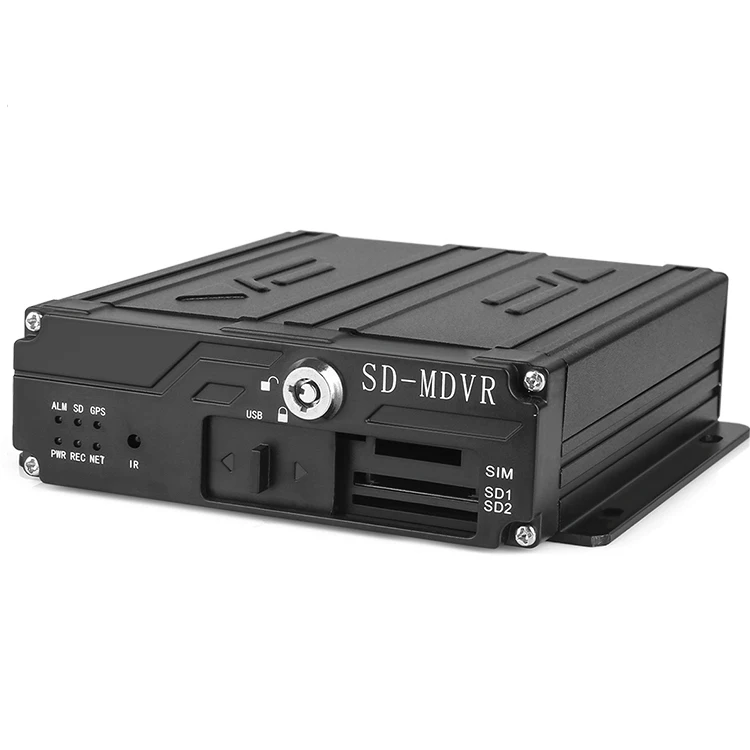

Профессиональный производитель 4CH 8CH 4G GPS WiFi Функция AHD автомобиль автобус грузовик черный ящик MDVR
