Product Overviews


POLYTAB: 11.1" Modular Industrial Panel Based on Intel Core i5 8265U/Core i3 8145U/Celeron 4205U CPU





Main Features:



  • Intel Core 8th Gen. ultra-low voltage platform Whiskey Lake-U, Core i5-8265U/Core i3-8145U/Celeron 4205U CPU optional

  • 11.1 inches 10-point capacitive touch panel (10.6/15.6 inches panel optional)

  • 6 x COM, 1 x HMDI OUT, 1 x DP OUT

  • 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3.0

  • 2 x M.2

  • 2 x 1000M Network








Industrial panels play an important role in the intelligent systems transformation of "Industry 4.0" in the era of intelligent manufacturing. In order to comply with market development trends and future expansion needs, Polyhex Technology launches this modular industrial panel "POLYTAB".

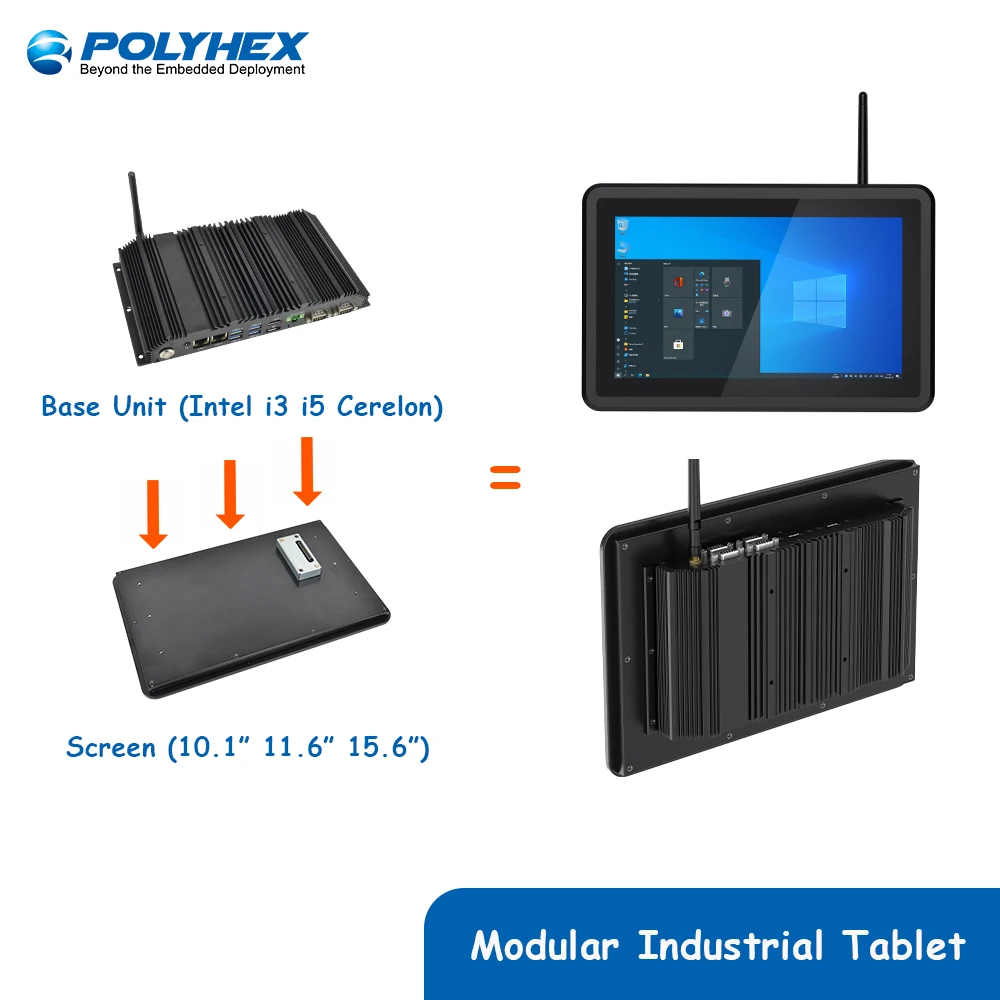

It consists of a front display screen and a back-end industrial computer. The back-end computer module supports connection with several sizes of screen through standard interfaces. Through flexible matching, a variety of host specifications can be selected, and it can be quickly upgraded and easily maintained without changing the original design, so that customers will be unimpeded in the future upgrade selection, test, production and maintenance process.













Specification































































































  System

  CPU


 Intel Core i5-8265U/Core i3-8145U/Celeron 4205U
  Memory

 2 x DDR4 SO-DIMMs slot, max. capacity up to 32GB


  Storage

 1 x SATA 3.0


 1 x M.2 2280, support SATA signal (or PCIe signal) SSD


  Operating System Windows 7/10, Linux
  Video and Audio
  Display

 11.1 inches screen, 10-point capacitive touch panel (10.6 and 15.6 inches optional)


   Audio

 Integrated 6 sound channels, ALC662 chip

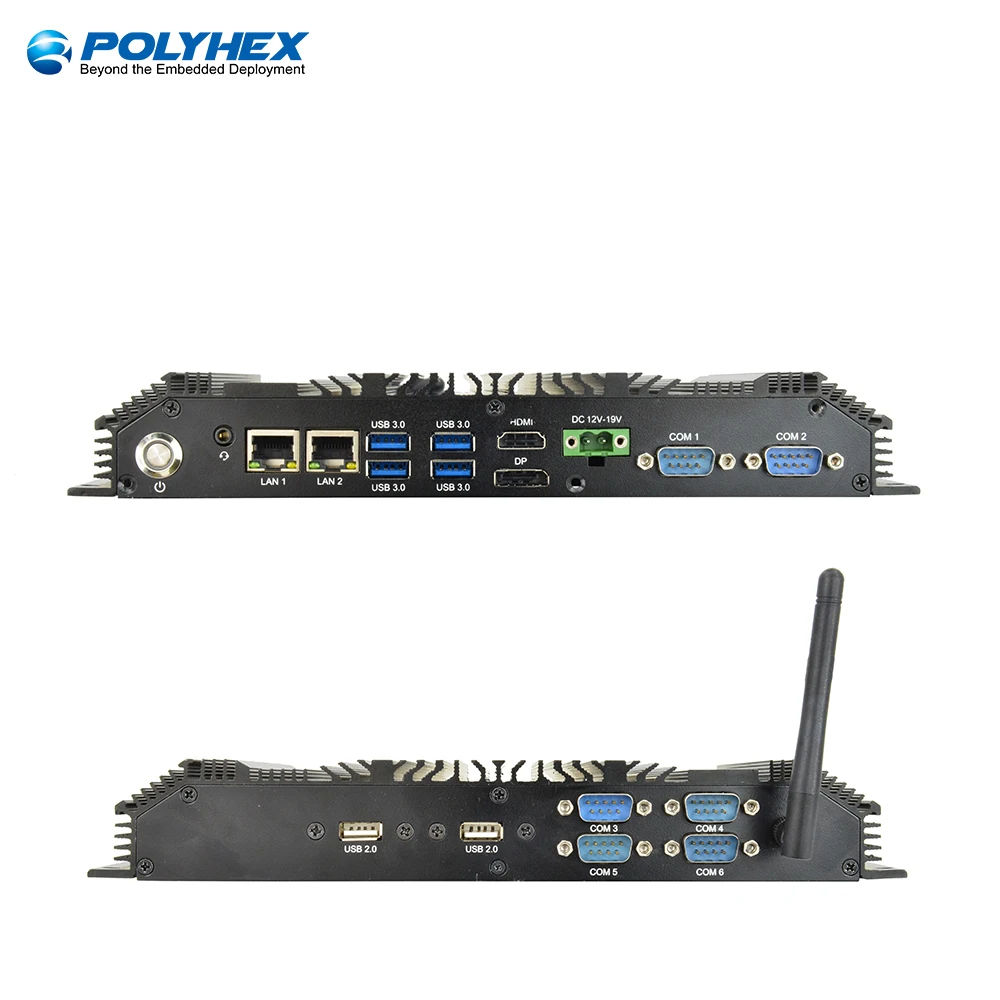

  Front I/O
  Power Switch

 1 x Power Switch


  Audio 1 x JACK, support Line_Out and MIX_In Combo
  Network

 2 x 1000M, support WIFI and BT


  USB 3.0 4 x USB 3.0
  Display

 1 x HDMI OUT, 1 x DP OUT


 Power Supply 1 x Phoenix
 Serial Ports 2 x RS485/RS422/RS232(BIOS optional)
  Rear I/O
 USB 2.0 2 x USB 2.0
 Serial Ports 4 x RS-232
 Antanna Hole 1
  Other Interfaces
  Com 6 x COM, COM1 and COM2 support RS485/RS232 signal through BIOS selection
  GPIO Scalable



















 Power Supply & Functions
  Power Adapter 12~19V 3A DC_IN
  Auto Power On Support
  Wake On LAN Support



































  Mechanical & Environmental
  Material Aluminum alloy (Blue and Black color for options)
  Dimension 216 x 136 x 39 mm
  Weight  3.1 kg
  Cooling Cooling fin, fanless
  Mounting VESA mounting
  Operation Temp. 0℃~50℃
  Storage Temp. -20℃~85℃










OEM & ODM Process




Board Level Customization Design:  within 40 working days
System Structure Customization Design:  within 10 working days
