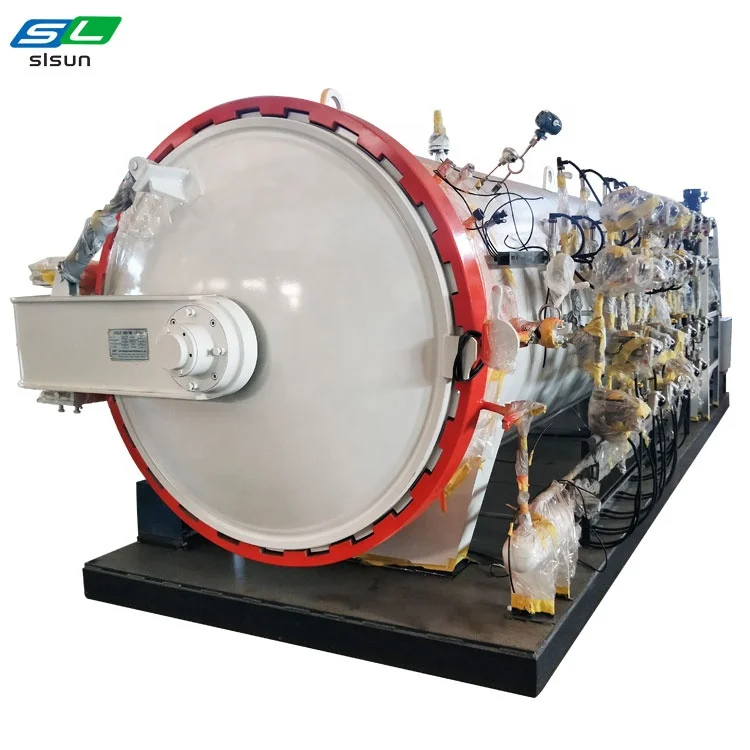

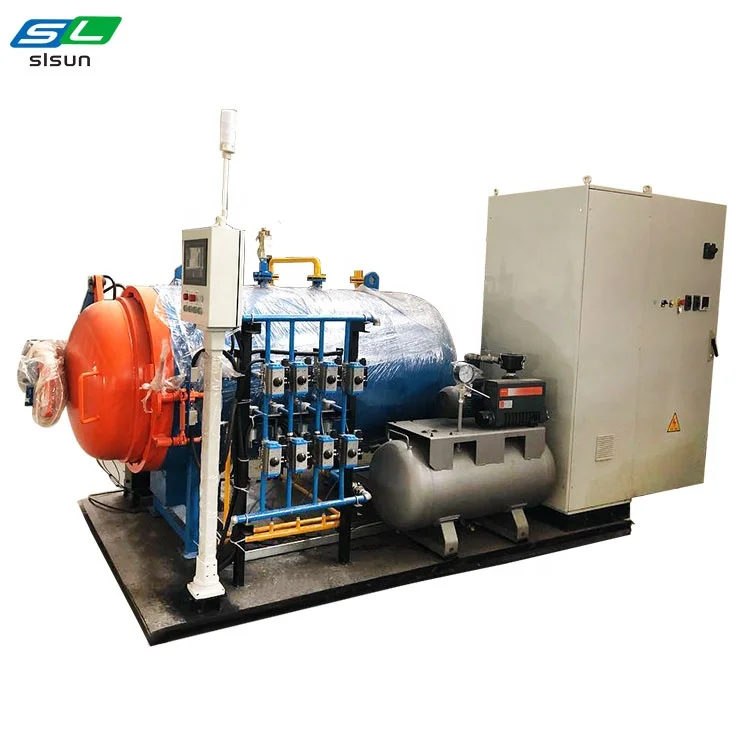

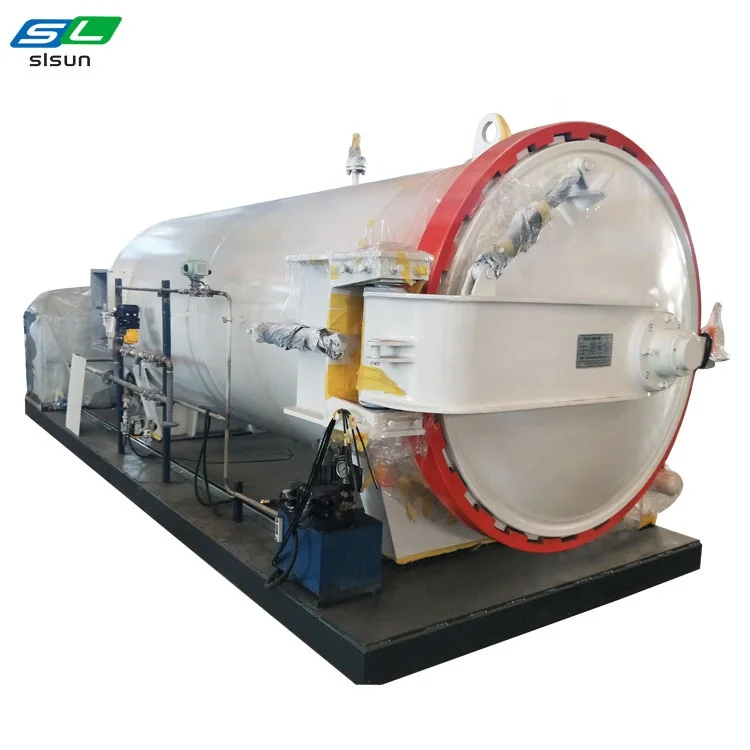

High Pressure Autoclave Oven prepreg Industrial ASME PLC Composite Autoclave for carbon fiber
Composite autoclave (also called industrial autoclave for composite material) is the pressure vessel specially designed and manufactured to fabricate composite material, it is one of the our hot sale industrial autoclave products. Composite material (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Industrial composite autoclave is one of the effective and most applicable techniques for composite production.
Large-scale Composite Autoclave
The large scale composite autoclave is large in size and is mainly used for the production and processing of large size and complex shape aerospace components.Such as skin parts, ribs, frames, all kinds of siding parts, floors and rectification.
Autoclave for Aerospace
Autoclave for aerospace is one kind of autoclave for carbon fiber. With the rapid development of aerospace industry, aerospace hot pressure tank plays a crucial role in the manufacture of aircraft wing, vertical tail and front fuselage and other components widely used in the shell of carrier rockets, aircraft structures, satellite stars, solar panels in space equipment, extension arms, spacecraft reentry capsules, unmanned aerial vehicles and other structures.
Autoclave for Military Project
Autoclave for Military Project is a kind of autoclave for carbon fiber specially used for military products, such as military aircraft wings, fuselage, rocket shell, satellite parts.Military weapon industry, such as remanufactured protective armor, helmet, bulletproof suit, bulletproof glass, etc.The production process refer to civil autoclave but the standards and requirements are higher than autoclave for carbon fiber.
Autoclave for Carbon Fiber
Autoclave for carbon fiber is a kind of equipment used to solidify carbon fiber composite products. The composite made of carbon fiber and epoxy resin has become an advanced aerospace material due to its low specific gravity, good rigidity and high strength. High performance and ultra high performance carbon fibers have appeared one after another, which is another leap in technology and
also marks that the research and production of carbon fibers has entered an advanced stage.
also marks that the research and production of carbon fibers has entered an advanced stage.
Autoclave for Laboratory
The laboratory autoclave is a small autoclave for carbon fiber. It is mainly used in universities, research institutes and other laboratories to study the optimal control parameters (temperature, pressure and vacuum degree process) of prepreg molding process, and to prepare composite one-way plates, laminated plates and small components. It is a basic tool for the academic research of composite materials and an important equipment for the research and development of high-performance composite products.
Product Advantages
①Adopt Siemens automatic control system, save energy and manpower
② Uniform heat distribution in the tank, constant pressure.
③Suitable for curing of various kinds of composite materials.
④Perfect pressure control, forming effect is good.
⑤The hot pressure tank adopts PLC automatic control system, with accuracy up to ±1-2℃.
⑥ Thermal insulation tank with aluminum silicate wool, head with double layer insulation, plus stainless steel lining insulation effect is good.
⑦With quick opening type pressure vessel double safety interlock device. Synchronous alarm, pressure boost after closing, pressure relief after opening.
② Uniform heat distribution in the tank, constant pressure.
③Suitable for curing of various kinds of composite materials.
④Perfect pressure control, forming effect is good.
⑤The hot pressure tank adopts PLC automatic control system, with accuracy up to ±1-2℃.
⑥ Thermal insulation tank with aluminum silicate wool, head with double layer insulation, plus stainless steel lining insulation effect is good.
⑦With quick opening type pressure vessel double safety interlock device. Synchronous alarm, pressure boost after closing, pressure relief after opening.
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Effective Diameter | 600 mm-6000 mm | ||
2 | Effective Length | 800 mm-30000 mm | ||
3 | Working Pressure | 0.2 Mpa- 10.0 Mpa | ||
4 | Working Temperature | 100℃-500℃ | ||
5 | Temperature Control Accuracy | ±2 ℃ | ||
6 | Pressure Control Accuracy | ±0.01 Mpa | ||
7 | Vacuum Limit | ≤ 2 Kpa | ||
✳Remark: Other specifications can be customized according to specific requirements. | ||||
Supporting Facilities
Customers Site
