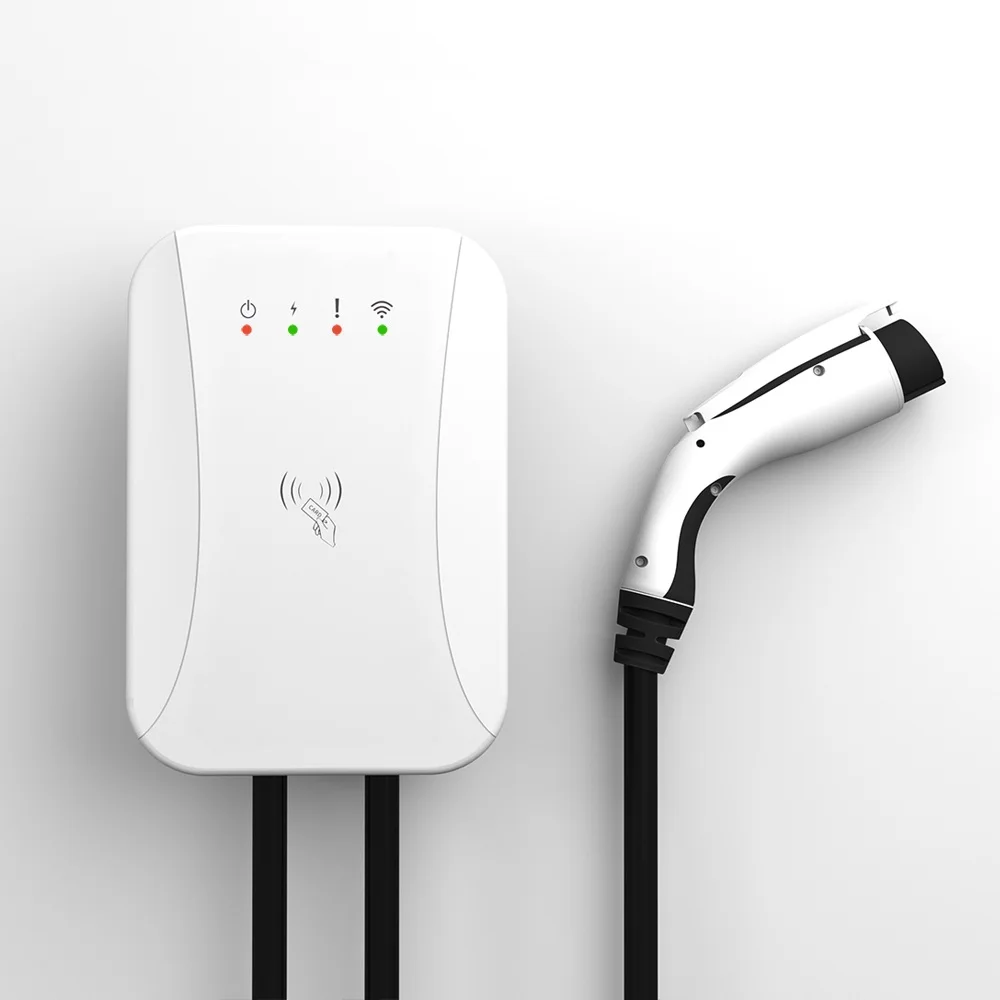

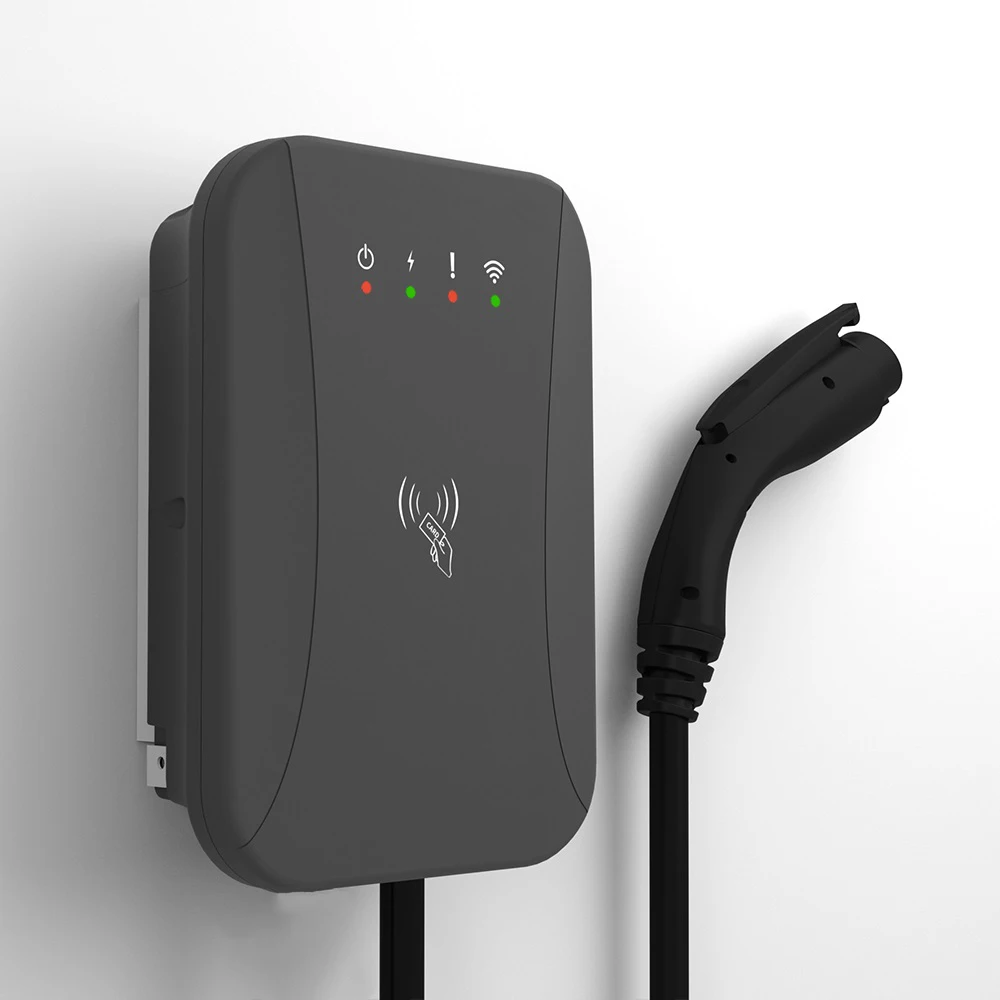

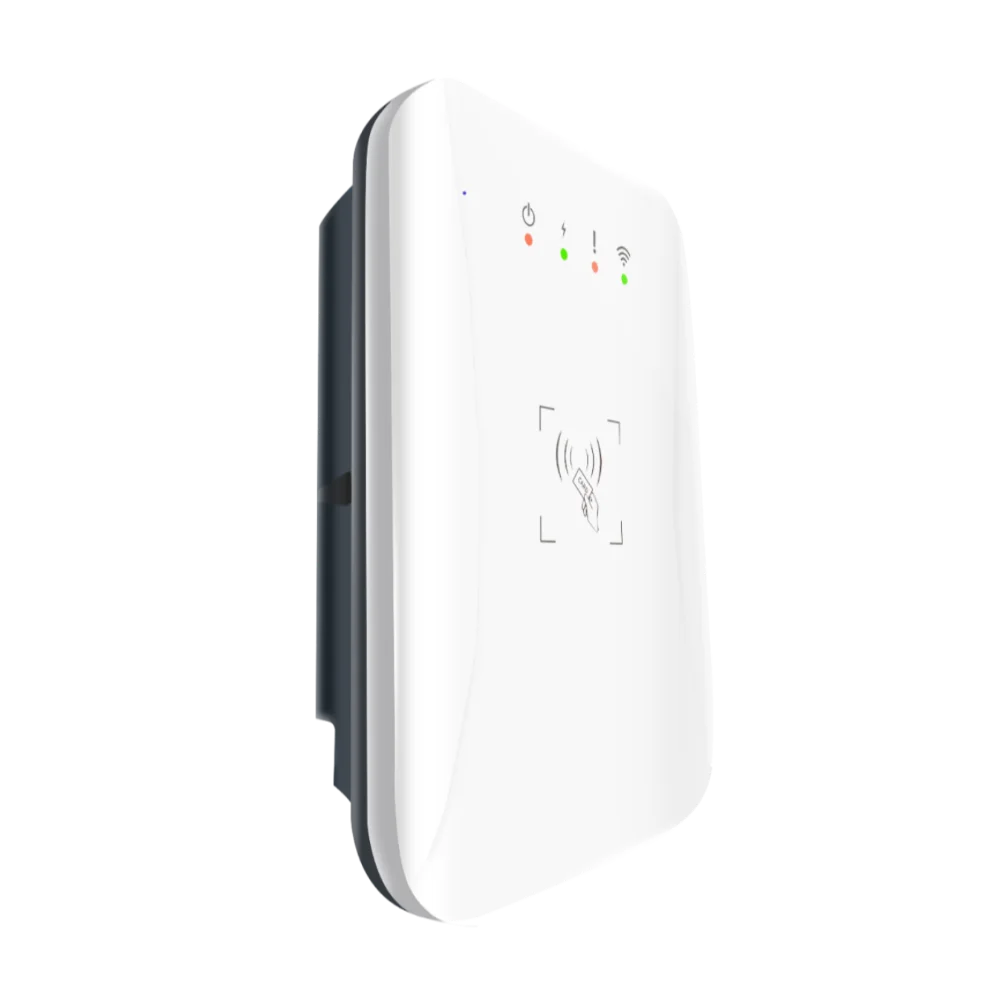

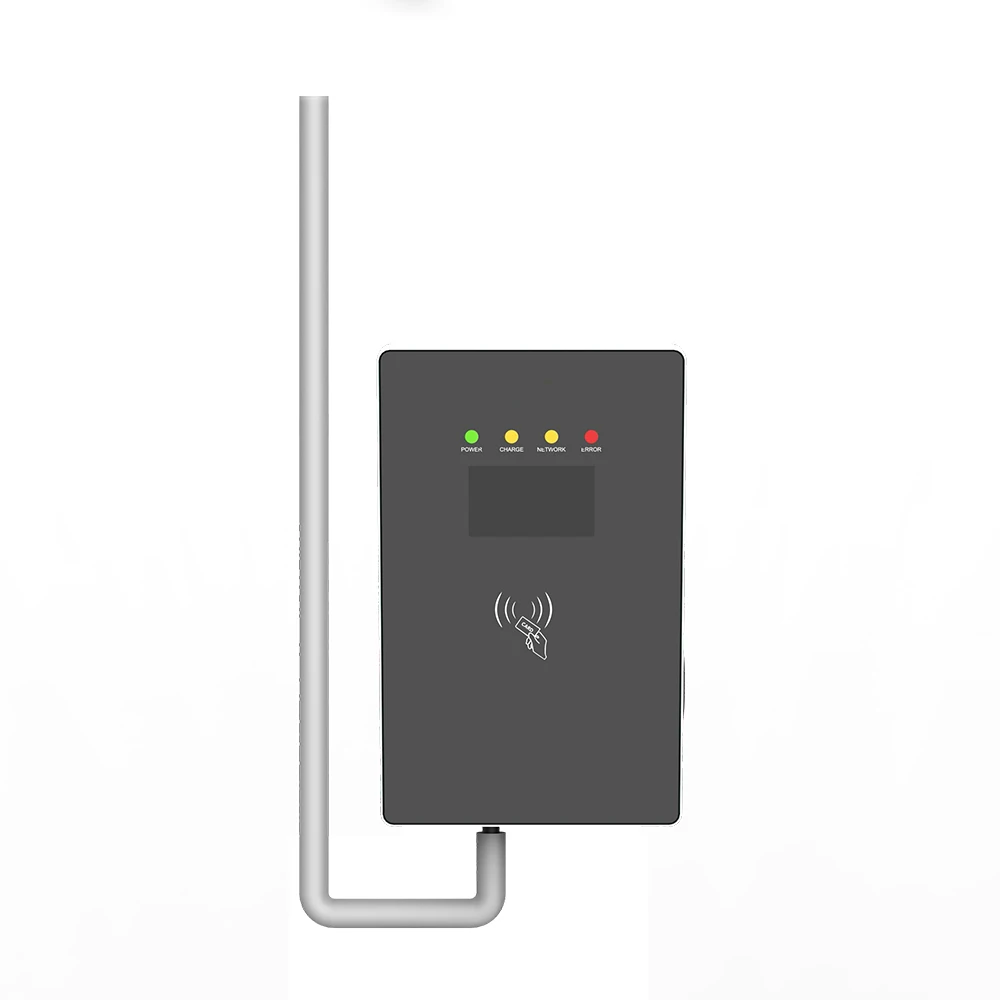

3 фазы 11 кВ/22kw для зарядки электромобиля WallBox электрический автомобиль зарядное устройство с OCPP
260,00 $ - 291,00 $
Лидер продаж стандартное зарядное устройство для электромобилей j1772 SAE стандарта uk Тип 2 IEC
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Boyang Energy Technology Co. Ltd.
Сохранить в закладки 1600352359211:
Описание и отзывы
Характеристики
Products Description
Power Specification | ||||||||
AC Power Input Rating | SAE Standard | IEC Standard | ||||||
AC Level 2 | 1-Phase | |||||||
240V | 220V ± 15% | |||||||
AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | ||||||
7kW/32A | 7kW/32A | |||||||
10kW/40A | N/A | |||||||
Rated Frequency | 50/60Hz | 50/60Hz | ||||||
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||||
User Interface & Control | ||||||||
Charging Control | Plug and Play, RFID Card or App | |||||||
Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||||||
External Communication | LAN (RJ-45) and Wi-Fi | |||||||
OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||||||
Environmental | ||||||||
Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||||||
Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||||||
Operating Humidity | Up to 95% non-condensing | |||||||
Altitude | ≤2000m | |||||||
Protection | ||||||||
Protection Ratings | IP 65 | RCD | Type A / Type B | |||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||||
Over-temp Protection | Yes | Surge Protection | Yes | |||||
Wallbox Mechanical | ||||||||
Dimension (H x W x D, mm) | 310 x 220 x 95 | |||||||
Weight | ＜7kg | |||||||
Charging Cable Length | 5m or Customize Length | |||||||
Enclosure Material | PC+ASA | |||||||
Mounting Pole Mechanical (Optional) | ||||||||
Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||||||
Weight | ＜8kg | |||||||
Enclosure Material | Metal | |||||||
✔ Wi-Fi / LAN/ RFID ✔ Easy Installation ✔ IP 65
✔ Compact Design ✔ High Compatibility ✔ Logo Customizable
Introduction
The new generation 7KW home use AC charger is designed for the renewable energy vehicles, especially for the household, private
electric vehicles and enterprise exclusive charging, it is intelligent, safe, neat compact and easy to install, adopting
self-service mode and suitable for all kinds of electric vehicles. Users can independently complete charging process by simple
operation.
The new generation 7KW home use AC charger is designed for the renewable energy vehicles, especially for the household, private
electric vehicles and enterprise exclusive charging, it is intelligent, safe, neat compact and easy to install, adopting
self-service mode and suitable for all kinds of electric vehicles. Users can independently complete charging process by simple
operation.
Production inspection
Recommend Products
About Us
Global Operation
Certifications
Packing
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer and trading company.
2. Q: Can I buy one or two units for the sample first?
A: Yes. Samples are welcome for all our products. You can buy the sample directly online here. Or please contact our sales manager
to place the order.
3. Q: What is the production time?
A: The delivery time for the samples is usually 7-14 days. The production time for the mass production is usually 25-30 days.
4. Q: What is the warranty of this product?
A: 1 years guarantee.
5. Q: What's your payment terms?
A: T/T, LC, D/P, D/A.
6. Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: We are manufacturer and trading company.
2. Q: Can I buy one or two units for the sample first?
A: Yes. Samples are welcome for all our products. You can buy the sample directly online here. Or please contact our sales manager
to place the order.
3. Q: What is the production time?
A: The delivery time for the samples is usually 7-14 days. The production time for the mass production is usually 25-30 days.
4. Q: What is the warranty of this product?
A: 1 years guarantee.
5. Q: What's your payment terms?
A: T/T, LC, D/P, D/A.
6. Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Похожие товары

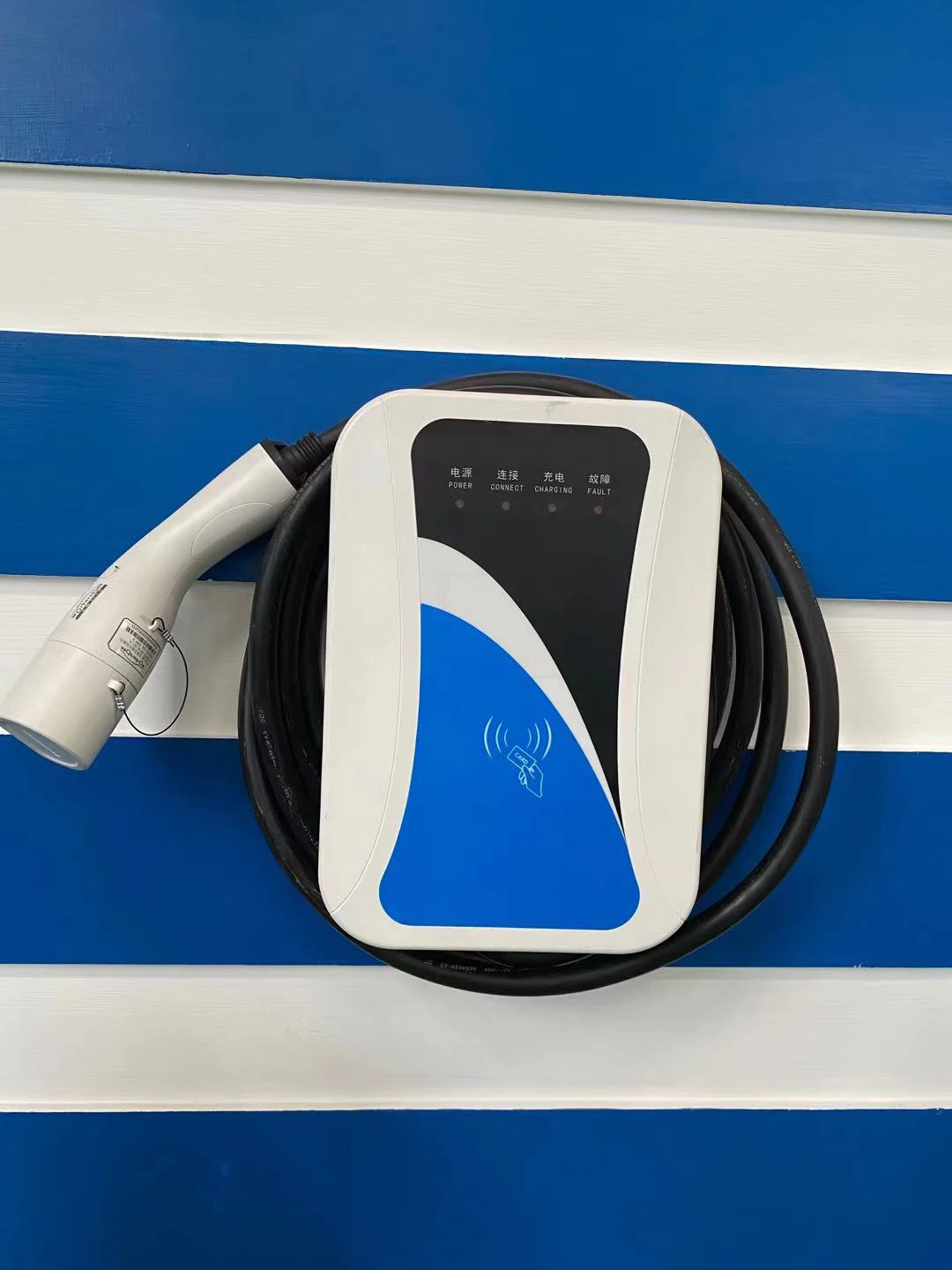

7 кВт AC зарядная станция электромобиль зарядная станция wallbox ev зарядка сваи iec62196 Уровень 2 зарядное устройство с 5 м 7 м кабель EVSE
170,00 $ - 190,00 $

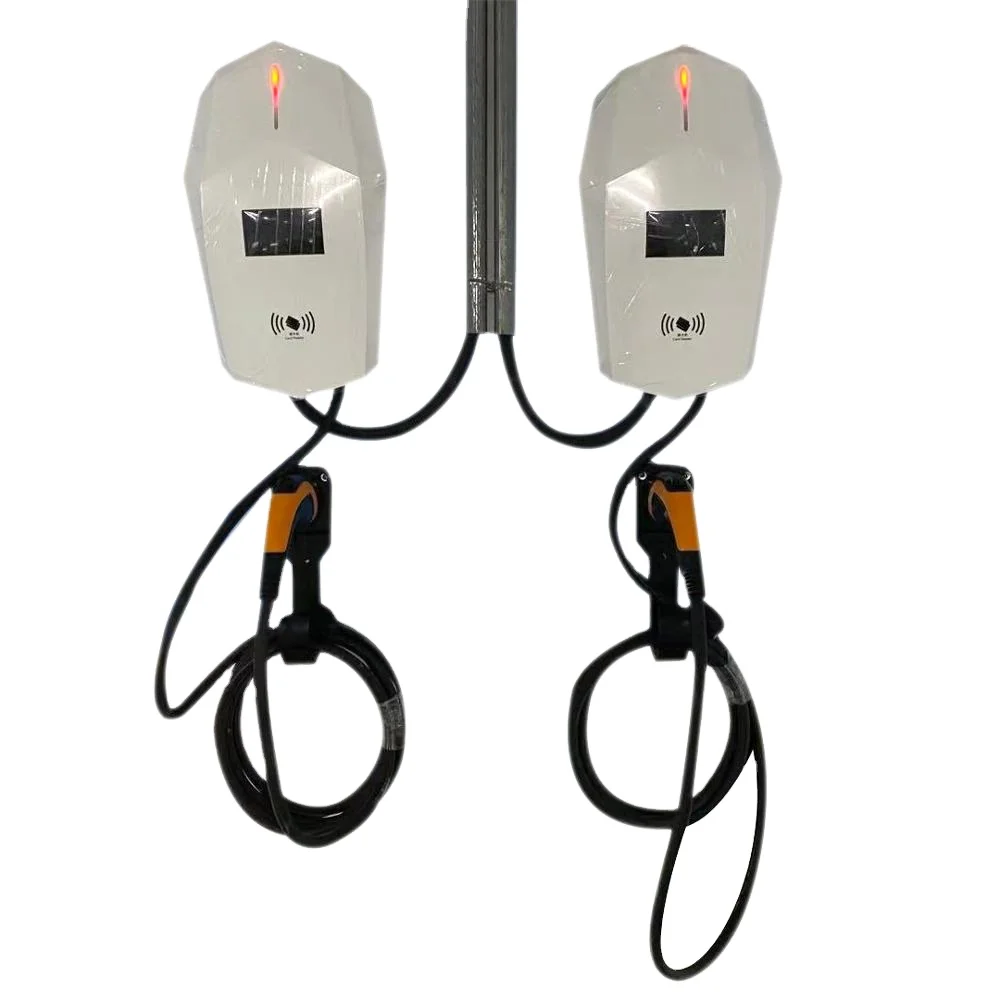

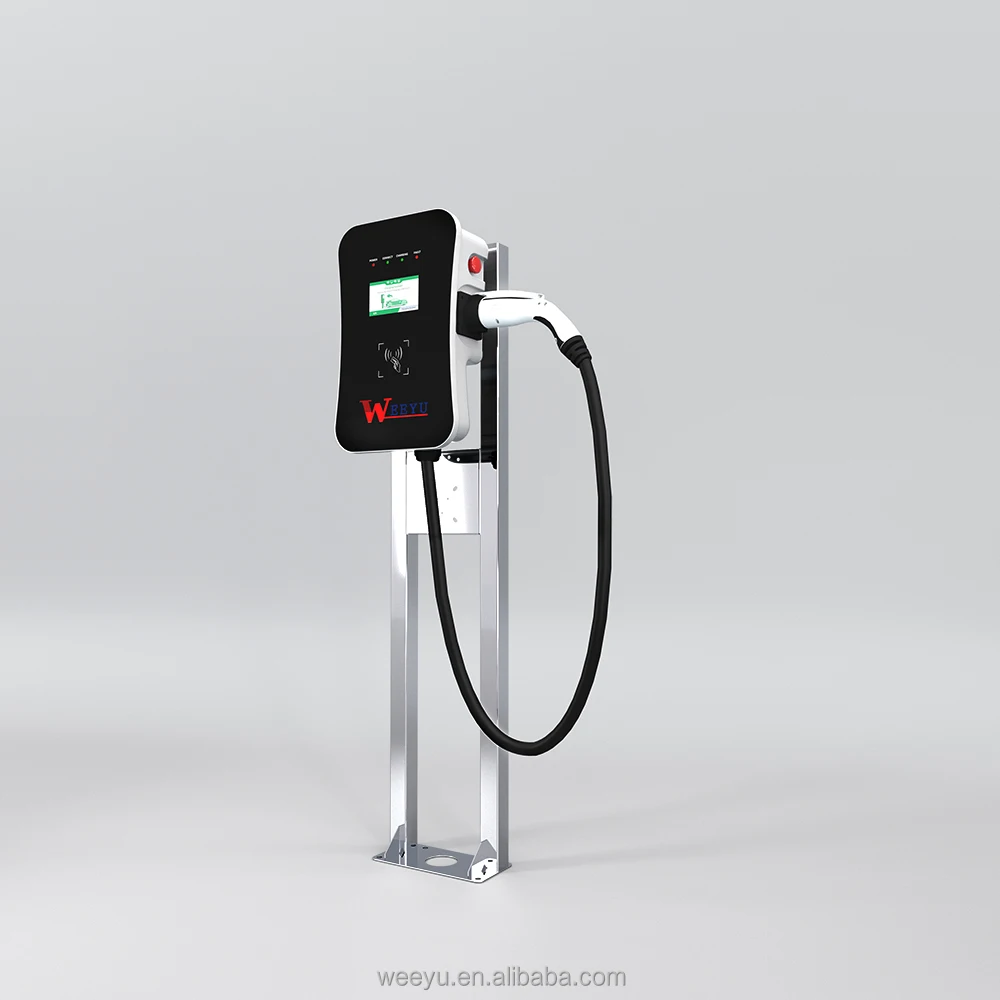

Зарядное устройство типа 2 Wallbox EV с монтажным полюсом IP54 для коммерческого использования
260,00 $ - 285,00 $

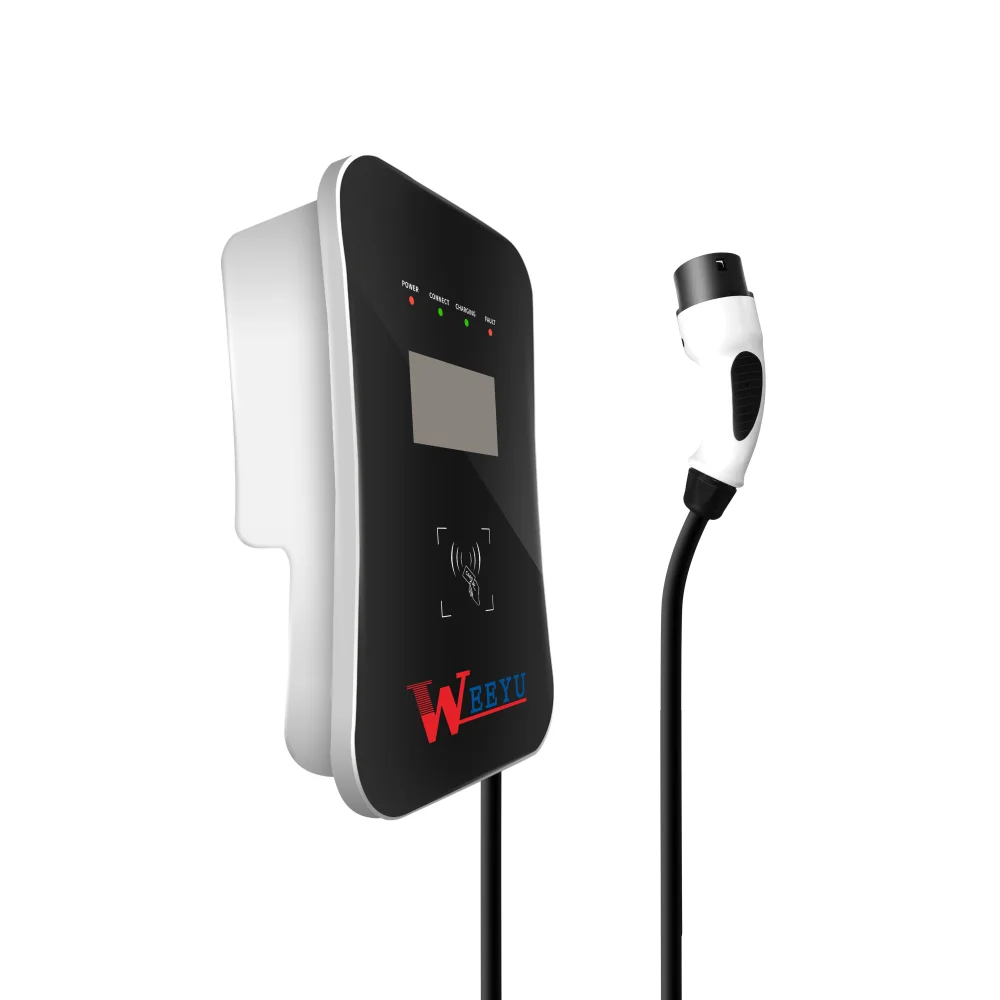

7 кВт 3.5квт Wallbox настенная зарядная станция EV Тип 2 типа 1type1car Charging Pile REACH ROHS
259,00 $ - 290,00 $
Электрическая Автомобильная зарядная станция с выходом IEC 62196 16A
220,00 $ - 319,00 $

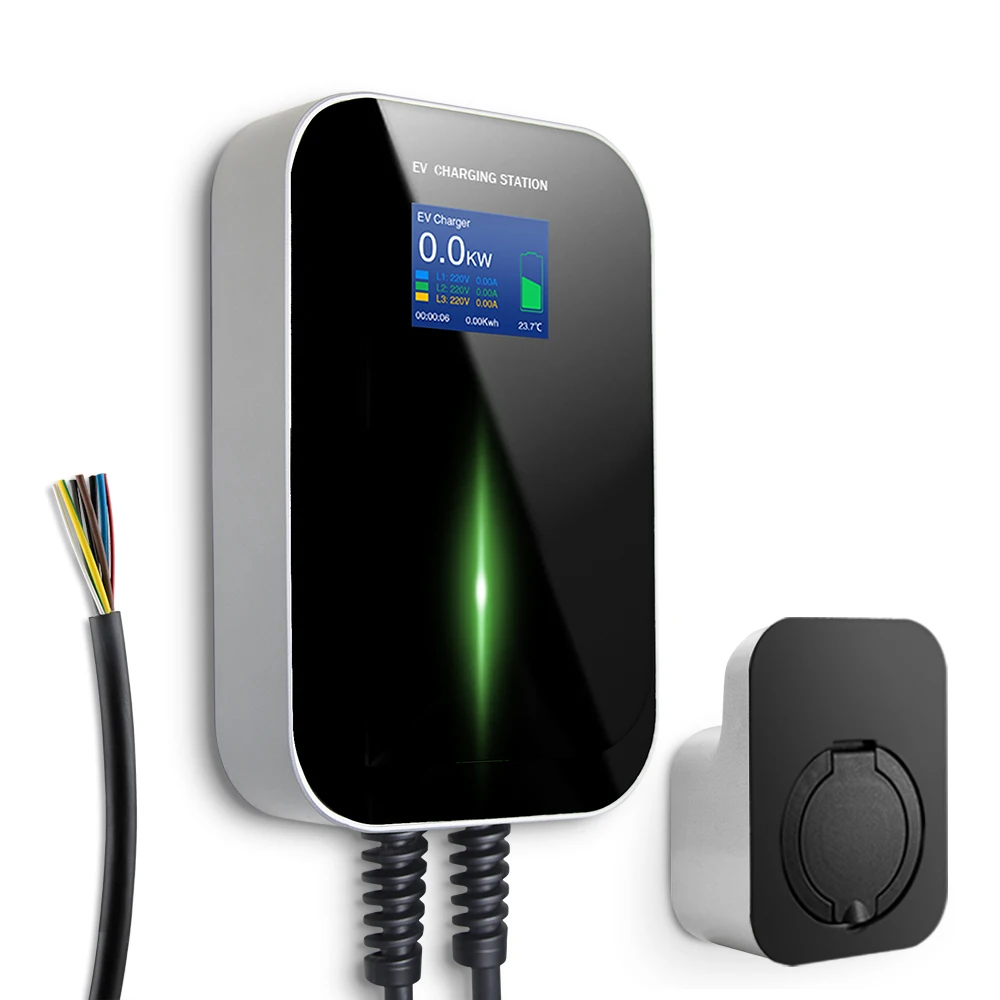

Ytgee AC 22KW 3 фазы CE электрических транспортных средств Wallbox EV автомобильное зарядное устройство станции
