EPB TBM проектный туннель 45 тонн Аккумуляторный локомотив

Сохранить в закладки 1600353589799:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description



EPB TBM Project Tunnel 45 Ton battery locomotive

Lead-acid Battery Locomotive


Lead-acid battery locomotive adopts lead-acid battery as power source. It is designed for subway and tunnel shield construction withstanding harsh construction environment such as track conditions, steep slope and humidity, and can be matched with shield machine and gantry crane to greatly improve the construction efficiency. Its performance indicators are at the advanced level in the industry.





Lithium Battery Locomotive


Lithium battery locomotive adopts lithium battery as power source. Lithium batteries have the characteristics of high energy density, high conversion efficiency, no memory effect, no charge-discharge delay, low self-discharge rate, and wide operating temperature range. In particular, lithium iron phosphate batteries have the advantages of non-toxic, non-polluting, good safety performance, long life and wide sources of raw materials, and long life. Its application on locomotives effectively solves the lead-acid battery problems of requiring frequent maintenancefrequent charging and insufficient cruising range in long tunnels.

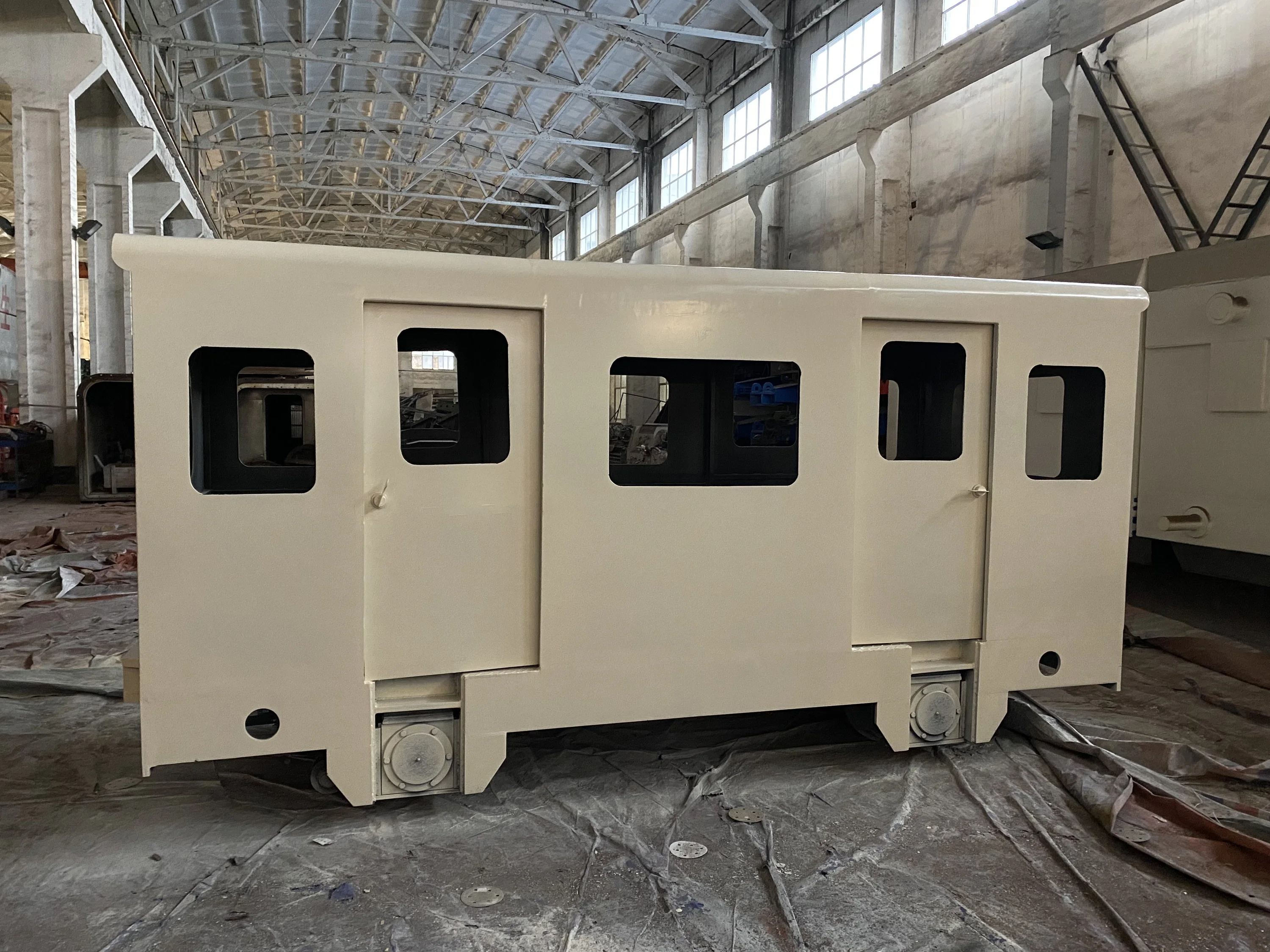

Passenger Car


Passenger car is specially designed for transporting construction personnel in tunnel shield construction.  It is mainly responsible for transferring tunnel construction personnel, improves construction efficiency, and ensures the safety of construction personnel.It is mainly composed of running part, braking device and car body.


Passenger cars are available in various in capacity of 8-25 people seat.

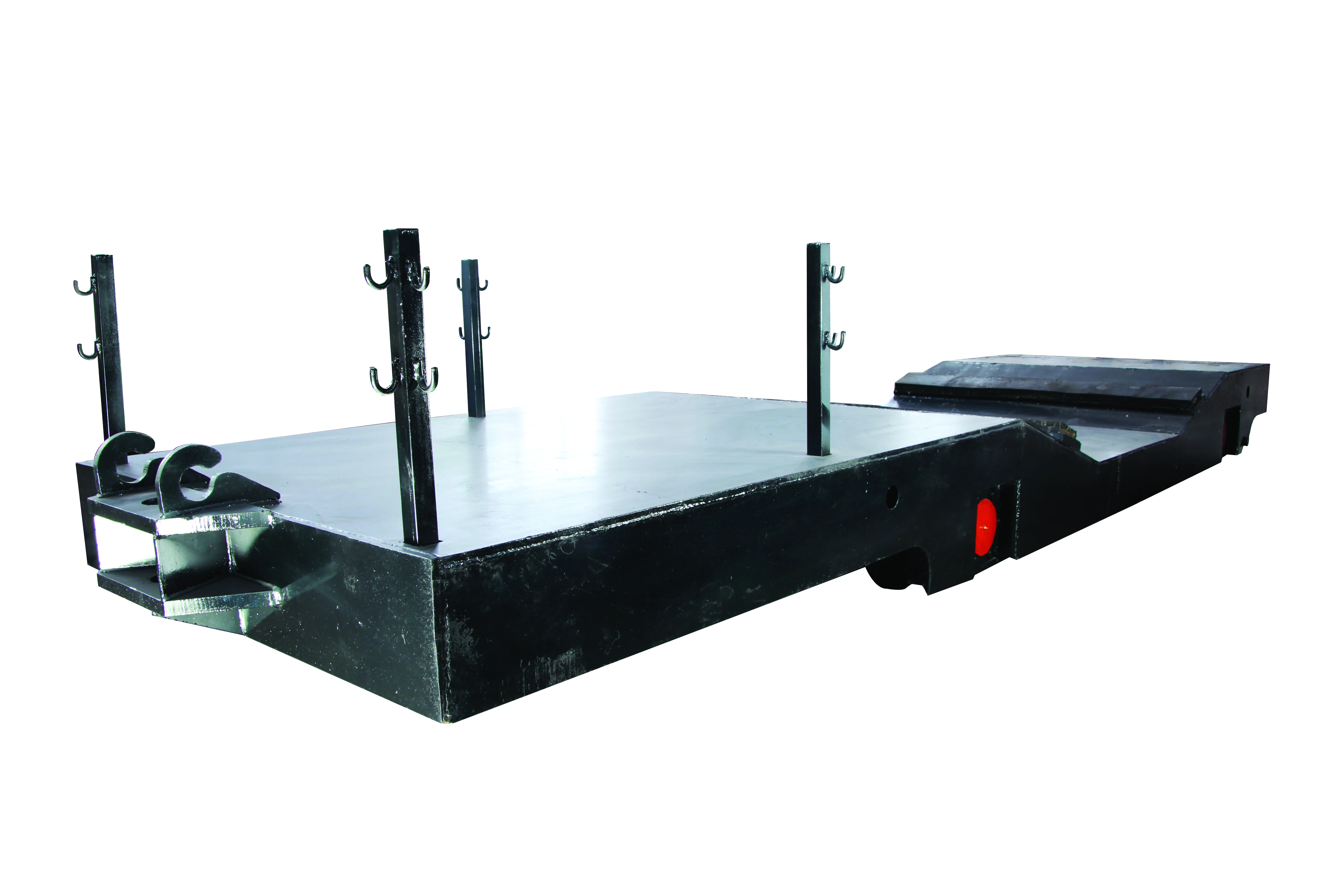

Segment Car


Segment cars are mainly used for transportation of segments. It is composed of a running part, a car body and other parts. The body adopts a “concave” welded steel structure to ensure the full contact between the bottom layer of the segment and the car body, and there is a buffer and anti-skid device. A rubber anti-slip mat is equipped on the car body.


Segment cars are available in various in capacity of 12t~35t.

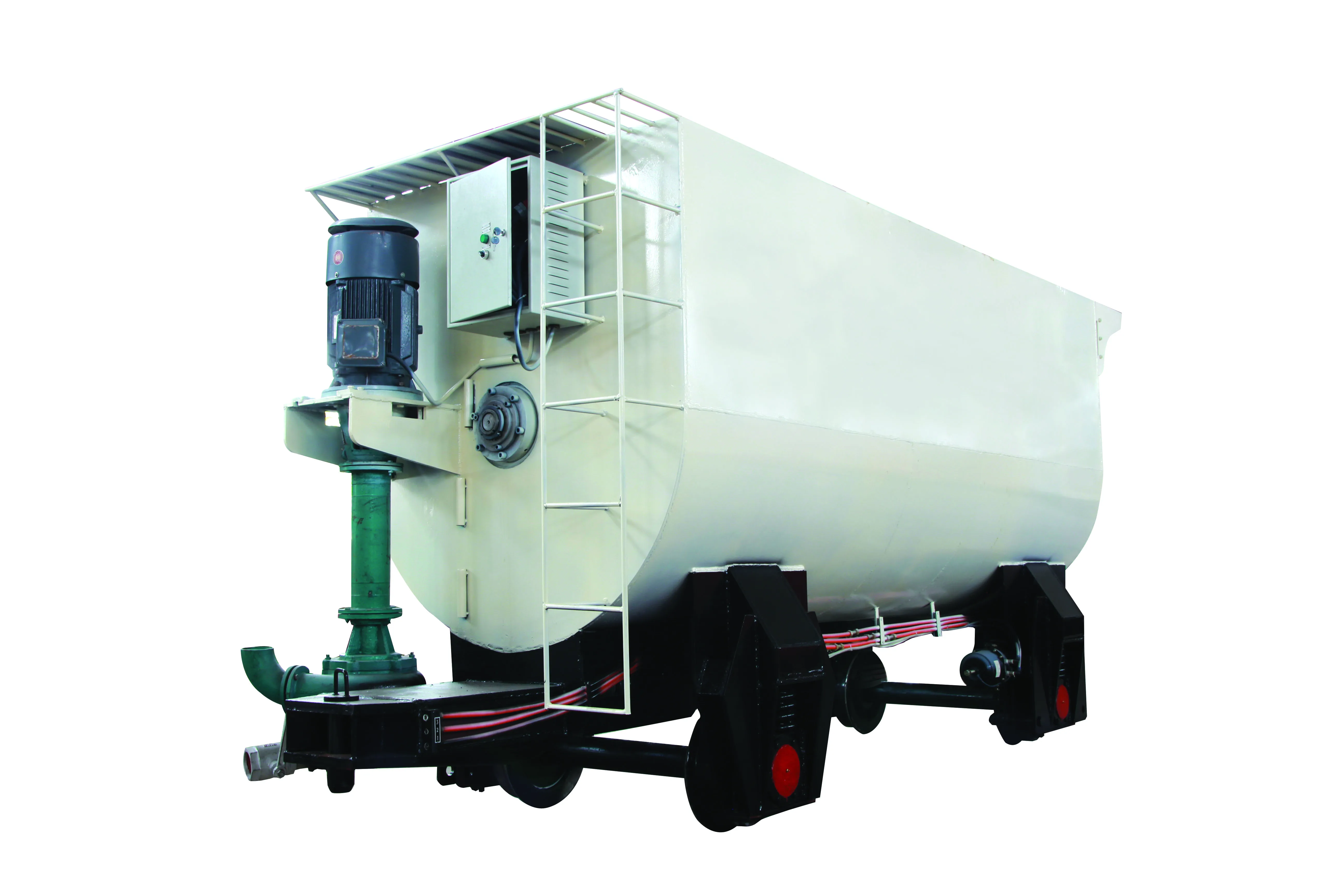

Grout Car


Grout Car is composed of running gear, car body, power transmission system, mixing system, electrical control system and other parts. The mixing motor, gearbox and mixing shaft are directly connected, and the structure is compact. The running device adopts a two-axle with axle box, and it is a bearing mechanical transmission without bogie. The power system adopts two-stage speed reduction box. The stirring shaft system can realize clockwise and counterclockwise rotation. The seal of the mixing shaft at both ends of the vehicle body is a labyrinth seal, and the mixing shaft can be taken out and replaced as a whole.


Grout Cars are available in various in capacity of 3~15.

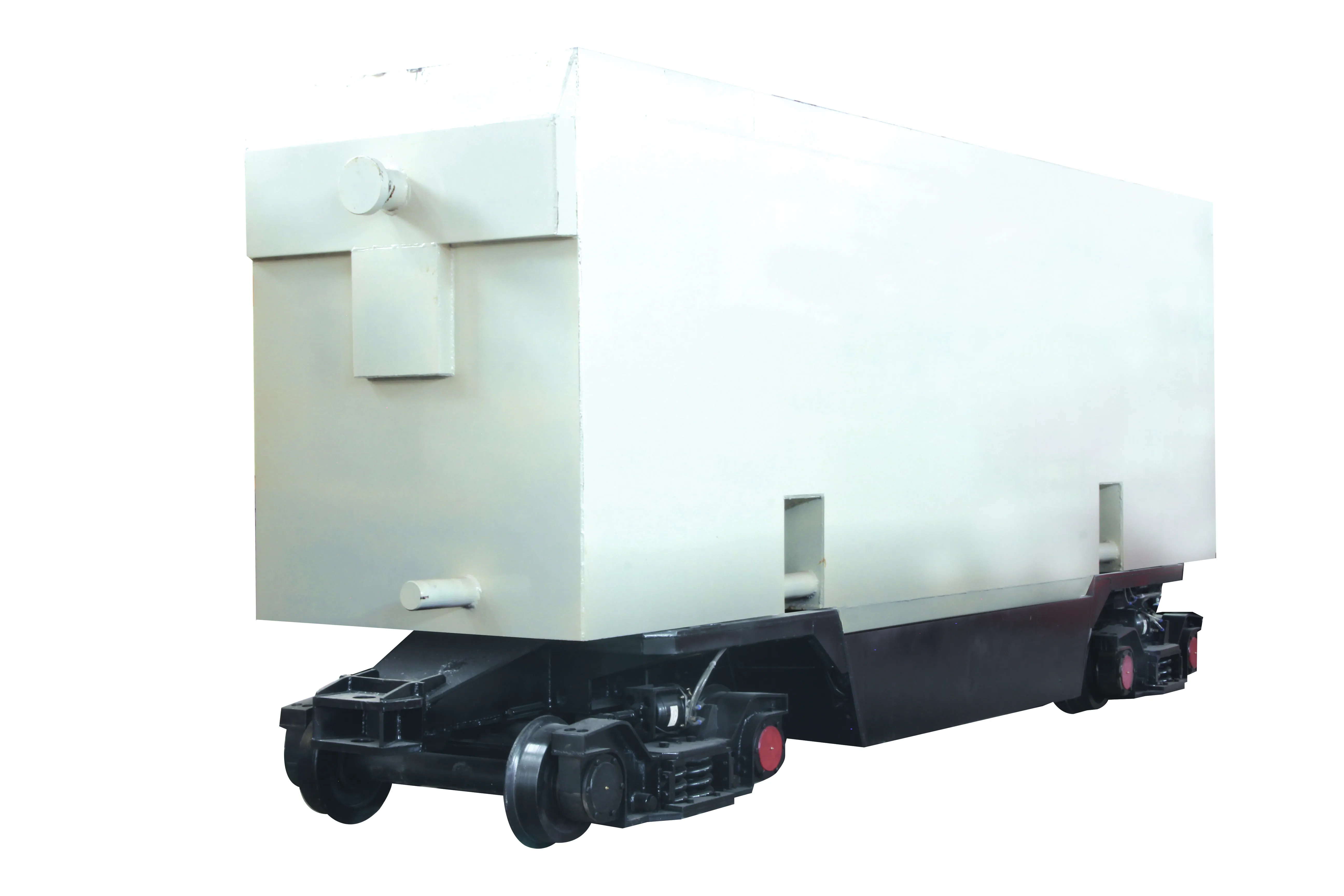

Muck car


Muck car is composed of a bogie, a frame, a slag bucket and other parts. The running device adopts the structure of two-axle bogie.The slag bucket has sufficient strength to ensure safe lifting and unloading of the slag. There are self-weight turning and auxiliary turning, and the slag is easy to dump. The bottom of the slag bucket is a wedge-shaped structure, which is convenient and quick to combine with the frame when falling. It adopts a spiral cylindrical spring to absorb shock and has a good effect.


Muck cars are available in various in capacity of 5~25m³.










Flat Car


Flat car is specially designed for transporting materials, tools and machines in tunnel shield construction. It mainly transports tunnel construction materials, tools, machinery for improving the efficiency of tunnel construction and transport safety.  It is mainly composed of running part, brake device, bogie and car body.


Flat cars are available in various in capacity of 10 ~ 90 tons.















Packaging & Shipping







Product Categories


Mining Locomotive





.jpg





Tunnel Locomotive and Rolling Stocks













Company Overviews



Company profile >>




Hunan Shaoli Group Electric Co., Ltd. (Original Name: Xiangtan Electric Locomotive Factory Co., Ltd.)
*29 years production experience
*ISO9001, ISO14001, ISO45001, CE certificated
*Paid-in capital CNY 78 million
*Self-made rate more than 95%,including controller, battery, motor, charger.
*China Famous Trademark "SHAOLI"
*German brand "infineon" IGBT module
*Swiss brand“ABB”motherboard
*Sweden brand“SKF”bearing
*On-site installation guidance









 Factory Hot Sale

Company Overviews



 Factory Hot Sale

Honor



 Factory Hot Sale

Buildings



 Factory Hot Sale

Office



 Factory Hot Sale

Workship






History


 Factory Hot Sale



1995




Xiangtan mine electric locomotive equipment factory was established.




2000




Name changed as "Xiangtan electric locomotive factrory Co.,Ltd.




2006




The first 30 tonne AC frequency conversion speed regulation electric locomotive in China was produced.




2007




"National high-tech enterprises" was issued.




2013




"SHAOLI" was issued as "national famous tradmark"




2020




The first 65 tonne electric locomotive in China was produced.
