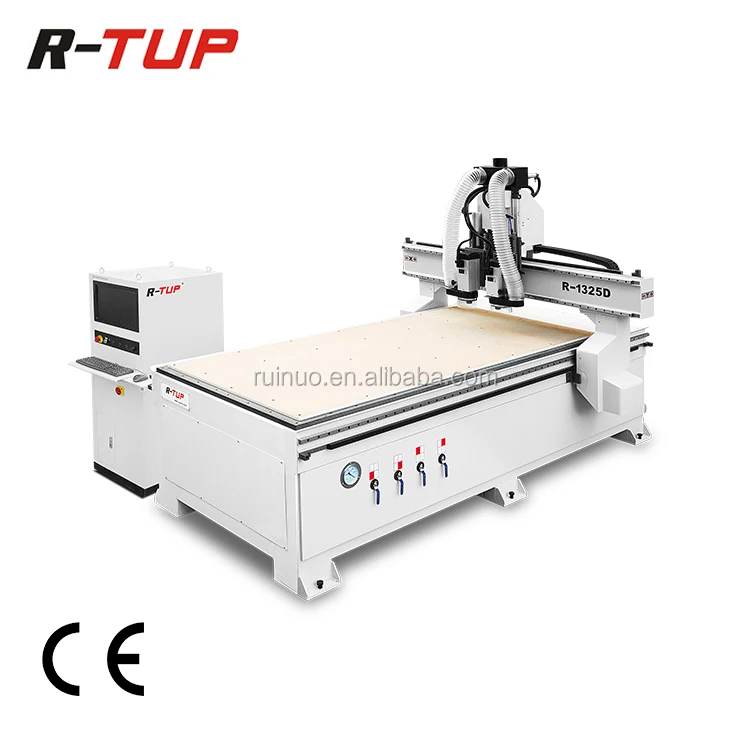

R 1325D вращения шпинделя 3 оси 1325 4x8 футов деревообработочный cnc фрезерный

Сохранить в закладки 1600353606285:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description



NO.

Mechanical index

Specification
1.
Working range
X-axis
1300MM
Y-axis
2500MM
Z-axis
180MM
2.
Machine Precision
Processing Precision
±0.1MM
Repeat Positioning
±0.03MM
3.
Machine Structure
Work Table
Vacuum worktable
X/Y/Z axis
X/Y axis:Oblique Rack Gear;
Z axis:Ball Screw
4.
Speed
Max Traverse Speed
75M/MIN
Max Cutting Speed
25M/MIN
5.
Main Spindle
Spindle Quantity
2 Spindle
Spindle Power
6KW*2
Spindle Rotating
18000R/MIN
6.
Working Voltage
AC380V/50HZ
7.
Control system
Weihong NC Studio Control System(client owned computer)
8.
software
Jdpaint, powermill, Artcam, Alphacam, Type 3, etc.
CAD/CAM software compatible, identify G code, *.NC








6KW high speed spindle(air-cooling)
Pressure roller
In order to Squeeze the plate while working
Leadshine servo motors with imported bearing inside

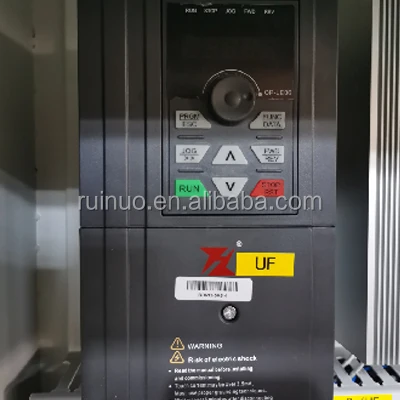

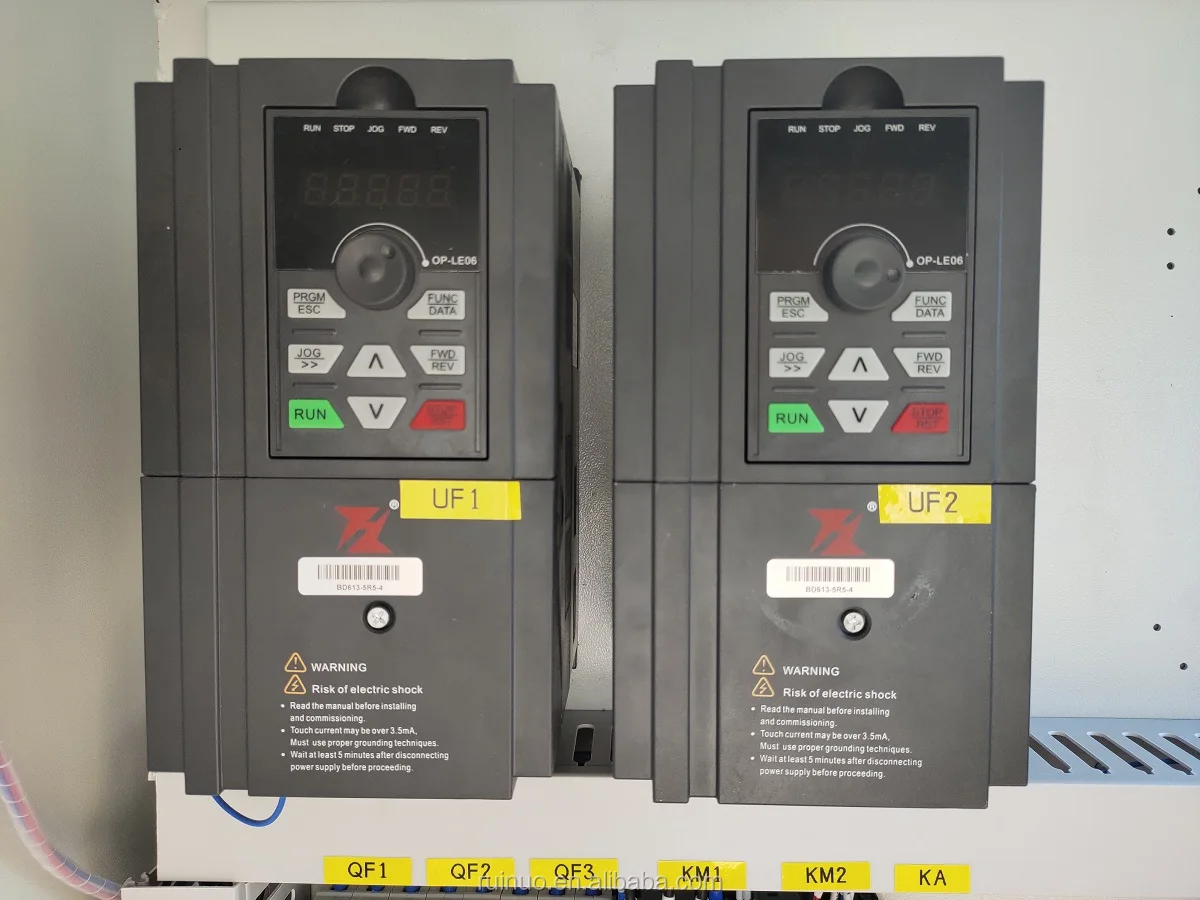

Sunfar frequency inverter

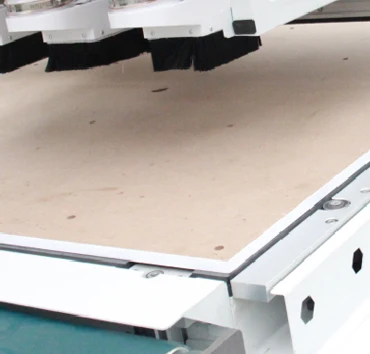

Vacuum worktable

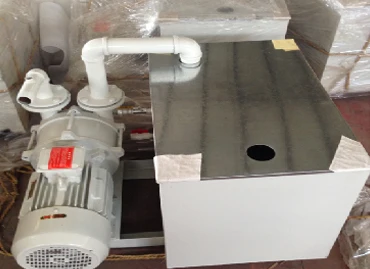

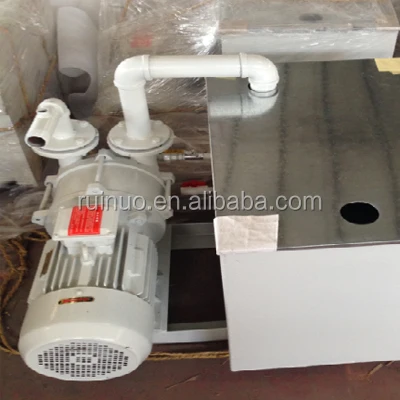

5.5KW water circulating vacuum pump.


Position pins
Weihong control system
TaiWan or Germany 25mm linear guide

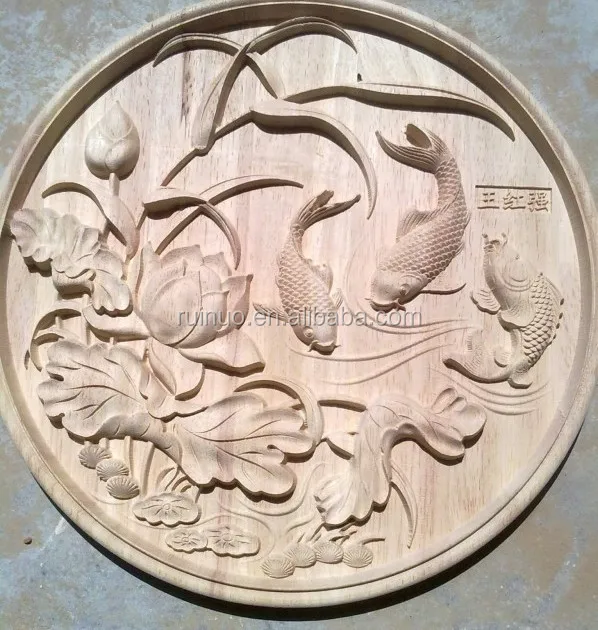

sample


APPLICATIONS OF CNC NESTING MACHINE:
1. Furniture industries
Cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries
Screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries
Achieveing effects of exquisite patterns and characters on artificial stones, woods, bamboos, marbles, organic boards,
double-color boards and so on.
4. Processing material
Engraving, milling and cutting for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets
such as copper and aluminum.




Related products




Production Process




Package&Shipping




About RUINUO






EIHIBITION




FAQ




1. What kinds of processing can the CNC router do?

A: The CNC Router can be used in cutting, milling, grinding, planning, drilling, engraving etc., especially for
abnormal shape's cutting.



2.What kinds of materials can the CNC router work on?

A: It can work on a lot of different materials besides kinds of wooden materials, such as acryl,
light guide, diffusion board, PVC, ABS PF, PE, PU, Fiber glass, man-made stone, compact grade
laminate board, Bakelite, aluminum profile, cooper plates etc.. For different materials, we have corresponding machines for choices.



3.Guarantee & After-sale Service

A..12 Months warranty under normal use and lifelong maintenance we supply
B..24 hours technical support by phone, email and other online contact.
C..Free training on machine operation, daily maintenance etc. in seller's factory.
D..We can send engineer go to overseas training



4.Delivery Time

Usually, for normal model, within 15 -20 days after get the deposit



5. Payment Terms

A.T/T in advance
B.L/C is allowed if the amount is big. Please issue the L/C draft for our configuration first.
C.Other kinds of payment we can consider if acceptable for us



 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
1. what is you product?
2. what is the material of you product, and the size( length/width/thickness)?
3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
4.what is the working area do you want?
5. do you have any other technical requirements? the more the better.
if you can provide some pictures of your products,that would be great!


Welcome to visit our factory, we can arrange pickup. our factory is located in Lunjiao town, Shunde District Foshan City,
1 hour drive from Guangzhou airport
30 minutes drive from Lecong international furniture town
20 minutes drive from Leliu furniture hardware town
40 minutes drive from
Foshan building material town
