Products Description
The DC charger researched by BWITT is a newly developed new-generation wall-mounted charger. It has the characteristics of small size, complete functions, intelligence and stability, and high cost performance. It meets the requirements of the latest national standards and is suitable for daily recharge of cars, on-board distribution, and rental. Station operation, etc., convenient, flexible, compact, high power density, strong compatibility, combined with multiple protection functions, remote control and upgrade functions, safe, reliable, stable, and easy to maintain. It can also be flexibly matched according to customers' different application environments and different vehicle needs Different types of modules to meet the needs of a variety of charging occasions
Product name | High intelligence 22kw wallbox charger Outdoor Single gun cable 22kw EV wallbox charger | ||||||
Brand Name | BWT-EV charging | ||||||
Model Number | BWT-DC-22KW | ||||||
Warranty | 1Years | ||||||
Installation | fall to the ground | ||||||
Input frequency | 50Hz | ||||||
Networking way | Ethernet | ||||||
Product Parameter
Technical Parameter: Support OEM custom power
Model | XY DC-EG30-20KW | XY DC-EG30-30KW | ||||
Nominal Input | ||||||
Power connection | 3P+N+PE | |||||
Voltage & Frequency | 400VAC±10%；45~65Hz | |||||
Total harmonic wave factor | THD＜5% | |||||
Power factor | ≧0.99 | |||||
Out Parameter | ||||||
Voltage | 200-750V | |||||
Max.Current | 50A | 100A | ||||
Max. Power | 20kw | 30kw | ||||
Steady current precision | ±0.5% | |||||
Output current precision | ≤±1%（≥30A 时）； | |||||
≤0.3A（＜30A 时） | ||||||
Output voltage precision | ±0.5% | |||||
Efficiency | ≧94% | |||||
General Specifications | ||||||

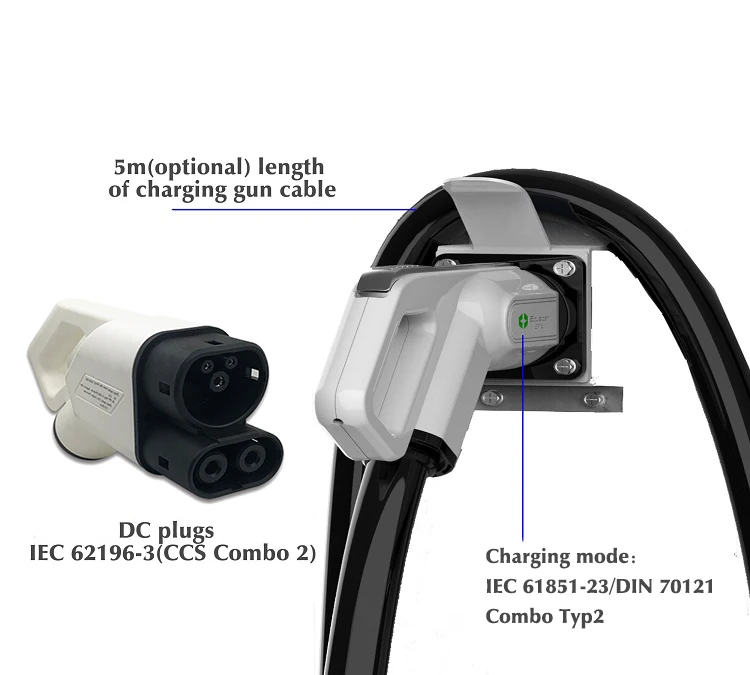

Charging mode | IEC 61851-23/DIN 70121 Combo Typ2 | |||||
DC plugs | IEC 62196-3(CCS Combo 2) | |||||
Display | 4.3”TFT Color touch screen | |||||
RFID system | Mifare (Classic, DesFire EV1) or others on request | |||||
Communication | GPRS /LAN/Wi-Fi | |||||
Communication Protocols | OCPP1.6 | |||||
Place of installation | Outdoor | |||||
Cooling mode | forced air cooling | |||||
Altitude | 2000m | |||||
Protection grade | IP54 | |||||
Operating Temperature | -20-60℃（Derating over 50℃ ） | |||||
Storage Temperature | -40-70℃ | |||||
Humidity | 5%~95% without condensation | |||||
Sound noise | <65 dB in all directions | |||||
Length of charging gun cable | 5m(optional) | |||||
Dimensions(W*D*H) | 430*205*610mm | |||||
Weight（Contains modules） | 45kg | 55kg | ||||
Details Images
Features：
Highly intelligent ARM chip solution, smart, stable and efficient

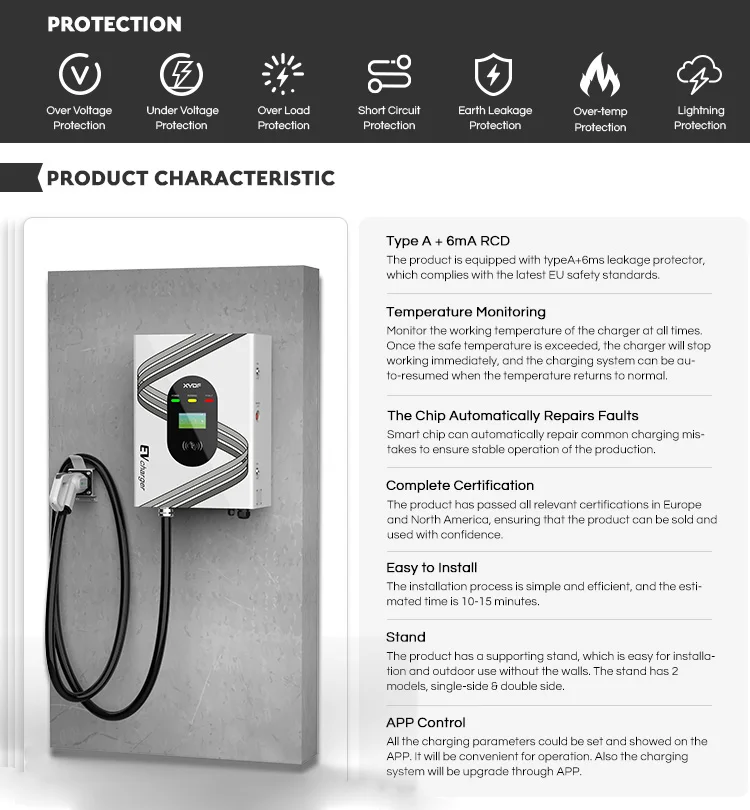

Multiple protection functions, safe and stable
4.3 inch true color touch screen, user-friendly design interface is intuitive, easy to operate, simple and easy to understand
Compact and generous appearance design, high performance and cost-effective
Ethernet port, GPRS, WIFI multiple networking communication options
Remote control switch machine, remote upgrade and maintenance function
Multiple protection functions, safe and stable
4.3 inch true color touch screen, user-friendly design interface is intuitive, easy to operate, simple and easy to understand
Compact and generous appearance design, high performance and cost-effective
Ethernet port, GPRS, WIFI multiple networking communication options
Remote control switch machine, remote upgrade and maintenance function
Applications：
● EV Infrastructure and operators
● Private installation or public parking
● EV dealers and service providers
Application Display
Company Profile
Certifications
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q4: What is your sample policy?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We willprovide specific solutions for your requirements.
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We willprovide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
