Серия YJF система фильтрации маслоотделяющего масла/очиститель вязкости маслоочистителя
5 970,75-6 285,00 $
Система регенерации масла земляного трансформатора Fullers для обесцвечивания и нейтрализации любых изоляционных масел
- Категория: >>>
- Поставщик: Chongqing TOP Oil Purifier Co. Ltd.Chongqing Ltd.
Сохранить в закладки 1600353777746:
Описание и отзывы
Характеристики
Product Description

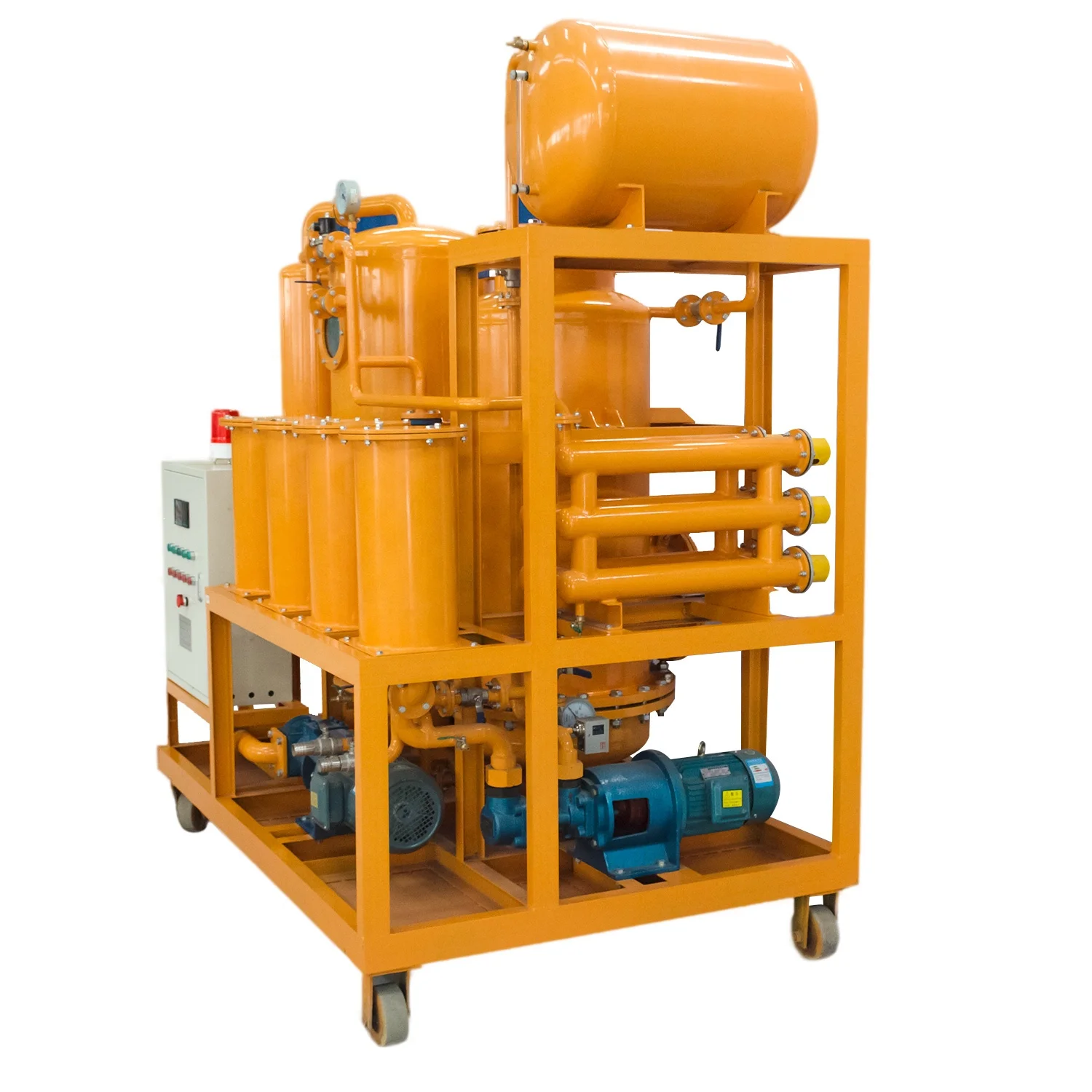

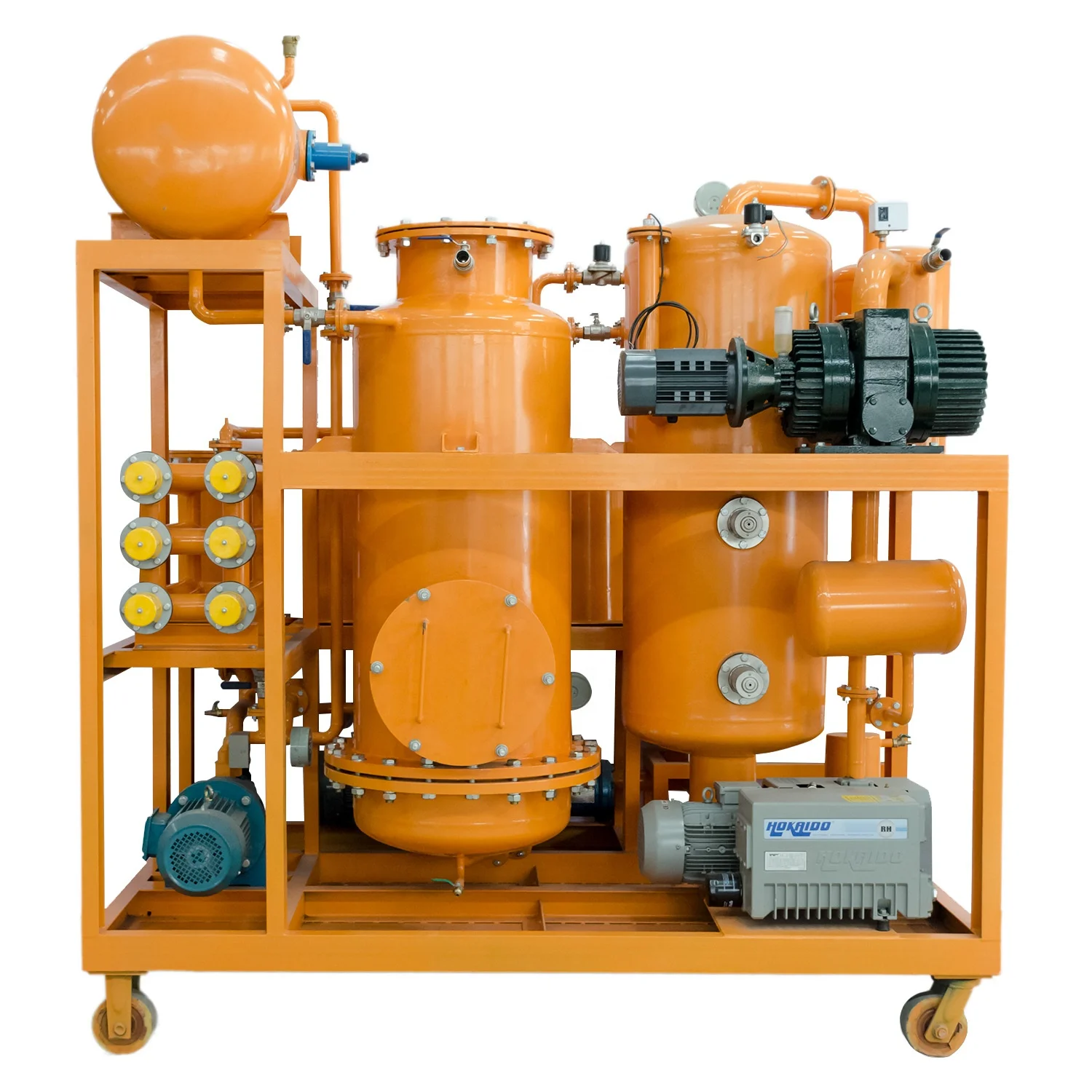

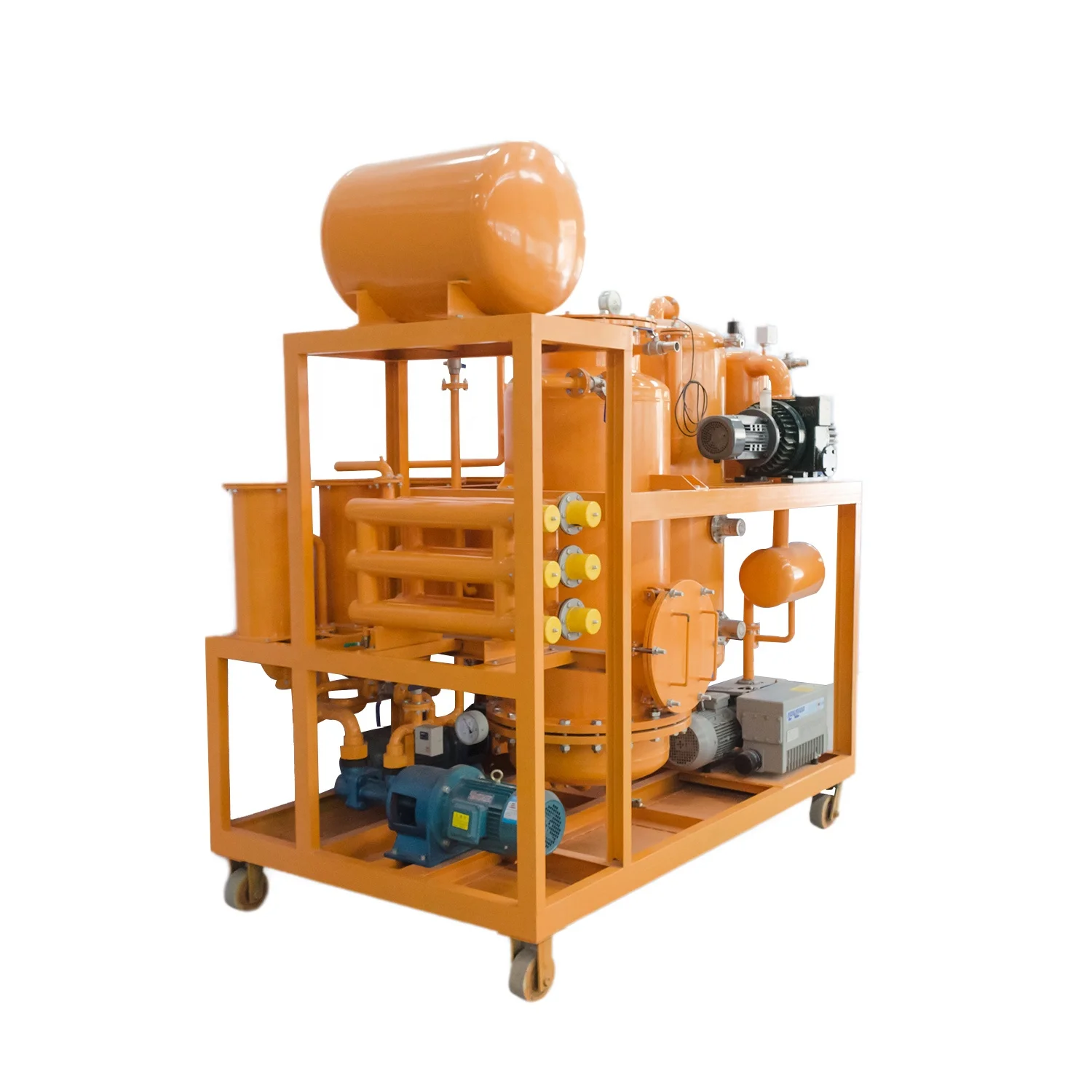

Fullers Earth Transformer Oil Regeneration System to decolorize and neutralize any insulating oils
regenerates aged transformer oils into like new condition fulfilling the requirement of
IEC 60422 standard as well as removes corrosive sulfur from transformer oils. ZYD-I transformer oil regeneration plants are built with variable capacity and sorbent reactivation capability. Plants are of stationary or mobile design and can work on offline or online transformers.
IEC 60422 standard as well as removes corrosive sulfur from transformer oils. ZYD-I transformer oil regeneration plants are built with variable capacity and sorbent reactivation capability. Plants are of stationary or mobile design and can work on offline or online transformers.
Single stage vacuum VS. Double Stage Vacuum
Under normal circumstances, single stage vacuum oil purifier is effective. However in exceptional cases where a higher state of vacuum is required to maintain low value of dissolved gases and moisture after oil treatment, double stage high vacuum oil purification machine is needed.
Machine function:
Remove free and dissolved water, gases, acid, sludge, solid and metal particles, etc.

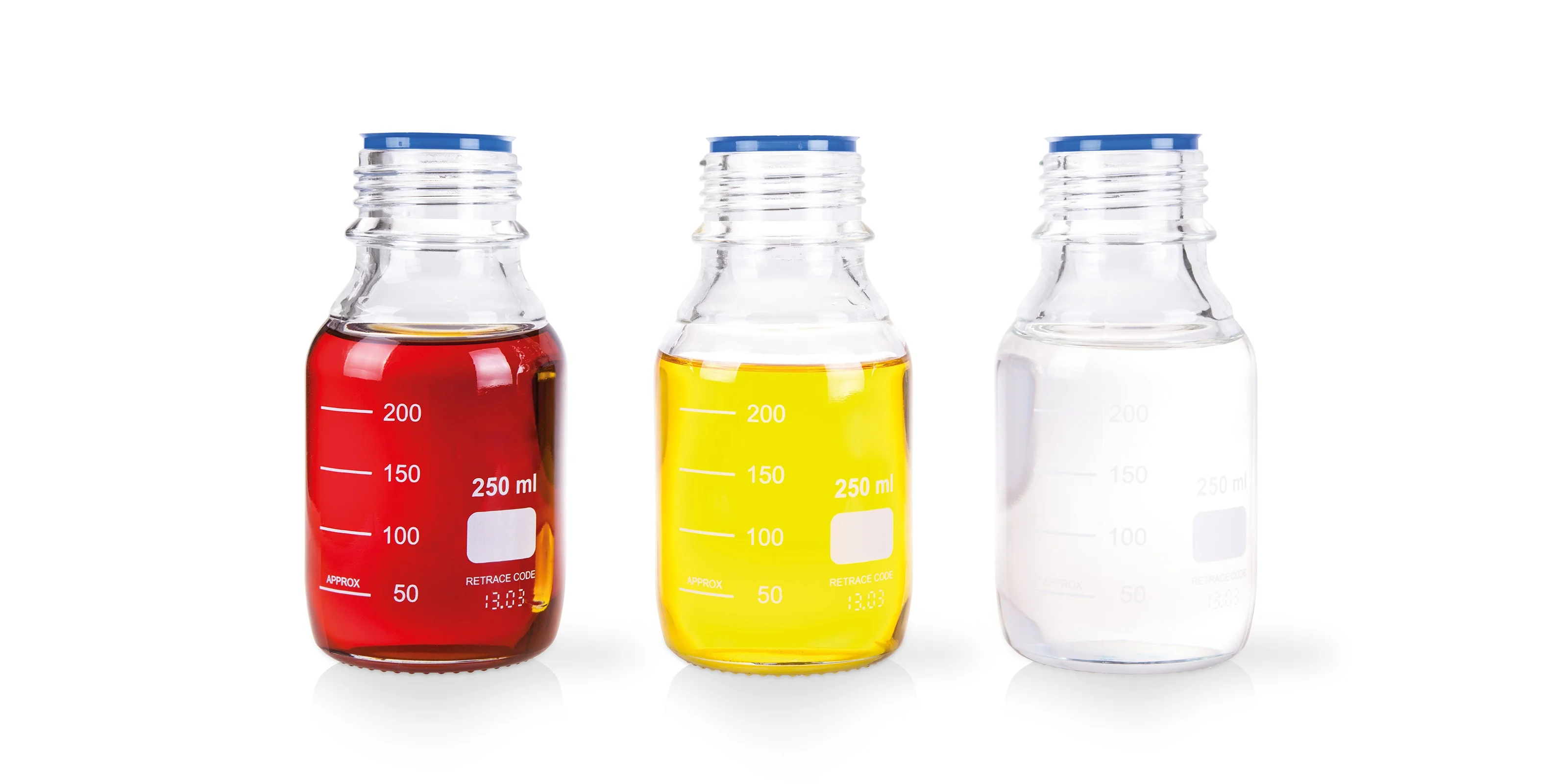

Improve oil color to make it have better appearance.
3.Maintain dielectric strength; the oil will have much higher breakdown voltage and improve coefficient of loss tan delta after treatment.
Special Features:
1. Alarm Annunciator
2.Transformer evacuation system
3.It can purify transformer oil on-line without power cutting off.
4.Duplex 3D stereo-evaporation to fast eliminate the moisture.
5. Especially applied to vacuum oiling and drying for power transmission equipment which are over 110KV
6.Can be operated both on-load and off-load.
7.Can be operated fully-automatically with PLC controller.

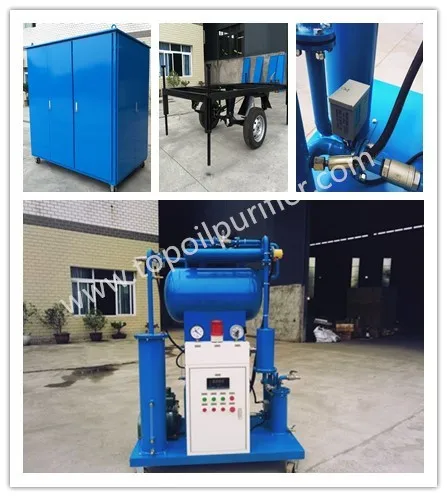

8.This Oil Filter Machine can be made in hermetical, canopy-covering, open and frame style.
Guaranteed Value after Treatment:
Breakdown Voltage≥75KV
Moisture content≤3PPM
Gas content≤0.1%
Impurity size≤0.5 micron(no free carbon)
IFT≥40dynes/cm
Acid value≤ 0.03mg KOH/g
Dielectric loss factors≤0.001tgδ(90℃)
Colour≤0.5L
Optional:
The unit can be produced in accordance with specific requests of the Client(additional vacuum pump, additional heater, weather-proof enclosure trailer for road transportation etc.).
Technical Parameters | ||
Model | ZYD-I-100 | |
Flow Rate | 6000L/h | |
Working Vacuum | -0.08～-0.099MPa | |
Working Pressure | ≤0.3MPa | |
Temperature Range | 20 ～ 80℃ | |
Power Supply | 3 phase 380V 60Hz (Or as needed) | |
Working Noise | 75dB(A) | |
Heating Power | 105kw | |
Total Power | 115kw | |
Oil Inlet/Outlet | φ50mm | |
Weight | 1500kg | |
Dimension | 2000*1400*2450mm | |
Guarantee Value | ||
Breakdown Voltage | ≥75kv | |
Moisture content | ≤3PPM | |
Gas content | ≤0.1% | |
Impurity size | ≤0.5micron (no free carbon) | |
IFT | ≥40dynes/cm | |
Acid value | ≤ 0.03mg KOH/g | |
Dielectric loss factors | ≤0.001tgδ(90℃) | |
Colour | ≤0.5L | |

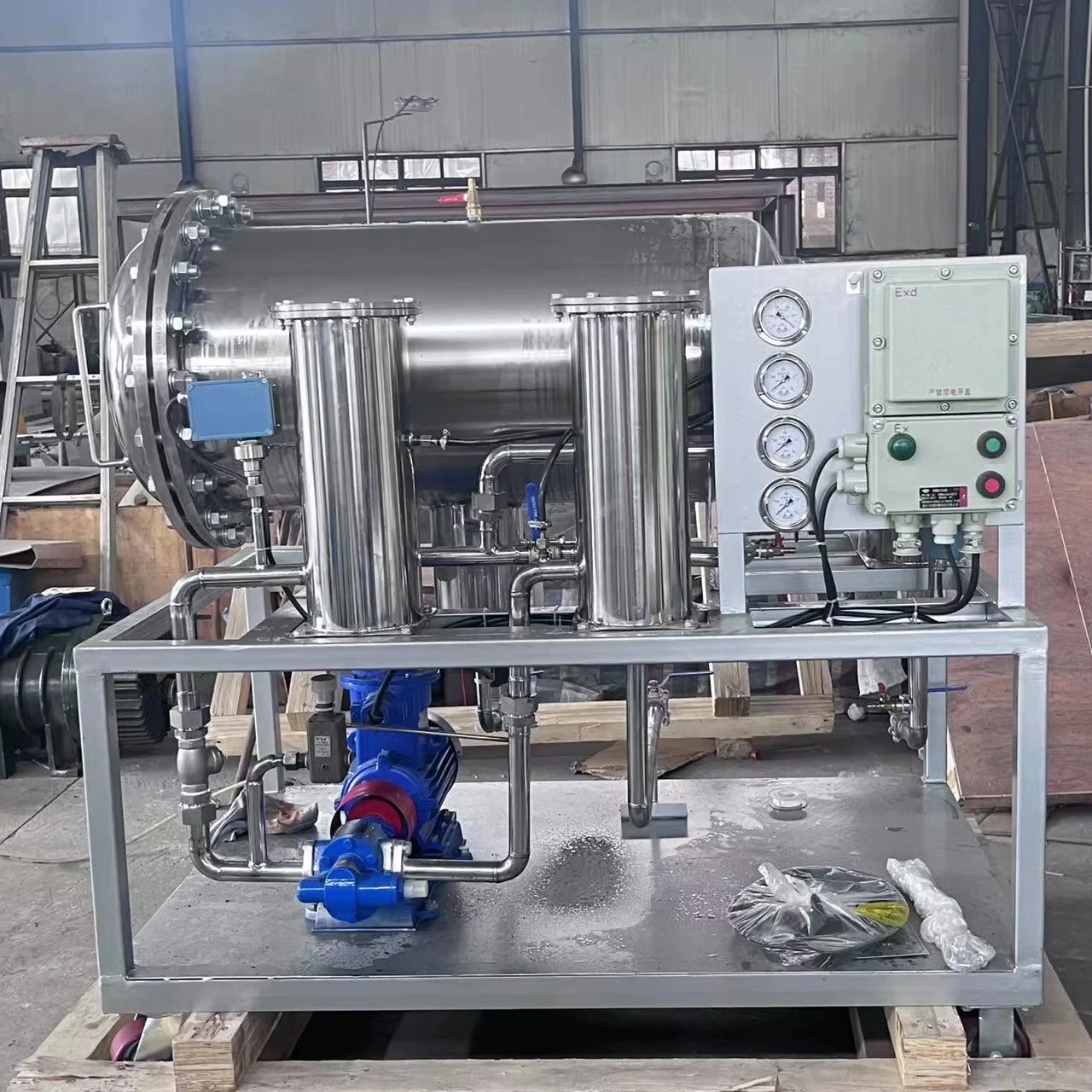

Detailed Images

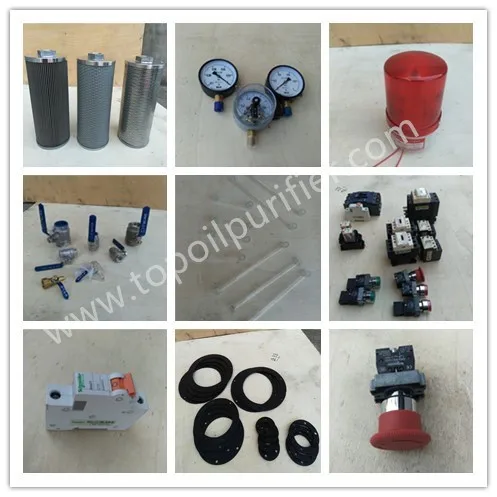

Some of the following spare parts for free:
The following international famous brand spare parts can be equipped according to your needs:

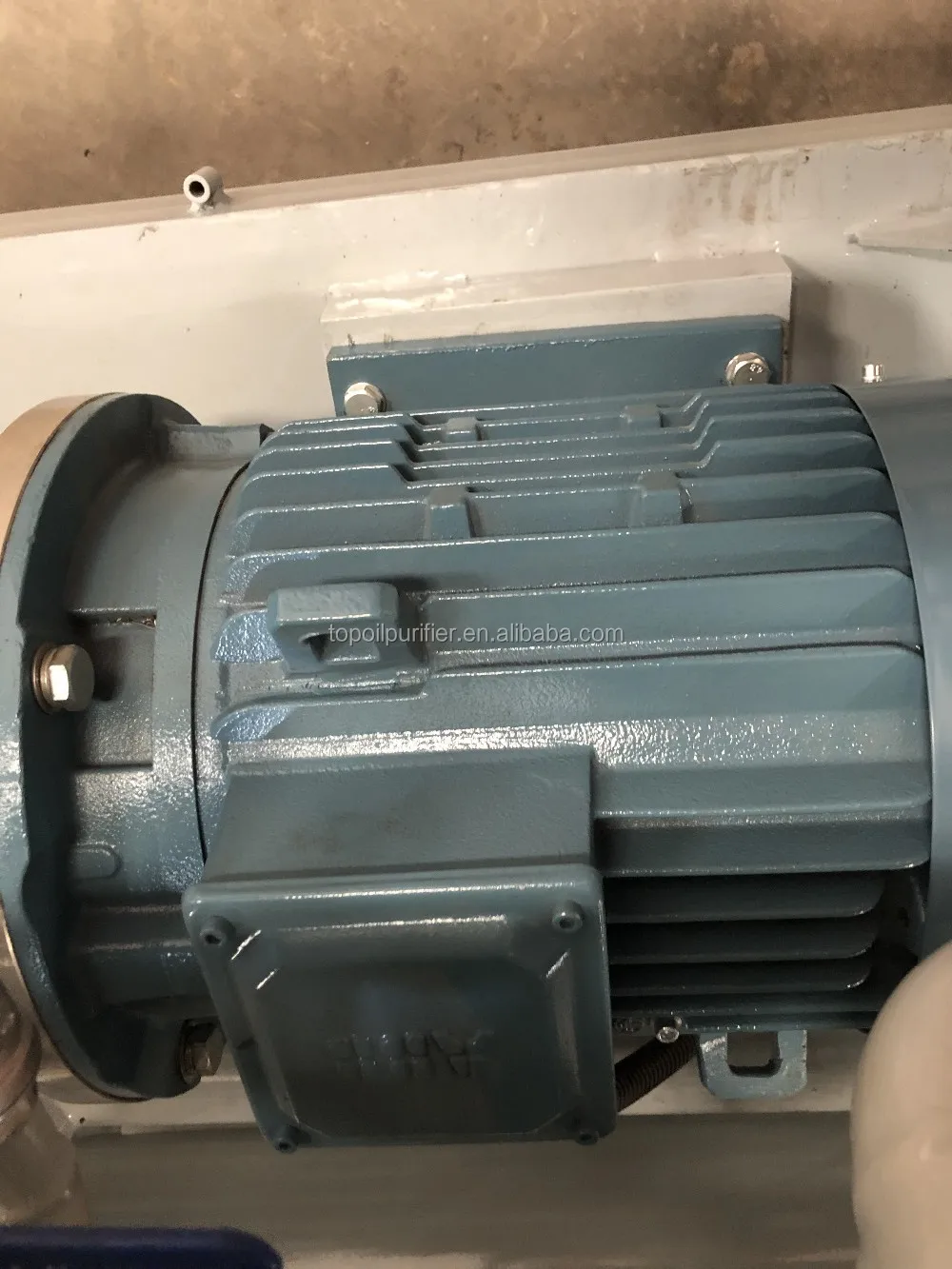

ABB Motor

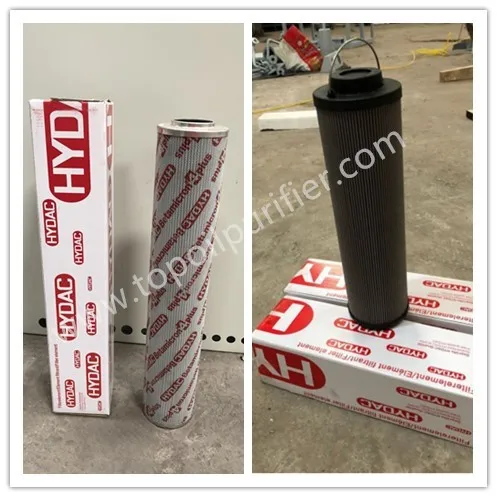

Hydac Filter
German Leybold Vacuum Pump
Schneider Electrical Parts
Related Products
ZY Series Single Stage Vacuum Transformer Oil Purifier

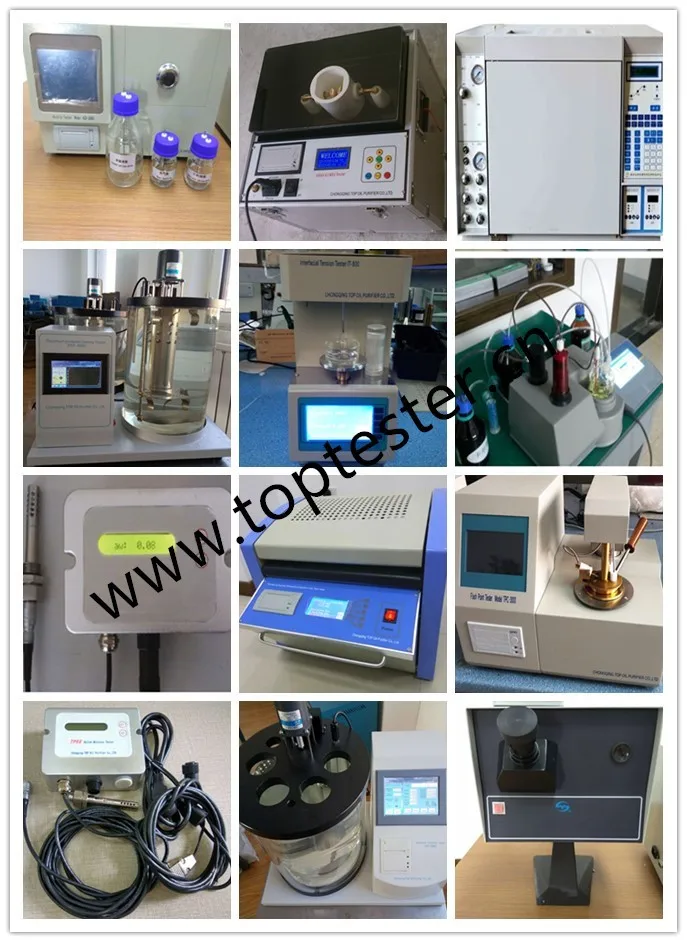

TRANSFORMER OIL TESTERS
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Petroleum Products Density Tester DST-3000
10.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
11.Petroleum Products Chroma Tester Model TP-225
12. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-062
13. Transformer Oil Insulating Oil Breakdown Voltage BDV Dielectric Strength Tester IIJ-II
14. Insulating Oil Dielectric Loss/ Resistivity/ Power Factor Tester TP-6100A
15. Transformer Oil Dissolved Gas DGA Analyzer/ Gas Chromatography GC2010MD

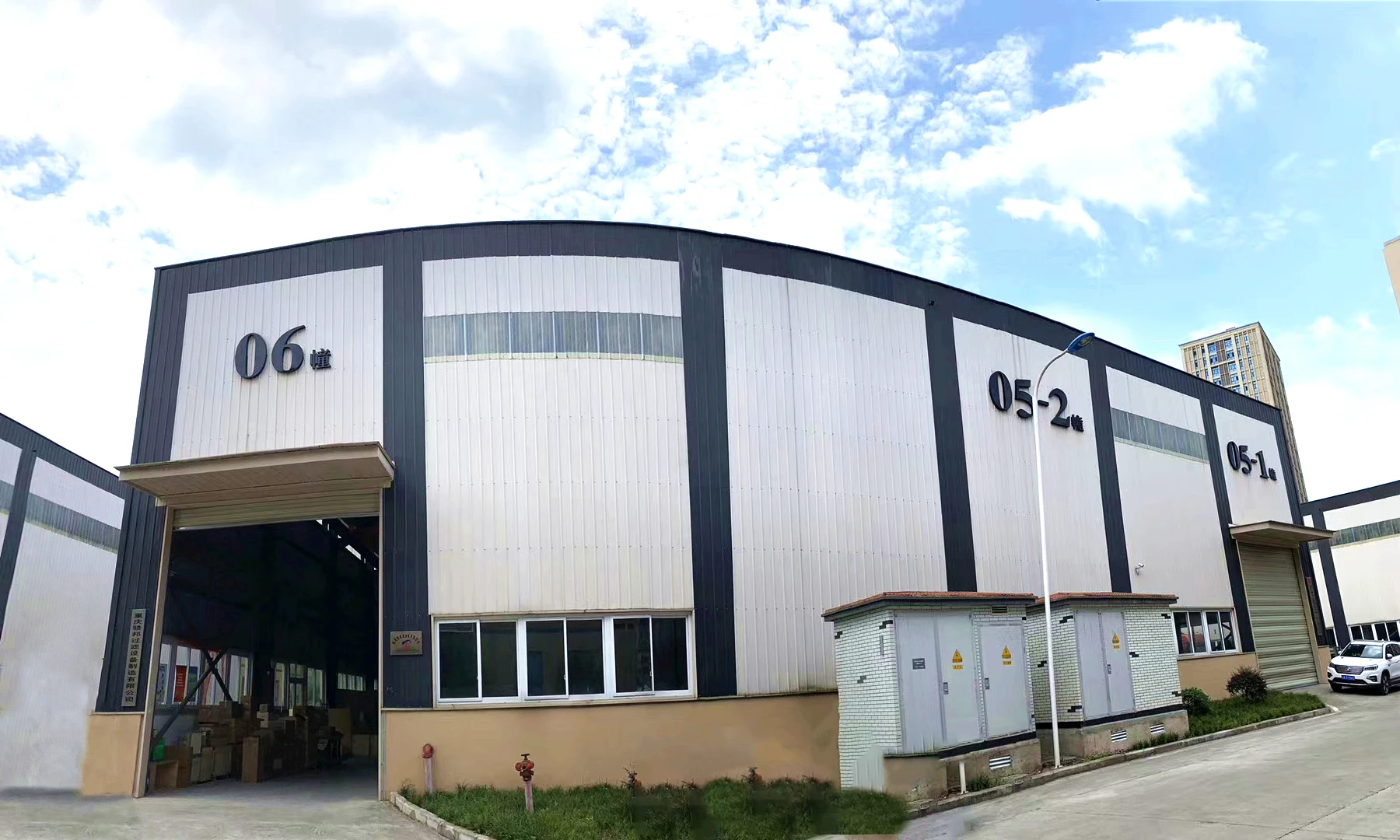

About Us
